Arch Conversion Fireplace Door With Flush Fit Arch Window Pane

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



 DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Opening Size: Up To 38"W and Up To 36"H

=:

$2,530.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 3-4 Weeks What Does Lead Time Mean | Why Buy From Us?

I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on website.
Please stand 6 feet away from your fireplace and take the picture of the front of your fireplace. Head On. Send only jpg,bmp,gif or pdf images!
Available
+

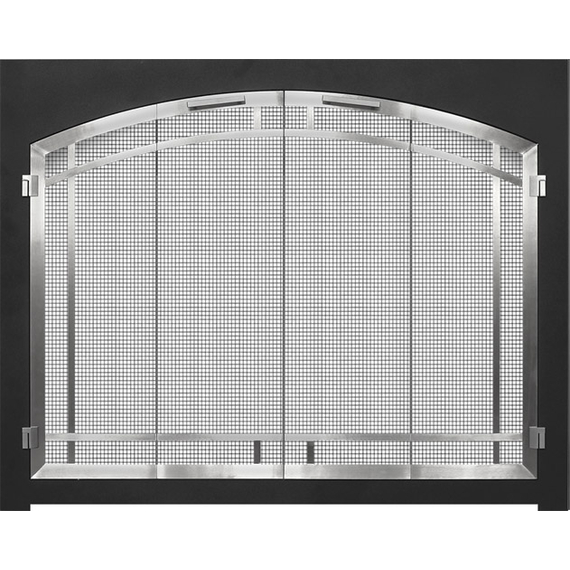

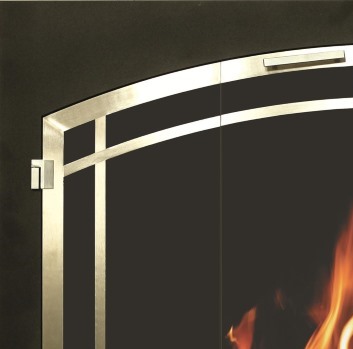

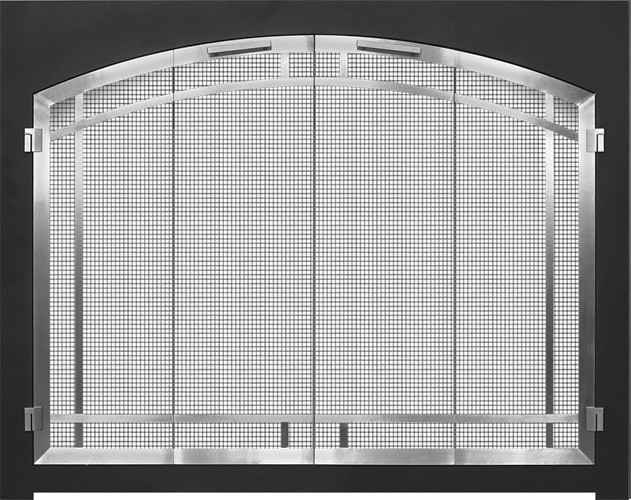

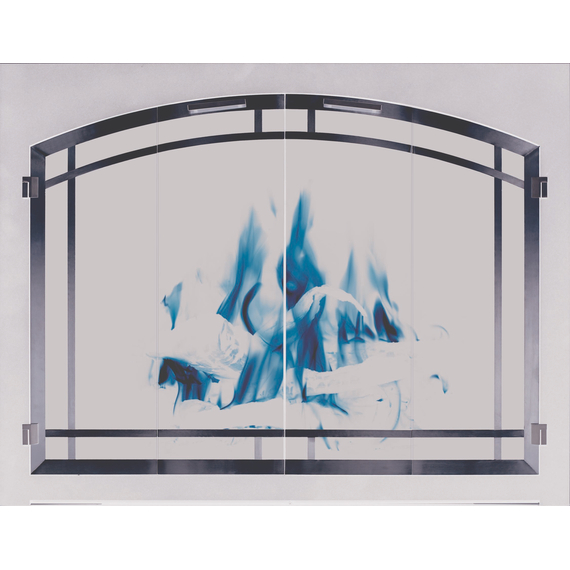

The Cascadian Arch Conversion custom fireplace door achieves the look of an elegant, arched masonry firebox. This rectangular shaped door can be customized as an overlap or inside fit enclosure and comes with or without a damper. We offer you the choice of beautiful powder coat or premium finishes for the main frame. The flush fit door panels features a window pane design and comes in 2 plated colors - either brushed nickel or satin brass. You can choose from bi-fold or cabinet style doors, which come with clear or tinted tempered safety glass. We include cabinet mesh to keep your home and furnishings shielded from sparks and embers. You do have the option to upgrade to a curtain rod with hanging mesh as well. Hinges and handles will be finished in the same color as the door frame, and we offer 3 different handle styles for you to choose from. This wood burning fireplace glass door will definitely make a statement in your home!


product features Product Features & Benefits:

  • Fireplace door ships for free; please allow 6-to 8 weeks for production
  • 5 year warranty on workmanship and material only; 1 year glass warranty

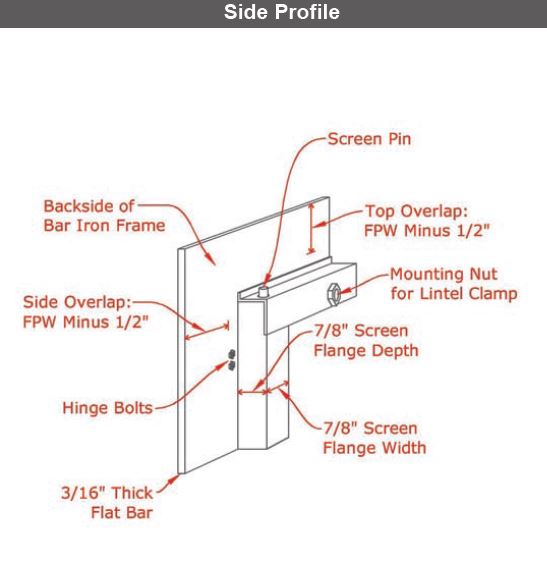

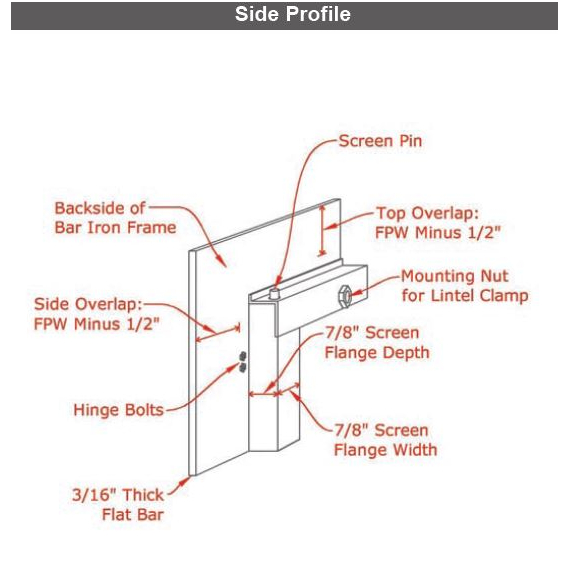

  • 7 gauge flat steel bar stock frame is 2 inches wide by 3/16 inch deep

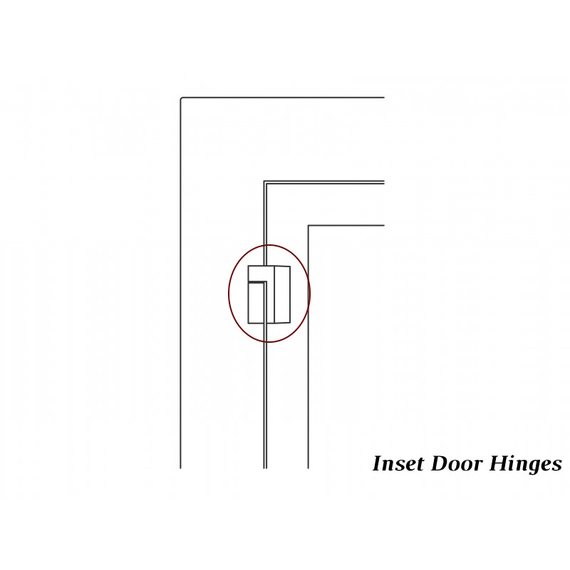

  • This custom door is available as an overlap or inside fit frame with flush fit door panels
  • Opt for a hidden damper or no damper at all
  • Check out the videos for an in depth view of finish colors
  • Door frame is plated in your preference of Brushed Nickel or Satin Brass

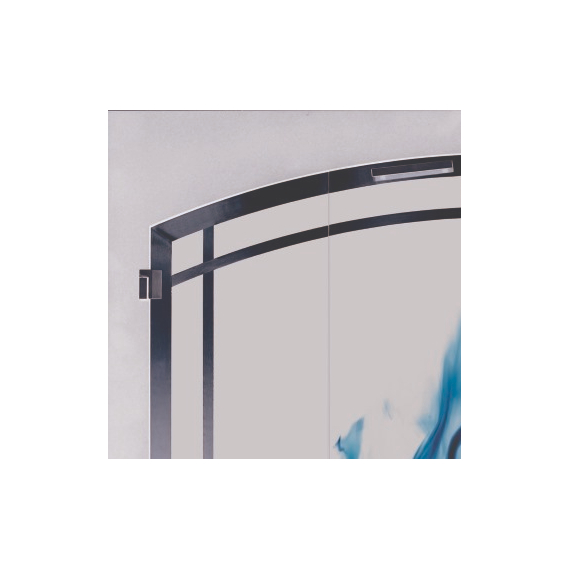

  • Mission style window pane design
  • Cabinet or trackless bi-fold doors feature 1/4 inch tempered safety glass
  • Choose from clear, bronze, or grey tinted glass
  • Select from Square, Wire, or Contemporary handle designs

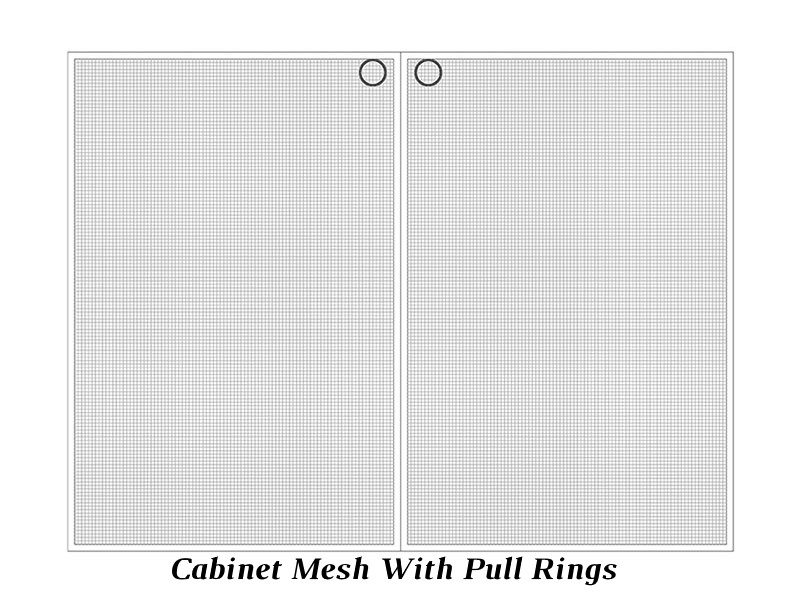

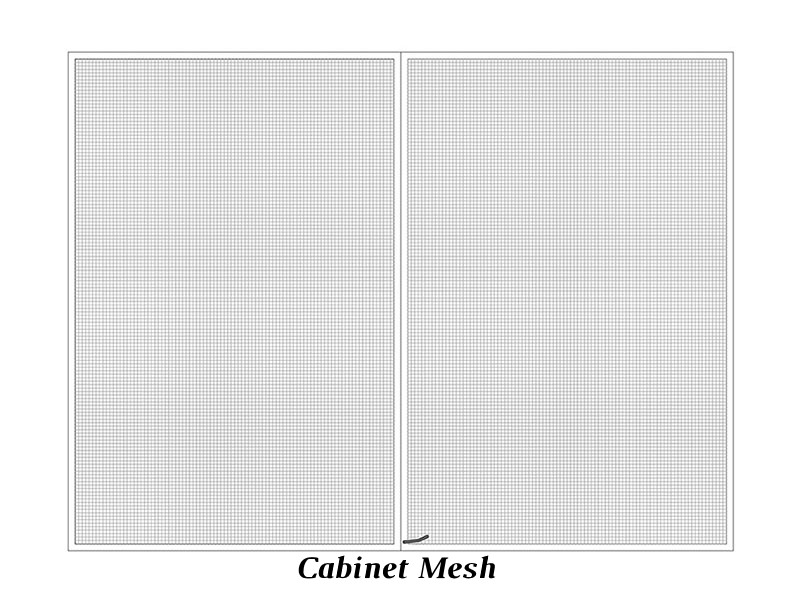

  • Cabinet mesh protection is optional; other upgrades available
  • Door comes fully assembled with included mounting hardware



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

product specs Product Specifications:

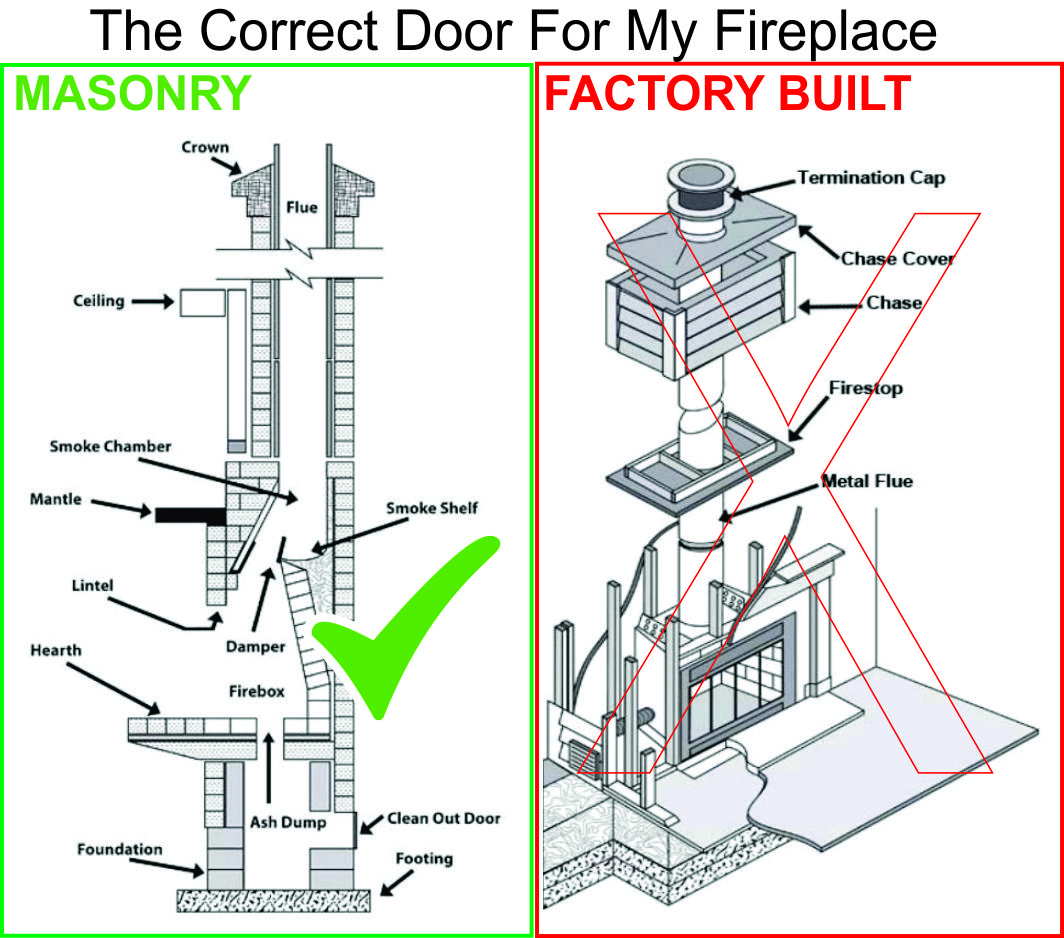

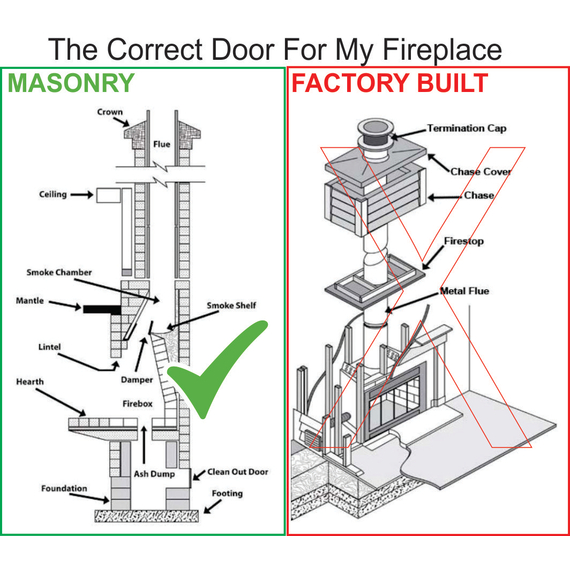

  • Fireplace Type: Masonry
  • Door Fit: Overlap | Inside
  • Door Type: Flush Fit Trackless Bi-Fold Doors | Flush Fit Cabinet Doors
  • Material: 2" Wide x 3/16" Deep 7 Gauge Steel Bar Stock Frame
  • Approximate Overlap: 1"
  • Glass: 1/4" Tempered Safety Glass (1-year warranty)
  • Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: N/A
  • Damper: Available
  • Mesh Protection: Optional
  • Handles: Square | Wire | Contemporary
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Please note: Curtain rod with mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch of depth.

Manufacturer's Warranty

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
