Biscayne Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Size Range For Pricing: Up To 36"W and Up To 36"H

=:

$1,706.40
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-5 Weeks What Does Lead Time Mean | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
Please stand 6 feet away from your fireplace and take the picture of the front of your fireplace. Head On. Send only jpg,bmp,gif or pdf images!
Available
+

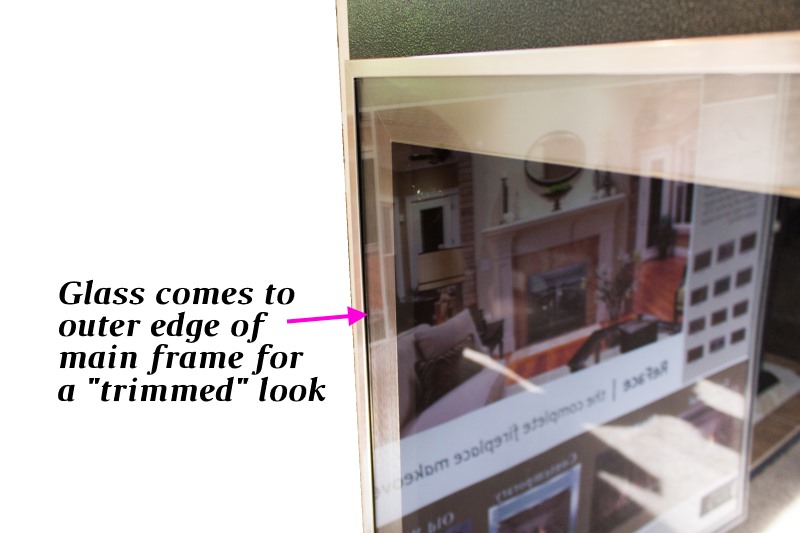

The Biscayne custom fireplace door features glass all the way to the edges. Customize this modern fireplace door the way you want it! The seamless, laser cut frame comes in numerous finish options, and you can choose clear or grey tinted tempered glass for the doors. We include cabinet mesh for spark protection, as well as all the hardware you'll need for an easy installation. Tell us what kind of hearth position you have (you can even upload a picture so we can get a better idea of your individual setup) and the damper choice you prefer. The depth between the two frames and the hidden 90° soft close hinges makes opening and closing the cabinet doors simple and easy. This is a great fireplace enclosure for many homeowners and the perfect addition to your modern living space!


product features Product Features & Benefits:

  • Fireplace door ships for free; please allow 4 to 6 weeks for production
  • 5 year warranty on workmanship and material only; 1 year glass warranty
  • Customize the size of this enclosure and choose an overlap or inside fit frame

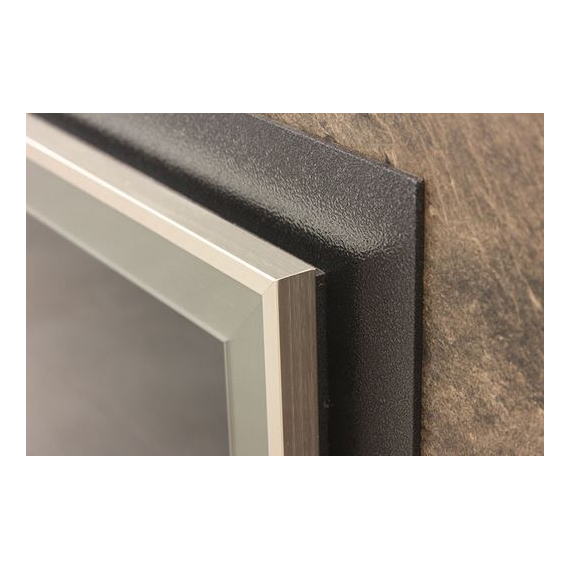

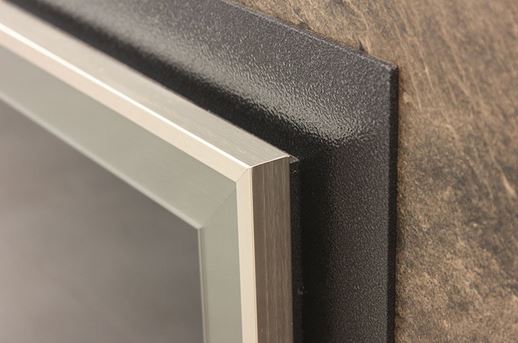

  • 7 gauge flat steel main frame has a Matte Black finish and is 1/2 inch wide by 3/16 inch deep
  • Check out the videos to see the available finish colors for the doors
  • Cabinet style doors are made from extruded aluminum and feature 90° soft close hinges
  • 1/8 inch tempered glass comes in clear or grey tinted glass
  • Doors sit in front of the main frame and open easily without handles
  • Mesh curtain is optional; alternative styles available
  • Door comes fully assembled with included mounting hardware



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

product specs Product Specifications:

  • Door Fit: Overlap | Inside Fit
  • Approximate Overlap: 1/4"
  • Door Type: Cabinet Doors
  • Main Frame Material: 1/2" Wide x 3/16" Deep 7 Gauge Flat Steel
  • Door Frame Material: Extruded Aluminum
  • Glass: 1/8" Tempered Safety Glass
  • Glass Tint: Grey | Clear
  • Ceramic Glass: N/A
  • Mesh Protection: Optional
  • Hinges: 90° Soft Close
  • Damper: Available
  • Airtight Option: N/A
  • Mounting: Hardware Included

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
