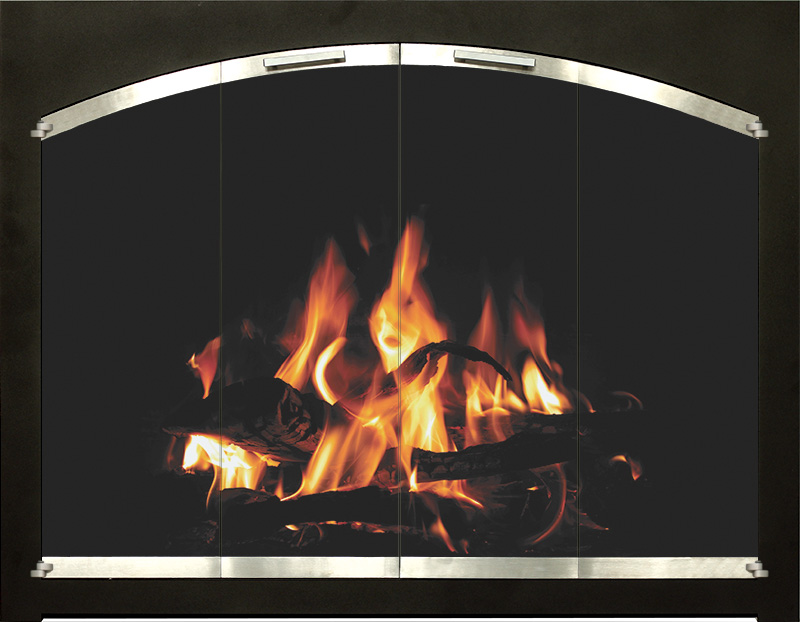

Arch Conversion Affinity Inline Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Size Range For Pricing: Up To 37"W and Up To 36"H

=:

$2,098.80
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
Please stand 6 feet away from your fireplace and take the picture of the front of your fireplace. Head On. Send only jpg,bmp,gif or pdf images!
Available
+

The Affinity arch conversion fireplace door will harmonize the look of your masonry fireplace with the rest of your decor! The Affinity is hand crafted from robust, laser cut steel for a flawless look, while European hinges bring an added touch of sophistication. Designed with a trendy minimalist approach, the flush fit doors give this enclosure a flat appearance while boasting contrasting frames for an eye catching element of surprise! Cabinet style doors are equipped with grey tempered safety glass. You can alter the look by opting for trackless bi-fold doors and clear or bronze tinted glass. Choose from many powder coat finishes for the main frame of the enclosure, while tastefully accenting the door frame with a premium or overlay finish. We offer nine different handle styles to further embellish this wood burning fireplace glass door. Cabinet mesh doors are included to protect your home and loved ones from hot coals and embers. You have the ability to select a different style of spark protection if you prefer something different. The frame can be customized with a hidden damper or no damper at all. Select the appropriate hearth position and door fit for your fireplace opening and we'll create a custom product based on all of your specifications!


Affinity Masonry Fireplace Door Features and Benefits Product Features and Benefits:

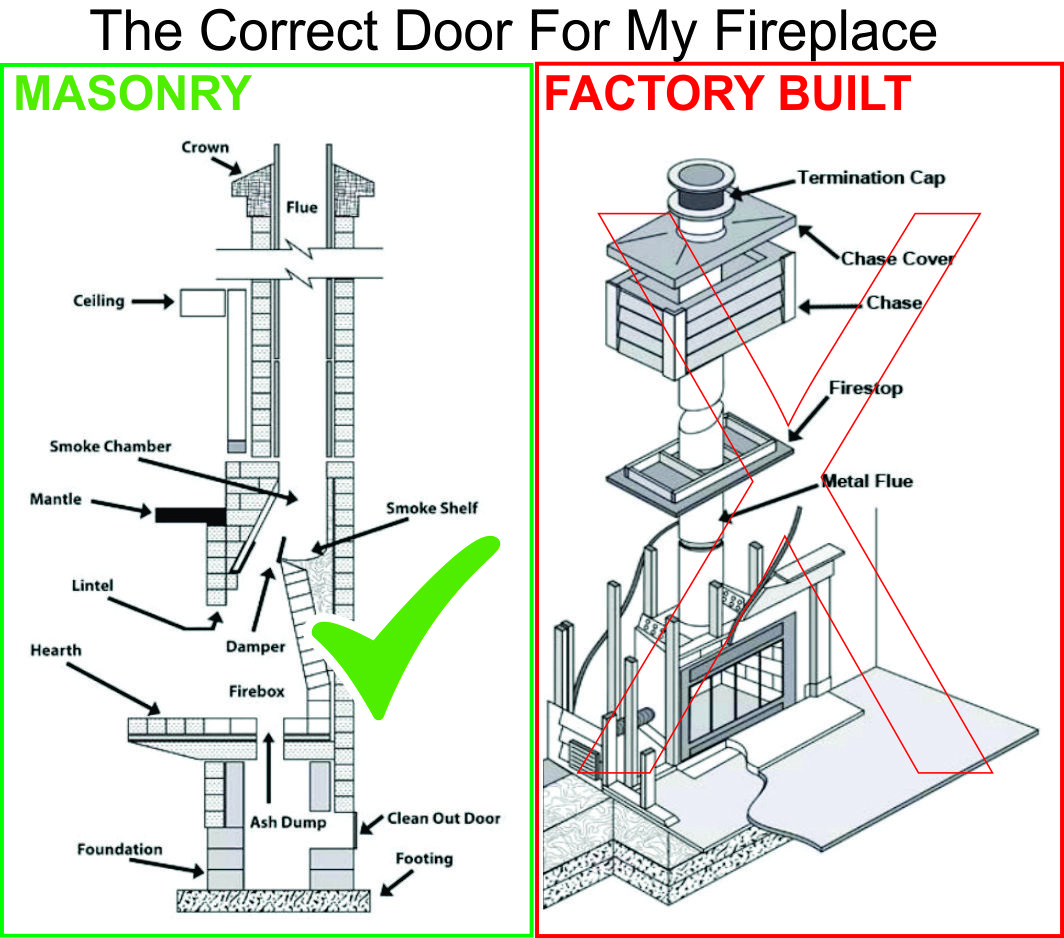

  • The Affinity door is for masonry fireplaces ONLY
  • Fireplace door ships for free; please allow 4 to 6 weeks for production
  • 5 year warranty on workmanship and material only; 1 year glass warranty

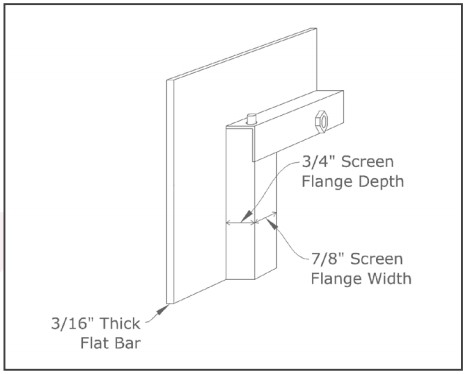

  • Main frame is 2 inches wide by 3/16 inch deep and made from laser cut 7 gauge steel
  • This custom door is available as an overlap or inside fit frame
  • Opt for a hidden damper or no damper at all
  • Check out the videos for an in depth view of finish colors
  • Main frame is available in powder coat finishes
  • Door frame is 1 inch wide and available in premium and overlay finishes
  • Flush fit cabinet or trackless bi-fold doors feature 1/4 inch tempered safety glass
  • Choose from grey, clear, or bronze glass

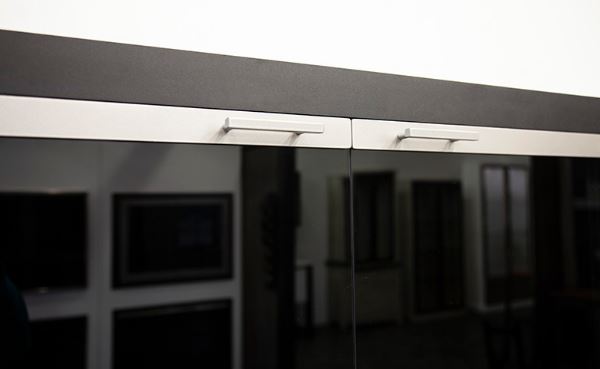

  • Select from 9 different handle designs

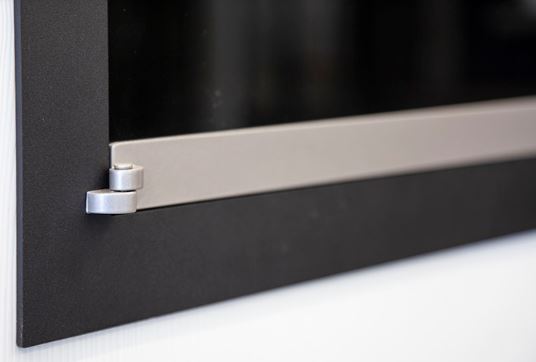

  • European hinges offer an elegant look
  • Cabinet mesh protection is available; other upgrades available
  • Door comes fully assembled with included mounting hardware



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Affinity Masonry Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Masonry
  • Door Fit: Overlap | Inside
  • Door Type: Flush Fit Cabinet Doors | Flush Fit Trackless Bi-Fold Doors
  • Material: 2" Wide x 3/16" Deep 7 Gauge Steel Bar Stock Frame | 1" Door Frame
  • Approximate Overlap: 1 1/2"
  • Glass: 1/4" Tempered Safety Glass (1 year warranty)
  • Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: N/A
  • Damper: Available
  • Mesh Protection: Optional
  • Handles: Square | Wire | Contemporary
  • Hinges: European
  • Airtight Option: N/A
  • Damper: Available
  • Assembly: Fully Assembled
  • Mounting: Hardware Included

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
