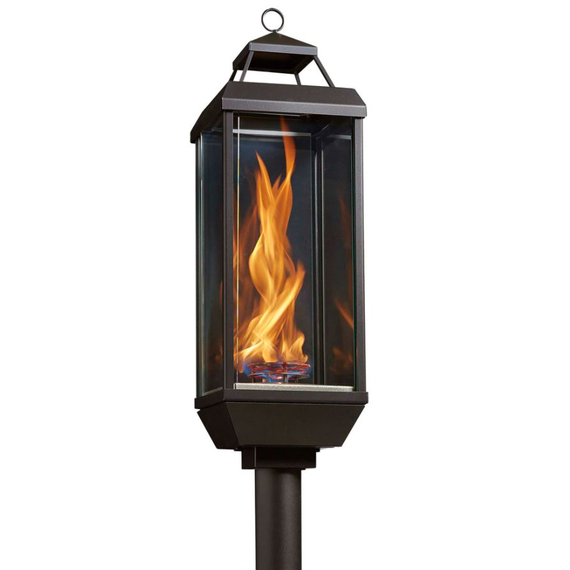

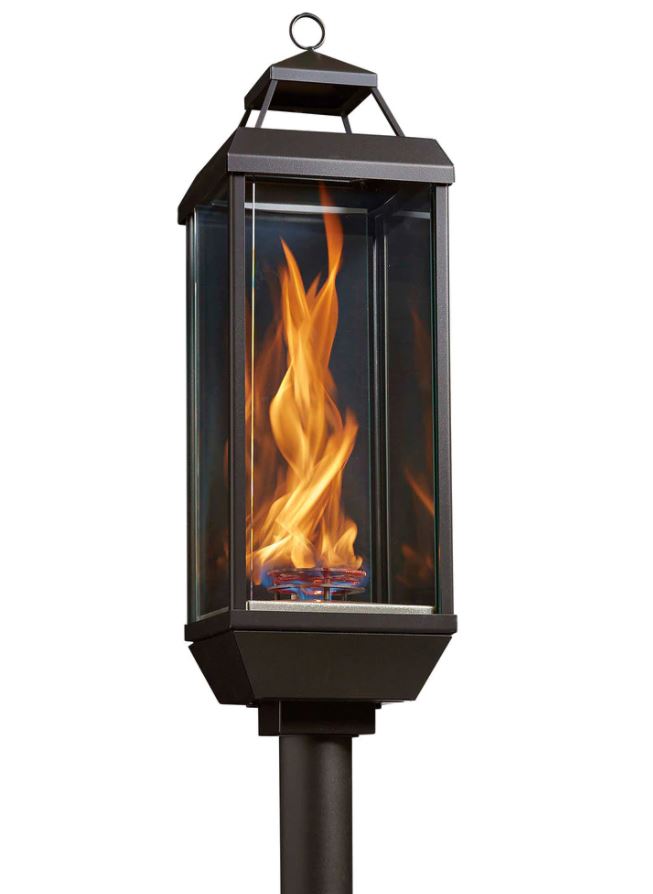

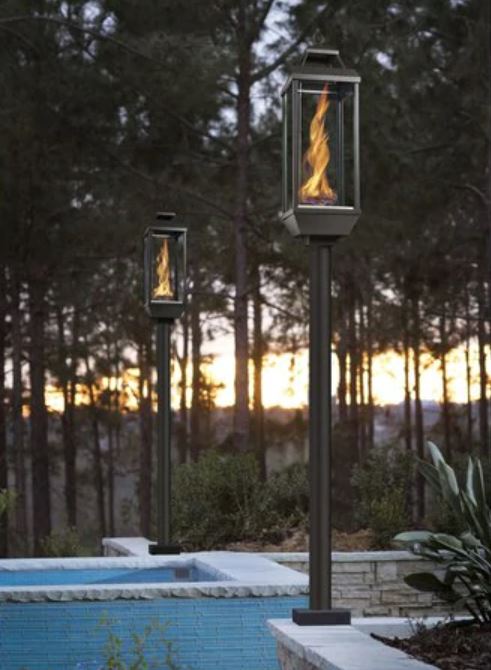

Tempest Torch 18" Outdoor Gas Lantern Head - 949007x6
Imagine adding a touch of magic to your outdoor space with the Tempest Torch 18" Decorative Outdoor Gas Lantern Head. This isn't just any lantern; it's a showstopper. The patented tempered glass housing showcases an enchanting spiral of dancing flames, creating a mesmerizing visual experience that will captivate anyone who sees it.
But it's not just about looks. The Tempest Lantern is designed with practicality in mind. The four-sided, open-air housing ensures the flame stays lit, even in high winds or rain. And for safety, there's an automatic gas shutoff valve that kicks in if the flame ever goes out.
You have options to suit your needs. Choose between the Manual Piezo ignition for straightforward lighting or the all-weather 24V AC Hot Shot™ electronic ignition system, renowned for its robustness and reliability in any conditions.
The versatility of the Tempest Torch is another standout feature. Whether you prefer it on a short or tall post, wall-mounted, or even without a base to incorporate into a custom setup, it’s incredibly adaptable. This makes integrating it into your outdoor landscape or general lighting design a breeze. In summary, the Tempest Torch 18" Decorative Outdoor Gas Lantern Head combines stunning visual appeal with top-notch practicality, offering flexibility to fit seamlessly into any outdoor setting. It's more than just a lantern; it's an unforgettable experience for your outdoor space.
Features:
- Select from propane and natural gas options
- Choice of Piezo igniter or Low Voltage 24V electric ignition models
- Tempered Glass (easy to remove and clean)
- Stainless Steel Construction
- Optional removable rain cap included.
- Flame height of up to 17 inches with a spiral presentation for an impressive appearance
- Automatic gas safety shutoff valve shuts off valve if flame is extinguished
- 18-inch glass walls protect flame from wind
- Optional rain cap protects flame during inclement weather
- Wall Mount Kit includes everything needed for a wall mount installation
Specification:
- Input Rating (Btuh) NG: 20,000
- Input Rating (Btuh) LP: 20,000
- Orifice Size (DMS): #50
- Orifice Size (DMS): #55
- Burner Ports NG: 25 Holes
- Burner Ports LP: 49 Holes
- Manifold Pressure NG: 7" wc
- Manifold Pressure LP: 11" wc
- Max. Inlet Pressure Ng: 7" wc
- Max. Inlet Pressure LP: 11" wc

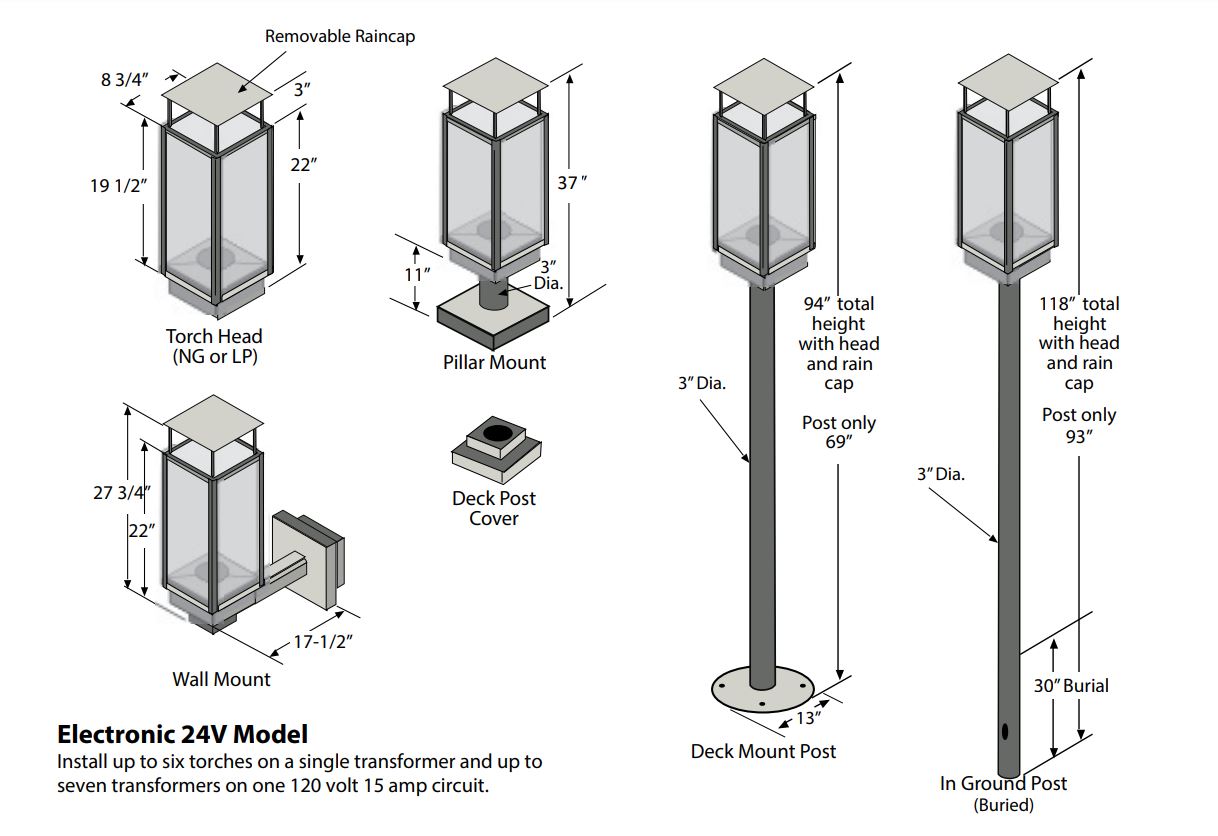

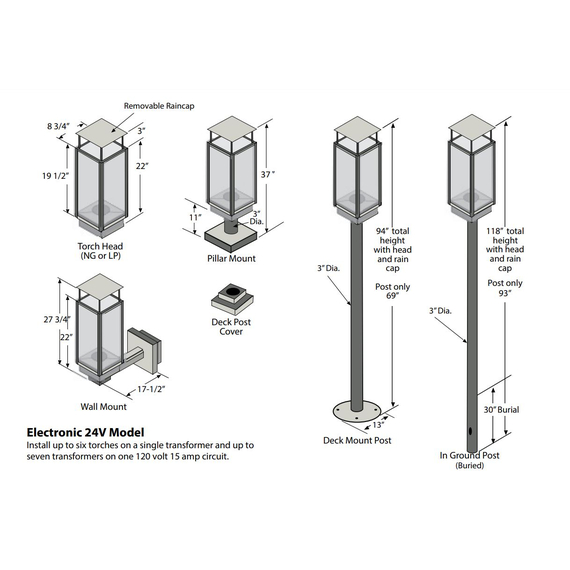

See the list below for important details on all of the different mounting methods. If you are going to mount these torches to your deck we highly recommend getting the full deck mounting kit. The kit provides the deck mount base and cover which hides the base with detailed trim so that the screws cannot be seen.

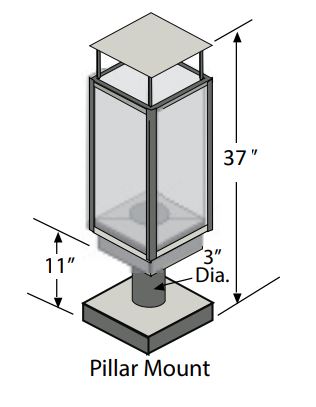

Pillar Mount
- 11" High
- For installation on raised pillar or pedestal

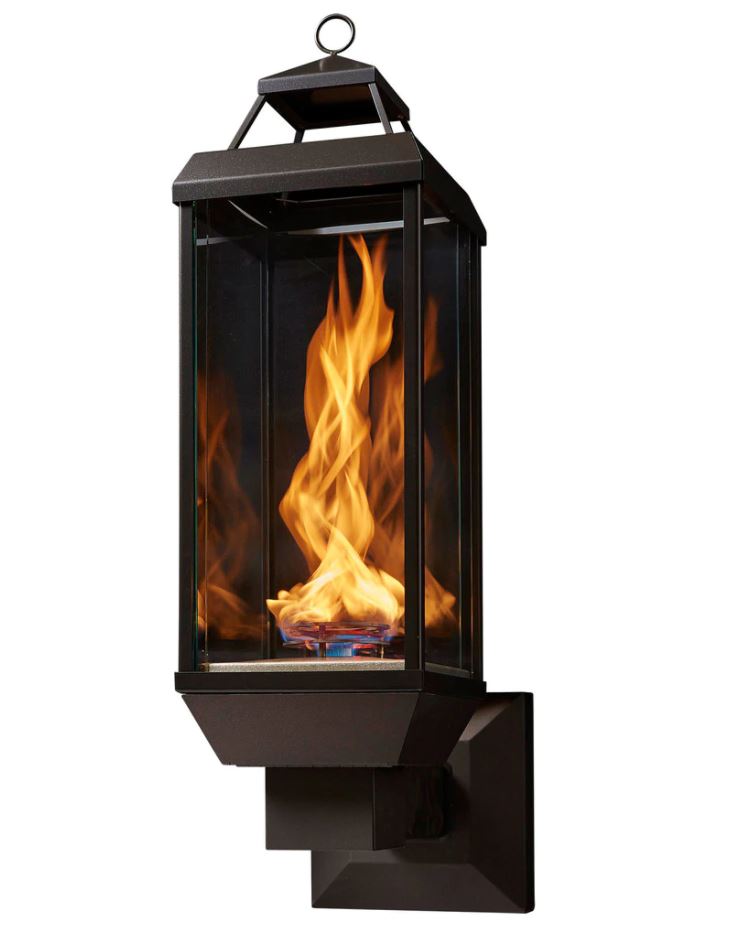

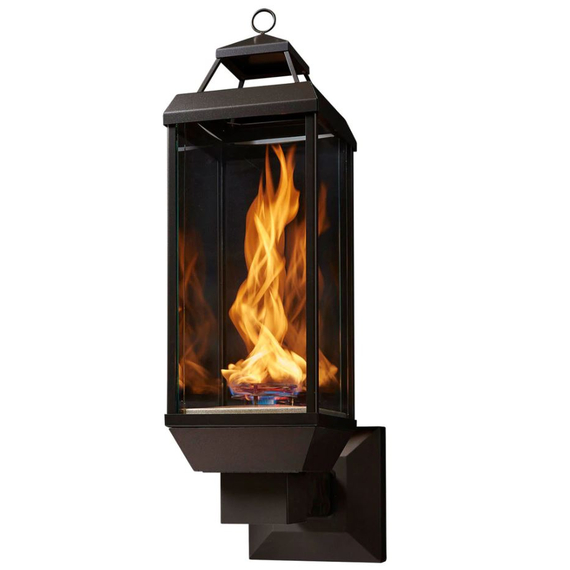

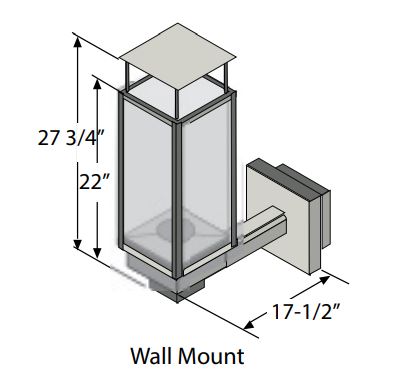

Wall Mount
- 17 1/2" in length
- Compatible with all torch heads
- Includes 1/2" flex with shut off valve

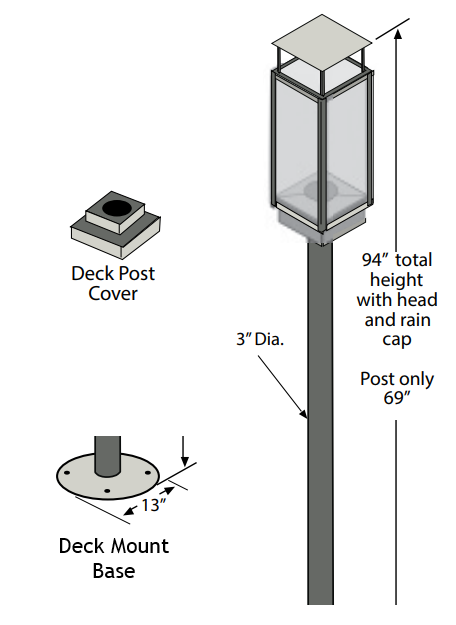

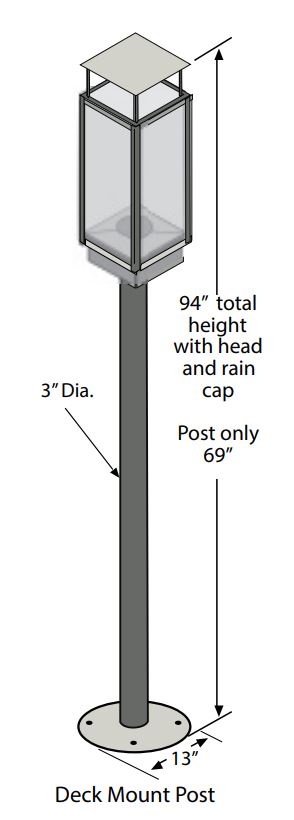

Deck Mount Post & Base
- 69" High
- Includes 1/2" flex line and post base
- Does not include post base cover

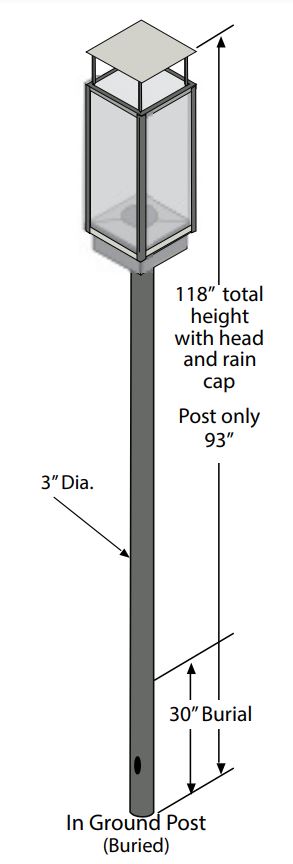

In Ground Post
- 93" High
- Should be buried 30" in the ground
Downloads:
Product Manuals:
Tempest Lantern Electronic Ignition Manual

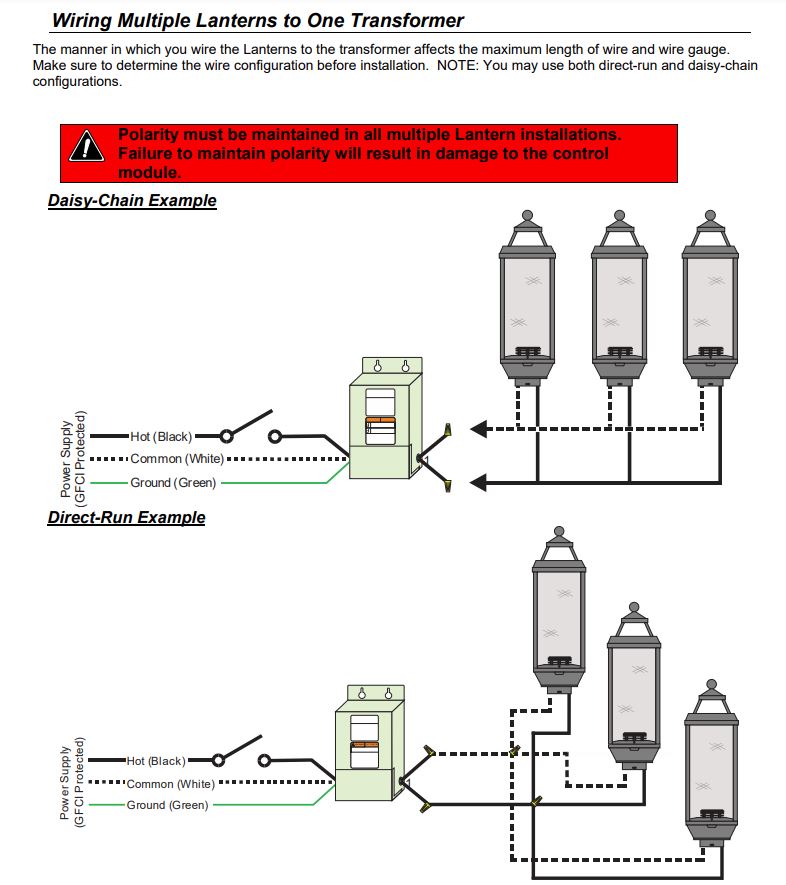

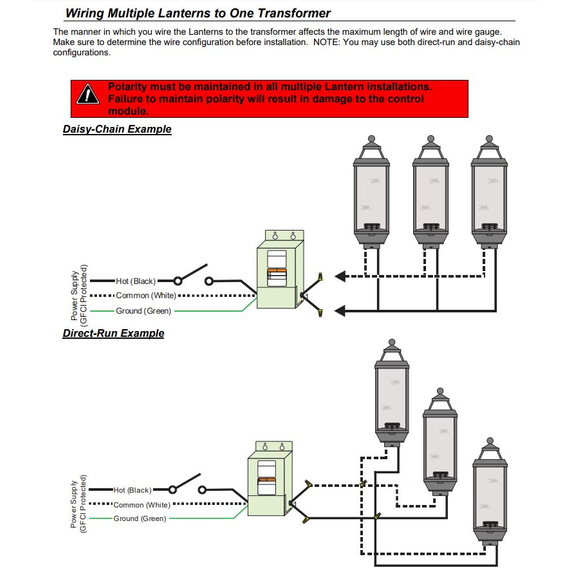

Tempest Torch 24v Transformer Manual
Mounting Manuals:
Wall Mount Installation Instructions
Deck Mount Installation Instructions
Deck Post Installation Instructions
Pillar Mount Installation Instructions
Year 1 COVERAGE: PARTS & LABOR
Burner Assembly: Burner, Venturi, Flame Spreader, Orifice, Gas Control Assembly: Gas valve, cover plate and hardware, thermocouple, pilot hood, pilot gas line, piezo igniter, tip switch and wiring, LP regulator (if applicable)
Glass: (breakage from thermal shock only)
Accessories: Portable base (including post and tank cover), wall mount bracket, in-ground post, and pier post
One-Way Freight Allowance: One-way freight allowance on pre-authorized repair done at factory is covered.
Exclusions: Paint and Finish
