Cutback Fit Stilleto Masonry Fireplace Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.

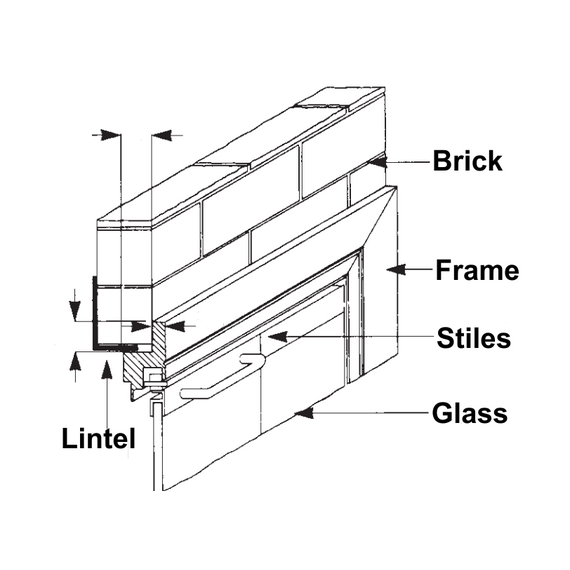

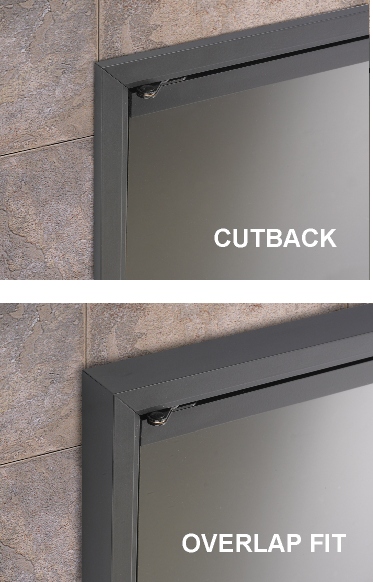

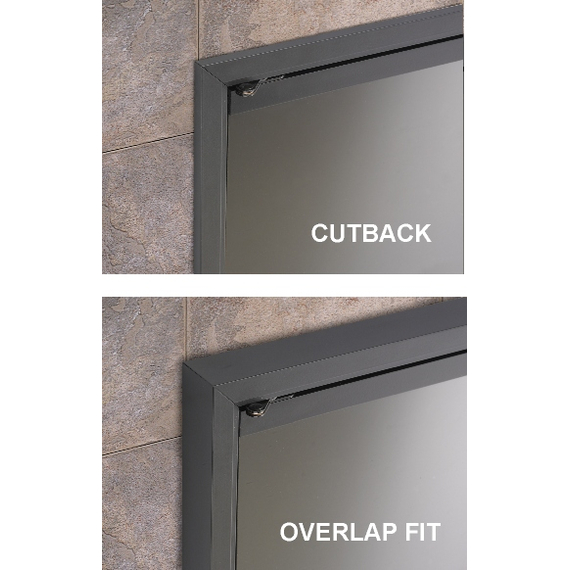

OVERLAP FIT - CUTBACK (needs hearth to sit on, recessed depth)

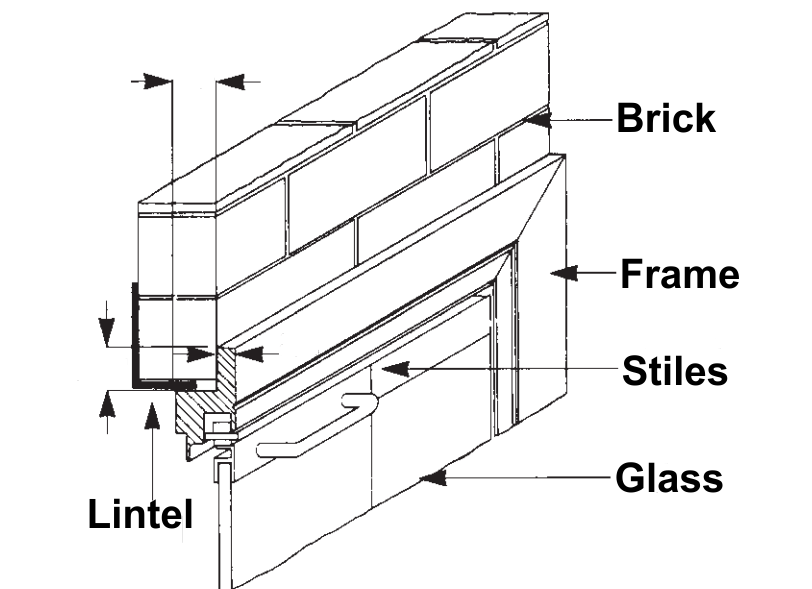

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



 DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in
$1,155.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4-5 Weeks Question | Why Buy From Us?

I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].
Available
+

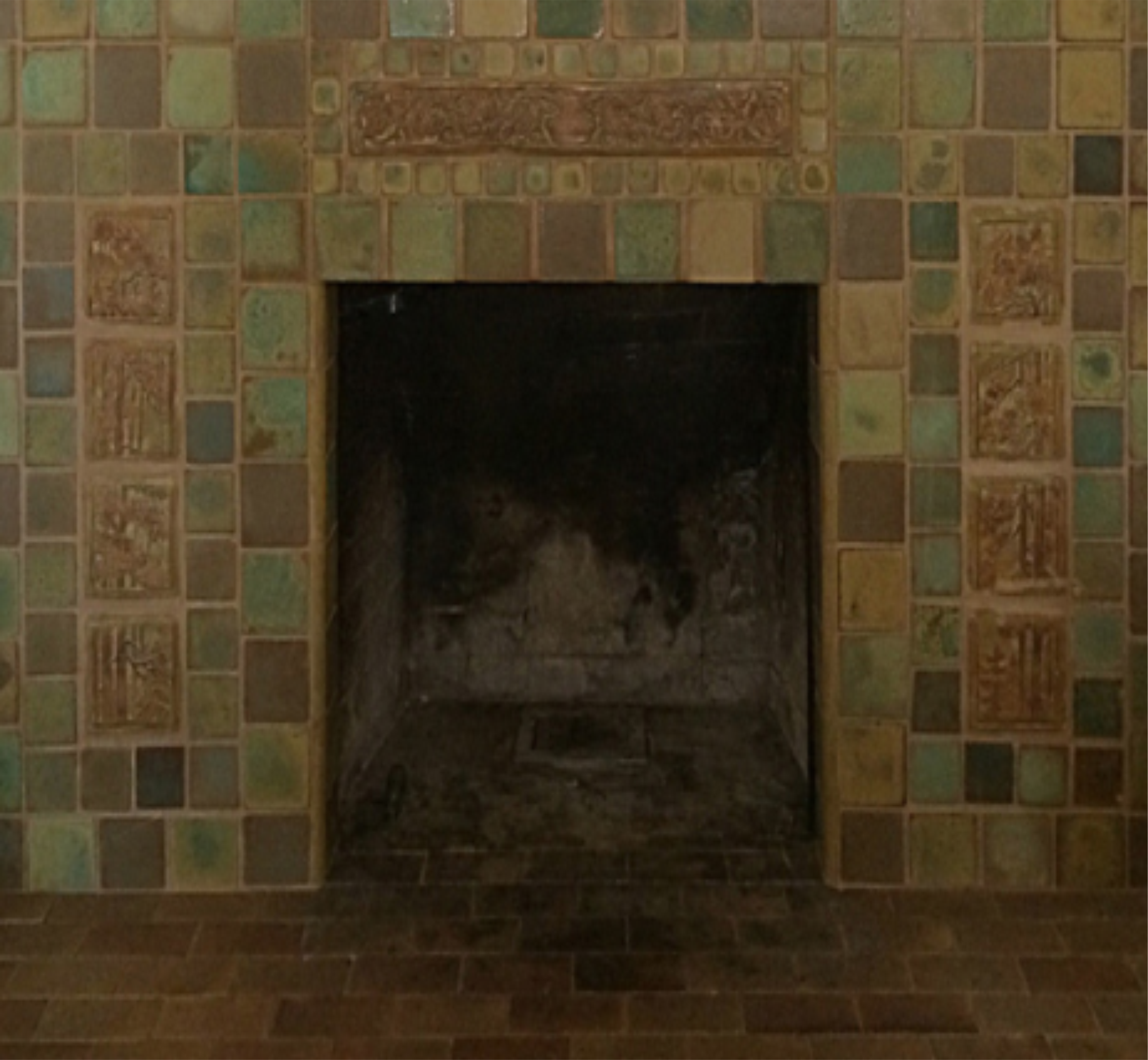

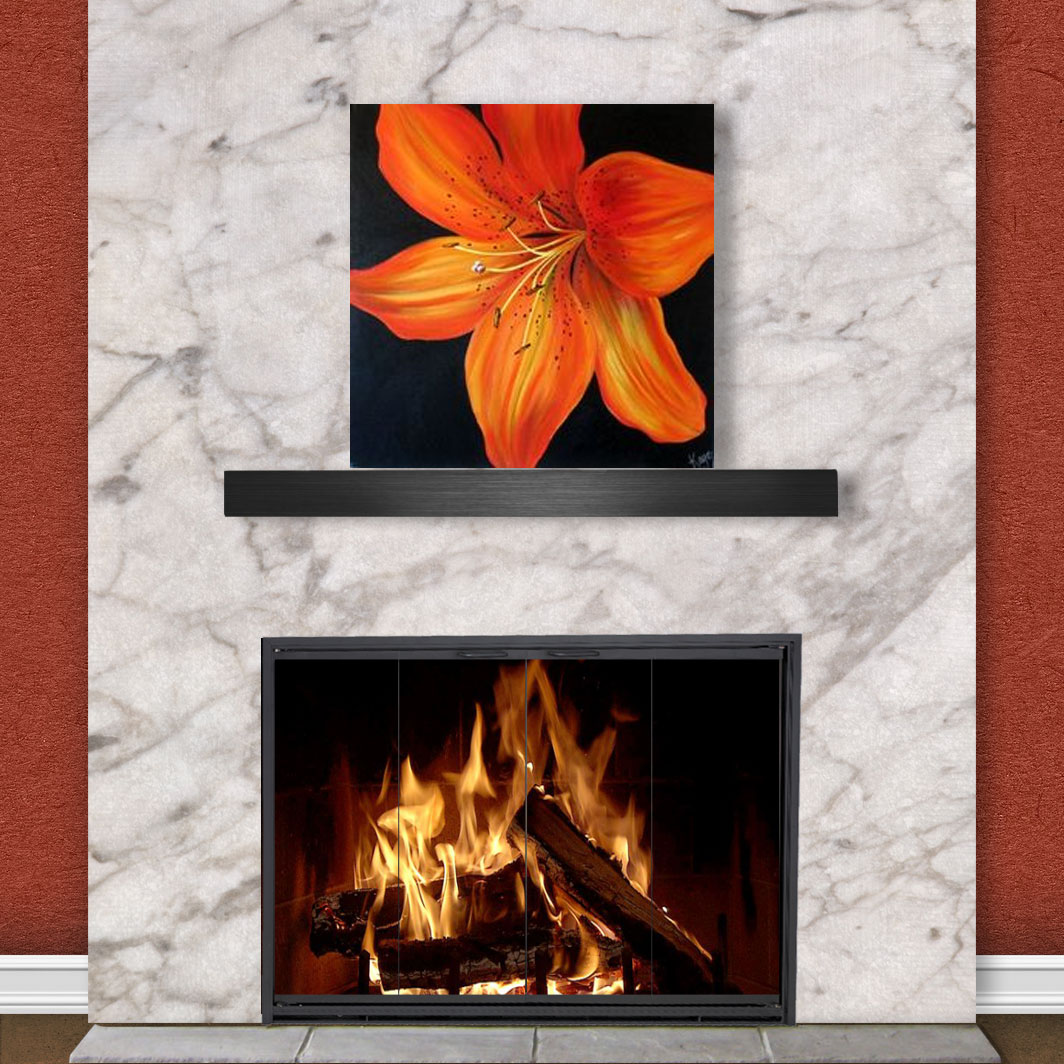

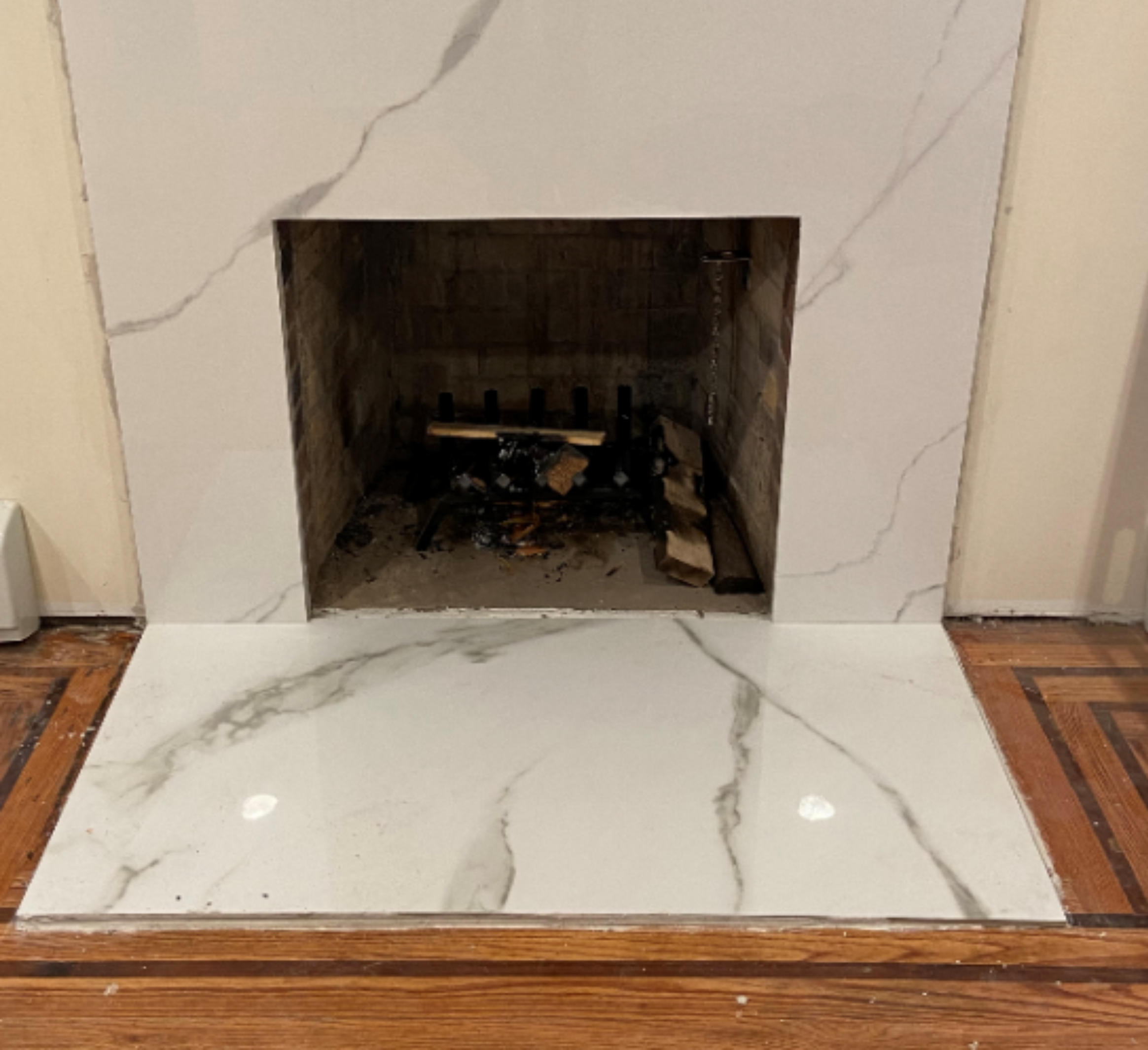

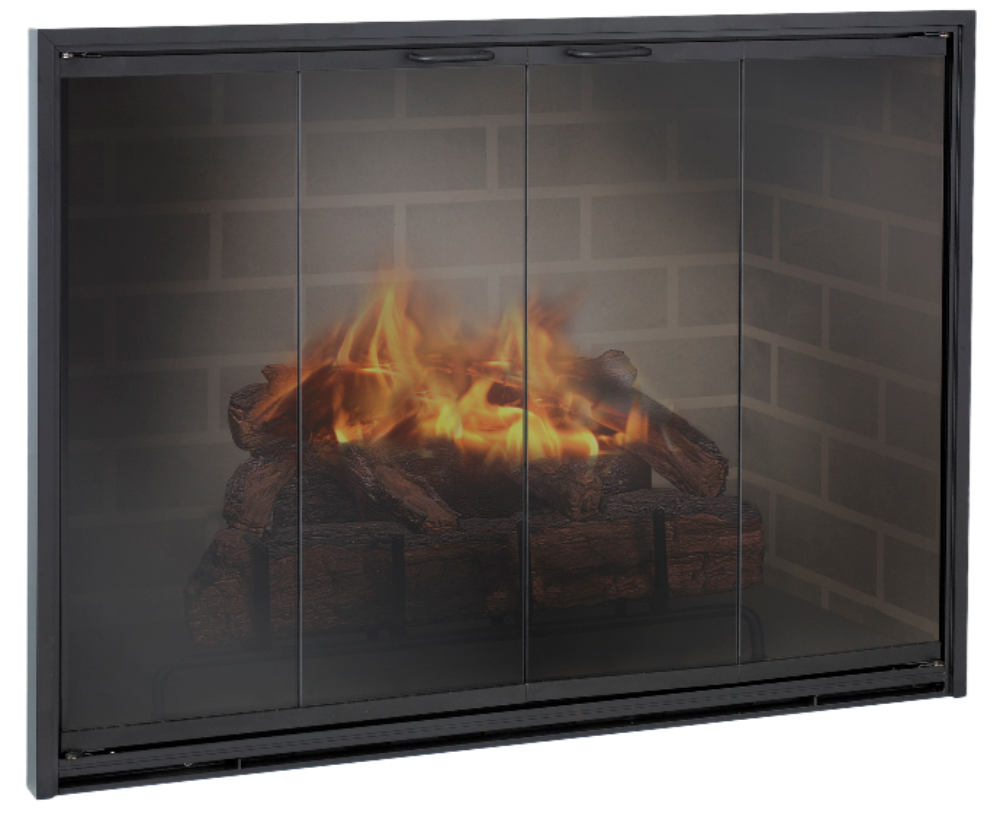

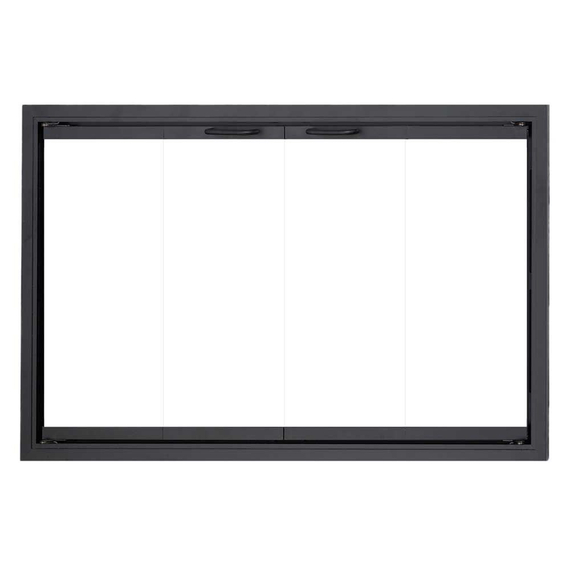

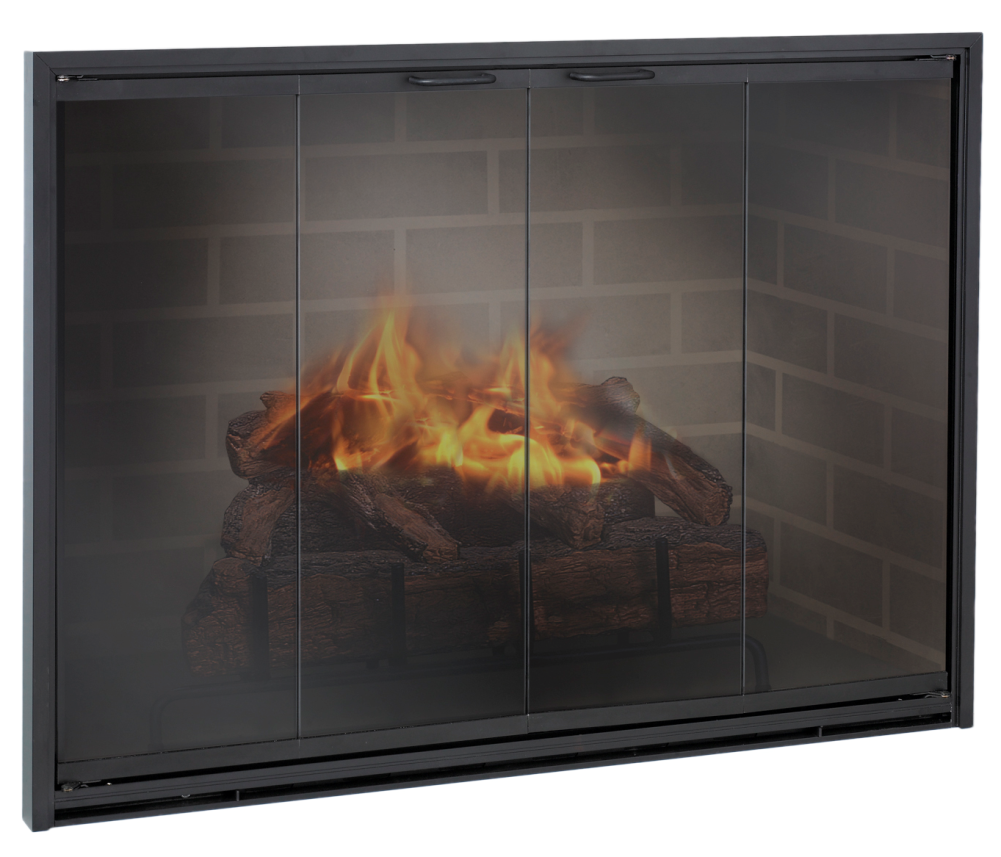

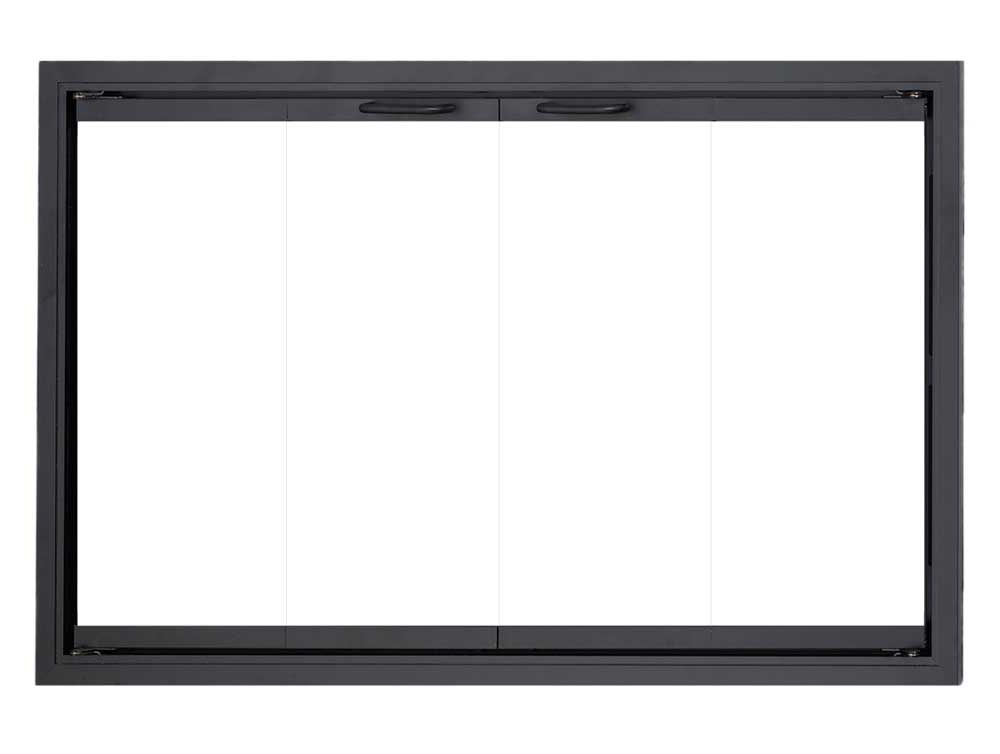

This is a great masonry fireplace door if it’s modern you’re looking for! The cutback design of this contemporary fireplace door is perfect for your modern home décor. The overlap is only 3/8” and due to the makeup of this fireplace door, it’ll need to go on a flat surface (Tile, Marble or Granite) rather than rough, stone fireplace surround. You can be sure that this barely there fireplace door will be a beautiful addition to your fireplace décor!

Design Specialties fireplace doors are a beautiful choice when it comes to adding a special touch to your modern home. With this door you can select the door type that you like best along with the glass tint and whether or not you’d like mesh protection. We always recommend investing in fireplace mesh because it can protect your family from sparks and embers that might escape from your firebox! You can also choose the handle you like best and what damper would look great with your beautiful fireplace. And, of course, you have a lot of beautiful finish options to choose from!

About the Stiletto Cutback Door Design:

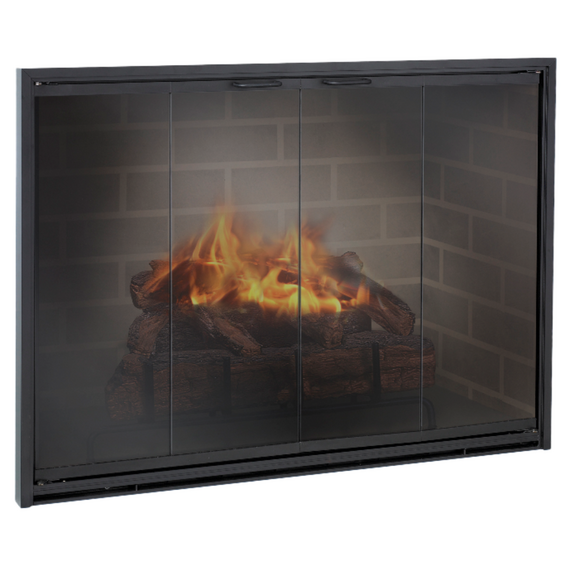

3-Sided Overlap with 15/16 inch frame = design provides an approximate 3/8 inch overlap on each side and 3/8 inch overlap on top

Please note:
Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

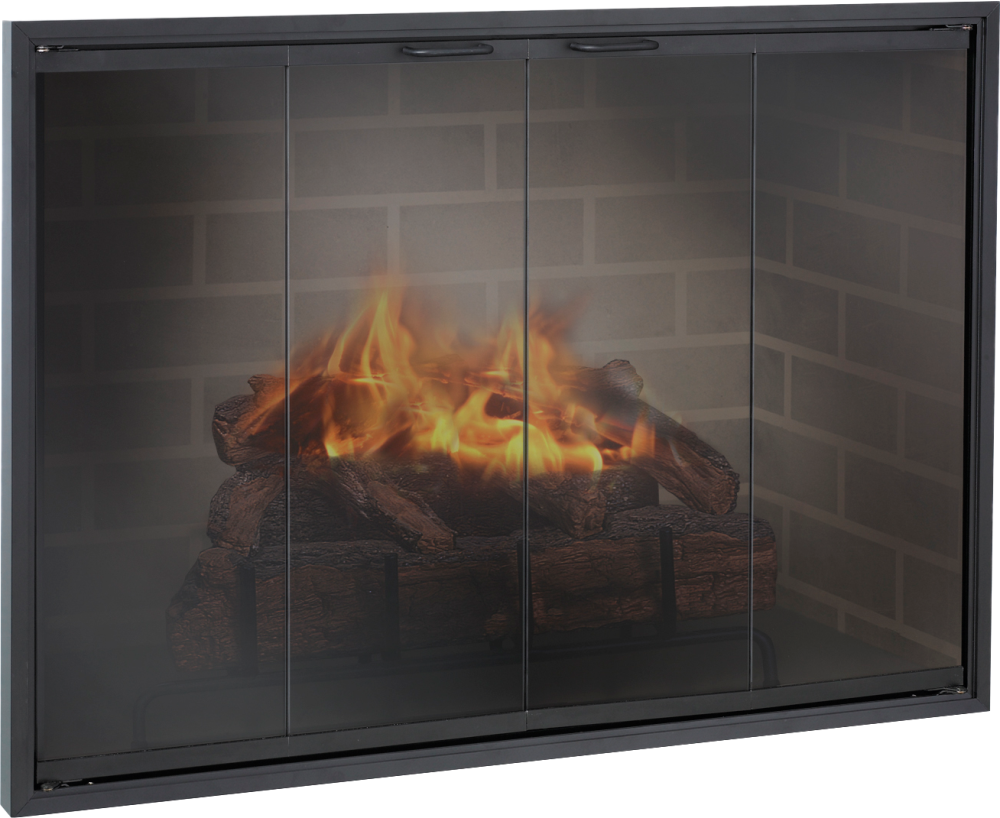

Stiletto Masonry Fireplace Door Features Product Features:

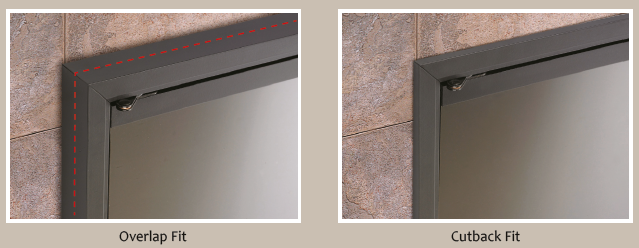

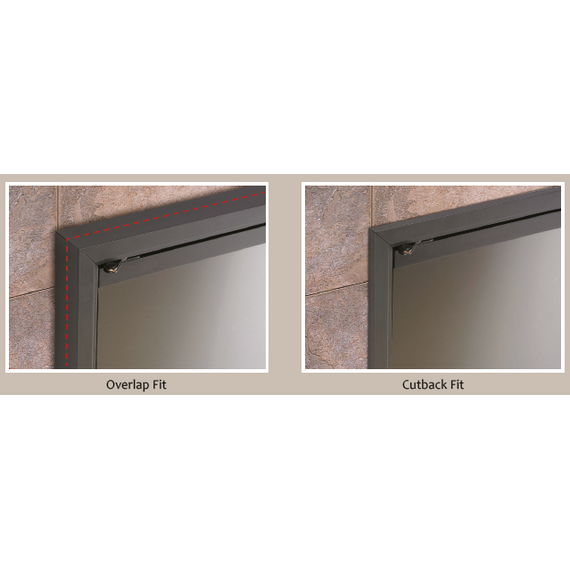

  • The Stiletto Cutback Fit is an overlap and inside fitting door. Most of the frame goes inside your fireplace.
  • Small overlap of approximate 3/8"
  • 1 year warranty on workmanship; 2 year workmanship on metal frame (excluding finish)
  • Lifetime limited warranty on tempered glass
  • Choose from trackless bi-fold or cabinet style doors
  • The aluminum frame is 15/16 inches wide and 5/16"inches deep with a recessed depth of 1-1/4"
  • 1/4 inch thick tempered safety glass can be tinted grey, clear, bronze, or black
  • Optional spark protection is available
  • Pick your handle style simplicity or square
  • Door comes fully assembled with all mounting hardware included



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Stiletto Masonry Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Masonry
  • Door Fit: Cutback/Overlap fit - Overlap 3/8"
  • Door Type: Trackless Bi-Fold Doors | Cabinet (Twin) Doors | Tracked Bi-Fold Doors
  • Material: 15/16" Wide By 5/16" Deep Extruded Aluminum Frame
  • Approximate Overlap: 3/8"
  • Recessed Depth: 1-1/4" - The portion of the door that fits inside the opening when installed as an overlap fit - Does NOT apply to Sliding Mesh And Gate Mesh Doors
  • Glass: 1/4" Tempered Safety Glass (lifetime warranty)
  • Glass Tints: Grey | Bronze | Clear | Black (Up-Charge)
  • Ceramic Glass: N/A
  • Mesh Screen: Not Included (Optional)
  • Handle Style: Simplicity | Square
  • Damper: No Draft Assembly | With Draft Assembly
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included
  • Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.



  Manual Page 1 - Stiletto CutbackManual Page 2 - Stiletto CutbackManual Page 3 - Stiletto Cutback

Manufacturer's Warranty

Manufacturer warrants the glass enclosures to be free from defects in material and workmanship for a period of one (1) year from the date of installation. Manufacturer warrants the metal work (exclusive of the finish) contained in the glass enclosures to be free from defects in the materials and workmanship for a period of two (2) years from the date of installation. Discoloration of any frame piece is caused by over firing and is considered abuse of the enclosure.

MANUFACTURER MAKES NO WARRANTIES AS TO A MAXIMUM TEMPERATURE AND STRESS WHICH MAY CAUSE GLASS BREAKAGE. LIFETIME WARRANTY ON GLASS.
Manufacturer will, however, replace without cost any glass that breaks in normal use. Manufacturer will cover shipping cost for replacement glass for a period of one (1) year from the date of installation. Warranties also are not transferable to new owners.  The foregoing limited warranty is not transferable by the customer and does not include the eventual defects caused by improper use or operation of the glass enclosure or by normal wear and tear. Manufacturer agrees that if the glass enclosure is determined to be defective in manufacture within the applicable written guarantee period set forth above, and the customer provides a written notice of such defects within fourteen (14) days of the end of such period to the customer’s local dealer, Manufacturer is limited to defects in manufacture, and Manufacturer shall not be responsible if the glass enclosure has not been used at all times with reasonable care and in accordance with the instructions which accompany each glass enclosure, and/or if any attempt has been made by any person other than Manufacturer or its authorized agents to repair, alter or otherwise interfere with the foregoing undertaking of Manufacturer is limited to the replacement of any determined by Manufacturer to be defective.
Finally, the enforceability of this limited Warranty shall be further subject to compliance with the following requirements:
A. That the customer complies with the instruction set forth above and does not misuse, abuse, alter, or modify the glass enclosure.
B. That the customer does not use the glass enclosure for a purpose other than its intended use.

DISCLAIMER
The limited warranty set forth above, is expressly in lieu of any other warranties, express or implied, including without limitation any warranty of merchantability or fitness for particular purpose, whether express or implied, and lieu of any other obligation or liability on the part of Manufacturer. Whether under theories of contract, tort or negligence, Manufacturer, shall have no liability for any consequential, incidental or special damages by reason of any act or omission, whether negligent or not, arising out of or in connection with the glass enclosure or its sale, delivery, installation, maintenance, operation, performance, or use, including without limitation any loss of use, damage to associated property or the facility, or any other similar and dissimilar losses, cost.

PLEASE NOTE:
Fireplace doors are hand crafted to the specifications of each order. Due to the nature of the anodization process on aluminum doors, and the plating/powder coating process on steel doors, slight variations in color may occur and will not be considered a warranty issue.
