Mark123 Fireplace Refacing With Side Vents

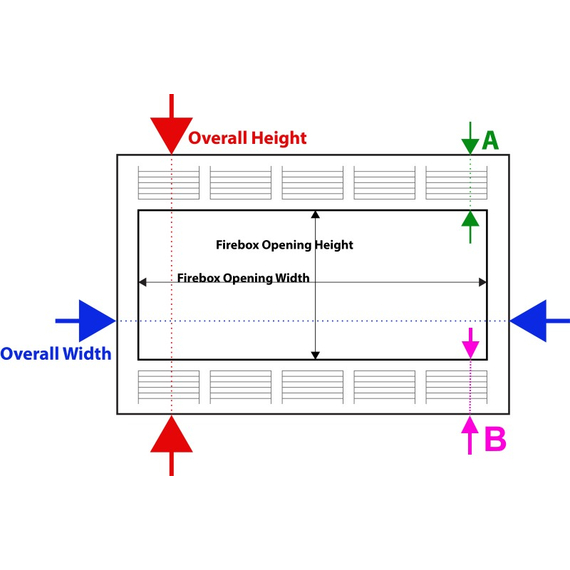

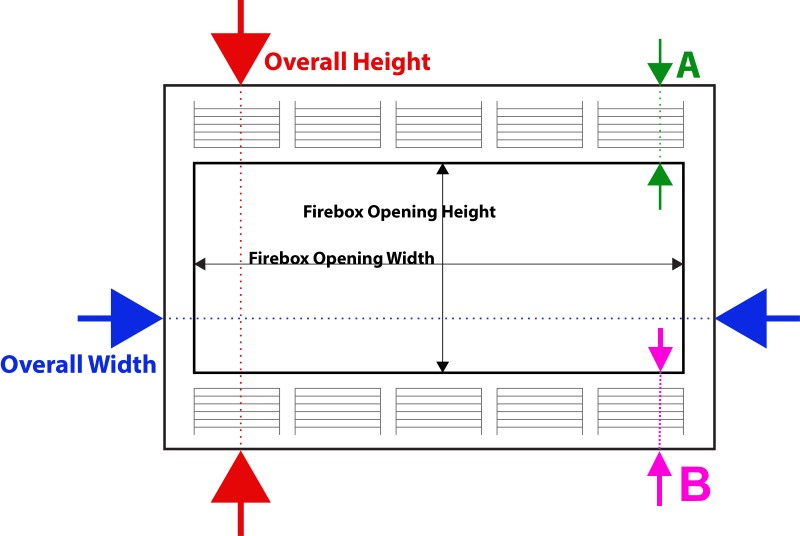

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (covers entire unit face)
A refacing normally covers the entire exposed face of a fireplace. Measure the overall width of the visible black steel face, we need the exact minimum width. Next, measure the overall height of the visible black steel face. We need the exact minimum height.



PLEASE SELECT THE OUTER DIMENSIONS OF THE VISIBLE BLACK STEEL FACE OF YOUR FIREBOX

in
in

Size Range For Pricing: Up To 48"W and Up To 38"H

=:

$2,393.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4-6 Weeks Question | Why Buy From Us?

Available
+

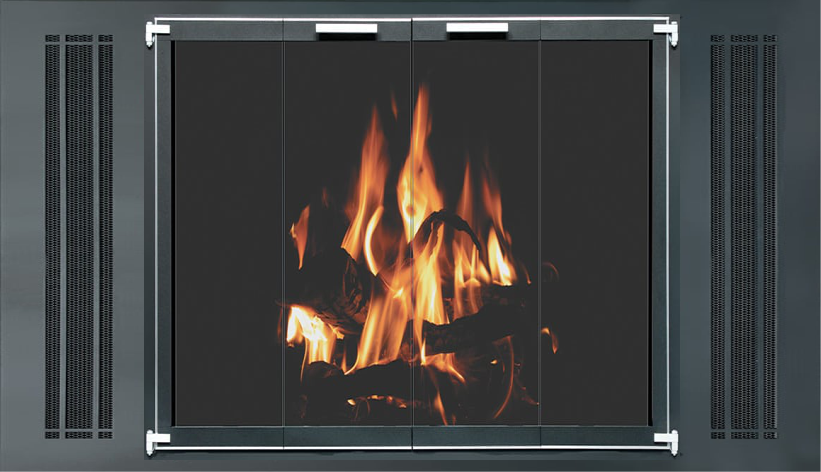

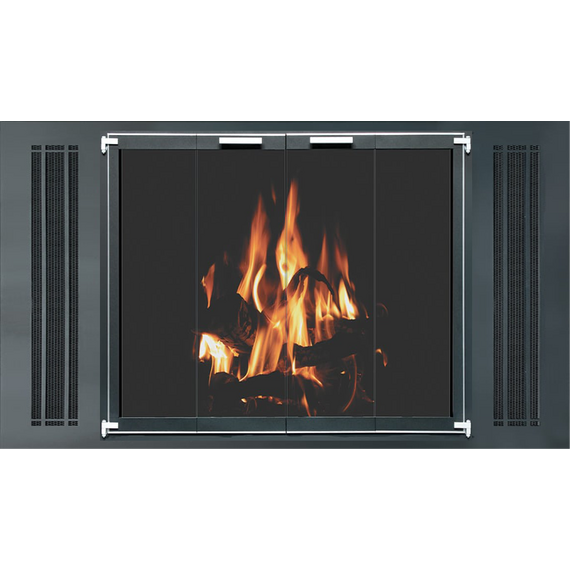

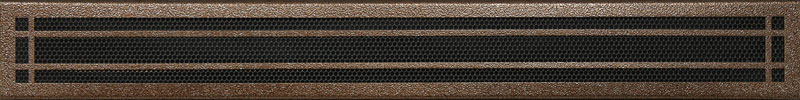

The Zero Clearance Fireplace Reface wit side vent openings is made to work for the older Heatilator Mark123 fireplaces. Easy installation with strong earth magnets of set screws. . Not only is it beautiful, it is the sturdy so it will last a long time. Normal wear and tear will have little effect on this zero clearance fireplace reface. Plenty of customizations available so that you can really make your new prefab fireplace reface your own including the glass tint, handle style, and finish. You can also choose whether or not you’d like the mesh protection, though Fireplace Doors Online highly recommends it. There are even several finish colors and give louver designs available to give you the perfect style for your decor.



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

ZC Refacing Enclosure Specifications Product Specifications:

  • Fireplace Type: Prefab Wood Fireplaces or Prefab Wood Fireplaces Converted To Vented Gas Logs
  • Fit: Overlap
  • Door Type: Cabinet Twin Doors | Trackless Bi-fold Doors
  • Material: 3/16" Deep 7 Gauge Steel Frame
  • Glass: 1/4" Tempered Glass
  • Glass Tint: Clear
  • Ceramic Glass: N/A
  • Spark Protection: Optional
  • Airtight Option: N/A
  • Handle: Wire

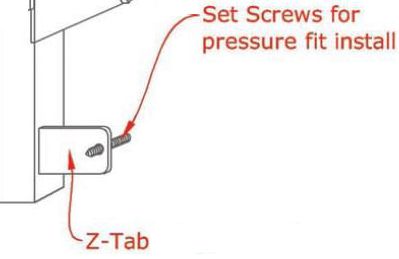

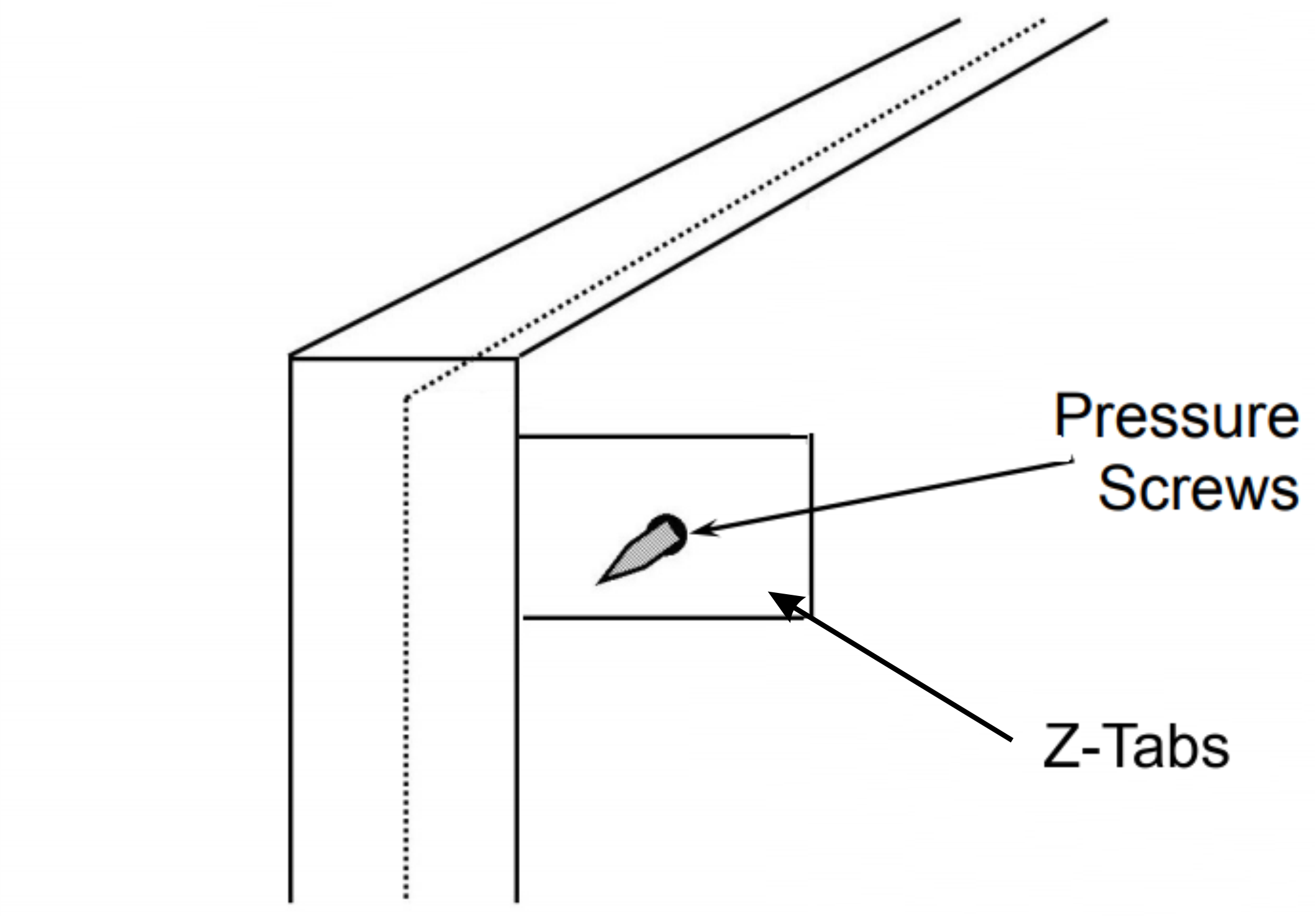

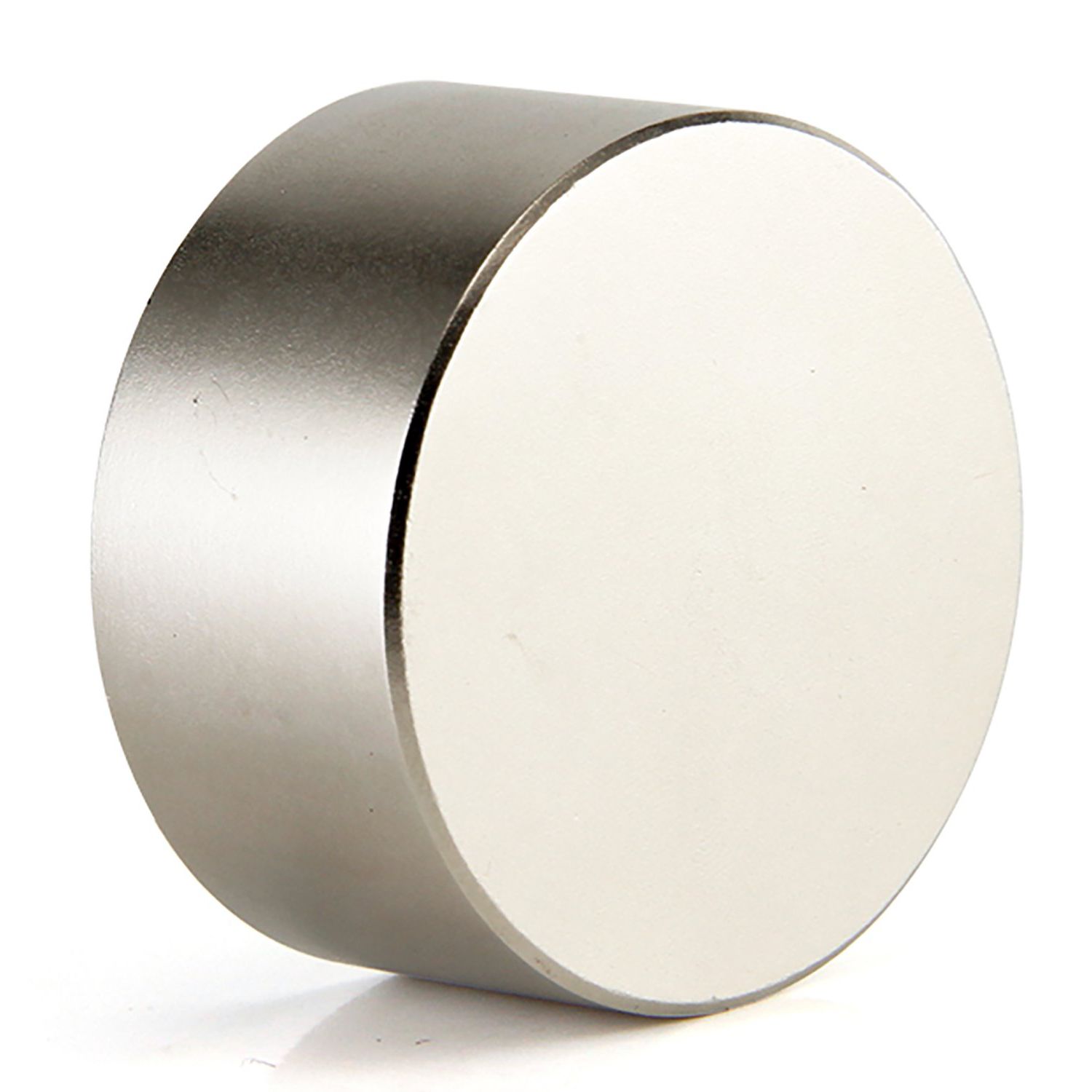

  • Mounting: Neodymium "Rare Earth" Magnetic Mounting System | Set Screws Z-Tabs
  • 5 Year Warranty On Enclosure | 1 Year Warranty On Glass

ZC Refacing Enclosure Manual Product Manual:

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
