Hargrove Inferno Series Logs with Hidden Control Burner

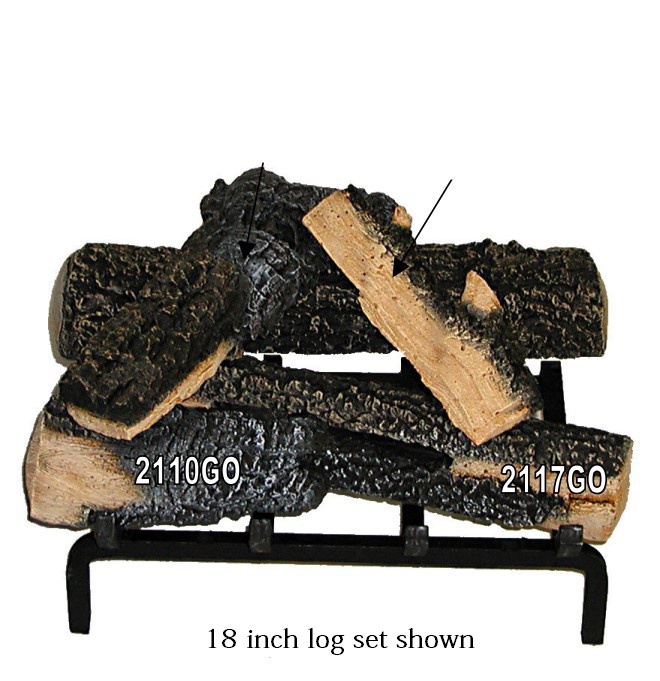

The Hargrove Inferno Series Vented Gas Log Set with Hidden Control Burner combines exceptional realism with sleek functionality, making it a perfect addition to your fireplace. The Charred Style logs are hand-painted with deep bark details, smoky charring, and natural stacking to mimic the appearance of a traditional wood-burning fire. Crafted from high-quality refractory materials capable of withstanding over 2000°F and reinforced with metal mesh, these logs are built to last while delivering stunning realism.

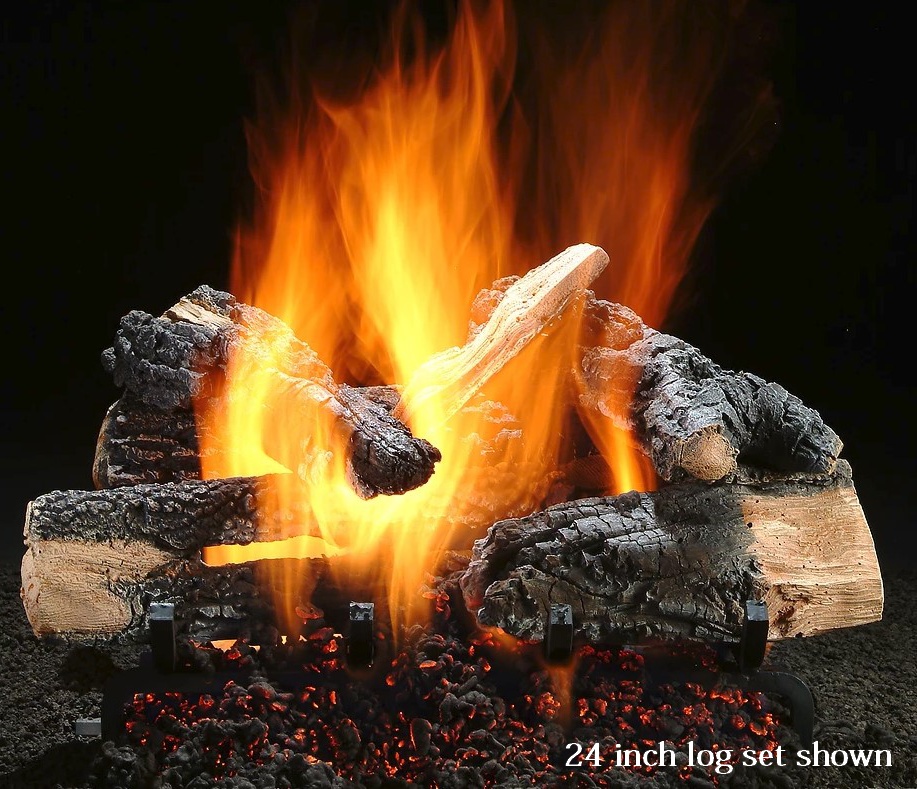

The Inferno Series design recreates the charm of a fire burning for hours, with flames weaving through partially burned logs for a warm, natural aesthetic. Available in sizes 18", 21", 24", and 30", the set works with single-sided and see-through fireplaces and is compatible with natural gas or liquid propane. The Hidden Control Burner adds a modern touch by concealing control components for a clean, uncluttered look. It delivers consistent, vibrant flames while maintaining easy operation and ensuring the perfect blend of style and convenience for a beautifully realistic fireplace experience.

Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.

BURNER:

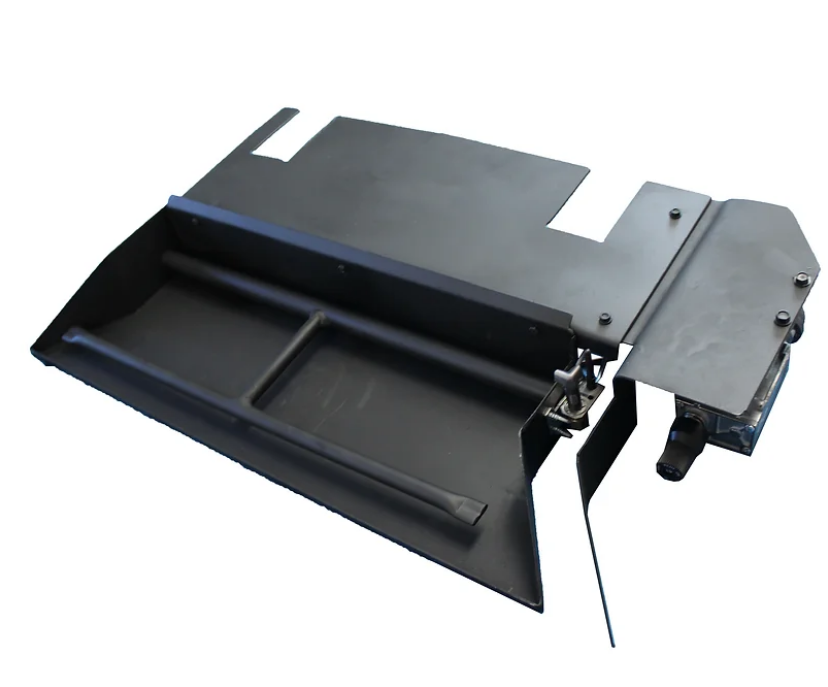

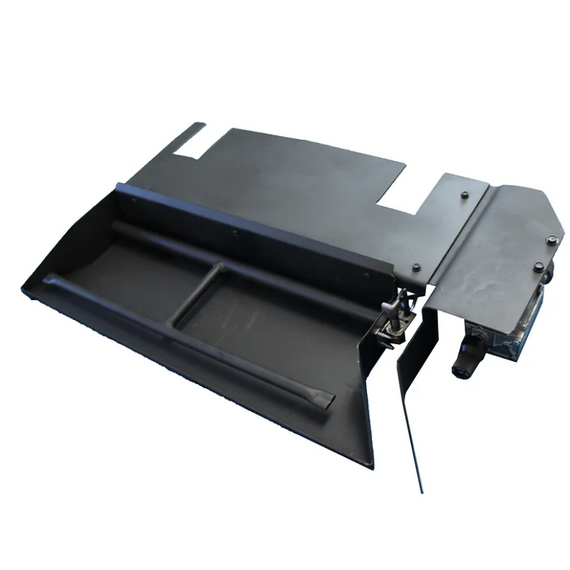

Hidden Control Burner- These are designed to hide the control system from view, giving your fireplace a sleek look. They come in sizes of 18 inches, 24 inches, 30 inches, and 36 inches. They work well with a variety of styles including Radiant, Charred, and Fresh Cut.

CONTROL SYSTEM:

• Manual Safety Pilot- With this system, you've got a standing pilot safety valve setup. That means you can ignite the main burner flame with a knob and adjust it to your liking. It's versatile too, working with both natural gas and liquid propane. But remember, if you're going for liquid propane, you'll need that conversion kit.
• Variable Flame Remote Control- Now, this is where things get a bit fancy. You've got a remote-controlled system that lets you not only turn the burner on and off remotely but also adjust the flame height. It's designed for both natural gas and liquid propane, but just like before, you'll need a conversion kit for propane.
• Electronic Ignition System with a Variable Flame Remote Control- It lets you activate the pilot, turn the main burner on/off, and adjust the flame height using the remote. Plus, it's flexible with installation thanks to a mounted valve system using a flex connector. It works with both natural gas and liquid propane (with an LP conversion kit).

Features:

• Available in 18", 21", 24", and 30" sizes
• Available for Natural Gas or Liquid Propane
• Refractory materials capable of withstanding temps over 2000ºF
• Crisp detail Hargrove is known for
• Each log is hand-painted
• Reinforced with metal mesh reinforcement for added strength and durability
• The Burner System is not included with the log set and should be ordered separately.
• Hidden Burner requires a minimum of 14" of depth
• Burner design hides the control system from the view

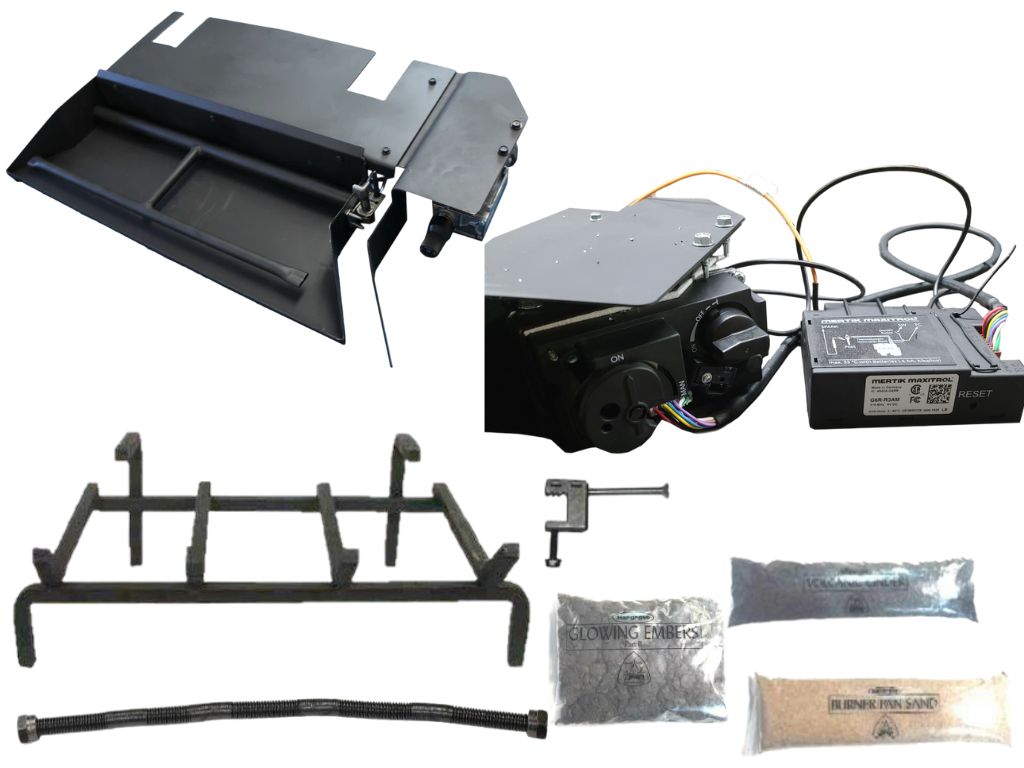

INCLUDES:

• HC Burner
• Custom 5/8" grate
• Sand or vermiculite
• Embers

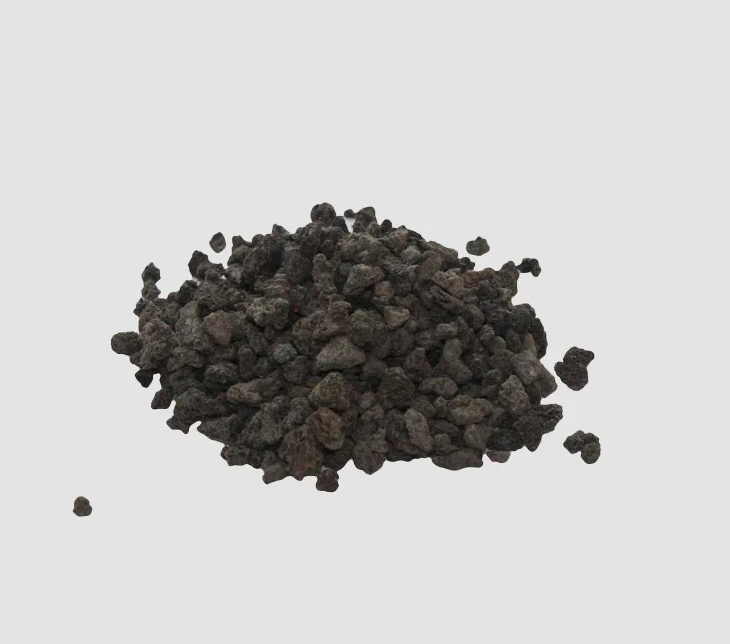

• Volcanic cinder
• Fittings
• Black non-whistling flex connector

Specifications:

• Fuel Type: Natural Gas or Liquid Propane
• Log Set Type: Vented Indoor
• Log Style: Inferno Series
• Available Sizes: 18", 21", 24", 30"
• Number of Logs: 4–6 logs (varies by size)
• Material: Durable Refractory Concrete
• Burner Type: Hidden Control Burner (16-Gauge Steel)
• Ignition Options: Safety Pilot |Variable Flame with Remote | Electronic Ignition with Variable Remote

Downloads:

• Hargrove Vented Gas Logs Full Line
• Inferno Log Set Diagram
• Inferno Spec Sheet
• Hidden Control Burner with Safety Pilot Valve Instruction Manual Instruction Manual
• Hidden Control Burner with Variable Flame with Remote Instruction Manual
• Hidden Control Burner with Electronic Ignition with Variable Remote Instruction Manual
• Hidden Control Burner Specification
• Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
• Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
• Product Warranty
