Hargrove Woodland Timbers Vented Logs With Hidden Control Burner
Let me tell you about the Hargrove Woodland Timbers Vented Log Set with the Hidden Control Burner—this thing is awe-inspiring. First, the logs look super realistic. They’re made with a special Ceramic Fiber material that gives them deep bark textures and lighter, split wood details. It’s not that fake, plastic look—you get that natural, rustic vibe, like real firewood stacked in your fireplace. But here’s the cool part: the Hidden Control Burner. All the controls are tucked away, so you don’t see any knobs or switches, just this big, beautiful flame. And the flame is full and lively, not weak or dull. It’s designed to work especially well with liquid propane, so it puts out a strong, warm flame.
Oh! And it uses something called Radiant Riser technology. It pushes the heat forward into the room instead of letting it all rise to the chimney. So, you’re getting a lot more warmth from it—almost like a vent-free set, but with that classic, open-flame look you can’t get with those. Plus, the ember bed is wide open, so you get this glowing, cozy look beneath the logs, just like a real wood fire. It’s available in different sizes too, from 18” all the way up to 42”, so it can fit almost any fireplace. Honestly, if you want something that looks amazing and actually heats the room well, this is it. It’s that perfect mix of realistic looks and real heat.
Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.
BURNER:
Hidden Control Burners- These are designed to hide the control system from view, giving your fireplace a sleek look. They come in sizes of 18 inches, 24 inches, 30 inches, and 36 inches. They work well with a variety of styles including Radiant, Charred, and Fresh Cut.
CONTROL SYSTEM:
- Manual Safety Pilot- With this system, you've got a standing pilot safety valve setup. That means you can ignite the main burner flame with a knob and adjust it to your liking. It's versatile too, working with both natural gas and liquid propane. But remember, if you're going for liquid propane, you'll need that conversion kit.
- Variable Flame Remote Control- Now, this is where things get a bit fancy. You've got a remote-controlled system that lets you not only turn the burner on and off remotely but also adjust the flame height. It's designed for both natural gas and liquid propane, but just like before, you'll need a conversion kit for propane.
- Electronic Ignition System with a Variable Flame Remote Control- It lets you activate the pilot, turn the main burner on/off, and adjust the flame height using the remote. Plus, it's flexible with installation thanks to a mounted valve system using a flex connector. It works with both natural gas and liquid propane (with an LP conversion kit).
Features:
- Available in 21", 24", 30", and 36" sizes
- With radiant riser technology, heat production is directed forward.
- Ceramic fiber logs could not achieve the level of detail that is now possible with the innovative molding method.
- Compared to comparable vented log sets, ceramic fiber material and Hargrove's Radiant Riser provide much higher heating efficiency.
- Heat is equivalent to vent-free sets, however, realistic fire and ember beds are not achievable with vent-free appliances.
- The Burner System is not included with the log set and should be ordered separately.
- Hidden Burner requires a minimum of 14" of depth
- Burner design hides the control system from the view

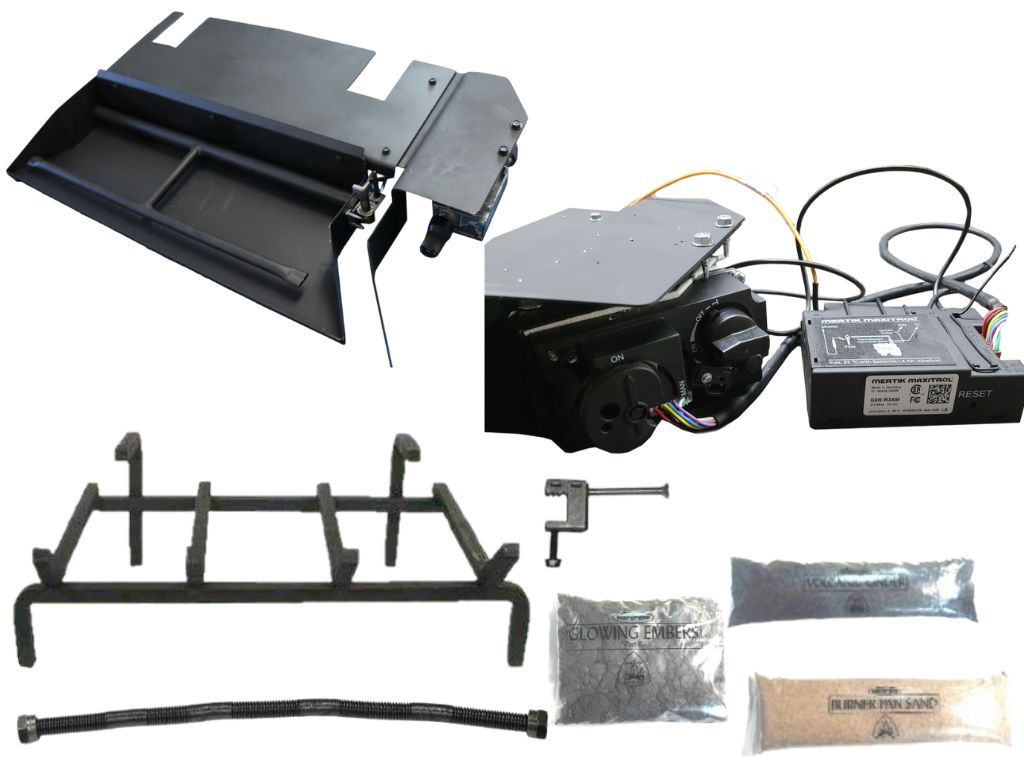

INCLUDES:
- HC Burner
- Custom 5/8" grate
- Sand or vermiculite
- Embers
- Volcanic cinder
- Fittings
- Black non-whistling flex connector
Specifications:
- Fuel Type: Natural Gas or Liquid Propane
- Log Set Type: Vented Indoor
- Log Style: Woodland Timbers
- Available Sizes: 21", 24", 30", and 36"
- Number of Logs: 10-14 logs (varies by size)
- Material: Ceramic Fiber
- Burner Type: Hidden Control Burner (16-Gauge Steel)
- Ignition Options: Safety Pilot |Variable Flame with Remote | Electronic Ignition with Variable Remote
Downloads:
- Hargrove Radiant Heat Gas Logs Brochure
- Woodland Timbers Log Set Diagram
- Woodland Timbers Spec Sheet
- Hidden Control Burner with Safety Pilot Valve Instruction Manual Instruction Manual
- Hidden Control Burner with Variable Flame with Remote Instruction Manual
- Hidden Control Burner with Electronic Ignition with Variable Remote Instruction Manual
- Hidden Control Burner Specification

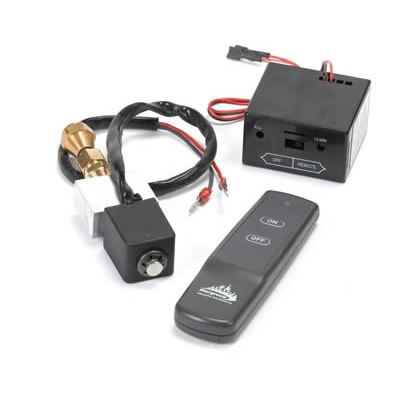

- Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
- Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
- Product Warranty
Hargrove 21" Woodland Timbers Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Woodland Timbers
- Log Set Width: 21 Inch
- Number of Logs: 10 Pieces
- Material: Ceramic Fiber
- Burner Type: System-4 Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Standing Safety Pilot | Factory Installed with Variable Remote | Factory Installed Latchtap with On/Off Remote
- BTU: 42K
- Burner Dimension: 30" W x 14" D x 16" H
Hargrove 24" Woodland Timbers Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Woodland Timbers
- Log Set Width: 24 Inch
- Number of Logs: 11 Pieces
- Material: Ceramic Fiber
- Burner Type: System-4 Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Standing Safety Pilot | Factory Installed with Variable Remote | Factory Installed Latchtap with On/Off Remote
- BTU: 57K
- Burner Dimension: 36" W x 14" D x 16" H
Hargrove 30" Woodland Timbers Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Woodland Timbers
- Log Set Width: 10 Inch
- Number of Logs: 12 Pieces
- Material: Ceramic Fiber
- Burner Type: System-4 Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Standing Safety Pilot | Factory Installed with Variable Remote | Factory Installed Latchtap with On/Off Remote
- BTU: 70K
- Burner Dimension: 42" W x 14" D x 16" H
Hargrove 36" Woodland Timbers Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Woodland Timbers
- Log Set Width: 36 Inch
- Number of Logs: 14 Pieces
- Material: Ceramic Fiber
- Burner Type: System-4 Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Standing Safety Pilot | Factory Installed with Variable Remote | Factory Installed Latchtap with On/Off Remote
- BTU: 75K
- Burner Dimension: 48" W x 14" D x 16" H
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
