Hargrove Inferno Series Vented Gas Log Set With H-Burner

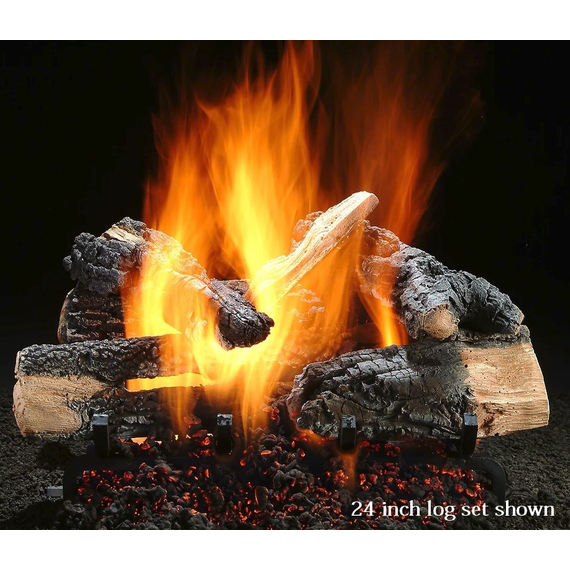

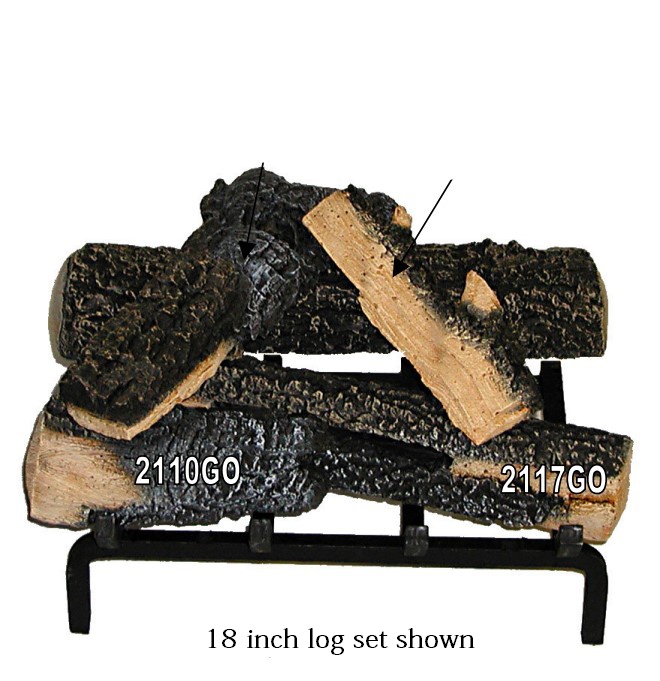

The Hargrove Inferno Series Vented Gas Log Set with H-Burner combines unmatched realism and powerful performance to create a stunning centerpiece for your fireplace. The Charred Style logs are meticulously hand-painted with intricate bark textures, smoky charring, and natural stacking, replicating the look of a traditional wood fire. Made from premium refractory materials capable of withstanding over 2000°F and reinforced with metal mesh, these logs are as durable as they are lifelike.

Designed to mimic a fire that has been burning for hours, the Inferno Series offers a captivating display of flames dancing through partially burned logs. This set is available in sizes 18", 24", and 30", making it a versatile option for single-sided or see-through fireplaces. Compatible with both natural gas and liquid propane, it provides flexibility for various setups. The included H-Burner ensures a consistent, full-bodied flame pattern, enhancing the natural aesthetics of the logs while delivering reliable, efficient performance. This combination is ideal for creating a warm, inviting atmosphere with the timeless charm of a traditional fire.

Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.

BURNER:

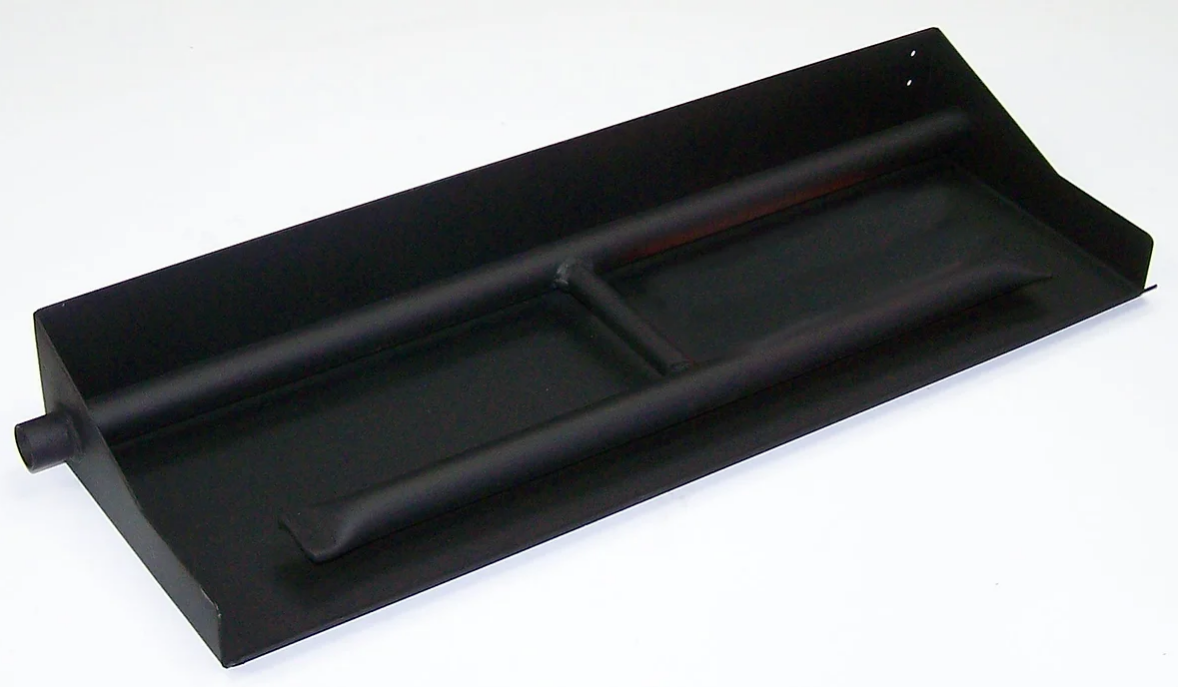

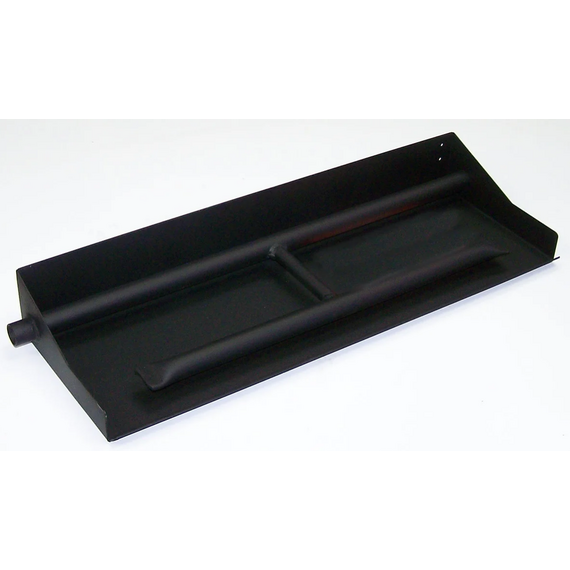

H-Burner- These come in sizes from 18 inches to 36 inches. Unlike the E-Burner, the H-Burner is a dual burner system, which means it produces a big flame and provides additional flames in front of the logs. These are recommended if you're using Hargrove's Char and Radiant Heat Series Logs.

CONTROL SYSTEM:

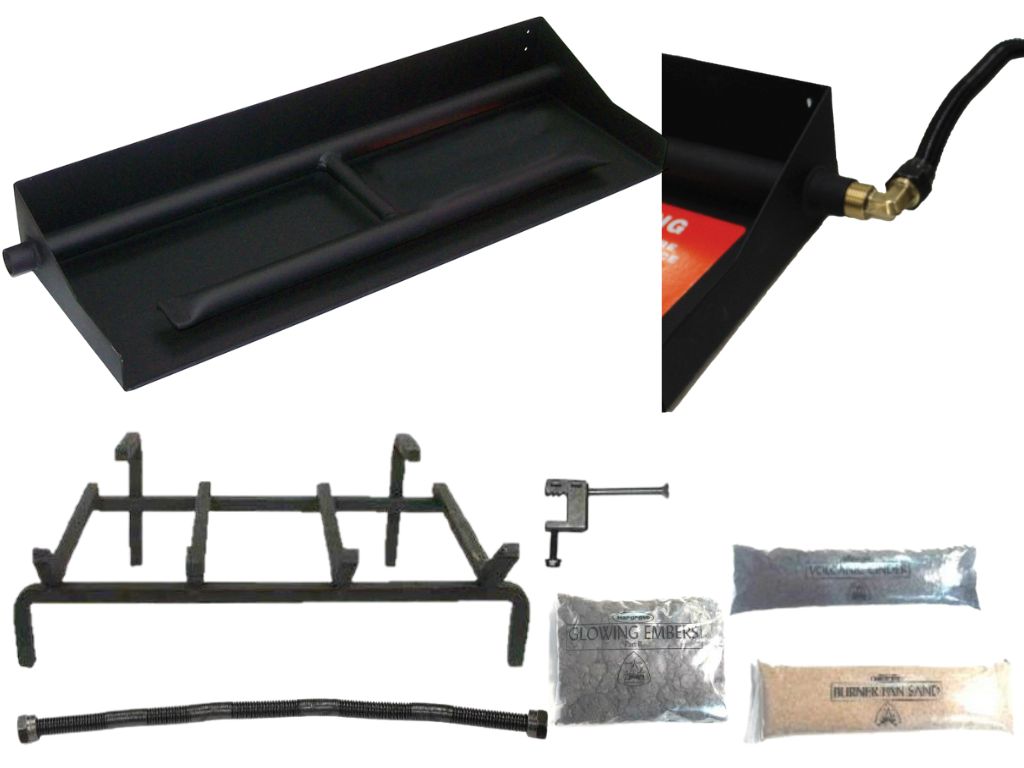

• Match Light: Manually lit with a match or lighter and has no pilot or safety valve. It is the simplest system and is for natural gas only, where allowed by local codes.

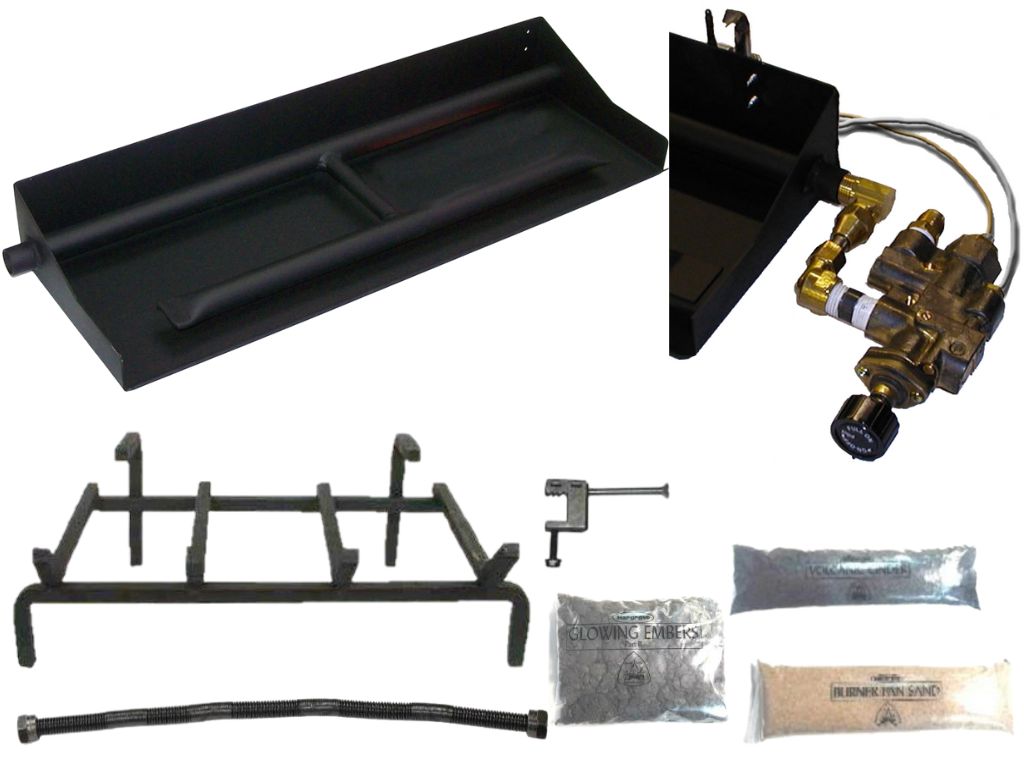

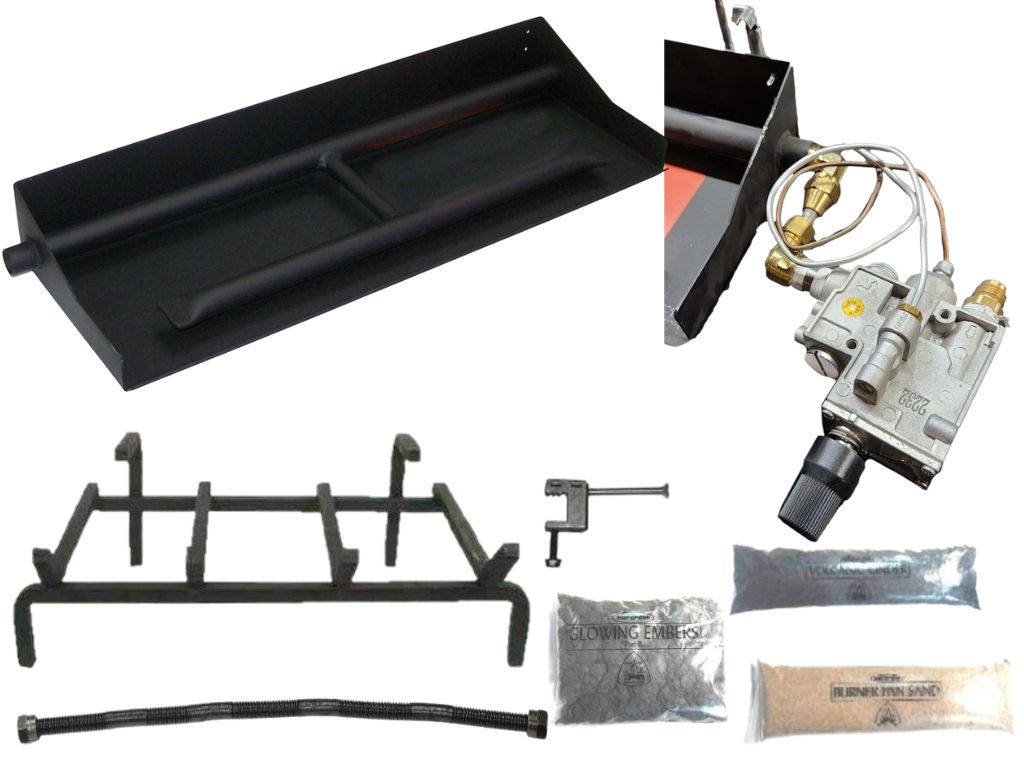

• Safety Pilot Valve – Manual: Uses a standing pilot and a control knob to turn the burner on and adjust flame height. The safety valve automatically shuts off gas if the pilot goes out.
• Safety Pilot – On/Off Remote: A standing pilot system that allows the burner to be turned on and off with a remote control. Flame height is adjusted manually using the valve knob.

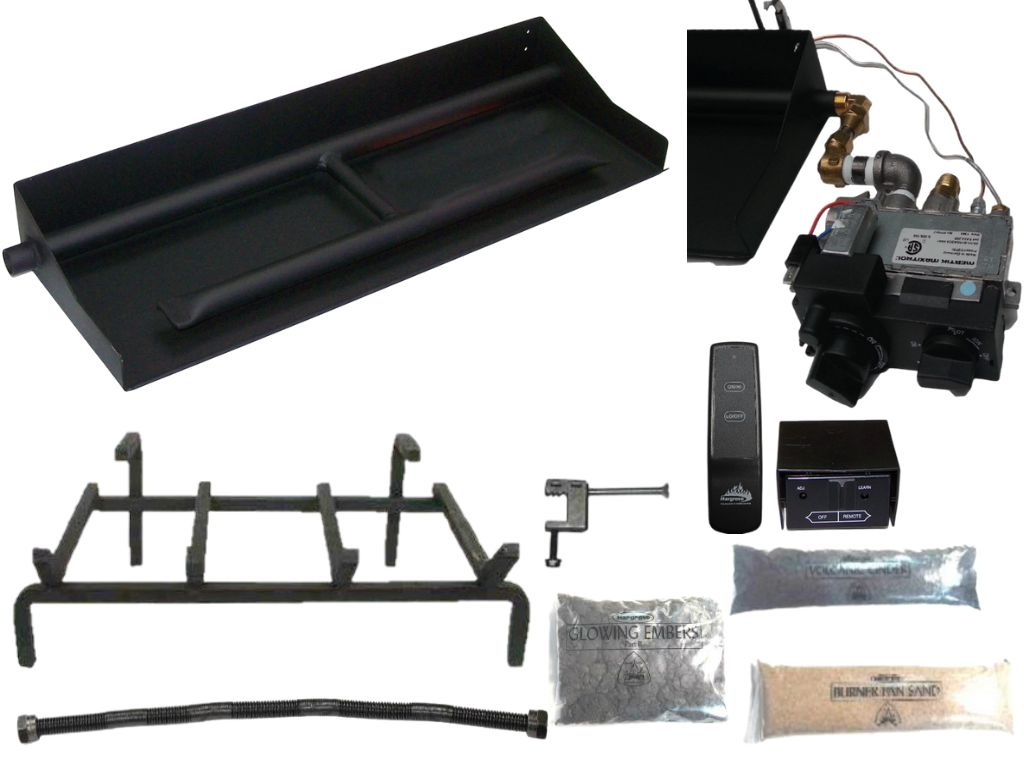

• Safety Pilot Valve – Variable Remote: Allows full remote control of both on/off operation and flame height. Uses a standing pilot with a built-in safety shutoff.

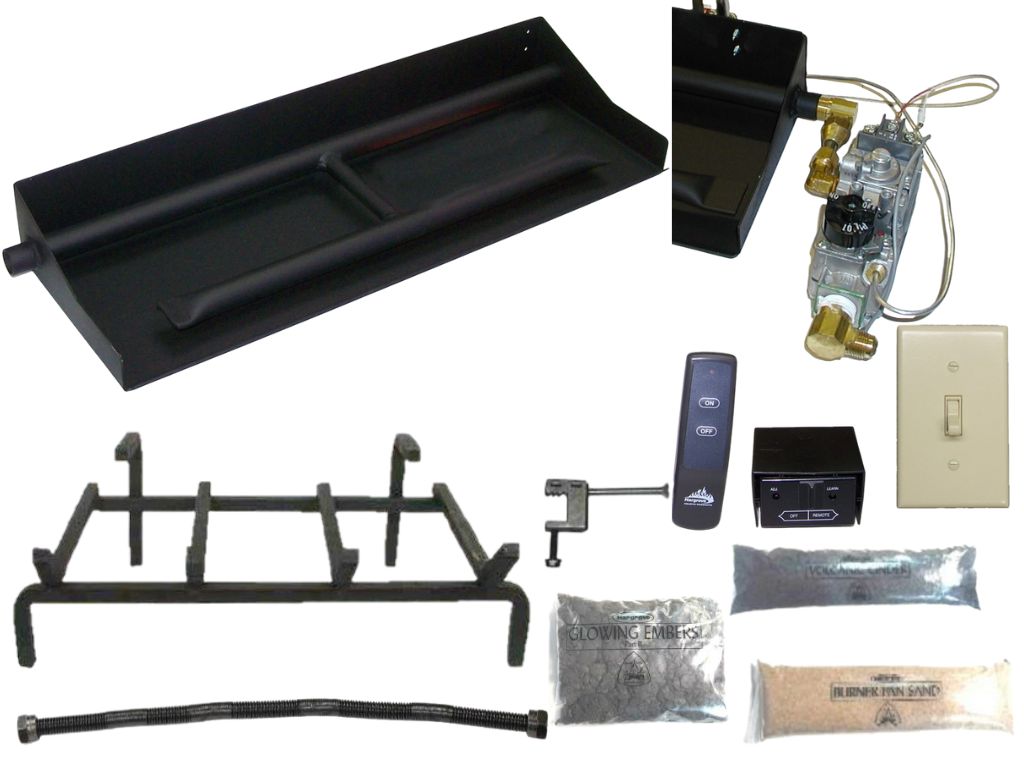

• Millivolt Valve – On/Off Wall Switch: A self-powered standing pilot system controlled by a wall switch or optional remote. Does not require household electricity to operate

Features:

• Available in 18", 24", and 30" sizes
• Available for Natural Gas or Liquid Propane
• Refractory materials capable of withstanding temps over 2000ºF
• Crisp detail Hargrove is known for
• Each log is hand-painted
• Reinforced with metal mesh reinforcement for added strength and durability
• The Burner System is not included with the log set and should be ordered separately.
• H-Burner requires a minimum of 14" of depth.
• Dual Burner that provides a large body of flame and additional flame in front of the logs.

INCLUDES:

• Burner
• Custom 5/8" grate
• Sand
• Vermiculite
• Embers

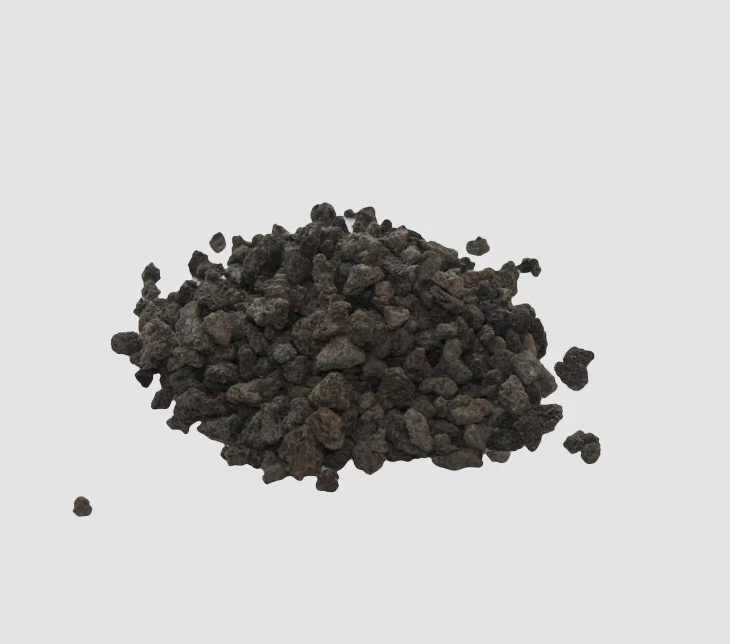

• Volcanic cinder
• Fittings
• Non-whistling flex connector.

Specifications:

• Fuel Type: Natural Gas or Liquid Propane
• Log Set Type: Vented Indoor
• Log Style: Inferno Series
• Available Sizes: 18", 24", 30"
• Number of Logs: 4–6 logs (varies by size)
• Material: Durable Refractory Concrete
• Burner Type: H-Burner (16-Gauge Steel)
• Ignition Options:  Match Lit, Safety Pilot Valve and Millivolt Pilot Valve

Downloads:

• Hargrove Vented Gas Logs Full Line
• Inferno Log Set Diagram
• Inferno Spec Sheet
• H-Burner with No Valve Instruction Manual
• H-Burner with Manual Safety Pilot Valve Instruction Manual
• H-Burner with Eco Pilot Valve Instruction Manual
• H-Burner with Latchtap Safety Plot Valve Instruction Manual
• H-Burner with Maxitrol Variable Flame Valve Instruction Manual
• H-Burner with Millivolt Valve Instruction Manual
• H-Burner Specification
• Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
• Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
• Product Warranty
