Hargrove Inferno Series Vented Gas Log Set With E-Burner
The Hargrove Inferno Series Vented Gas Log Set With E-Burner offers a realistic wood-burning appearance with exceptional durability and performance. The Charred Style logs feature deep bark detail, smoky charring, and natural stacking, and they are hand-painted for a lifelike finish. Crafted from refractory materials that withstand over 2000°F and reinforced with metal mesh, these logs ensure long-lasting strength.
The Inferno Series creates the look of a fire that has been burning for hours, with flames flickering through partially burned logs. Available in sizes 18", 21", 24", and 30", this set is compatible with single-sided or see-through fireplaces and works with natural gas or liquid propane. Paired with the E-Burner, this set produces a large, dynamic flame display. The burner is available in sizes from 15" to 42" and enhances the realistic effect, making it a perfect choice for creating a warm and inviting fireplace experience.
Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.
BURNER:

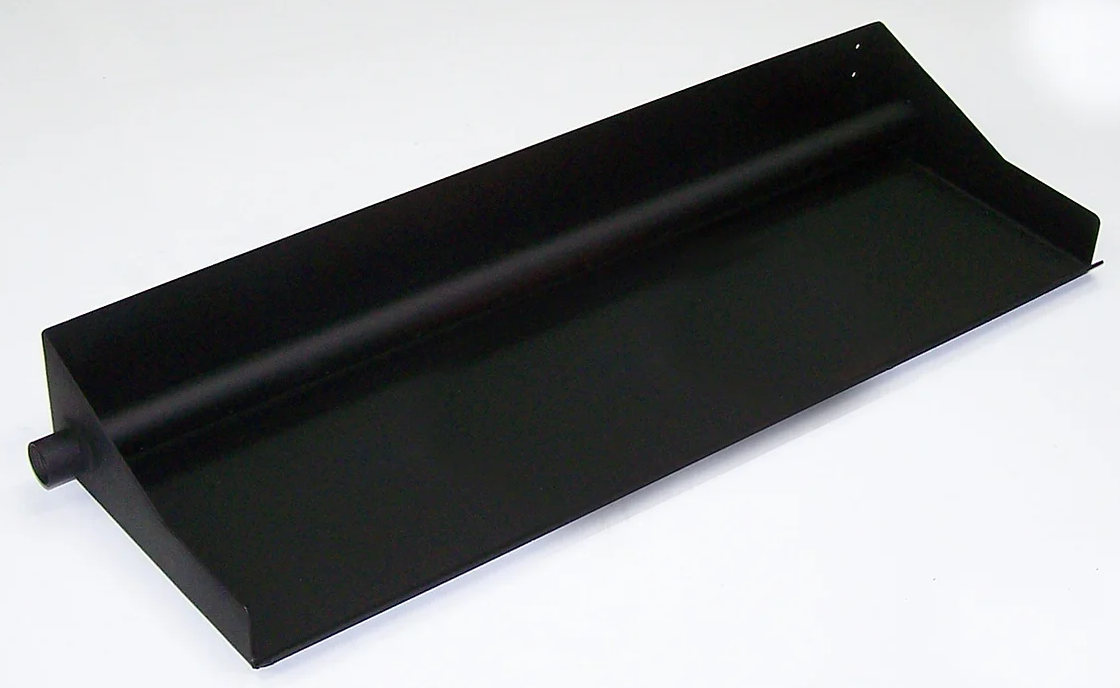

E-Burner- these come in sizes ranging from 15 inches up to 42 inches. They're single burners that produce a large, impressive flame. These are perfect if you're looking for a burner to pair with Hargrove's Fresh Cut Series Logs.
CONTROL SYSTEM:

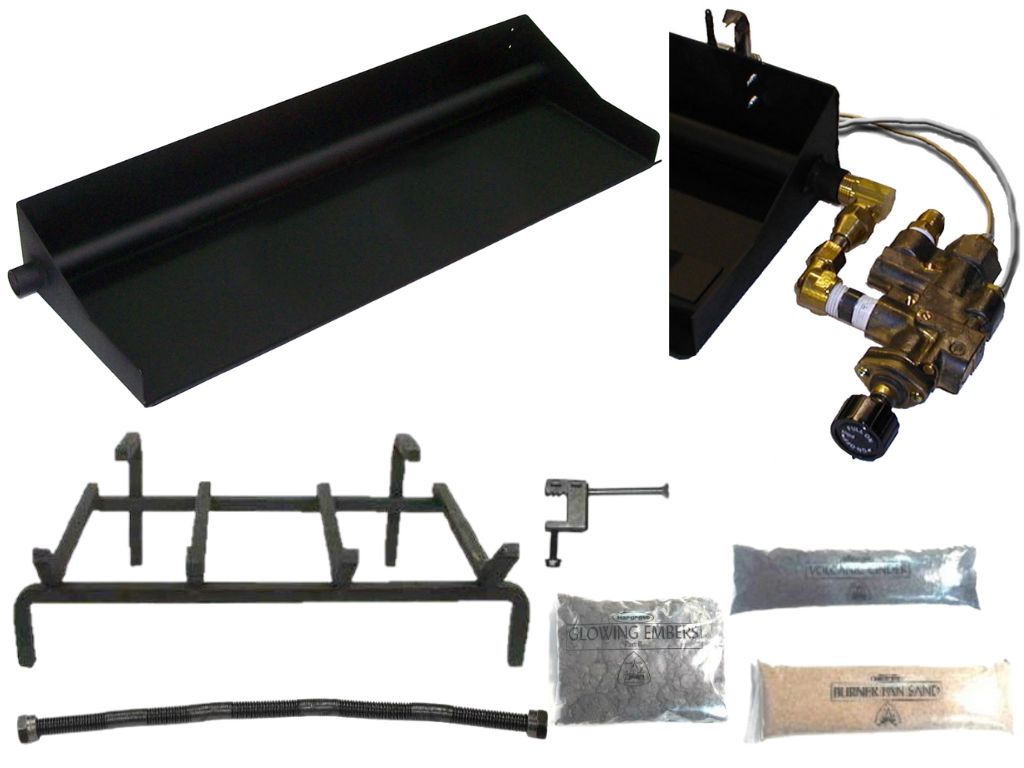

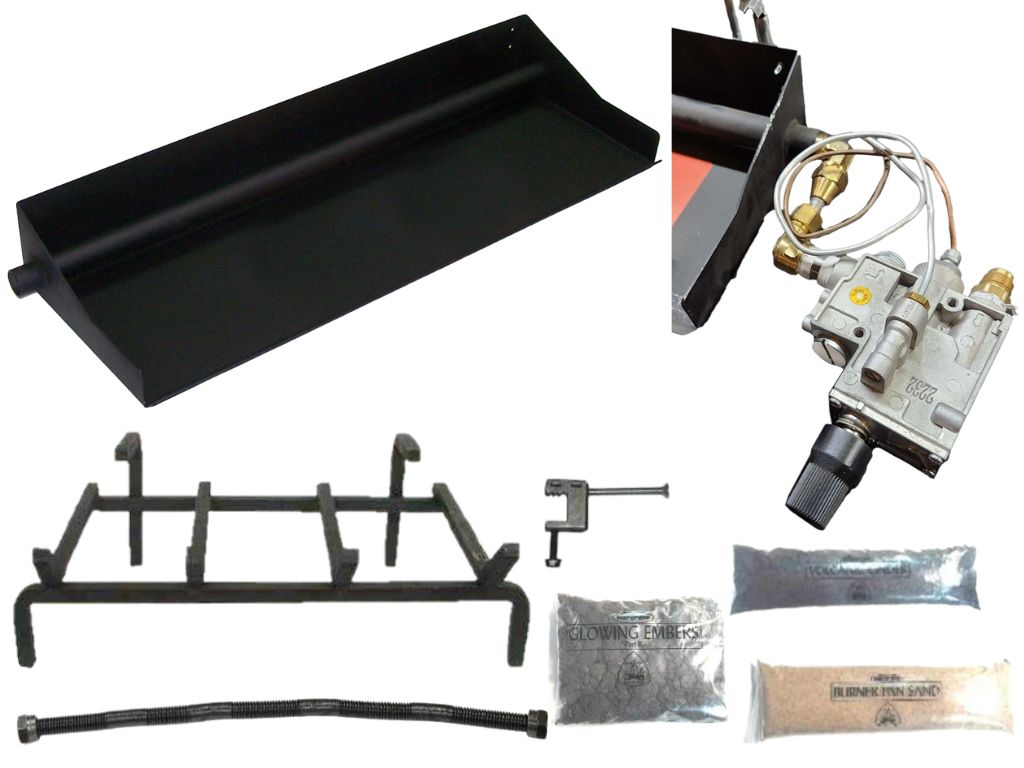

- Manual Safety Pilot- With this system, you've got a standing pilot safety valve setup. That means you can ignite the main burner flame with a knob and adjust it to your liking. It's versatile too, working with both natural gas and liquid propane. But remember, if you're going for liquid propane, you'll need that conversion kit.

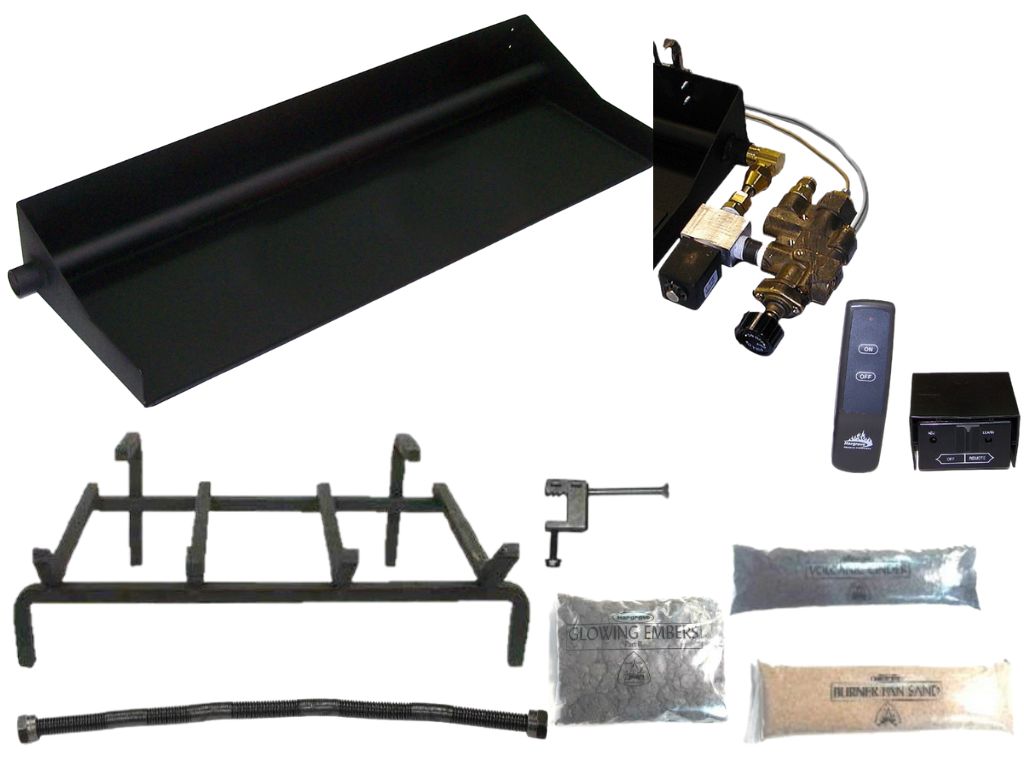

- Latchtap with Remote Control- This one's neat because it combines the manual safety pilot with a remote control kit. You can use the remote to turn the burner on and off and adjust the flame with the knob. Like the others, it's compatible with both natural gas and liquid propane, with a conversion kit required for propane.

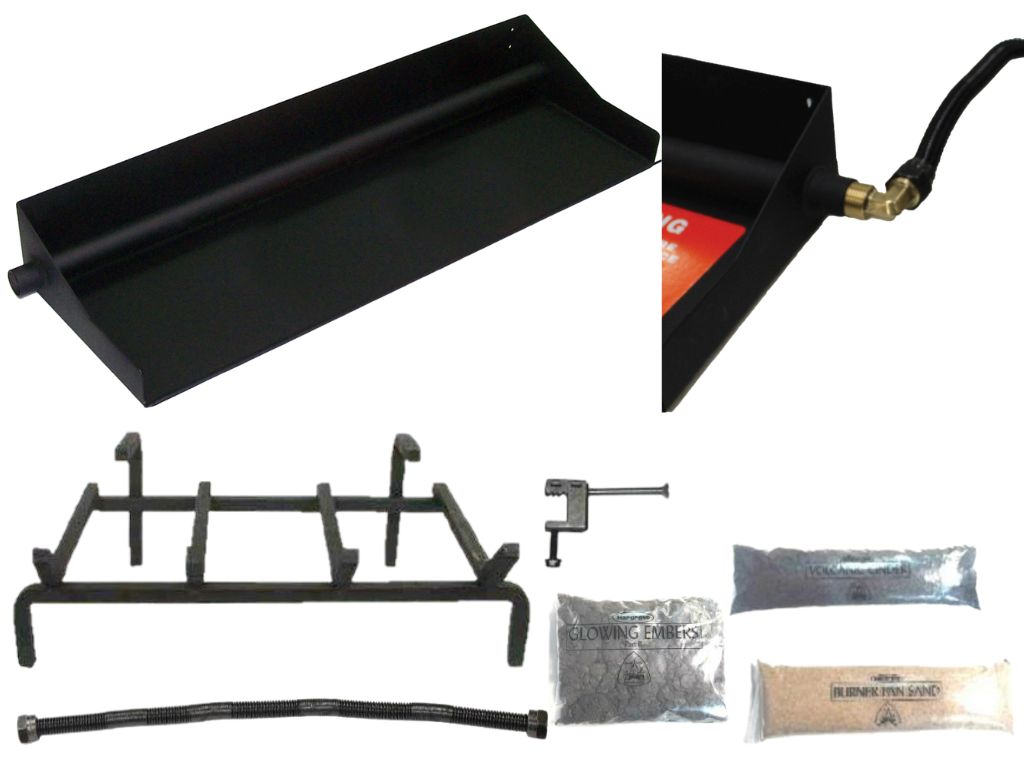

- Manual Valve with Knob- This one's pretty straightforward. You've got a knob that you turn to manually light the main burner using a match or a long lighter. Just keep in mind, that it's only for natural gas. If you're thinking of using liquid propane, you'll need to add a safety pilot and a conversion kit.

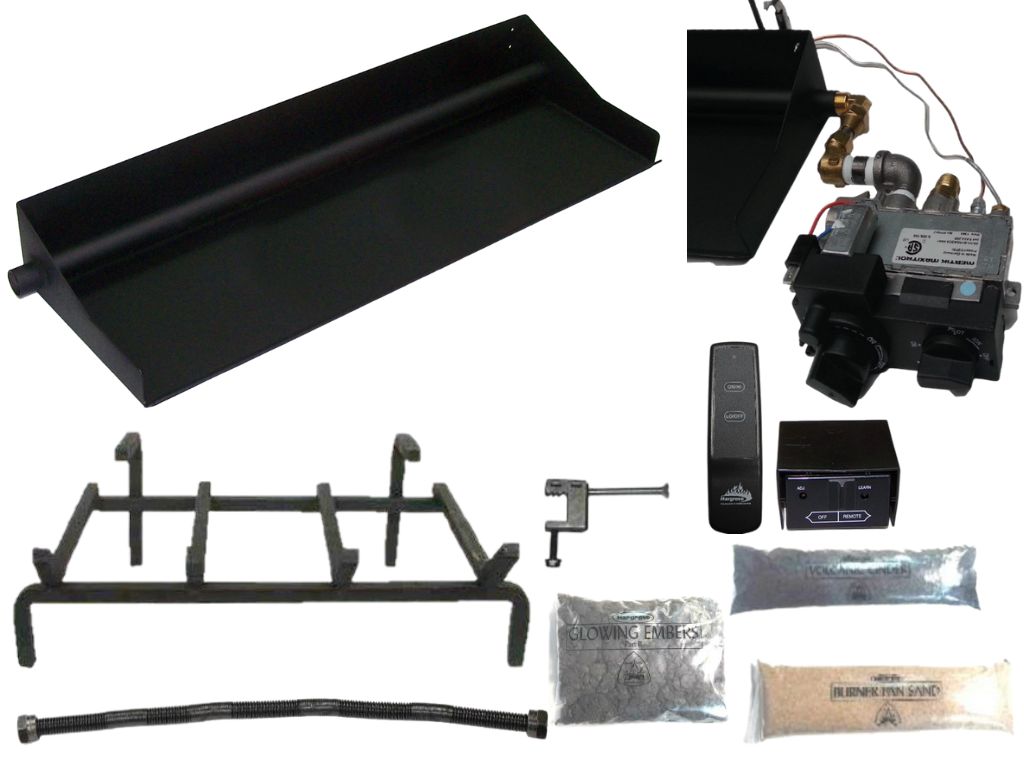

- Variable Flame Remote Control- Now, this is where things get a bit fancy. You've got a remote-controlled system that lets you not only turn the burner on and off remotely but also adjust the flame height. It's designed for both natural gas and liquid propane, but just like before, you'll need a conversion kit for propane.

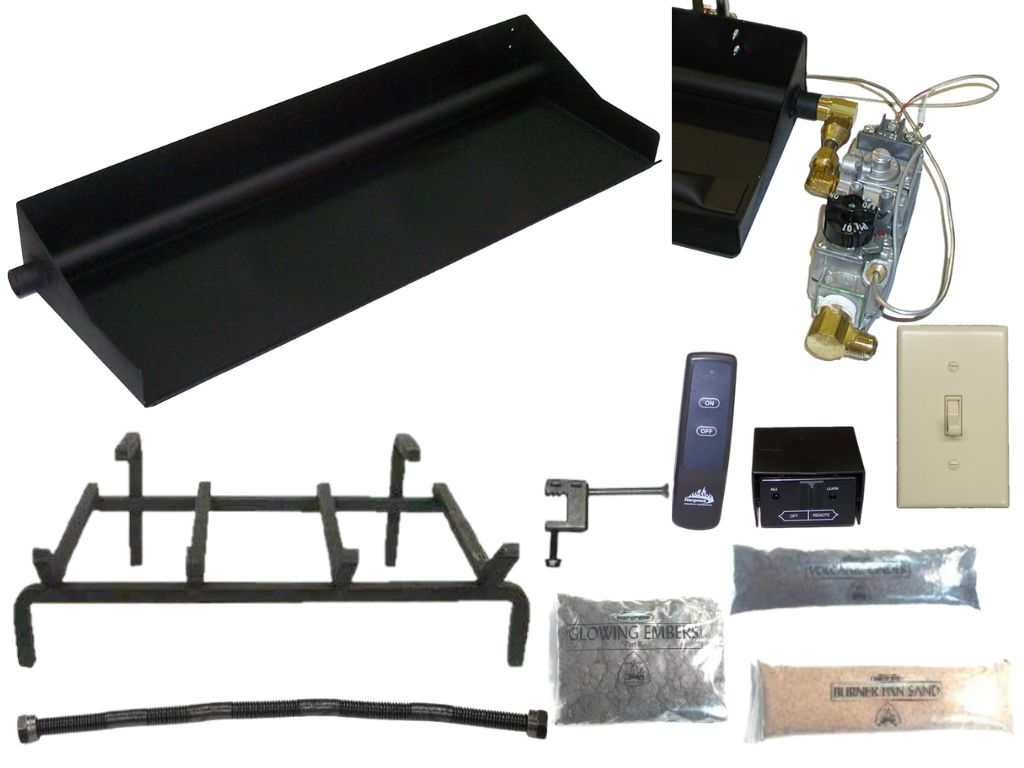

- Millivolt with Wall Switch- This one's pretty convenient because you can control it with a wall switch. You can also upgrade to a remote control if you prefer. It's versatile too, working with both natural gas and liquid propane. Just remember, if you're opting for liquid propane, you'll need that conversion kit.
Features:
- Available in 18", 21", 24", and 30" sizes
- Each log is hand-painted
- Reinforced with metal mesh reinforcement for added strength and durability
- The Burner System is not included with the log set and should be ordered separately.
- E-Burner requires a minimum of 14" of depth.
- Available for Natural Gas or Liquid Propane
- Refractory materials capable of withstanding temps over 2000ºF
- Crisp detail Hargrove is known for
INCLUDES:
- Burner
- Custom 5/8" grate
- Sand
- Vermiculite
- Embers

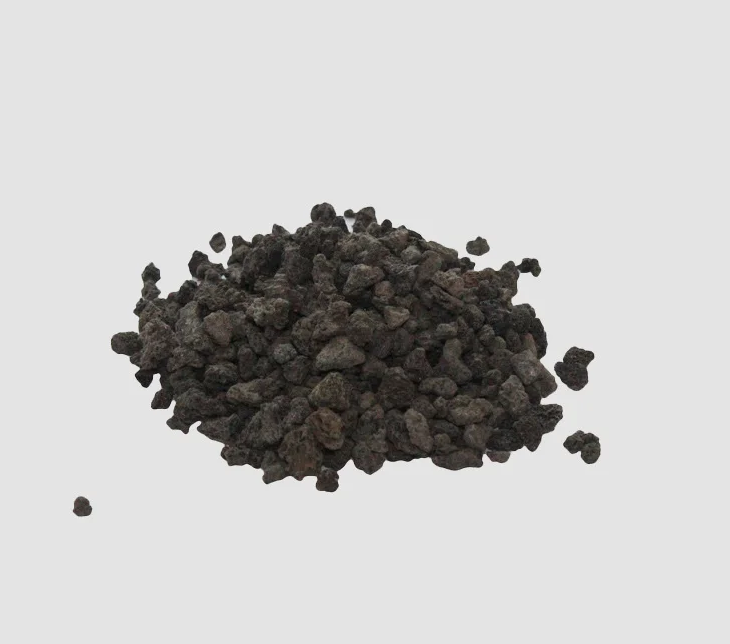

- Volcanic cinder
- Fittings
- Non-whistling flex connector.
Specifications:
- Fuel Type: Natural Gas or Liquid Propane
- Log Set Type: Vented Indoor
- Log Style: Inferno Series
- Available Sizes: 18", 21", 24" and 30"
- Number of Logs: 4–6 logs (varies by size)
- Material: Durable Refractory Concrete
- Burner Type: E Burner (16-Gauge Steel)
- Ignition Options: Match Lit, Standing Safety Pilot, Latchtap with On/Off Remote, Variable Flame with Remote, Millivolt Pilot with Wall Switch
Downloads:
- Hargrove Vented Gas Logs Full Line
- Inferno Log Set Diagram
- Inferno Spec Sheet
- E-Burner with No Valve Instruction Manual
- E-Burner with Manual Safety Pilot Valve Instruction Manual
- E-Burner with Eco Pilot Valve Instruction Manual
- E-Burner with Latchtap Safety Plot Valve Instruction Manual
- E-Burner with Maxitrol Variable Flame Valve Instruction Manual
- E-Burner with Millivolt Valve Instruction Manual
- E-Burner Specification
- Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
- Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
- Product Warranty
Hargrove 18" Inferno Series Vented Gas Log Set With E-Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Inferno Series
- Log Set Width: 18 Inch
- Number of Logs: 4 Pieces
- Material: Refractory Concrete
- Burner Type: E Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Standing Safety Pilot | Latchtap with On/Off Remote | Variable Flame with Remote | Millivolt Pilot with Wall Switch
- BTU: 57k BTU (NG) and 42k BTU (LP)
- Burner Dimension: 22" W x 14" D x 16" H
Hargrove 21" Inferno Series Vented Gas Log Set With E-Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Inferno Series
- Log Set Width: 21 Inch
- Number of Logs: 4 Pieces
- Material: Refractory Concrete
- Burner Type: E Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Standing Safety Pilot | Latchtap with On/Off Remote | Variable Flame with Remote | Millivolt Pilot with Wall Switch
- BTU: 57k BTU (NG) and 42k BTU (LP)
- Burner Dimension: 25" W x 14" D x 16" H

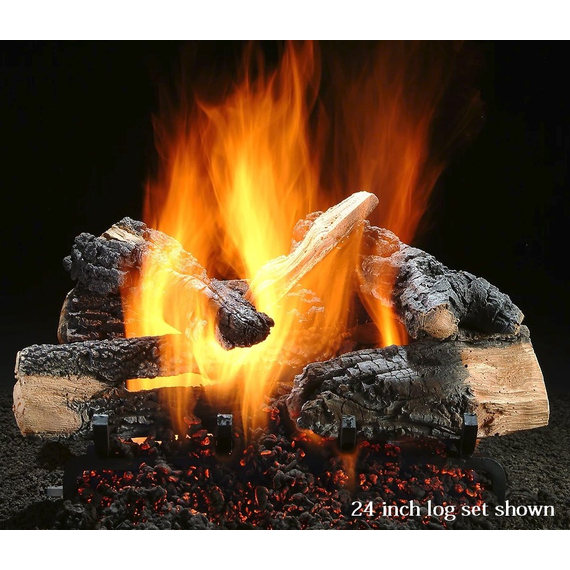

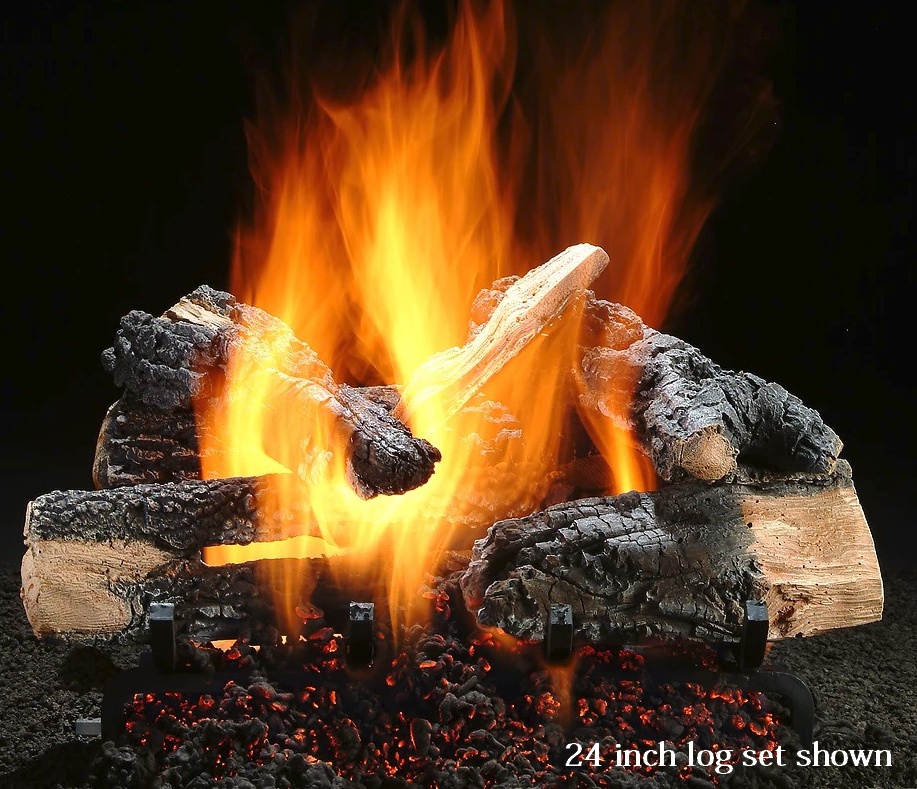

Hargrove 24" Inferno Series Vented Gas Log Set With E-Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Inferno Series
- Log Set Width: 24 Inch
- Number of Logs: 6 Pieces
- Material: Refractory Concrete
- Burner Type: E Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Standing Safety Pilot | Latchtap with On/Off Remote | Variable Flame with Remote | Millivolt Pilot with Wall Switch
- BTU: 70k BTU (NG) and 57k BTU (LP)
- Burner Dimension: 28" W x 14" D x 16" H
Hargrove 30" Inferno Series Vented Gas Log Set With E-Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Inferno Series
- Log Set Width: 30 Inch
- Number of Logs: 7 Pieces
- Material: Refractory Concrete
- Burner Type: E Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Standing Safety Pilot | Latchtap with On/Off Remote | Variable Flame with Remote | Millivolt Pilot with Wall Switch
- BTU: 90k BTU (NG) and 70k BTU (LP)
- Burner Dimension: 34" W x 14" D x 16" H
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
