Hargrove Classic Oak Vented Logs with Hidden Control Burner
The Hargrove Classic Oak Gas Vented Log Set with Hidden Control Burner—imagine bringing a warm, natural look to your fireplace without all the fuss of real wood. With this set, you’re getting logs that look like they’ve just been freshly split and stacked, thanks to Hargrove’s incredible attention to detail. Each log is hand-painted to showcase that deep bark texture and intricate, natural split wood look. And not only do they look incredibly realistic, but they’re also built tough—made from a high-grade refractory material that withstands up to 2000 degrees Fahrenheit. They’ve even got a metal mesh reinforcement inside for added durability, so they’ll keep looking great even after heavy use.
Now, here’s the best part about this setup: the Hidden Control Burner. This burner gives you a cleaner, sleeker look since it conceals the controls, so everything stays out of sight. This burner is designed to work beautifully with the “Fresh Cut,” “Radiant,” or “Charred” styles, depending on the look you want. You can pick from a variety of sizes too—whether you need an 18”, 24”, 30”, or even a 36” setup. All in all, if you’re after a traditional, natural feel for your fireplace without all the maintenance of real wood, this Hargrove set is a fantastic choice. The logs look fresh and detailed, the controls stay out of sight, and you can enjoy that classic oak look for years to come.
Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.
BURNER:

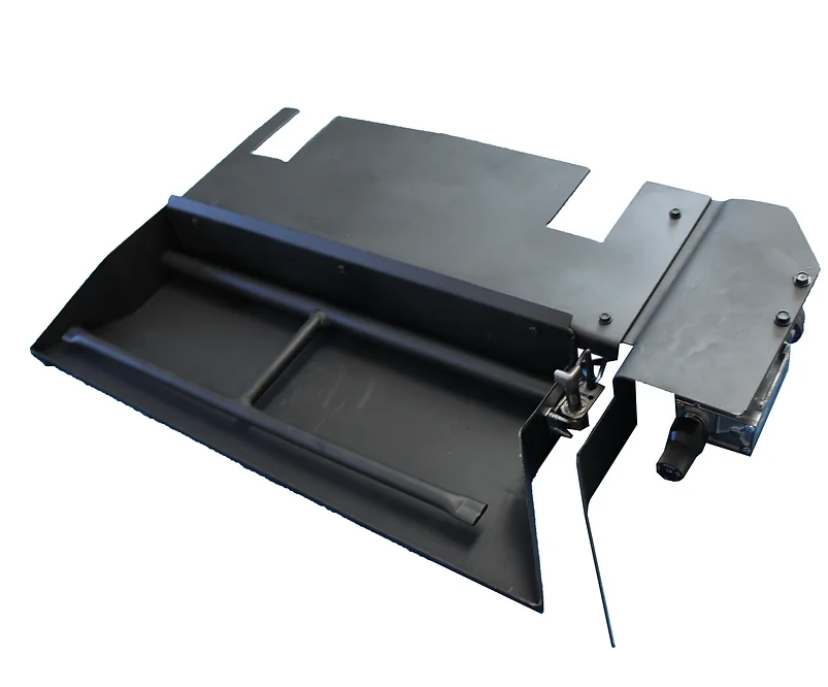

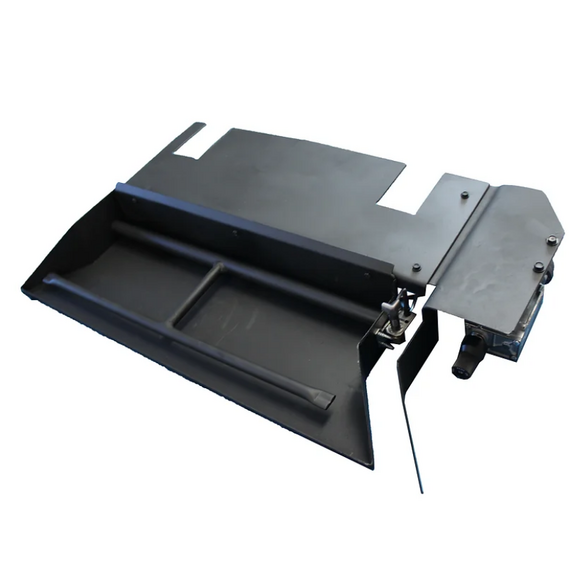

Hidden Control Burners- These are designed to hide the control system from view, giving your fireplace a sleek look. They come in sizes of 18 inches, 24 inches, 30 inches, and 36 inches. They work well with a variety of styles including Radiant, Charred, and Fresh Cut.
CONTROL SYSTEM:
- Manual Safety Pilot- With this system, you've got a standing pilot safety valve setup. That means you can ignite the main burner flame with a knob and adjust it to your liking. It's versatile too, working with both natural gas and liquid propane. But remember, if you're going for liquid propane, you'll need that conversion kit.

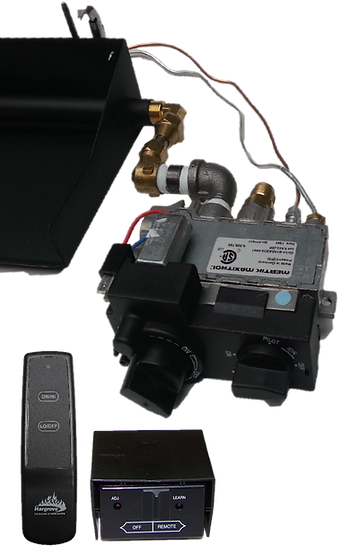

- Variable Flame Remote Control- Now, this is where things get a bit fancy. You've got a remote-controlled system that lets you not only turn the burner on and off remotely but also adjust the flame height. It's designed for both natural gas and liquid propane, but just like before, you'll need a conversion kit for propane.

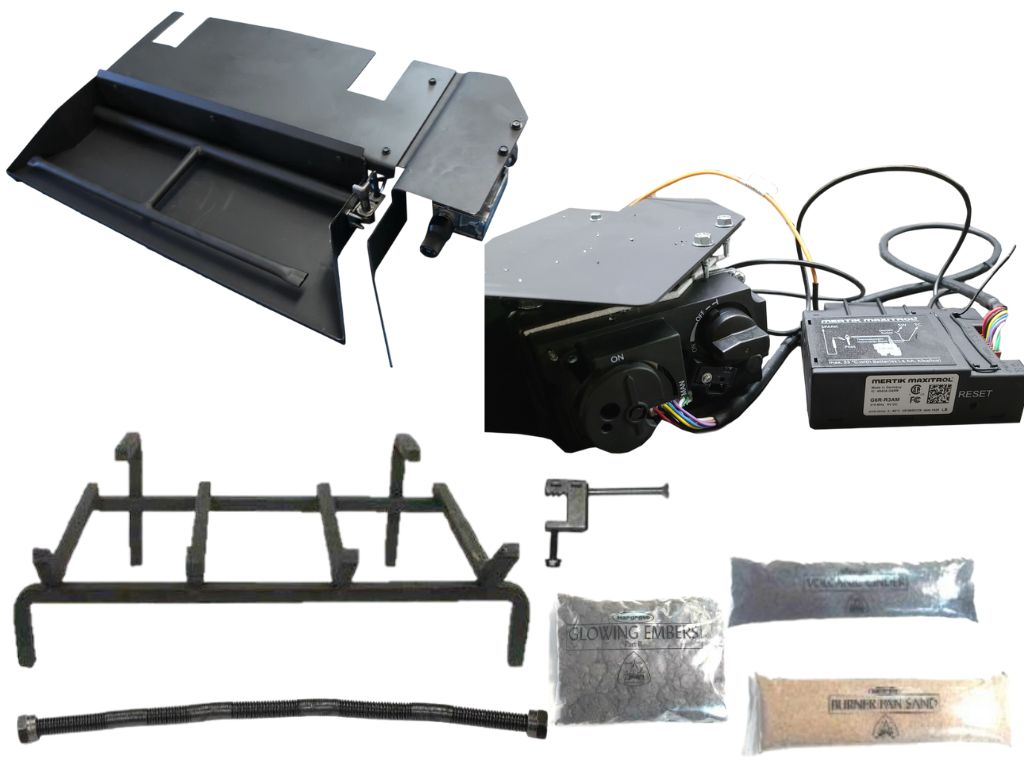

- Electronic Ignition System with a Variable Flame Remote Control- It lets you activate the pilot, turn the main burner on/off, and adjust the flame height using the remote. Plus, it's flexible with installation thanks to a mounted valve system using a flex connector. It works with both natural gas and liquid propane (with an LP conversion kit).
Features:
- Available in 18", 21", 24", and 30" sizes
- Available for Natural Gas or Liquid Propane
- Refractory materials capable of withstanding temps over 2000ºF
- Crisp detail Hargrove is known for
- Each log is hand-painted
- Reinforced with metal mesh reinforcement for added strength and durability
- The Burner System is not included with the log set and should be ordered separately.
- Hidden Burner requires a minimum of 14" of depth
- Burner design hides the control system from the view
INCLUDES:
- HC Burner
- Custom 5/8" grate
- Sand or vermiculite
- Embers

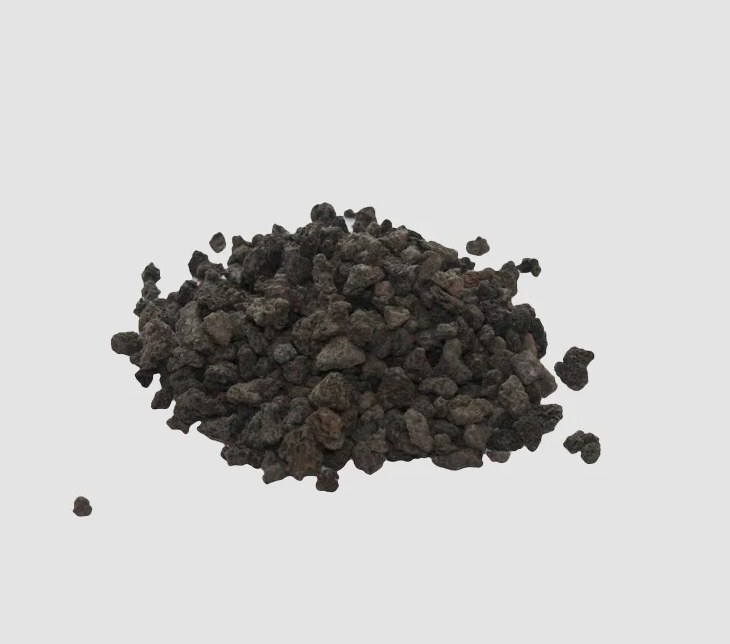

- Volcanic cinder
- Fittings
- Black non-whistling flex connector
Specifications:
- Fuel Options: Natural Gas or Liquid Propane
- Log Set Type: Indoor Vented
- Log Style: Classic Oak
- Sizes: 18", 21", 24", and 30"
- Number of Logs: 5, 6, or 7 pieces (depending on size)
- Material: Durable Refractory Concrete
- Burner: Hidden Control Burner (16-gauge steel)
- Ignition Options: Safety Pilot, Variable Flame with Remote, or Electronic Ignition with Remote
Downloads:
- Hargrove Vented Gas Logs Full Line
- Classic Oak Vented Gas Log Set Burner Manual
- Classic Oak Log Set Diagram
- Classic Oak Spec Sheet
- Hidden Control Burner with Safety Pilot Valve Instruction Manual Instruction Manual
- Hidden Control Burner with Variable Flame with Remote Instruction Manual
- Hidden Control Burner with Electronic Ignition with Variable Remote Instruction Manual
- Hidden Control Burner Specification

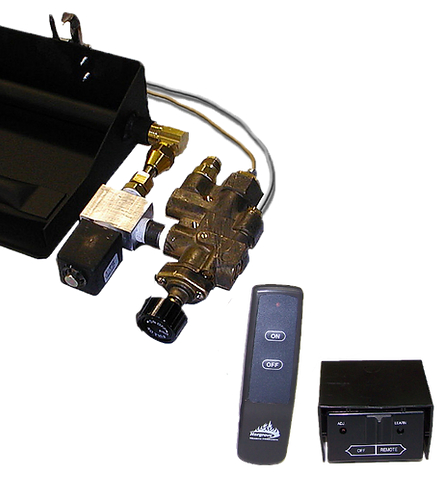

- Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
- Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
- Product Warranty

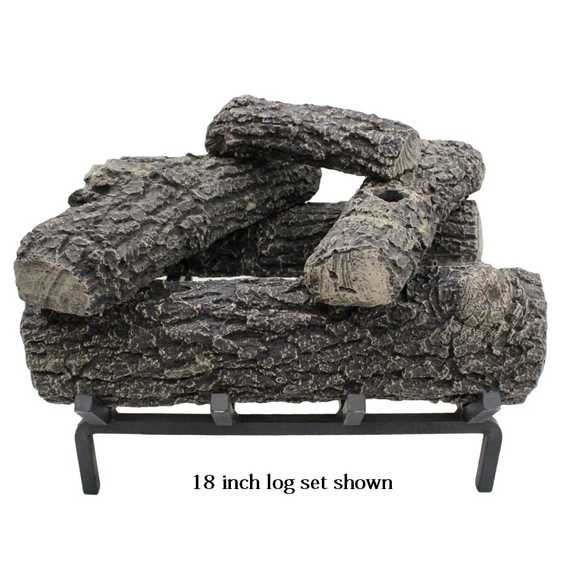

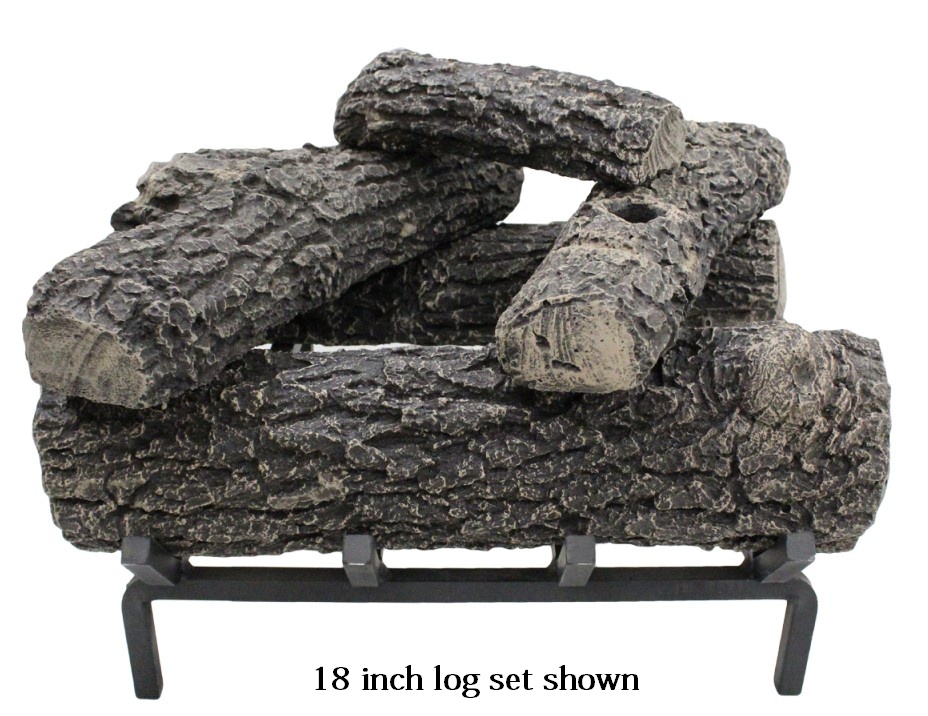

Hargrove 18" Classic Oak Gas Vented Gas Log Set With Hidden Control Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Classic Oak
- Log Set Width: 18 Inch
- Number of Logs: 5 Pieces
- Material: Refractory Concrete
- Burner Type: Hidden Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Safety Pilot | Factory Installed Variable Flame with Remote | Factory Installed Electronic Ignition with Variable Remote
- BTU: 70k BTU (NG) and 55k BTU (LP)
- Burner Dimension: 30" W x 14" D x 16" H
Hargrove 21" Classic Oak Gas Vented Gas Log Set With Hidden Control Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Classic Oak
- Log Set Width: 21 Inch
- Number of Logs: 5 Pieces
- Material: Refractory Concrete
- Burner Type: Hidden Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Safety Pilot | Factory Installed Variable Flame with Remote | Factory Installed Electronic Ignition with Variable Remote
- BTU: 70k BTU (NG) and 55k BTU (LP)
- Burner Dimension: 30" W x 14" D x 16" H

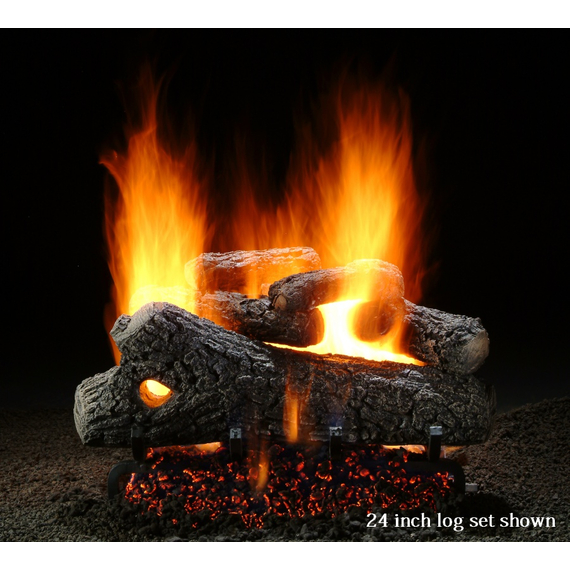

Hargrove 24" Classic Oak Gas Vented Gas Log Set With Hidden Control Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Classic Oak
- Log Set Width: 24 Inch
- Number of Logs: 6 Pieces
- Material: Refractory Concrete
- Burner Type: Hidden Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Safety Pilot | Factory Installed Variable Flame with Remote | Factory Installed Electronic Ignition with Variable Remote
- BTU: 80k BTU (NG) and 65k BTU (LP)
- Burner Dimension: 36" W x 14" D x 16" H
Hargrove 30" Classic Oak Gas Vented Gas Log Set With Hidden Control Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Classic Oak
- Log Set Width: 30 Inch
- Number of Logs: 7 Pieces
- Material: Refractory Concrete
- Burner Type: Hidden Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Safety Pilot | Factory Installed Variable Flame with Remote | Factory Installed Electronic Ignition with Variable Remote
- BTU: 90k BTU (NG) and 75k BTU (LP)
- Burner Dimension: 42" W x 14" D x 16" H
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
