Hargrove Classic Oak Vented Gas Logs with System-4 Burner
Have you heard about the latest from Hargrove? It's the Hargrove 18-inch Classic Oak Gas Log Set with H-Burner – and let me tell you, it's a game-changer for your fireplace setup. Imagine this: you're lounging by the fire, but instead of dealing with logs, you've got these incredibly realistic oak logs glowing with flickering flames – all thanks to the magic of the H-Burner.
This set has everything you need to turn your fireplace into a cozy haven. Just pop it in, and you're all set to enjoy that warm, comforting ambiance. What sets this apart is the H-Burner design, which ensures super efficiency and even burns for a consistently cozy fire that'll make you never want to leave the hearth. So, if you're all about creating that perfect fireside vibe with minimal hassle, you've got to check out the Hargrove 18-inch Classic Oak Gas Log Set with H-Burner. Trust me, it's going to elevate your cozy nights to a whole new level!
Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.
BURNER:

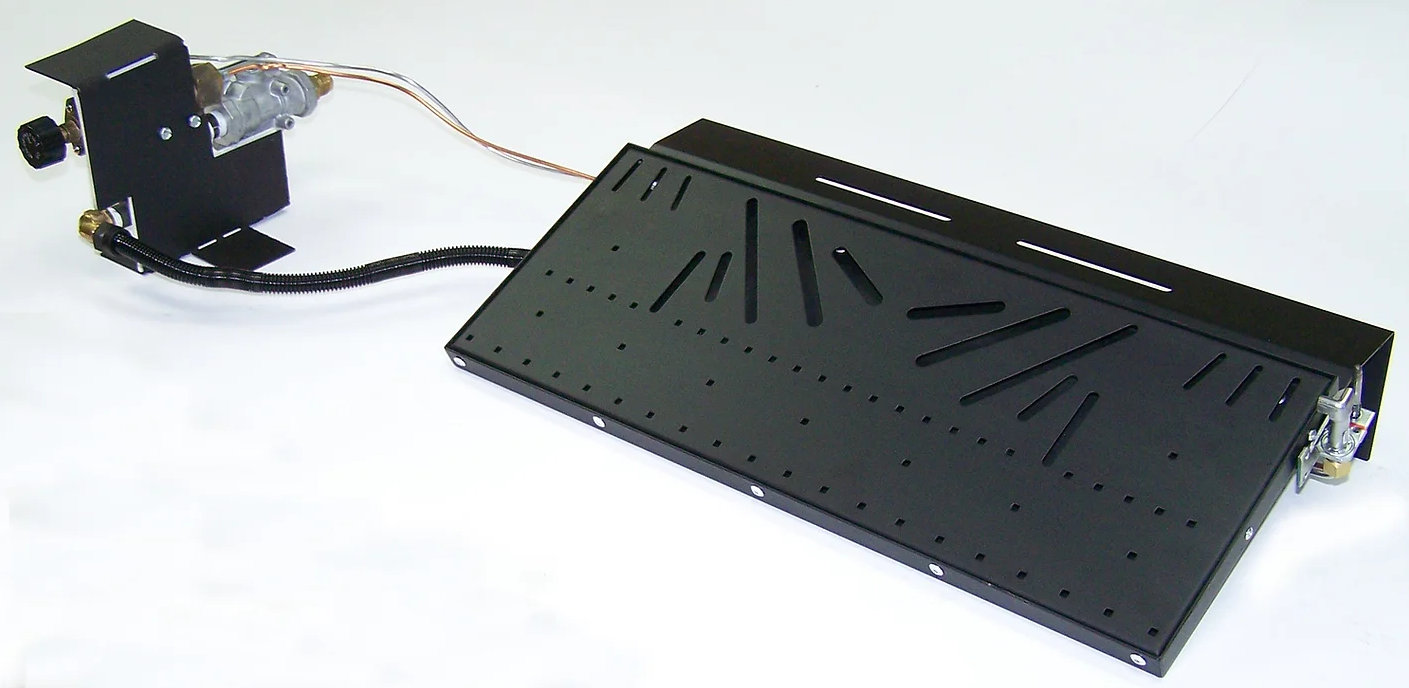

System 4- These are available in sizes ranging from 18 inches to 42 inches. They're known for producing a full-bodied flame, especially ideal for liquid propane applications. If you're using Hargrove's Fresh Cut, Char, or Radiant Heat Series Logs and prefer liquid propane, the System 4 is a great choice.
CONTROL SYSTEM:
- Manual Safety Pilot- With this system, you've got a standing pilot safety valve setup. That means you can ignite the main burner flame with a knob and adjust it to your liking. It's versatile too, working with both natural gas and liquid propane. But remember, if you're going for liquid propane, you'll need that conversion kit.
- Latchtap with Remote Control- This one's neat because it combines the manual safety pilot with a remote control kit. You can use the remote to turn the burner on and off and adjust the flame with the knob. Like the others, it's compatible with both natural gas and liquid propane, with a conversion kit required for propane.
- Variable Flame Remote Control- Now, this is where things get a bit fancy. You've got a remote-controlled system that lets you not only turn the burner on and off remotely but also adjust the flame height. It's designed for both natural gas and liquid propane, but just like before, you'll need a conversion kit for propane.
Features:
- Available in 18", 21", 24", and 30" sizes
- Refractory materials capable of withstanding temps over 2000ºF
- Crisp detail Hargrove is known for
- Each log is hand-painted
- Reinforced with metal mesh reinforcement for added strength and durability
- The Burner System is not included with the log set and should be ordered separately.
- System 4 Burner kits require a minimum of 16" of depth.
- A full-bodied flame that provides outstanding performance in liquid propane applications.

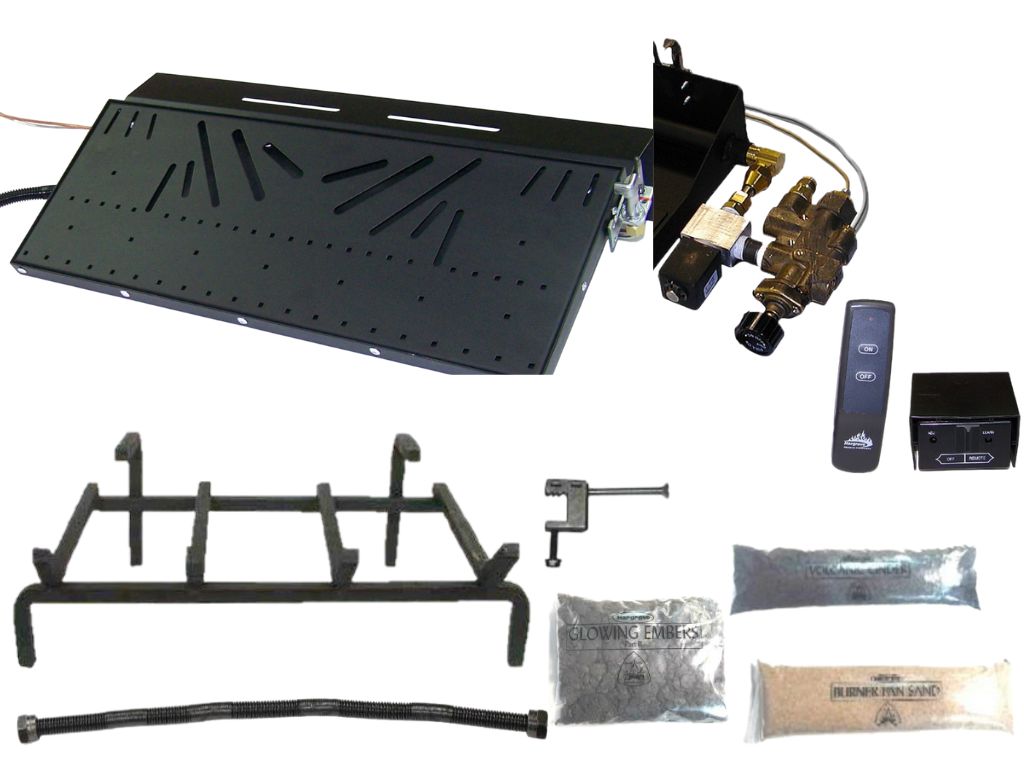

INCLUDES:
- Burner,
- Custom 5/8" grate,
- Embers,
- Volcanic cinder,
- Fittings,
- Non-whistling flex connector.
Specifications:
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Style: Classic Oak
- Available Widths: 18", 21", 24", 30"
- Number of Logs: 5–7 logs
- Material: Durable Refractory Concrete
- Burner Type: System-4 Burner (16-Gauge Steel)
- Ignition Options: Standing Safety Pilot | Latchtap With On/Off Remote | Variable Flame With Remote
Downloads:
- Hargrove Vented Gas Logs Full Line
- Classic Oak Log Set Diagram
- Classic Oak Spec Sheet
- System-4 Burner with COOL MOUNT Manual Safety Pilot Valve Instruction Manual
- System-4 Burner with COOL MOUNT Eco Pilot Valve
- System-4 Burner with COOL MOUNT Variable Flame
- System-4 Burner with COOL MOUNT Valve and ON/OFF Remote
- System 4 Burner Specification
- Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
- Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
- Product Warranty

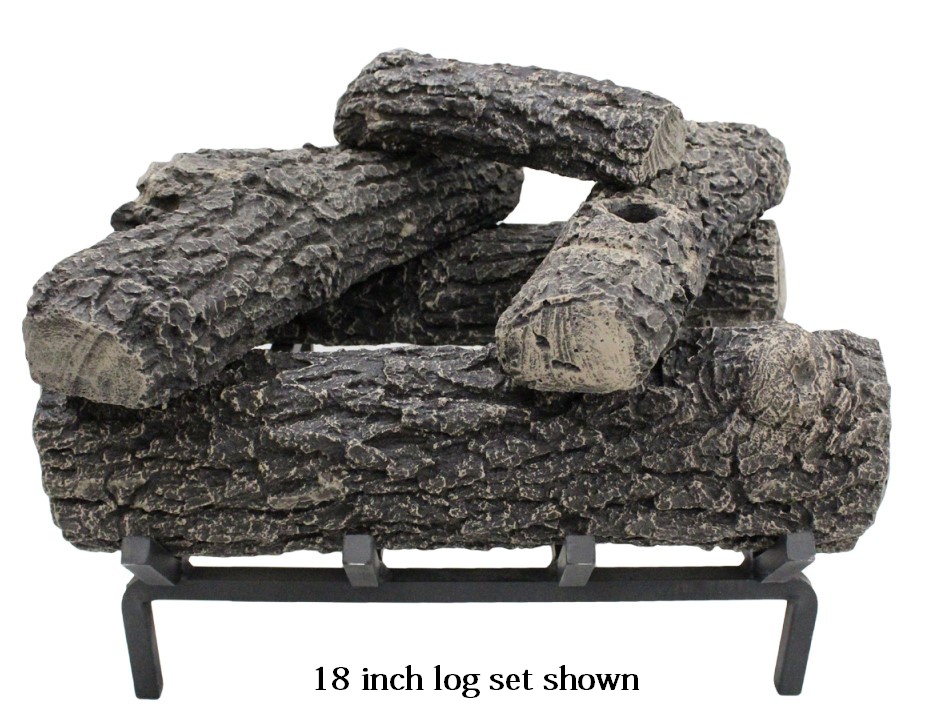

Hargrove 18" Classic Oak Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Classic Oak
- Log Set Width: 18 Inch
- Number of Logs: 5 Pieces
- Material: Refractory Concrete
- Burner Type: System 4
- Burner Material: 16 Gauge Steel
- Ignition Type: Standing Safety Pilot | Latchtap With On/Off Remote | Variable Flame With Remote
- BTU: 47k BTU
- Burner Dimension: 30" W x 14" D x 16" H
Hargrove 21" Classic Oak Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Classic Oak
- Log Set Width: 21 Inch
- Number of Logs: 5 Pieces
- Material: Refractory Concrete
- Burner Type: System 4
- Burner Material: 16 Gauge Steel
- Ignition Type: Standing Safety Pilot | Latchtap With On/Off Remote | Variable Flame With Remote
- BTU: 47k BTU
- Burner Dimension: 30" W x 14" D x 16" H
Hargrove 24" Classic Oak Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Classic Oak
- Log Set Width: 24 Inch
- Number of Logs: 6 Pieces
- Material: Refractory Concrete
- Burner Type: System 4
- Burner Material: 16 Gauge Steel
- Ignition Type: Standing Safety Pilot | Latchtap With On/Off Remote | Variable Flame With Remote
- BTU: 60k BTU
- Burner Dimension: 36" W x 14" D x 16" H
Hargrove 30" Classic Oak Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Classic Oak
- Log Set Width: 30 Inch
- Number of Logs: 7 Pieces
- Material: Refractory Concrete
- Burner Type: System 4
- Burner Material: 16 Gauge Steel
- Ignition Type: Standing Safety Pilot | Latchtap With On/Off Remote | Variable Flame With Remote
- BTU: 68K BTU
- Burner Dimension: 42" W x 14" D x 16" H
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
