Hargrove Canyon Timbers Logs With Hidden Control Burner

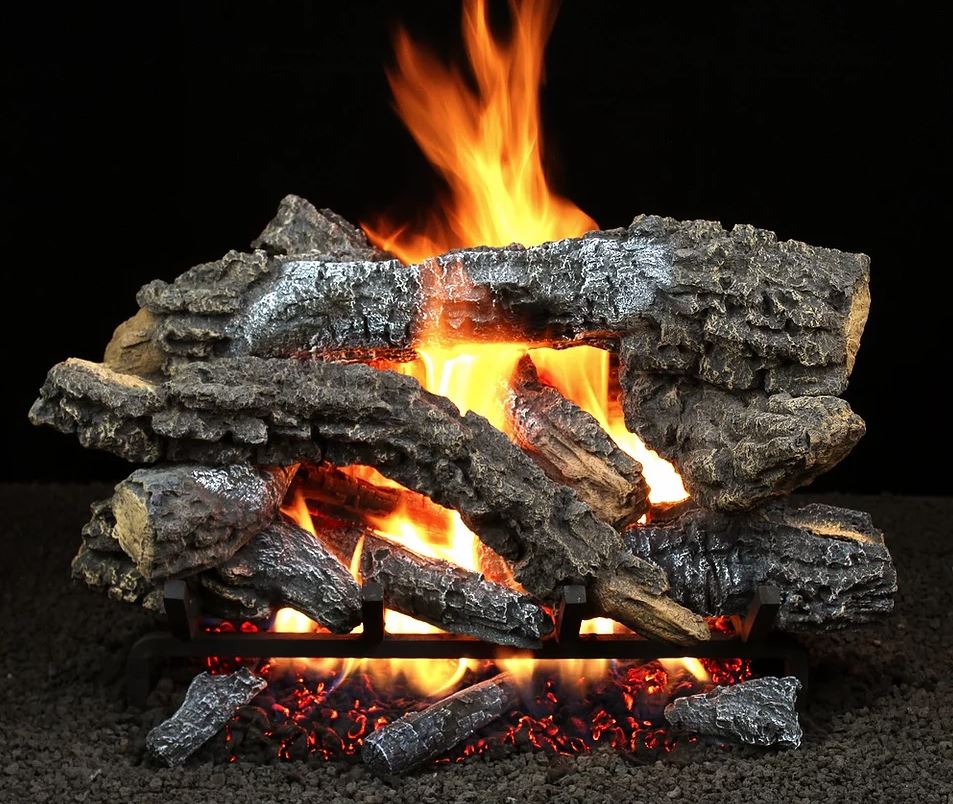

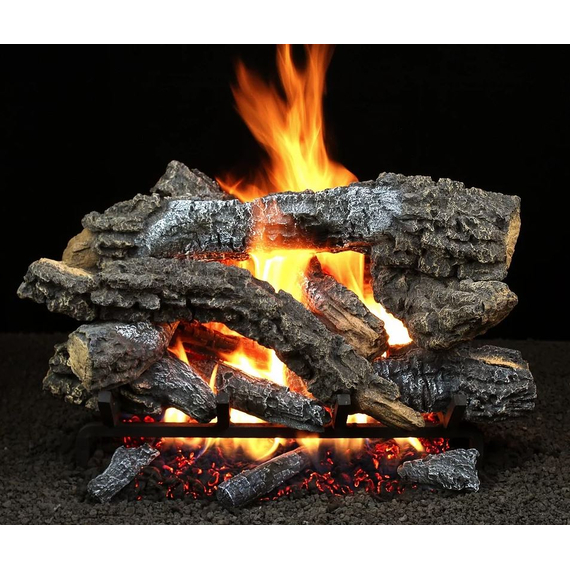

Let me tell you about this amazing fireplace setup I came across—the Hargrove Canyon Timbers Vented Log Set with Hidden Control Burner. You know how some fireplaces just look fake or don’t give off enough heat? This one solves all that! First off, the Canyon Timbers logs are stunning. They’ve got this deep bark texture and these charred details that make them look just like real firewood. Honestly, it’s like they were plucked straight out of a canyon. They come in different sizes, from 21 inches to 36 inches, so you can find the perfect fit for your fireplace. Oh, and it works with both natural gas and propane, so no matter what setup you have, you’re good to go.
Now, the Hidden Control Burner is genius. Do you know how some burners have those controls that stick out and ruin the look? Not this one—it’s all hidden! So, it’s just the logs, the flames, and the ember bed—nothing else distracting you. And they’ve got sizes from 18 to 36 inches for this burner, so it’ll match up perfectly with your logs. Here’s the best part—this setup isn’t just for show. It uses Radiant Riser Technology, which pushes the heat forward into your room, so it doesn’t all go up the chimney. Plus, the logs are made from this ceramic fiber material that’s super efficient. They heat your space just as well as those vent-free systems, but you get a gorgeous, natural-looking flame and glowing embers that vent-free systems can’t match. Honestly, it’s the best of both worlds—realistic flames and serious heat. If you’re looking to upgrade your fireplace, this is one to check out. What do you think?
Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.
BURNER:

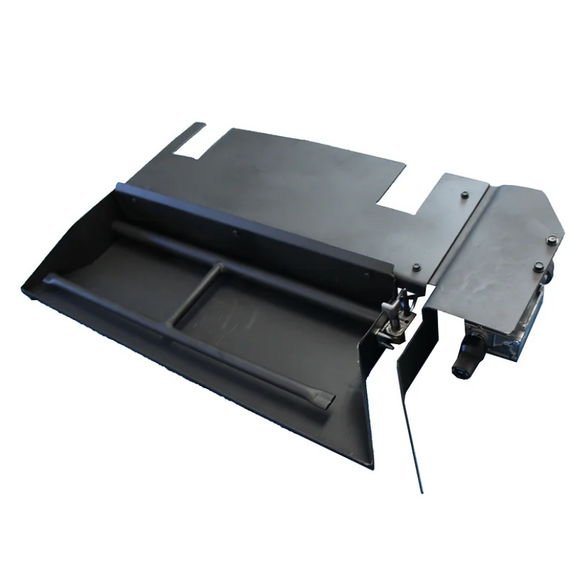

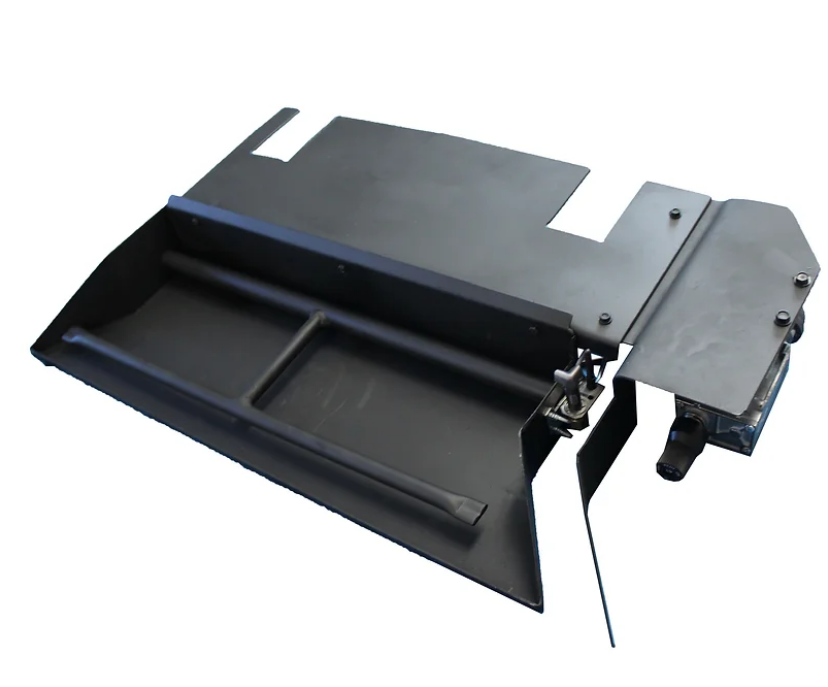

Hidden Control Burners- These are designed to hide the control system from view, giving your fireplace a sleek look. They come in sizes of 18 inches, 24 inches, 30 inches, and 36 inches. They work well with a variety of styles including Radiant, Charred, and Fresh Cut.
CONTROL SYSTEM:
- Manual Safety Pilot- With this system, you've got a standing pilot safety valve setup. That means you can ignite the main burner flame with a knob and adjust it to your liking. It's versatile too, working with both natural gas and liquid propane. But remember, if you're going for liquid propane, you'll need that conversion kit.
- Variable Flame Remote Control- Now, this is where things get a bit fancy. You've got a remote-controlled system that lets you not only turn the burner on and off remotely but also adjust the flame height. It's designed for both natural gas and liquid propane, but just like before, you'll need a conversion kit for propane.
- Electronic Ignition System with a Variable Flame Remote Control- It lets you activate the pilot, turn the main burner on/off, and adjust the flame height using the remote. Plus, it's flexible with installation thanks to a mounted valve system using a flex connector. It works with both natural gas and liquid propane (with an LP conversion kit).
Features:
- Available in 21", 24", 30", and 36" sizes

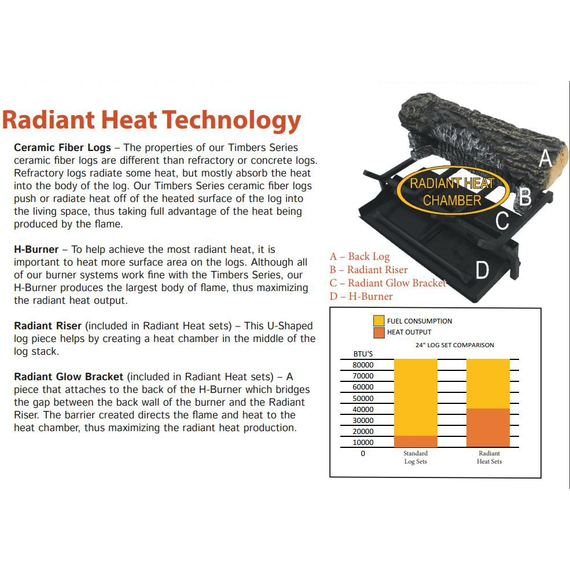

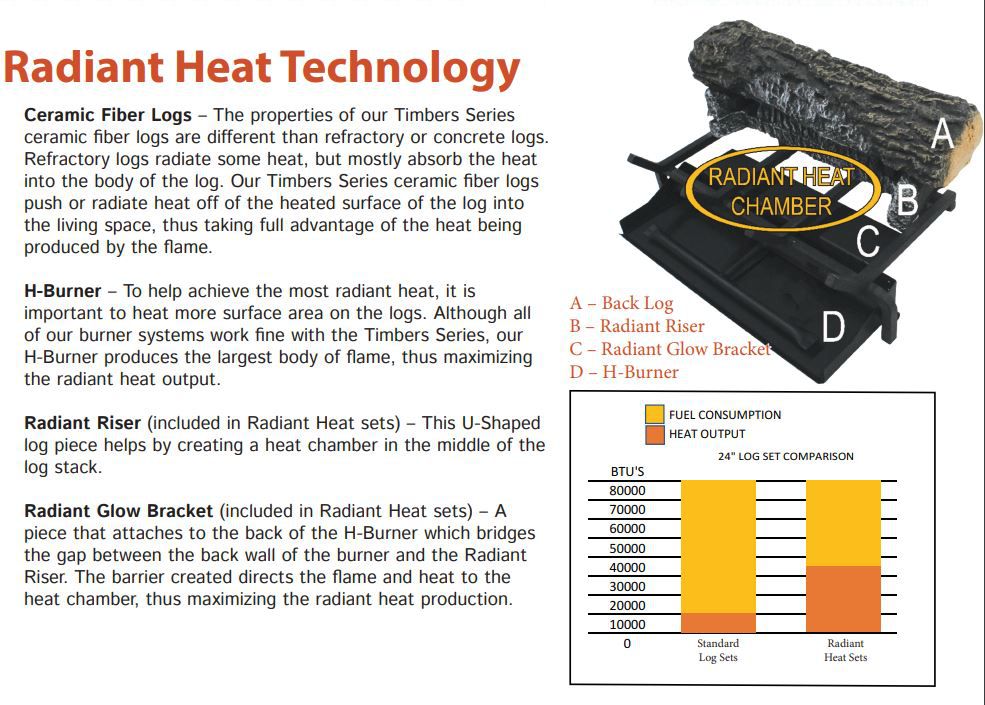

- With radiant riser technology, heat production is directed forward.
- Ceramic fiber logs were not able to achieve the level of detail that is now possible with the innovative molding method.
- Compared to comparable vented log sets, ceramic fiber material and Hargrove's Radiant Riser provide much higher heating efficiency.
- The Burner System is not included with the log set and should be ordered separately.

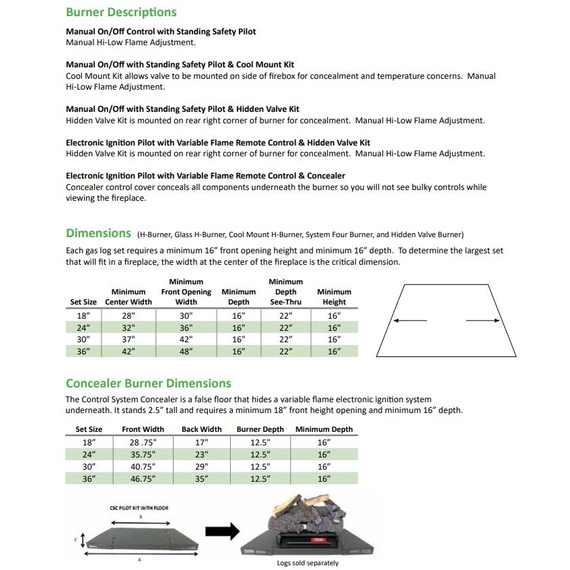

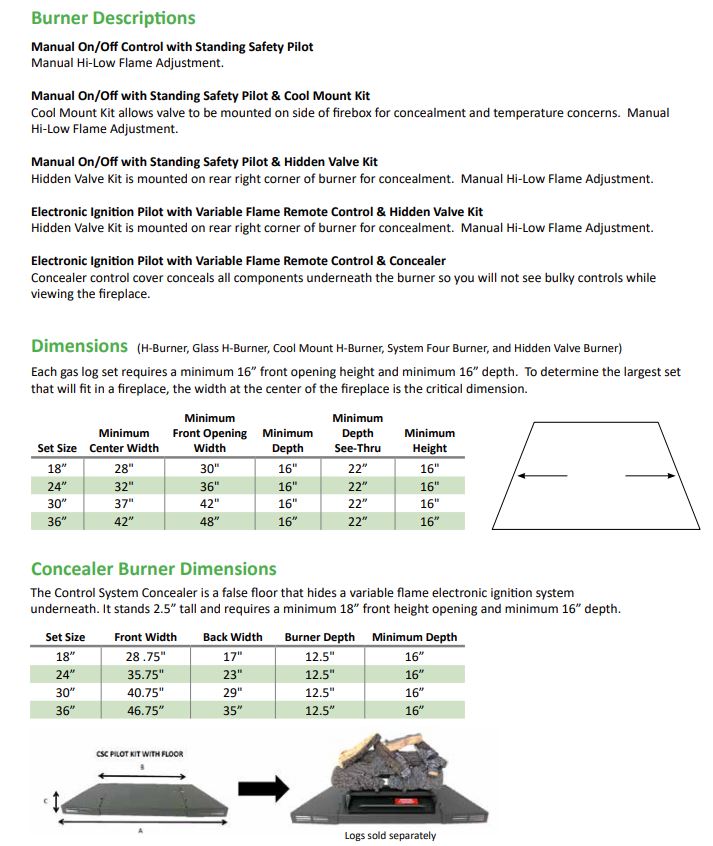

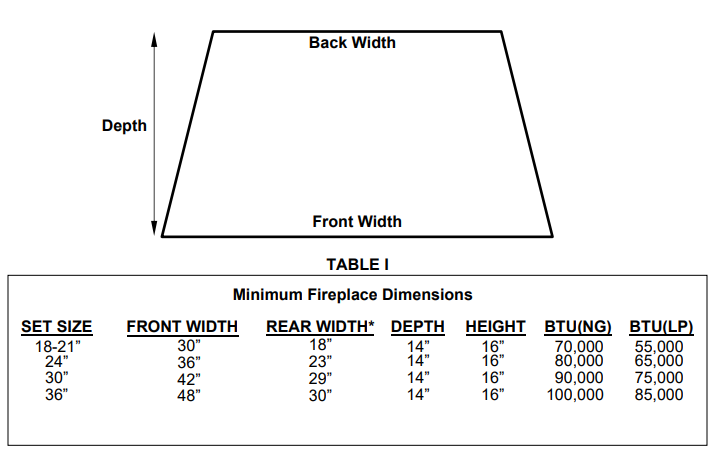

- Hidden Burner requires a minimum of 14" of depth
- Burner design hides the control system from the view

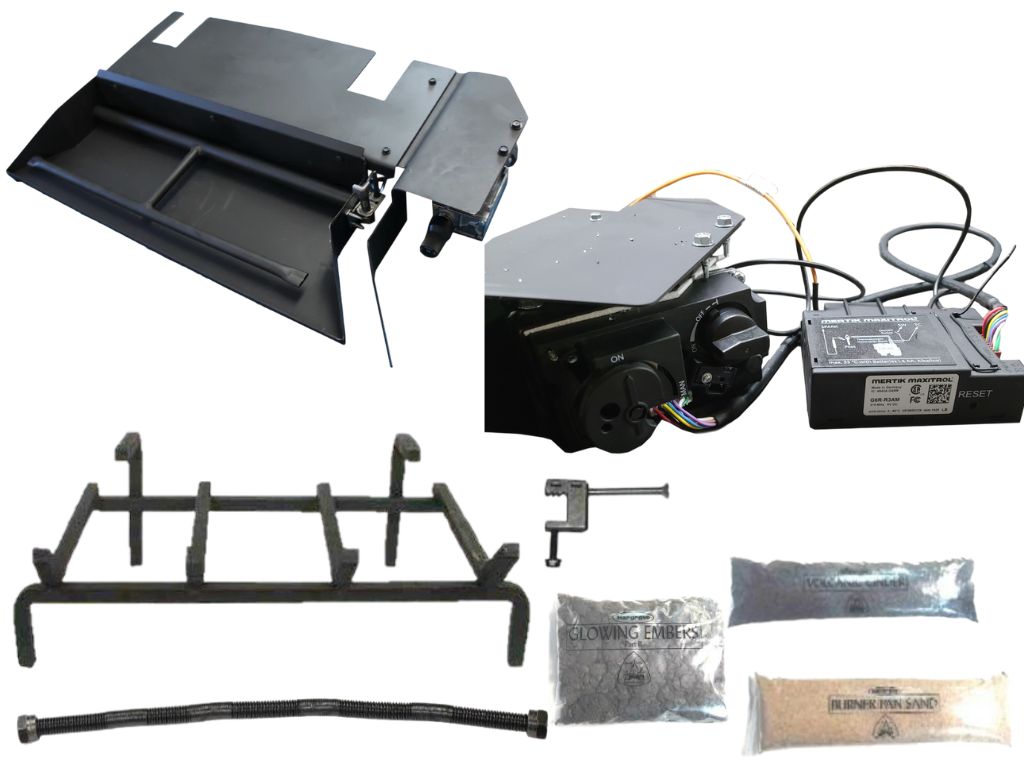

INCLUDES:
- Burner
- Custom 5/8" grate
- Sand
- Vermiculite
- Embers

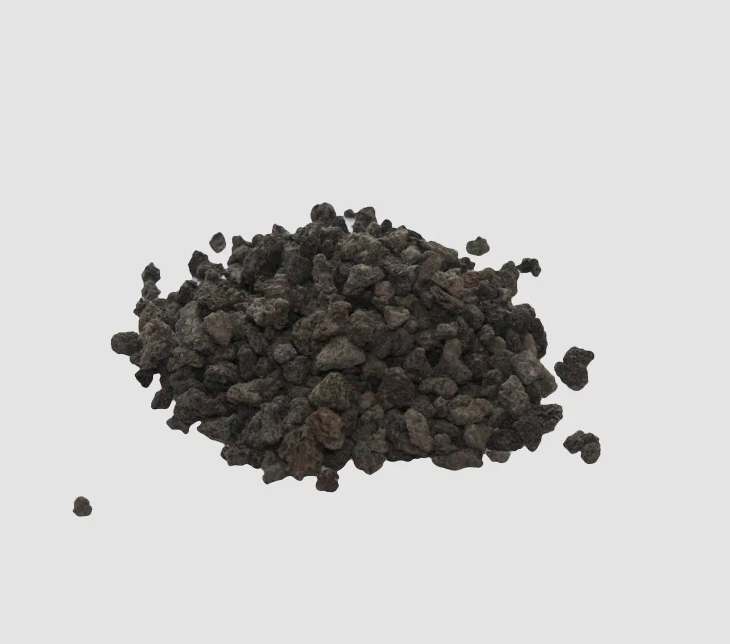

- Volcanic cinder
- Fittings
- Non-whistling flex connector.
Specifications:
- Fuel Type: Natural Gas or Liquid Propane
- Log Set Type: Vented Indoor
- Log Style: Canyon Timbers
- Available Sizes: 21", 24", 30", and 36"
- Number of Logs: 13–19 logs (varies by size)
- Material: Ceramic Fiber
- Burner Type: Hidden Control Burner (16-Gauge Steel)
- Ignition Options: Safety Pilot |Variable Flame with Remote | Electronic Ignition with Variable Remote
Downloads:
- Hargrove Radiant Heat Gas Logs Brochure
- Canyon Timbers Log Set Diagram
- Canyon Timbers Spec Sheet
- Hidden Control Burner with Safety Pilot Valve Instruction Manual Instruction Manual
- Hidden Control Burner with Variable Flame with Remote Instruction Manual
- Hidden Control Burner with Electronic Ignition with Variable Remote Instruction Manual
- Hidden Control Burner Specification

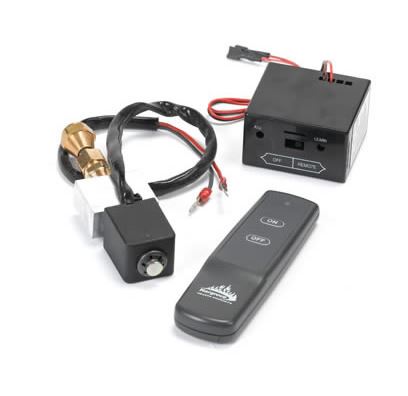

- Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)

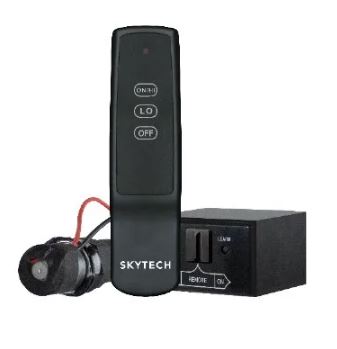

- Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
- Product Warranty
Hargrove 21" Canyon Timbers Vented Gas Log Set With Hidden Control Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Canyon Timbers
- Log Set Width: 21 Inch
- Number of Logs: 13 Pieces
- Material: Refractory Concrete
- Burner Type: Hidden Control Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Safety Pilot | Factory Installed Variable Flame with Remote | Factory Installed Electronic Ignition with Variable Remote
- BTU: 70k (NG) and 55k (LP)
- Burner Dimension: 30" W x 14" D x 16" H
Hargrove 24" Canyon Timbers Vented Gas Log Set With Hidden Control Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Canyon Timbers
- Log Set Width: 24 Inch
- Number of Logs: 16 Pieces
- Material: Refractory Concrete
- Burner Type: Hidden Control Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Safety Pilot | Factory Installed Variable Flame with Remote | Factory Installed Electronic Ignition with Variable Remote
- BTU: 80k (NG) and 65k (LP)
- Burner Dimension: 36" W x 14" D x 16" H
Hargrove 30" Canyon Timbers Vented Gas Log Set With Hidden Control Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Canyon Timbers
- Log Set Width: 30 Inch
- Number of Logs: 15 Pieces
- Material: Refractory Concrete
- Burner Type: Hidden Control Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Safety Pilot | Factory Installed Variable Flame with Remote | Factory Installed Electronic Ignition with Variable Remote
- BTU: 90k (NG) and 75k (LP)
- Burner Dimension: 42" W x 14" D x 16" H
Hargrove 36" Canyon Timbers Vented Gas Log Set With Hidden Control Burner
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Canyon Timbers
- Log Set Width: 36 Inch
- Number of Logs: 19 Pieces
- Material: Refractory Concrete
- Burner Type: Hidden Control Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Safety Pilot | Factory Installed Variable Flame with Remote | Factory Installed Electronic Ignition with Variable Remote
- BTU: 100k (NG) and 85k (LP)
- Burner Dimension: 48" W x 14" D x 16"
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
