Hargrove Aspen Timbers Vented Gas Log Set With H-Burner

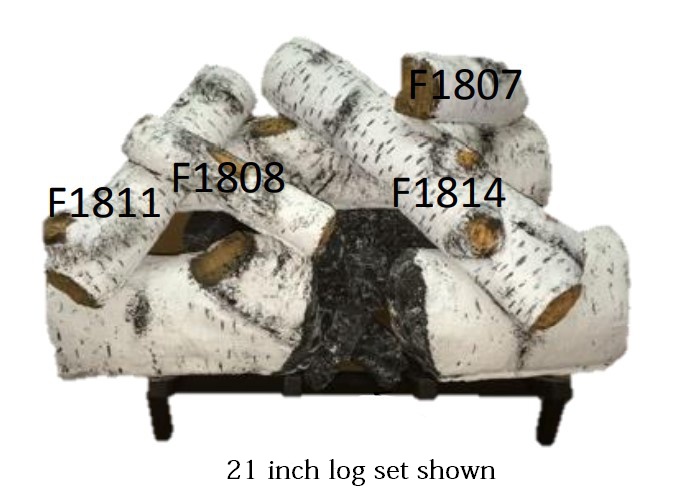

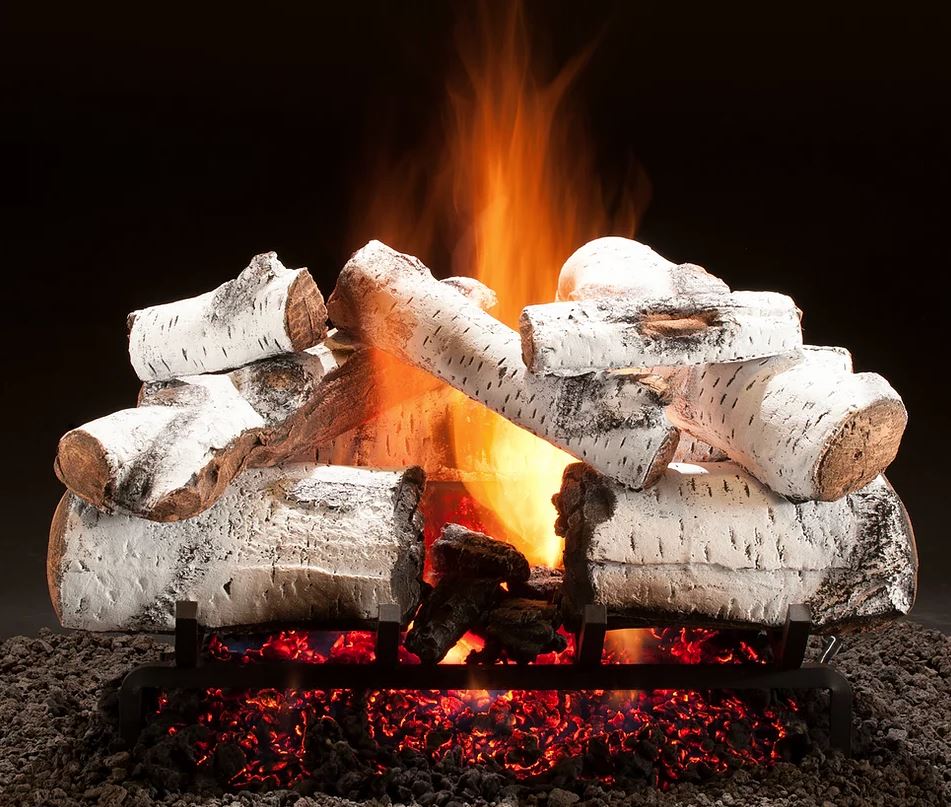

Let me tell you about the Hargrove Aspen Timbers Gas Vented Log Set with H-Burner—it’s the perfect blend of natural beauty and cozy comfort for your fireplace. The Aspen Timbers logs are crafted to look like stunning white birch, so they bring this fresh, elegant vibe into your space. They even have an open ember bed that creates a glowing effect, making your fire look so warm and inviting like you’re sitting by a real campfire. You’ve got options with this set—it comes in sizes 21", 24", 30", and 36", so no matter what kind of fireplace you have, there’s a size that’ll fit just right. Plus, if you have a see-through fireplace, they’ve got a version for that too. Whether you’re using natural gas or liquid propane, these logs are designed to work perfectly.
Now, the H-Burner is what takes this setup to the next level. It creates a full, wide flame that spreads across your fireplace, making it look rich and luxurious. The H-Burner gives you that classic fire look but with an extra dramatic flair—it’s perfect for these beautifully crafted birch-style logs. Here’s why this setup is such a win: it’s gorgeous, low-maintenance, and so versatile. You get the charm and glow of a real fire without the mess or hassle of wood. Plus, with the H-Burner, the flame feels more dynamic and fills the fireplace beautifully. It’s like getting a cozy cabin vibe, but way more convenient. I honestly think this would be the centerpiece of any room. It’s stunning, and practical, and creates that warm, inviting atmosphere everyone loves. What do you think? Ready to upgrade your fireplace?
Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.
BURNER:

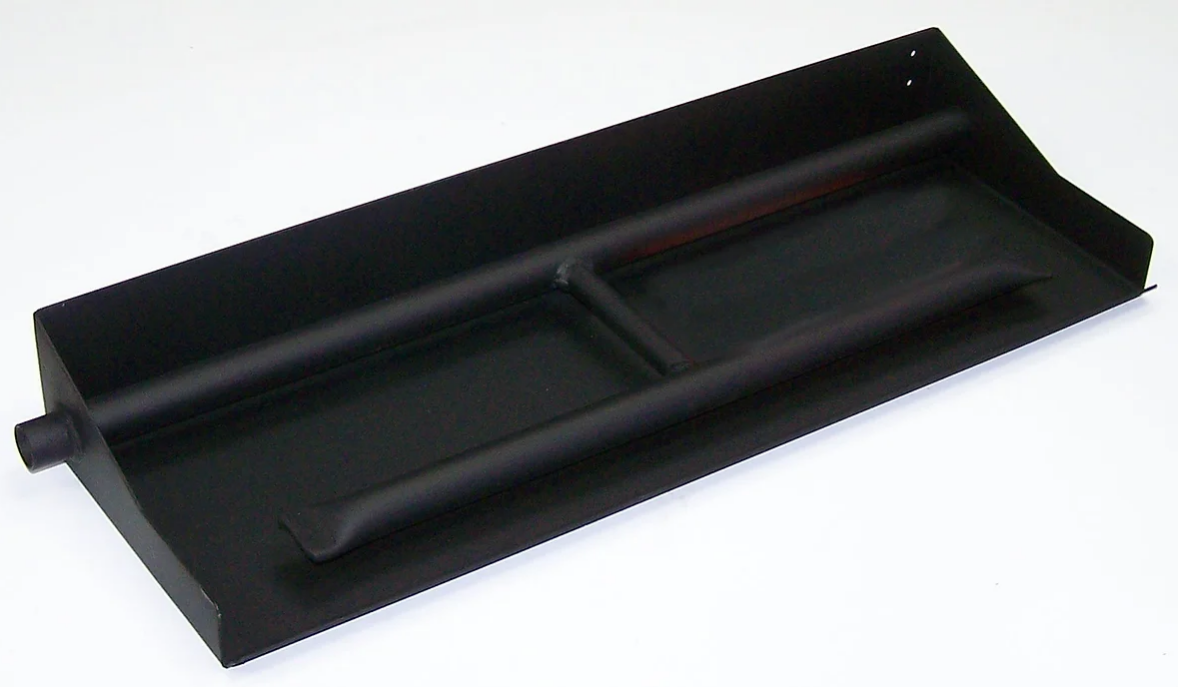

H-Burner- These come in sizes from 18 inches to 36 inches. Unlike the E-Burner, the H-Burner is a dual burner system, which means it produces a big flame and provides additional flames in front of the logs. These are recommended if you're using Hargrove's Char and Radiant Heat Series Logs.
CONTROL SYSTEM:

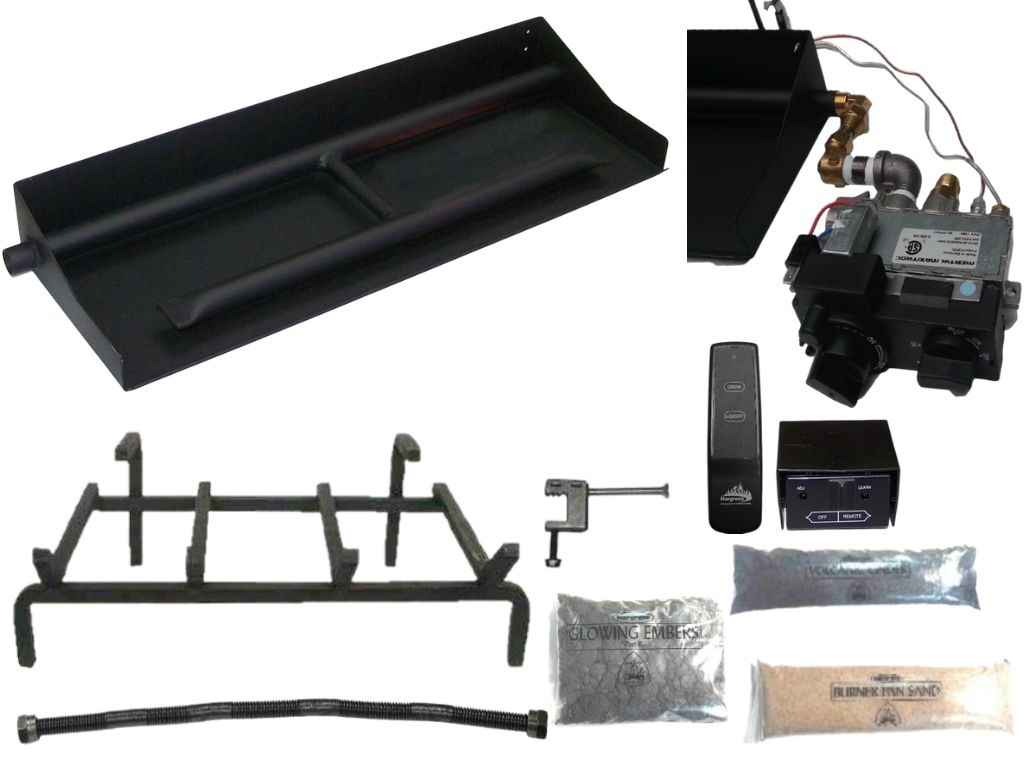

- Variable Flame Remote Control- Now, this is where things get a bit fancy. You've got a remote-controlled system that lets you turn the burner on and off remotely and adjust the flame height. It's designed for both natural gas and liquid propane, but just like before, you'll need a conversion kit for propane.
- Manual Valve with Knob- This one's pretty straightforward. You've got a knob that you turn to manually light the main burner using a match or a long lighter. Just keep in mind, that it's only for natural gas. If you're considering using liquid propane, you'll need to add a safety pilot and a conversion kit.

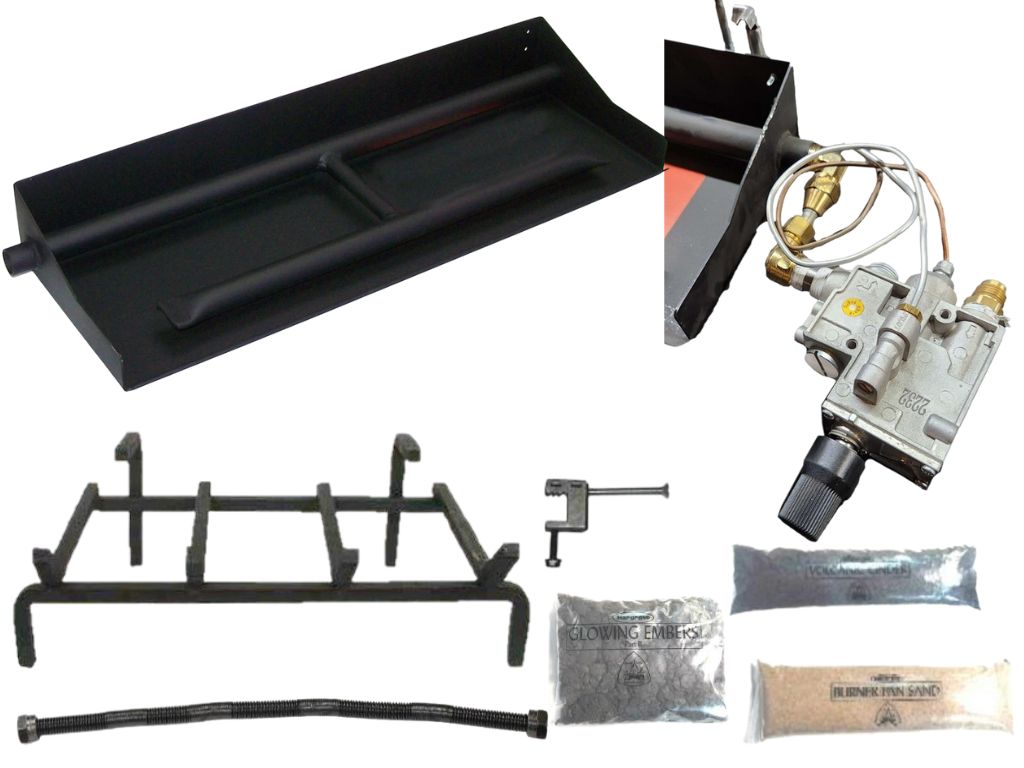

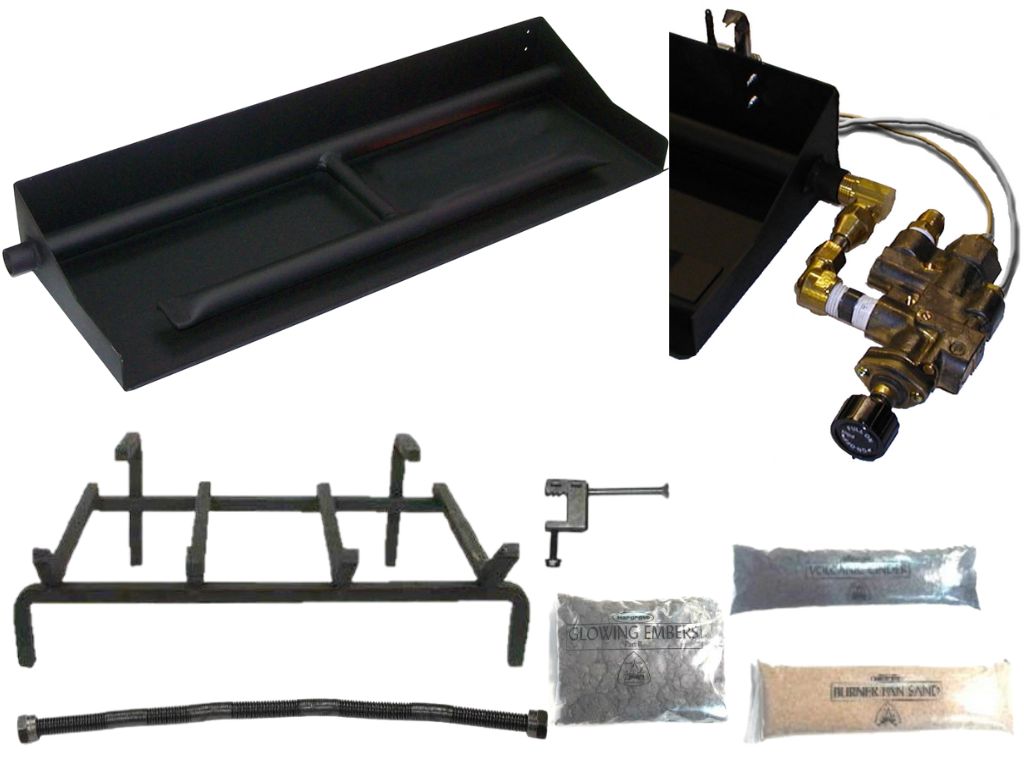

- Manual Safety Pilot- With this system, you've got a standing pilot safety valve setup. That means you can ignite the main burner flame with a knob and adjust it to your liking. It's versatile too, working with both natural gas and liquid propane. But remember, if you're going for liquid propane, you'll need that conversion kit.

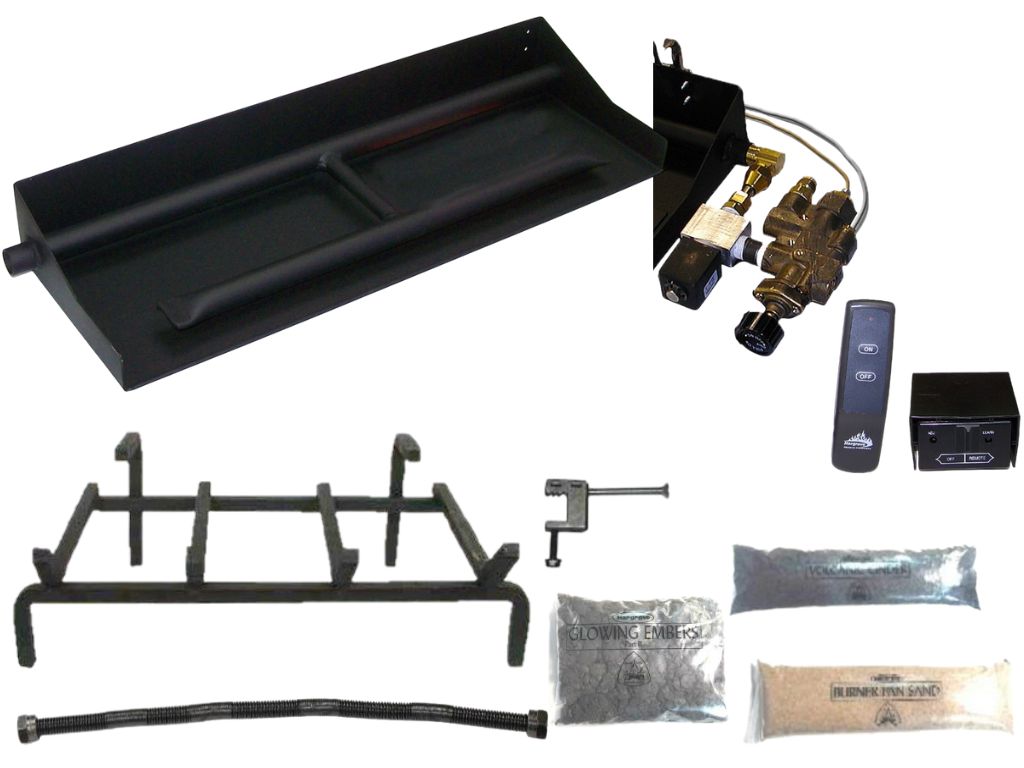

- Latchtap with Remote Control- This one's neat because it combines the manual safety pilot with a remote control kit. You can use the remote to turn the burner on and off and adjust the flame with the knob. Like the others, it's compatible with both natural gas and liquid propane, with a conversion kit required for propane.

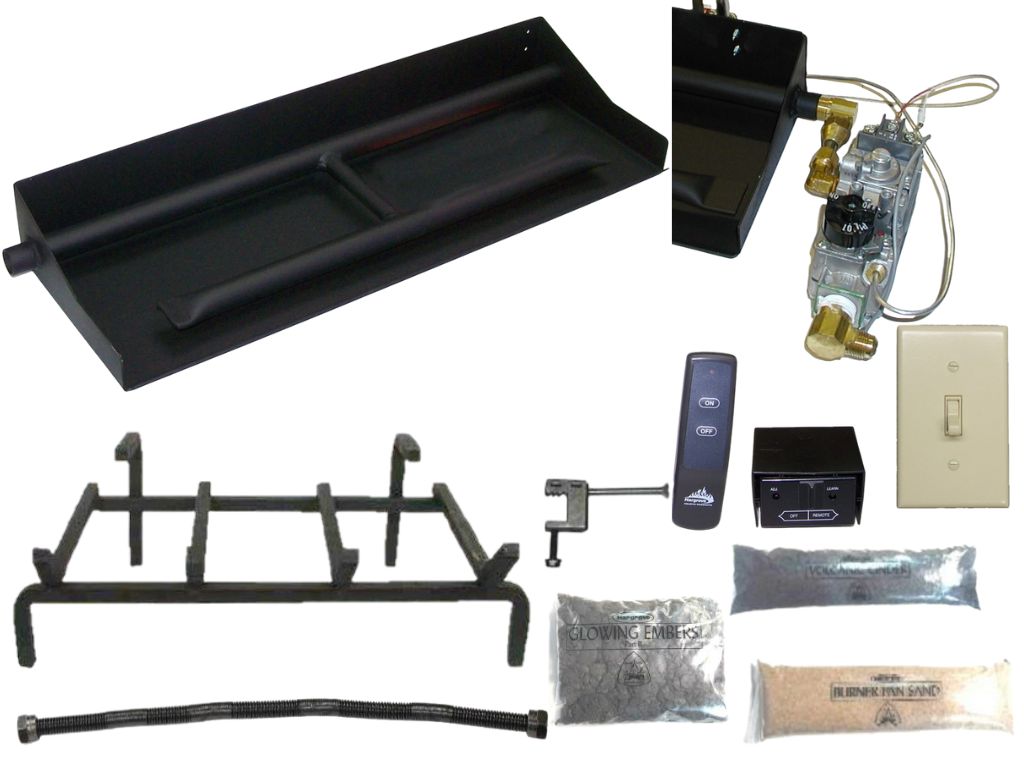

- Millivolt with Wall Switch- This one's pretty convenient because you can control it with a wall switch. You can also upgrade to a remote control if you prefer. It's versatile too, working with both natural gas and liquid propane. Just remember, if you're opting for liquid propane, you'll need that conversion kit.
Features:
- Available in 21", 24", 30", and 36" sizes

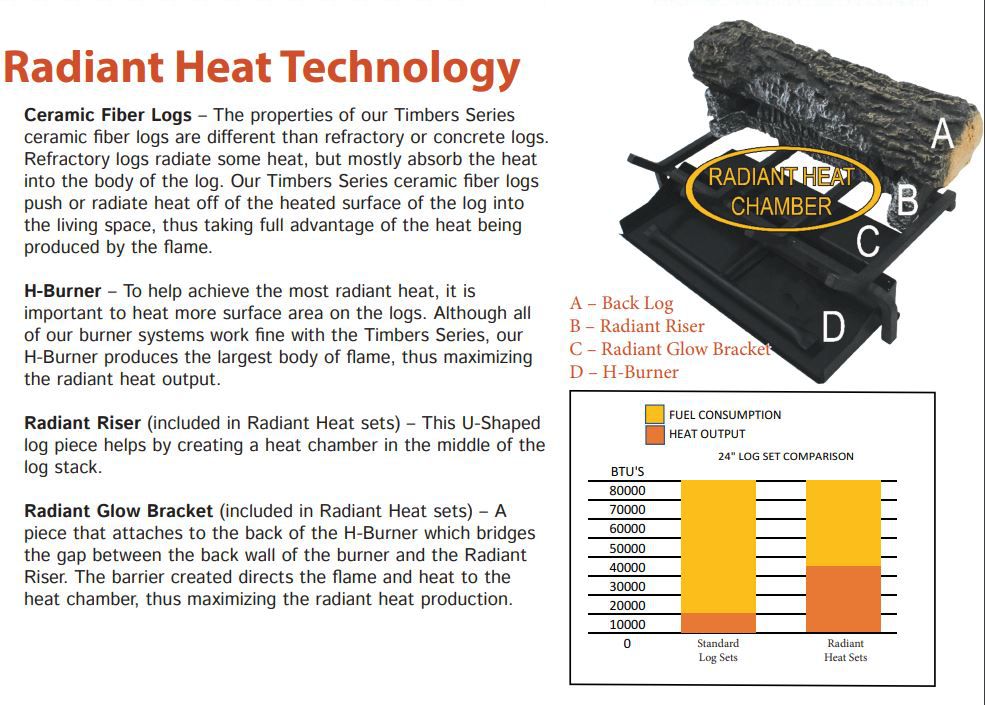

- With radiant riser technology, heat production is directed forward.
- Compared to comparable vented log sets, ceramic fiber material and Hargrove's Radiant Riser provide much higher heating efficiency.
- Heat is equivalent to vent-free sets, however, realistic fire and ember beds are not achievable with vent-free appliances.
- Ceramic fiber logs were not able to achieve the level of detail that is now possible with the innovative molding method.
- The Burner System is not included with the log set and should be ordered separately.

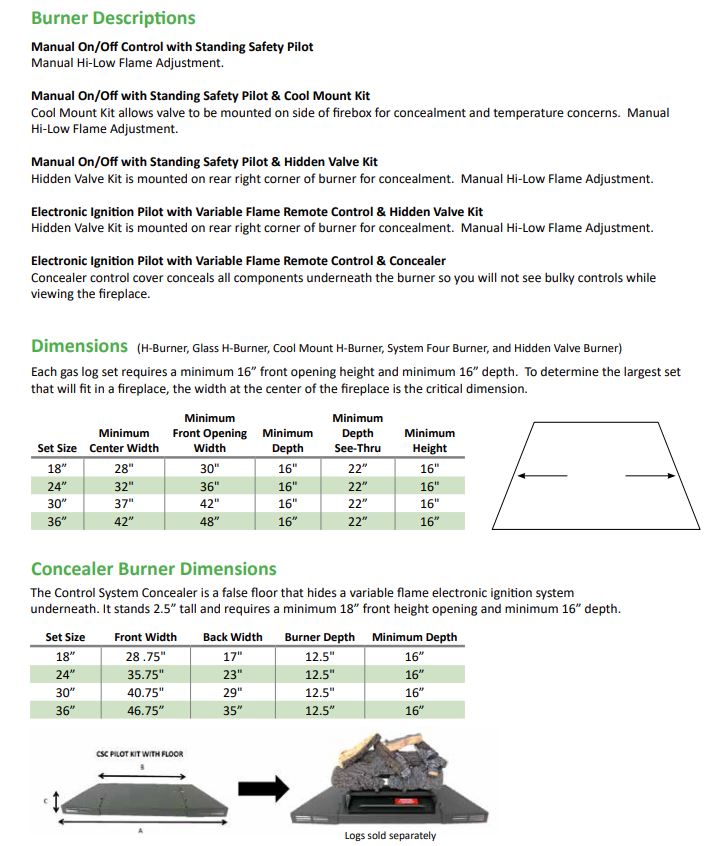

- H-Burner requires a minimum of 14" of depth.

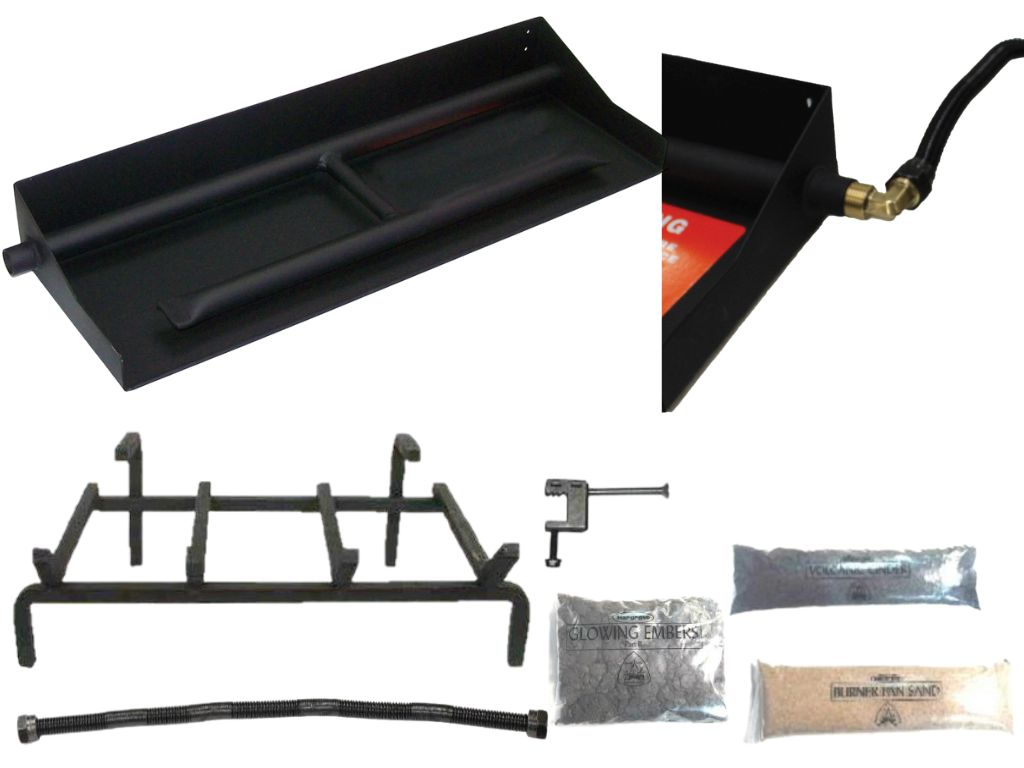

INCLUDES:
- Burner
- Custom 5/8" grate
- Sand
- Volcanic cinder
- Fittings
- Vermiculite
- Embers
- Non-whistling flex connector
Specifications:
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Aspen Timbers
- Log Set Width: 21 Inch
- Number of Logs: 13 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
Downloads:
- Hargrove Radiant Heat Gas Logs Brochure
- Aspen Timbers Log Set Diagram
- Aspen Timbers Spec Sheet
- H-Burner with No Valve Instruction Manual
- H-Burner with Manual Safety Pilot Valve Instruction Manual
- H-Burner with Eco Pilot Valve Instruction Manual
- H-Burner with Latchtap Safety Plot Valve Instruction Manual
- H-Burner with Maxitrol Variable Flame Valve Instruction Manual
- H-Burner with Millivolt Valve Instruction Manual
- H-Burner Specification
- Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
- Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
- Product Warranty
Hargrove 21" Aspen Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Width: 21 Inch
- Log Set Style: Aspen Timbers
- Log Set Type: Vented Indoor
- Number of Logs: 13 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 70K (NG) and 46K (LP)
- Burner Dimension: 25" W x 14" D x 16" H
Hargrove 24" Aspen Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Aspen Timbers
- Log Set Width: 24 Inch
- Number of Logs: 14 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 80K (NG) and 63K (LP)
- Burner Dimension: 28" W x 14" D x 16" H
Hargrove 30" Aspen Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Aspen Timbers
- Log Set Width: 30 Inch
- Number of Logs: 15 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 90K (NG) and 78K (LP)
- Burner Dimension: 34" W x 14" D x 16" H
Hargrove 36" Aspen Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Aspen Timbers
- Log Set Width: 36 Inch
- Number of Logs: 16 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 90K (NG) and 79K (LP)
- Burner Dimension: 40" W x 14" D x 16" H
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
