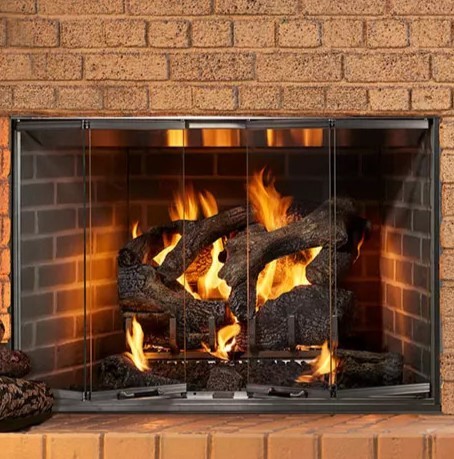

36 Inches Cottagewood Outdoor Wood Fireplace
Introducing the Majestic Cottagewood 36" Outdoor Wood Fireplace - ODCTGWD-36 —an embodiment of refined outdoor leisure. Envision a curated space where evenings unfold with a dignified ambiance framed by the robust crackle and alluring aroma of a meticulously designed fire. This outdoor retreat seamlessly marries sophistication with utility, offering an opportunity for familial and social gatherings to transcend the commonplace.

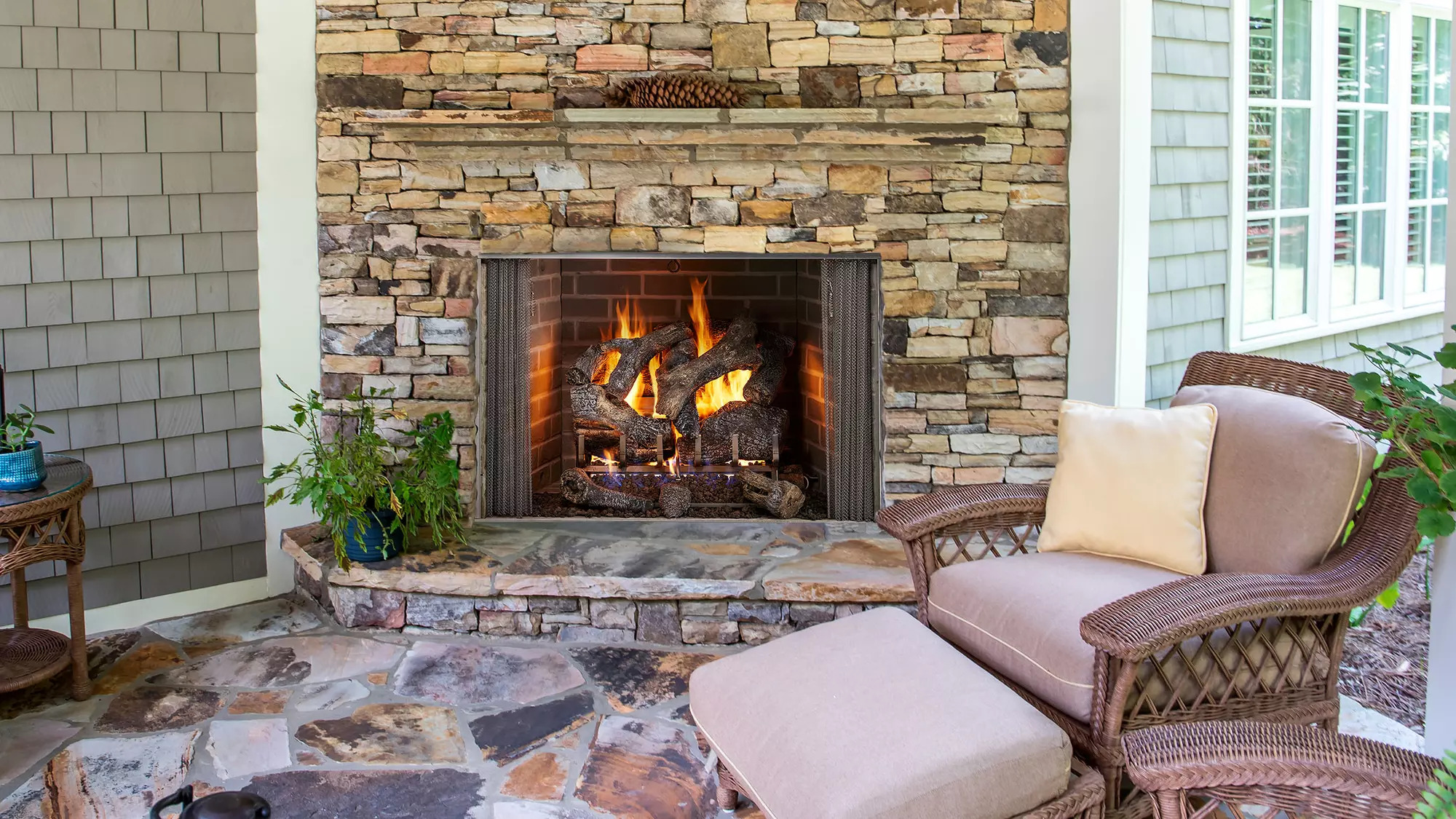

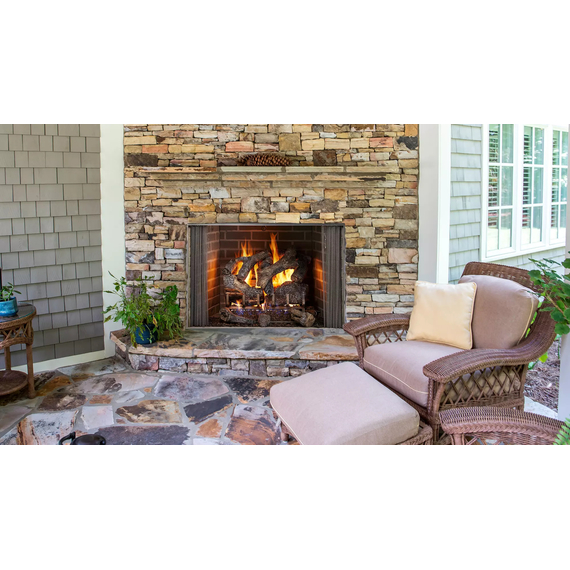

The Majestic Cottagewood, boasting an expansive viewing area, presents a stately yet commanding spectacle—a testament to its custom masonry appearance. This outdoor wood fireplace stands as a paragon of architectural refinement, imparting an enduring elegance to your outdoor setting.
The zero clearance installation feature provides a distinctive edge, allowing seamless integration with your flooring. This deliberate design choice not only imparts an unparalleled authenticity to the installation but also establishes a heightened aesthetic cohesion within the surrounding environment. The result is an installation that is both striking and unobtrusive.
In the pursuit of refinement and genuine allure, the Majestic Cottagewood 36" Outdoor Wood Fireplace transcends the ordinary, offering an opportunity to extend the outdoor season with grace and purpose. From its generous viewing area to the meticulous zero clearance installation, every detail has been considered to elevate your outdoor space. Step into an era of outdoor sophistication, where warmth meets architectural grandeur, courtesy of the Majestic Cottagewood 36" Outdoor Wood Fireplace.
Features:
- Gives you a generous view of the fire in a bold, custom masonry appearance.
- Enables you to install your fireplace flush with flooring for the most authentic look available.
Specifications:

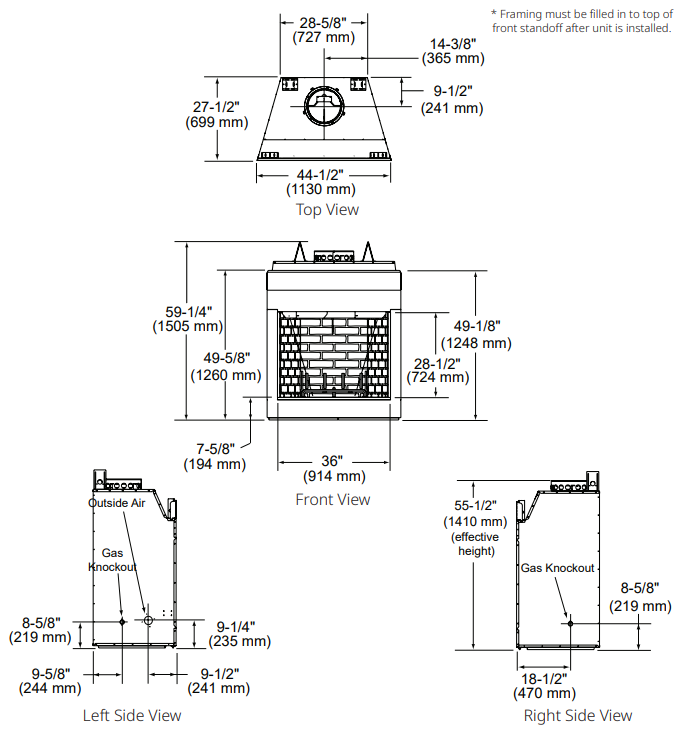

- Actual Dimensions: 44-1/2" W (front), 28-5/8" W (back) x 59-1/4" H x 27-1/2" D
- Framing Dimensions: 45-1/2" W (front and back) x 59-3/4" H x 28" D
- Firebox Opening: 36" x 28-1/2"
Venting Notes: Requires SL1100 series chimney. See Venting section. Extended smoke shield in the ODCTGWD-FSK (36/42) is for freestanding fireplace installs and reduces min vent height to 9.5'. See install manual for all requirements. Canada uses SL400 series chimney and requires SLA-10 and CAK5A
Downloads:
- Cottagewood Installation Manual
- Cottagewood Owners Manual
- Cottagewood 36" Service Parts
- Cottagewood 36" Spec Sheet
- Product Brochure
Technical Specifications:

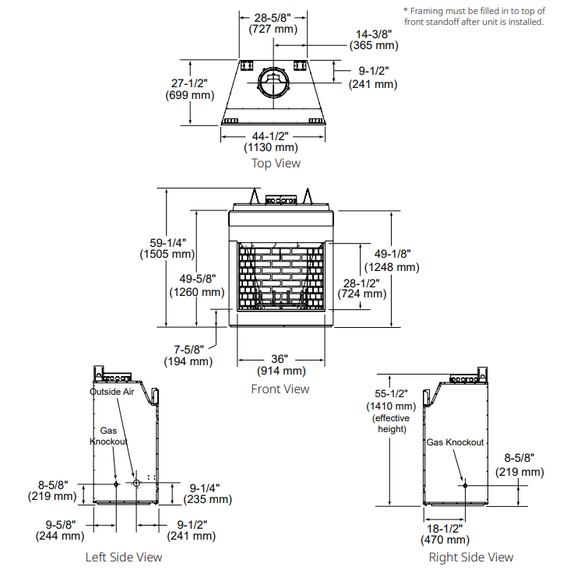

A. Product Dimension
- Model: ODCTGWD-36 / ODCTGWD-36H
- Front Width:
- Actual: 44-1/2"
- Framing: 45-1/2"
- Back Width:
- Actual: 28-5/8"
- Framing: 45-1/2"
- Height:
- Actual: 59-1/4"
- Framing: 59-3/4"
- Depth:
- Actual: 27-1/2"
- Framing: 28"
- Firebox Opening: 36" x 28-1/2"
B. Appliance Certification:
- Tested and listed according to UL 127 and CAN/ULC-S610 standards by Underwriters Laboratories Inc. for installation and operation in the US and Canada.
- Installation notes:
- Can be installed in sleeping rooms except in manufactured homes.
- If using a gas log set, provisions for the National Fuel Gas Code must be met.
- Tested and listed for use with optional components specified in the manual:
- Optional components can be purchased separately and installed later.
- Installing an outside air kit later requires significant reconstruction and is best installed at the time of the initial fireplace installation.
- Trademark: Outdoor Lifestyles® is a registered trademark of Hearth & Home Technologies.
- Warning! Risk of Fire
- For use with solid wood fuel only.
- Other fuels may overfire and generate poisonous gases (e.g., carbon monoxide).

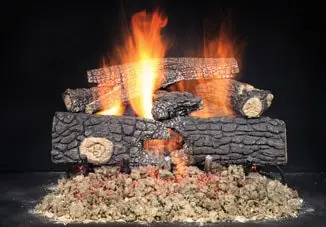

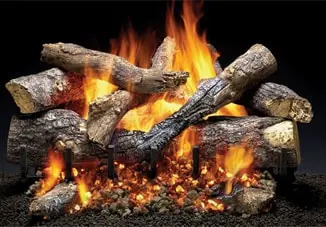

C. Vented Gas Log Sets, Unvented Gas Log Sets, Gas or Wood Inserts, and Gas Log Lighters
- Optional:
- Gas log sets, gas or wood inserts, or gas log lighters can be installed in this fireplace.
- Follow the instructions provided with the accessory for operation.
Unvented Gas Logs
- Caution:

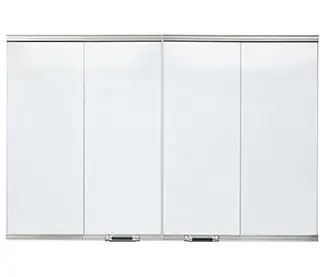

- If installed, the gas appliance must only be operated with the fireplace glass door fully open (if included).
- Only unvented gas log sets complying with ANSI Z21.11.2 standards for unvented room heaters should be installed.
- Additional requirements:
- The unvented gas appliance must incorporate an automatic shutoff device.
- Must be installed per the National Fuel Gas Code Z223.1, Latest Edition.
- Warning!
- Do not operate an unvented gas log set in this fireplace with the chimney removed.
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
