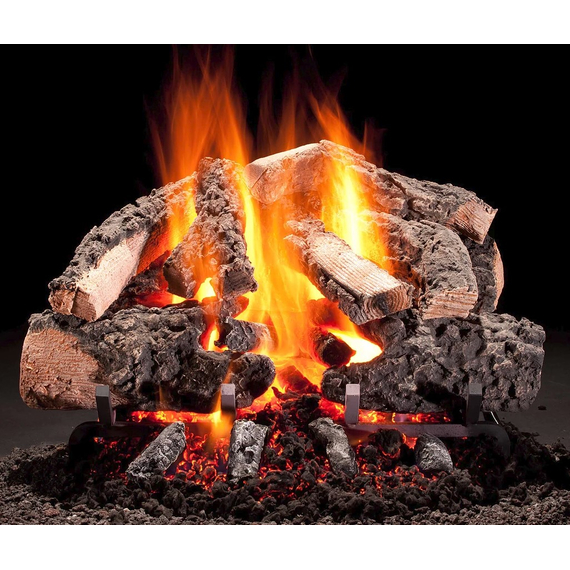

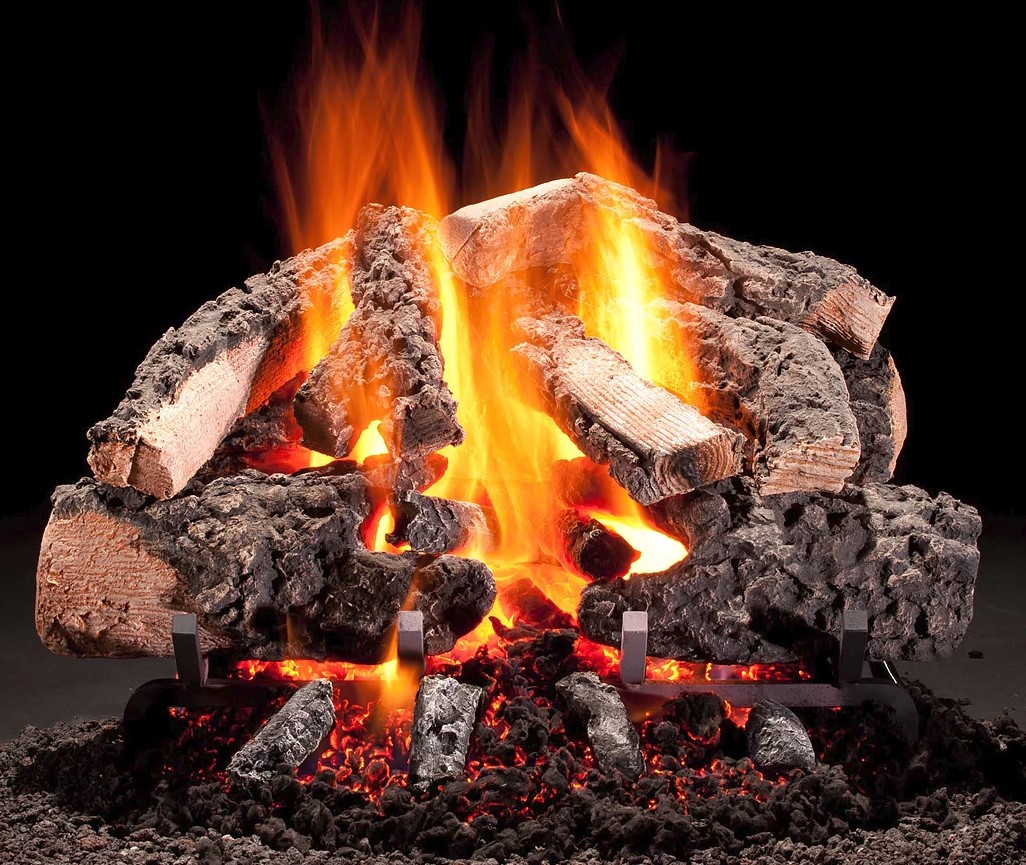

Hargrove Woodland Timbers Gas Logs with System-4 Burner

The Hargrove Woodland Timbers Gas Vented Log Set, with its cutting-edge System-4 Burner, will enhance your fireplace experience. These logs give a sense of rustic elegance to any home because they are crafted to mimic the natural beauty of weathered timber.

The centerpiece of this set is the System-4 Burner, which provides a captivating flame pattern that flickers and dances like an actual wood fire. Its cutting-edge construction guarantees effective fuel combustion, giving you uniform and steady heat distribution across your room. It's easy to install the Hargrove Woodland Timbers Gas Vented Log Set with System-4 Burner. The System-4 Burner connects to your gas supply with ease, and the logs stack easily. All it takes to turn your living area into a comfortable haven is the flick of a switch.

The Hargrove Woodland Timbers Gas Vented Log Set with the System-4 Burner will upgrade your house. You'll appreciate returning home to this cozy and welcoming atmosphere that perfectly combines design and functionality.

Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.

BURNER:

System 4- These are available in sizes ranging from 18 to 42 inches. They're known for producing a full-bodied flame, which is especially ideal for liquid propane applications. If you're using Hargrove's Fresh Cut, Char, or Radiant Heat Series Logs and prefer liquid propane, the System 4 is a great choice.

CONTROL SYSTEM:

• Safety Pilot Valve – Manual: Uses a standing pilot and a control knob to turn the burner on and adjust flame height. The safety valve automatically shuts off gas if the pilot goes out.
• Safety Pilot Valve – Variable Remote: Allows full remote control of both on/off operation and flame height. Uses a standing pilot with built-in safety shutoff.
• Safety Pilot – On/Off Remote: A standing pilot system that allows the burner to be turned on and off with a remote control. Flame height is adjusted manually using the valve knob.

Features:

• Available in 18", 24", 30", and 36" sizes

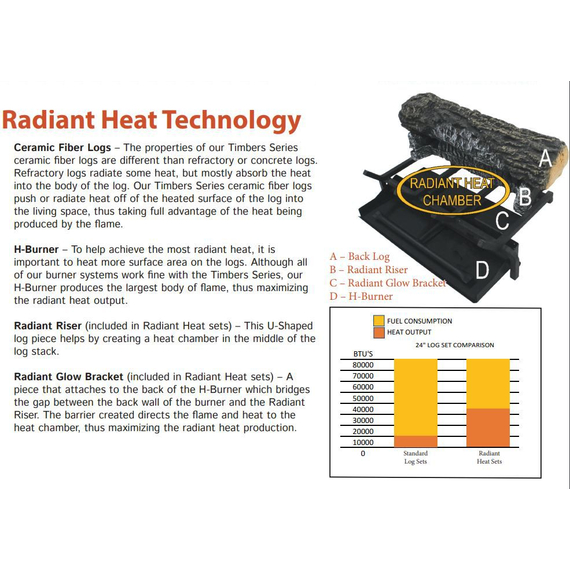

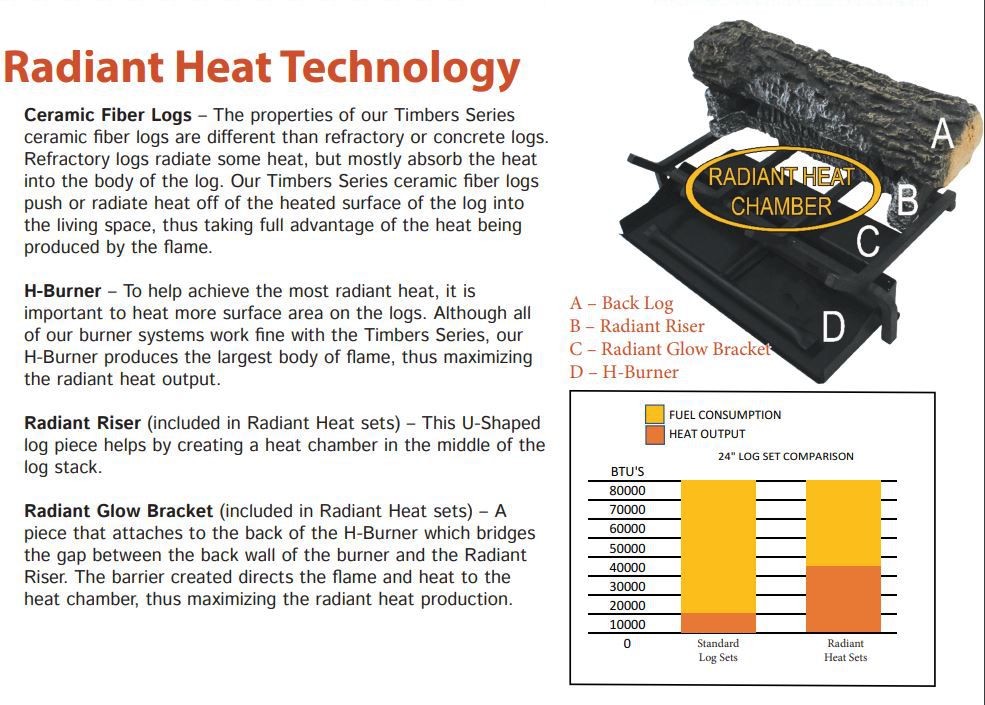

• With radiant riser technology, heat production is directed forward.
• Ceramic fiber logs were not able to achieve the level of detail that is now possible with the innovative molding method.
• Compared to comparable vented log sets, ceramic fiber material and Hargrove's Radiant Riser provide much higher heating efficiency.
• Heat is equivalent to vent-free sets; however, realistic fire and ember beds are not achievable with vent-free appliances.
• The burner system is not included with the log set and should be ordered separately.

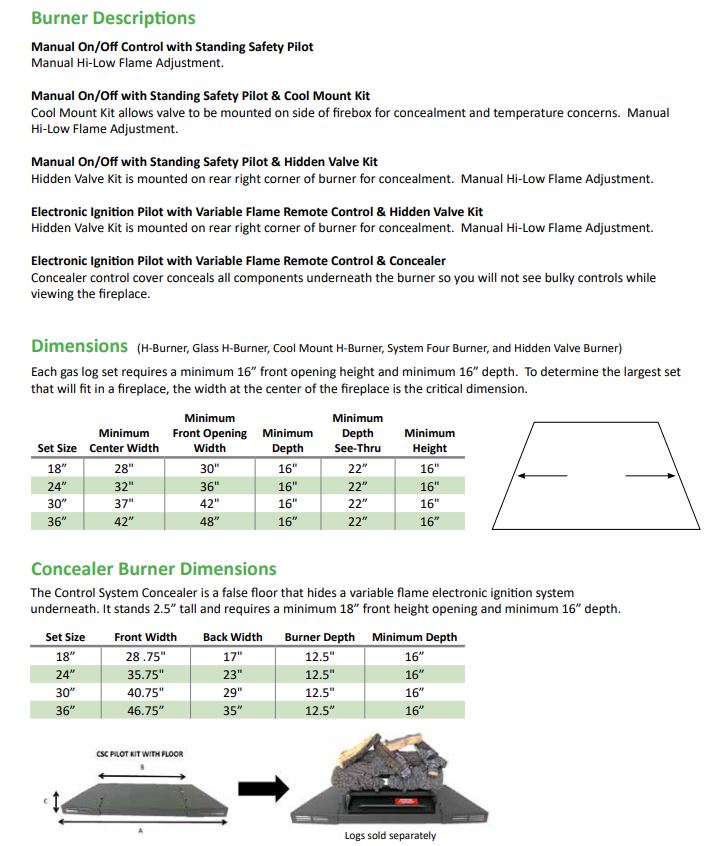

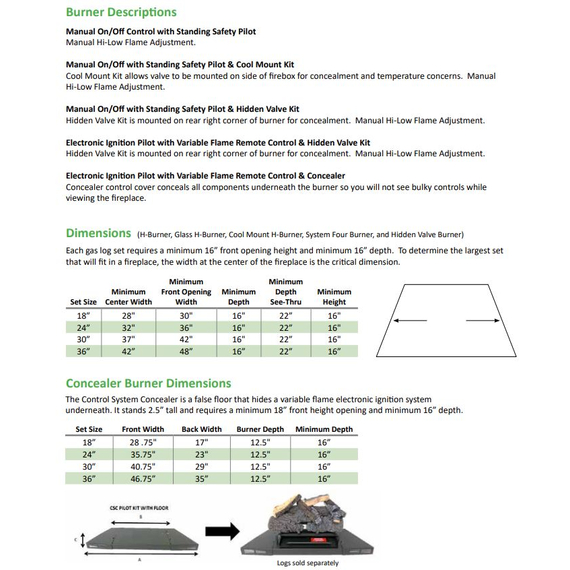

• System 4 Burner kits require a minimum of 16" of depth.
• A full-bodied flame that provides outstanding performance in liquid propane applications.

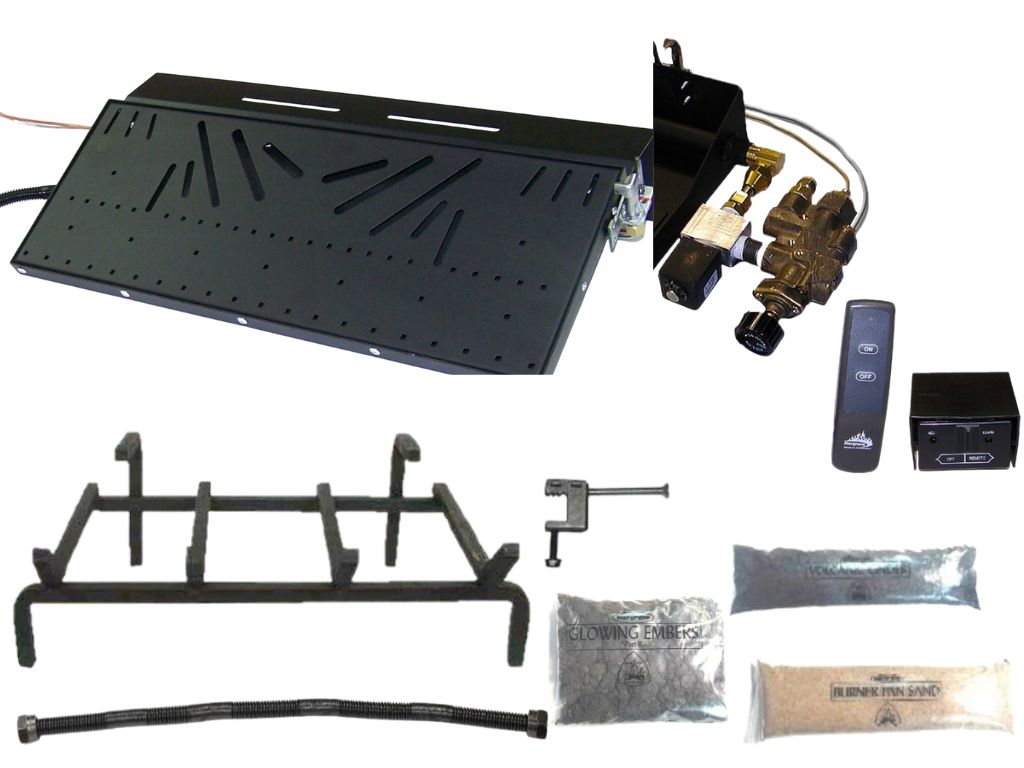

INCLUDES:

• Burner,
• Custom 5/8" grate,
• Embers,
• Volcanic cinder,
• Fittings,
• Non-whistling flex connector.

Specifications:

• Fuel Type: Liquid Propane
• Log Set Type: Vented Indoor
• Log Style: Woodland Timbers
• Available Sizes: 21", 24", 30", 36"
• Number of Logs: 16–22 logs (varies by size)
• Material: Ceramic Fiber
• Burner Type: System-4 Burner (16-Gauge Steel)
• Ignition Options: Safety Pilot

Downloads:

• Hargrove Radiant Heat Gas Logs Brochure
• Woodland Timbers Log Set Diagram
• Woodland Timbers Spec Sheet
• System-4 Burner with COOL MOUNT Manual Safety Pilot Valve Instruction Manual
• System-4 Burner with COOL MOUNT Eco Pilot Valve
• System-4 Burner with COOL MOUNT Variable Flame
• System-4 Burner with COOL MOUNT Valve and ON/OFF Remote
• System 4 Burner Specification
• Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
• Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
• Product Warranty
