Hargrove Woodland Timbers Vented Gas Log Set With H-Burner

So, the Hargrove Woodland Timbers Vented Log Set with H-Burner is an awesome option if you’re looking for something that’s both super realistic and efficient for heating. The logs are from their Radiant Heat series, which is all about combining great looks with actual warmth—like, you get heat comparable to those vent-free sets, but without losing that beautiful, natural flame. They’ve got this thing called Radiant Riser technology, which pushes the heat into the room instead of letting it all go up the chimney. The logs themselves look amazing. They’ve nailed the details with deep bark textures and lighter-colored split areas, so it feels like you’re looking at real wood. Plus, there’s this open ember bed underneath that gives a nice glowing effect. They come in sizes from 21" to 36", and you can get them for single-sided fireplaces or see-through ones if you want to double up on the view.

Now, the H-Burner is part of the setup, and it’s a dual-burner system, so it gives you this big, bold flame with extra flames at the front for a more dynamic look. It pairs well with these logs. It comes in sizes from 18” to 36”, so it’s pretty flexible depending on what size you need. And it works with both natural gas and propane, so you’re covered there too. The bottom line is that you’re getting a super cozy and efficient setup that looks fantastic, heats well, and works in almost any type of fireplace. It’s one of those rare combinations of function and style. What do you think?

Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.

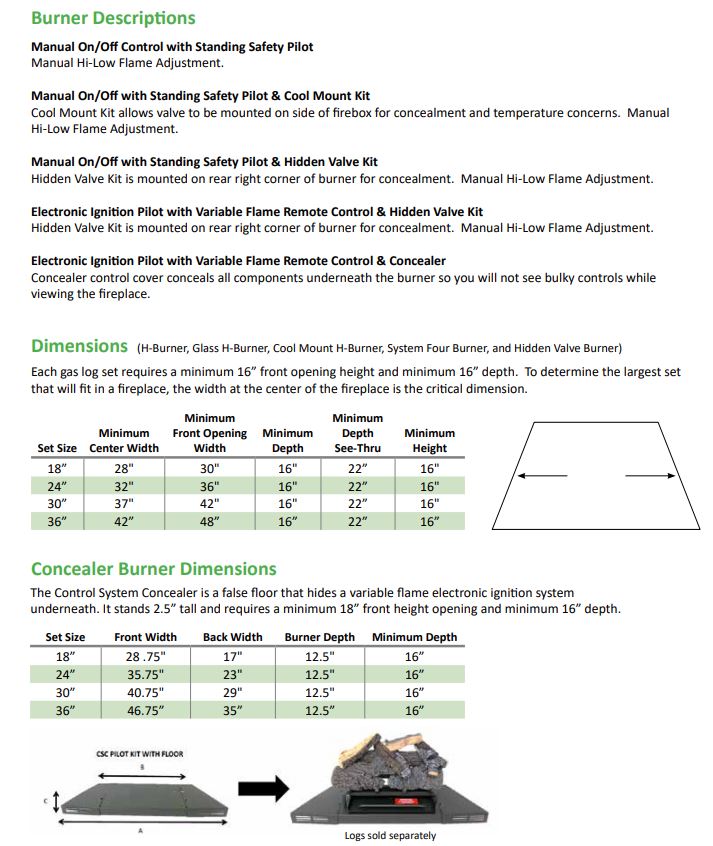

BURNER:

H-Burner- These come in sizes from 18 inches to 36 inches. Unlike the E-Burner, the H-Burner is a dual burner system, which means it produces not only a big flame but also provides additional flames in front of the logs. These are recommended if you use Hargrove's Char and Radiant Heat Series Logs.

CONTROL SYSTEM:

• Match Light: Manually lit with a match or lighter and has no pilot or safety valve. It is the simplest system and is for natural gas only, where allowed by local codes.

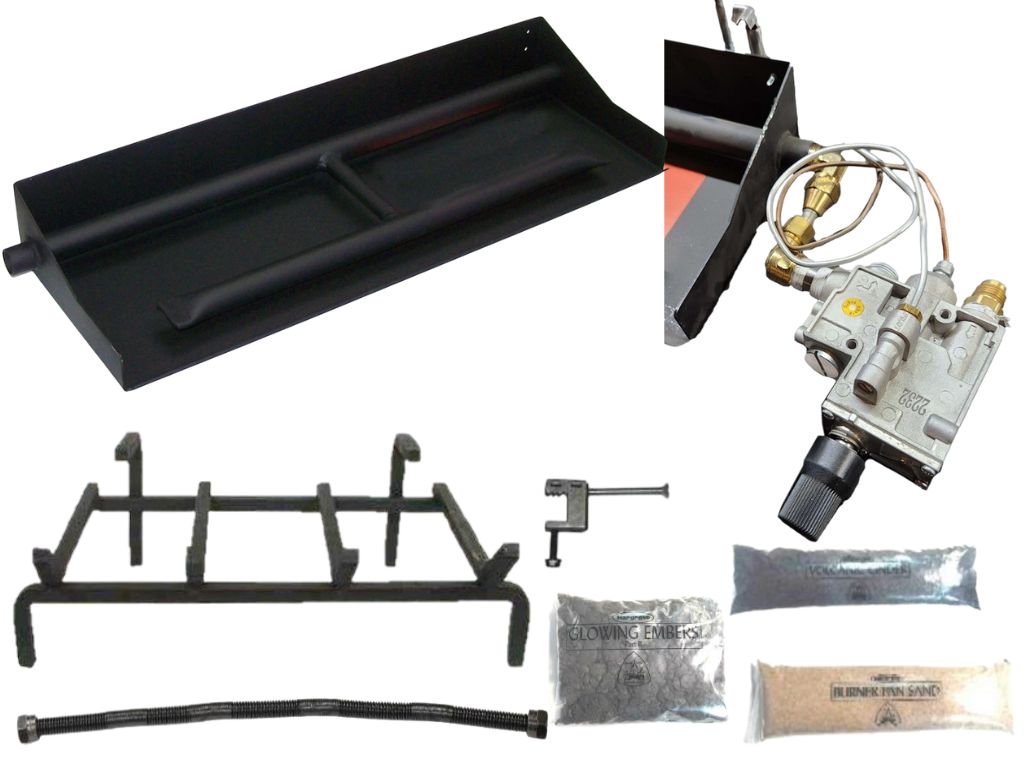

• Safety Pilot Valve – Manual: Uses a standing pilot and a control knob to turn the burner on and adjust flame height. The safety valve automatically shuts off gas if the pilot goes out.

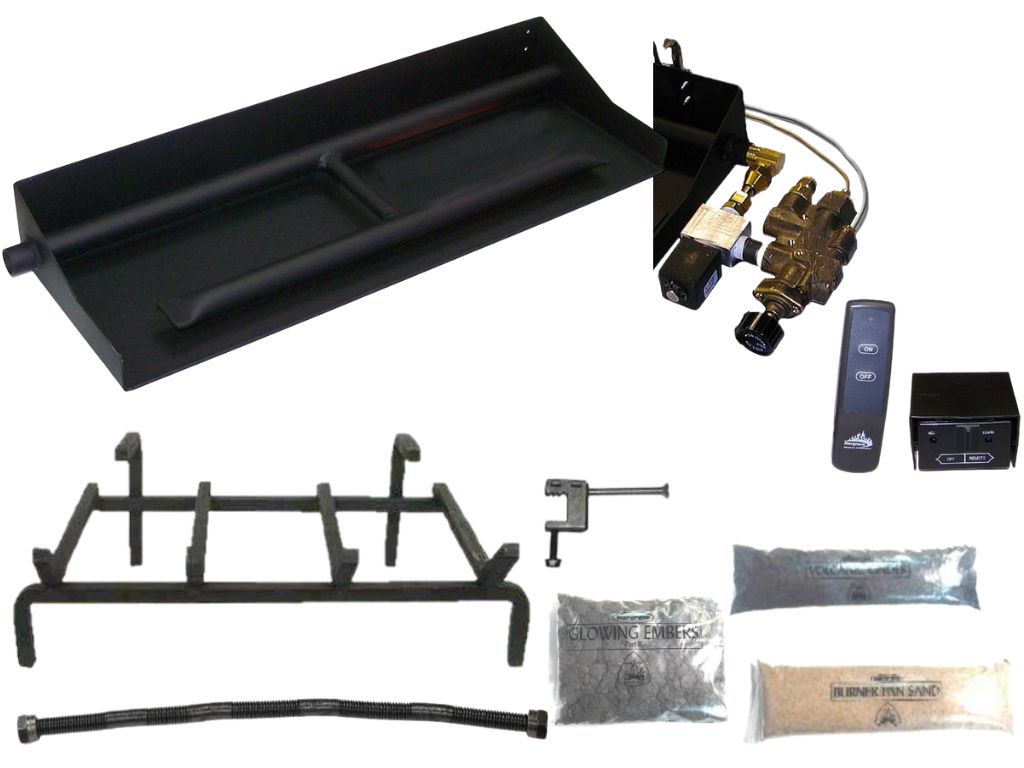

• Safety Pilot – On/Off Remote: A standing pilot system that allows the burner to be turned on and off with a remote control. Flame height is adjusted manually using the valve knob.

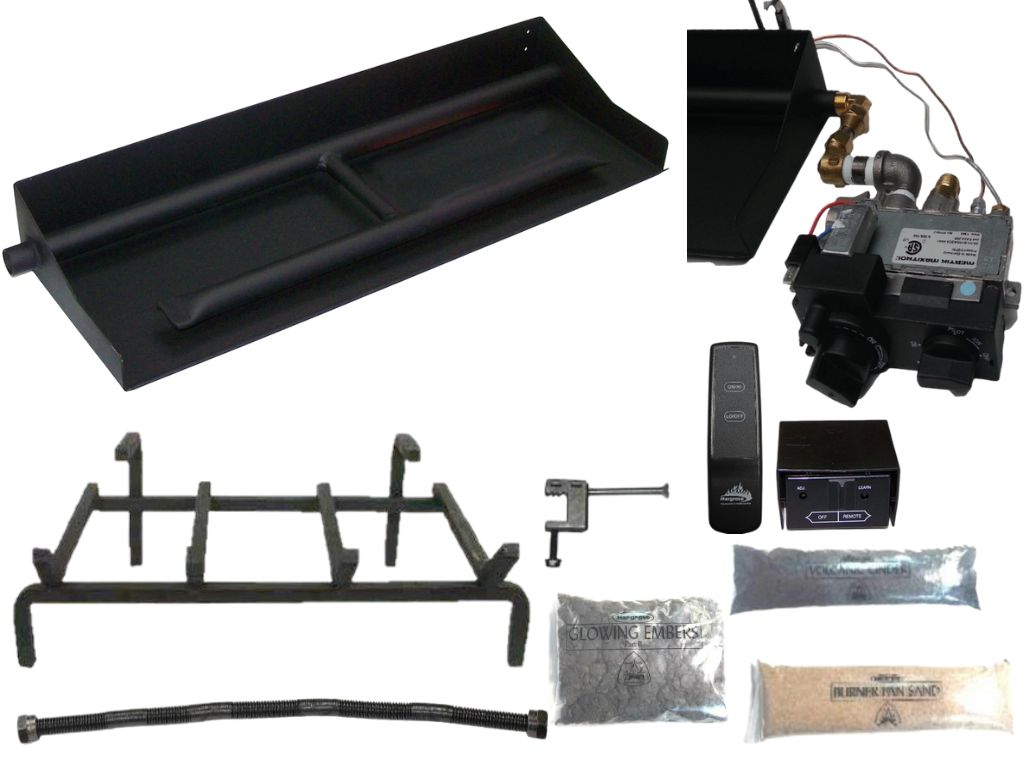

• Safety Pilot Valve – Variable Remote: Allows full remote control of both on/off operation and flame height. Uses a standing pilot with a built-in safety shutoff.

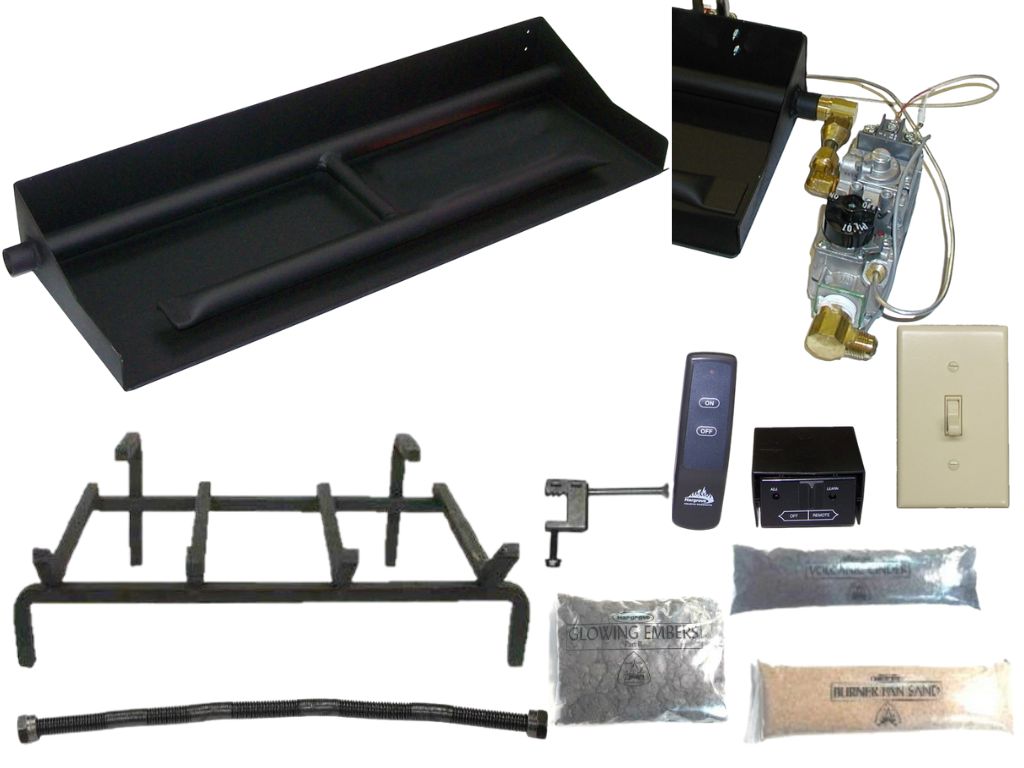

• Millivolt Valve – On/Off Wall Switch: A self-powered standing pilot system controlled by a wall switch or optional remote. Does not require household electricity to operate

Features:

• Available in 18", 24", 30", and 36" sizes

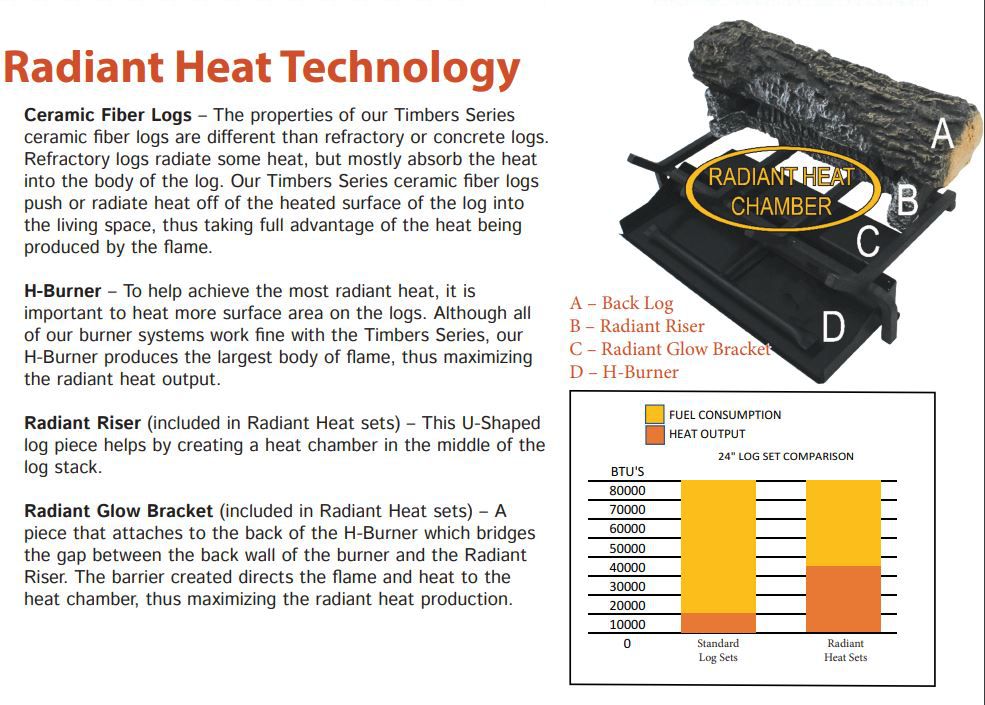

• With radiant riser technology, heat production is directed forward.
• Ceramic fiber logs were not able to achieve the level of detail that is now possible with the innovative molding method.
• Compared to comparable vented log sets, ceramic fiber material and Hargrove's Radiant Riser provide much higher heating efficiency.
• Heat is equivalent to vent-free sets, however, realistic fire and ember beds are not achievable with vent-free appliances.
• The Burner System is not included with the log set and should be ordered separately.
• H-Burner requires a minimum of 14" of depth.
• Dual Burner that provides a large body of flame and additional flame in front of the logs.

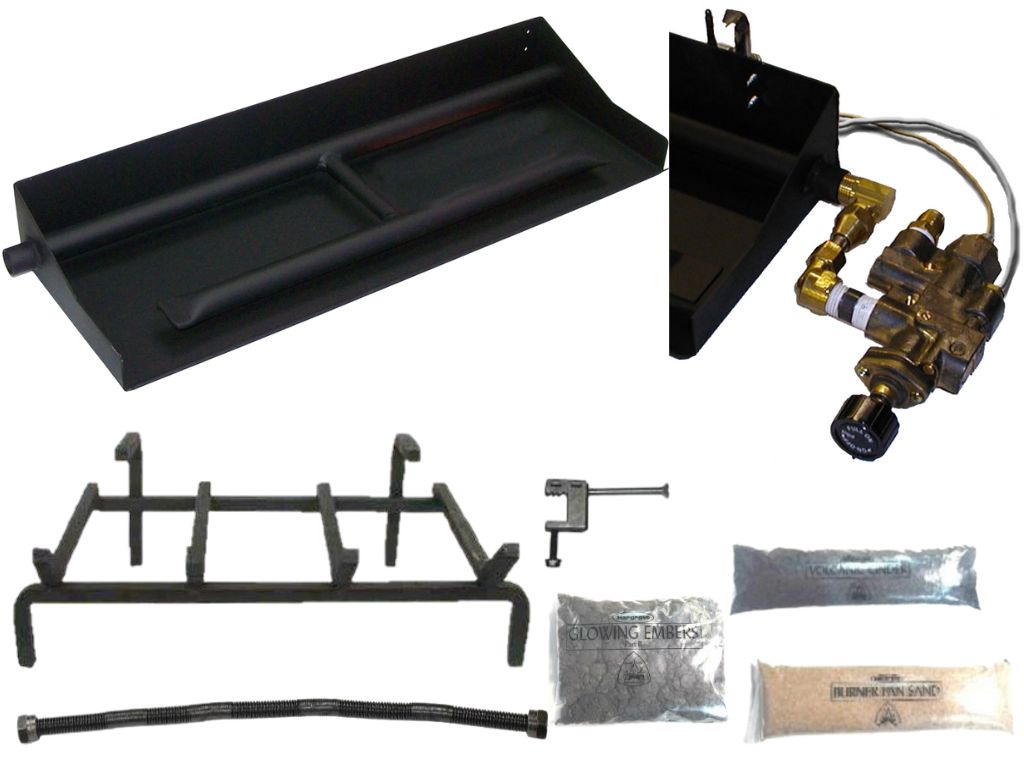

INCLUDES:

• Burner
• Custom 5/8" grate
• Sand
• Vermiculite
• Embers

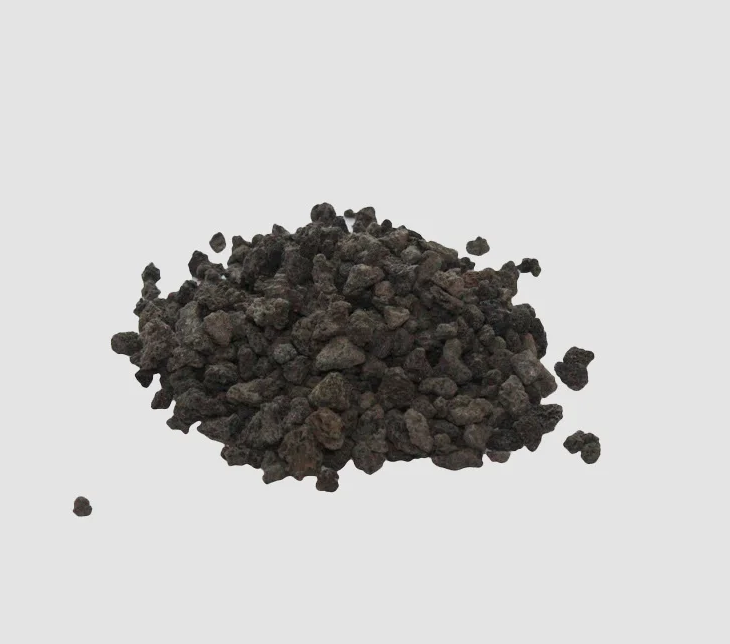

• Volcanic cinder
• Fittings
• Non-whistling flex connector.

Specifications:

• Fuel Type: Natural Gas or Liquid Propane
• Log Set Type: Vented Indoor
• Log Style: Rustic Timbers
• Available Sizes: 18", 24", 30", and 36"
• Number of Logs: 11–14 logs (varies by size)
• Material: Ceramic Fiber
• Burner Type: H Burner (16-gauge Steel)
• Ignition Options: Match Lit, Safety Pilot Valve and Millivolt Pilot Valve

Downloads:

• Hargrove Radiant Heat Gas Logs Brochure
• Woodland Timbers Log Set Diagram
• Woodland Timbers Spec Sheet
• H-Burner with No Valve Instruction Manual
• H-Burner with Manual Safety Pilot Valve Instruction Manual
• H-Burner with Eco Pilot Valve Instruction Manual
• H-Burner with Latchtap Safety Plot Valve Instruction Manual
• H-Burner with Maxitrol Variable Flame Valve Instruction Manual
• H-Burner with Millivolt Valve Instruction Manual
• H-Burner Specification

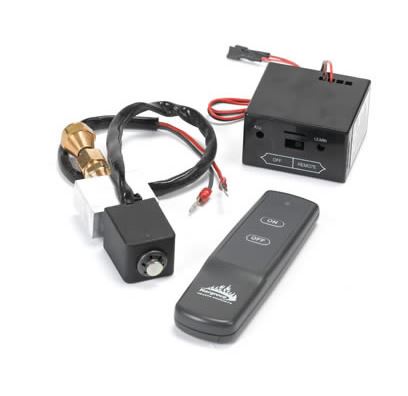

• Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
• Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
• Product Warranty
