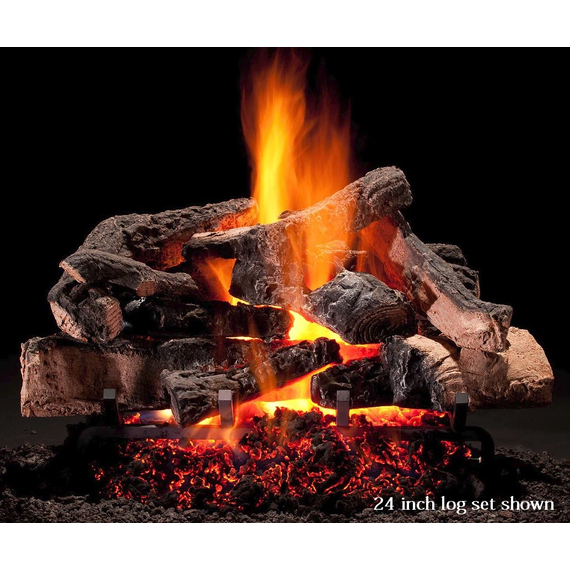

Hargrove Rustic Timbers Vented Gas Logs With System-4 Burner
Imagine the cozy charm of a rustic cabin, right in your living room. That's what the Hargrove 21-inch Rustic Timbers Gas Vented Log Set with System-4 Burner brings to your home. These logs are meticulously crafted to replicate the look and feel of real, weathered timber, adding a touch of natural beauty to your fireplace.
Now, let's talk about the System-4 Burner. This advanced burner system is designed to not only provide a stunning flame pattern but also ensure optimal efficiency. It creates a mesmerizing fire effect that dances and flickers like a real wood fire, enhancing the ambiance of your living space. Installing the Hargrove 21-inch Rustic Timbers Gas Vented Log Set with System-4 Burner is easy. The logs are designed to stack effortlessly, and the System-4 Burner connects seamlessly to your gas supply. With just a flip of a switch, you can enjoy the warmth and beauty of a fire without the hassle of wood.
Transform your home into a cozy retreat with the Hargrove 21-inch Rustic Timbers Gas Vented Log Set with System-4 Burner. It's the perfect blend of style and functionality, creating a welcoming atmosphere that you'll love coming home to.
Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.
BURNER:

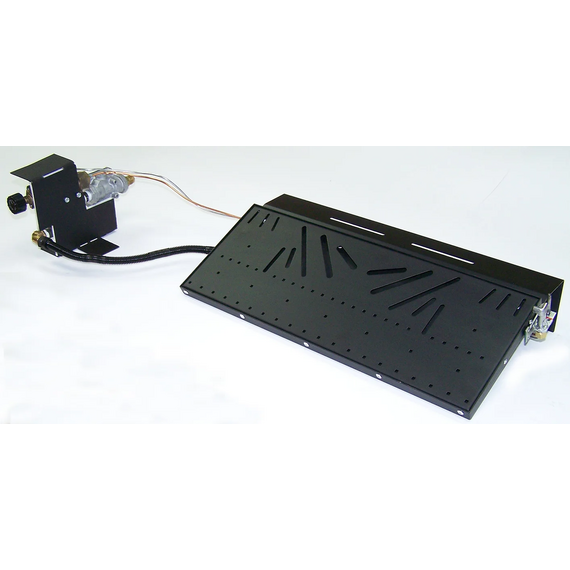

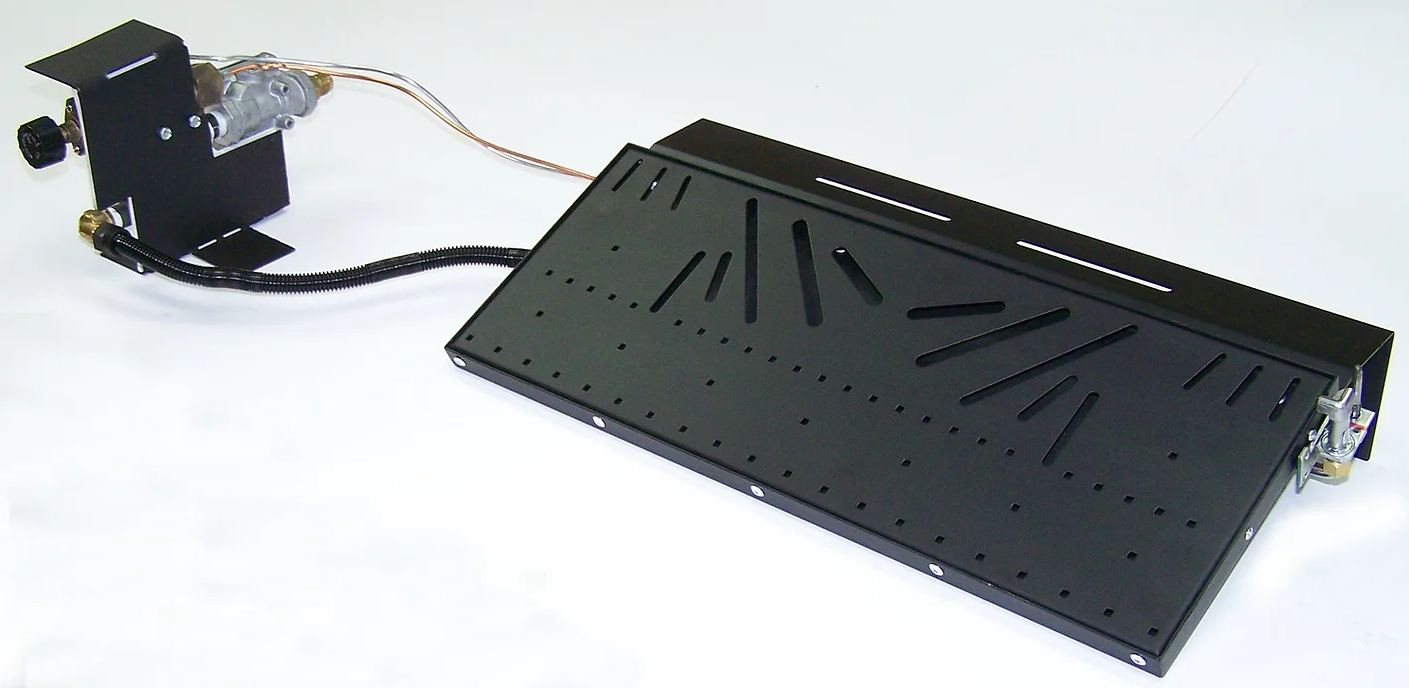

System 4- These are available in sizes ranging from 18 inches to 42 inches. They're known for producing a full-bodied flame, especially ideal for liquid propane applications. If you're using Hargrove's Fresh Cut, Char, or Radiant Heat Series Logs and prefer liquid propane, the System 4 is a great choice.
CONTROL SYSTEM:

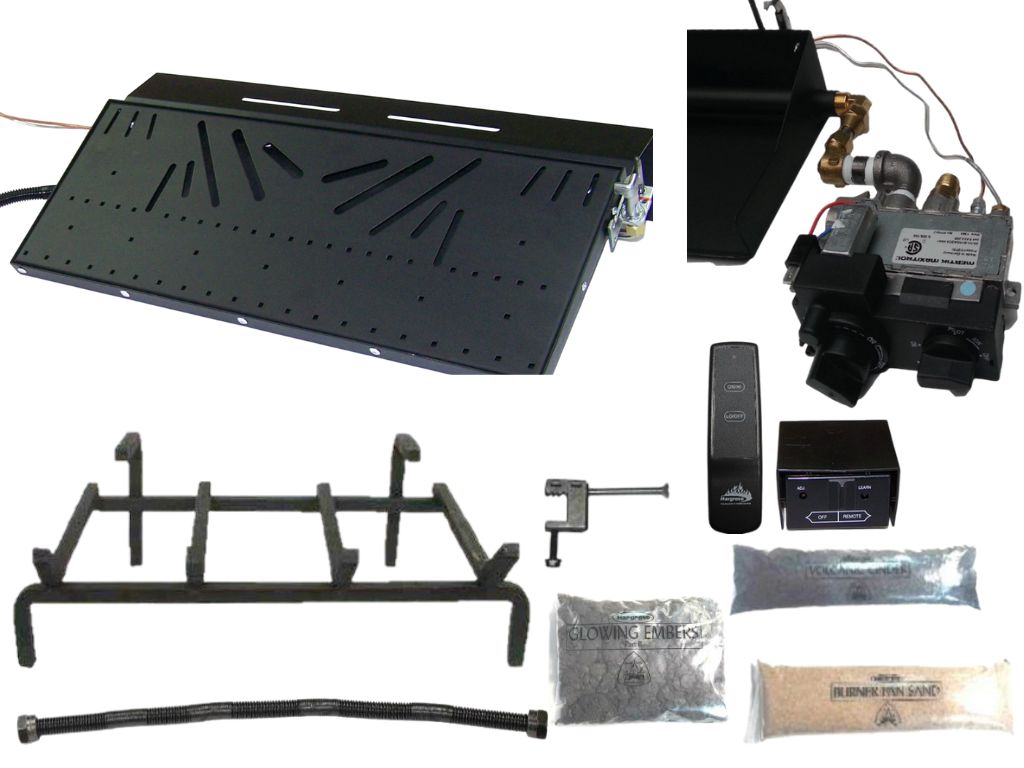

- Variable Flame Remote Control- Now, this is where things get a bit fancy. You've got a remote-controlled system that lets you not only turn the burner on and off remotely but also adjust the flame height. It's designed for both natural gas and liquid propane, but just like before, you'll need a conversion kit for propane.

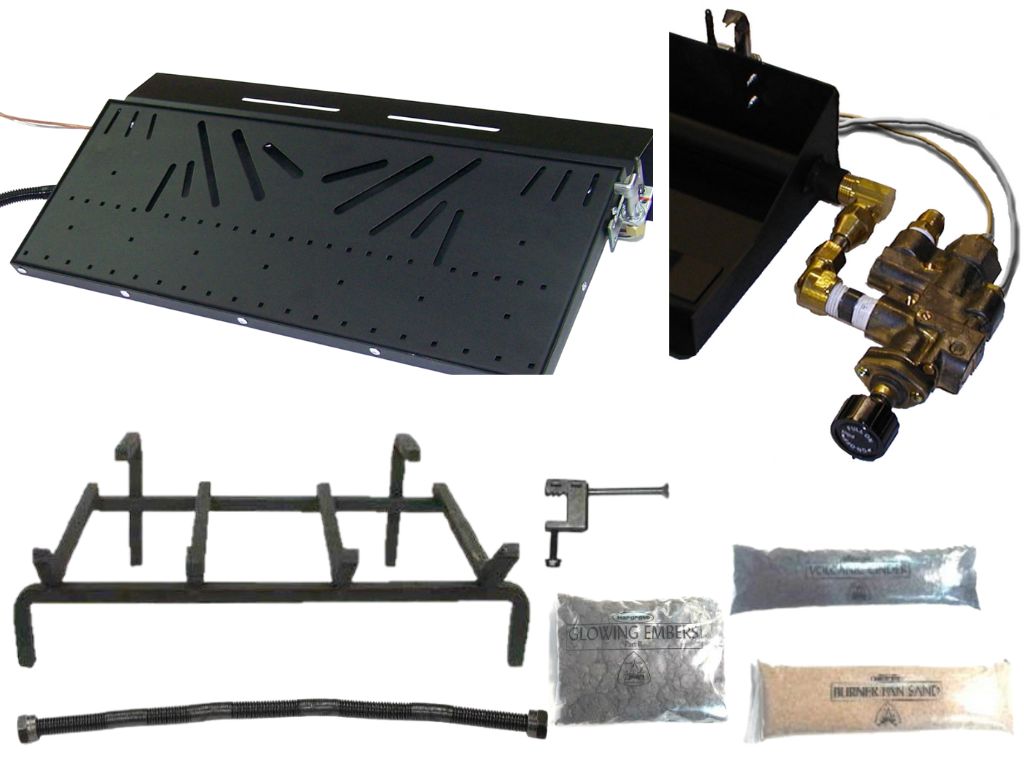

- Manual Safety Pilot- With this system, you've got a standing pilot safety valve setup. That means you can ignite the main burner flame with a knob and adjust it to your liking. It's versatile too, working with both natural gas and liquid propane. But remember, if you're going for liquid propane, you'll need that conversion kit.

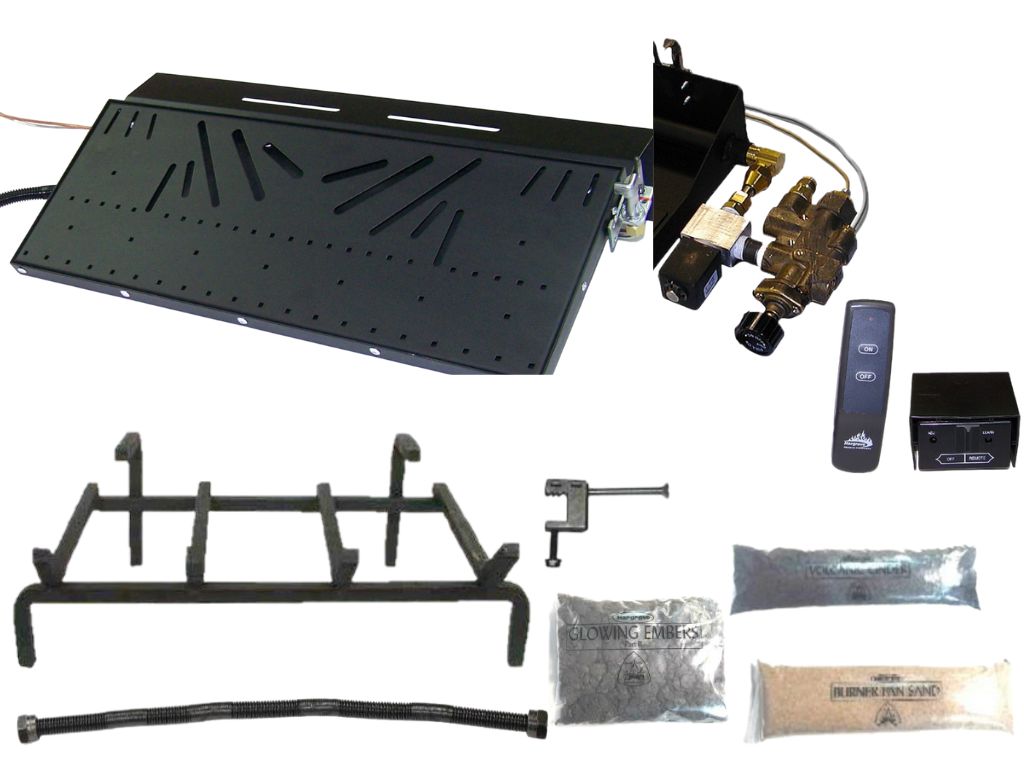

- Latchtap with Remote Control- This one's neat because it combines the manual safety pilot with a remote control kit. You can use the remote to turn the burner on and off and adjust the flame with the knob. Like the others, it's compatible with both natural gas and liquid propane, with a conversion kit required for propane.
Features:
- Available in 21", 24", 30", and 36" sizes

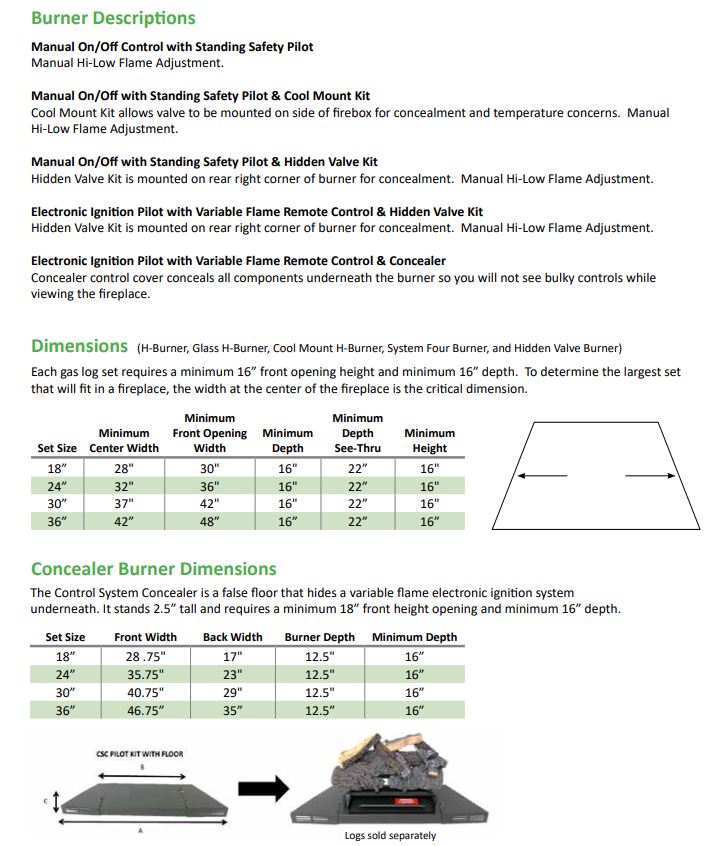

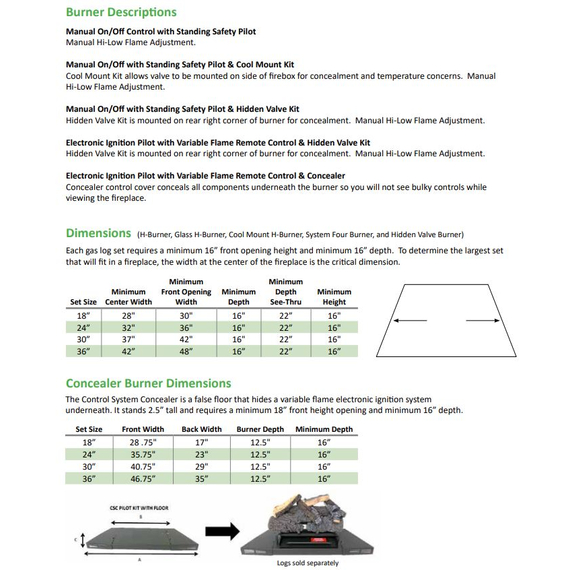

- System 4 Burner kits require a minimum of 16" of depth.

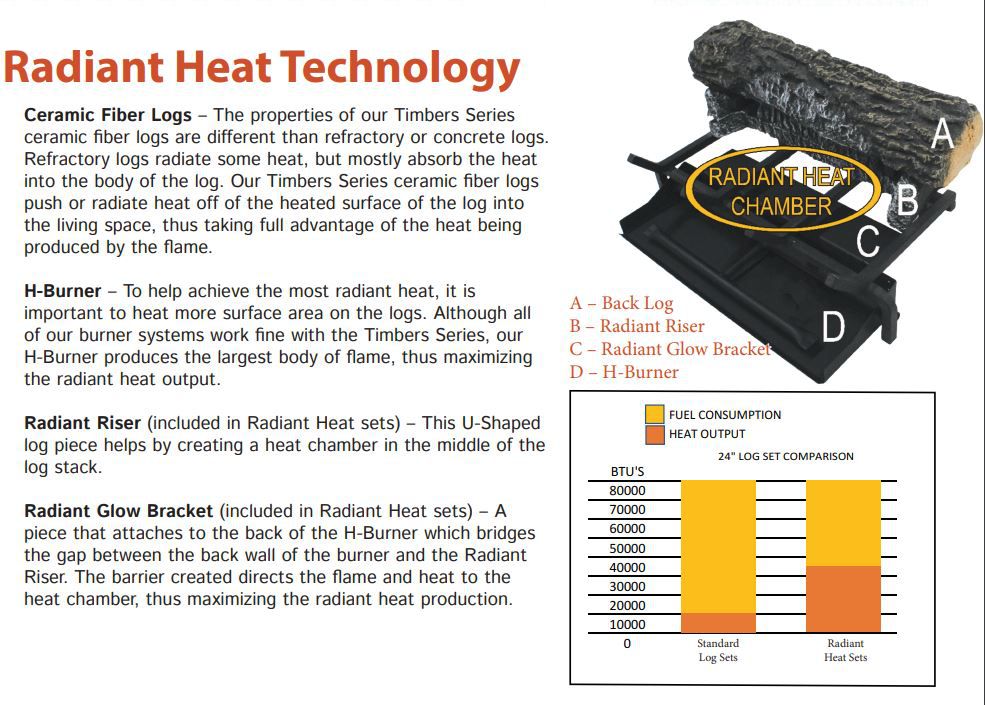

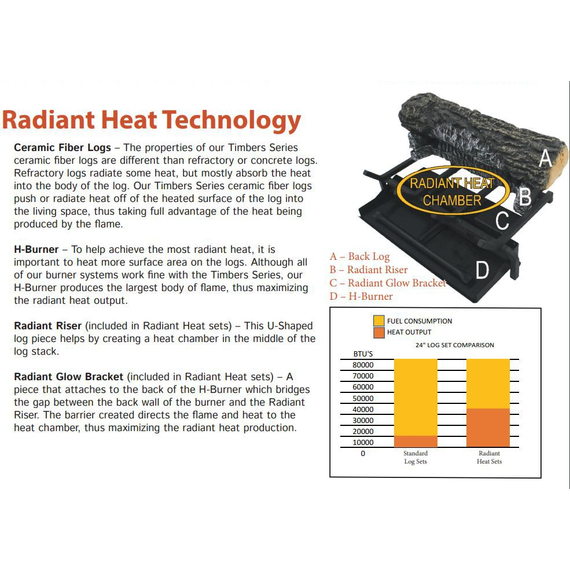

- With radiant riser technology, heat production is directed forward.
- Ceramic fiber logs were not able to achieve the level of detail that is now possible with the innovative molding method.
- Compared to comparable vented log sets, ceramic fiber material and Hargrove's Radiant Riser provide much higher heating efficiency.
- Heat is equivalent to vent-free sets, however, realistic fire and ember beds are not achievable with vent-free appliances.
- The Burner System is not included with the log set and should be ordered separately.
- A full-bodied flame that provides outstanding performance in liquid propane applications.

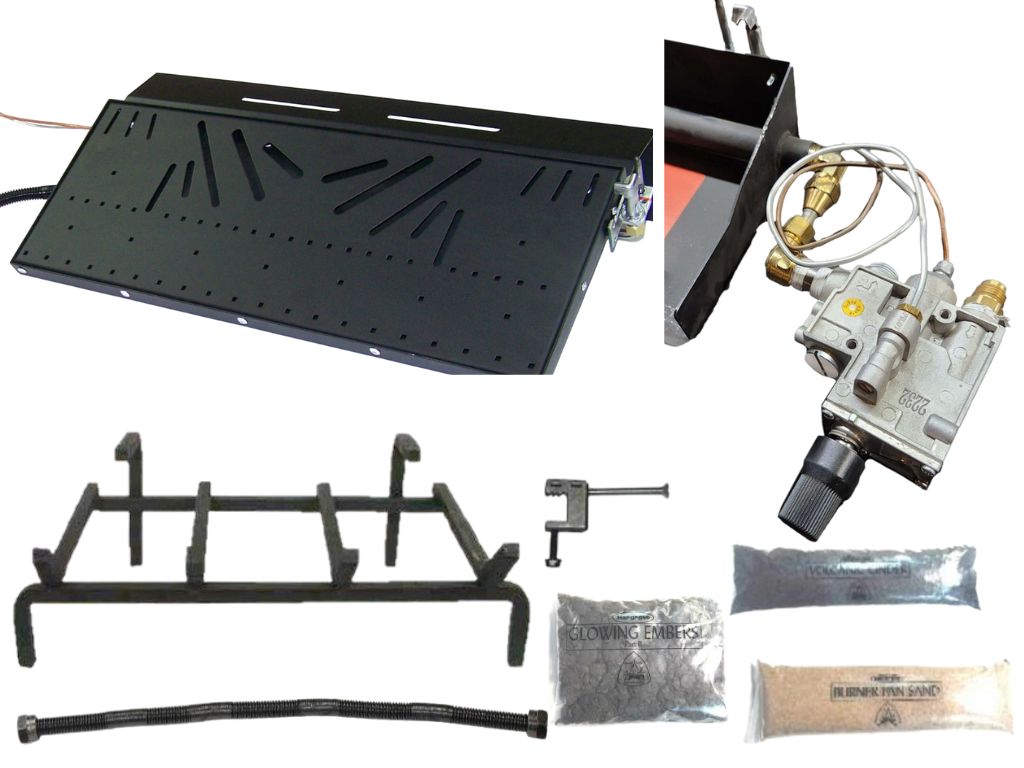

Includes:
- Burner,
- Custom 5/8" grate,
- Embers,

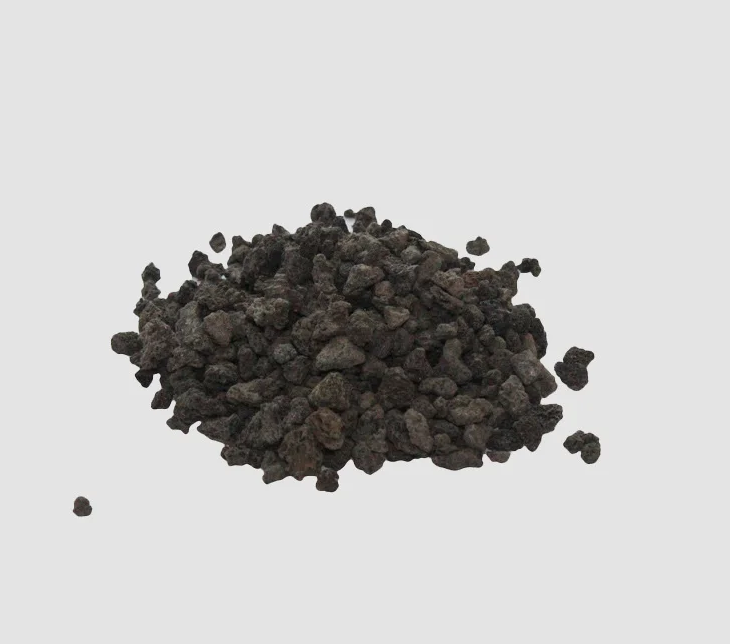

- Volcanic cinder,
- Fittings,
- Non-whistling flex connector.
Specifications:
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Style: Rustic Timbers
- Available Sizes: 21", 24", 30", 36"
- Number of Logs: 18–21 logs (varies by size)
- Material: Ceramic Fiber
- Burner Type: System-4 Burner (16-Gauge Steel)
- Ignition Options: Standing Safety Pilot | Variable Remote | Latchtap with On/Off Remote
Downloads:
- Hargrove Radiant Heat Gas Logs Brochure
- Rustic Timbers Log Set Diagram
- Rustic Timbers Spec Sheet
- System-4 Burner with COOL MOUNT Manual Safety Pilot Valve Instruction Manual
- System-4 Burner with COOL MOUNT Eco Pilot Valve
- System-4 Burner with COOL MOUNT Variable Flame
- System-4 Burner with COOL MOUNT Valve and ON/OFF Remote
- System 4 Burner Specification
- Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
- Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
- Product Warranty

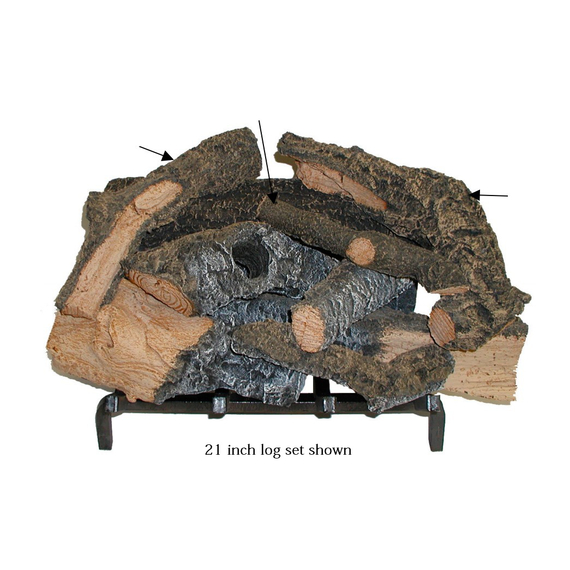

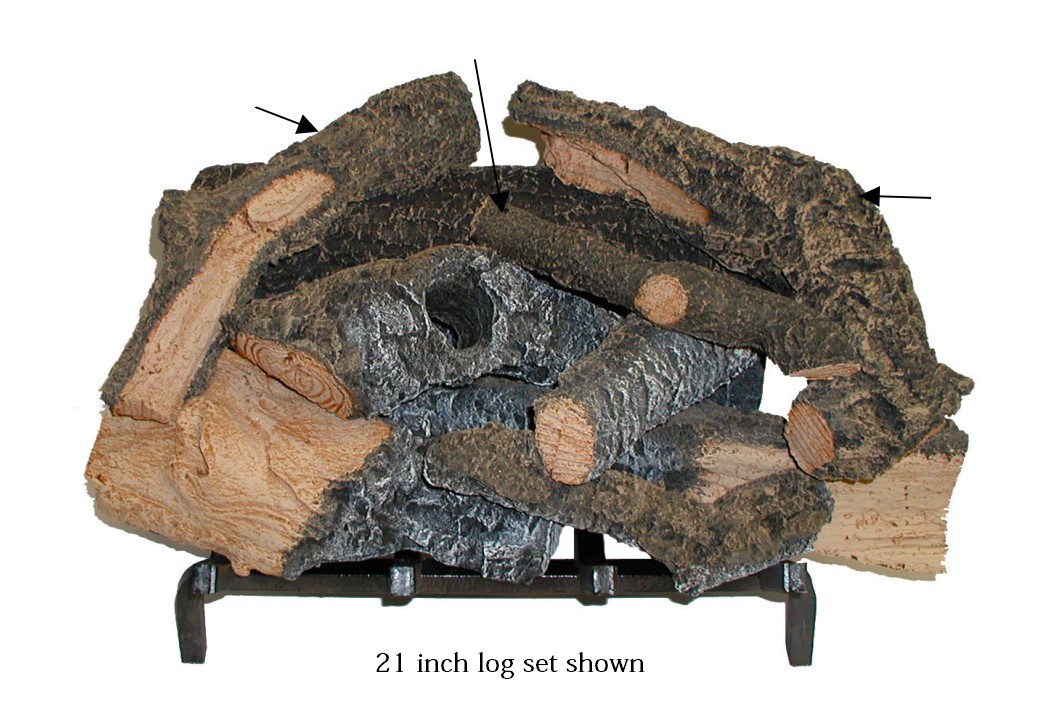

Hargrove 21" Rustic Timbers Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Rustic Timbers
- Log Set Width: 21 Inch
- Number of Logs: 10 Pieces
- Material: Ceramic Fiber
- Burner Type: System-4 Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Standing Safety Pilot | Factory Installed with Variable Remote | Factory Installed Latchtap with On/Off Remote
- BTU: 42K
- Burner Dimension: 30" W x 14" D x 16" H
Hargrove 24" Rustic Timbers Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Rustic Timbers
- Log Set Width: 24 Inch
- Number of Logs: 11 Pieces
- Material: Ceramic Fiber
- Burner Type: System-4 Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Standing Safety Pilot | Factory Installed with Variable Remote | Factory Installed Latchtap with On/Off Remote
- BTU: 57K
- Burner Dimension: 36" W x 14" D x 16" H
Hargrove 30" Rustic Timbers Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Rustic Timbers
- Log Set Width: 30 Inch
- Number of Logs: 12 Pieces
- Material: Ceramic Fiber
- Burner Type: System-4 Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Standing Safety Pilot | Factory Installed with Variable Remote | Factory Installed Latchtap with On/Off Remote
- BTU: 70K
- Burner Dimension: 42" W x 14" D x 16" H
Hargrove 36" Rustic Timbers Vented Gas Log Set With System-4 Burner
- Fuel Type: Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Rustic Timbers
- Log Set Width: 36 Inch
- Number of Logs: 14 Pieces
- Material: Ceramic Fiber
- Burner Type: System-4 Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: Factory Installed Standing Safety Pilot | Factory Installed with Variable Remote | Factory Installed Latchtap with On/Off Remote
- BTU: 75K
- Burner Dimension: 48" W x 14" D x 16" H
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
