Hargrove Rustic Timbers Vented Gas Log Set With H-Burner

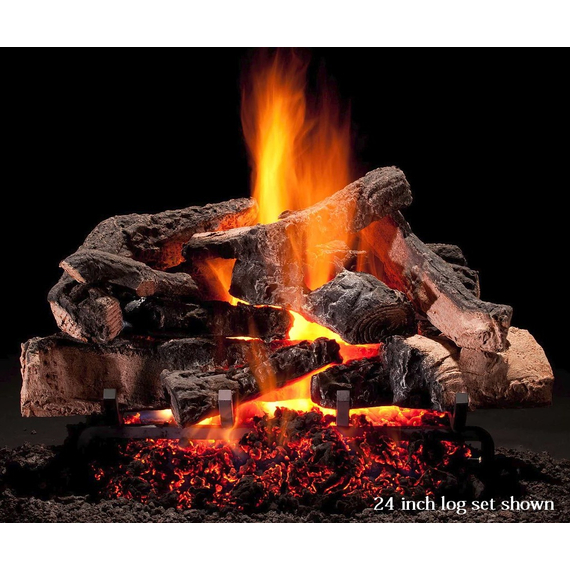

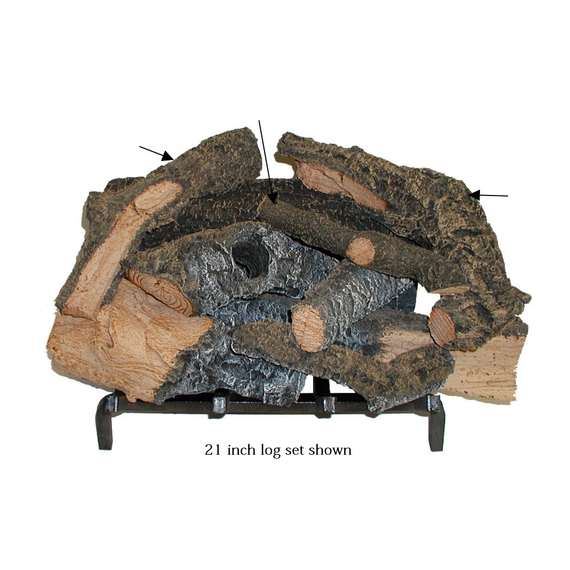

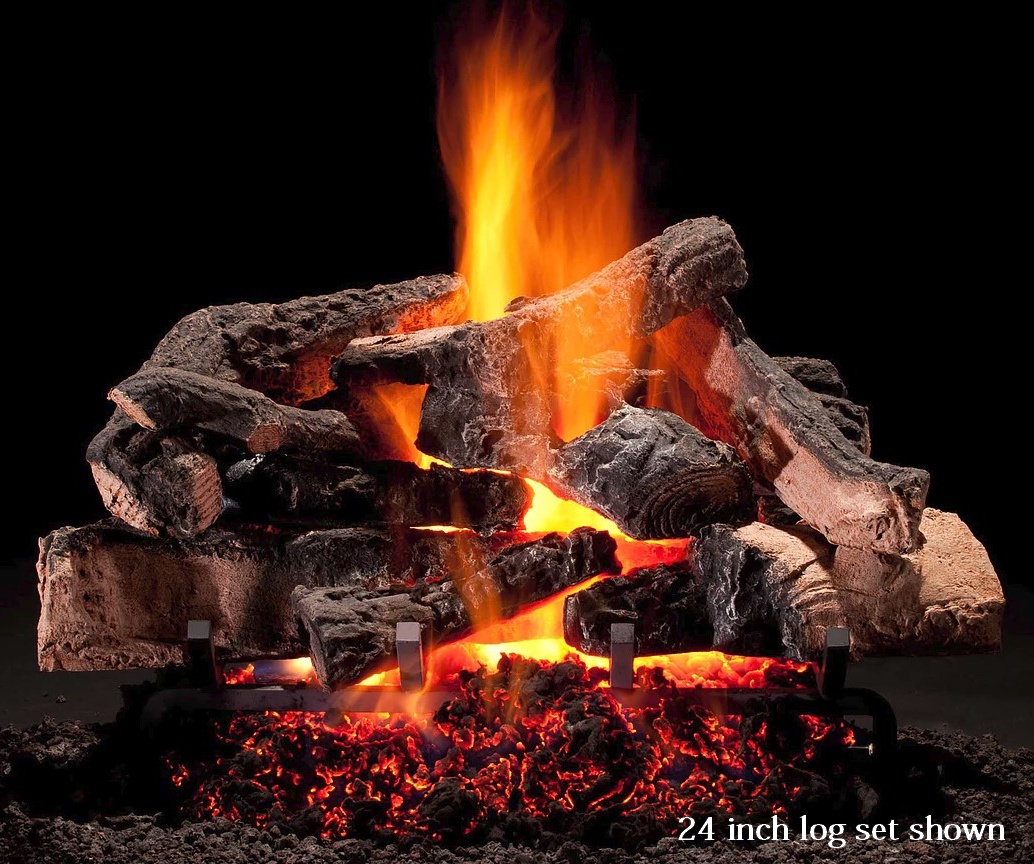

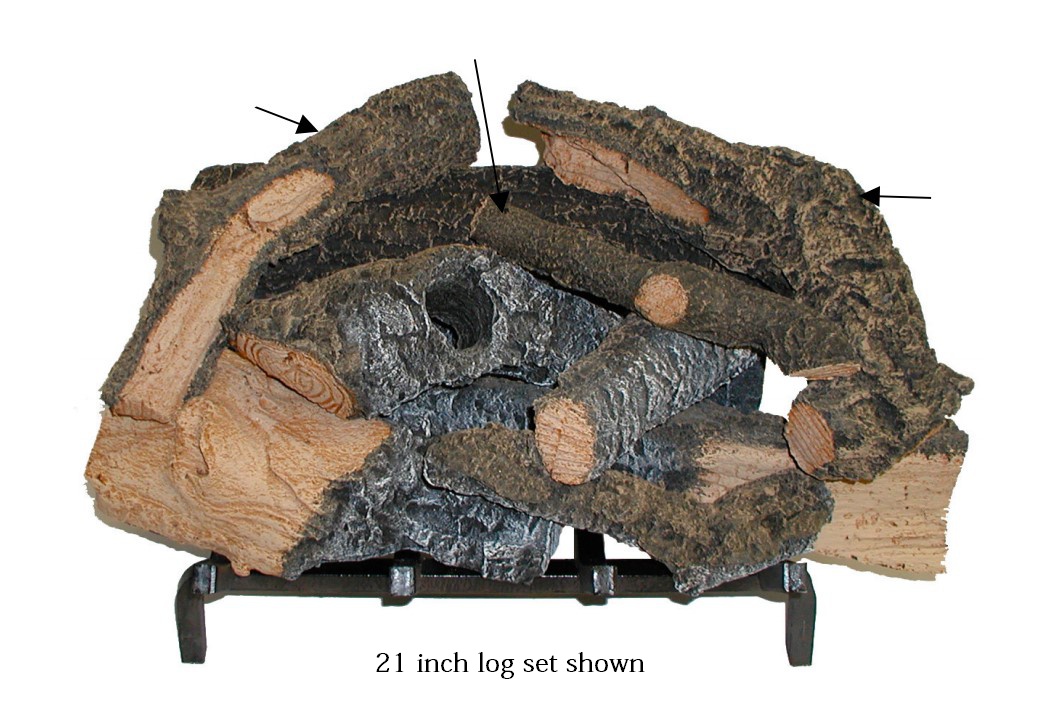

The Hargrove Rustic Timbers Vented Log Set with H-Burner is in simple terms so it’s easy to picture. This set is made to look like a real, well-used fire. The Rustic Timbers logs have a split-wood and charred look, like logs burning for a while. They even glow like real embers! The logs come in sizes from 21" to 36", so you can pick the one that fits your fireplace. Depending on your setup, you can also choose between regular fireplaces or see-through ones.
Now, the H-Burner is special. It has two burners, so you get big, lively flames across the logs and even some extra flames in the front for a more realistic fire. It works with both Natural Gas and Propane, and it comes in sizes from 18" to 36", so it’s flexible for different fireplace sizes. Here’s the best part: this set isn’t just about looks—it also gives off great heat. Hargrove uses something called Radiant Riser technology, which helps push the heat forward into the room instead of losing it up the chimney. The logs are made from a special material that holds heat well and makes them look super realistic. So, if you want a fireplace that’s cozy, warm, and looks like a real fire, this set is a great choice! How does that sound to you?
Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.
BURNER:

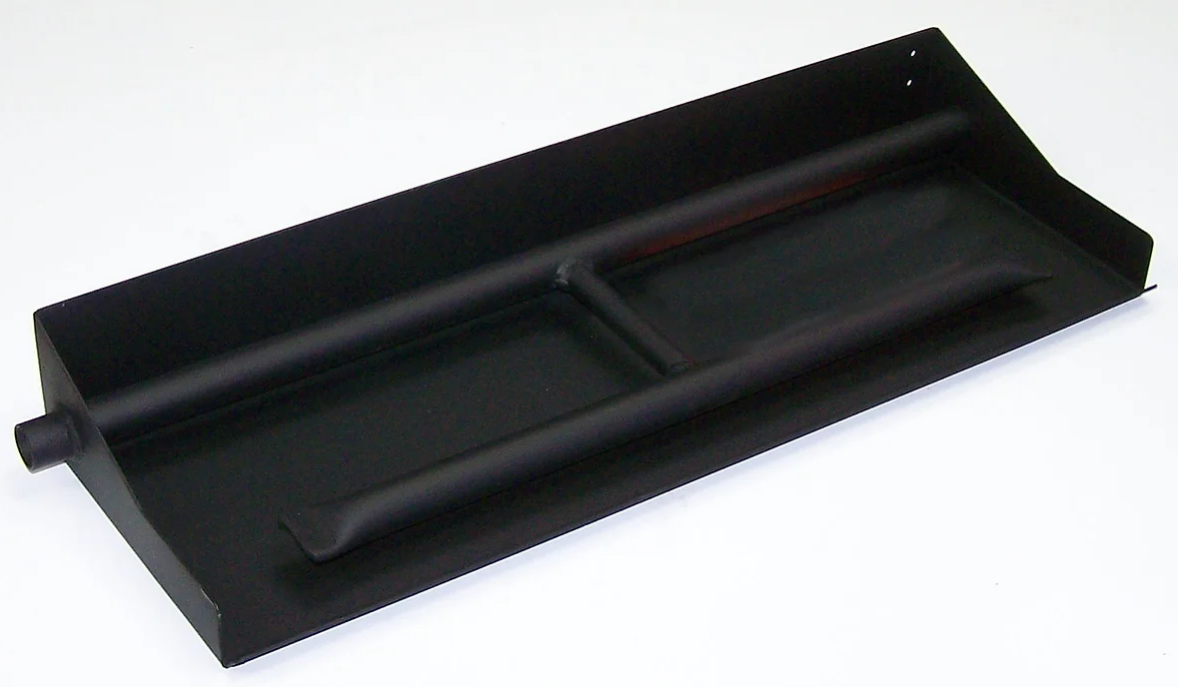

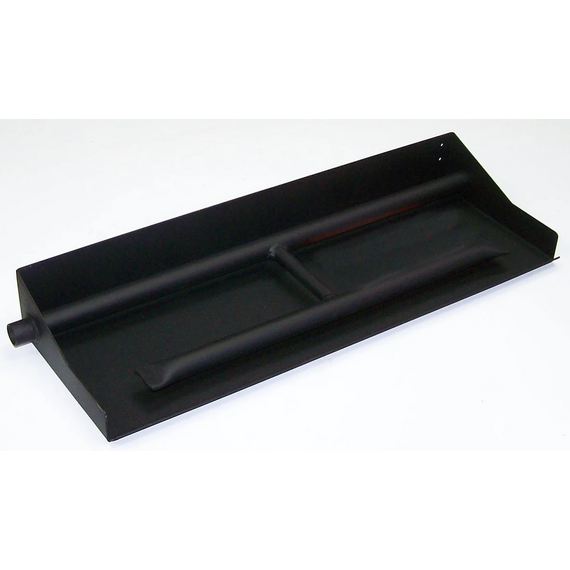

H-Burner- These come in sizes from 18 inches to 36 inches. Unlike the E-Burner, the H-Burner is a dual burner system, which means it produces not only a big flame but also provides additional flames in front of the logs. These are recommended if you're using Hargrove's Char and Radiant Heat Series Logs.
CONTROL SYSTEM:

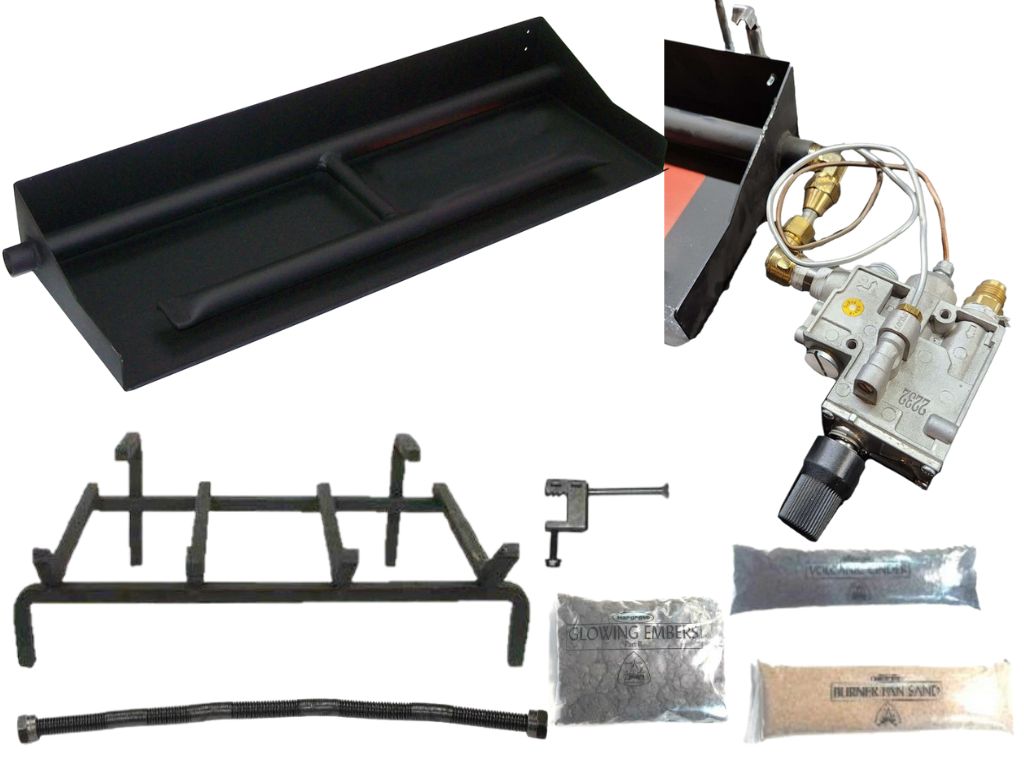

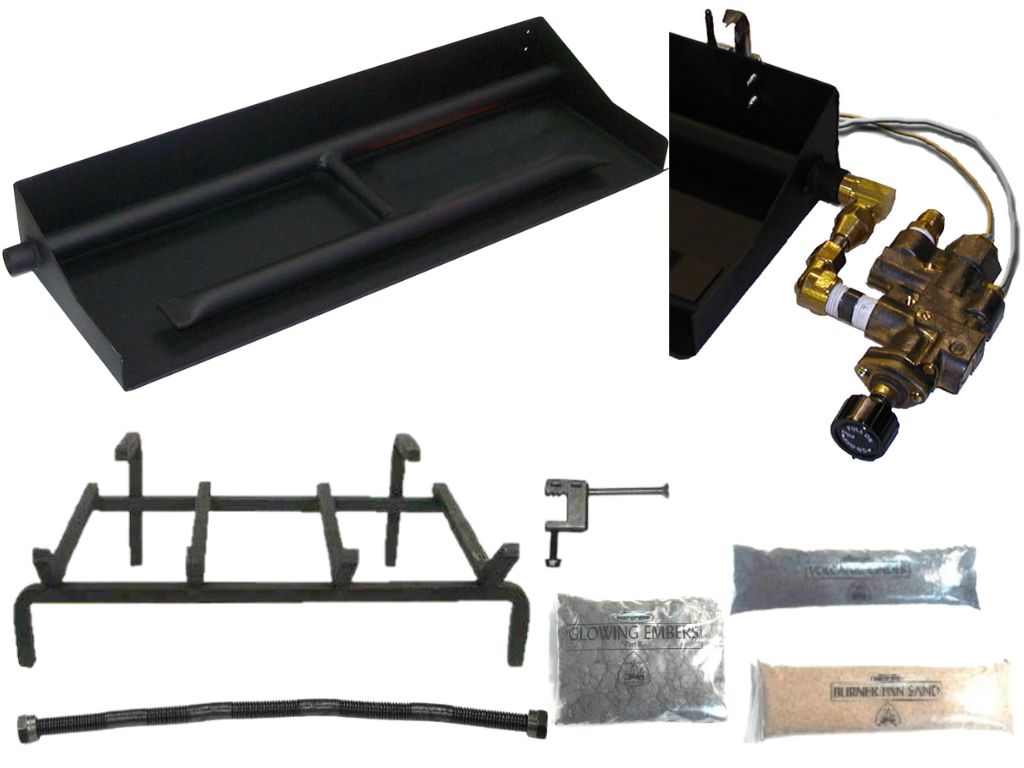

- Manual Safety Pilot- With this system, you've got a standing pilot safety valve setup. That means you can ignite the main burner flame with a knob and adjust it to your liking. It's versatile too, working with both natural gas and liquid propane. But remember, if you're going for liquid propane, you'll need that conversion kit.

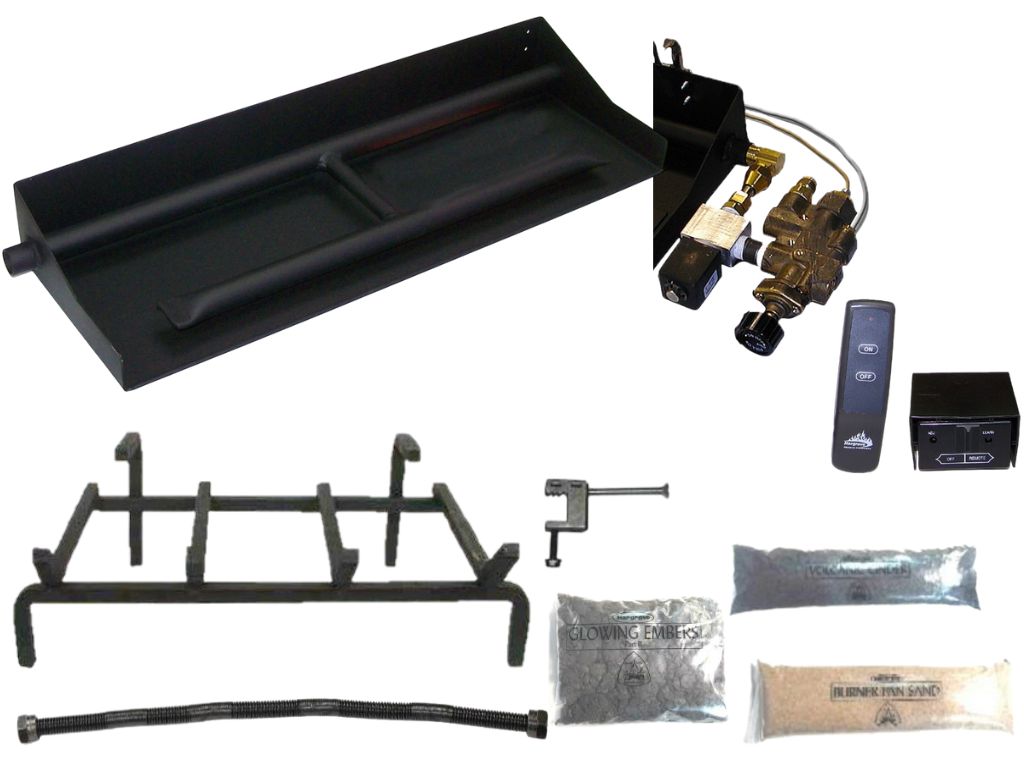

- Latchtap with Remote Control- This one's neat because it combines the manual safety pilot with a remote control kit. You can use the remote to turn the burner on and off and adjust the flame with the knob. Like the others, it's compatible with both natural gas and liquid propane, with a conversion kit required for propane.

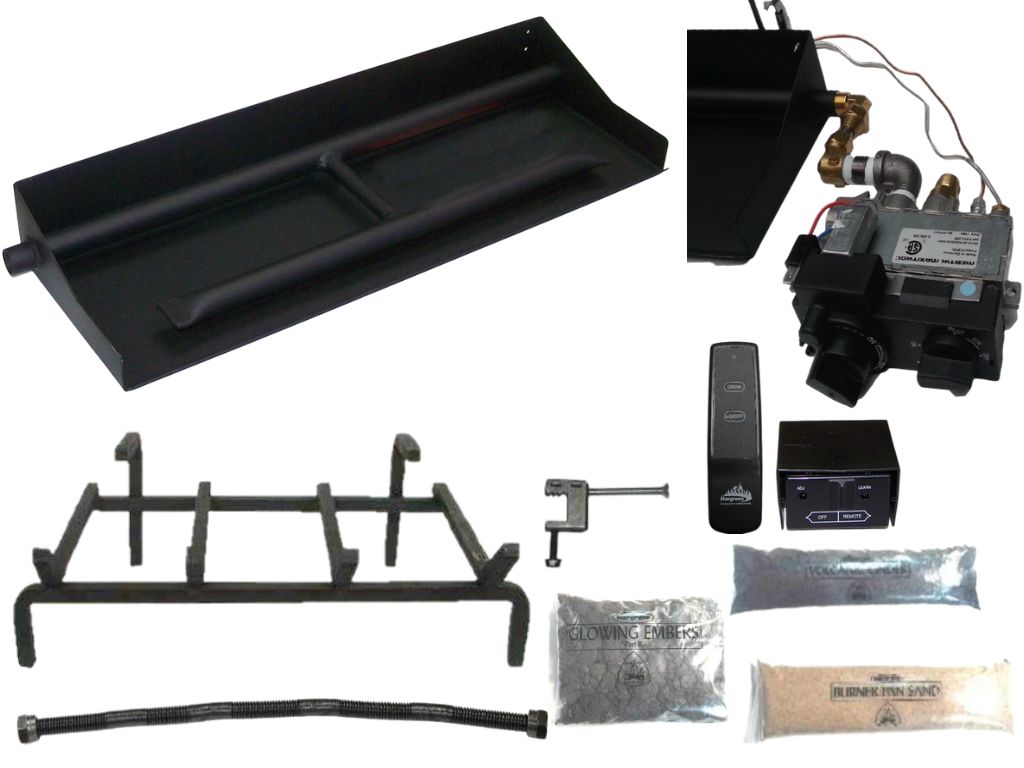

- Variable Flame Remote Control- Now, this is where things get a bit fancy. You've got a remote-controlled system that lets you not only turn the burner on and off remotely but also adjust the flame height. It's designed for both natural gas and liquid propane, but just like before, you'll need a conversion kit for propane.

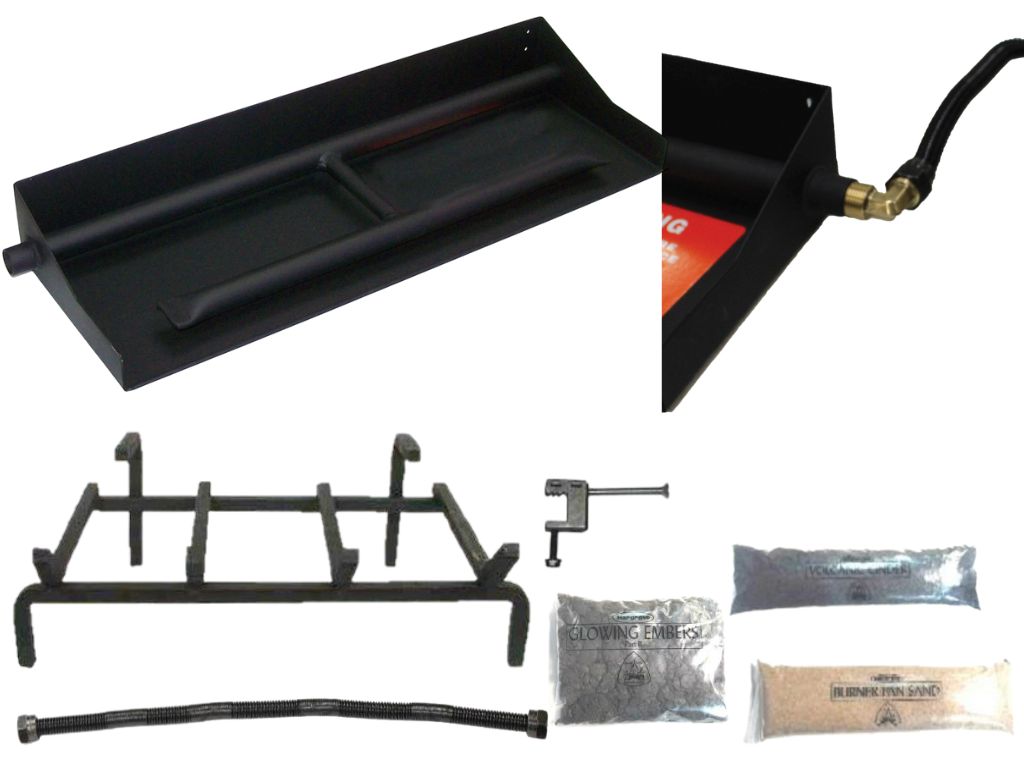

- Manual Valve with Knob- This one's pretty straightforward. You've got a knob that you turn to manually light the main burner using a match or a long lighter. Just keep in mind, that it's only for natural gas. If you're thinking of using liquid propane, you'll need to add a safety pilot and a conversion kit.

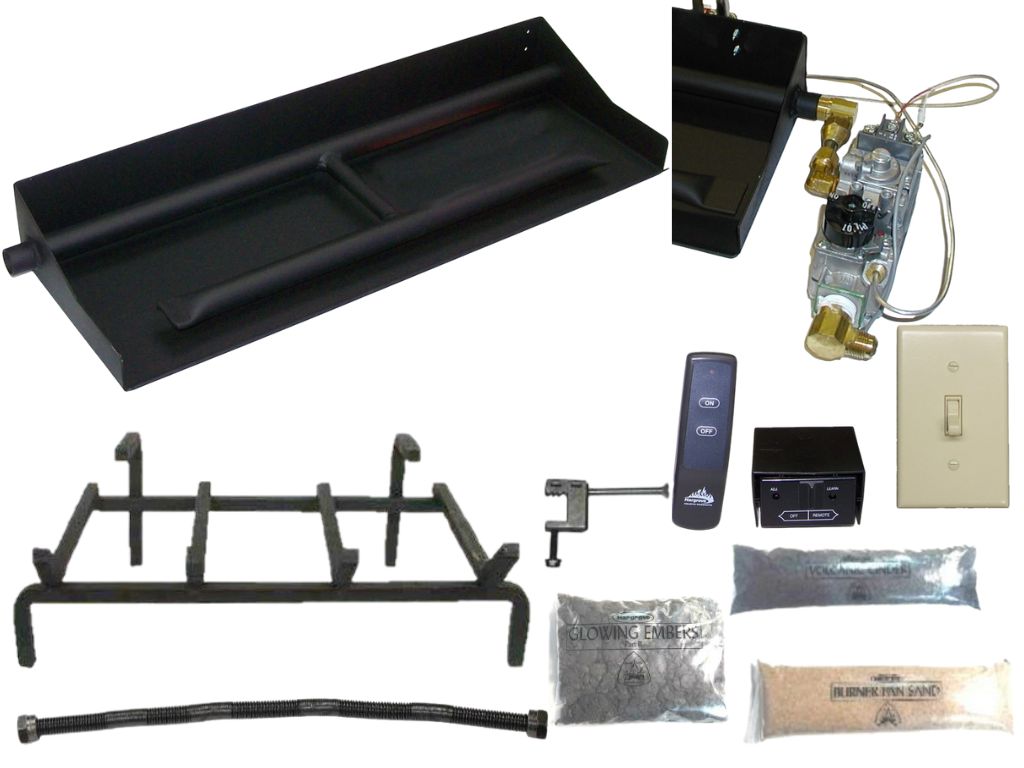

- Millivolt with Wall Switch- This one's pretty convenient because you can control it with a wall switch. You can also upgrade to a remote control if you prefer. It's versatile too, working with both natural gas and liquid propane. Just remember, if you're opting for liquid propane, you'll need that conversion kit.
Features:
- Available in 21", 24", 30", and 36" sizes

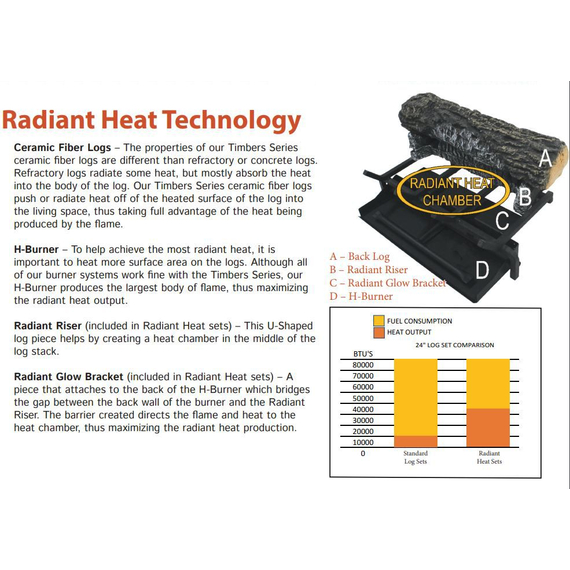

- With radiant riser technology, heat production is directed forward.
- H-Burner requires a minimum of 14" of depth.
- Ceramic fiber logs could not achieve the level of detail that is now possible with the innovative molding method.
- Compared to comparable vented log sets, ceramic fiber material and Hargrove's Radiant Riser provide much higher heating efficiency.
- Heat is equivalent to vent-free sets, however, realistic fire and ember beds are not achievable with vent-free appliances.
- The Burner System is not included with the log set and should be ordered separately.
- Dual Burner that provides a large body of flame and additional flame in front of the logs.
Includes:
- Burner
- Custom 5/8" grate
- Sand
- Vermiculite
- Embers
- Volcanic cinder
- Fittings
- Non-whistling flex connector.
Specifications:
- Fuel Type: Natural Gas or Liquid Propane
- Log Set Type: Vented Indoor
- Log Style: Rustic Timbers
- Available Sizes: 21", 24" 30" and 36"
- Number of Logs: 11–14 logs (varies by size)
- Material: Ceramic Fiber
- Burner Type: E Burner (16-Gauge Steel)
- Ignition Options: Match Lit, Standing Safety Pilot, Latchtap with On/Off Remote, Variable Flame with Remote, Millivolt Pilot with Wall Switch
Downloads:
- Hargrove Radiant Heat Gas Logs Brochure
- Rustic Timbers Log Set Diagram
- Rustic Timbers Spec Sheet
- H-Burner with No Valve Instruction Manual
- H-Burner with Manual Safety Pilot Valve Instruction Manual
- H-Burner with Eco Pilot Valve Instruction Manual
- H-Burner with Latchtap Safety Plot Valve Instruction Manual
- H-Burner with Maxitrol Variable Flame Valve Instruction Manual
- H-Burner with Millivolt Valve Instruction Manual
- H-Burner Specification
- Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
- Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
- Product Warranty
Hargrove 21" Woodland Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Width: 21 Inch
- Log Set Style: Woodland Timbers
- Log Set Type: Vented Indoor
- Number of Logs: 1 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 70K (NG) and 46K (LP)
- Burner Dimension: 25" W x 14" D x 16" H
Hargrove 24" Woodland Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Woodland Timbers
- Log Set Width: 24 Inch
- Number of Logs: 18 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 80K (NG) and 63K (LP)
- Burner Dimension: 28" W x 14" D x 16" H
Hargrove 30" Woodland Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Woodland Timbers
- Log Set Width: 30 Inch
- Number of Logs: 20 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 90K (NG) and 78K (LP)
- Burner Dimension: 34" W x 14" D x 16" H
Hargrove 36" Woodland Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Woodland Timbers
- Log Set Width: 36 Inch
- Number of Logs: 22 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 90K (NG) and 79K (LP)
- Burner Dimension: 40" W x 14" D x 16" H
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
