Hargrove Canyon Timbers Vented Gas Log Set With H-Burner

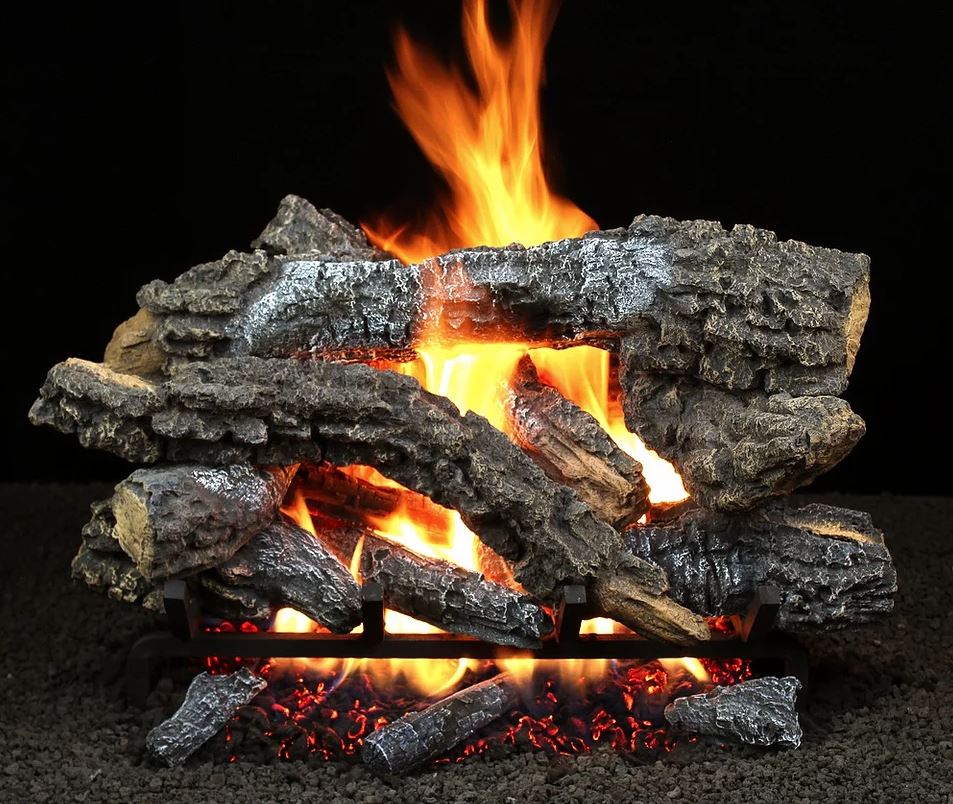

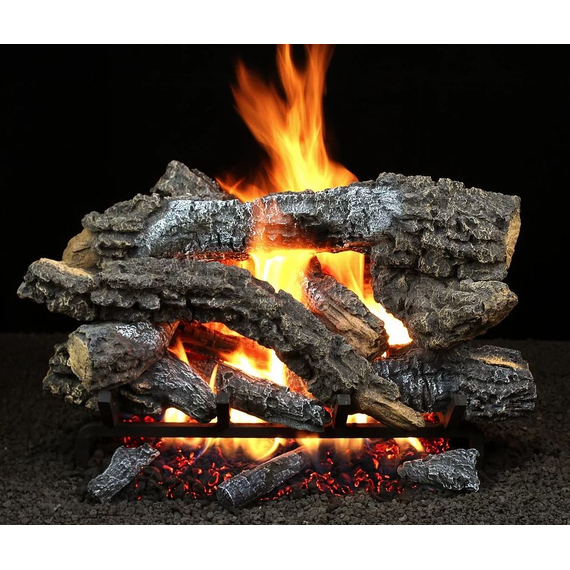

You’ve got to hear about the Hargrove Canyon Timbers Vented Log Set with H-Burner—it’s such a great option if you’re looking to upgrade your fireplace. The logs themselves are super realistic; they have this deep bark texture and charred areas that make them look like real wood that’s been burning for hours. They come in different sizes, from 21 to 36 inches, so there’s a size to fit just about any fireplace. Plus, they work with different burners and controls, so they’re versatile. And you can use them with either natural gas or propane, depending on what your setup needs.
Now, the H-Burner is where the magic happens. It has dual burners, so you get this big, beautiful flame that fills the whole fireplace, and it even adds some flames at the front of the logs for the extra wow factor. It’s perfect if you want something that not only looks amazing but also puts out a good amount of heat. It’s especially great for logs like these that are part of the Char or Radiant Heat Series. Honestly, it’s the perfect combo if you want something easy to use, gives off that cozy vibe, and transforms your fireplace into the focal point of the room. You’d love it—it’s gorgeous and functional!
Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.
BURNER:

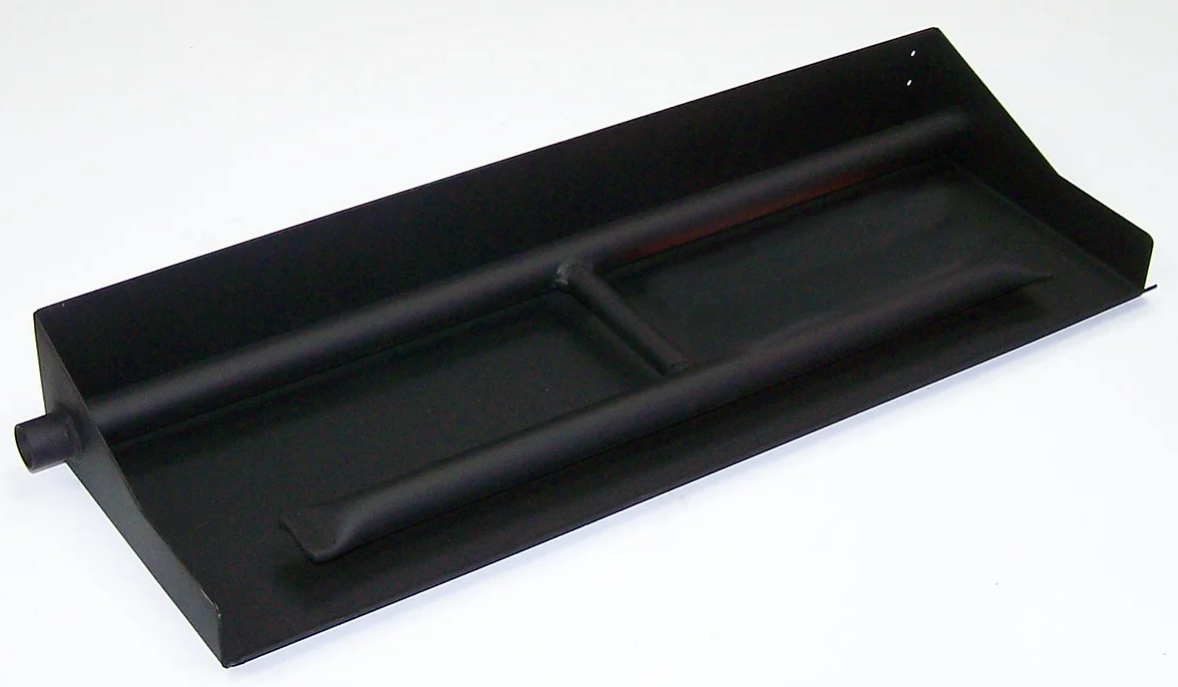

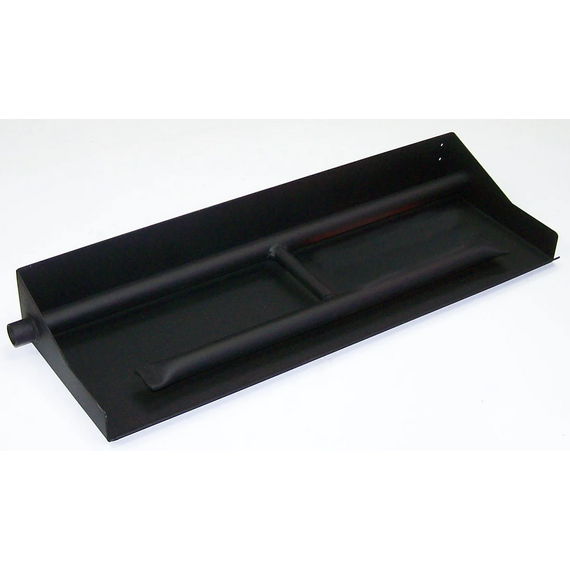

H-Burner- These come in sizes from 18 inches to 36 inches. Unlike the E-Burner, the H-Burner is a dual burner system, which means it produces a big flame and provides additional flames in front of the logs. These are recommended if you're using Hargrove's Char and Radiant Heat Series Logs.
CONTROL SYSTEM:
- Manual Valve with Knob- This one's pretty straightforward. You've got a knob that you turn to manually light the main burner using a match or a long lighter. Just keep in mind, that it's only for natural gas. If you're thinking of using liquid propane, you'll need to add a safety pilot and a conversion kit.

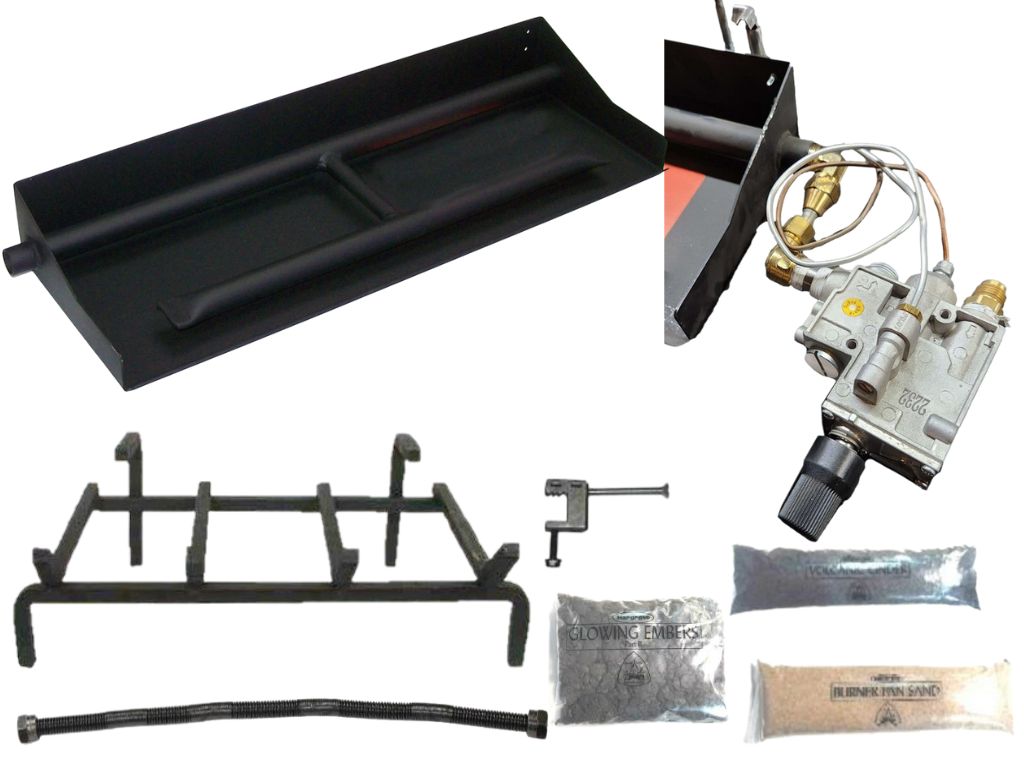

- Manual Safety Pilot- With this system, you've got a standing pilot safety valve setup. That means you can ignite the main burner flame with a knob and adjust it to your liking. It's versatile too, working with both natural gas and liquid propane. But remember, if you're going for liquid propane, you'll need that conversion kit.

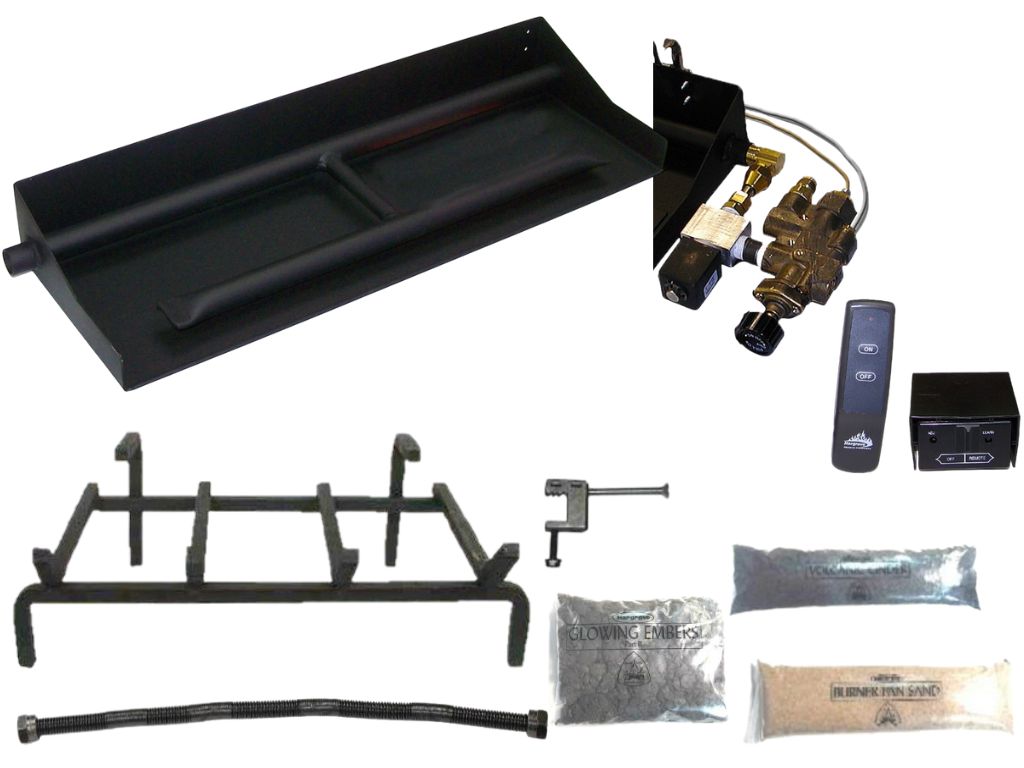

- Latchtap with Remote Control- This one's neat because it combines the manual safety pilot with a remote control kit. You can use the remote to turn the burner on and off and adjust the flame with the knob. Like the others, it's compatible with both natural gas and liquid propane, with a conversion kit required for propane.

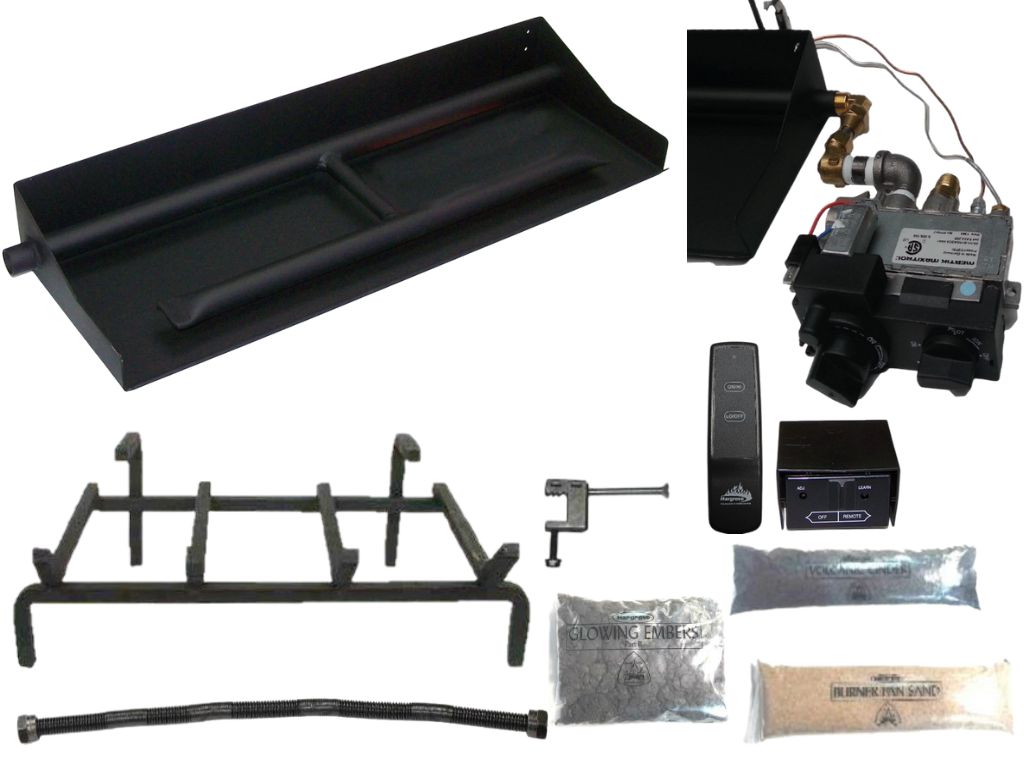

- Variable Flame Remote Control- Now, this is where things get a bit fancy. You've got a remote-controlled system that lets you not only turn the burner on and off remotely but also adjust the flame height. It's designed for both natural gas and liquid propane, but just like before, you'll need a conversion kit for propane.

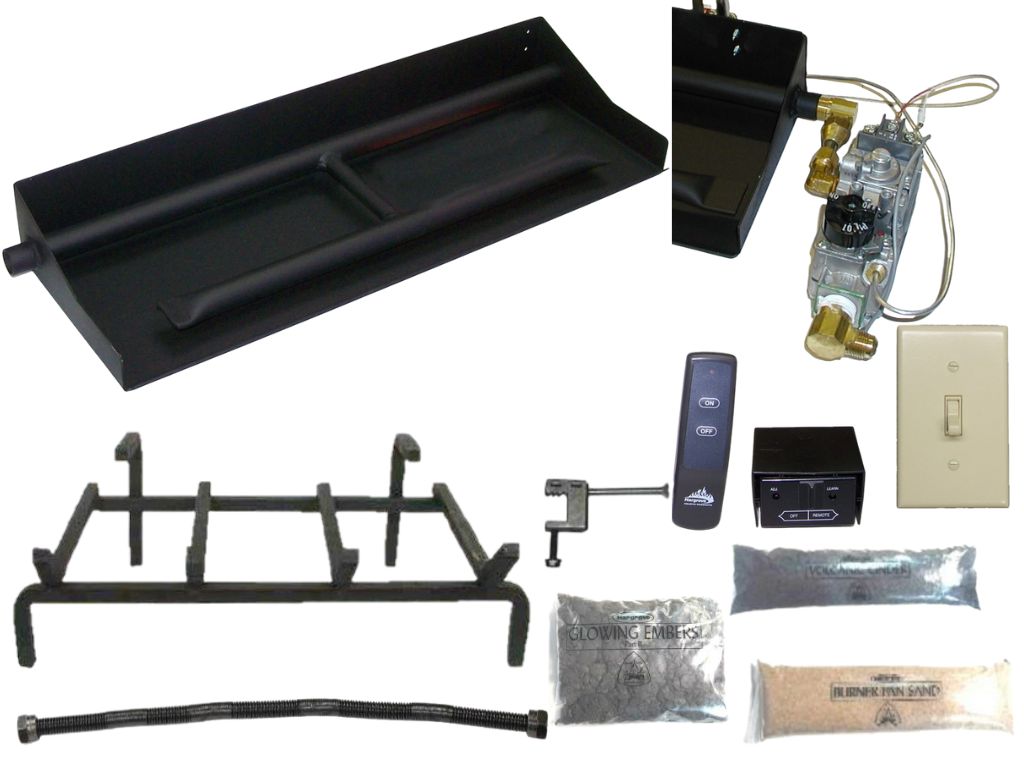

- Millivolt with Wall Switch- This one's pretty convenient because you can control it with a wall switch. You can also upgrade to a remote control if you prefer. It's versatile too, working with both natural gas and liquid propane. Just remember, if you're opting for liquid propane, you'll need that conversion kit.
Features:
- Available in 21", 24", 30", and 36" sizes

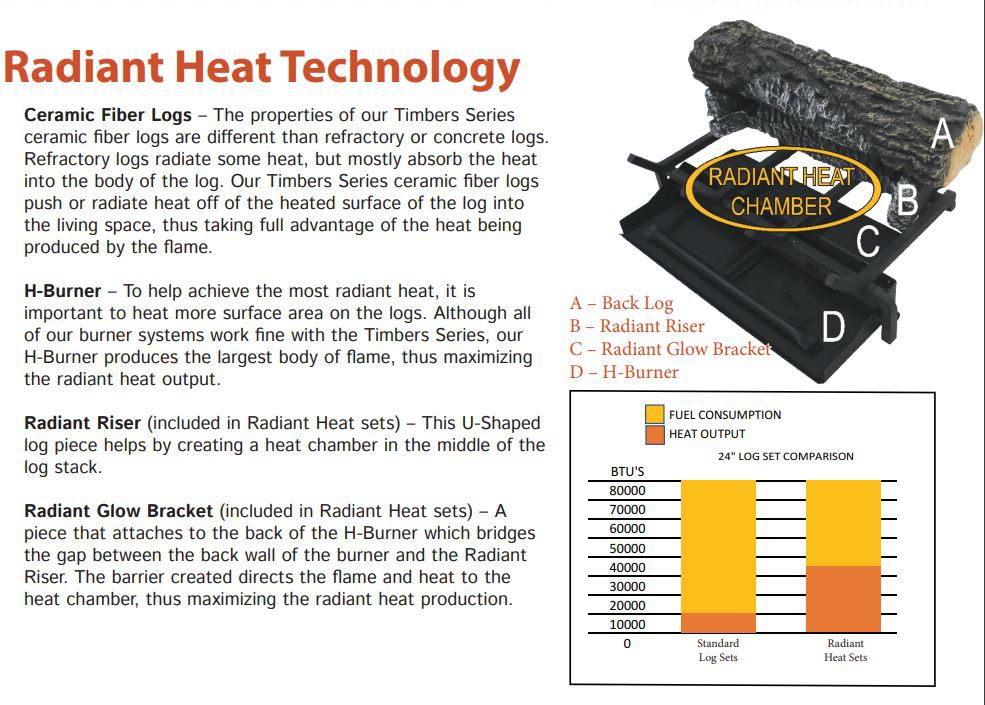

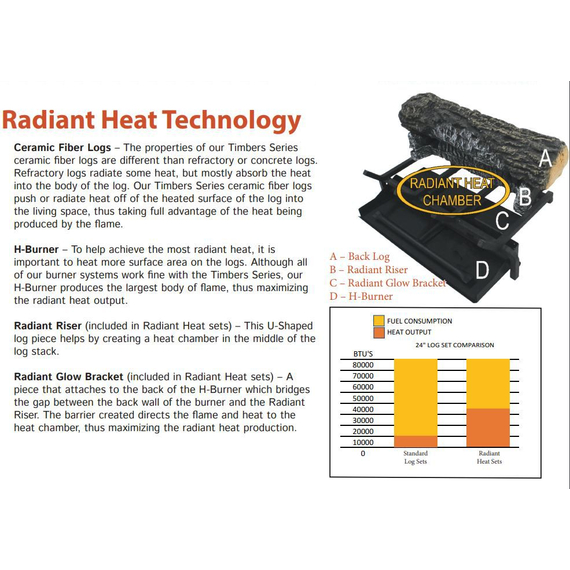

- With radiant riser technology, heat production is directed forward.
- Heat is equivalent to vent-free sets, however, realistic fire and ember beds are not achievable with vent-free appliances.
- The Burner System is not included with the log set and should be ordered separately.
- Ceramic fiber logs could not achieve the level of detail that is now possible with the innovative molding method.
- Compared to comparable vented log sets, ceramic fiber material and Hargrove's Radiant Riser provide much higher heating efficiency.

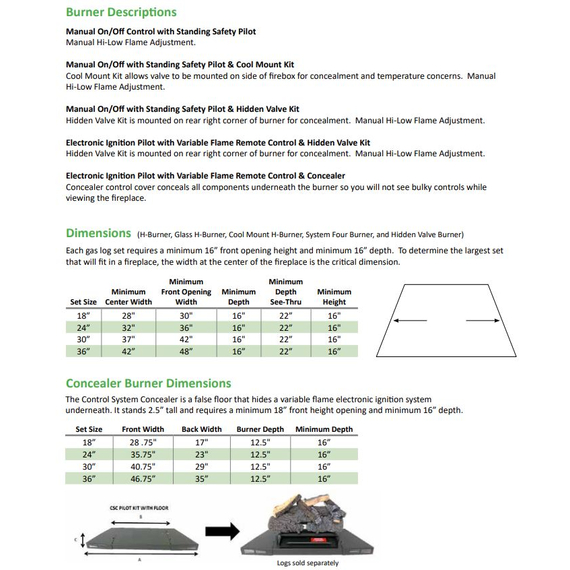

- H-Burner requires a minimum of 14" of depth.

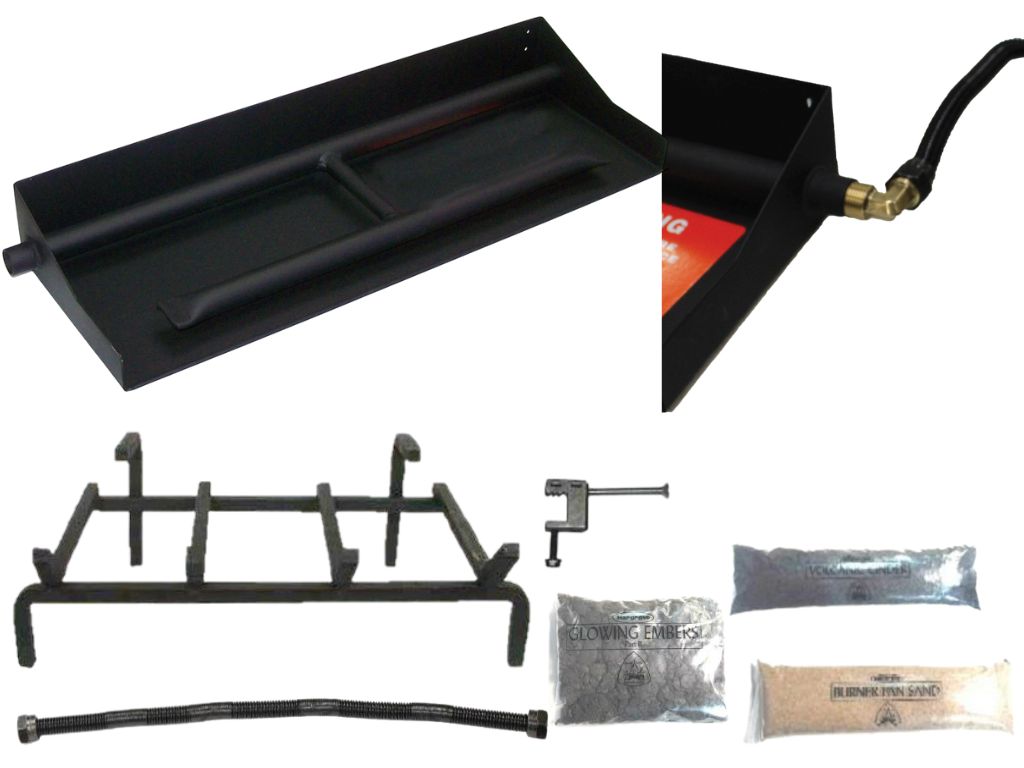

INCLUDES:
- Embers
- Burner
- Custom 5/8" grate
- Vermiculite

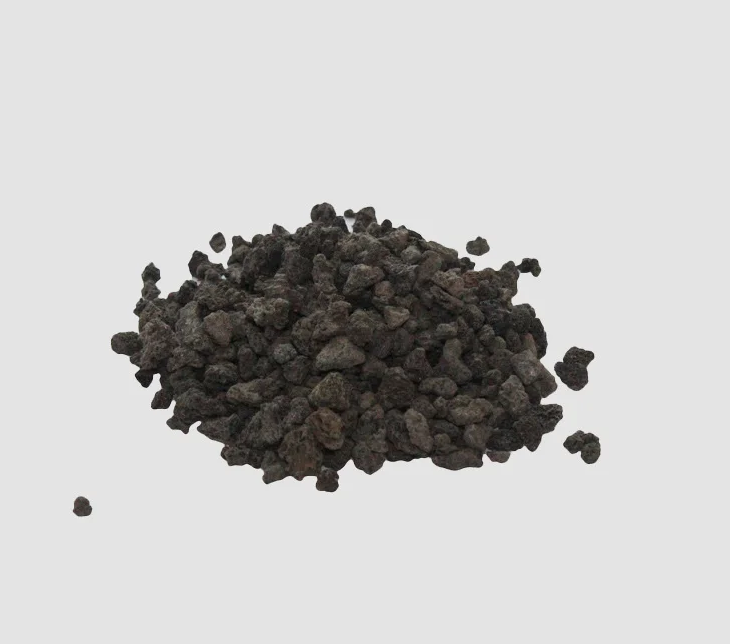

- Volcanic cinder
- Fittings
- Sand
- Non-whistling flex connector.
Specifications:
- Fuel Type: Natural Gas or Liquid Propane
- Log Set Type: Vented Indoor
- Log Style: Canyon Timbers
- Available Sizes: 21", 24" 30" and 36"
- Number of Logs: 13–19 logs (varies by size)
- Material: Ceramic Fiber
- Burner Type: H Burner (16-Gauge Steel)
- Ignition Options: Match Lit, Standing Safety Pilot, Latchtap with On/Off Remote, Variable Flame with Remote, Millivolt Pilot with Wall Switch
Downloads:
- Hargrove Radiant Heat Gas Logs Brochure
- Canyon Timbers Log Set Diagram
- Canyon Timbers Spec Sheet
- H-Burner with No Valve Instruction Manual
- H-Burner with Manual Safety Pilot Valve Instruction Manual
- H-Burner with Eco Pilot Valve Instruction Manual
- H-Burner with Latchtap Safety Plot Valve Instruction Manual
- H-Burner with Maxitrol Variable Flame Valve Instruction Manual
- H-Burner with Millivolt Valve Instruction Manual
- H-Burner Specification
- Safety Remote Pilot Latch-Tap Kit (ON/OFF) Manual (AF_LCK)
- Safety Remote Pilot Variable Flame Height Manual (AF_SCK)
- Product Warranty
Hargrove 21" Canyon Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Width: 21 Inch
- Log Set Style: Canyon Timbers
- Log Set Type: Vented Indoor
- Number of Logs: 13 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 70K (NG) and 46K (LP)

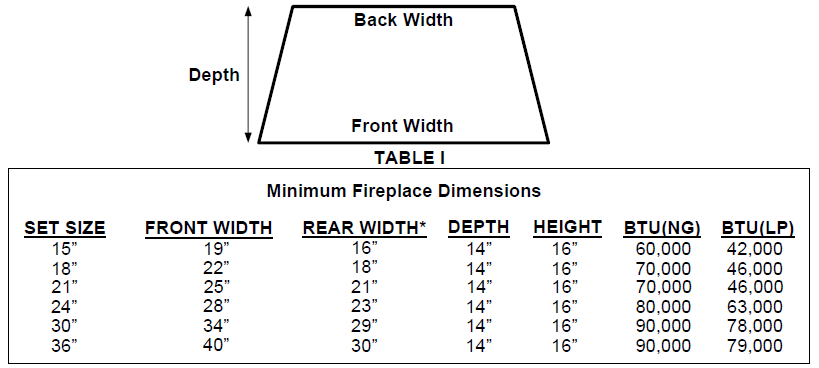

- Burner Dimension: 25" W x 14" D x 16" H
Hargrove 24" Canyon Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Canyon Timbers
- Log Set Width: 24 Inch
- Number of Logs: 16 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 80K (NG) and 63K (LP)
- Burner Dimension: 28" W x 14" D x 16" H
Hargrove 30" Canyon Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Canyon Timbers
- Log Set Width: 30 Inch
- Number of Logs: 17 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 90K (NG) and 78K (LP)
- Burner Dimension: 34" W x 14" D x 16" H
Hargrove 36" Canyon Timbers Vented Gas Log Set With H-Burner Set
- Fuel Type: Natural Gas | Liquid Propane
- Log Set Type: Vented Indoor
- Log Set Style: Canyon Timbers
- Log Set Width: 36 Inch
- Number of Logs: 19 Pieces
- Material: Ceramic Fiber
- Burner Type: H Burner
- Burner Material: 16 Gauge Steel
- Ignition Type: No Pilot - Match Lit | Factory Installed Standing Safety Pilot | Factory Installed Latchtap with On/Off Remote | Factory Installed Variable Flame with Remote | Factory Millivolt Pilot with Wall Switch
- BTU: 90K (NG) and 79K (LP)
- Burner Dimension: 40" W x 14" D x 16" H
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
