4 Sided Overlap Fit Brookfield Outdoor Zero Clearance Fireplace Door

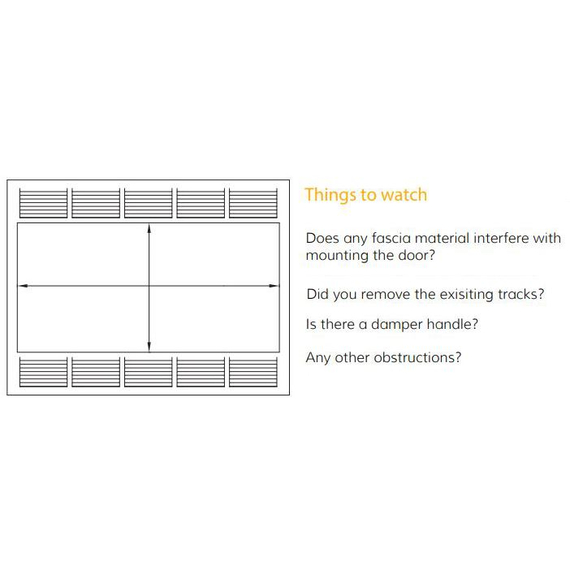

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.

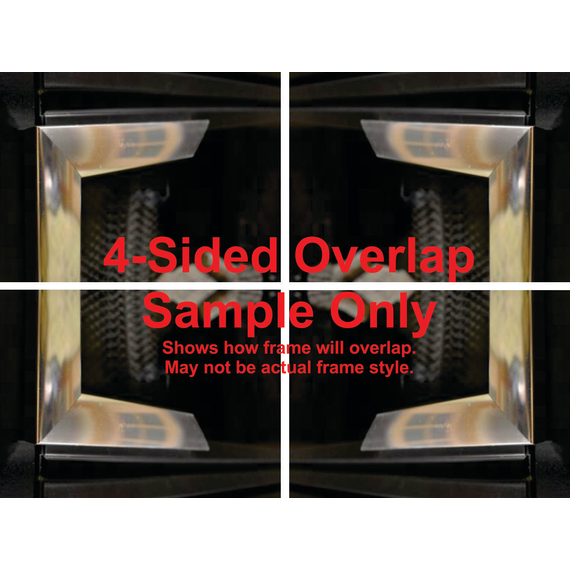

4-SIDED OVERLAP FIT (for suspended openings)
When the fireplace door is larger than the opening on ALL 4-SIDES of the fireplace. Measure the width of the steel box opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the steel box opening. We need the exact minimum height. Make sure there is enough space for the bottom frame to overlap your fireplace opening!



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in
$865.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4 Weeks Question | Why Buy From Us?

These dimensions are approximate & may vary depending on the measurements you submit.
Type "I understand" in the box to continue.
Aluminum doors used outdoors with stainless components will function as intended if kept clean and the moving components oiled occasionally.
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
This helps us to get a better idea of your fireplace dimensions.
Available
+

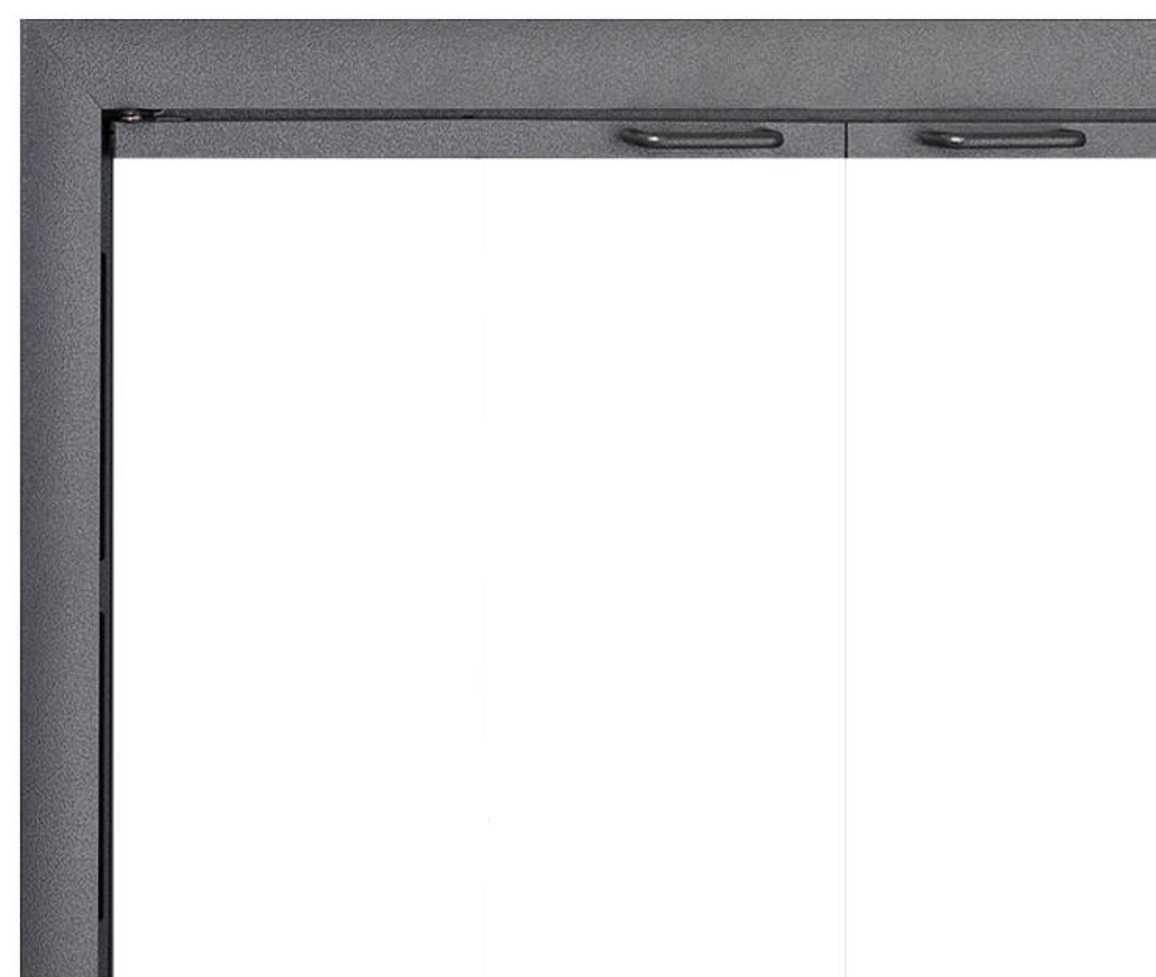

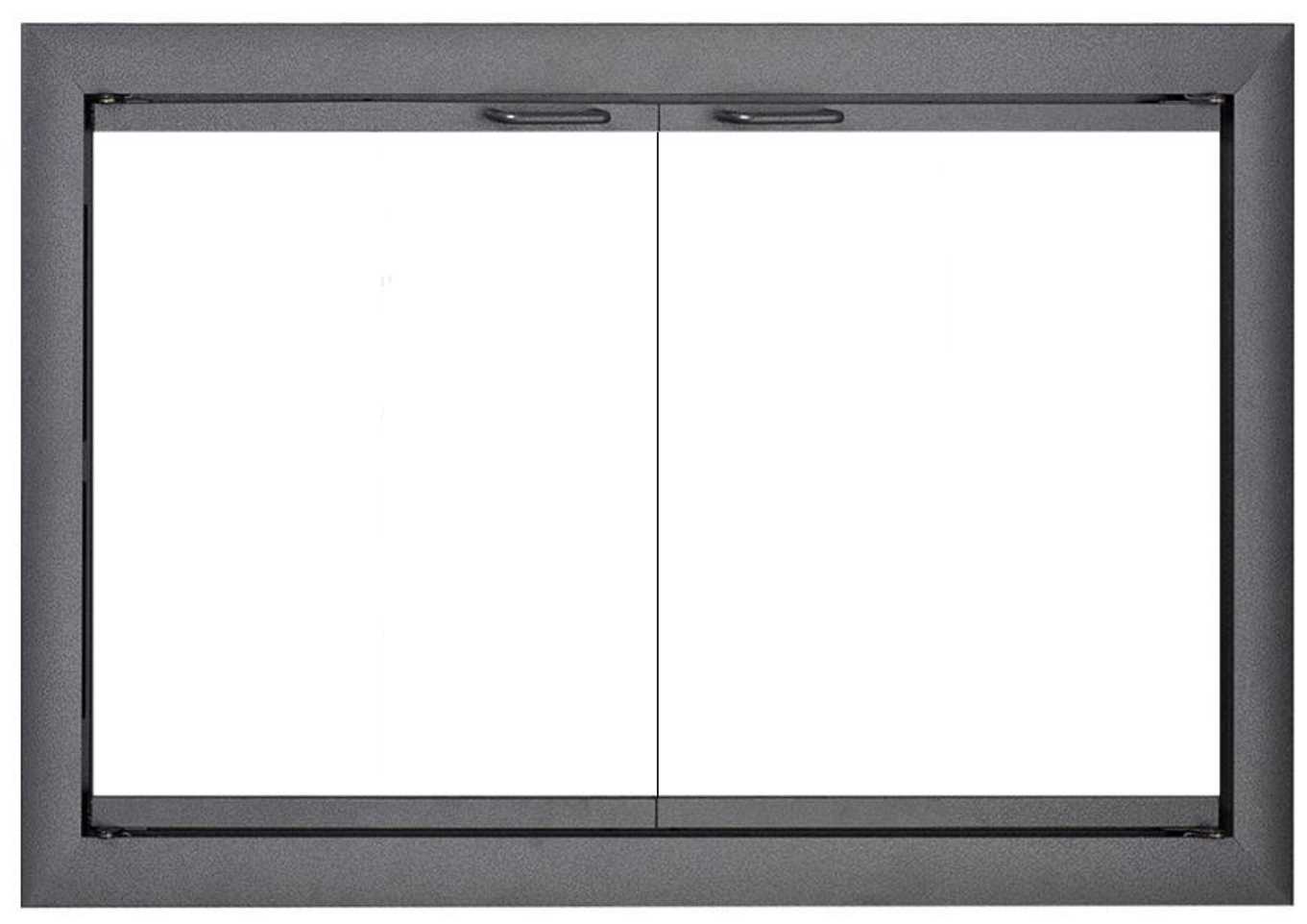

The 4 sided overlap fit Brookfield outdoor zero clearance fireplace door comes fully assembled and aligned prior to shipping. Enjoy the beautiful clean lines of this Design Specialties product that will surely compliment modern and traditional decor alike. The frame is designed as a 4 sided overlap fit door (your choice of standard 3/8" or maximum 3/4" overlap). Choose from a number of gorgeous finish colors, then accent the look even further with one of four tempered glass tints: clear, grey, bronze, or dramatic black.

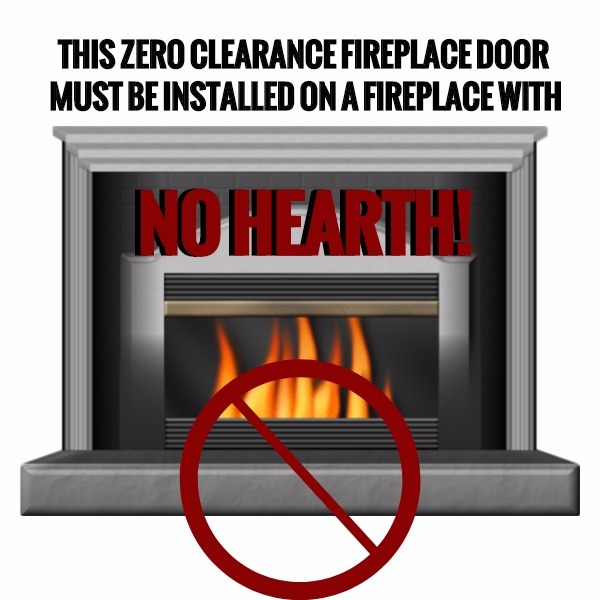

The Brookfield outdoor fireplace glass door comes with twin doors that open to reveal a breathtaking view of the flames. You have the option to embellish the appearance of your replacement fireplace door with two intricately designed door handles. Remember to opt for spark protection to keep your home and loved ones safe. We include the standard mounting hardware for easy installation, but we have alternative brackets and wedge fit brackets available as upgrades. The Brookfield Zero Clearance Outdoor Door must be installed on a prefab fireplace with NO HEARTH. With so many unique customizations, you're sure to have a one of a kind fireplace door that will be a treasured focal point in your home!

PLEASE NOTE: MESH SPARK PROTECTION IS NOT INCLUDED WITH THIS PRODUCT! Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Brookfield ZC Fireplace Door  Specifications Product Specifications

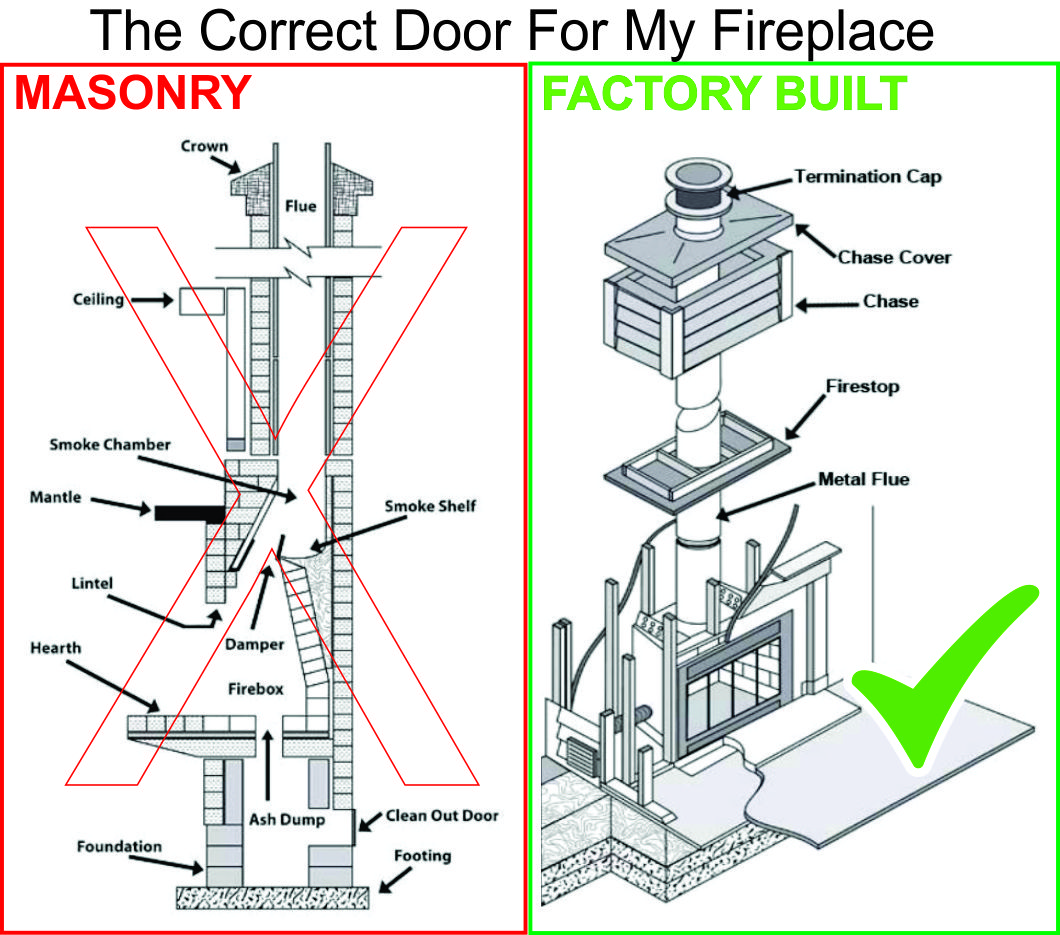

  • Fireplace Type: Prefab Wood Fireplaces or Prefab Wood Fireplaces Converted To Vented Gas Logs - NO Hearth | Raised Firebox
  • Doors that overlap the opening should only overlap the metal box face and not fascia materials applied to the firebox face.
  • Door Fit: 4-Sided Overlap
  • Approximate Overlap (All 4 Sides): 3/8" Minimum | 3/4" Maximum
  • Door Type: Cabinet (Twin) Doors
  • Material: 1 3/4" Wide x 11/16" Deep Extruded Aluminum Frame
  • Recessed Depth: 3/8" - The portion of the door that fits inside the opening when installed as an overlap fit - Does NOT apply to Sliding Mesh And Gate Mesh Doors
  • Hinges: Stainless Steel
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tints: Clear | Black
  • Ceramic Glass: N/A
  • Mesh Screen: Not Included (Optional)
  • Handle Style: Simplicity
  • Damper: N/A
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included

STANDARD MOUNTING BRACKETS

Fireplace Door Installation

____________________________________________________________

ALTERNATIVE MOUNTING BRACKETS

Alternative Mounting Brackets

____________________________________________________________

WEDGE FIT MOUNTING BRACKETS

Wedge Fit Door Installation

Manufacturer's Warranty

Manufacturer warrants the glass enclosures to be free from defects in material and workmanship for a period of one (1) year from the date of installation. Manufacturer warrants the metal work (exclusive of the finish) contained in the glass enclosures to be free from defects in the materials and workmanship for a period of two (2) years from the date of installation. Discoloration of any frame piece is caused by over firing and is considered abuse of the enclosure.

MANUFACTURER MAKES NO WARRANTIES AS TO A MAXIMUM TEMPERATURE AND STRESS WHICH MAY CAUSE GLASS BREAKAGE. LIFETIME WARRANTY ON GLASS.
Manufacturer will, however, replace without cost any glass that breaks in normal use. Manufacturer will cover shipping cost for replacement glass for a period of one (1) year from the date of installation. Warranties also are not transferable to new owners.  The foregoing limited warranty is not transferable by the customer and does not include the eventual defects caused by improper use or operation of the glass enclosure or by normal wear and tear. Manufacturer agrees that if the glass enclosure is determined to be defective in manufacture within the applicable written guarantee period set forth above, and the customer provides a written notice of such defects within fourteen (14) days of the end of such period to the customer’s local dealer, Manufacturer is limited to defects in manufacture, and Manufacturer shall not be responsible if the glass enclosure has not been used at all times with reasonable care and in accordance with the instructions which accompany each glass enclosure, and/or if any attempt has been made by any person other than Manufacturer or its authorized agents to repair, alter or otherwise interfere with the foregoing undertaking of Manufacturer is limited to the replacement of any determined by Manufacturer to be defective.
Finally, the enforceability of this limited Warranty shall be further subject to compliance with the following requirements:
A. That the customer complies with the instruction set forth above and does not misuse, abuse, alter, or modify the glass enclosure.
B. That the customer does not use the glass enclosure for a purpose other than its intended use.

DISCLAIMER
The limited warranty set forth above, is expressly in lieu of any other warranties, express or implied, including without limitation any warranty of merchantability or fitness for particular purpose, whether express or implied, and lieu of any other obligation or liability on the part of Manufacturer. Whether under theories of contract, tort or negligence, Manufacturer, shall have no liability for any consequential, incidental or special damages by reason of any act or omission, whether negligent or not, arising out of or in connection with the glass enclosure or its sale, delivery, installation, maintenance, operation, performance, or use, including without limitation any loss of use, damage to associated property or the facility, or any other similar and dissimilar losses, cost.

PLEASE NOTE:
Fireplace doors are hand crafted to the specifications of each order. Due to the nature of the anodization process on aluminum doors, and the plating/powder coating process on steel doors, slight variations in color may occur and will not be considered a warranty issue.
