Inside Fit Ventana Custom Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us Before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.


INSIDE FIT; When the enclosure is smaller than the opening of the fireplace.
When the enclosure is smaller than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc.) We need the exact minimum width.

DO NOT make adjustments to sizes, we need the EXACT OPENING size.


Size Range For Pricing: Up To 36"W and Up To 33"H


Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4-5 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
Manufacturer DOES NOT provide any warranty on glass! Warranty does not include defects caused by improper use or operation of the fireplace glass door.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].

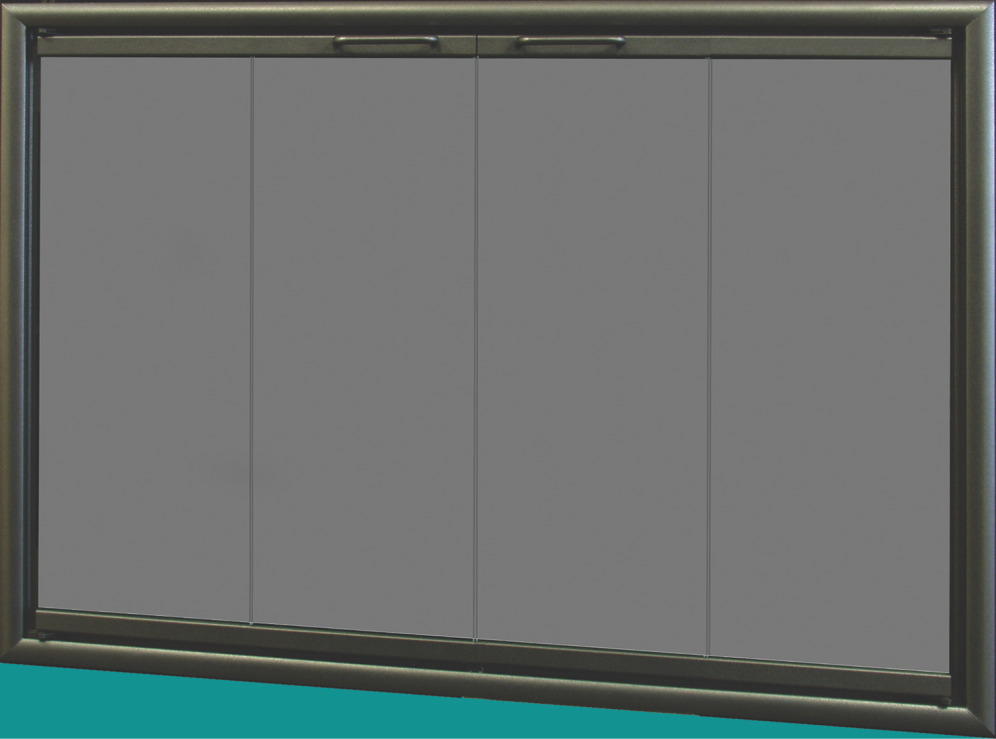

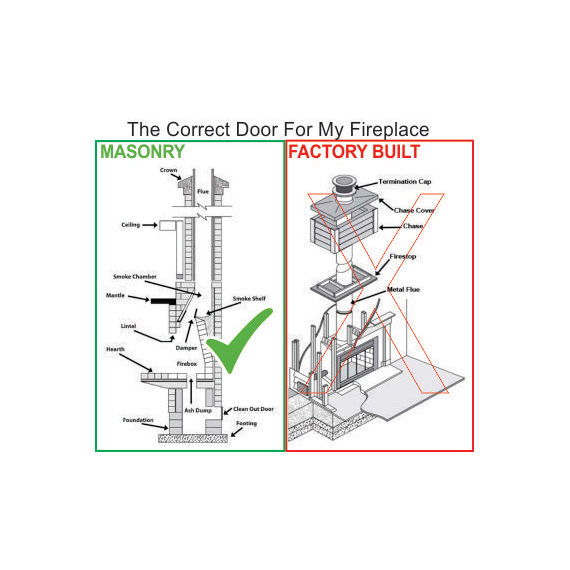

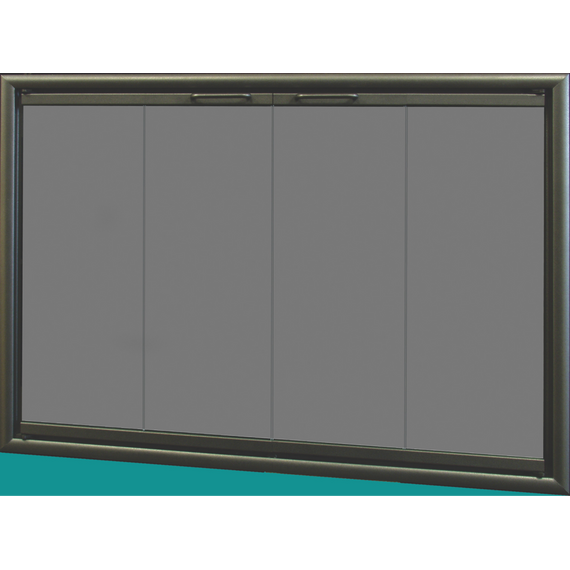

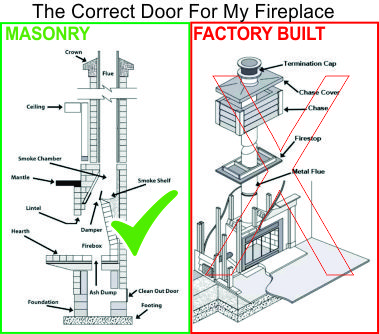

The Ventana inside fit fireplace glass door utilizes the classic radius aluminum extrusion frame for that simple look many customers desire.The Ventana fireplace door is designed to be installed on masonry fireplaces. These doors are manufactured to your specifications. Don't worry about corrosive environments with these extruded aluminum products


Installation: H for Hope You Are Handy!

  • The MVP series from Portland Willamette requires power tools to install fireplace door. 4 Mounting straps that are screwed on the frame where you need them and the other part needs to marked and drilled into the mortar joint to secure the enclosure. We feel it is not a bad setup and it should not take you long to install the new door.

Ventana Masonry Fireplace Door Features Product Features & Benefits:

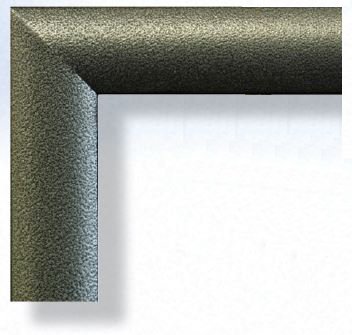

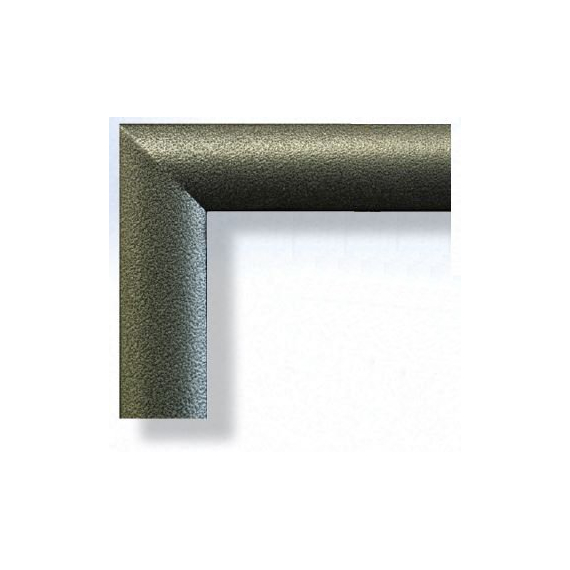

  • 1-3/4" wide main frame that is 1" deep
  • Extruded aluminum construction
  • 3/16" tempered safety glass
  • Hinge finish always matches the door stile finish
  • Mounting hardware for your convenience
  • Recessed depths: No Mesh = 1" / Sliding Mesh = 2 1/2"
  • Proudly made in the USA
  • Free shipping - we just keep saving you money!
  • About Door Designs
    • Inside Fit Doors; Are made to fit inside your fireplace opening.

Ironhaus/Portland Willamette Limited Warranty Important!
Please Review This Warranty Prior to Installation or Use of Ironhaus Products! Ironhaus/PW provides a warranty to the original retail purchaser exclusively, guaranteeing that the product (i.e., furnishings, excluding glass, finish, mesh parts, and/or accessories) will be free from defects in material and workmanship at the time of purchase for a one-year period starting from the date of purchase.



Ventana Masonry Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Masonry
  • Door Fit: Inside Fit Only
  • Material: 1-3/4" Wide x 1-7/16" Deep Extruded Aluminum Frame
  • Approximate Recessed Depth: 15/16 Inch

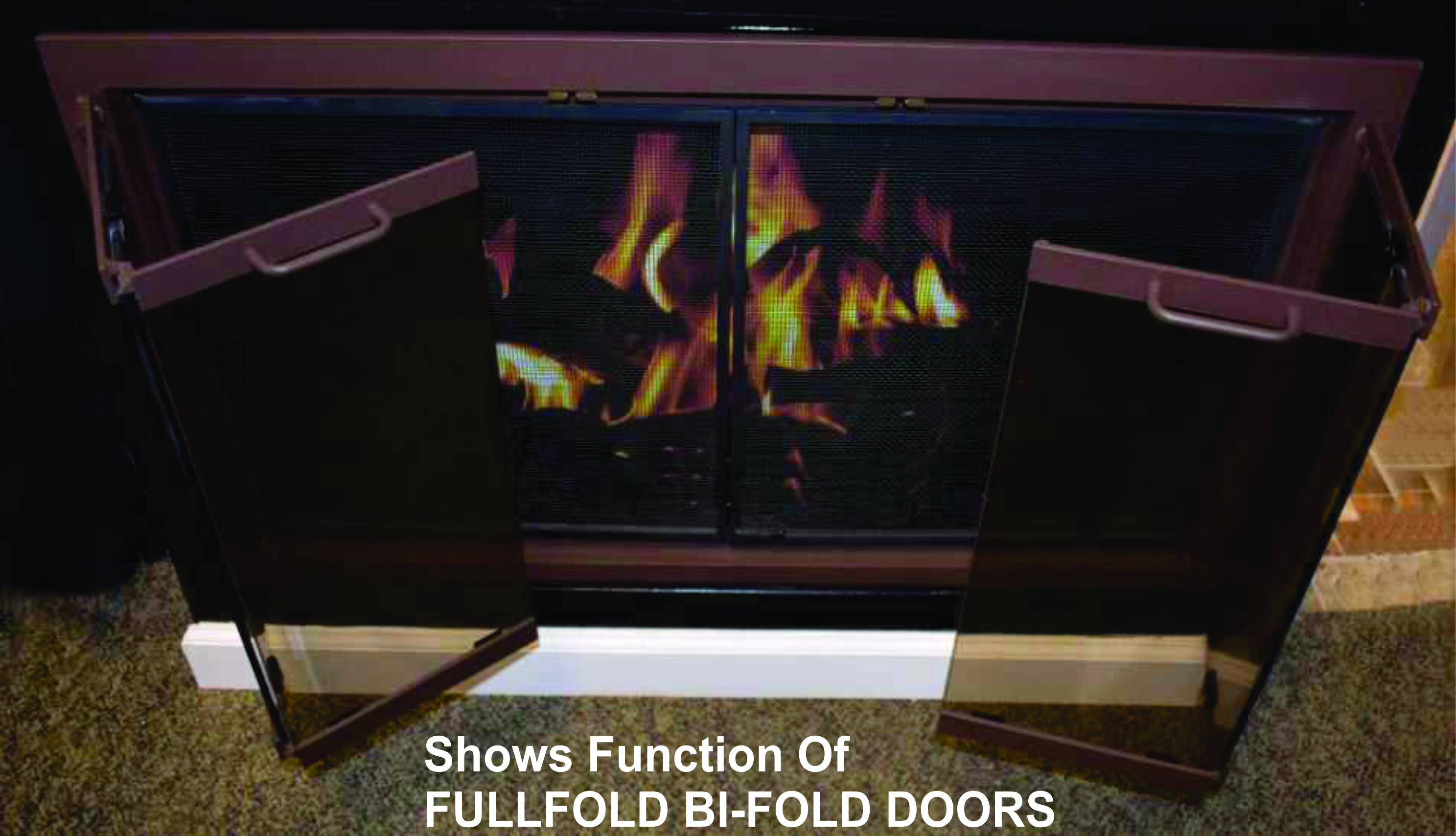

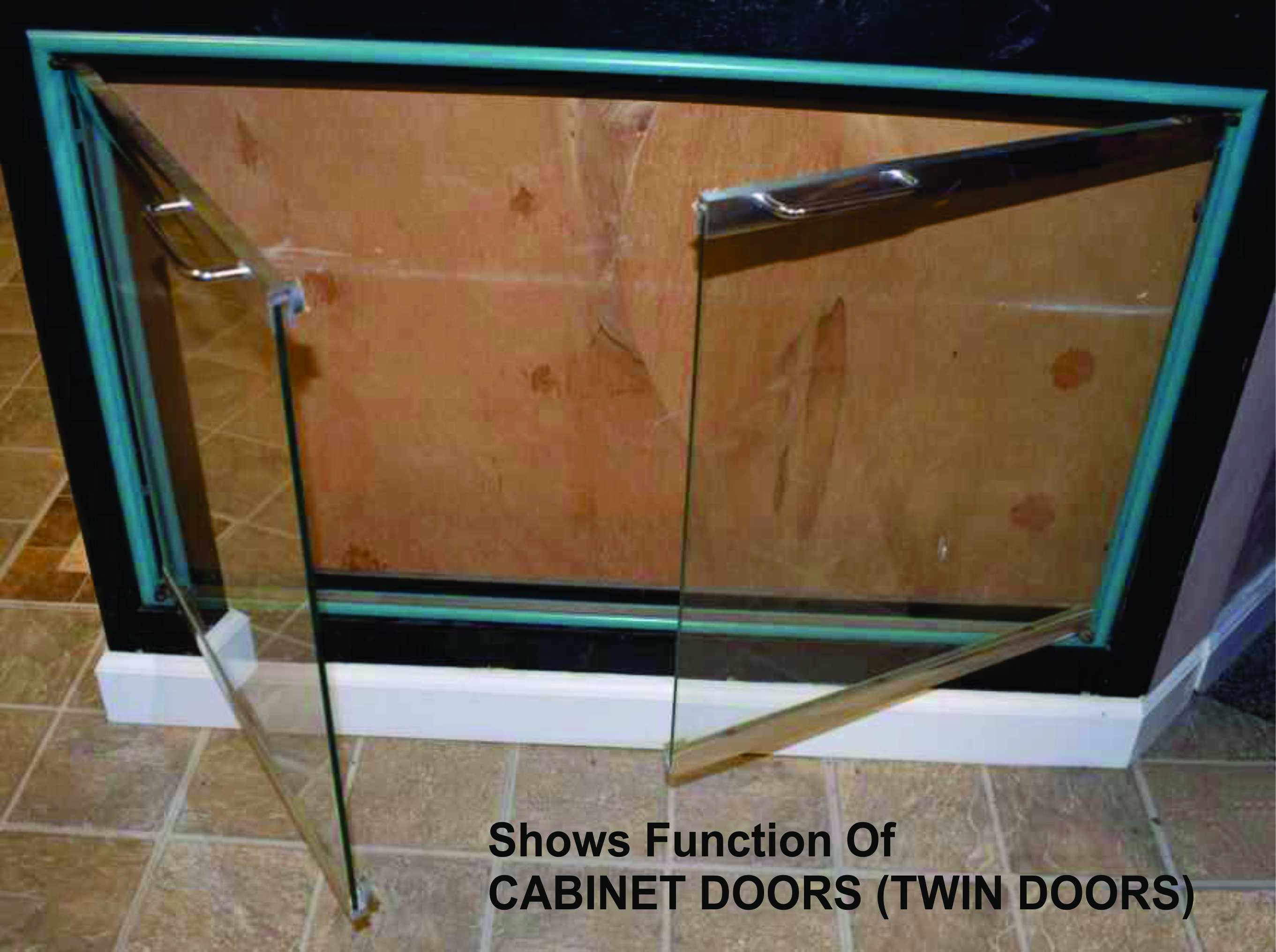

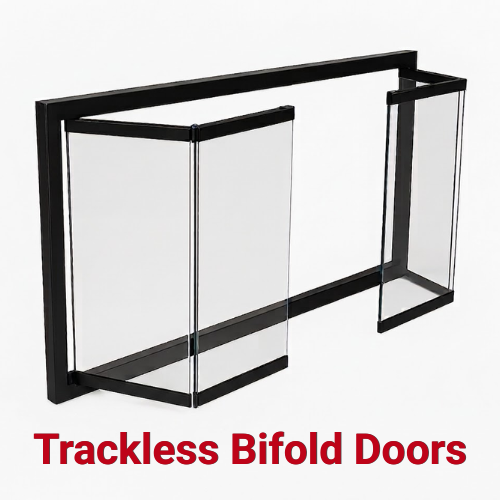

  • Door Type: Cabinet Doors (Twin Doors) | Full-Fold Doors Full View Glass
  • Glass: 3/16" Tempered Safety Glass
  • Glass Tints: Clear | Optional Grey & Bronze
  • Ceramic Glass: N/A

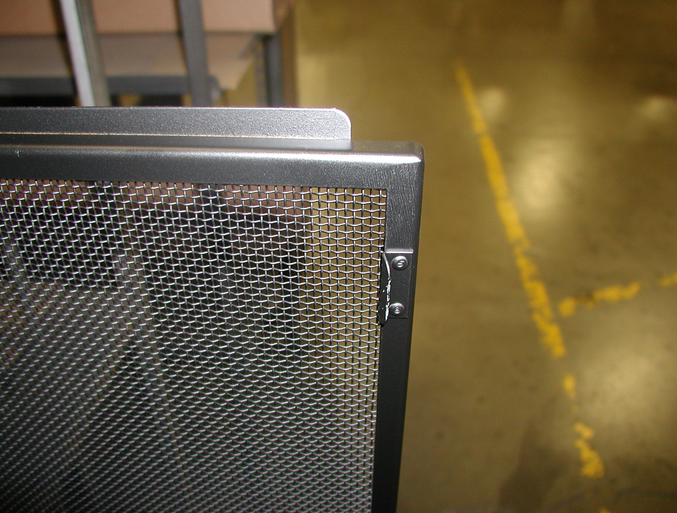

  • Spark Protection: Optional
  • Handle Style: Contemporary
  • Damper: N/A
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included
  • Please note: Sliding mesh will add an additional 1 1/2 inches to the recessed depth.

The Ventana inside fit doors were the perfect solution for our masonry fireplace with brick projecting from the surface on the left and right sides of the firebox - no doors requiring an overlap will work. I admit to being nervous about measuring correctly for a custom fit, but I must have gotten it right! Arrived in perfect condition on the low end of the production estimate (4 weeks), fits really well and exactly as expected, and the installation was incredibly simple. I'm really pleased with this purchase and we'll be ordering another soon for the other fireplace in our home.
