36" Superior BRT4536 B-Vent Gas Fireplace-White Herringbone
Superior BRT4536 36" B-Vent Traditional Gas Fireplace – Experience Cozy Elegance at Home

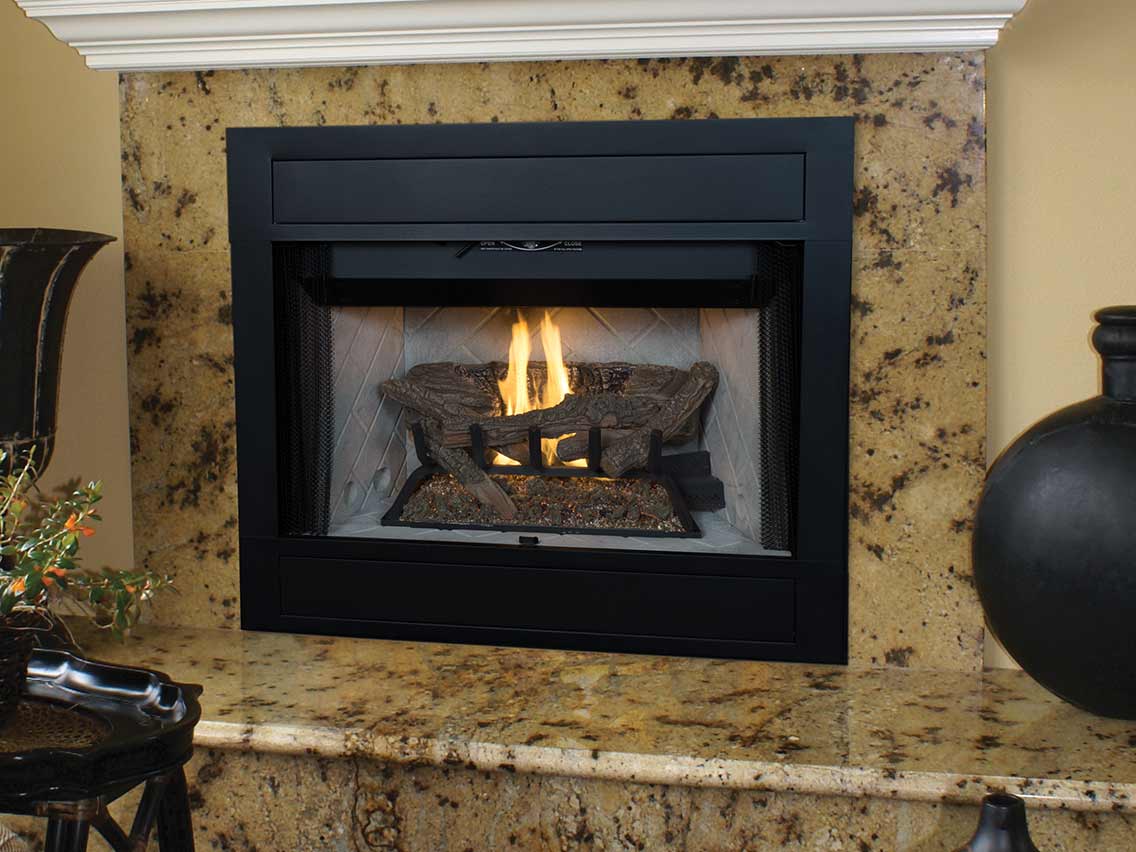

Recreate the warmth and charm of a traditional wood fireplace with the Superior BRT4536 36" B-Vent Gas Fireplace, designed for those who appreciate both style and convenience. This fireplace draws air from the room for combustion while efficiently venting exhaust through the vent pipe, ensuring your space stays comfortable without overheating.
The BRT4536 features a stunning multidimensional split oak ceramic log set and a glowing ember bed that replicate the beauty of a classic wood fire. With its aluminized "U" tube dual burner, you can enjoy up to 40,000 BTUs of heat at the turn of a knob or with the click of a button using the remote-ready Millivolt or Electronic Ignition. Enhance your experience with the optional remote control for effortless operation.
Aesthetically pleasing, the BRT4536 is enhanced by elegant white herringbone refractory brick panels and a traditional log grate, making it a beautiful addition to any room. This indoor gas fireplace also includes hidden screen pockets, discreet gas controls with a damper safety switch, and a pre-wired electrical J-box for hassle-free installation.
Bring warmth and sophistication to your home with the Superior BRT4536. Optional features like an outside air kit and a 36" standard bi-fold glass door can further enhance performance and visual appeal. Make your living space a cozy haven where family and friends can gather and create lasting memories around the fire.
Features:
- 36" radiant clean face design
- Dual "U" shaped aluminized tube burner
- Dancing yellow flames with glowing ember bed
- Includes detailed refractory ceramic fiber log set with log grate
- Mesh screens retract into hidden screen pockets
- Hidden gas controls with damper safety switch and easy access flue damper
- Dual access pre-wired J-box included

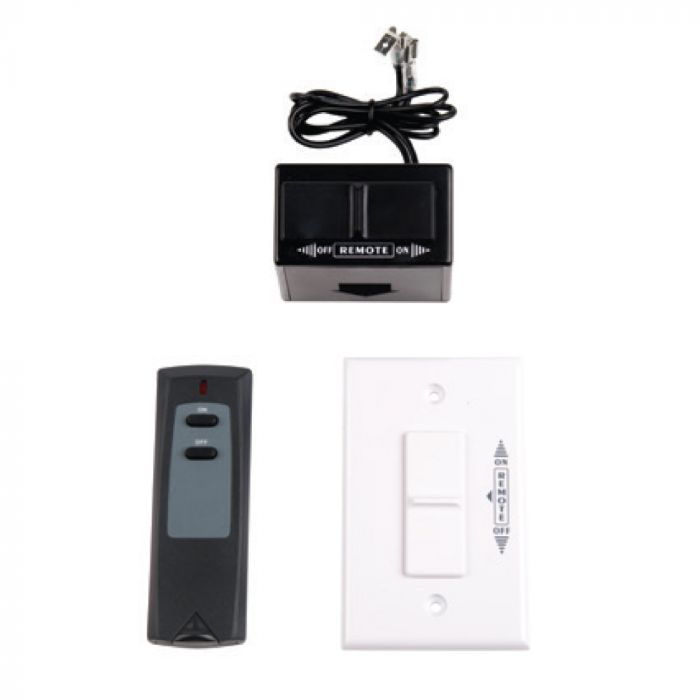

- Millivolt or Electronic ignition with optional remote control
- Optional outside air kit for enhanced performance

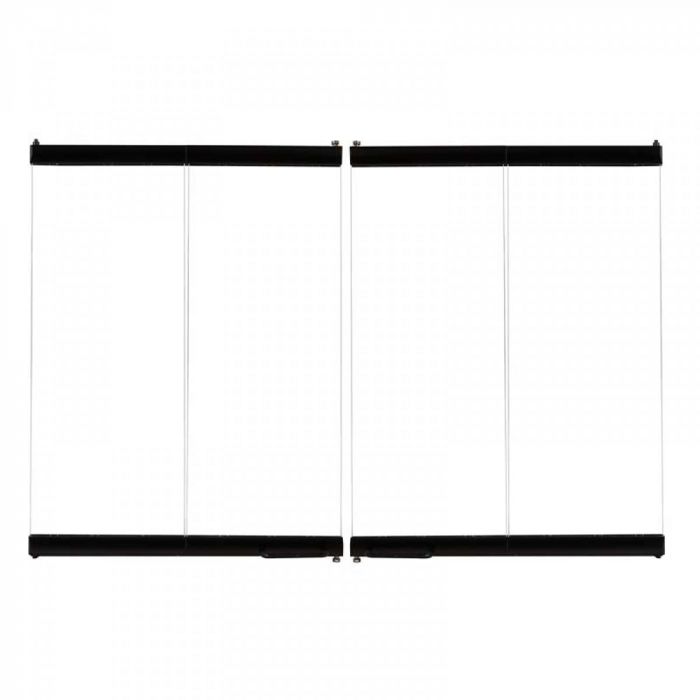

- Optional 36" standard bi-fold glass doo
Specifications:
- Fuel Type: Natural Gas | Liquid Propane
- BTUs: Up to 40,000
- Ignition Type: Millivolt | Electronic
- Venting Type: B-Vent

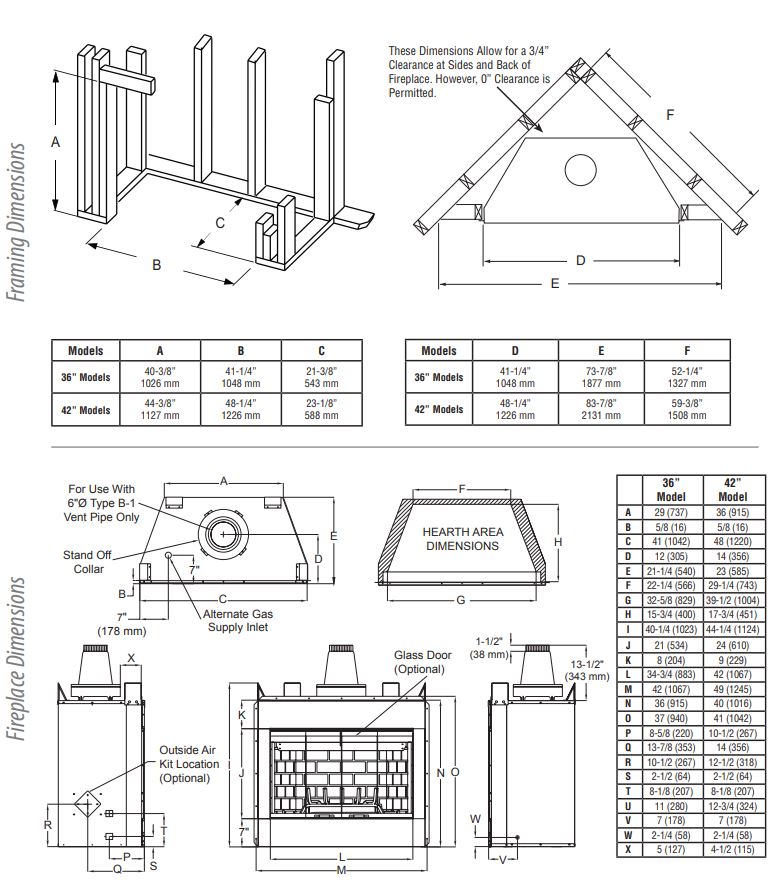

- Firebox Width: 42"
- Firebox Height: 37"
- Firebox Depth: 21 1/4"
- Framing Width: 41 1/4"
- Framing Height: 40 3/8"
- Framing Depth: 31 3/8"
- Facing: Single Face
- Facing Powder Coat Finish: Textured Black
- Flue Location: Top
- Firebox Panel Design: White Herringbone Refractory Brick
- Includes: Concrete Log Set | Glowing Ember Bed
- B-Vent Requirements: Built to ANSI Z21.50 Standard, CSA 2.22
- Uses: Locally Sourced 6" B-Vent
Venting:
6" B-Vent 48" Length (6BV48) (2 Pieces) – This is a 48-inch long section of the B-Vent pipe. It is crucial because it forms the main structure of the venting system, carrying combustion gases safely out of the building.
6" B-Vent 0/12-6/12 Adjustable Flashing (6BVF) – Flashing is used where the vent passes through the roof to prevent water from leaking into the building. This adjustable flashing is designed for roofs with a pitch of 0/12 to 6/12 (a shallow slope), making it essential for sealing the vent and protecting the roof from weather damage.
6" B-Vent Quick Grip Firestop/Support (6BVFSPU) – This part serves two purposes. First, it acts as a firestop, preventing fire from spreading through gaps where the vent pipe passes through floors or walls. Second, it provides support to the vent pipe, ensuring stability and correct installation, especially in multi-story setups.
6" B-Vent High Wind Cap (6BVVTH) – The wind cap is placed on the top of the vent and is designed to prevent strong winds from disrupting the venting process or causing backdrafts. It also prevents debris, rain, or birds from entering the vent, ensuring safe and efficient vent operation.
Importance of the System
Together, these components are vital for:
- Safe venting of combustion gases, which is critical for preventing carbon monoxide buildup inside the building.
- Weather protection, ensuring that water and wind do not interfere with the vent system or the roof.
- Fire safety, as the firestop prevents the spread of fire.
- System stability, ensuring that the vent remains properly aligned and functional over time.
Downloads:
- BRT4536 Electronic Ignition Installation and Operation Manual
- BRT4536 Specs Sheet
- BRT4536 Millivolt Installation and Operation Manual
Transform Your Space with Comfort and Safety: Complete Your Gas Fireplace Installation!
Your high-quality gas fireplace deserves the best, and a dependable venting system is key to unlocking its full potential. Don’t settle for incomplete solutions—our expertly crafted Vertical Vent Kit enhances both the efficiency and appearance of your fireplace.
Not only does this kit elevate your home’s safety, but it also ensures optimal airflow, keeping your fireplace running smoothly and efficiently. With easy-to-install components, you’ll have a fully vented fireplace ready for cozy, worry-free enjoyment in no time!
Simplify Your Installation! Bundle your fireplace with our venting kit for the perfect balance of warmth, safety, and convenience. Don’t wait—take your living space to the next level today!
Installing the Vertical Vent Kit:
- Measure and Plan: Measure the vertical distance from your fireplace to the roof to get the right pipe length for your setup.
- Install the Pipe Sections: Start at the fireplace, connecting each B-Vent pipe with the quick-lock system for a tight, hassle-free fit.
- Add Firestop/Support: Install firestop brackets at every floor or ceiling penetration for added safety and structural support.
- Apply Roof Flashing: Create a watertight seal with adjustable flashing that fits snugly with your roof’s pitch.
- Top it Off with a Wind Cap: Finish with a high-wind cap to protect against backdrafts, rain, debris, and unwanted critters.
Proper venting is essential to the safety and efficiency of your gas fireplace. Our Vertical Vent Kit guarantees safe venting of combustion gases while shielding your home from backdrafts, leaks, and fire risks. With premium components built to last, you can trust your venting system to meet the highest safety standards and perform for years to come.
Innovative Hearth Products
Superior Brand Gas Fireplaces, Stoves and Inserts
20 Year Limited Warranty
THE WARRANTY
Innovatice Hearth Products (IHP) 20 Year Limited Warranty warrants your Superior Brand gas fireplace, Stove or Insert (Product) to be free from defects in materials and workmanship at the time of manufacture. The Product body and firebox carry the 20 Year Limited Warranty. Ceramic glass carries the 20 Year Limited Warranty against thermal breakage only. After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the 20 Year Limited Warranty period and while the Product remains at the site of the original installation, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable. IHP will also pay IHP prevailing labor rates, as determined in its sole discretion, incurred in repairing or replacing such components for up to five years. THERE ARE EXCLUSIONS AND LIMITATIONS TO THIS 20 YEAR lIMITED WARRANTY AS DESCRIBED HEREIN.
COVERAGE COMMENCEMENT DATE
Warranty coverage begins on the date of installation. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the Product by an independent IHP dealer/distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from IHP, regardless of the installation or occupancy date.
EXCLUSIONS AND LIMITATIONS
This 20 Year Limited Warranty applies only if the Product is installed in the United States or Canada and only if operated and maintained in accordance with the printed instructions accompanying the Product and in compliance with all applicable installation and building codes and good trade practices.This warranty is non-transferable and extends to the original owner only. The Product must be purchased through a listed supplier of IHP and proof of purchase must be provided. The Product body and firebox carry the 20 Year Limited Warranty from the date of installation. Vent components, trim components and paint are excluded from this 20 Year Limited Warranty. The following do not carry the 20 Year Limited Warranty but are warranted as follows:
- Burner - Repair or replacement for 1 year from date of installation
- Gas Components - Repair or replacement for 1 year from date of installation
- Gaskets - Repair or replacement for 1 year from date of installation
- Logs - Replacement for 1 year from date of installation against thermal breakage only
- Optional Blowers & Remote Controls - Repair or replacement for 90 days from date of installation
- Optional Glass Doors - Repair or replacement for 90 days from date of installation
- Tempered Glass - Replacement for 1 year from date of installation
- Labor Coverage - Prevailing IHP labor rates apply for the warranty period of component.
Parts not otherwise listed carry a 90 day warranty from the date of installation.
Whenever practicable, IHP will provide replacement parts, if available, for a period of 10 years from the last date of manufacture of the Product.
IHP will not be responsible: (a) damages caused by normal wear and tear, accident, riot, fire , flood or acts of God; (B) damages caused by abuse, negligence, misuse or unauthorized alteration or repair of the Product affecting its stability or performance. (The Product must be subjected to normal use. The Product is designed to burn either natural or propane gas only. Burning conventional fuels such as wood, coal or any other solid fuel will cause damage to the Product, will provide excessive temperatures and could result in a fire hazard); (C) damages caused by failing to provide proper maintenance and service in accordance with the instructions provided with the Product; (D) damages, repairs or ineffciency resulting from faulty installation or application of Product.
IHP is not responsible for inadequate fireplace system draft caused by air conditioning and heating systems, mechanical ventilation systems, or general construction conditions which may generate negative pressure in the room in which the appliance is installed. Additionally, IHP assumes no responsibility for drafting conditions caused by venting configurations, adjoining trees or buildings, adverse wind conditions or unusual environmental factors and conditions that affect the operation of the unit.
This 20 Year Limited Warranty covers only parts and labors as provided herein. In no case shall IHP be responsible for materials, components or construction. Additional utility bills incurred due to any malfunction or defect in equipment are not covered by this warranty. All replacement of repair components will be shipped F.O.B. from the nearest stocking IHP factory.
LIMITATION ON LIABILITY
It is expressly agreed and understood that IHP's sole obligation and the purchaser's exclusive remedy under this warranty, under any other warranty, expressed or implied or in contact, tort or otherwise, shall be limited to replacement, repair or refund, as specified herein.
In no event shall IHP be liable for any incidental or consequential damages caused by defects in the Product, whether such damage occurs or is discovered before or after repair or replacement, and whether such damage is caused by IHP's negligence. IHP has not made and does not make any representation or warranty of fitness for a particular use or purpose, and there is no implied condition of fitness for a particular use or purpose.
IHP makes no expressed warranties except as stated in this 20 Year Limited Warranty. The duration of any implied warranty is limited to the duration of this expressed warranty.
No one is authorized to change this 20 Year Limited Warranty or to create for IHP any other obligation or liability in connection with the Product. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. The provisions of the 20 Year Limited Warranty are in addition to and not a modification of or subtraction from any statutory warranties and other rights and remedies provided by law.
INVESTIGATION OF CLAIMS AGAINST WARRANTY
IHP reserves the right to investigate any and all claims against this 20 Year Limited Warranty and to decide, in its sole discretion, upon the method of settlement.
To receive the benefits and advantages described in this 20 Year Limited Warranty, the appliance must be installed and repaired by a licensed contractor approved by IHP.
Contact IHP at the address provided herein to obtain a listing of approved dealers/distributors. IHP shall in no event be responsible for any warranty work done by a contractor that is not approved without first obtaining IHP's prior written consent.
HOW TO REGISTER A CLAIM AGAINST WARRANTY
In order for any claim under this warranty to be valid, you must contact the IHP dealer/distributor from which you purchased the product. If you cannot locate the dealer/distributor, then you must be notified of the claimed defect in writing within 90 days of the date of failure. Notices should be directed to the IHP Warranty Department at 1508 Elm Hill Pike, Suite 108, Nashville, TN, 37210 or visit our website at WWW.SUPERIORFIREPLACES.US.COM.
