Design Specialties Silhouette Zero Clearance Fireplace Door

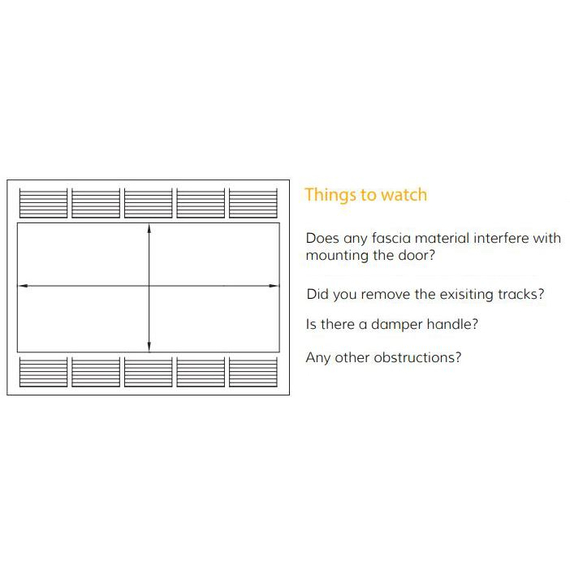

You may need to remove the track to install the fireplace door, so measure accordingly. You will need to measure the fireplace opening in three different places, both vertically and horizontally to the nearest 1/16". Enter the smallest size into the price calculator.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside the fireplace opening. Measure the width and height of the inner steel opening where the fireplace door will fit. This will be the same position that the fireplace manufacturer's door was installed. DO NOT measure the finishing material in front of the fireplace (brick, stone, marble, tile, etc). Always use the exact MINIMUM measurements for both height and width when ordering a replacement fireplace door.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in
$865.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4 Weeks Question | Why Buy From Us?

Gate mesh adds 1 1/8" of depth. Please verify that you have enough opening depth before ordering (door depth + mesh depth).
INSET DEPTH This is the distance from the face of the zero-clearance fireplace to any existing obstruction inside the opening. The inset depth affects the amount that the enclosure will fit into the opening. For example, the Door frame is 1-1/8” deep. If the inset depth is 1”, the face of the enclosure will protrude 1/8” from the firebox.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to support@fireplacedoorsonline.com.
Available
+

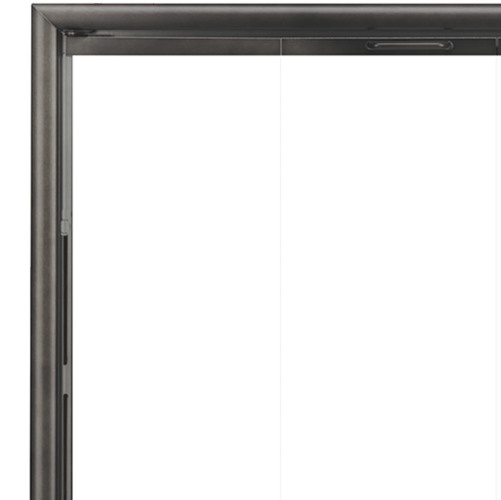

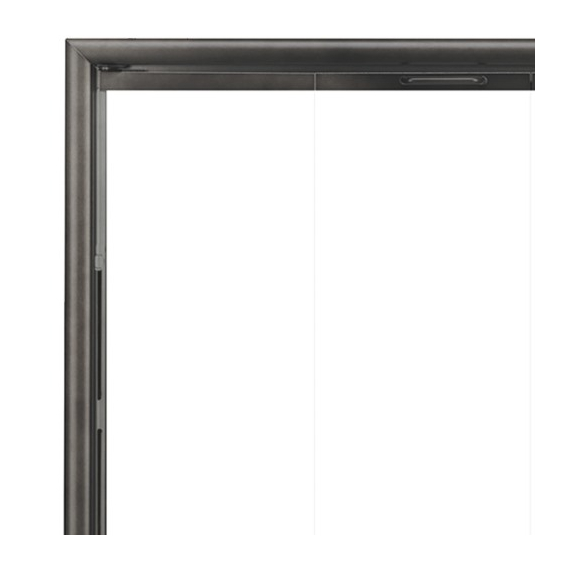

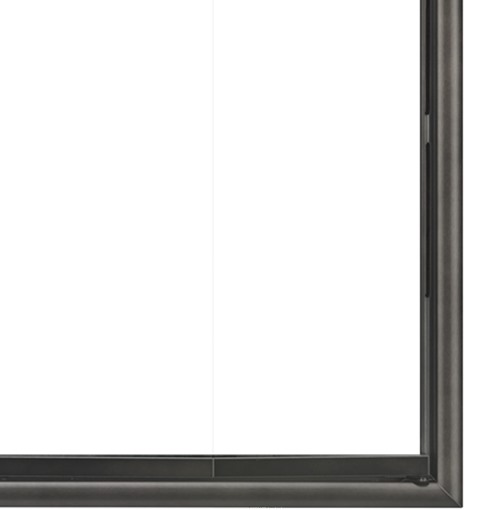

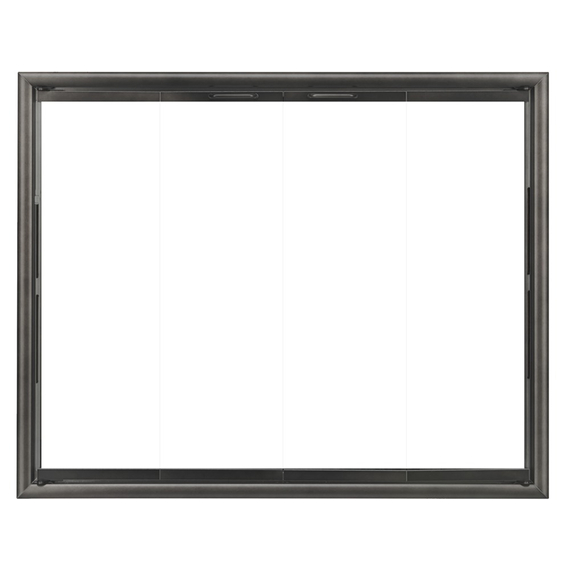

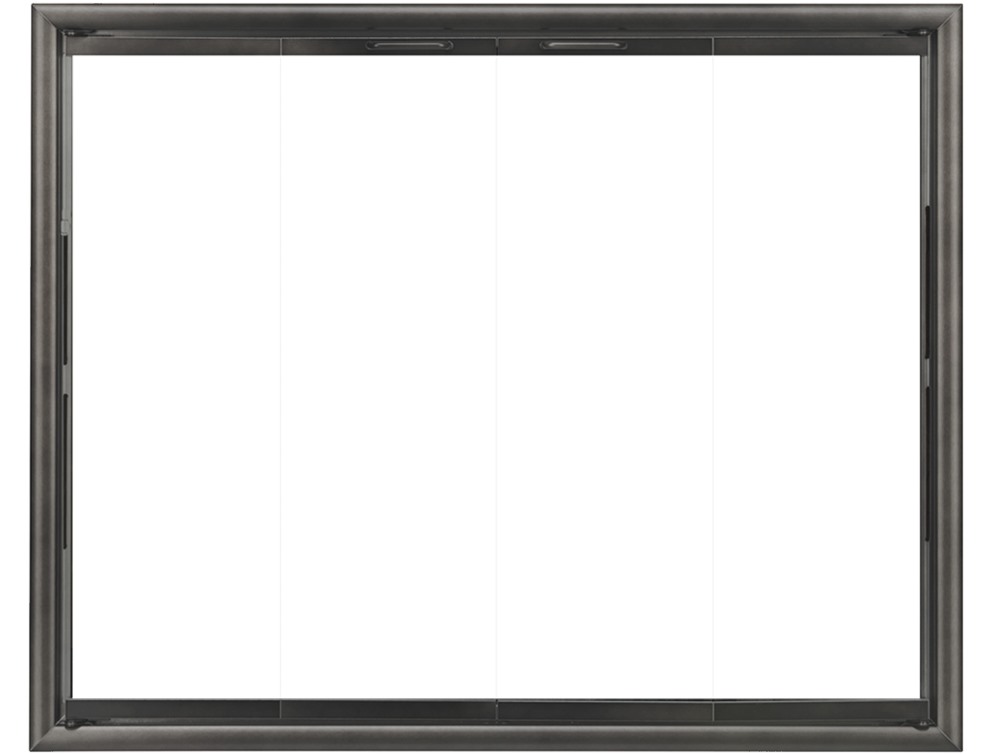

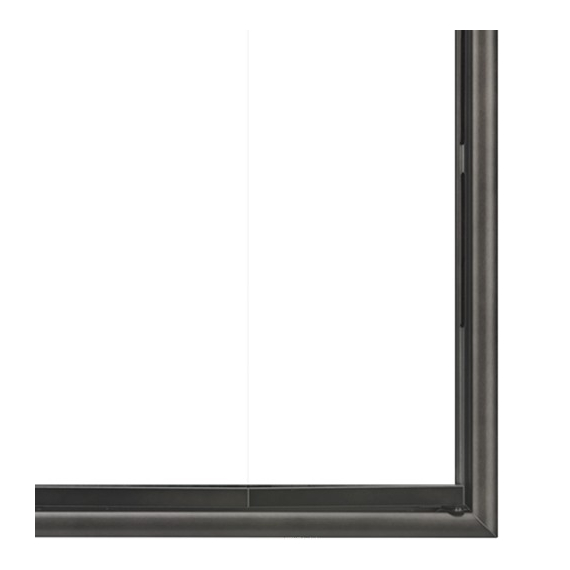

The Silhouette Zero Clearance Fireplace Door is the perfect choice when it comes time to update your living space. The subtle contour in the main frame draws attention to your fireplace and creates a picture perfect focal point. This extruded aluminum replacement fireplace door comes in your choice of different powder coat, anodized finish, or artisan style colors. Bi-fold doors come with clear tempered glass; however, you can opt for grey or bronze glass, or even the black tint upgrade for an alluring touch. The inside fit Silhouette fireplace door for factory built fireplaces comes with quite a few customizations. For easy opening and closing of your fireplace glass doors, we have a selection of handles for you to choose from. Protect your home and loved ones by upgrading to mesh protection. Upgrade to stainless steel hardware, hinges, and spark protection and install this enclosure on an exterior prefab fireplace! Free shipping!

PLEASE NOTESliding mesh will add 2 1/2" inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 1 1/8" inch. Before adding mesh to your order please calculate your opening depth. If you do not have enough depth to allow for sliding mesh or gate mesh, do not order it.


What You Need To Know If Door Is Used Outdoors
Aluminum doors intended for outdoor use will have most components other than the outer frame and door frames made from stainless steel. Not all components are stainless however and some staining due to corrosion will occur. Fireplace doors used outdoors with stainless components will function as intended if kept clean and the moving components oiled occasionally. Manufacturer is not responsible for tarnishing or discoloration due to environmental factors.



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Silhouette ZC Fireplace Door Specifications Product Specifications:

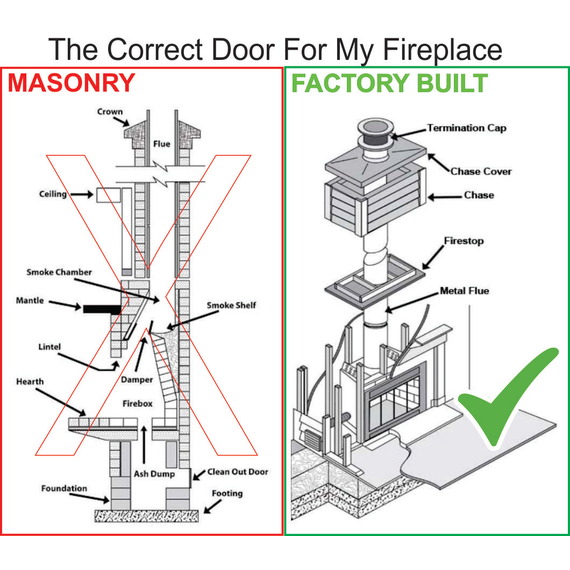

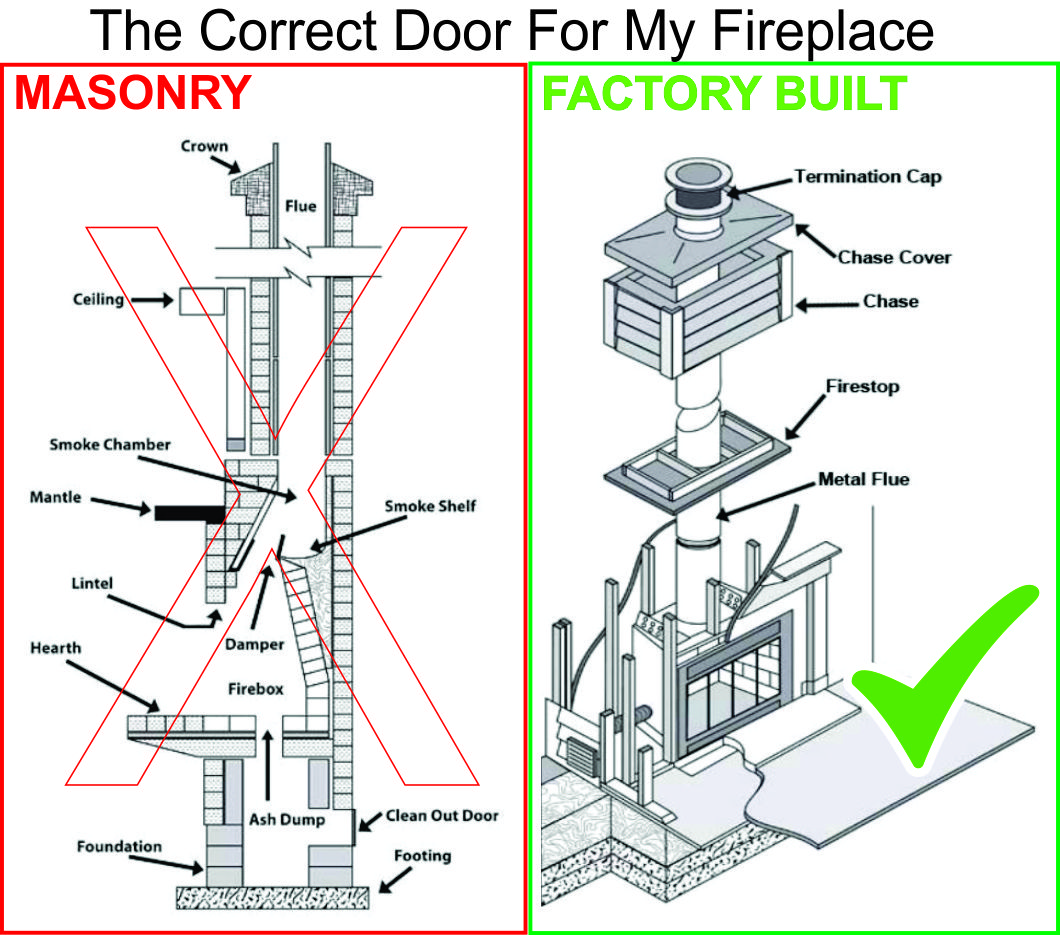

  • Fireplace Type: Prefab Wood Fireplaces or Prefab Wood Fireplaces Converted To Vented Gas Logs
  • Door Fit: Inside
  • Frame Width: 1"
  • Frame Depth: 3/4"
  • Frame Material: Extruded Aluminum
  • Door Type: Trackless Full-Fold Bi-Fold Doors | Cabinet (Twin) Doors
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tints: Clear | Bronze | Grey | Black
  • Ceramic Glass: N/A
  • Spark Protection: Optional

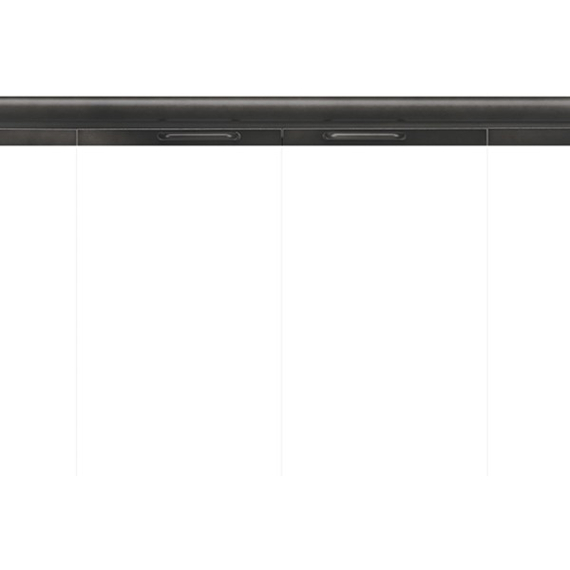

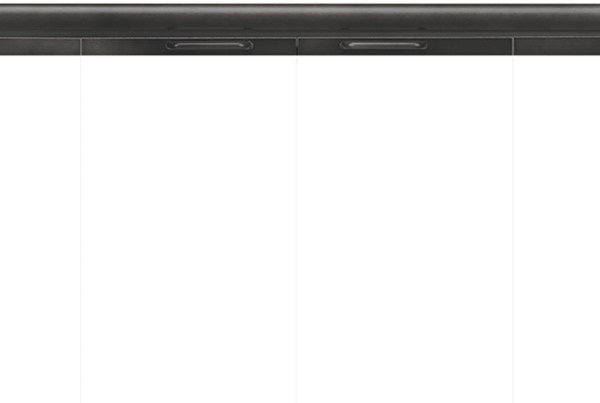

  • Handle Style: Simplicity | Square
  • Damper: N/A
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Standard Hardware Included
  • Safety Listing: UL127

STANDARD MOUNTING BRACKETS

Fireplace Door Installation

____________________________________________________________

ALTERNATIVE MOUNTING BRACKETS

Alternative Mounting Brackets

____________________________________________________________

WEDGE FIT MOUNTING BRACKETS

Wedge Fit Door Installation

Manufacturer's Warranty

Manufacturer warrants the glass enclosures to be free from defects in material and workmanship for a period of one (1) year from the date of installation. Manufacturer warrants the metal work (exclusive of the finish) contained in the glass enclosures to be free from defects in the materials and workmanship for a period of two (2) years from the date of installation. Discoloration of any frame piece is caused by over firing and is considered abuse of the enclosure.

MANUFACTURER MAKES NO WARRANTIES AS TO A MAXIMUM TEMPERATURE AND STRESS WHICH MAY CAUSE GLASS BREAKAGE. LIFETIME WARRANTY ON GLASS.
Manufacturer will, however, replace without cost any glass that breaks in normal use. Manufacturer will cover shipping cost for replacement glass for a period of one (1) year from the date of installation. Warranties also are not transferable to new owners.  The foregoing limited warranty is not transferable by the customer and does not include the eventual defects caused by improper use or operation of the glass enclosure or by normal wear and tear. Manufacturer agrees that if the glass enclosure is determined to be defective in manufacture within the applicable written guarantee period set forth above, and the customer provides a written notice of such defects within fourteen (14) days of the end of such period to the customer’s local dealer, Manufacturer is limited to defects in manufacture, and Manufacturer shall not be responsible if the glass enclosure has not been used at all times with reasonable care and in accordance with the instructions which accompany each glass enclosure, and/or if any attempt has been made by any person other than Manufacturer or its authorized agents to repair, alter or otherwise interfere with the foregoing undertaking of Manufacturer is limited to the replacement of any determined by Manufacturer to be defective.
Finally, the enforceability of this limited Warranty shall be further subject to compliance with the following requirements:
A. That the customer complies with the instruction set forth above and does not misuse, abuse, alter, or modify the glass enclosure.
B. That the customer does not use the glass enclosure for a purpose other than its intended use.

DISCLAIMER
The limited warranty set forth above, is expressly in lieu of any other warranties, express or implied, including without limitation any warranty of merchantability or fitness for particular purpose, whether express or implied, and lieu of any other obligation or liability on the part of Manufacturer. Whether under theories of contract, tort or negligence, Manufacturer, shall have no liability for any consequential, incidental or special damages by reason of any act or omission, whether negligent or not, arising out of or in connection with the glass enclosure or its sale, delivery, installation, maintenance, operation, performance, or use, including without limitation any loss of use, damage to associated property or the facility, or any other similar and dissimilar losses, cost.

PLEASE NOTE:
Fireplace doors are hand crafted to the specifications of each order. Due to the nature of the anodization process on aluminum doors, and the plating/powder coating process on steel doors, slight variations in color may occur and will not be considered a warranty issue.

This is one of the best purchases that I made for our new house. This door is beautiful, easy to install and fits perfectly!
