Saratoga Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us Before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on) When the enclosure is larger than the opening of the fireplace.
Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the enclosure will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc.) We need the exact minimum height.



INSIDE FIT; When the enclosure is smaller than the opening of the fireplace.
When the enclosure is smaller than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc.) We need the exact minimum width.

DO NOT make adjustments to sizes, we need the EXACT OPENING size.



in
in

Size Range For Pricing: Up To 32"W and Up To 34"H

=:

$1,581.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.

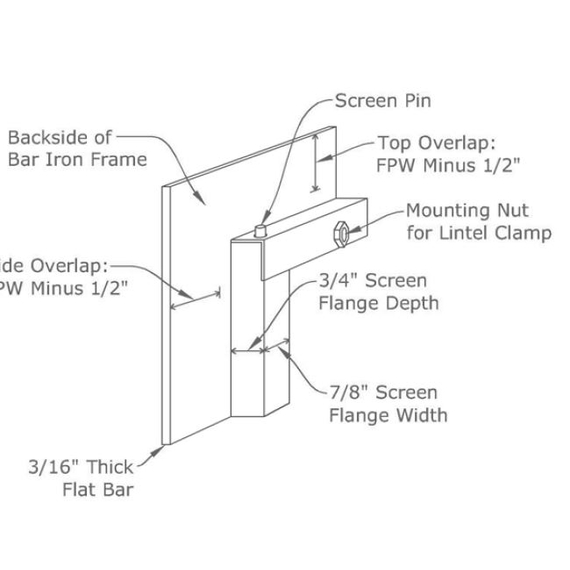

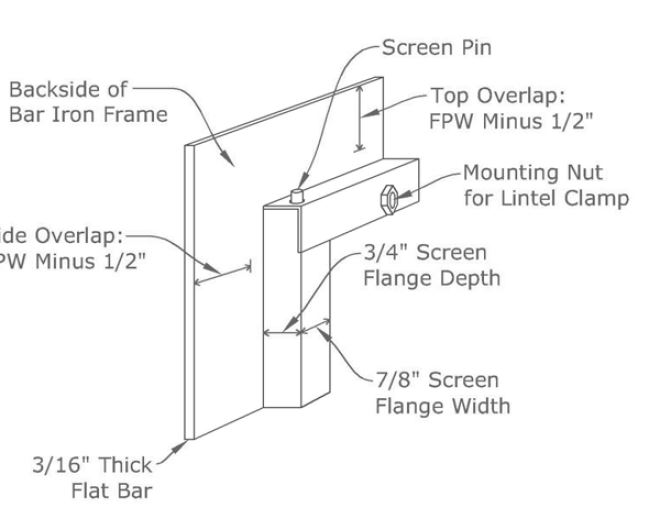

Z-tabs welded on to main frame are an optional method of mounting when lintel clamps are not applicable
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on website.
Please stand 6 feet away from your fireplace and take the picture of the front of your fireplace. Head On. Send only jpg,bmp,gif or pdf images!
Price in points: 15810 points
Reward points: 474 points
Available
+ −
Brand: Custom Metal Company
Write a review

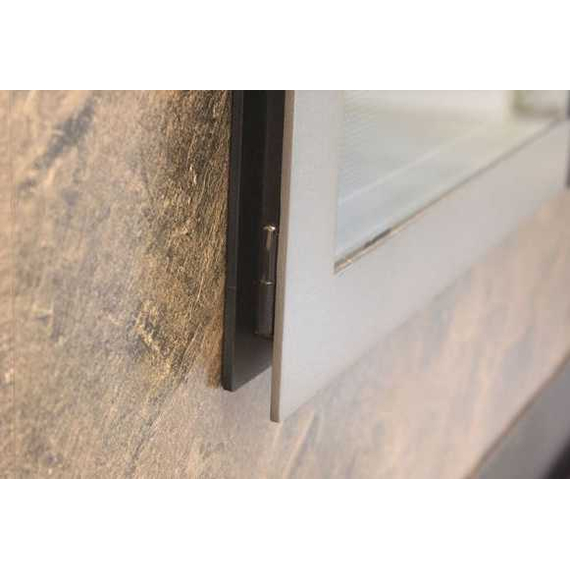

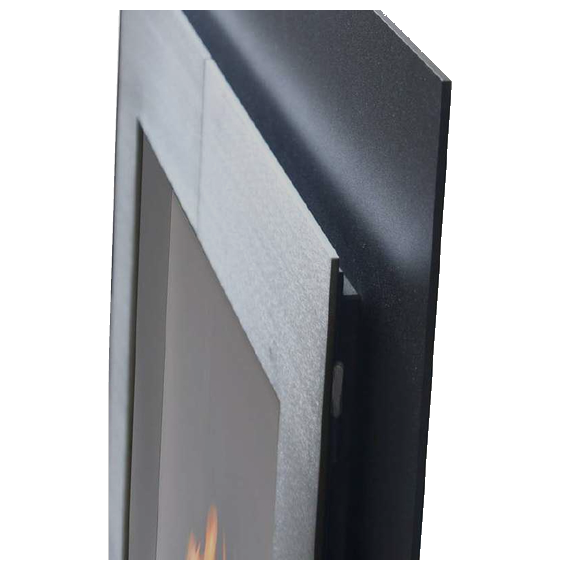

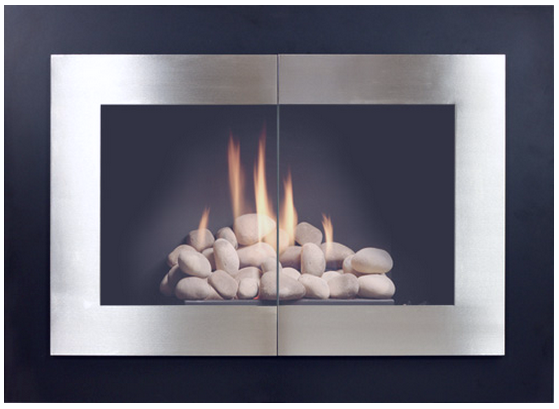

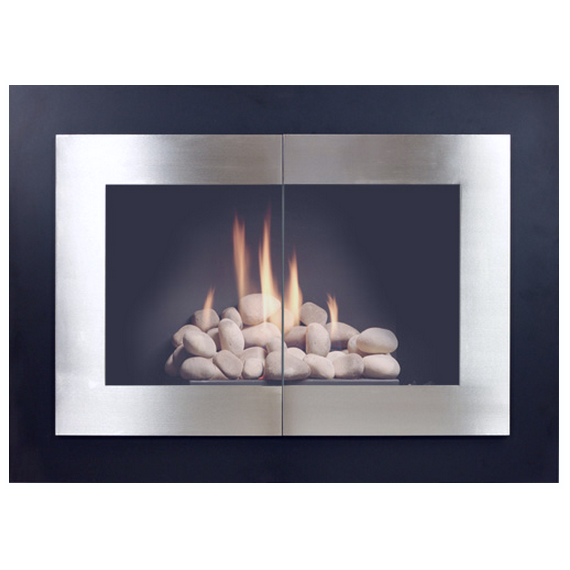

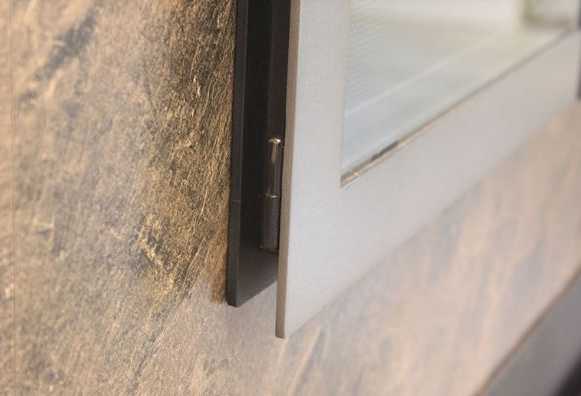

The trendy Saratoga custom fireplace door is a bold and beautiful accent for your masonry fireplace! Overlap or inside fit choices are available for this interesting enclosure with cabinet style doors. The 7 gauge steel main frame rests behind an aluminum door frame, which holds the glass securely in place. Both components are available in your choice of powder coat or overlay finishes. You can also choose one of three glass tints that you feel will best compliment your color choices for this modern fireplace door. You'll get the best line of defense between the fire and your home with our tight-weave cabinet mesh (hanging spark protection is an upgrade). The Saratoga comes without a damper, but can be customized with a hidden element instead. Let us help you establish your hearth position by uploading a picture of your fireplace. Mounting hardware is included for a simple installation. This masonry fireplace door features expertly concealed hinges, while the 3/4 inch depth between the two frames takes the place of handles and allows you to easily open and close the cabinet doors. You are going to love the panache it adds to your home!

Saratoga Masonry Fireplace Door Features and Benefits Product Features and Benefits:

  • The Saratoga door is for masonry applications ONLY
  • Fireplace door ships for free; please allow 4 to 6 weeks for production
  • 5 year warranty on workmanship and material only; 1 year glass warranty
  • Customize as an overlap or inside fit frame, with or without a damper
  • 5 inch wide by 3/16 inch deep main frame is made from 7 gauge flat steel
  • 4 inch wide cabinet doors are crafted from durable aluminum
  • Check out the videos for available finish colors
  • 1/4 inch tempered glass comes in grey, bronze, or clear glass

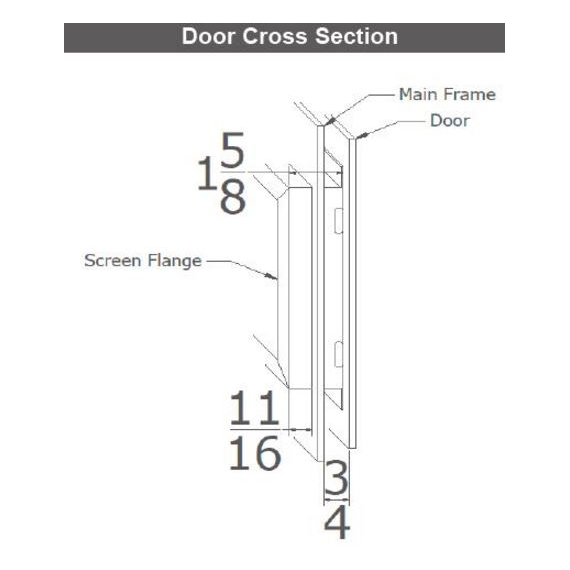

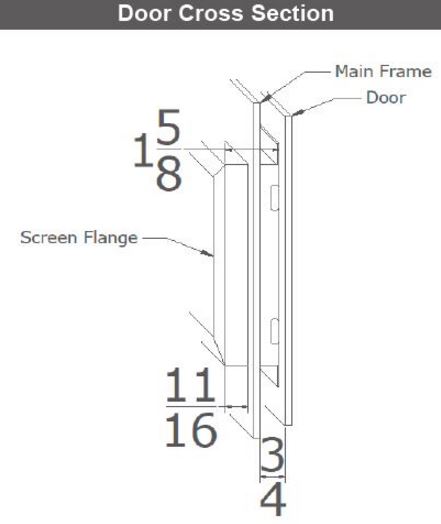

  • 3/4 inch depth between doors and main frame allow for easy opening and closing without handles
  • Cabinet mesh is optional; alternative styles available
  • Door comes fully assembled with included mounting hardware



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Saratoga Masonry Fireplace Door Specificaitons Product Specifications:

  • Door Fit: Overlap | Inside
  • Approximate Overlap: 4.5" if 5" Wide Main Frame Is Selected
  • Door Type: Cabinet Doors
  • Main Frame Material: 5" Wide Frame Panel x 3/16" Deep 7 Gauge Flat Steel
  • Door Frame Material: 4" Wide Aluminum
  • Glass: 1/4" Tempered Safety Glass (1 year warranty)
  • Glass Tint: Grey | Clear | Bronze
  • Ceramic Glass: N/A
  • Mesh Protection: Optional
  • Airtight Option: N/A
  • Damper: Available
  • Mounting: Hardware Included

Product Manual Product Manual:

Manufacturer's Warranty

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
