Saratoga Hidden Frame Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Size Range For Pricing: Up To 40"W and Up To 34"H

Finished dimentions:

$2,127.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
Please stand 6 feet away from your fireplace and take the picture of the front of your fireplace. Head On. Send only jpg,bmp,gif or pdf images!
Available
+ −
Brand: Custom Metal Company
Write a review

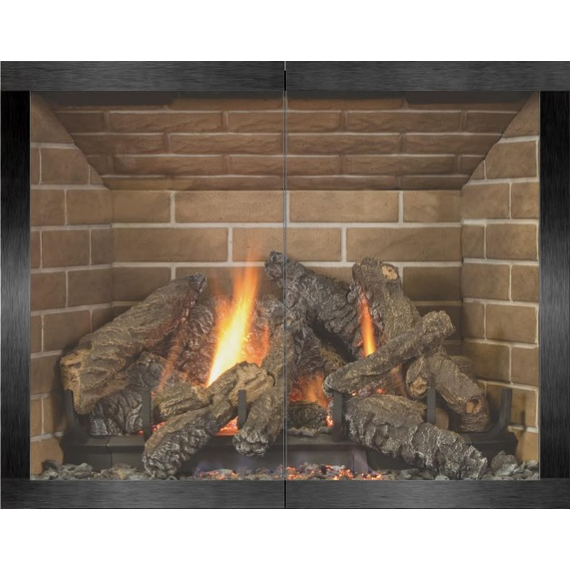

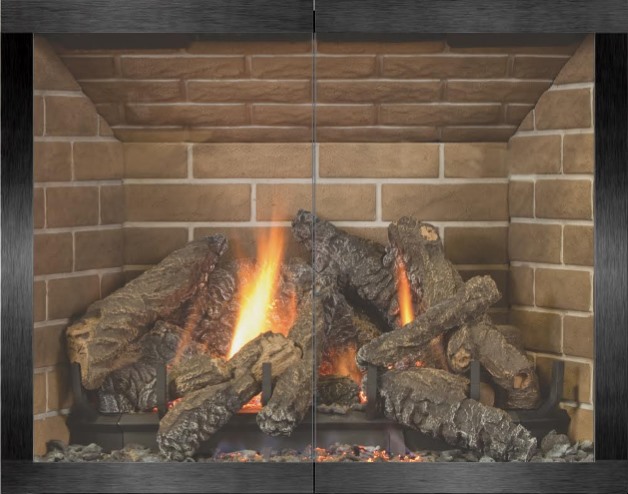

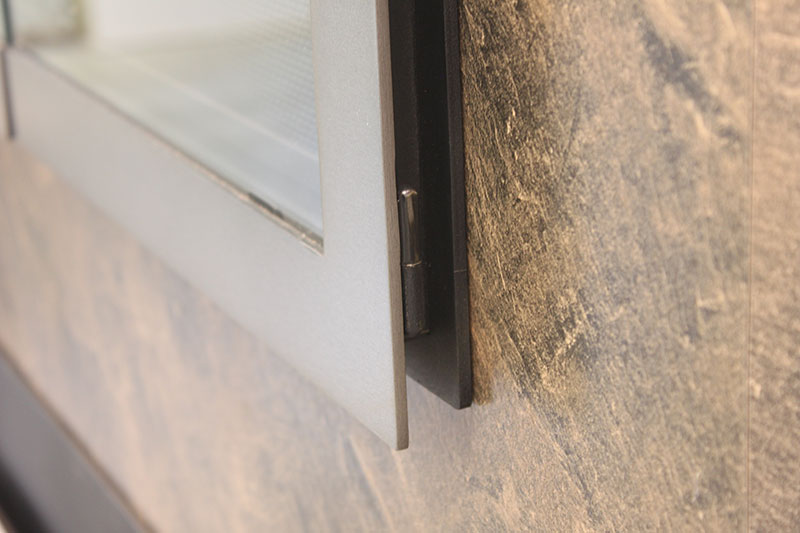

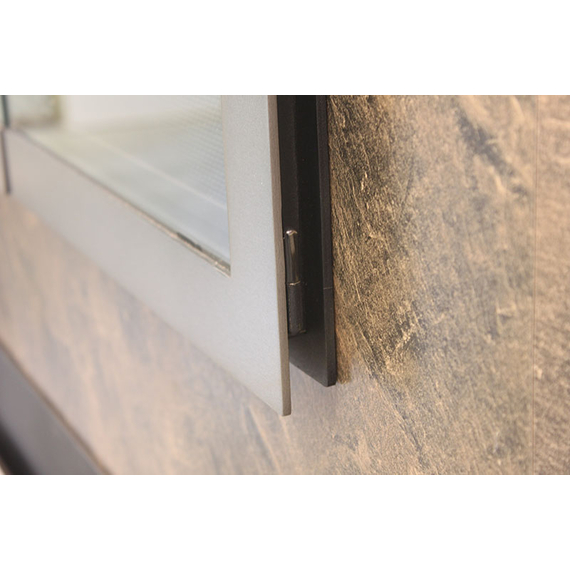

The Saratoga Hidden Frame modern fireplace door is perfect for anyone who wants a look with clean lines and a sleek appearance! When the cabinet style doors are shut, what you are actually seeing is the door frame, which discreetly conceals the 2-inch bar iron main frame and hinges! This wood burning fireplace glass door can be totally customized to your needs. The Saratoga Hidden Frame enclosure comes with grey tempered glass; however, you can select a clear or bronze tint for the door. You even have the opportunity to upgrade to spark protection. Available with a hidden damper or no damper at all, the inside or overlap fit door is sure to make a statement in your living space. We include all of the mounting hardware you'll need for convenient installation. Because the door frame panels are mounted in front of the main frame, there is no need for handles. The cabinet doors open and close effortlessly.

Saratoga Hidden Frame Masonry Fireplace Door Features Product Features and Benefits:

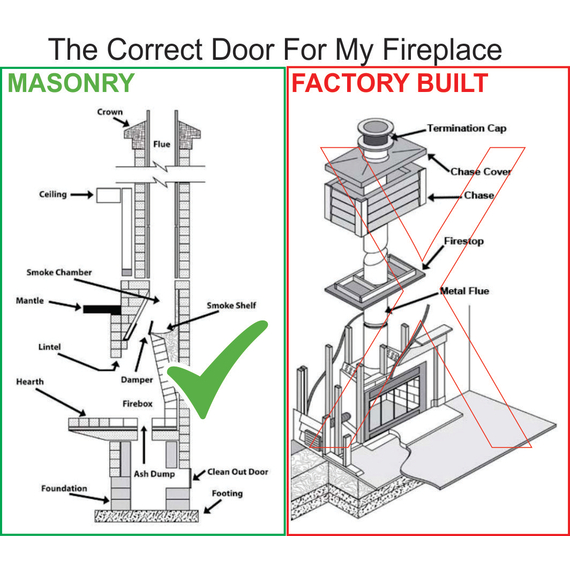

  • The Saratoga Hidden Frame door is for masonry applications ONLY
  • Fireplace door ships for free; please allow 4 to 6 weeks for production
  • 5 year warranty on workmanship and material only; 1 year glass warranty
  • Available as an overlap or inside fit enclosure
  • 7 gauge flat steel main frame is concealed behind cabinet door frame panels
  • Check out the videos for available finish colors
  • 1/4 inch tempered glass comes in grey, bronze, or clear glass
  • Cabinet doors sit in front of the main frame and open easily without handles
  • Available with a hidden damper or no damper at all
  • Cabinet mesh is optional; alternative styles available
  • Door comes fully assembled with included mounting hardware



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

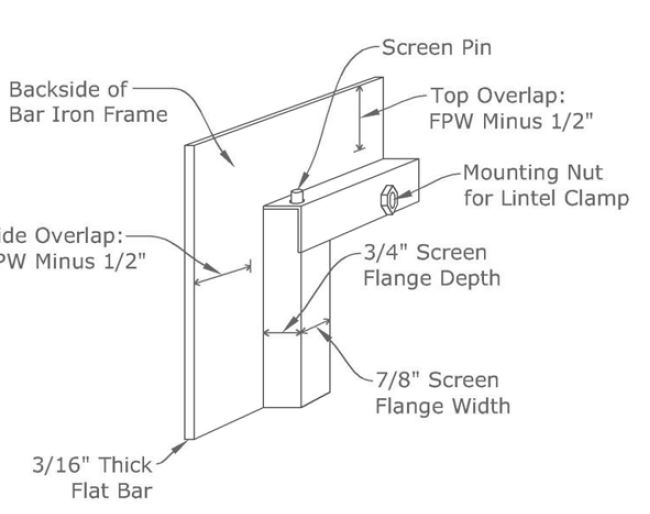

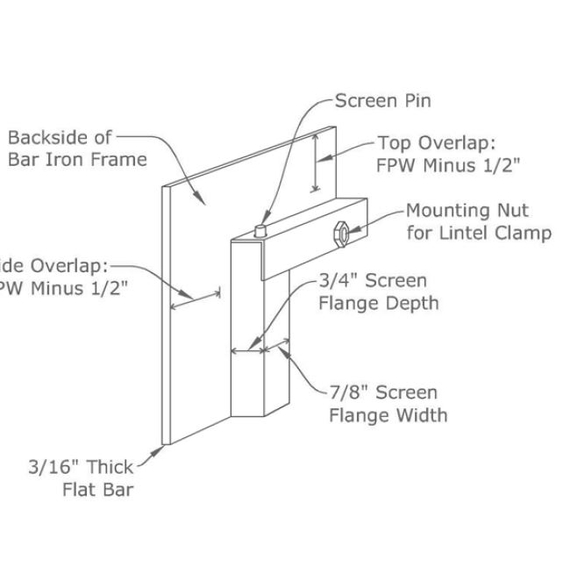

Saratoga Hidden Frame Masonry Fireplace Door Specifications Product Specifications:

  • Door Fit: Overlap | Inside
  • Door Type: Cabinet Doors
  • Material: Hidden 7 Gauge Flat Steel Frame
  • Approximate Overlap: 1/2"
  • Glass: 1/4" Tempered Safety Glass (1 year warranty)
  • Glass Tint: Grey | Clear | Bronze
  • Ceramic Glass: N/A
  • Mesh Protection: Optional
  • Airtight Option: N/A
  • Damper: Available
  • Mounting: Hardware Included

Product Manual Product Manual:

Manufacturer's Warranty

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
