Hidden Main Frame Pinnacle Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

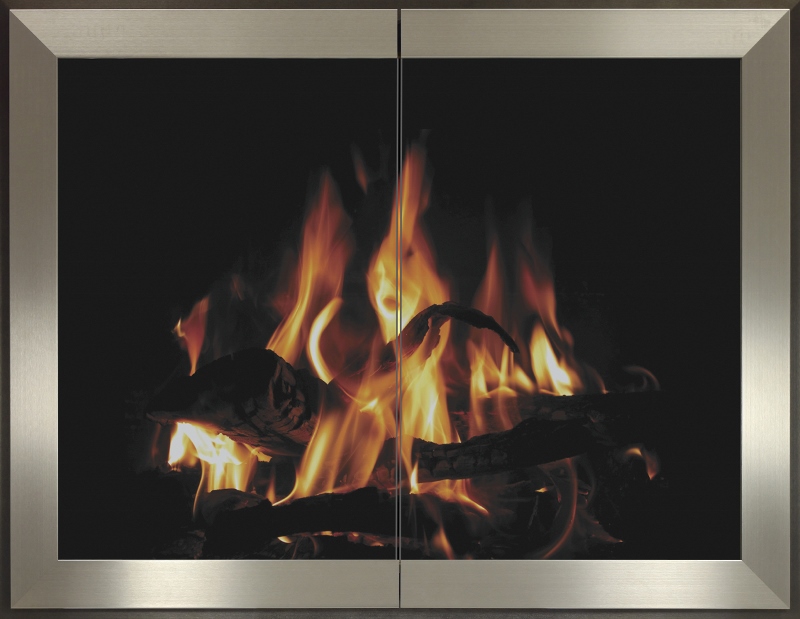

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Size Range For Pricing: Up To 36"W and Up To 36"H

=:

$1,880.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
Z-tabs welded on to main frame are an optional method of mounting when lintel clamps are not applicable. Flanges are recommended for rough or irregular fireplaces!
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].
Available
+

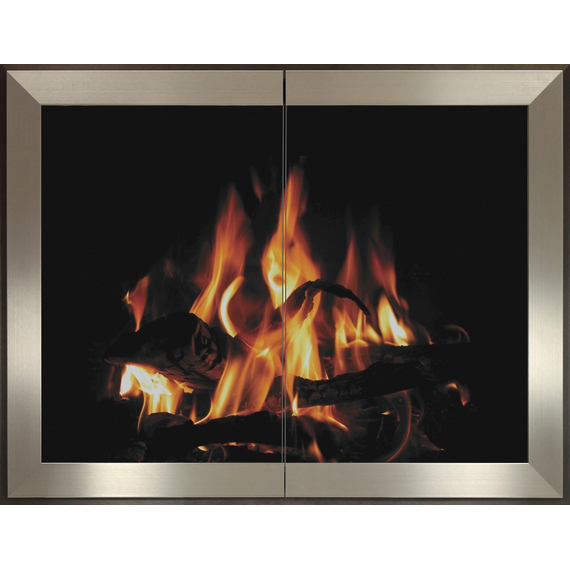

The breathtaking Pinnacle masonry fireplace door will look great in any home! Steel and aluminum come together on this truly unique enclosure for both strength and esthetics. Soft close hinges and a seamless, laser-cut aluminum door frame give it a modern design that is hard to compare to. Customize in your choice of 6 beautiful anodized finishes. Clear or grey tinted tempered glass is secured within the door frame, which sits in front of the main steel frame. For this component, you can select your favorite of several elegant powder coat colors. This custom fireplace door can be arranged with or without a damper. Designed for an inside or overlap fit, our Pinnacle glass enclosure comes with cabinet mesh protection and all the hardware you'll need for easy installation. Because of the depth between the two frames, handles are not necessary. Thanks to this design and the concealed 90° soft close hinges, opening and closing the cabinet doors is effortless. Cabinet door will open about 95 degrees!


Pinnacle Masonry Fireplace Door Features and Benefits Product Features and Benefits:

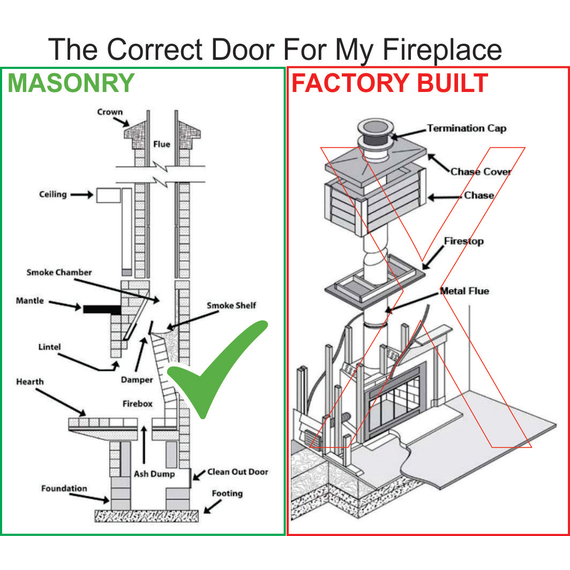

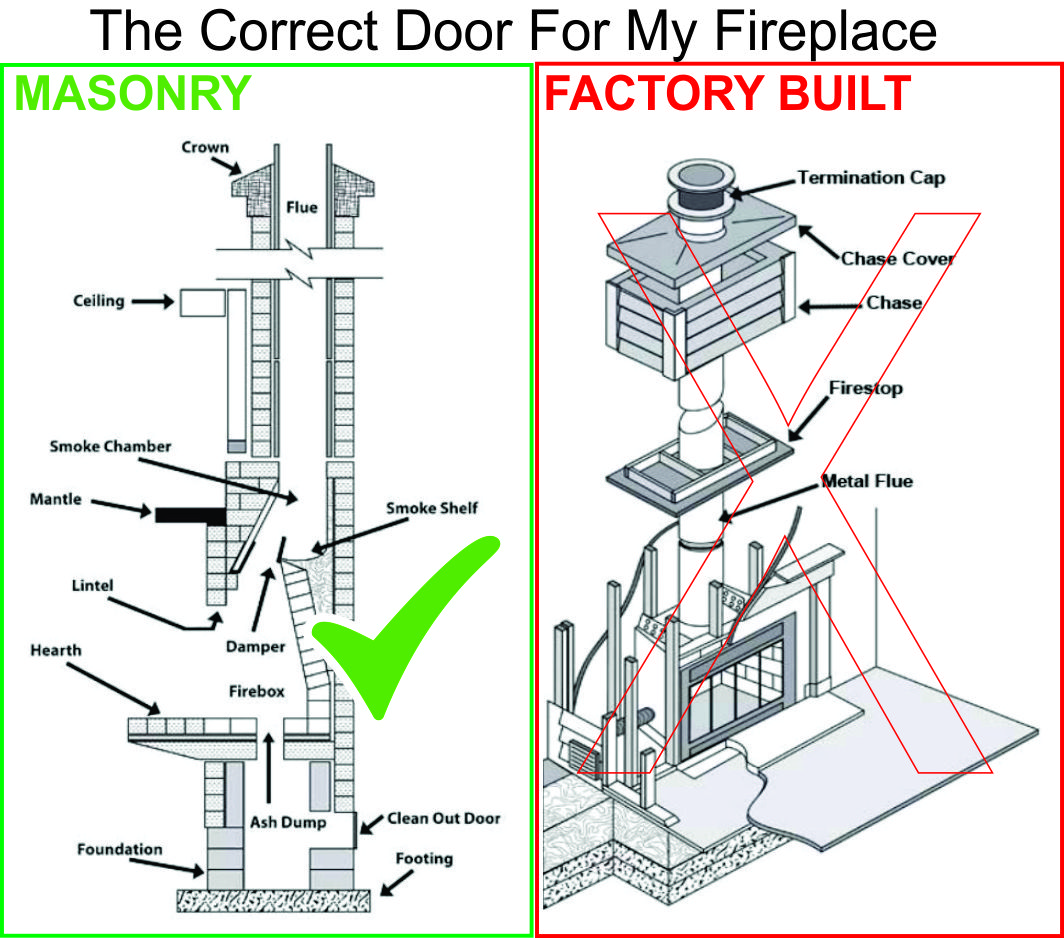

  • The Pinnacle door is for masonry applications ONLY
  • Fireplace door ships for free; please allow 4 to 6 weeks for production
  • 5-year warranty on workmanship and material only; 1-year glass warranty
  • Customize the size of this enclosure and choose an overlap or inside fit frame
  • Check out the videos for available finish colors
  • 2  1/4 inch wide by 3/16 inch deep main frame is made from 7 gauge flat steel
  • Doors are crafted from extruded aluminum with an anodized finish color of your choice
  • 1/8 inch tempered glass comes in clear or grey tinted glass

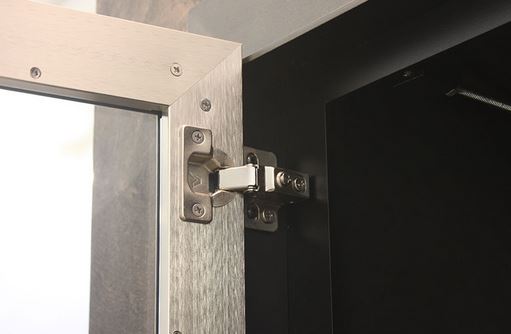

  • Cabinet style doors are equipped with 90° soft close hinges - So doors will open about 95 Degrees.
  • Doors sit in front of the mainframe and open easily without handles
  • Cabinet mesh is included; alternative styles available
  • Door comes fully assembled with included mounting hardware



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

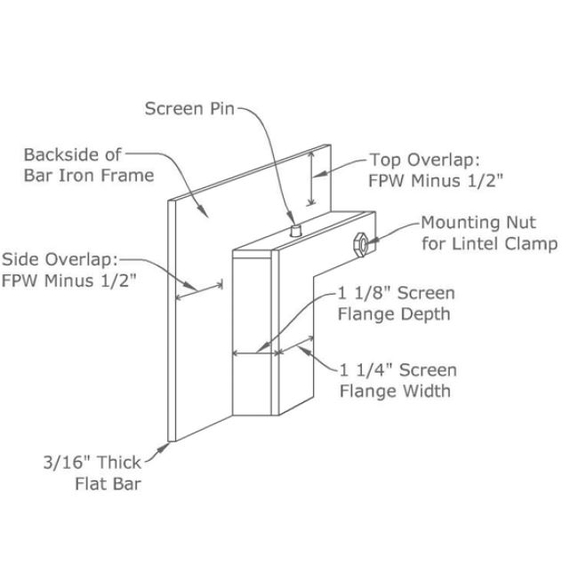

Pinnacle Masonry Fireplace Door Specifications Product Specifications:

  • Door Fit: Overlap | Inside
  • Approximate Overlap: 1.75"
  • Door Type: Cabinet Doors

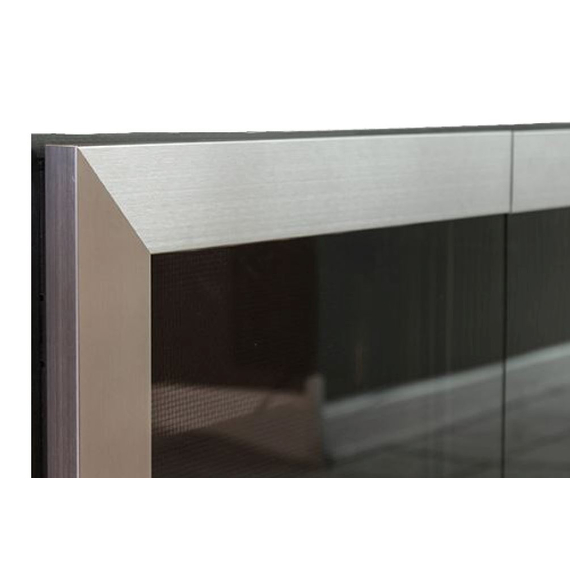

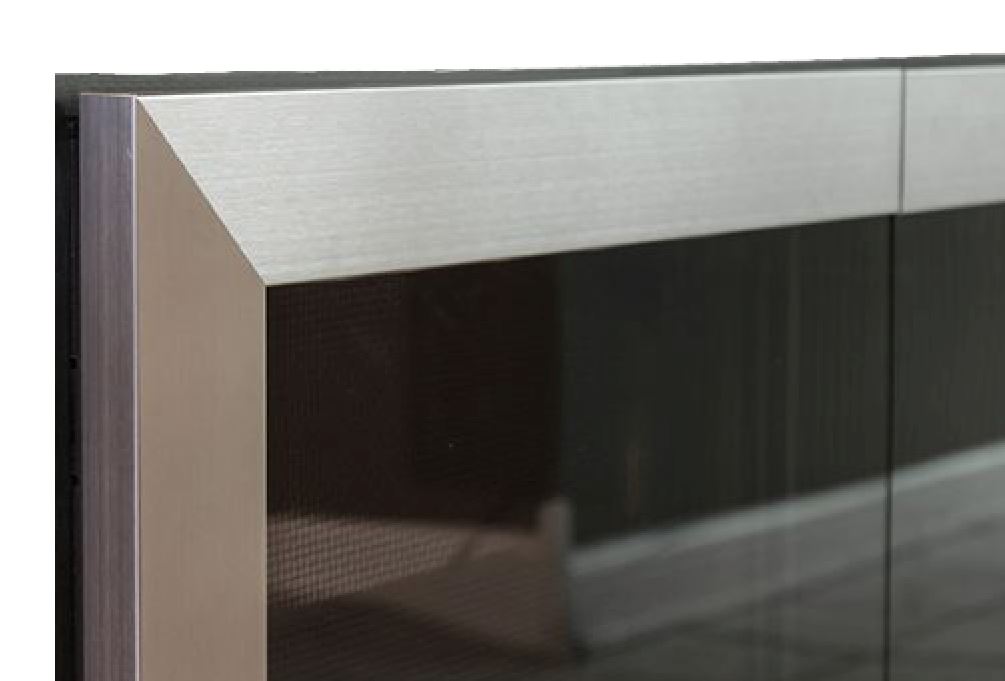

  • Hidden Main Frame: 1/2" Wide x 3/16" Deep 7 Gauge Flat Steel
  • Door Frame Material: Extruded Aluminum
  • Glass: 1/8" Tempered Safety Glass
  • Glass Tint: Clear | Grey
  • Ceramic Glass: N/A
  • Mesh Protection: Cabinet Mesh Included
  • Door Hinges: Open 90° Soft Close
  • Damper: Available
  • Airtight Option: N/A
  • Mounting: Hardware Included

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
