HHT Outdoor Lifestyle Courtyard 42" Outdoor Gas Fireplace

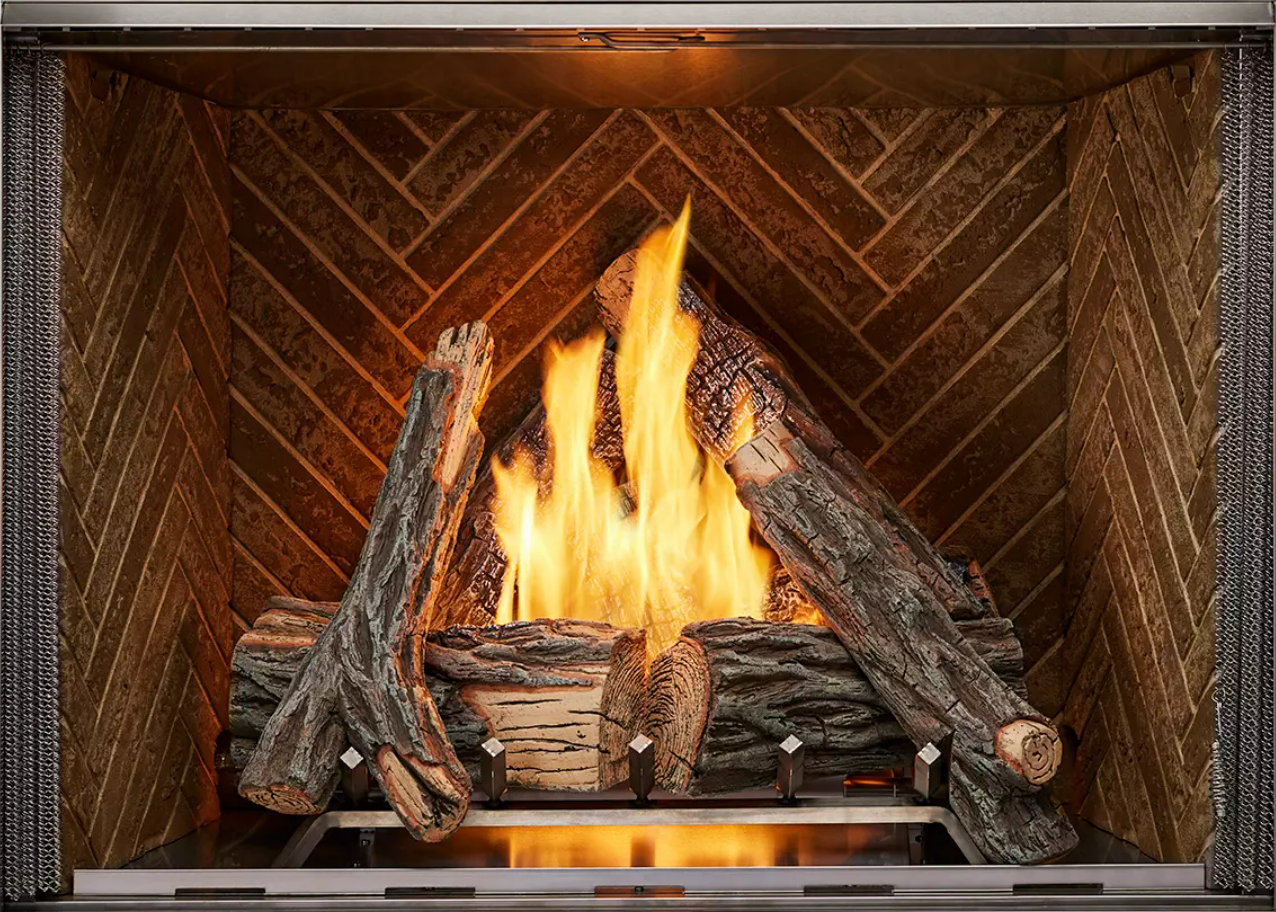

The Outdoor Lifestyle Courtyard 42" Outdoor Gas Fireplace is the perfect blend of artistry and function: traditional styling with ultra-realistic logs that ignite at the flip of a switch. Mesmerizing flames provide instant ambiance and relaxation. Cozy up with the Courtyard.
Design a setting that fosters togetherness for family and friends using the Outdoor Lifestyles® Courtyard gas fireplace. This offers a convenient means to enlarge your living space and prolong outdoor enjoyment with inviting heat in a charmingly nostalgic style.
Features:
- Intellifire® Ignition System: Monitors ignition at all times to assure safe performance and save energy costs.
- Interior Options: Choose from stainless steel, traditional or herringbone brick interior panels to fit your style.
- Drain Pan: Protects your outdoor fireplace burner and ignitor assembly from water build-up.
- Available in 36" or 42" widths
- UL/ULC Listed
INCLUDES:
- Clean Face & Flush Hearth Design
- Stainless Steel Pull Screens

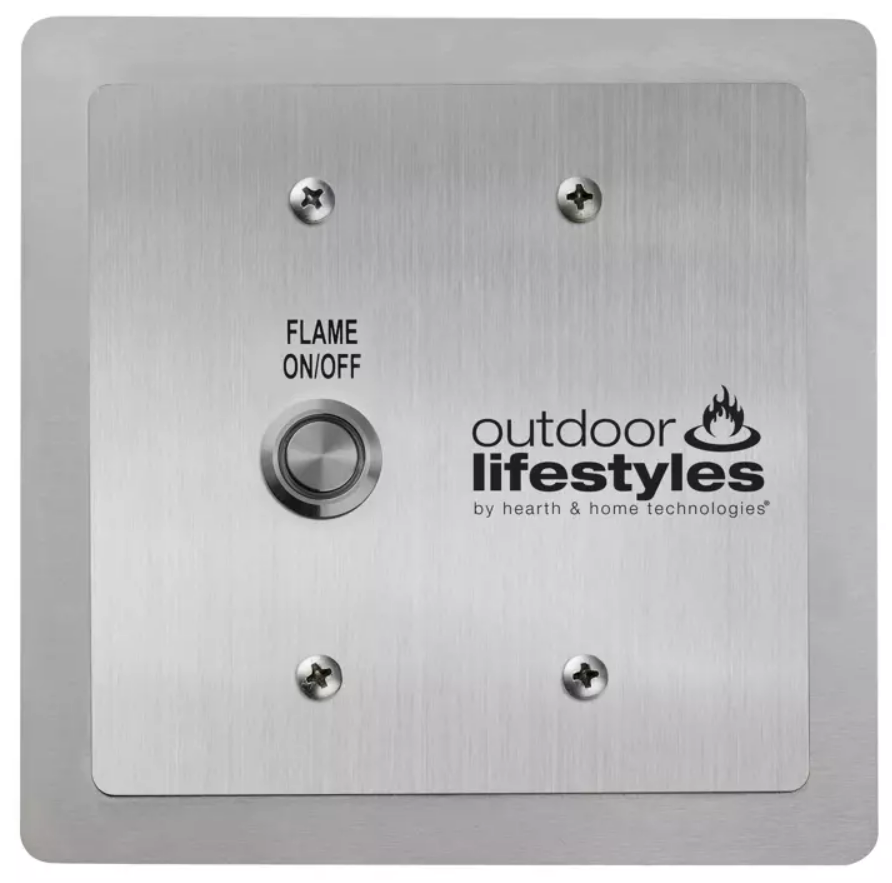

- Wall Switch With Outdoor Control Box
OPTIONAL FEATURE:

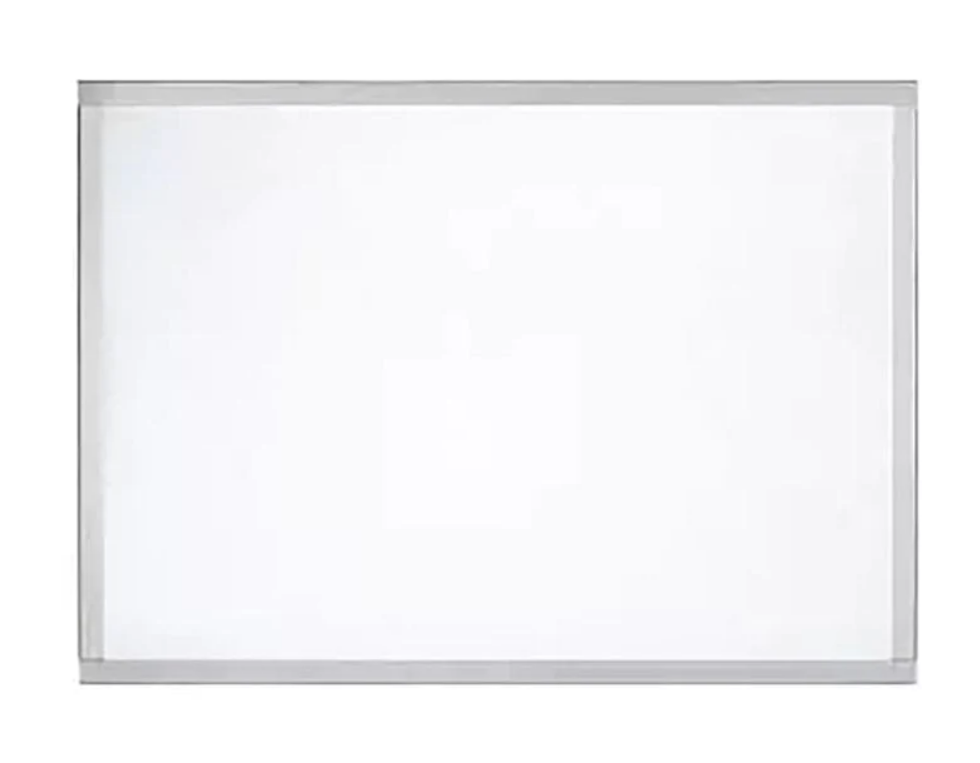

- Framed Mesh Barrier
Specifications:
- Model: Courtyard 42
- Model Number: ODCOUG-42NR
- Framing Width: 48-1/2"
- Framing Depth: 20-1/4"
- Framing Height: 34-1/4"
- BTU/hr Input: 55,000 BTU
- Viewing Area: 42" X 30"
- Vent Exit: Face
- Vent Size and Type: Vent Free
Downloads:
Technical Specifications:
- Natural Gas:
- Maximum Input BTU: 55,000
- Orifice Size: #25 (0.1495 inches)
- Burner Air Shutter: 1/16" Open
- Propane Gas:
- Maximum Input BTU: 53,000
- Orifice Size: #44 (0.086 inches)
- Burner Air Shutter: Fully Open
- Actual Dimensions:
- Front Width: 36" (914 mm)
- Height: 34" (864 mm)
- Depth: 20" (508 mm)
- Firebox Opening: 36" x 30" (914 mm x 762 mm)
- Framing Dimensions:
- Front Width: 42-1/2" (1080 mm)
- Height: 34-1/4" (870 mm)
- Depth: 20-1/4" (514 mm)
- Weight: 90 lbs (198 kg)
- Additional Details:
- Gas and outside air access is located at 3-1/2" (89 mm) from the back.
- Electrical access is placed at 9-3/8" (238 mm) from the bottom, with a wall switch strain relief located at 6-5/16" (160 mm).
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
