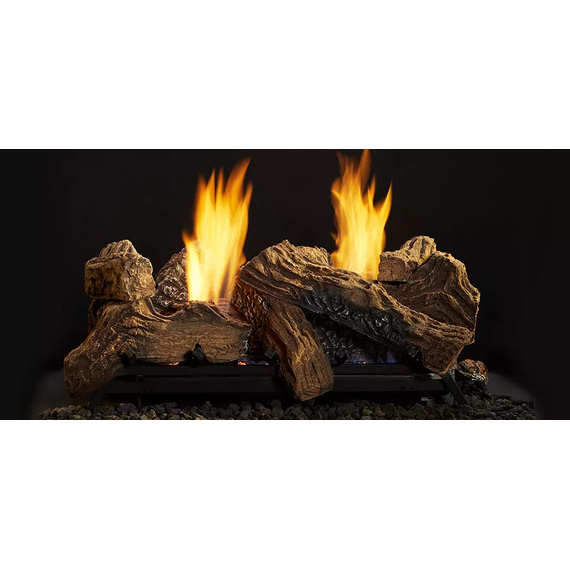

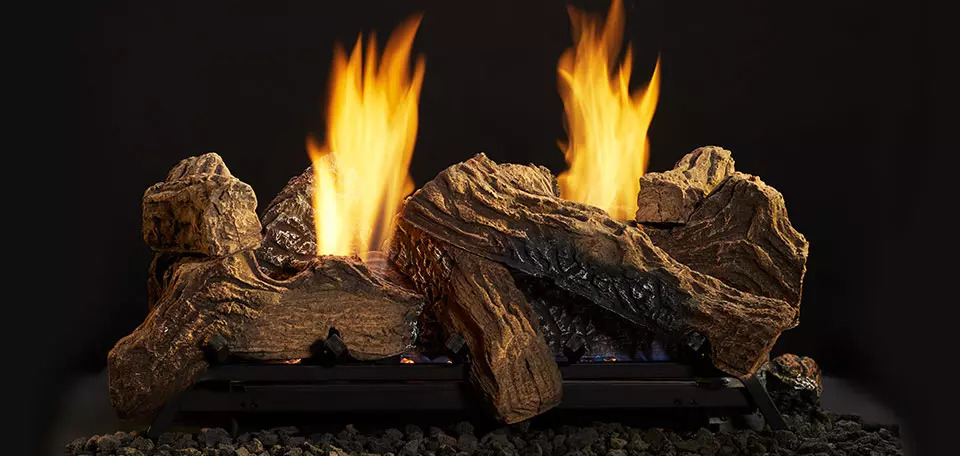

27" Natural Blaze See-Through Vent Free Gas Log Set Monessen
The Monessen Natural Blaze 27" See-Through Ventless Gas Log Set – where innovation meets authenticity to transform your living space into a haven of warmth and style.
Dive into the enchantment of a dancing flame visible from two rooms at once. The Monessen Natural Blaze boasts a unique design on both sides, ensuring a captivating and authentic stack of logs, creating a mesmerizing focal point in any space. Ignite the possibilities of multiple design configurations and elevate your home's ambiance with this stunning gas log set.
Say goodbye to complicated controls and hello to simplicity. Our gas log set features a millivolt control system, easily operated with a remote control for seamless adjustments. The auto spark ignition adds a touch of modern convenience, allowing you to effortlessly ignite the flames and bask in the cozy glow at the touch of a button.
Embrace the freedom to design your space without the constraints of a traditional fireplace. The Monessen Natural Blaze is powered by vent-free technology, eliminating the need for a chimney or venting system. This means you can install it virtually anywhere, giving you the flexibility to create the perfect ambiance in any room.
Our log set comes complete with the Natural Blaze burner, setting a new standard for realistic flame viewing. Marvel at the lifelike flames from a multitude of angles, creating an immersive and captivating experience for you and your guests.
Transform your home with the Monessen Natural Blaze 27" See-Through Ventless Gas Log Set – where innovation, authenticity, and ease of use converge to redefine your fireplace experience. Elevate your living space and indulge in the warmth of a truly mesmerizing fire, bringing comfort and style to every corner of your home.
Valves & Controls:

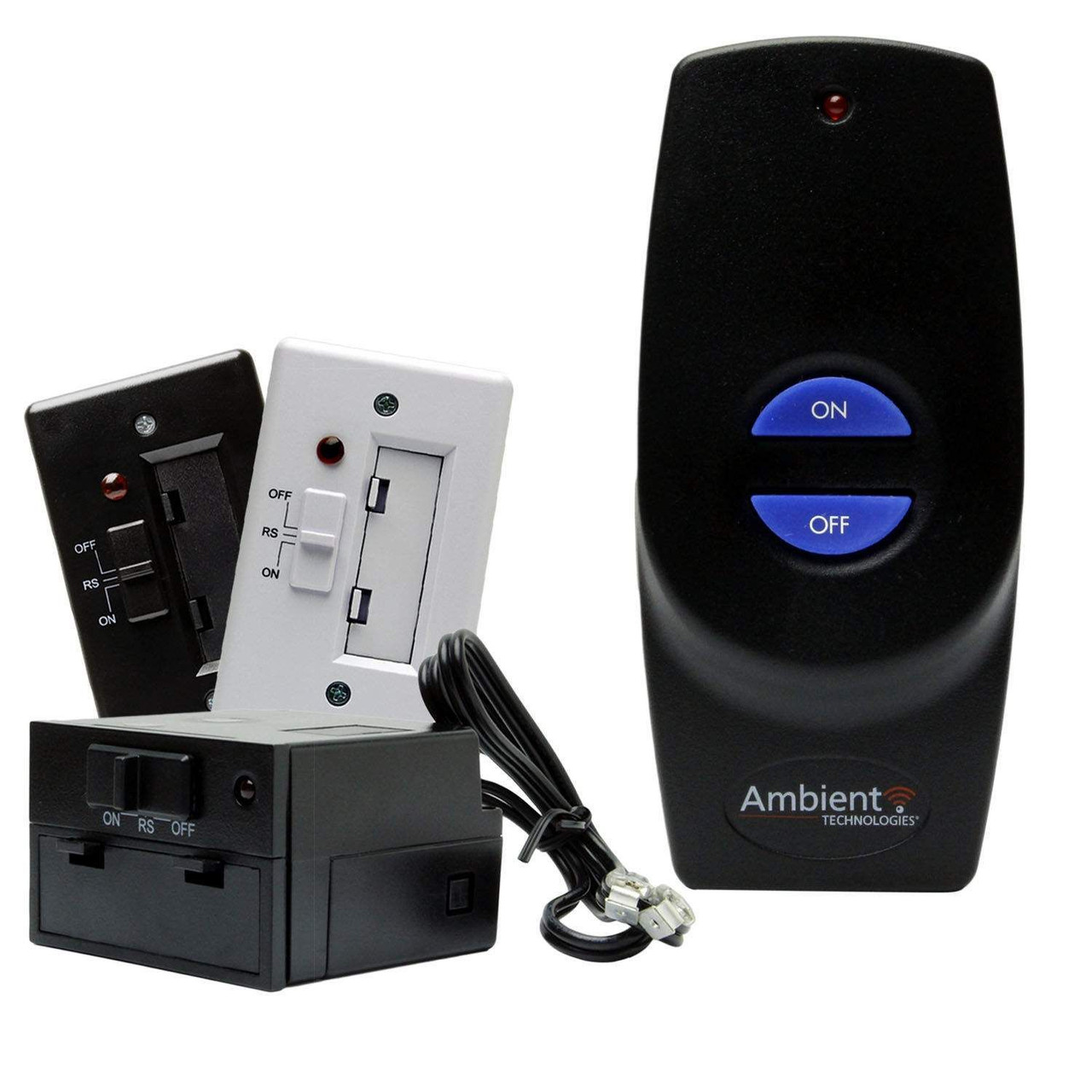

Millivolt Valve Remote Ready - Standing Pilot. The device utilizes a standing pilot that consumes 575 BTU per hour, equivalent to 1 therm of natural gas every 7.2 days or 1 gallon of propane every 6.6 days. It comes with an ON/OFF switch and can be utilized with SR-MV1, THR-MV1, WS-MV1, and WT-MV1 remote controllers, or a wired wall switch, wired wall timer, or home automation system.
Features:
- Expands your viewing of the fire from two rooms at once and adds multiple design possibilities.
- Simple, remote ready millivolt control with auto-spark ignition makes operation effortless
- Ventless Technology.
- 39,000 BTUs
- Instant dancing yellow flames
- Piezo igniter
- Volcanic rock
- Rock wool embers
- Ember bed log switch
Specifications:
- Model: Natural Blaze See-Through
- Minimum Opening Front Width: MIL: 32"
- Minimum Opening Height: MIL: 21-1/2"
- Minimum Opening Depth: MIL: 21"
- Minimum Opening Back Width: MIL: N/A
- Fuel Type: Natural Gas or Liquid Propane
- BTU/hr Input: 39,000
- Heating Capacity: Up to 1,400 sq ft
- Ignition System: Millivolt
Downloads:
- Log Placement Instructions
- Natural Blaze See-through Installation/Owner’s Manual
- Natural Blaze See-through Service Parts
- Product Warranty
SOMETHING TO CONSIDER BEFORE YOU PURCHASE A VENT FREE APPLIANCE:
Vent-Free sets are supplemental zone heaters - They are not intended for continuous use or whole house heating.
Glass doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety controls. With adequate combustion and ventilation air, the damper may be closed for vent-free use. The damper may be opened slightly for reduced venting.
Check local codes and ordinances for permitted uses.
- In Most Cases, Vent Free Appliances Are NOT Approved For Bedrooms Or Bathrooms.
- Select States And/Or Counties Within States May Not Allow Installation Of Vent Free Products.
- This includes but is not limited to: California, Minnesota, Wisconsin.
- Other states may have local restrictions such as Arizona, Nevada, Idaho, Alaska, Wyoming, New Mexico, North Dakota and South Dakota. Please check local codes before purchasing a Vent Free Appliance.
- Vent free Products Are Not Suitable For People With Allergies Or Breathing Problems
Technical Specifications:
A. Appliance Certification
- Model: NBST27NV-B, NBST27PV-B
- Type: Unvented Room Heater
- Laboratory: CSA
- Standard:
- ANSI Z21.11.2-19 Gas-fired Unvented Room Heaters
- ANSI Z21.60-2017 - CSA 2.26-2017 Decorative Gas Appliances for Installation in Solid-Fuel Burning Fireplaces
- Compliance Note:
- Installation must conform with local codes.
- In the absence of local codes, compliance with the National Fuel Gas Code (ANSI Z223.1-latest edition in the USA) is required.
- Warning:
- Not intended for use as a primary heat source.
- Approved as a supplemental or decorative appliance only.
B. BTU Specifications and Weights
- Models and BTU Ratings:
- NBST27NV-B (Natural Gas):
- Maximum: 39,000 BTU
- Minimum: 26,000 BTU
- Orifice Size: #32
- NBST27PV-B (Propane):
- Maximum 39,000 BTU
- Minimum 30,000 BTU
- Orifice Size: #48
- NBST27NV-B (Natural Gas):
- Weight: 38 pounds.
- Gas Pressures:
- Natural Gas:
- Inlet Minimum: 5.0" w.c.
- Inlet Maximum: 10.5" w.c.
- Gas Valve Setting: 3.5" w.c.
- Propane (LP):
- Inlet Minimum: 11.0" w.c.
- Inlet Maximum: 13.0" w.c.
- Gas Valve Setting: 10.0" w.c.
- Natural Gas:
- Pilot Regulation:
- Both Natural Gas and Propane: 3.5" w.c.
C. High Altitude Installations
- Adjustment for Elevation:
- Reduce input rate by 4% for every 1,000 feet above 2,000 feet elevation.
- Local utility assistance may be required to determine proper orifice size.
D. Non-Combustible Materials Specification
- Materials That Won’t Ignite:
- Includes steel, iron, brick, tile, concrete, slate, glass, plaster, or combinations thereof.
- Testing Standards:
- Materials passing ASTM E 136 standard (tested at 750 °C) qualify as non-combustible.
- Features
- Natural Gas: External regulator needed for supply pressure ≤10.5" w.c. at higher pressures.
- Propane: External regulator needed for supply pressure ≤13" w.c. at higher pressures.
- Millivolt Ignition Controls:
- Piezo ignitor allows ignition without matches or batteries.
- Millivolt control positions: OFF, IGN (pilot ignition), ON, LOW/HI (heat adjustment).
- Pilot/ODS (Oxygen Depletion Sensor):
- Shuts off gas if oxygen level drops.
- Requires adequate fresh air for relighting.
- Thermal Generator:
- Millivolt system provides remote activation power.
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
