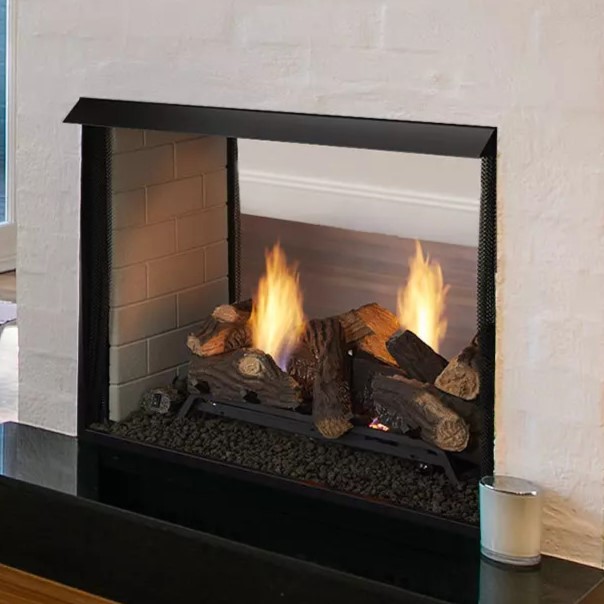

Monessen Lo-Rider 36" See-through Vent Free Firebox
The Monessen Lo-Rider Designer 36" See-Through Ventless Firebox is a stylish and versatile feature for any home. Its see-through design allows the fire to be visible and enjoyed simultaneously in two connected spaces.
Lo-Rider Designer offers a traditional and integrated look. The flush hearth design ensures the firebox floor aligns smoothly with the hearth or room floor. To leave an unobstructed view of the flames when not in use, This fireplace has a hideaway screen pockets provide added convenience by allowing screens to tuck neatly into hidden compartments.
With advanced firebox technology, It is created with an angled interior and engineered air channels to optimize heat distribution. This design directs more heat into your room while using less fuel. Its vent-free operation provides an efficient heating option without requiring a chimney or venting system.
Features:
- Circulating Firebox with Clean Face: Offers a streamlined and polished look, UL Listed for safety and performance.
- Multi-Sided Design: Enhances the view of the fire from multiple angles. Note: Log sets are not included and must be ordered separately.
- Extra-Large Viewing Area: Provides a clear and expansive view of the flames for maximum ambiance.
- Hide-Away Screen Pockets: Discreetly store screens out of sight when not in use.
- Flush Hearth Design: Creates a seamless transition with your flooring for a refined appearance.
- Black Hood: Complements the firebox design and provides an elegant finishing touch.
- Stacked Refractory Firebrick: Enhances the firebox's durability and mimics traditional masonry styling.
- Mesh Curtain Screens: Adds a layer of protection while maintaining an open, unobstructed view of the fire.
Specifications:
- Unit Dimensions: 45" W x 24" D x 37-1/4" H
- Hearth Dimensions: 33-1/2" W x 19" D x 27-3/4" H (Front)
- Viewing Area: 36" x 30-3/4" (each side)
**For more detailed specifications, please visit the Tech Specs tab.
**For detailed information and documents, please visit the Downloads tab where you'll find PDFs and additional resources available for download.
SOMETHING TO CONSIDER BEFORE YOU PURCHASE A VENT FREE APPLIANCE:
Vent-Free sets are supplemental zone heaters - They are not intended for continuous use or whole house heating.
Glass doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety controls. With adequate combustion and ventilation air, the damper may be closed for vent-free use. The damper may be opened slightly for reduced venting.
Check local codes and ordinances for permitted uses.
- In Most Cases, Vent Free Appliances Are NOT Approved For Bedrooms Or Bathrooms.
- Select States And/Or Counties Within States May Not Allow Installation Of Vent Free Products.
- This includes but is not limited to: California, Minnesota, Wisconsin.
- Other states may have local restrictions such as Arizona, Nevada, Idaho, Alaska, Wyoming, New Mexico, North Dakota and South Dakota. Please check local codes before purchasing a Vent Free Appliance.
- Vent free Products Are Not Suitable For People With Allergies Or Breathing Problems
Technical Specifications:

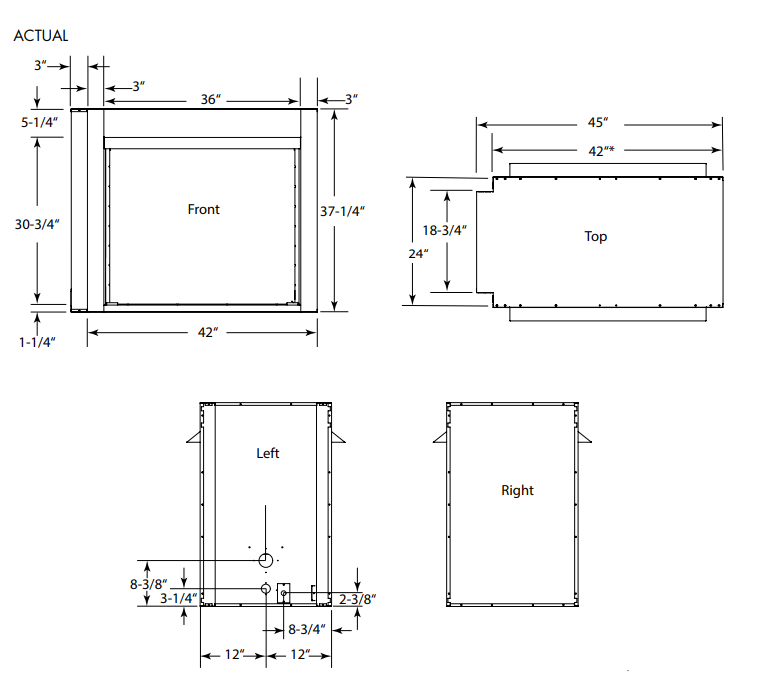

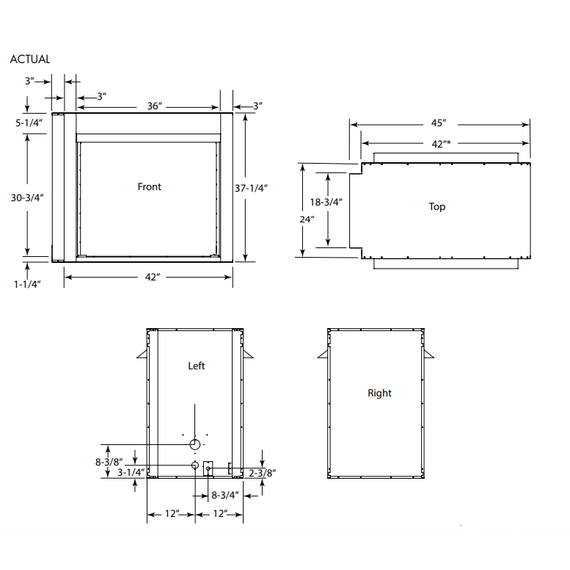

Firebox Dimension:
- Model: LSTF36-B
- Front Width:
- Actual: 45"
- Framing: 46"
- Height:
- Actual: 37-1/4"
- Framing: 37-1/2"
- Depth:
- Actual: 24"
- Framing: 23"
- Viewing Area: 36" x 30-3/4"

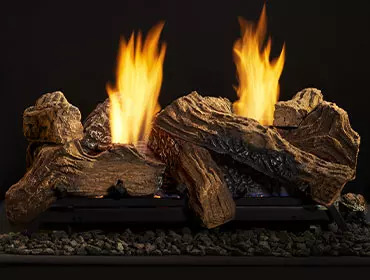

Gas Log Set:
A. Appliance Certification
- Model: NBST27NV-B, NBST27PV-B
- Laboratory: CSA
- Type: Unvented Room Heater
- Standard:
- ANSI Z21.11.2-19 Gas-fired Unvented Room Heaters
- ANSI Z21.60-2017 - CSA 2.26-2017 Decorative Gas Appliances for Installation in Solid-Fuel Burning Fireplaces
- Notice: Must conform with local codes. If no local codes exist, comply with the National Fuel Gas Code, ANSI Z223.1 in the USA.
- Disclaimer:
- Not Intended for Use as a Primary Heat Source. Tested as a supplemental or decorative appliance.
B. BTU Specifications and Weights
- Models: NBST27NV-B:
- Maximum Input BTUH: 39,000
- Minimum Input BTUH: 26,000
- Orifice Size: 3.20 mm
- Weight: 38 lbs
- NBST27PV-B:
- Maximum Input BTUH: 39,000
- Minimum Input BTUH: 30,000
- Orifice Size: #48
- Weight: 38 lbs
- Gas Pressures:
- Natural Gas:
- Inlet Minimum: 5.0” w.c.
- Inlet Maximum: 10.5” w.c.
- Gas Valve Manifold: 3.5” w.c.
- Pilot Regulator: 3.5” w.c.
- Propane (LP):
- Inlet Minimum: 11.0” w.c.
- Inlet Maximum: 13.0” w.c.
- Gas Valve Manifold: 10” w.c.
- Natural Gas:
- Additional Specifications
- Natural Gas:
- External regulator required to reduce supply pressure to a max of 10-1/2” w.c.
- Propane/LPG:
- External regulator required to reduce supply pressure to a max of 13” w.c.
- Millivolt Ignition Controls
- Piezo Ignitor: Ignites pilot without matches or batteries.
- Control Options:
- OFF: Shuts off gas logs at valve.
- IGN: Ignites/maintains a standing pilot.
- ON: Turns ON/OFF gas log set with remote/thermostat.
- LOW/HI: Adjusts flame height (heat output).
- Safety Features
- Pilot/ODS:
- Oxygen Depletion Sensor automatically shuts gas log heater off if oxygen drops.
- Pilot can be relit after fresh air is available.
- Thermal Generator:
- Millivolt gas log pilot includes a thermopile generator for remote activation.
C. High Altitude Installations
- Notice: Rules vary depending on gas utilities or authorities.
- Adjustment: Above 2000 ft, reduce input rate by 4% per 1000 ft.
D. Non-Combustible Materials Specification
- Approved Materials:
- Steel, iron, brick, tile, concrete, slate, glass, or combinations thereof.
- Test Standard:
- Materials tested to ASTM E 136 with a Vertical Tube Furnace at 750°C are considered non-combustible.
Downloads:
Firebox:
- Product Brochure
- Lo-Rider See-through Installation Manual
- Lo-Rider 36" See-through Service Parts
- Lo-Rider 36" See-through Spec Sheet
- Product Warranty
Gas Log Set:
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
