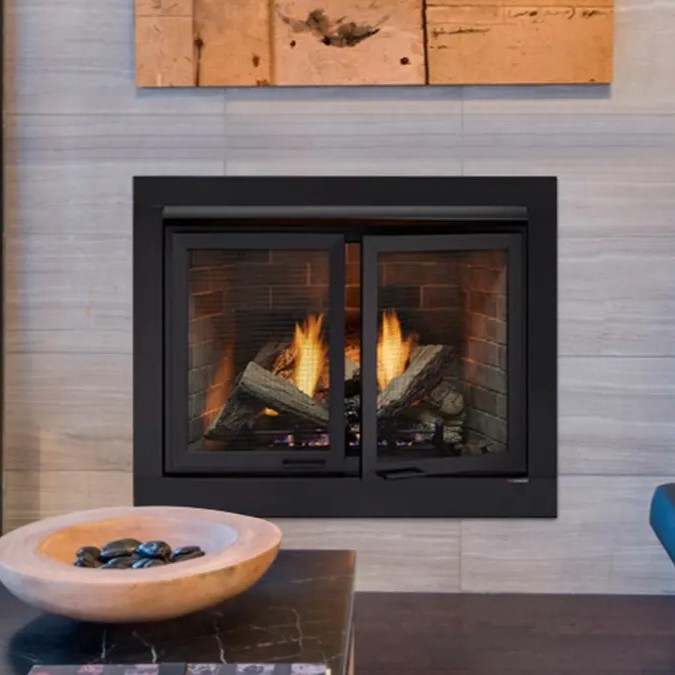

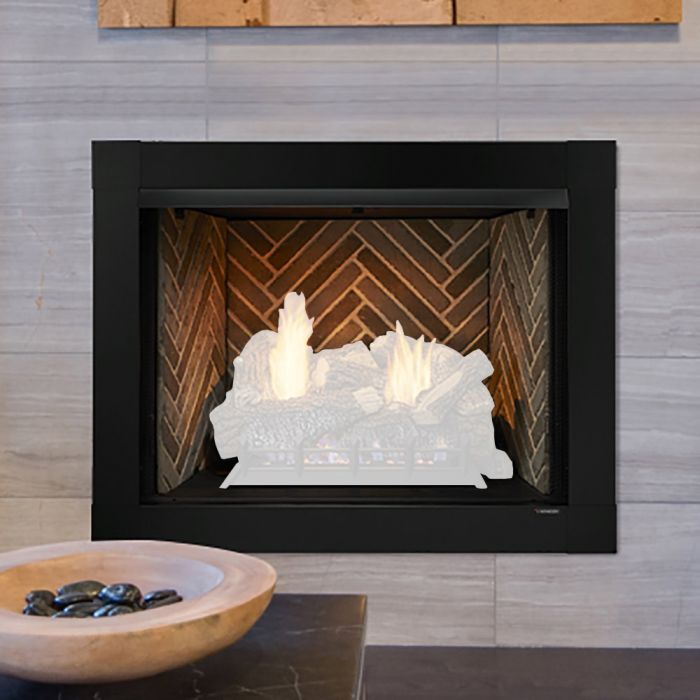

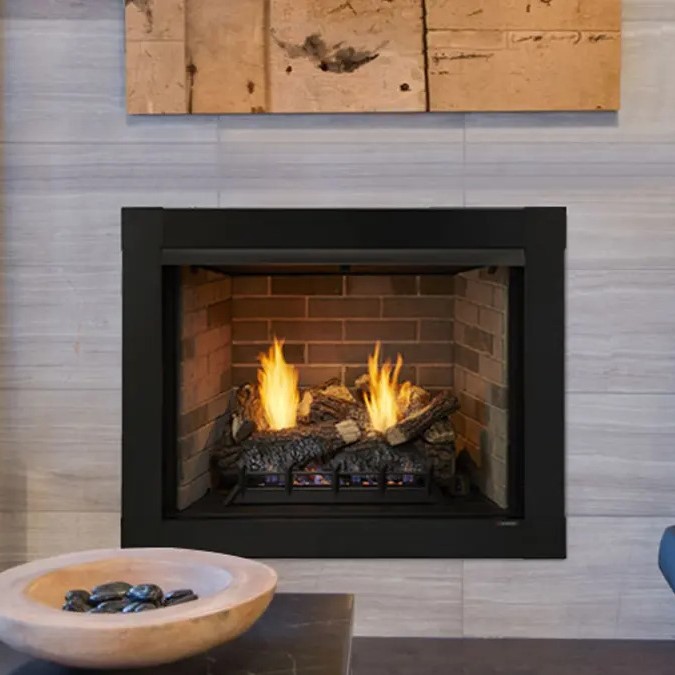

Monessen Attribute 36" Vent Free Circulating Firebox
The Monessen Attribute 36" Ventless Firebox is designed to provide both functionality and aesthetic appeal. Its versatile design includes reversible interior panels with two aesthetic options on a single panel, which allows for customization so it can match your style. You can choose from trendy gray, classic brown, or a modern reflective black glass finish.
Monessen fireboxes are designed with a smart shape and air channels that spread heat evenly. Attribute makes your room warmer, wastes less energy, and uses less fuel.

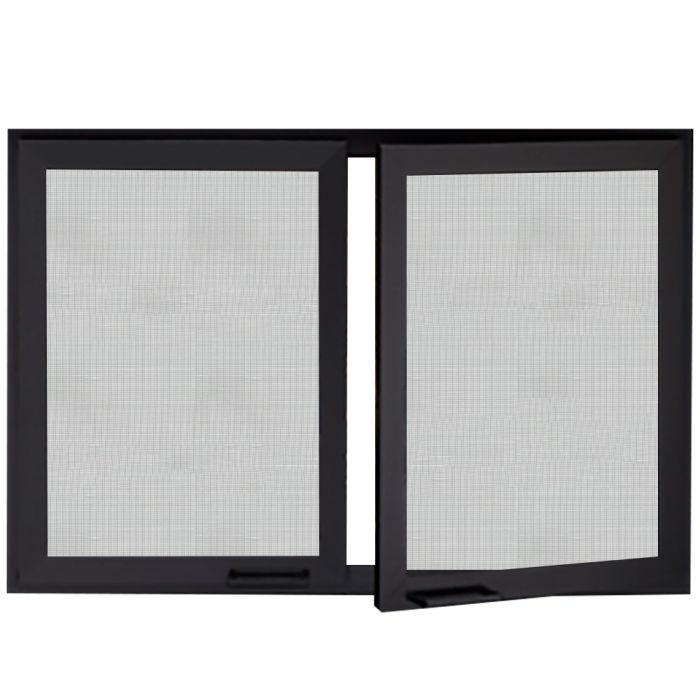

The firebox is equipped with hideaway screen pockets, allowing the mesh screens to be tucked into concealed compartments for an unobstructed view of the fire when desired.
Ventless technology makes this firebox a great choice for places where you can't use traditional vents. It provides extra heat, is easy to install, saves money, and works well. The firebox meets safety and performance standards (UL certification ANSI Z221.91.A2002). It also has helpful features like a built-in junction box and hood.
Maintenance is quite simple with Monessen's exclusive two-piece hearth, allowing easy access without removing the log set.
The generous viewing area of 36" W x 27" H provides a wide display of the fire, it adds to the ambiance of the room. With framing dimensions of 42-1/2" W x 34-1/4" H x 19-3/4" D, the firebox is adaptable to various installation settings while maintaining its efficient and stylish design.
Features:
- Circulating firebox with radiant clean face
- UL design certified to ANSI Z221.91.A2002
- Features mesh screens with hide-away screen pockets, hood, and junction box
- Monessen exclusive two-piece hearth for easy access without removing log

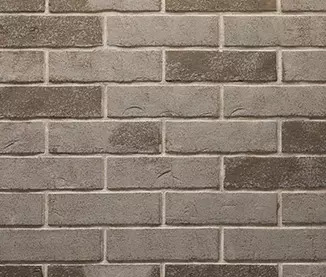

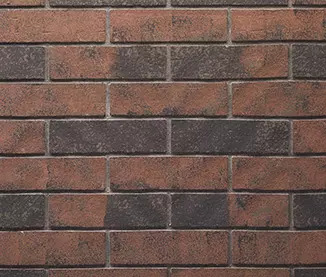

- Proprietary Reversible Interior Panels standard, 2 aesthetics on 1 panel
Venting:
Insulated Flex Duct – Chimney Air Kits/Flex Duct
Used for bringing in outside air with insulation to improve thermal efficiency.
- ID4: 4" (100mm) Insulated Flex Duct for Outside Air
- Includes two 42" (1065mm) sections.
- For providing insulated air supply for combustion systems.
Outside Air Kit
Provides a complete solution for bringing in outside combustion air with an access door.
- AKD: Outside Combustion Air Kit with Access Door
- For easy access and controlled delivery of outside air to the combustion chamber.
Uninsulated Flex Duct – Chimney Air Kits/Flex Duct
For bringing in outside air without insulation.
- UD4: 4" (100mm) Uninsulated Flex Duct for Outside Air
- Includes two 42" (1065mm) sections.
- For providing outside air supply in settings where insulation is not required.

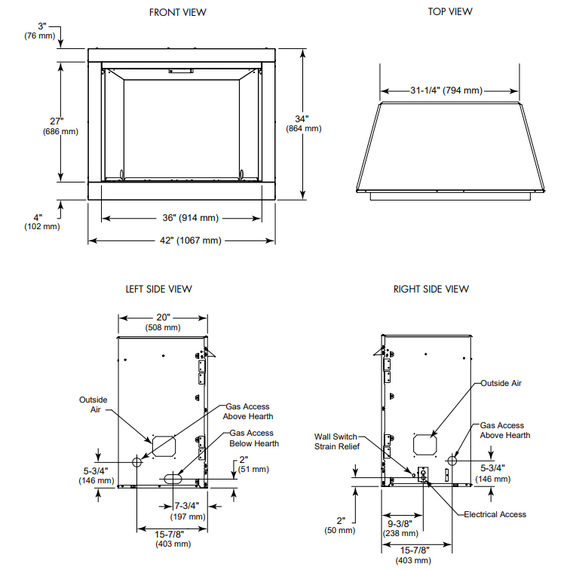

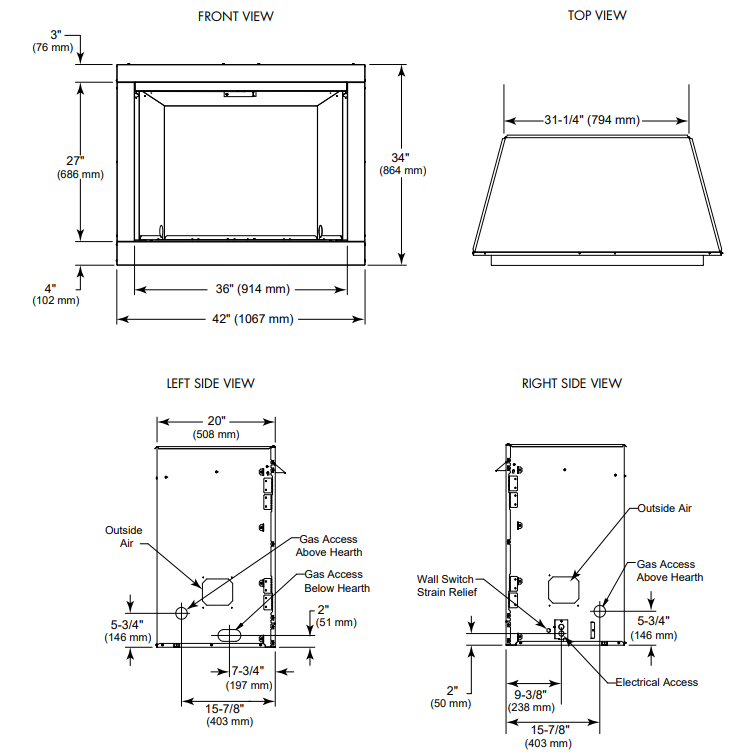

Specifications:
- Unit Dimensions: 42" W x 20" D x 34" H
- Back Width: 31-1/4"
- Hearth Dimensions:
- Front Height: 25-1/2"
- Depth: 15"
- Rear Width: 24-3/8"
- Rear Height: 22-5/8"
- Viewing Area: 36" x 27" (972 sq in)
**For more detailed specifications, please visit the Tech Specs tab.
**For detailed information and documents, please visit the Downloads tab where you'll find PDFs and additional resources available for download.
SOMETHING TO CONSIDER BEFORE YOU PURCHASE A VENT FREE APPLIANCE:
Vent-Free sets are supplemental zone heaters - They are not intended for continuous use or whole house heating.
Glass doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety controls. With adequate combustion and ventilation air, the damper may be closed for vent-free use. The damper may be opened slightly for reduced venting.
Check local codes and ordinances for permitted uses.
- In Most Cases, Vent Free Appliances Are NOT Approved For Bedrooms Or Bathrooms.
- Select States And/Or Counties Within States May Not Allow Installation Of Vent Free Products.
- This includes but is not limited to: California, Minnesota, Wisconsin.
- Other states may have local restrictions such as Arizona, Nevada, Idaho, Alaska, Wyoming, New Mexico, North Dakota and South Dakota. Please check local codes before purchasing a Vent Free Appliance.
- Vent free Products Are Not Suitable For People With Allergies Or Breathing Problems
Technical Specifications:
A. Firebox Certification
- Models: ACUF32-BD, ACUF32-GD, ACUF36-BD, ACUF36-GD, ACUF42-BD, ACUF42-GD.
- Laboratory: Underwriters Laboratories, Inc. (UL).
- Type: Ventless Gas Firebox Enclosures for Gas-Fired Unvented Gas Log Type Room Heaters.
- Standard: CSA/ANSI-Z21.91:20.
- Compliance: Must meet local codes; in the absence of local codes, follow ANSI Z223.1/NFPA 54.
- Alarms: Install smoke, CO, or combination alarms 15-20 ft laterally from fuel-burning sources to reduce nuisance alarms.
- Usage: Not intended for primary heat source; approved for supplemental or decorative use.
B. BTU Specifications
- Applicable Use: Only for listed decorative "Gas-Fired Unvented Room Heaters."
- Models and Max BTU/hr:
- ACUF32-BD/GD: 40,000 (0–2,000 ft altitude).
- ACUF36-BD/GD: 40,000 (0–2,000 ft altitude).
- ACUF42-BD/GD: 40,000 (0–2,000 ft altitude).
C. High Altitude Installations
- Guidelines:
- Heating value adjustment required above 2,000 ft elevation.
- Reduce input rate by 4% for every 1,000 ft above 2,000 ft (USA).
- Consultation: Check with local gas utility for guidance.
D. Non-Combustible Materials Specification
- Definition: Materials that will not ignite or burn (e.g., steel, iron, brick, tile, concrete, slate, glass, or combinations).
- Testing Standard: ASTM E 136 - Vertical Tube Furnace at 750 °C.
- Non-Combustibles: Materials passing this test are considered non-combustible.
E. Combustible Materials Specification
- Definition: Materials that ignite and burn (e.g., wood, compressed paper, plastics) regardless of finishing or plastering.
F. Electrical Codes
- Requirement: Must be electrically wired and grounded per local codes or the National Electric Code (ANSI/NFPA 70-latest edition).
Warnings and Notices
- Warning: Operating fuels (natural gas, propane) and combustion products may expose users to chemicals like benzene, known to cause cancer and reproductive harm (California Proposition 65 Warning).
- Additional Note: Refer to local codes and product guidelines for safe use.
