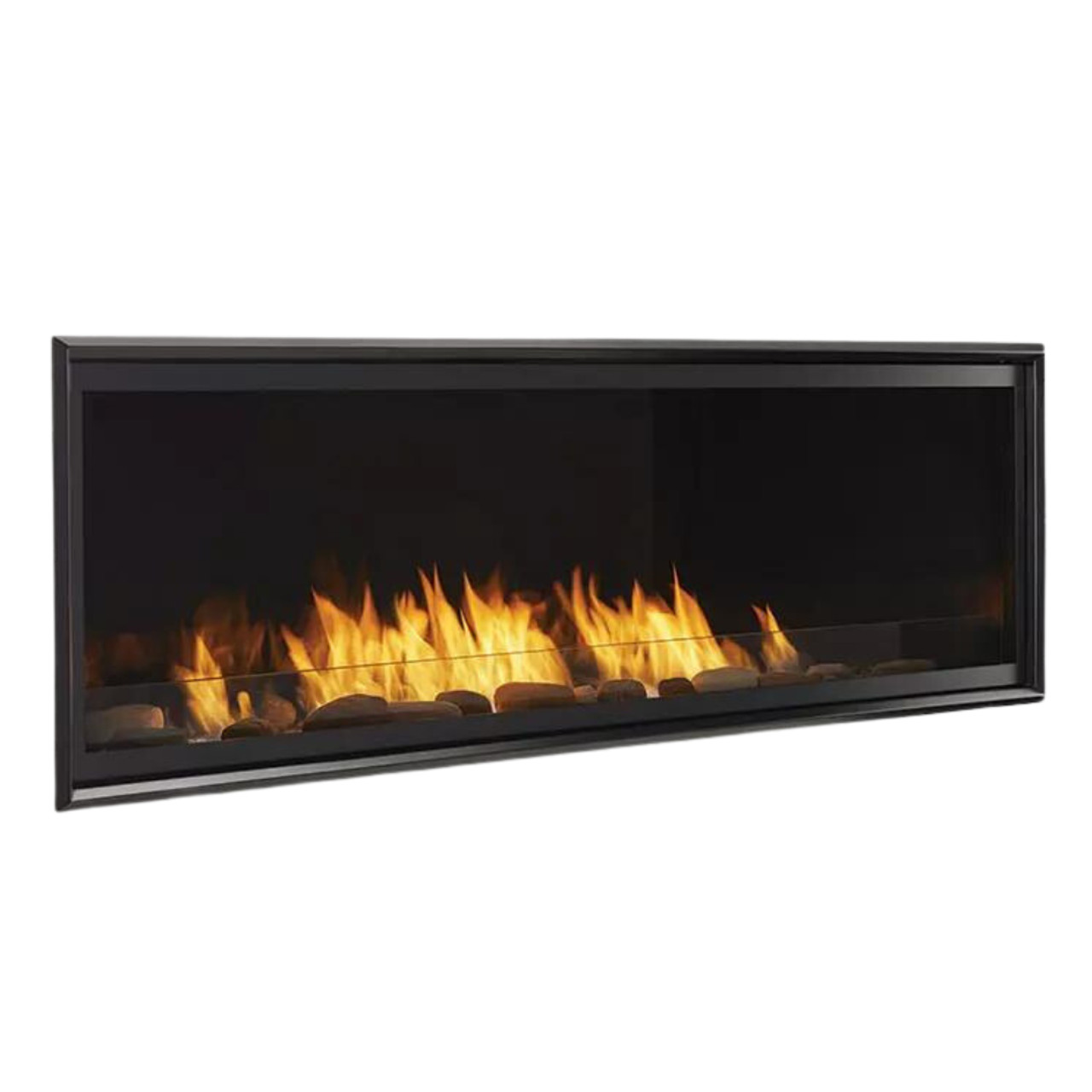

48 Inches Artisan Linear Vent Free Gas Fireplace by Monessen

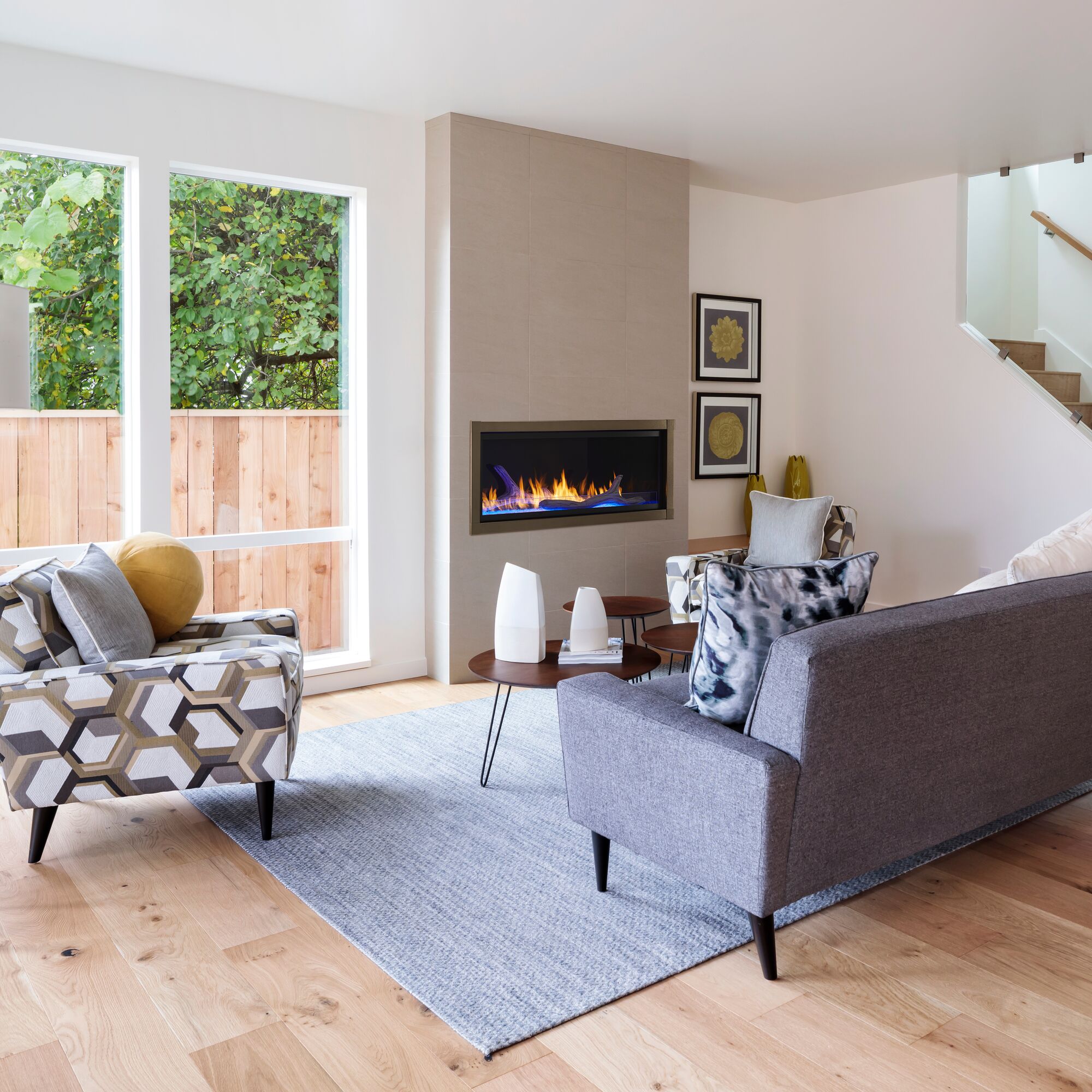

Get ready to have your home's atmosphere and comfort raised to new heights with the help of the Monessen Artisan 48" Linear Ventless Fireplace. This Artisan fireplace, with its sleek modern design, is a great way to update your home's aesthetic. The linear, modern design is one of its defining characteristics, lending an air of refinement to your space and working in harmony with the magnificent flame display. The firebox is embellished with superb diamond and sapphire fire glass, providing a spectacular visual presentation that will wow your visitors and family. Careful placement of accent lighting improves the room's mood by casting a warm, welcoming light. This fireplace features a cutting-edge remote-controlled ignition system, which offers unparalleled convenience.
The Artisan fireplace stands out due to the high degree of personalization it offers. With various available accessories, you may design a surround display that is the right fit for your home. The fireplace can be customized to your preferences with various available add-ons. These supplementary items are available for purchase individually. The vent-free construction of the Artisan fireplace makes set up a breeze. However, it is crucial to be aware that some municipal building laws may limit the installation of vent-free fireplaces. The Artisan fireplace is 99.9 percent efficient, making it a great choice in addition to its other positive qualities. For the environmentally and economically conscientious homeowner, this means it not only improves the coziness of your home but also helps you save on energy bills.
IGNITION CONTROLS:

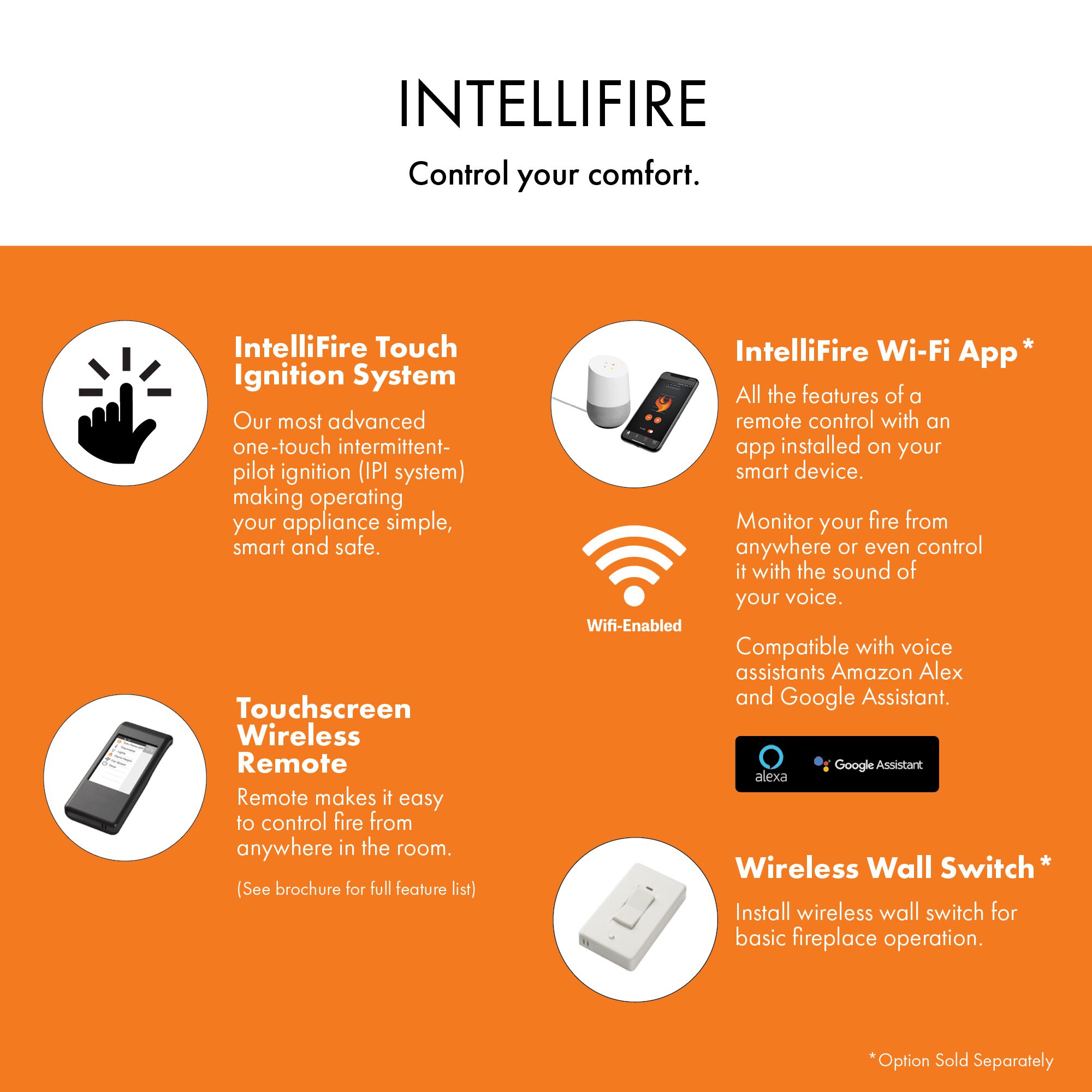

- Intermittent Pilot Ignition (IPI): Efficient gas ignition. Sparks/glow plug lights pilot gas as needed. Saves energy, used in modern gas devices.
Features:
- Thermostat, light, and on/off switches are all within easy reach with a multi-purpose remote
- Color-changing LEDs for the Fireplace produce a steady stream of colors or a single color with a lot of contrast.
- Optional Accesories Available.

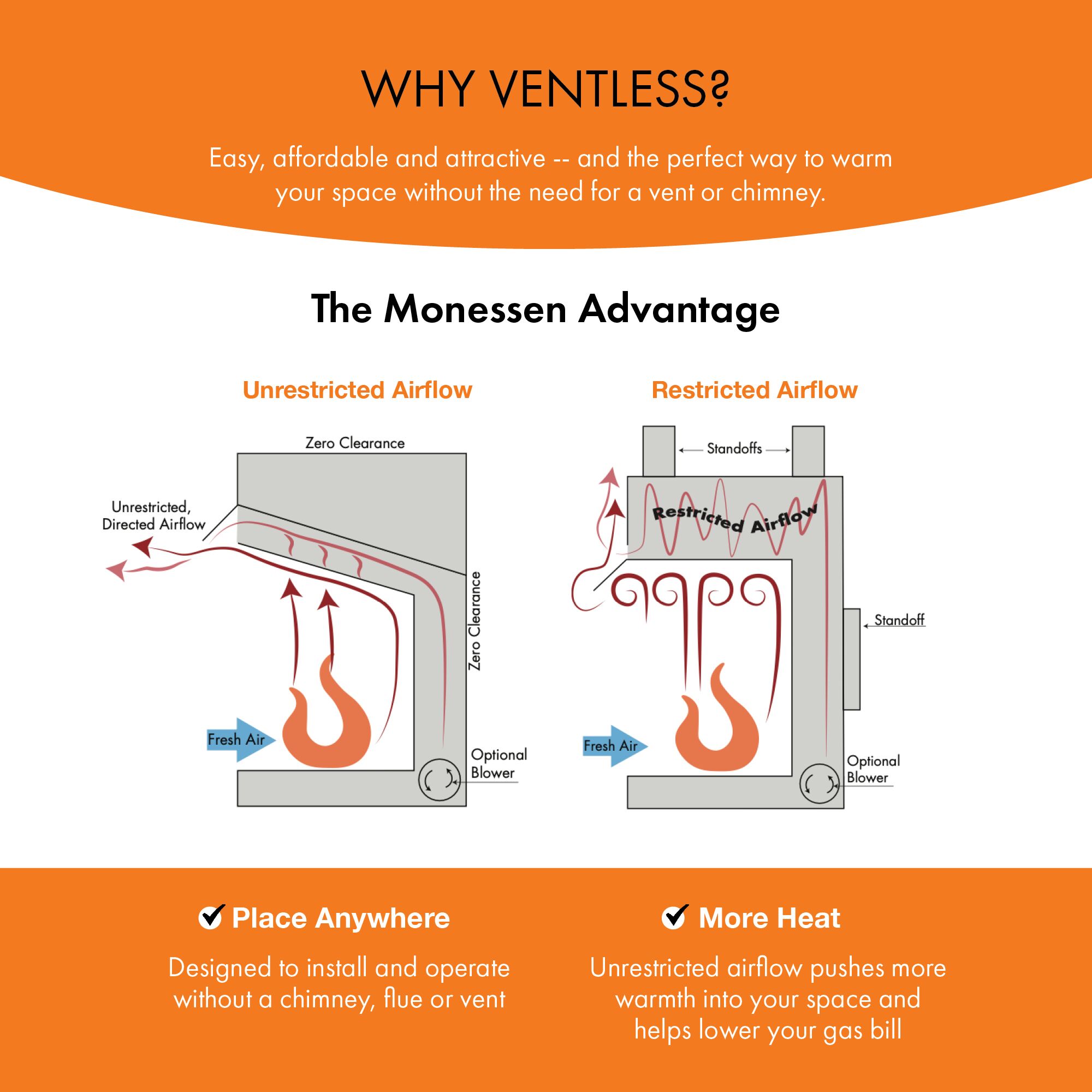

- The ventless design simplifies installation.
- Sleek linear design has a contemporary appeal.
Specifications:
- Fuel Type: Natural Gas and Liquid Propane

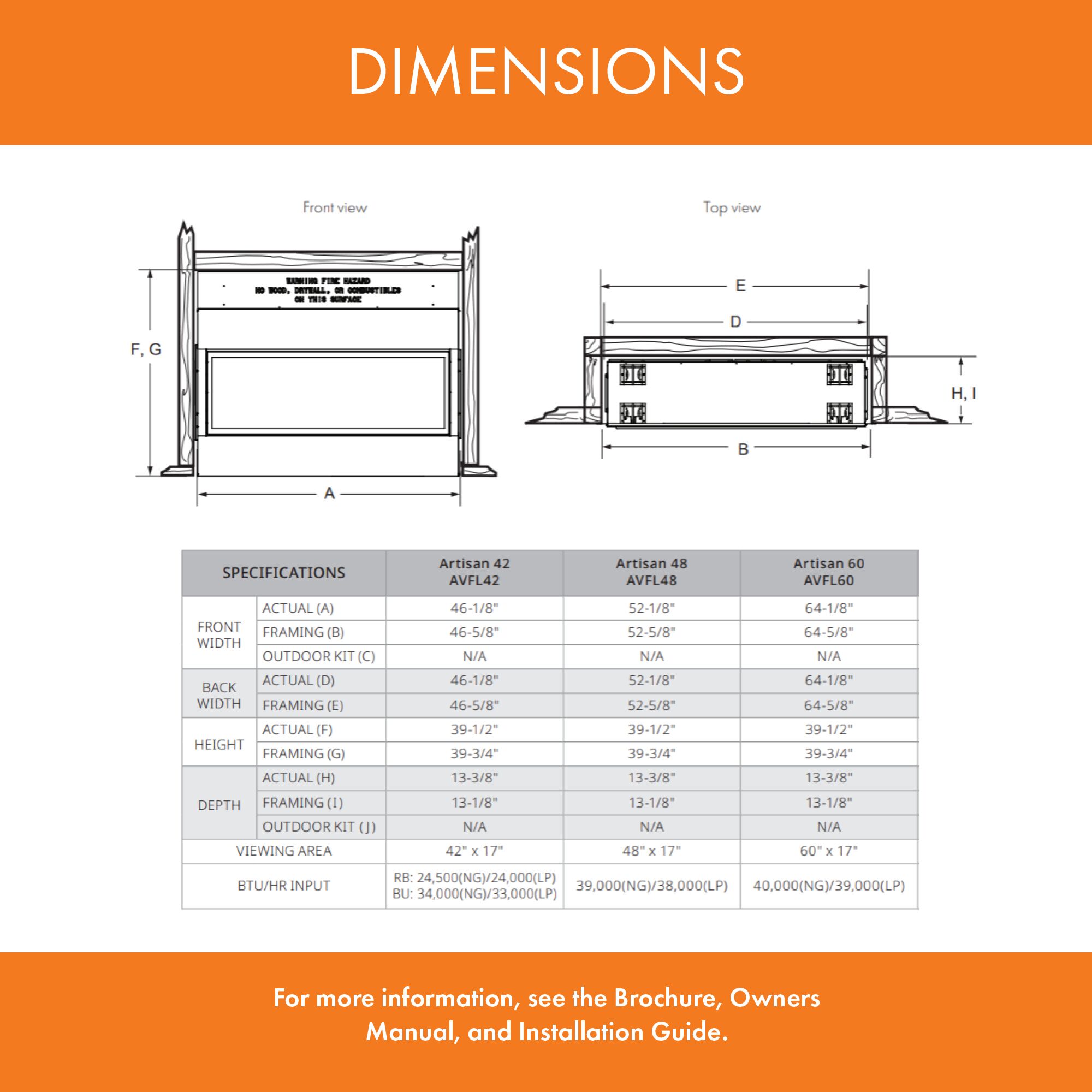

- Framing: 52 5/8”W x 39 3/4”H x 13 1/8”D
- Viewing Area: 48” x 17”
- BTU/hr Input: Up to 39,000 BTUs (NG) and 38,000 BTUs (LP)
- Certification: CSA design certified
**For more detailed specifications, please visit the Tech Specs tab.
**For detailed information and documents, please visit the Downloads tab where you'll find PDFs and additional resources available for download.
SOMETHING TO CONSIDER BEFORE YOU PURCHASE A VENT FREE APPLIANCE:
Vent-Free sets are supplemental zone heaters - They are not intended for continuous use or whole house heating.
Glass doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety controls. With adequate combustion and ventilation air, the damper may be closed for vent-free use. The damper may be opened slightly for reduced venting.
Check local codes and ordinances for permitted uses.
- In Most Cases, Vent Free Appliances Are NOT Approved For Bedrooms Or Bathrooms.
- Select States And/Or Counties Within States May Not Allow Installation Of Vent Free Products.
- This includes but is not limited to: California, Minnesota, Wisconsin.
- Other states may have local restrictions such as Arizona, Nevada, Idaho, Alaska, Wyoming, New Mexico, North Dakota and South Dakota. Please check local codes before purchasing a Vent Free Appliance.
- Vent free Products Are Not Suitable For People With Allergies Or Breathing Problems
Technical Specifications:
A. Appliance Certification
- Models:
- AVFL42NIP-BU, AVFL42PIP-BU, AVFL42NIP-RB, AVFL42PIP-RB, AVFL48NIP, AVFL48PIP, AVFLST48NIP, AVFLST48PIP, AVFL60NIP-B, AVFL60PIP-B
- Laboratory: Underwriters Laboratories, Inc. (UL)
- Type: Unvented Room Heaters
- Standard: ANSI Z21.11.2:19
- Notice:
- Tested to ANSI standards for "Unvented Room Heaters" and sections of "Gas Burning Heating Appliances for Manufactured Homes" and "Gas Fired Appliances for Use at High Altitude."
- Compliance with local codes required; if no local codes, follow the National Fuel Gas Code, ANSI Z223.1-latest edition (U.S.A.).
- Warning: Not for primary heat source use.
B. BTU Specifications
- AVFL42NIP-BU (NG):
- Minimum Input BTU: 31,000
- Maximum Input BTU: 23,500
- Orifice Size: .110 (#34)
- AVFL42PIP-BU (PROPANE):
- Minimum Input BTU: 33,000
- Maximum Input BTU: 26,000
- Orifice Size: .070 (#50)
- AVFL42NIP-RB (NG):
- Minimum Input BTU: 31,000
- Maximum Input BTU: 24,500
- Orifice Size: .110 (#34)
- AVFL42PIP-RB (PROPANE):
- Minimum Input BTU: 33,000
- Maximum Input BTU: 26,000
- Orifice Size: .070 (#50)
- AVFL48NIP (NG):
- Minimum Input BTU: 31,000
- Maximum Input BTU: 30,000
- Orifice Size: .110 (#34)
- AVFL48PIP (PROPANE):
- Minimum Input BTU: 31,000
- Maximum Input BTU: 31,000
- Orifice Size: .070 (#50)
- AVFLST48NIP (NG):
- Minimum Input BTU: 39,000
- Maximum Input BTU: 32,000
- Orifice Size: .110 (#34)
- AVFLST48PIP (PROPANE):
- Minimum Input BTU: 39,000
- Maximum Input BTU: 32,000
- Orifice Size: .070 (#50)
- AVFL60NIP-B (NG):
- Minimum Input BTU: 40,000
- Maximum Input BTU: 40,000
- Orifice Size: .106 (#35)
- AVFL60PIP-B (PROPANE):
- Minimum Input BTU: 40,000
- Maximum Input BTU: 40,000
- Orifice Size: .067 (#51)
Note: LP models require an external regulator for supply pressure reduction to 13" w.c.
C. Gas Pressures
- Natural Gas (NG):
- Inlet Minimum: 5.0" w.c.
- Inlet Maximum: 10.0" w.c.
- Regulator Pressure Setting: 3.5" w.c.
- Pilot Regulator: 3.5" w.c.
- Propane (LP):
- Inlet Minimum: 11.0" w.c.
- Inlet Maximum: 13.0" w.c.
- Regulator Pressure Setting: 10.0" w.c.
- Pilot Regulator: 3.5" w.c.
D. High Altitude Installations
- Notice:
- If the heating value of the gas is reduced, follow local jurisdiction rules.
- For elevations above 2000 feet, reduce input by 4% for every 1000 feet above 2000 feet.
E. Non-Combustible Materials Specification
- Materials:
- It must not ignite or burn.
- Includes materials like steel, iron, brick, tile, concrete, slate, glass, or plaster.
- Materials passing ASTM E 136 (Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750°C) will be considered non-combustible.
F. Combustible Materials Specification
- Materials:
- Must be capable of igniting or burning, such as wood, compressed paper, plant fibers, plastics, or other materials that can ignite and burn.
- Includes plastered or unplastered surfaces.
G. Electrical Codes
- Notice:
- Must be electrically wired and grounded according to local codes or, in the absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition or Canadian Electric Code CSA C22.1.
- Specific Requirements:
- A 110-120 VAC circuit should be used, protected with ground-fault circuit interrupter protection, especially when installed in bathrooms or near sinks.
H. Warning
- Warning:
- This product and the fuels used to operate it (liquid propane or natural gas), and the products of combustion of such fuels, may expose you to chemicals, including benzene, which is known to the State of California to cause cancer and reproductive harm.
- For more information, go to: www.P65Warnings.ca.gov.
Downloads:
- Monessen Artisan Series Gas Fireplace Brochure
- Artisan Series Gas Fireplace Manual
- Artisan Series Gas Fireplace Installation Manual
- Artisan Series Gas Fireplace Service Parts
- Artisan Series Gas Fireplace Spec Sheet
- Product Warranty
Accessory Manuals

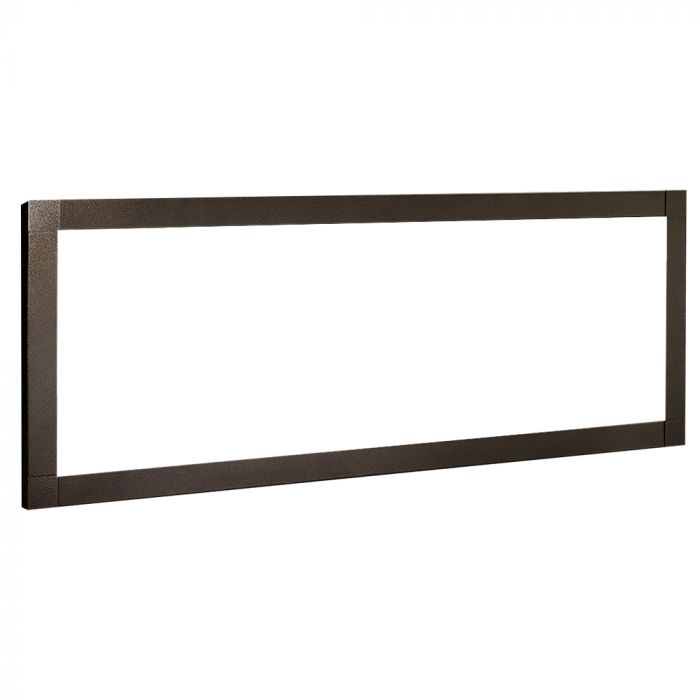

- AVFL - Contemporary Face

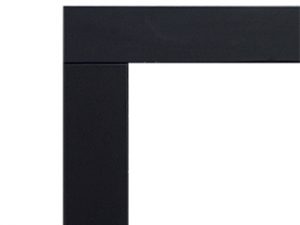

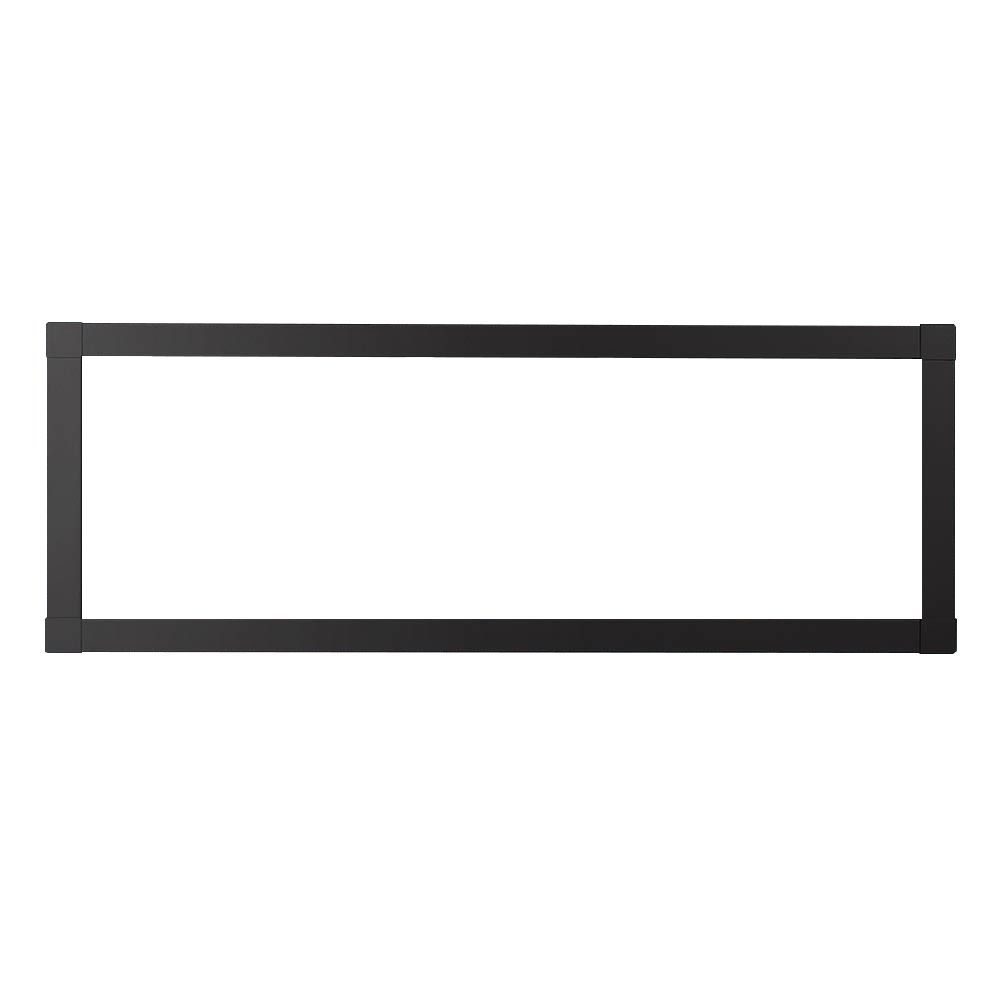

- AVFL - Trim Kit
- CDLS Log Placement
- Clean Face Non-Combustible Finish Kit
- IFT2-AVFL42LED Light Kit
- Log Placement
- Stone Placement
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
