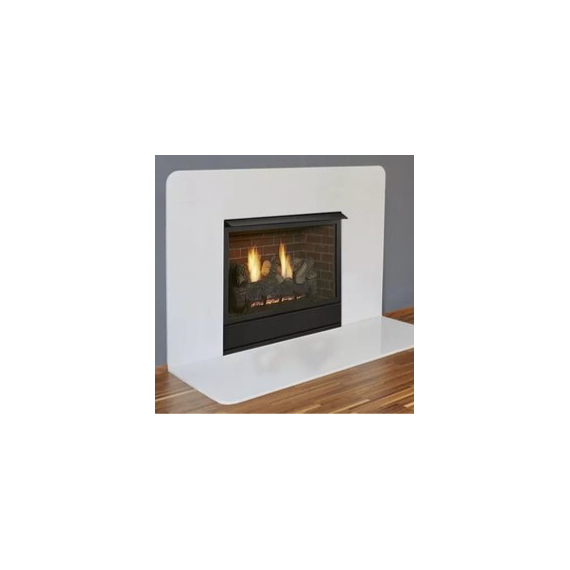

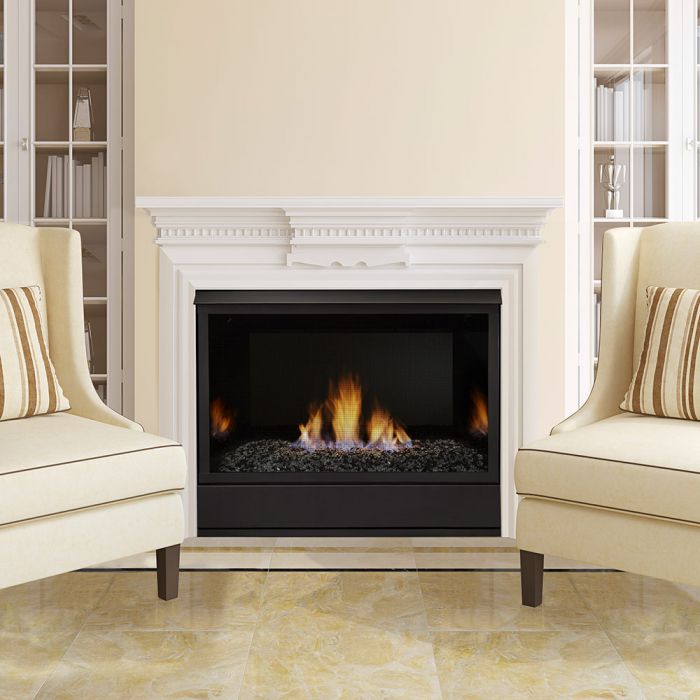

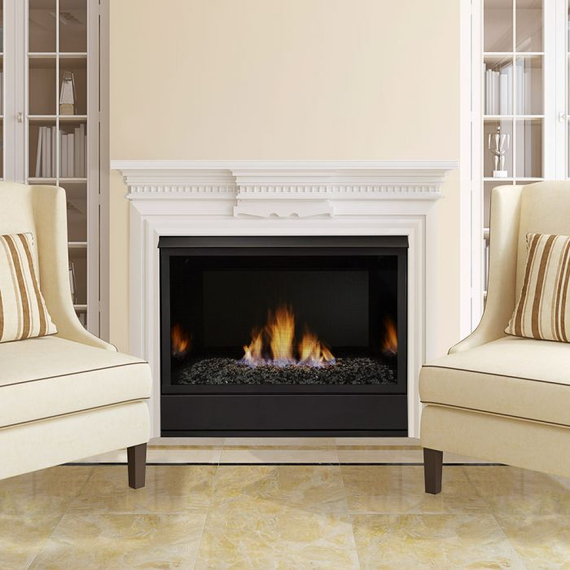

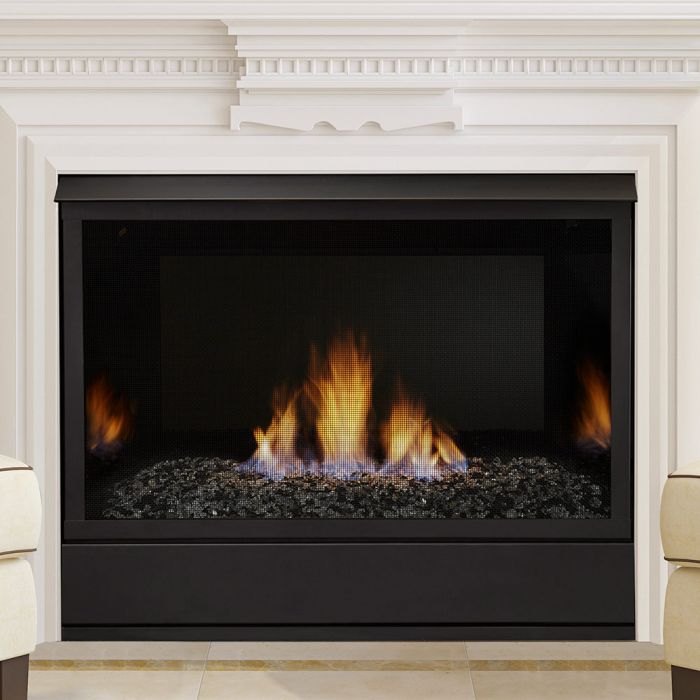

36 Inches Aria Vent Free Gas Fireplace by Monessen
The Monessen Aria 36" Ventless Gas Fireplace brings warmth and style to your home, creating a welcoming and comfortable atmosphere. Designed for efficient heating, it features bold, lively flames that draw the eye without overpowering your décor.
You can choose between millivolt or IntelliFire Plus (IPI) ignition systems, offering reliable operation to suit your preferences. The Natural Blaze Burner Technology enhances the experience, producing lifelike flames and an ember bed that replicates the look of a wood fire.
Thanks to its vent-free design, the Aria is easy to install and doesn’t require a chimney or external venting, giving you more flexibility in placement. Whether you’re updating a living room, bedroom, or other space, this fireplace provides an effective heating solution with minimal hassle.
A variety of available finishes, surrounds, and interior panel options let you tailor the fireplace to your taste. The Monessen Aria 36" Ventless Gas Fireplace combines practical functionality with a touch of elegance, making it a versatile choice for any room.
IGNITION CONTROLS:
- Millivolt ignition: This low-voltage system uses the pilot flame's heat to ignite gas without external power; if the flame goes out, gas flow stops.
- Intermittent Pilot Ignition (IPI): Efficient gas ignition. Sparks/glow plug lights pilot gas as needed. Saves energy, used in modern gas devices.
Features:
- Millivolt or IPI Control: Offers flexible control options to suit your preference.
- Natural Blaze Burner: Technology: Designed to create lively, realistic flames with an active ember bed.
- Vent-Free Technology: Efficient and affordable heating without the need for a chimney or venting system.
Specifications:
- Front Width: 41" (Actual), 41 1/4" (Framing)
- Height: 34 1/2" (Actual), 35" (Framing)
- Depth: 20 5/8" (Actual), 17 1/2" (Framing)
- Viewing Area: 36" x 21 3/4"
- BTU Input:
- Natural Gas (IPI): Max 37,000, Min 25,000
- Propane (IPI): Max 36,000, Min 28,000
- Natural Gas (Millivolt): Max 37,000, Min 25,000
- Propane (Millivolt): Max 36,000, Min 28,000
- Certification: ANSI Z223.1, NFPA54 ,ANSI Z21.11
**For more detailed specifications, please visit the Tech Specs tab.
**For detailed information and documents, please visit the Downloads tab where you'll find PDFs and additional resources available for download.
SOMETHING TO CONSIDER BEFORE YOU PURCHASE A VENT FREE APPLIANCE:
Vent-Free sets are supplemental zone heaters - They are not intended for continuous use or whole house heating.
Glass doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety controls. With adequate combustion and ventilation air, the damper may be closed for vent-free use. The damper may be opened slightly for reduced venting.
Check local codes and ordinances for permitted uses.
- In Most Cases, Vent Free Appliances Are NOT Approved For Bedrooms Or Bathrooms.
- Select States And/Or Counties Within States May Not Allow Installation Of Vent Free Products.
- This includes but is not limited to: California, Minnesota, Wisconsin.
- Other states may have local restrictions such as Arizona, Nevada, Idaho, Alaska, Wyoming, New Mexico, North Dakota and South Dakota. Please check local codes before purchasing a Vent Free Appliance.
- Vent free Products Are Not Suitable For People With Allergies Or Breathing Problems

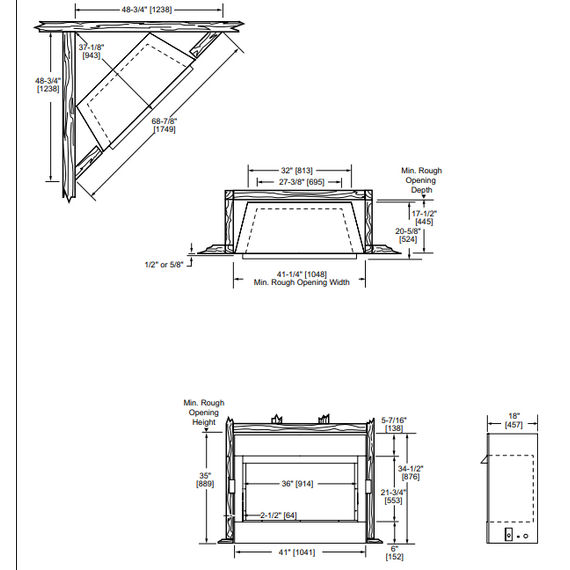

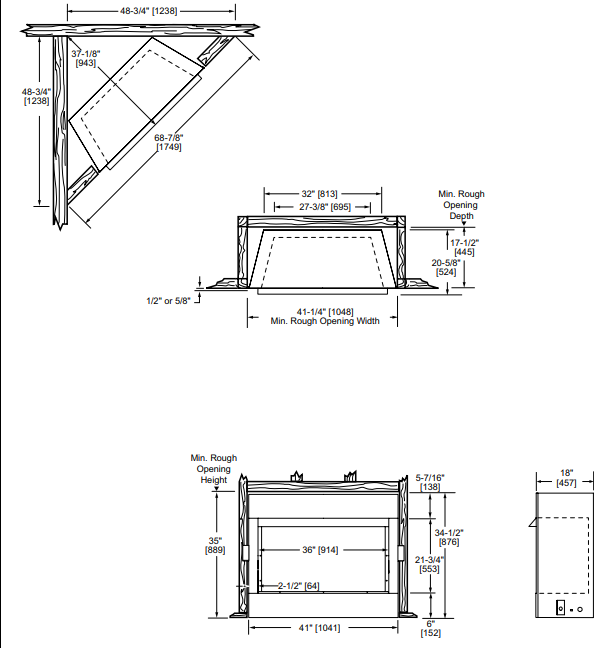

Technical Specifications:
- Model: Aria
- Fuel Type: Natural Gas, Propane
- Front Width:
- Actual: 41"
- Framing: 41 1/4"
- Back Width:
- Actual: 32"
- Framing: 41 1/4"
- Height:
- Actual: 34 1/2"
- Framing: 35"
- Depth:
- Actual: 20 5/8"
- Framing: 17 1/2"
- Viewing Area: 36" x 21 3/4"
Gas Specifications:
- Natural Gas (Millivolt and IPI):
- Regulator Pressure: 3.5" w.c.
- Pilot Regulator: 3.5" w.c.
- Max Inlet Pressure: 10.5" w.c.
- Min Inlet Pressure: 5.0" w.c.
- Propane (LP):
- Regulator Pressure: 10.0" w.c.
- Max Inlet Pressure: 13.0" w.c.
- Min Inlet Pressure: 11.0" w.c.
Burner and BTU Details:
- VFF36LNV (Natural Gas, Millivolt):
- Max BTU: 37,000
- Min BTU: 25,000
- Orifice Size: 3.00mm
- VFF36LPV (Propane, Millivolt):
- Max BTU: 36,000
- Min BTU: 28,000
- Orifice Size: #49
- VFF36LNI (Natural Gas, IPI):
- Max BTU: 37,000
- Min BTU: 25,000
- Orifice Size: 3.00mm
- VFF36LPI (Propane, IPI):
- Max BTU: 36,000
- Min BTU: 28,000
- Orifice Size: #49
Downloads:
Fireplace:
- Aria Ventless Fireplace Manual
- Aria Ventless Fireplace Brochure
- Aria 36" Ventless Fireplace Spec Sheet
- Product Warranty

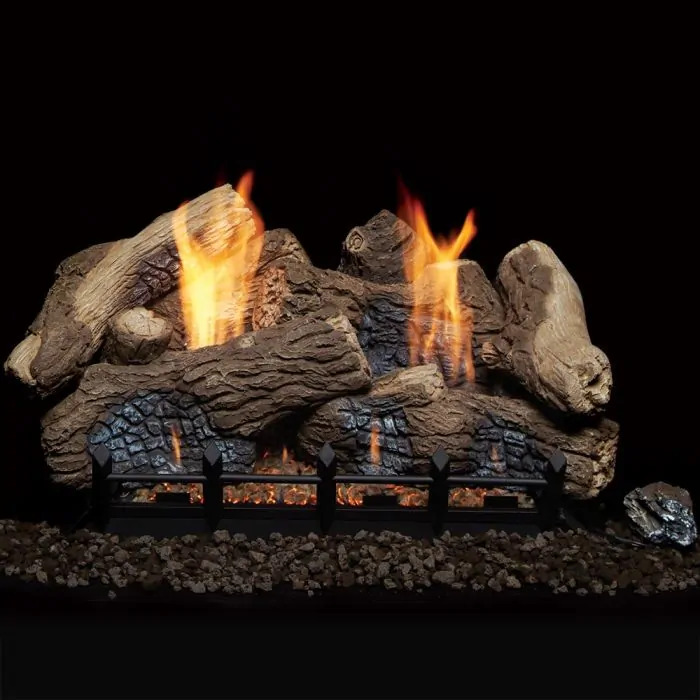

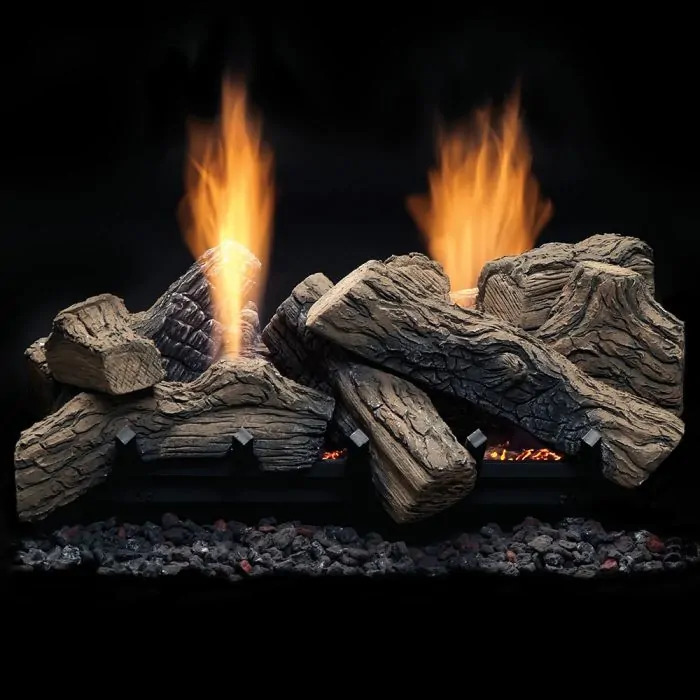

Gas Logs:

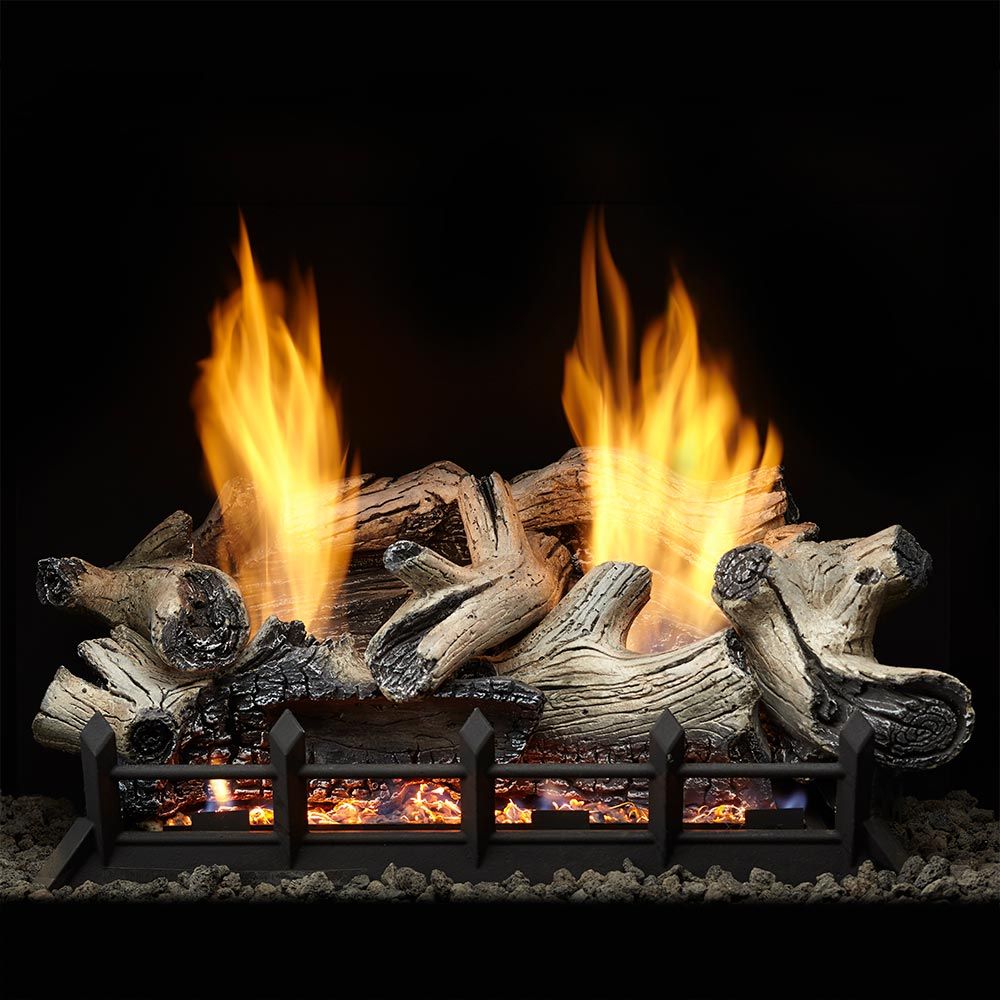

- Beachcomber 24” Service Parts
- Berkley Oak 24" Service Parts
- Highland Oaks 24" Service Parts

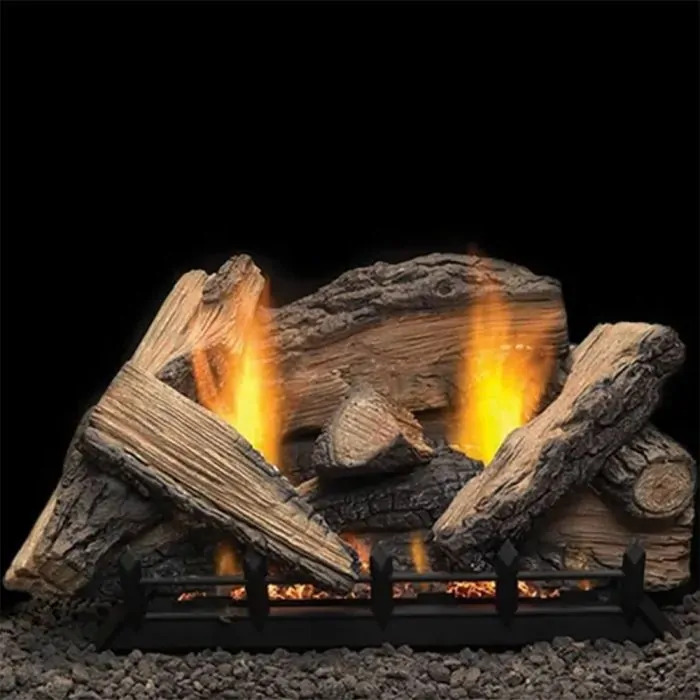

- Stony Creek 24" Service Parts
Log Placements
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
