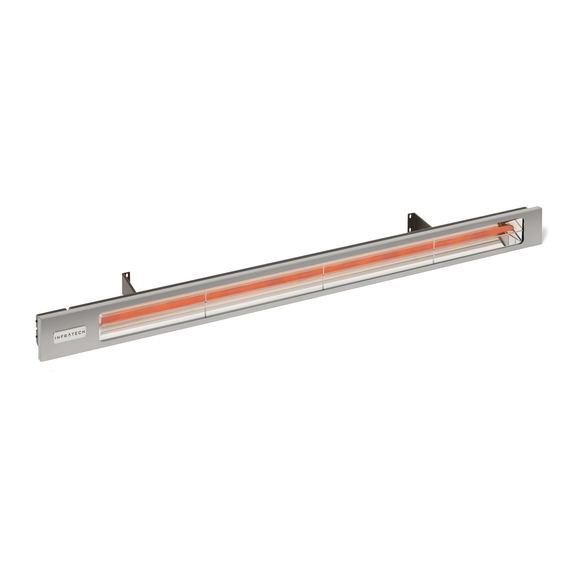

Single Element Slimline 4000 W & 240 V Heater - 63.5 Inch

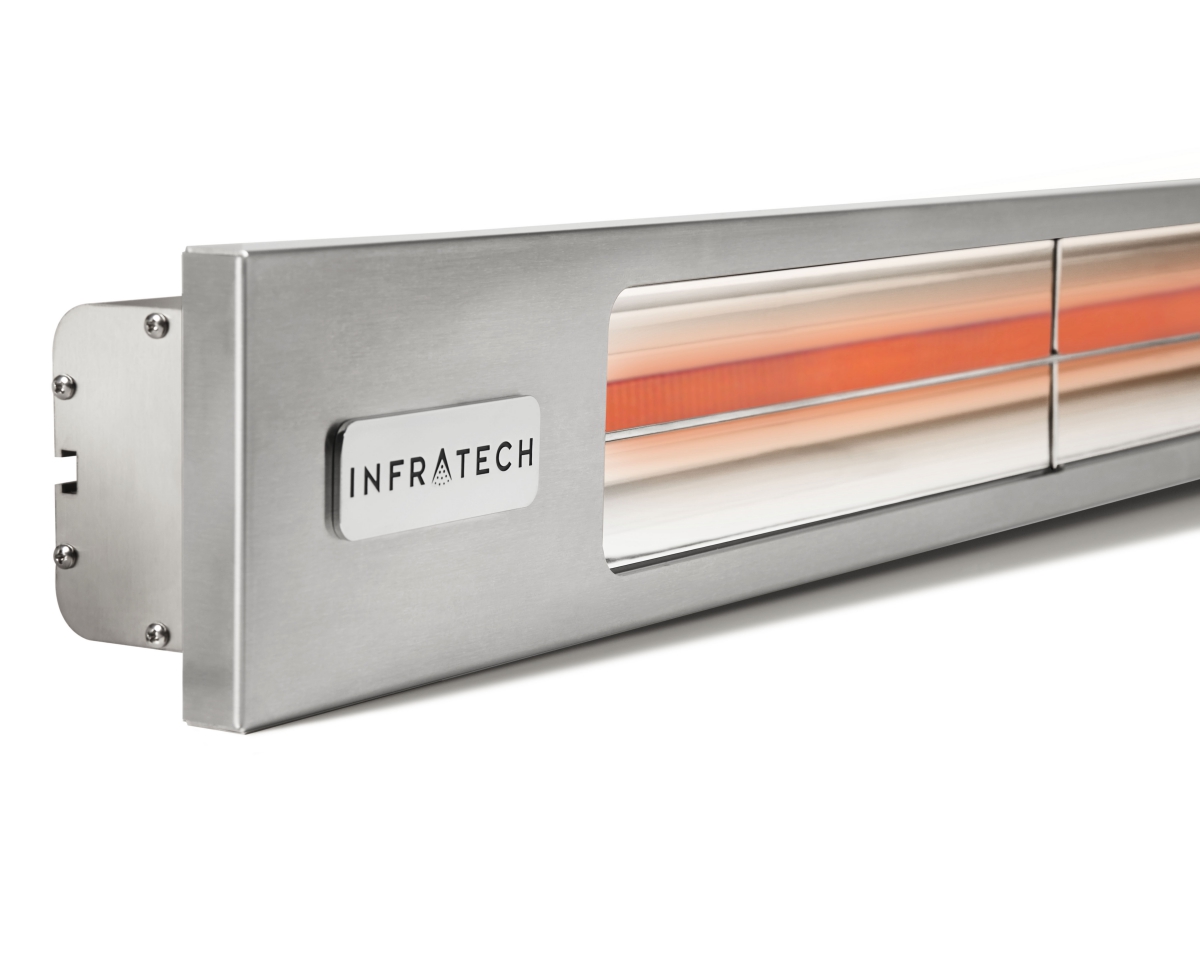

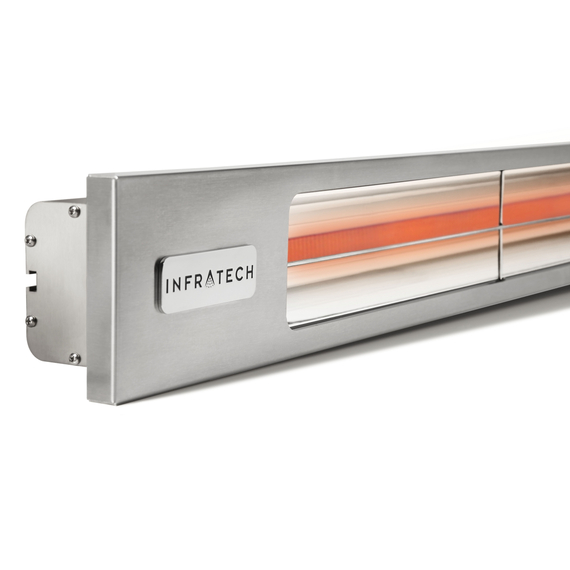

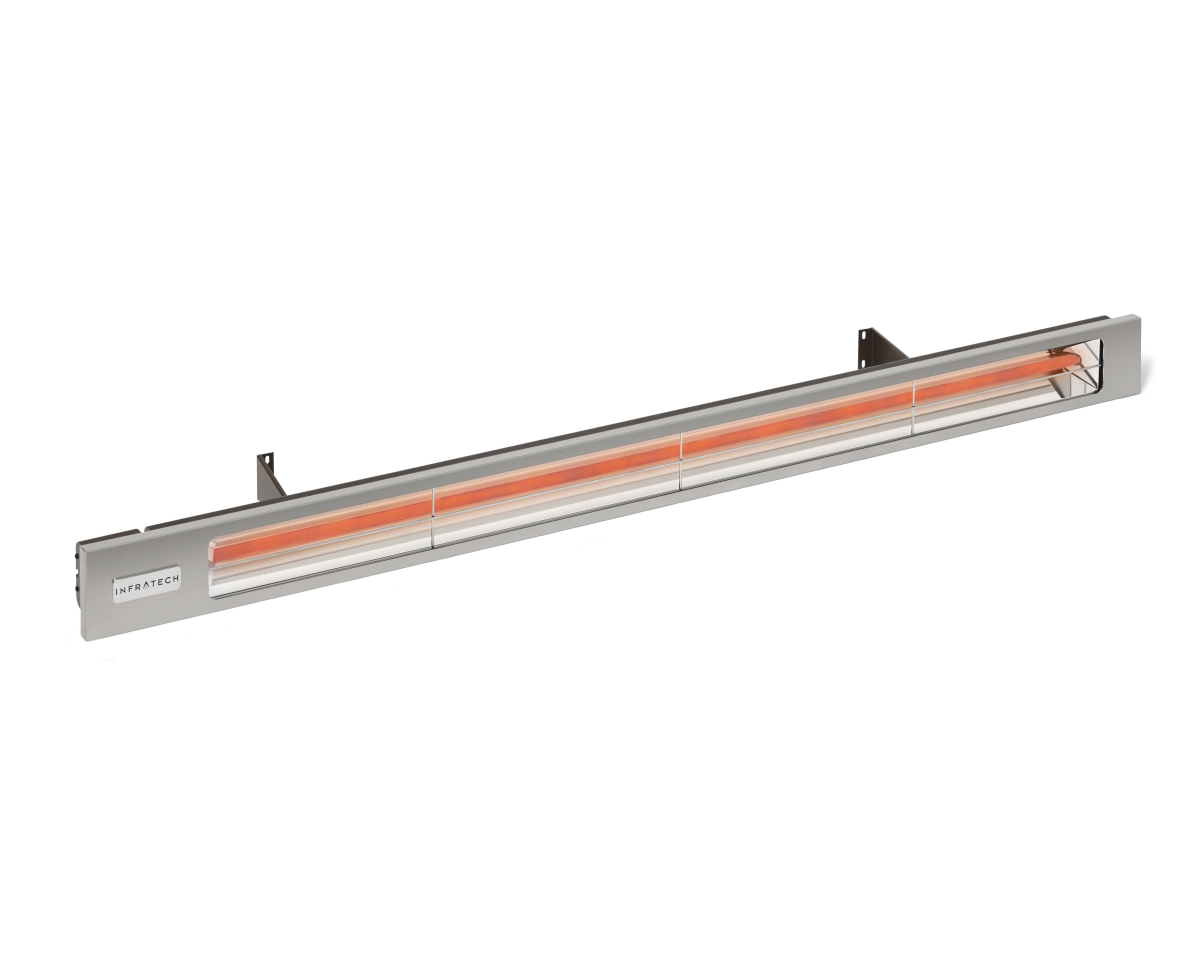

Don't let the chill of the evening chase you indoors from your nice dinner on the veranda. Keep warm with the 63-1/2 inch Infratech Slimline Patio heater that operates at 4000 watts and 240 volts. The inset mounting brackets give the infrared patio heater a floating appearance and enable the unit to be mounted on either the wall or ceiling at heights up to 11 feet. Powered by electricity, the heater gives off no noise, odor or greenhouse gases. The unit is 90% energy efficient with a high output safety grid. It has three ultra ultra-durable anodized aluminum housing colors to choose from: silver, bronze, and all black. The Slimline is American made and backed by a 3 year warranty.
Controls:
Simple On/Off Single Switch- This switch helps you turn your heater on and off easily. You connect your heater to this switch, and then the switch to your home's electrical system. It's a basic switch that can handle up to 20 Amps of electricity. You can use it with one heater or more, as long as they don't use more than 20 Amps together, but it's usually best to use one switch per heater for the best performance.
Infinite Control (INF) Regulator- This control is like a knob that lets you change how hot your heater gets. You can turn it up or down to make the heat stronger or weaker. Each knob can handle up to 3,000 Watts of power and 15 Amps of electricity. It's made for heaters with just one heating part. You can't use this control to separately control two heating parts in a heater with two parts.
Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.
Features:
- For surface mount applications up to ten feet, the sleek and efficient Slimline single-element heaters are perfect.

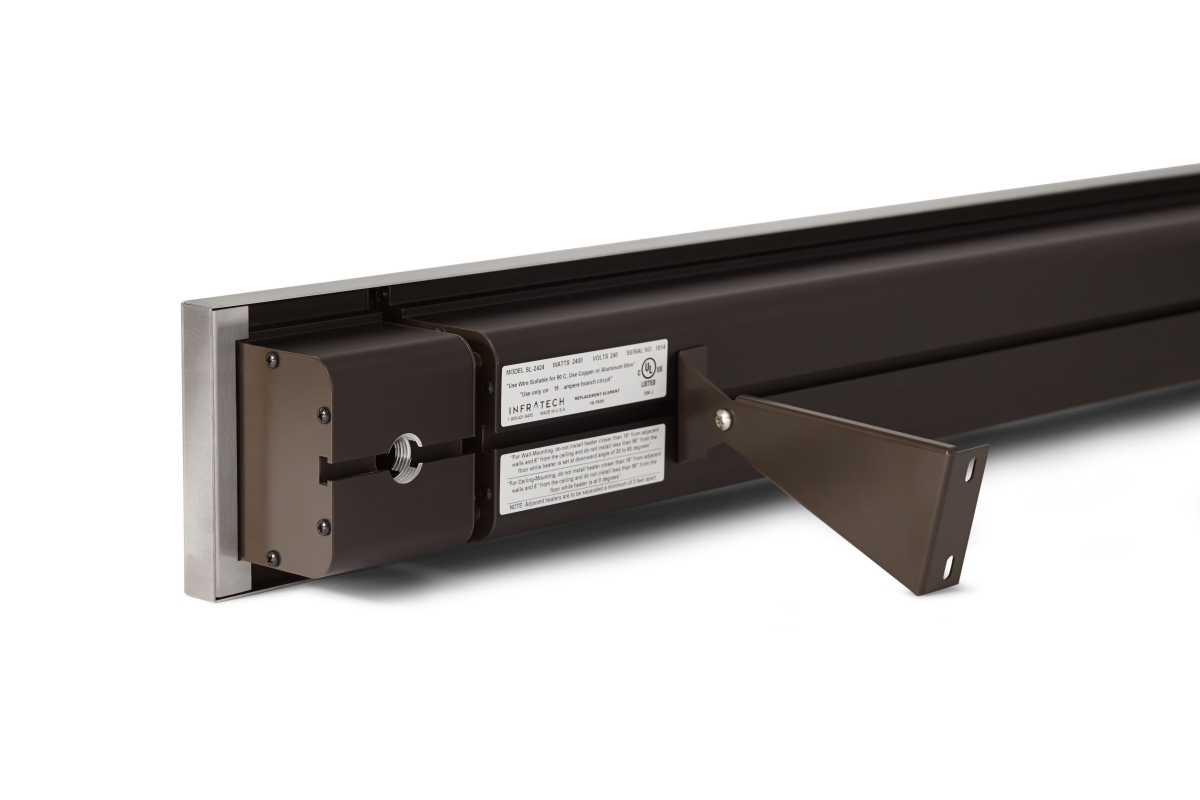

- Features include a T-slot for versatile mounting choices, a thin profile, brushed stainless steel trim, and a modern style.
- Select from capacities of 1,600, 2,400, 3,000, or 4,000 watts.

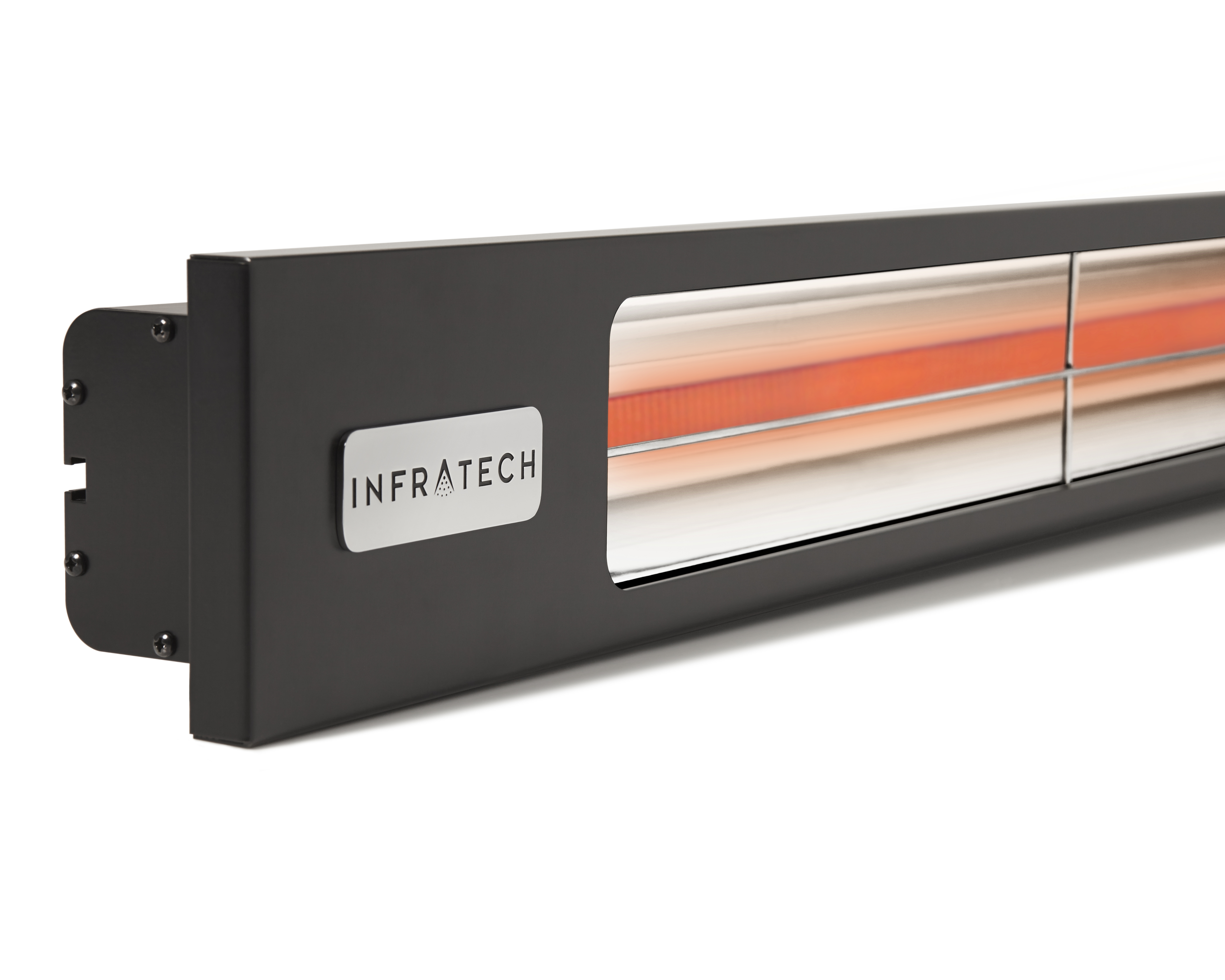

- Available in sturdy housing finishes made of anodized aluminum (Silver and our all-black Slimline ShadowTM), which can survive years of outdoor use.
Specifications:
- Mount Type: Surface Mount Up To 11 Feet
- Fuel Type: Electric
- Grade: Commercial | Residential
- Heat Output: 4000 Watts
- AMPS: 16.7
- BTU's: 13652
- Material: Aluminum | Stainless Steel | Single Quartz Element

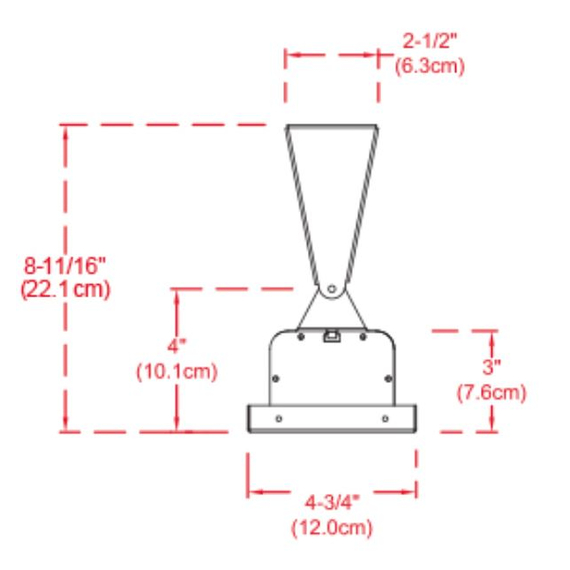

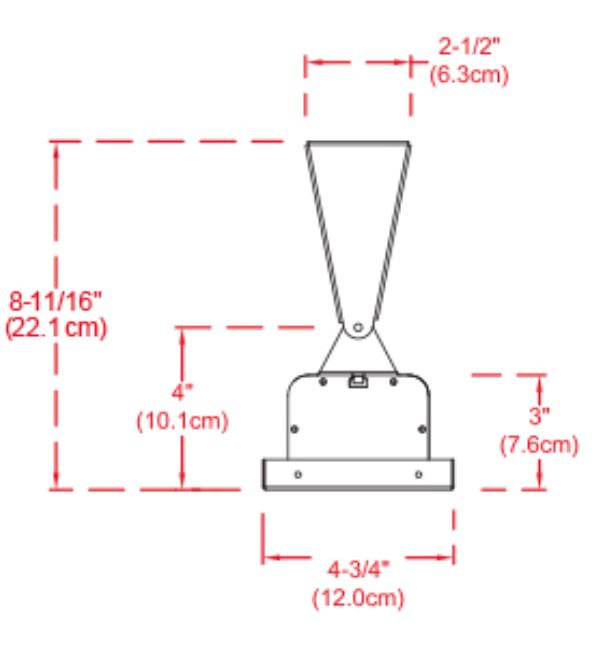

- Height: 8-11/16 Inches
- Heater Height: 3 Inches
- Width: 4-3/4 Inches
- Length: 63-1/2 Inches
- Finish: Anodized Powdercoat
- Color: Silver | Black

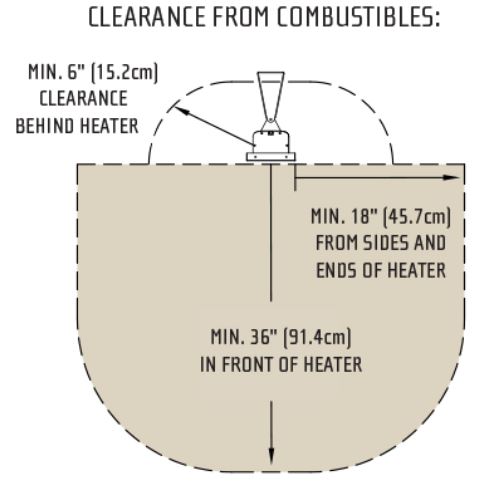

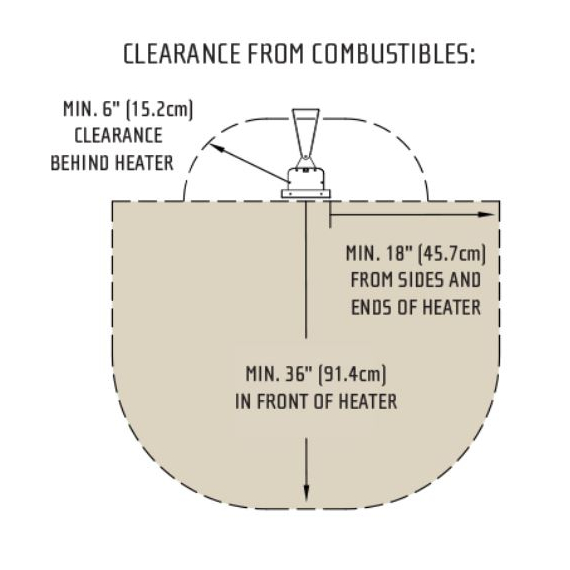

- Side Clearance: 18 Inches
- Rear Clearance: 6 Inches
- Heat Method: Infrared
- Voltage: 240 Volts
- Assembly: Required
Downloads:
- Type: Wall/ Ceiling Mounted
- Fuel Type: Electric
- Grade: Commercial | Residential
- Heat Output: 4000 Watts
- Material: Aluminum | Stainless Steel | Quartz Element
- Height: 3 Inches
- Width: 4-3/4 Inches
- Length: 63-1/2 Inches
- Finish: Anodized Powdercoat
- Color: Silver | Bronze | Black

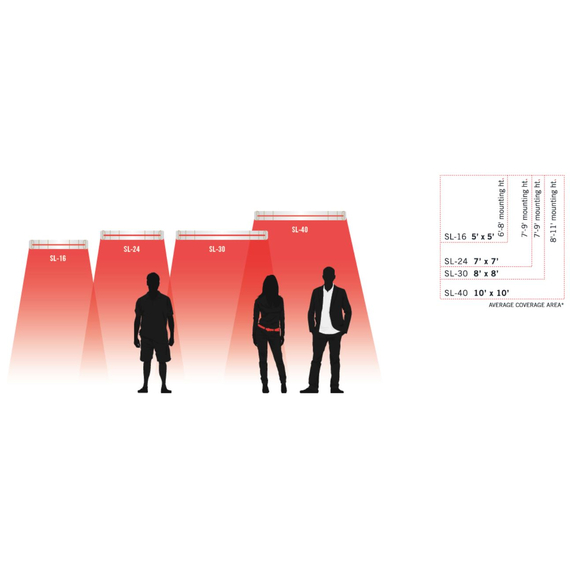

- Coverage Area: 100 Square Feet
- Side Clearance: 18 Inches
- Rear Clearance: 6 Inches
- Heat Method: Infrared
- Voltage: 240 Volts
- Assembly: Required
- Manual: Slimline Heater Owner's Manual
Infratech’s product is backed by more than 50 years of quality American craftsmanship. But that’s not all. By registering your Infratech heater online today you’ll not only be covered by the most extensive three-year warranty in the industry – you’ll also be automatically enrolled in our Heater Maintenance Program. This means you can enjoy industry-leading customer support and receive free replacement end reflectors, when needed, to keep your heating system looking as new as the day it was installed.
