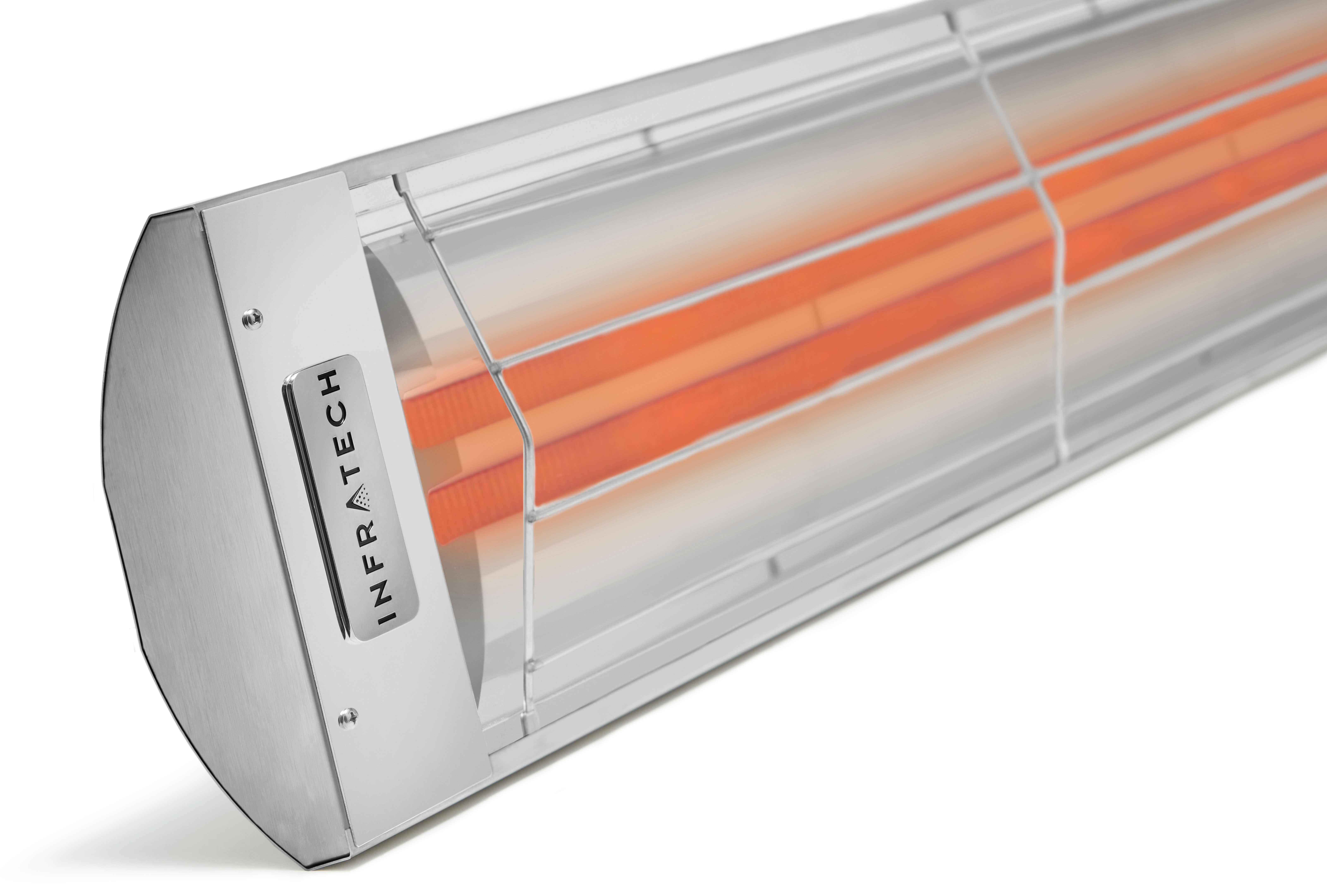

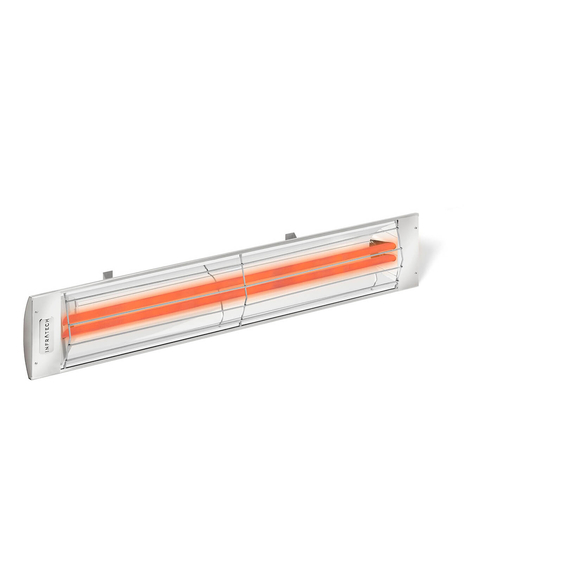

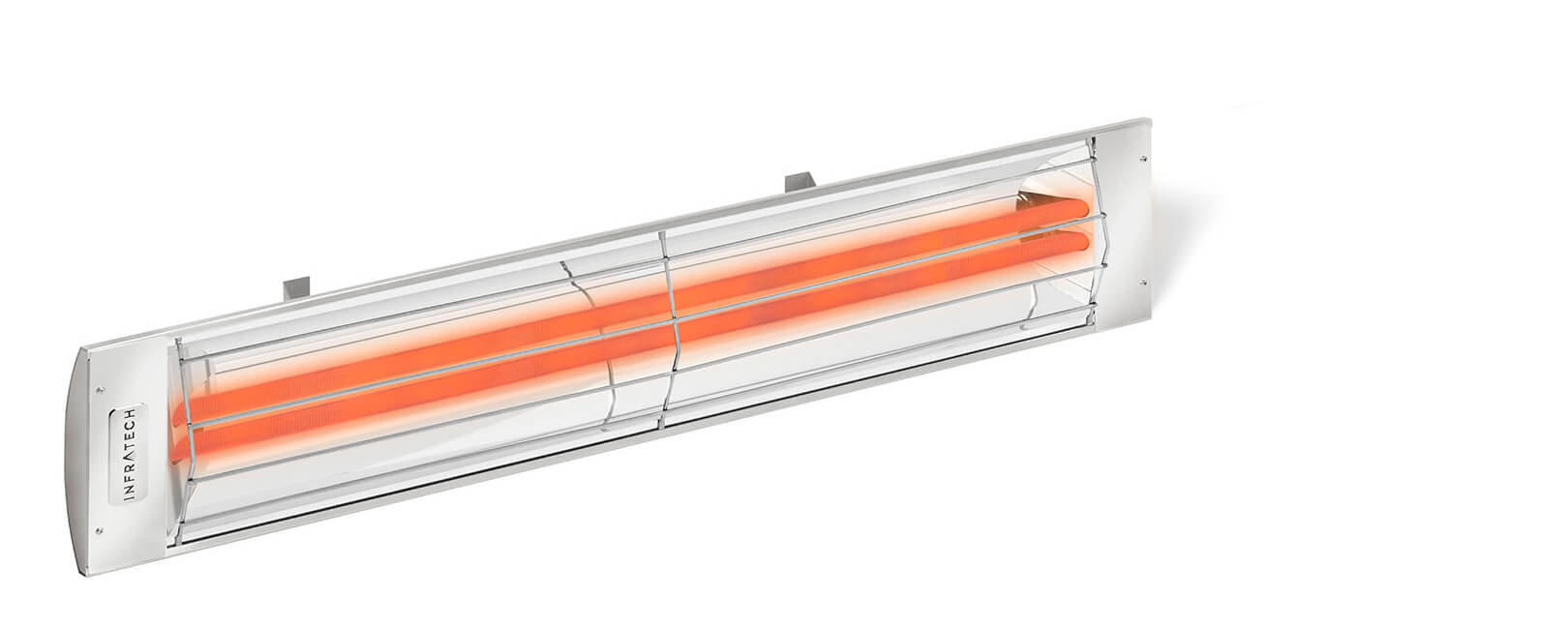

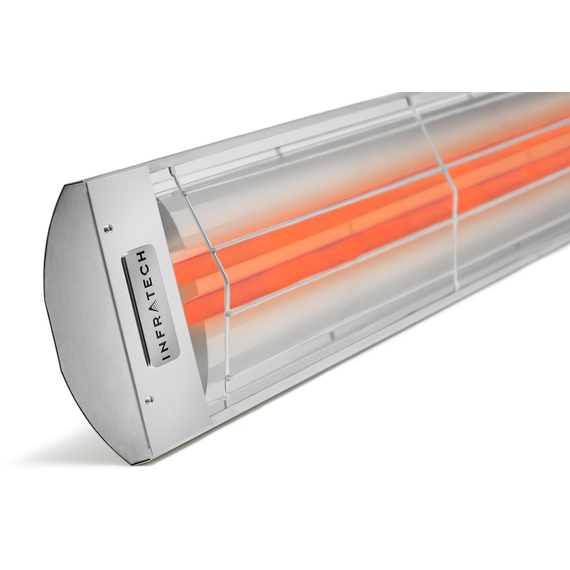

Dual Element CD-Series 3000 W & 240 V Heater - 33 Inch

Install the 33 inch CD Series Patio Heater almost anywhere outside as it can be mounted on the wall, ceiling, flush. The 240 volts of energy gives off 3000 watts of heat. The unit is 90% energy efficient with a high output safety grid. Housing colors are stainless steel The inset mounting brackets give the infrared patio heater a floating appearance and can be mounted at heights up to 11 feet. And because it is powered by electricity, the heater gives off no odor, noise, or greenhouse gases. The W Series electric patio heater is American made and backed by a 3 year warranty.

Controls:

On/OFF Duplex Stack Switch- This on/off duplex stack switch is designed for use with single-element heaters. It offers a cost-effective solution for dual-element heaters, allowing you to turn on both elements for full power or just one element for half power. Each stack can handle a maximum of 40 Amps, with each switch supporting up to 20 Amps. You can wire your heater to the switch, and then the switch to your electrical service panel. It's possible to run single-element heaters from each switch, as long as they do not exceed 20 Amps per switch, but it's generally not recommended for optimal performance.

Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.

Features:

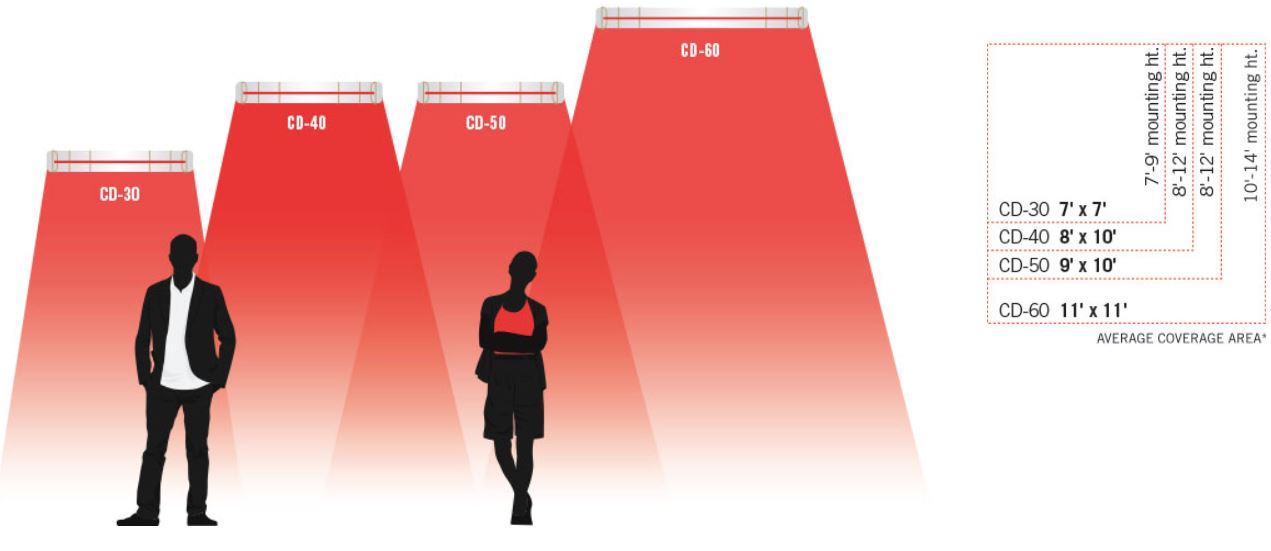

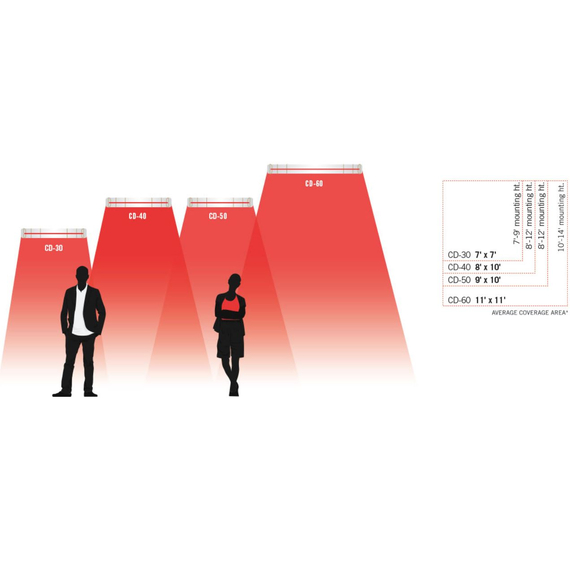

• The concentrated heat is provided by our strong dual-element CD-Series fixtures for larger applications in prominent visual impact areas and is meant for mounting altitudes between 7 and 12 feet.
• Features include concealed installations, inset mounting brackets that, when attached, give the appearance of "floating," and sturdy 304 stainless steel construction.
• Select between 208-480 volts and 3,000-6,000 watt capabilities.
• Usually fitted with our unique controls, which allow us to adjust the electric load for comfortable heating under a variety of circumstances.
• May also be installed with Duplex/Stack Switches for effectively a half-power or full-power option

Specifications:

• Mount Type: Wall / Ceiling 7'-11
• Installation: Recessed Installations and inset Mounting Brackets Included
• Fuel Type: Electric
• Grade: Commercial | Residential
• Heat Output: 3000 Watts
• Amps: 12.5
• BTU's: 10236
• Material: 304 Stainless Steel | Dual Quartz Element

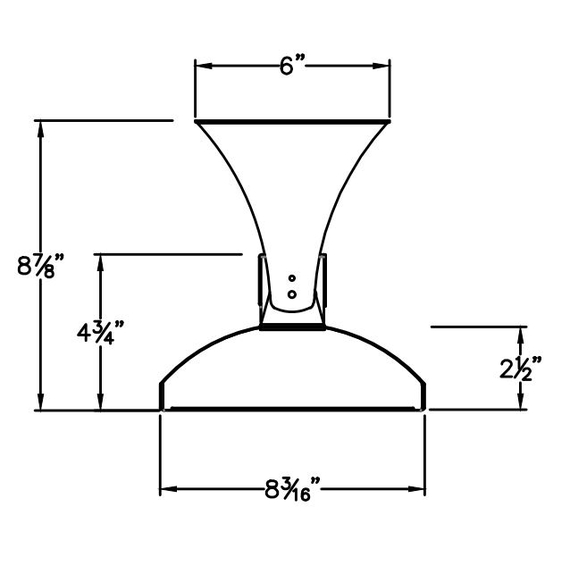

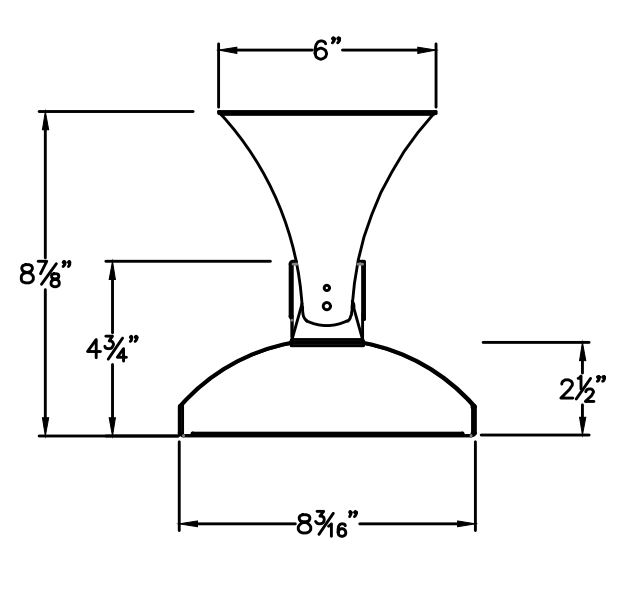

• Height: 8-7/8 Inches
• Heater Height: 2.5 Inches
• Length: 33 Inches
• Width: 8-3/16 Inches
• Finish: Stainless Steel

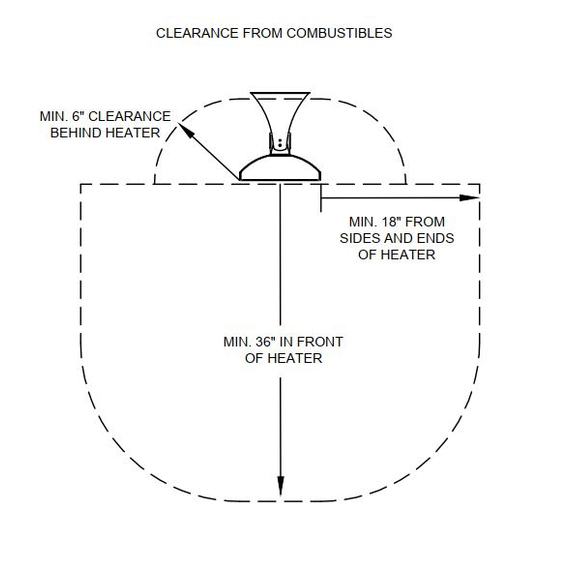

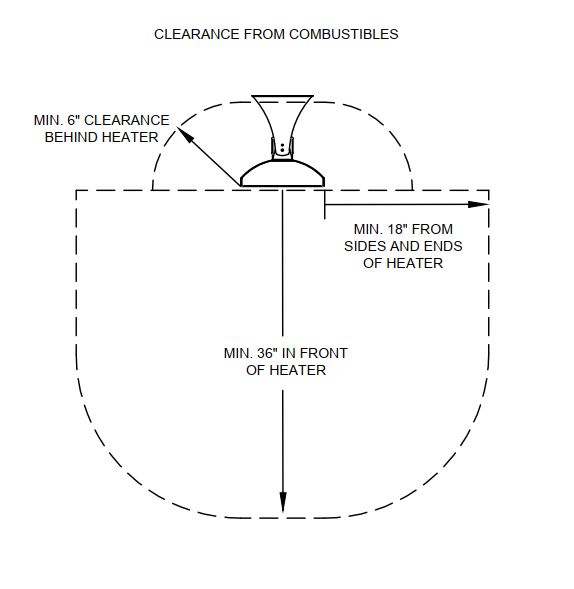

• Clearance Behind Heater: Minimum 6 Inches
• Clearance from Sides and Ends of Heater: Minimum 18 Inches
• Clearance in Front of Heater: Minimum 36 Inches
• Heat Method: Infrared
• Voltage: 240 Volts

Downloads:

• Infratech Product Brochure
• CD-Series Application/Installment Guide
• CD-Series Specification
• Infratech Control Brochure
• On/Off Duplex Stack Switch Brochure
• On/Off Duplex Stack Wiring Diagram
• Solid State Relay Brochure
• Solid State Relay Wiring Diagram
• Product Warranty
