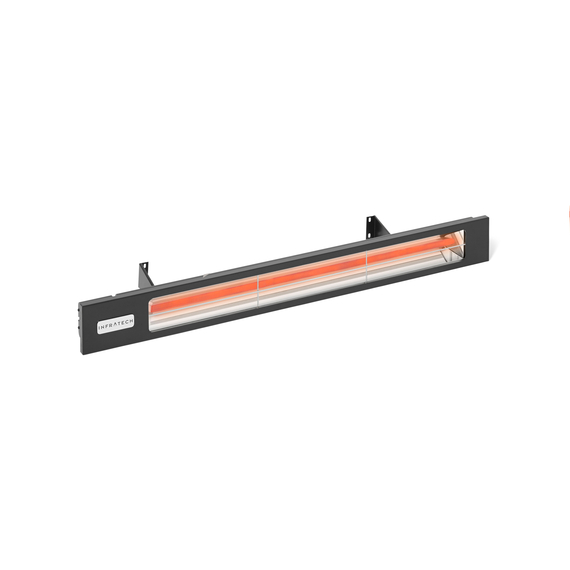

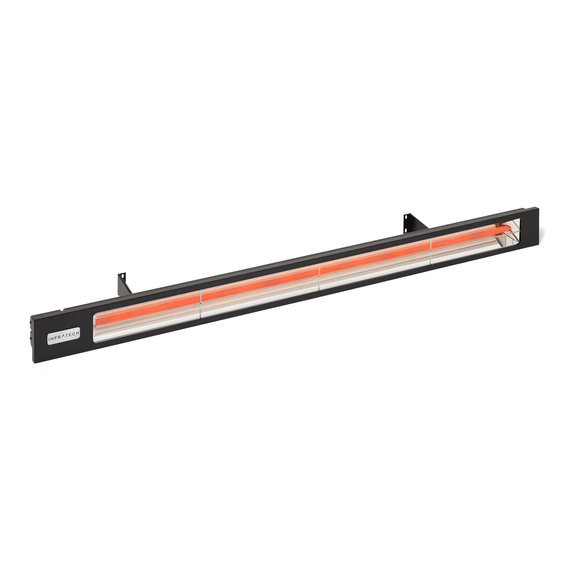

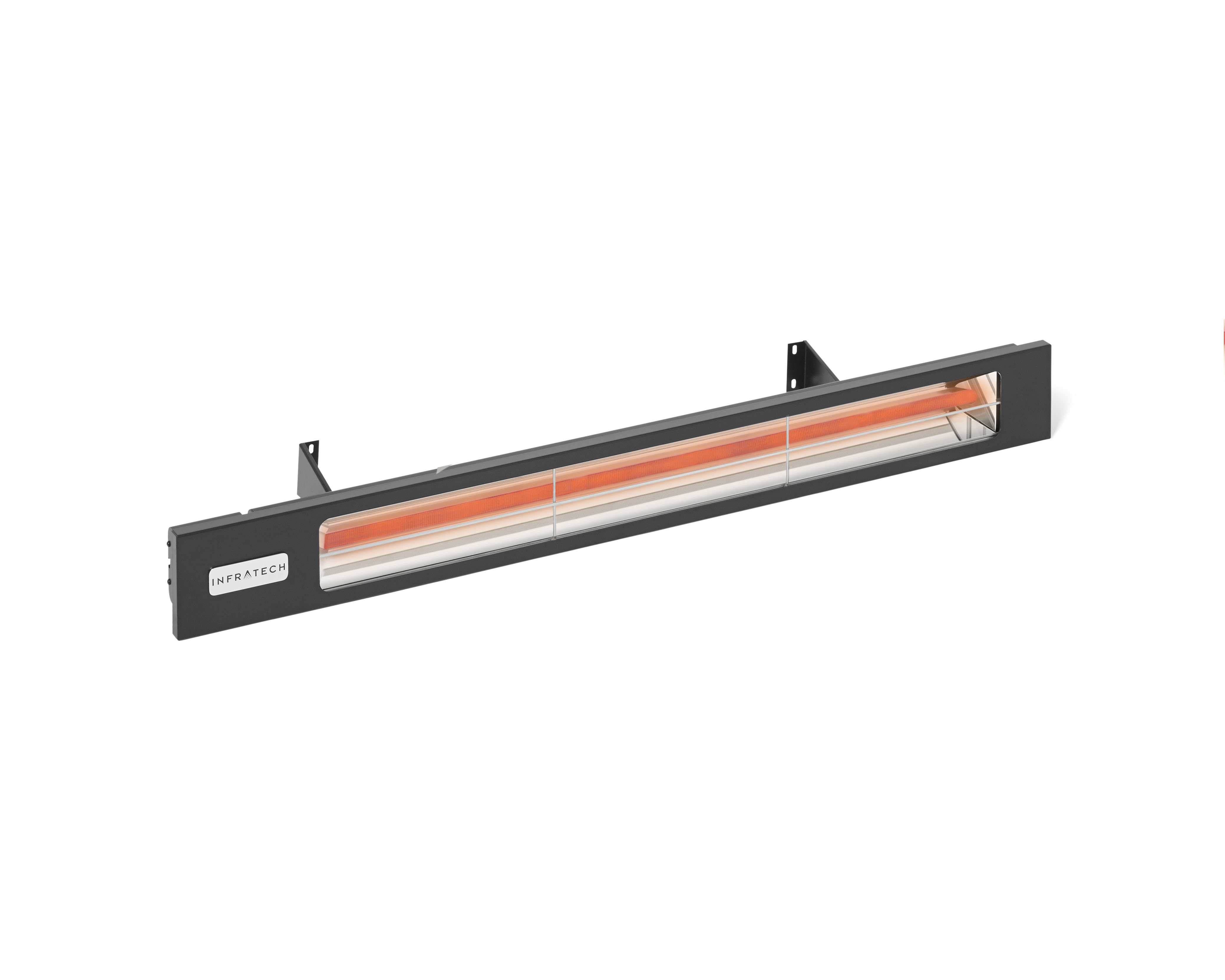

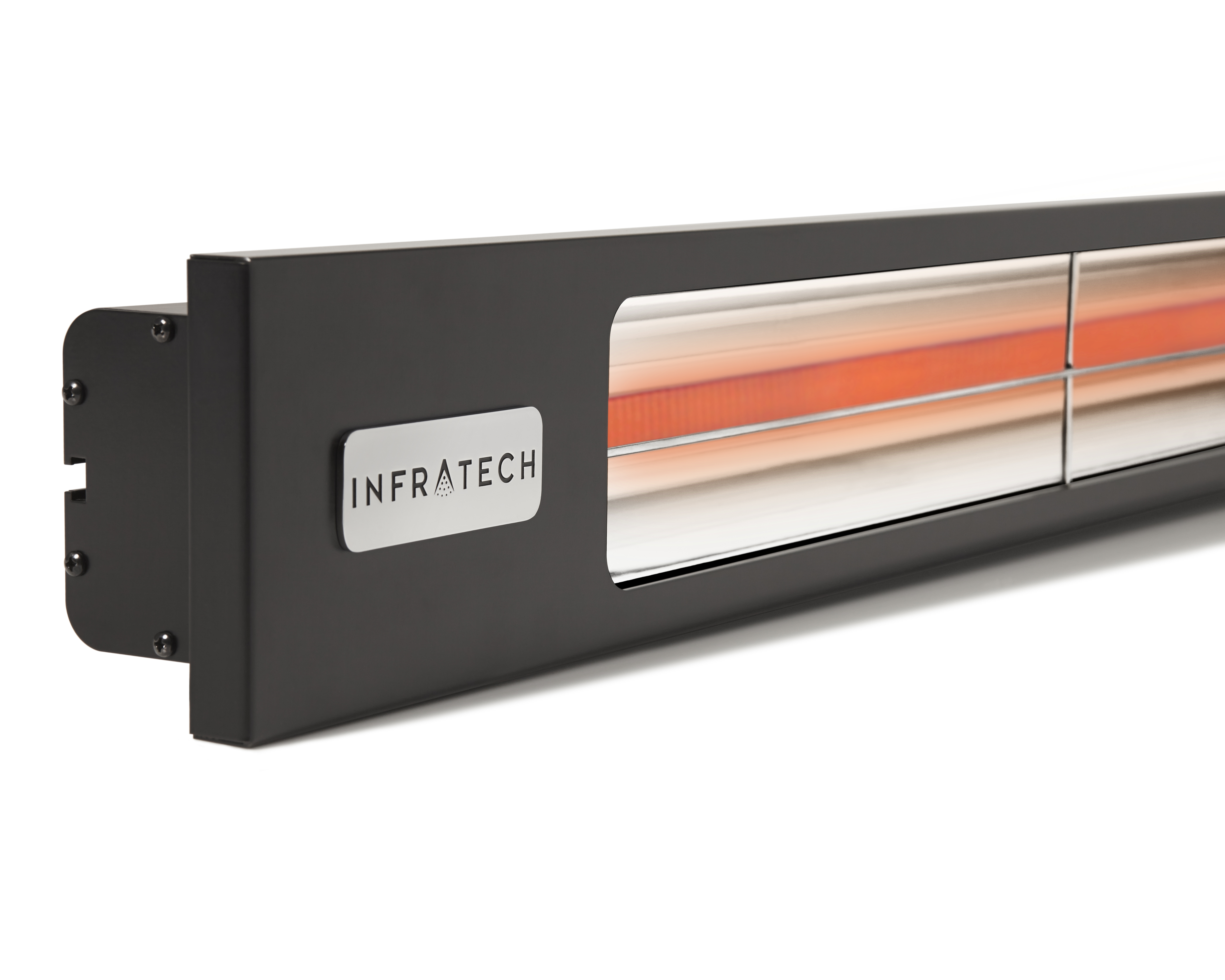

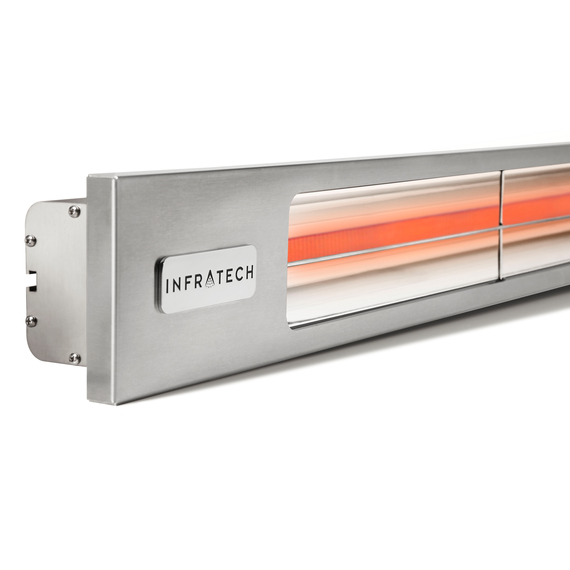

Infratech 63.50 Inches Single Element SL-Series 4000 W & 208 V Heater

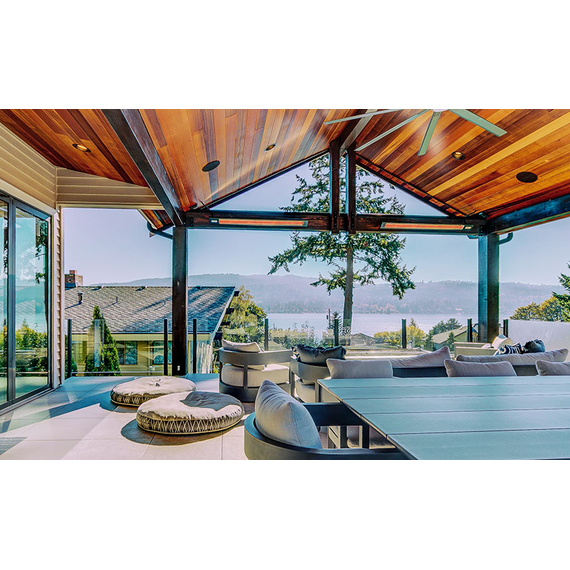

Allow me to present to you the Infratech 63.50-inch Slimline Series Single Element Heater, an effective outdoor heating option. This heater, which runs at 208 volts and has a powerful 4000W output, is made to keep you warm and cozy on even the coldest nights. Any outdoor area will be enhanced by the sleek and sophisticated style of the Slimline Series. After installation, the heater offers effective and uniform heat distribution for optimal comfort. Installation is quick and simple.
This heater is made of premium materials, such as aluminum that resists corrosion, and is designed to survive the weather and offer dependable performance. It also uses very little energy and produces no emissions, making it environmentally beneficial. With its strong heating capabilities and fashionable design for your outdoor comfort, the Infratech 63.50-inch Slimline Series Single Element Heater will enhance your outdoor experience.
Controls:
Simple On/Off Single Switch- This switch helps you turn your heater on and off easily. You connect your heater to this switch, and then the switch to your home's electrical system. It's a basic switch that can handle up to 20 Amps of electricity. You can use it with one heater or more, as long as they don't use more than 20 Amps together, but it's usually best to use one switch per heater for the best performance.
Infinite Control (INF) Regulator- This control is like a knob that lets you change how hot your heater gets. You can turn it up or down to make the heat stronger or weaker. Each knob can handle up to 3,000 Watts of power and 15 Amps of electricity. It's made for heaters with just one heating part. You can't use this control to separately control two heating parts in a heater with two parts.
Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.
Features:
- For surface mount applications up to ten feet, the sleek and efficient Slimline single-element heaters are perfect.

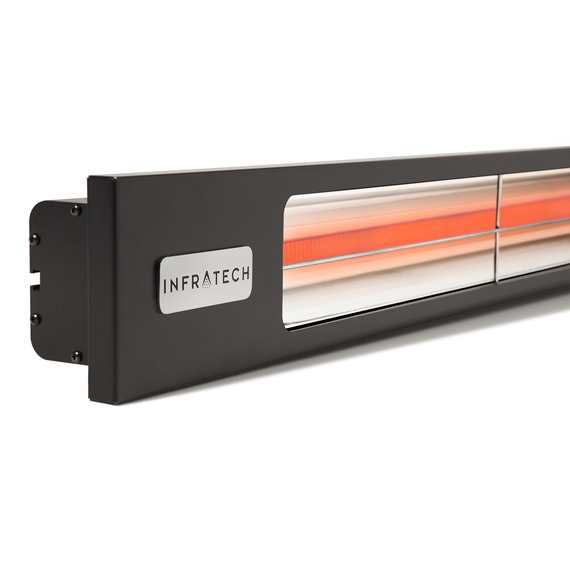

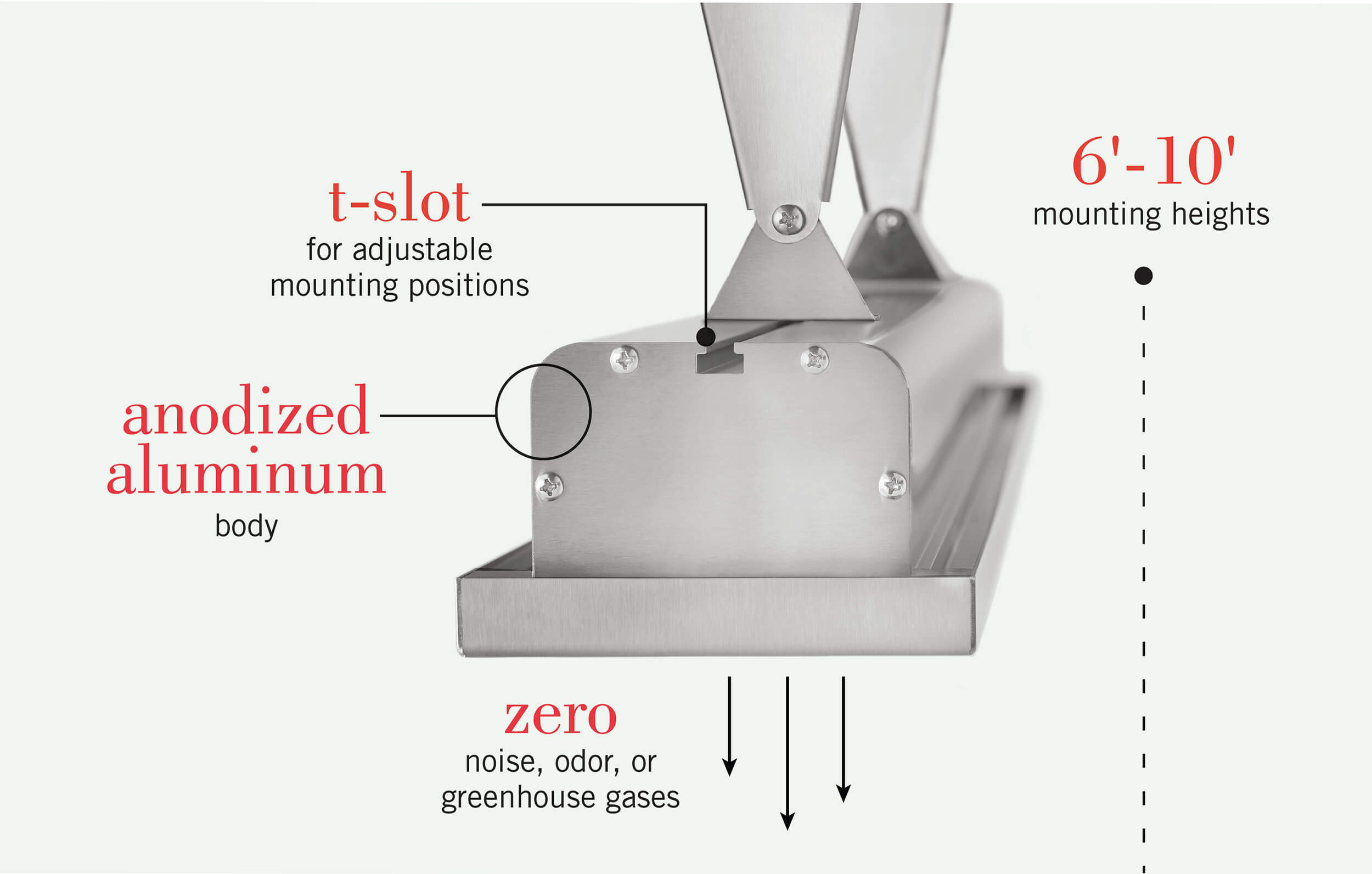

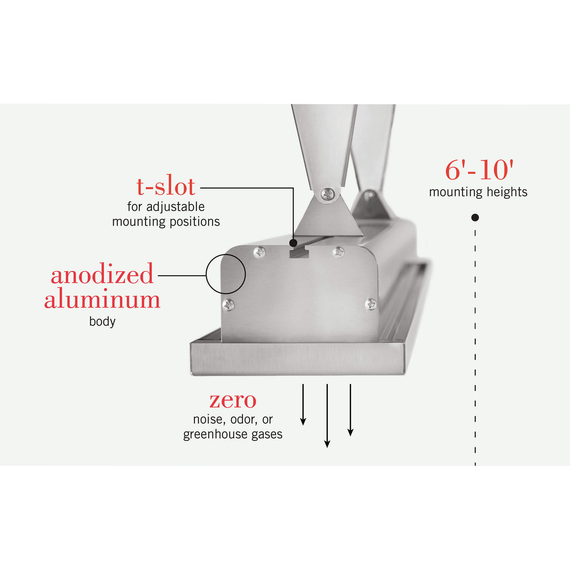

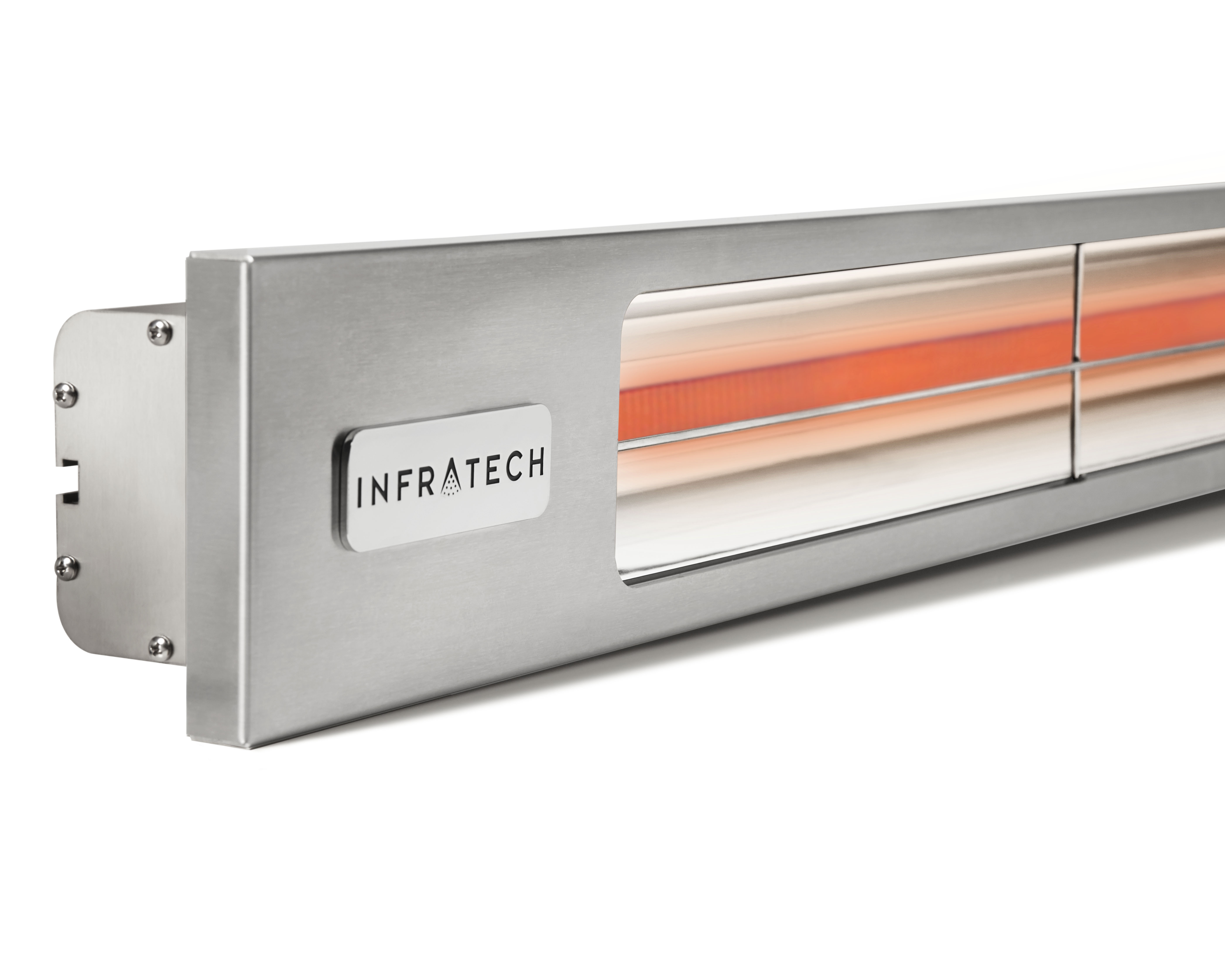

- Features include a T-slot for versatile mounting choices, a thin profile, brushed stainless steel trim, and a modern style.

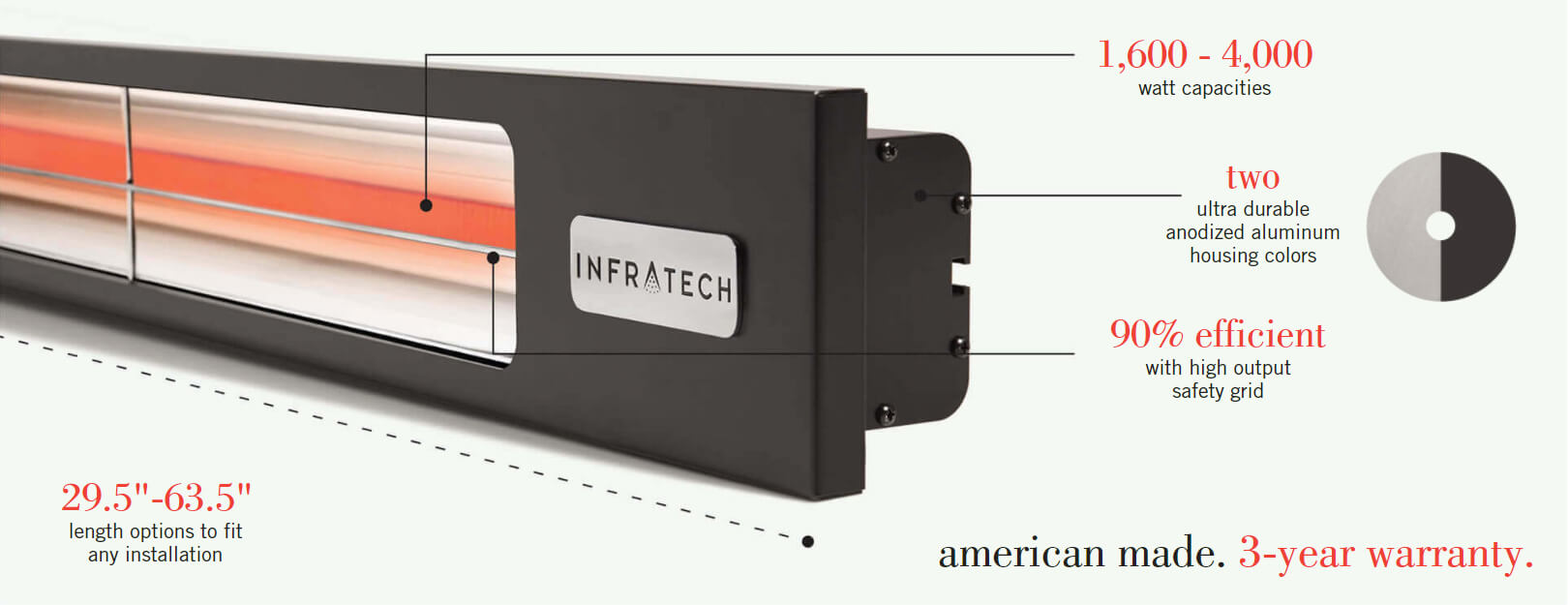

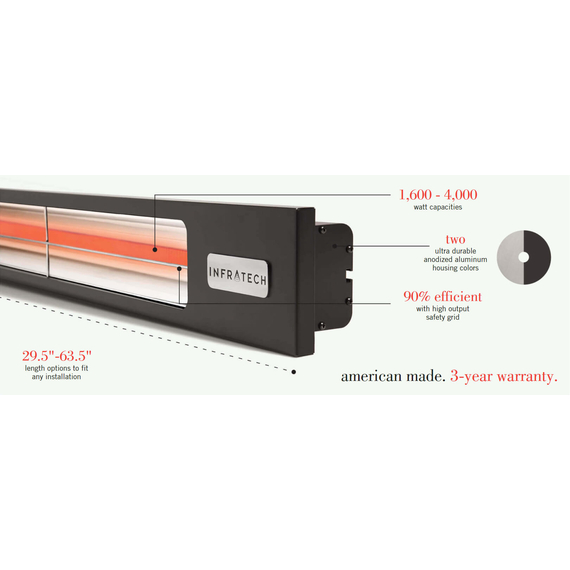

- Select from capacities of 1,600, 2,400, 3,000, or 4,000 watts.

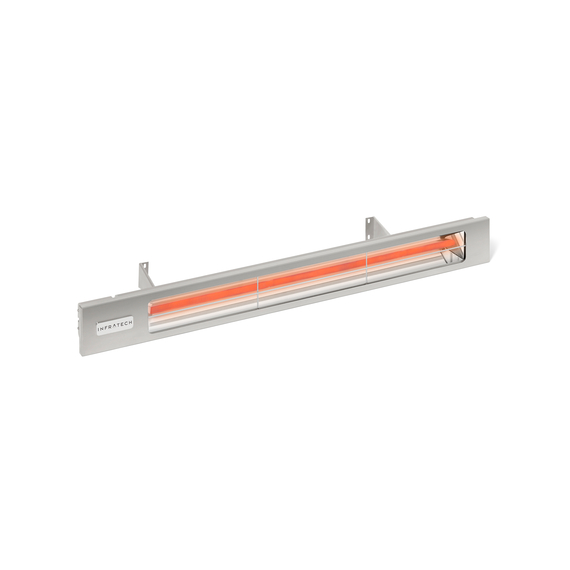

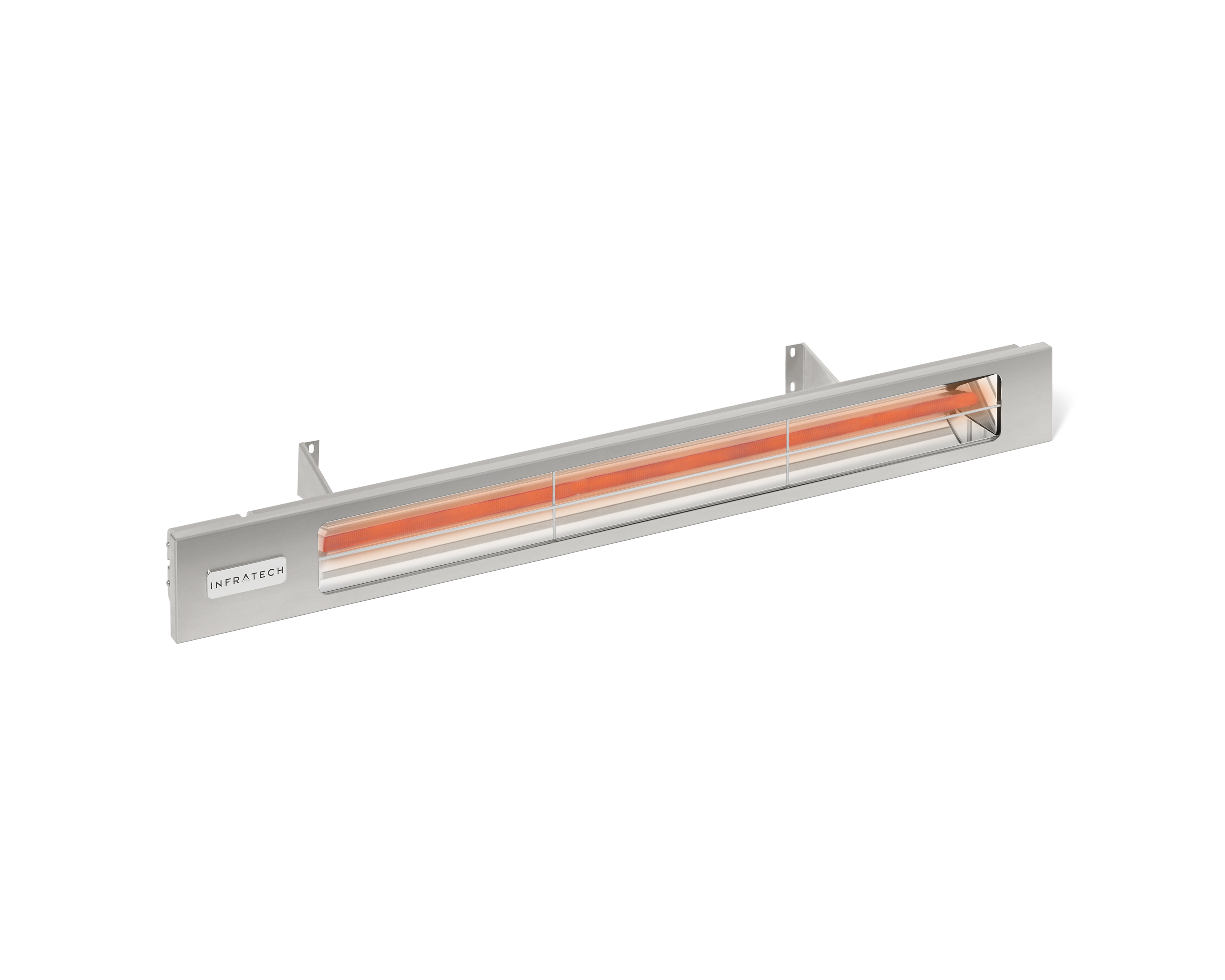

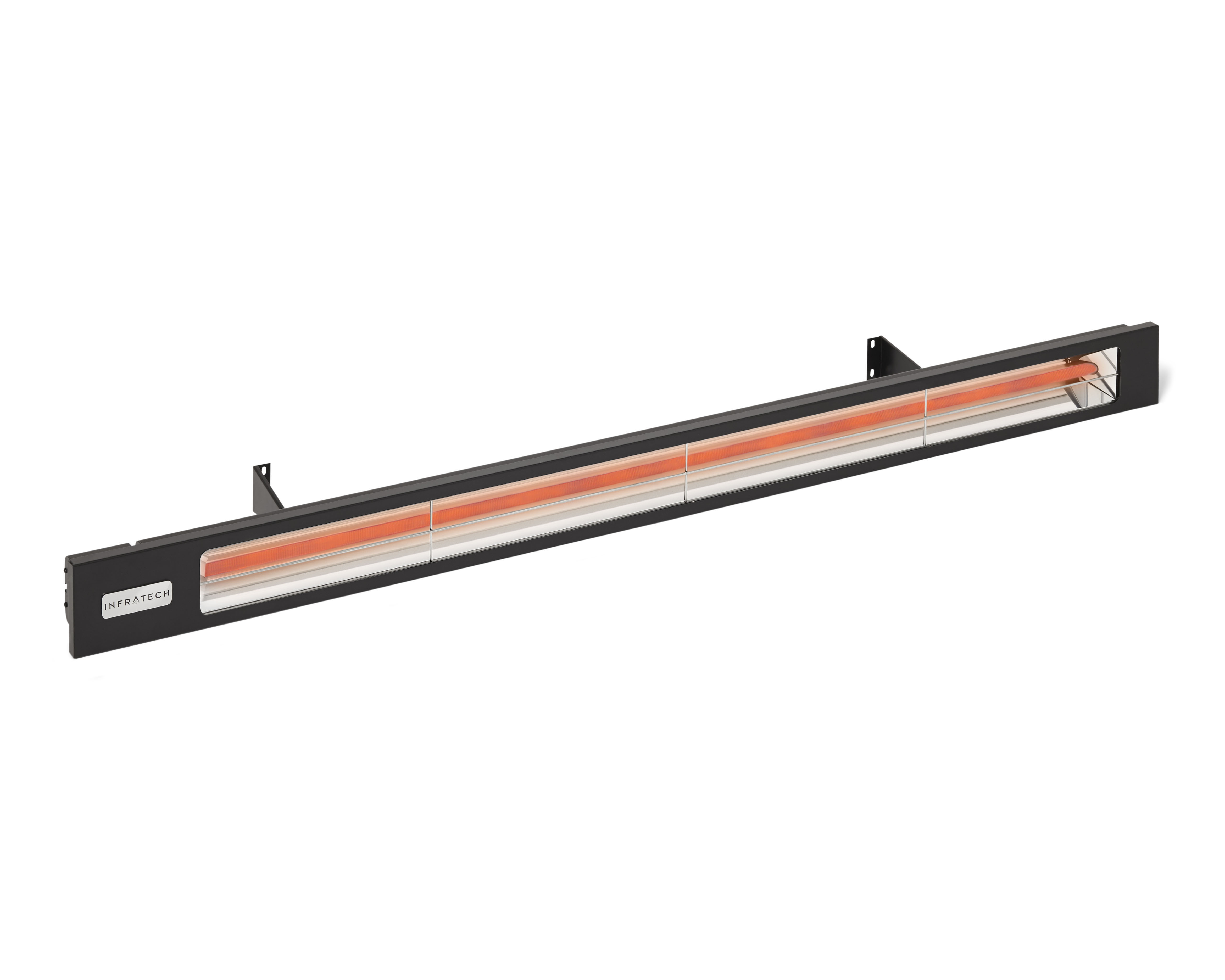

- Available in sturdy housing finishes made of anodized aluminum (Silver and our all-black Slimline Shadow), which can survive years of outdoor use.
Specification:
- Mount Type: Surface Mounted Up To 11 Feet
- Fuel Type: Electric
- Grade: Commercial | Residential
- Heat Output: 4000 Watts
- AMPS: 19.2
- Material: Aluminum | Stainless Steel | Single Quartz Element
- Height: 8-11/16 Inches
- Heater Height: 4.75
- Width: 8.68"
- Length: 63.50"
- Finish: Anodized Powdercoat
- Color: Silver | Black
- Side Clearance: 18 Inches
- Rear Clearance: 6 Inches
- Heat Method: Infrared
- Voltage: 208 Volts
- Assembly: Required
Downloads
- Type: Wall/ Ceiling Mounted
- Fuel Type: Electric
- Grade: Commercial | Residential
- Heat Output: 3000 Watts
- Material: Aluminum | Stainless Steel | Quartz Element
- Height: 3 Inches
- Width: 4-3/4 Inches
- Length: 63-1/2 Inches
- Finish: Anodized Powdercoat
- Color: Silver | Bronze | Black
- Side Clearance: 18 Inches
- Rear Clearance: 6 Inches
- Heat Method: Infrared
- Voltage: 240 Volts
- Assembly: Required
- Manual: Slimline Heater Owner's Manual
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
