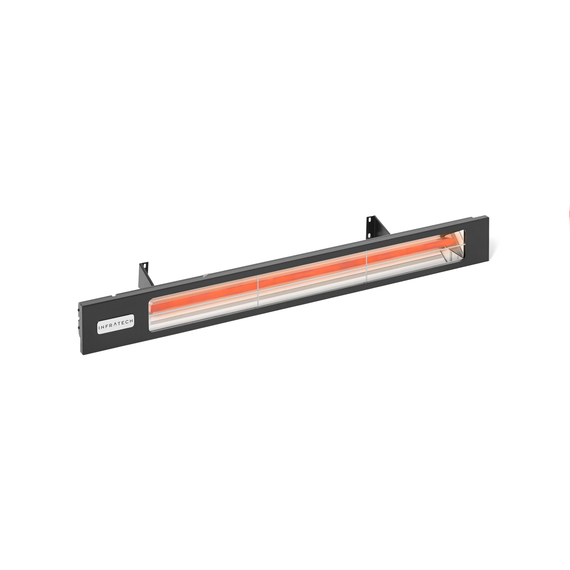

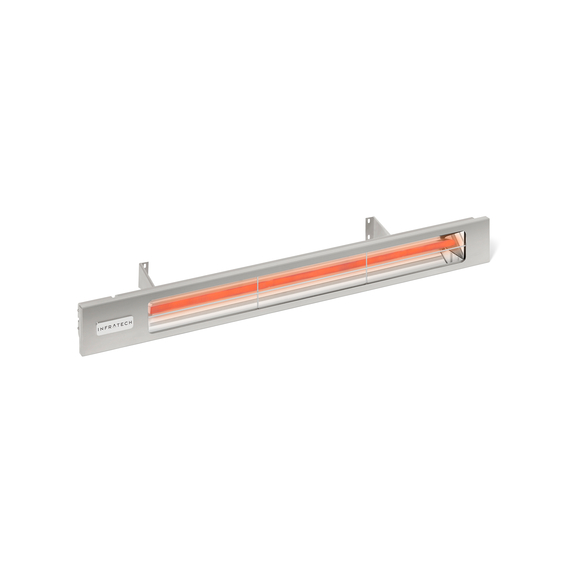

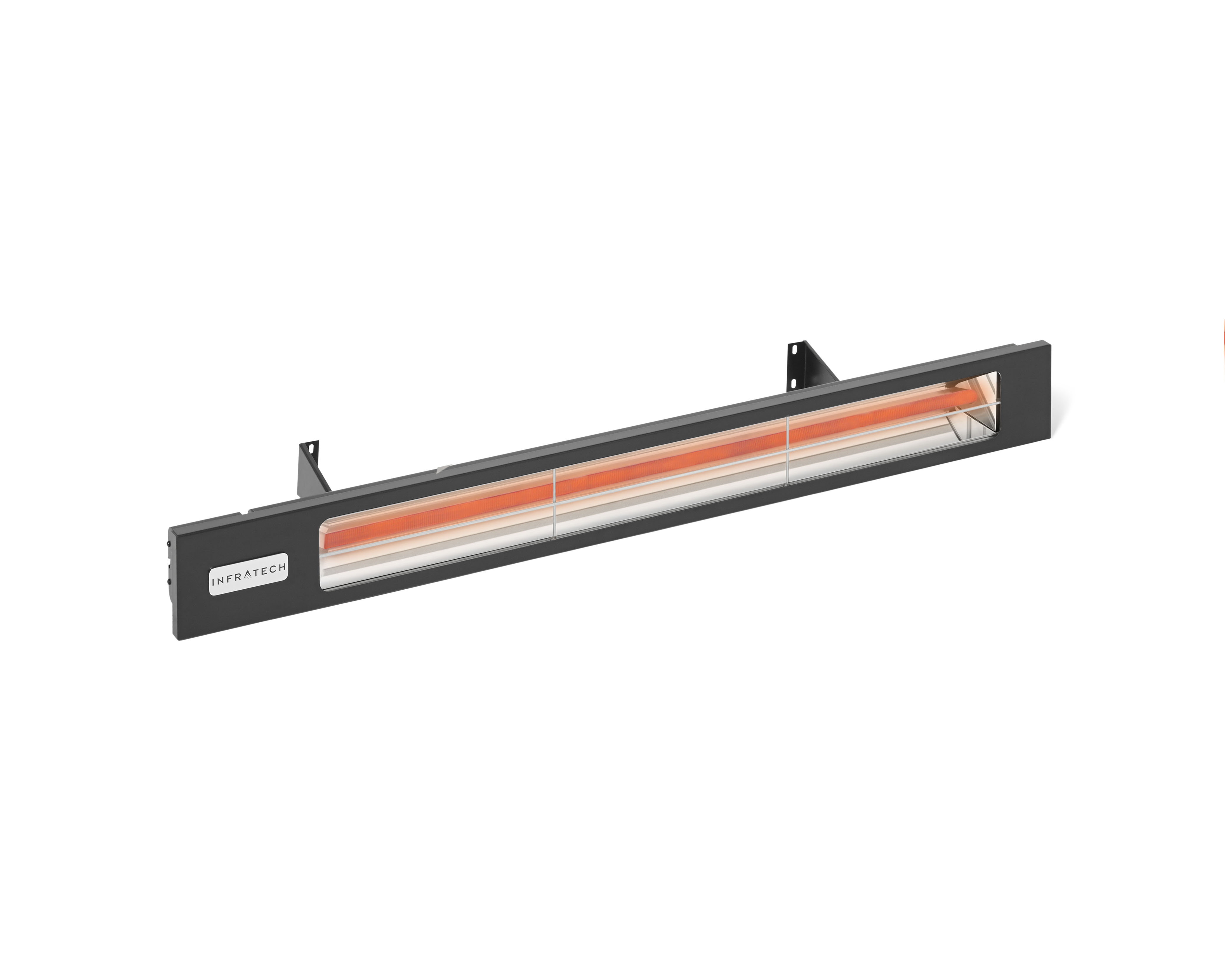

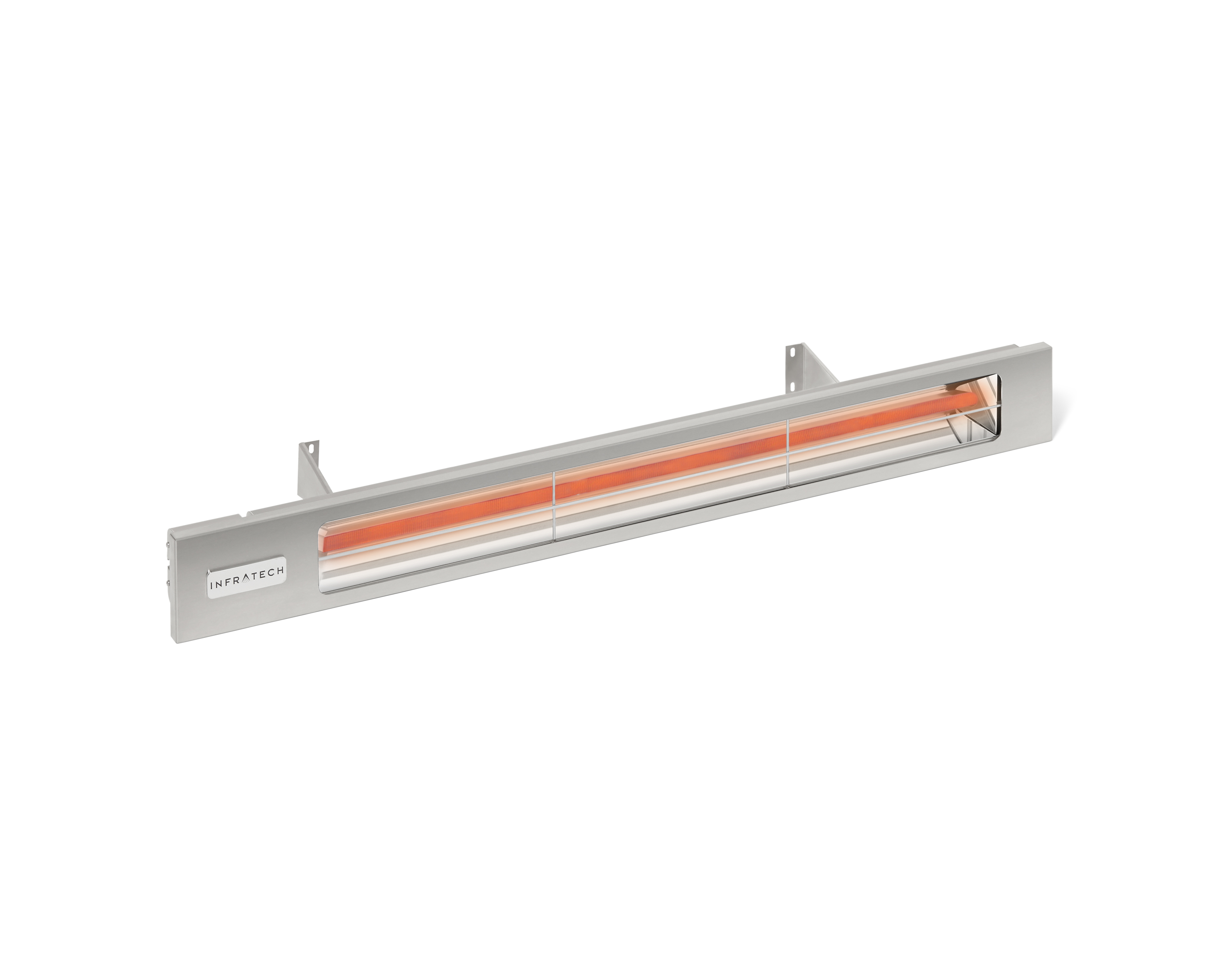

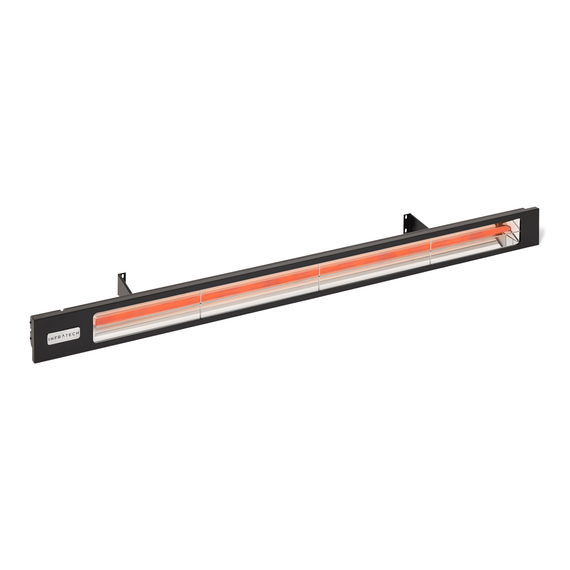

Infratech 63.50 Inches Single Element SL-Series 3000 W & 208 V Heater

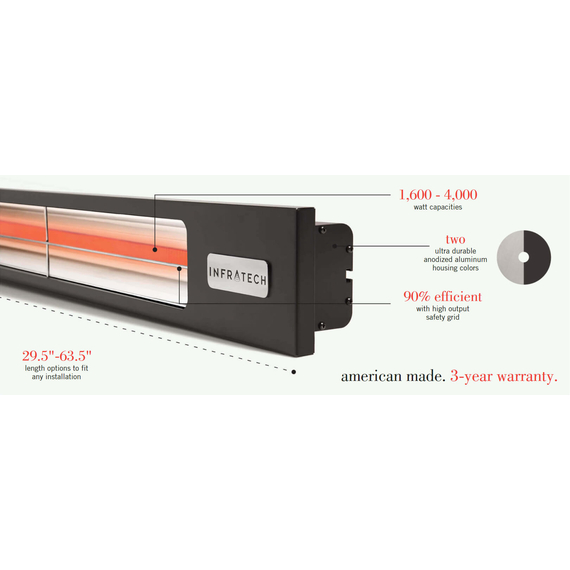

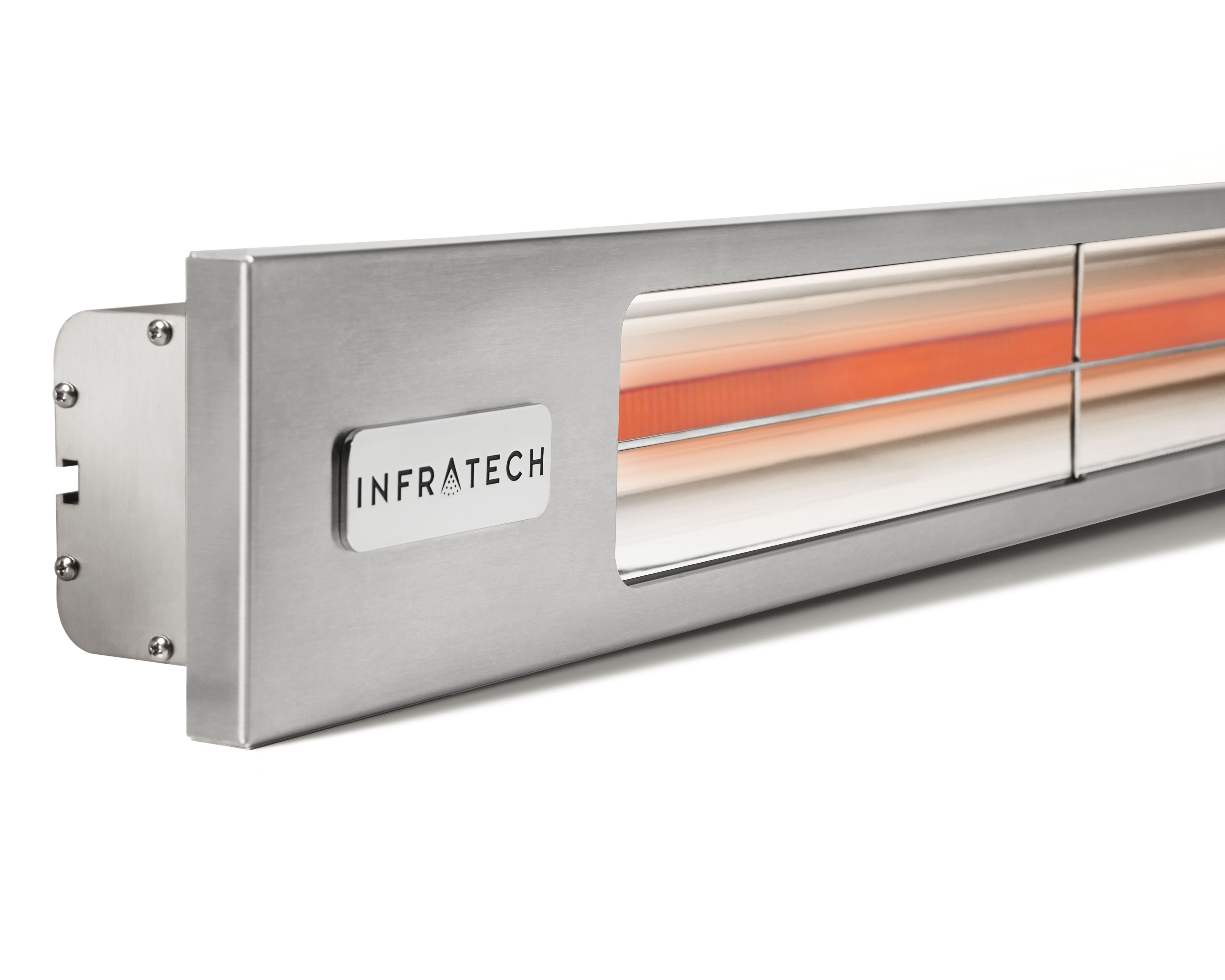

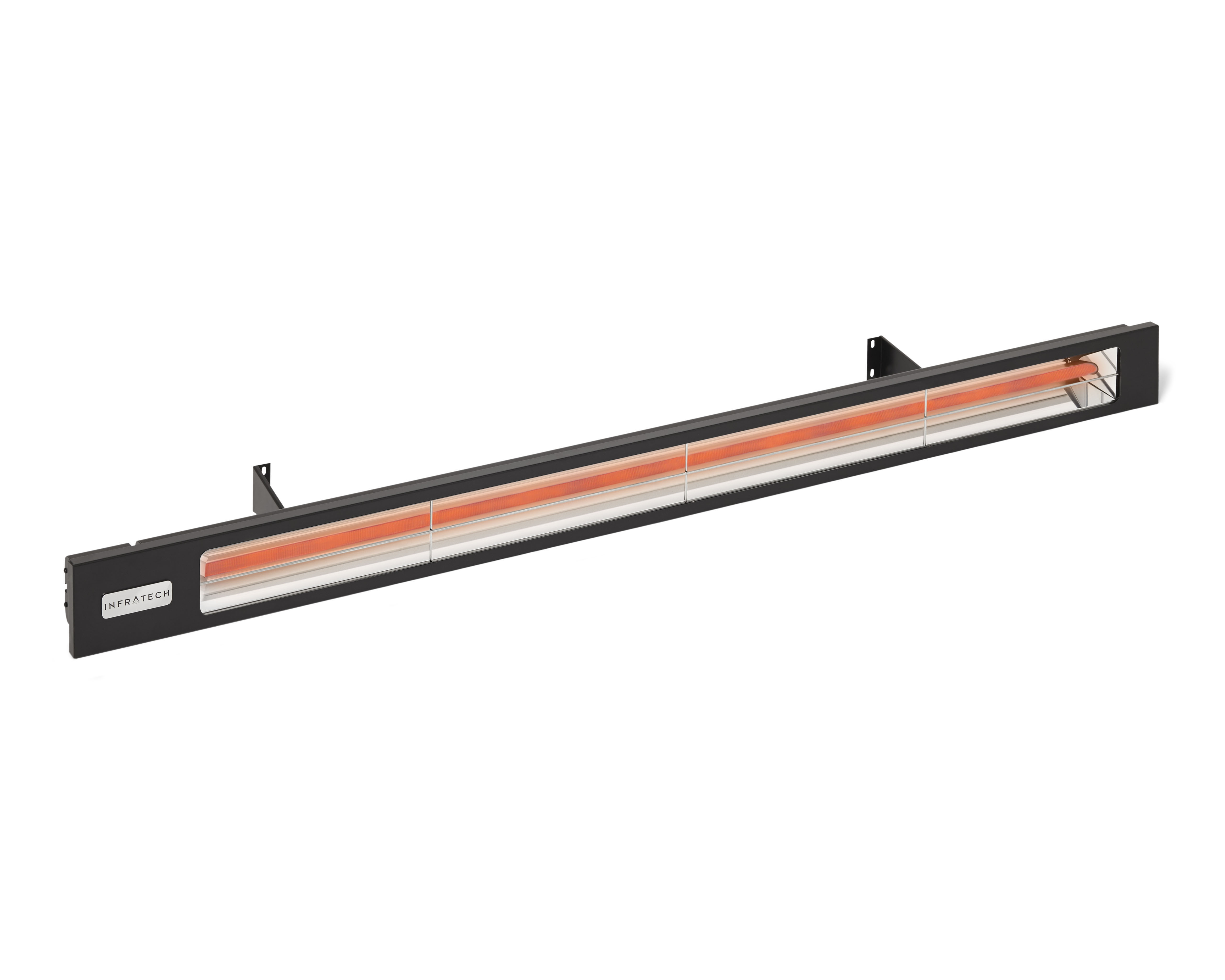

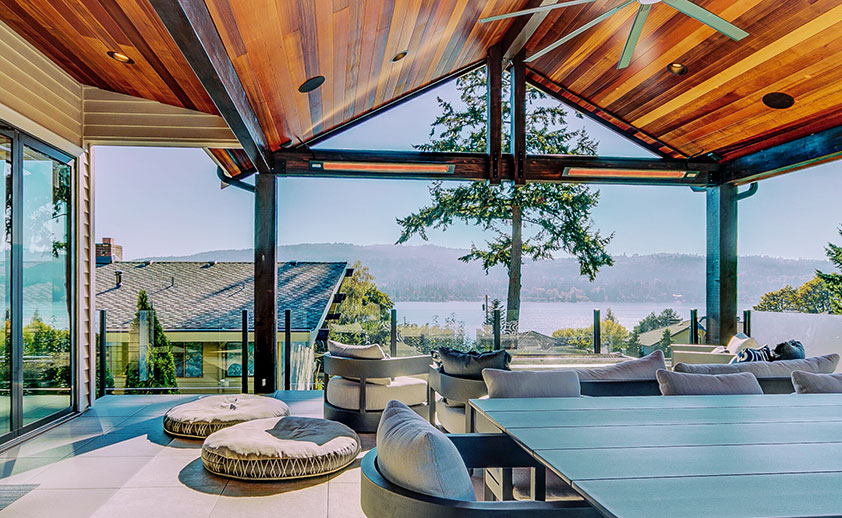

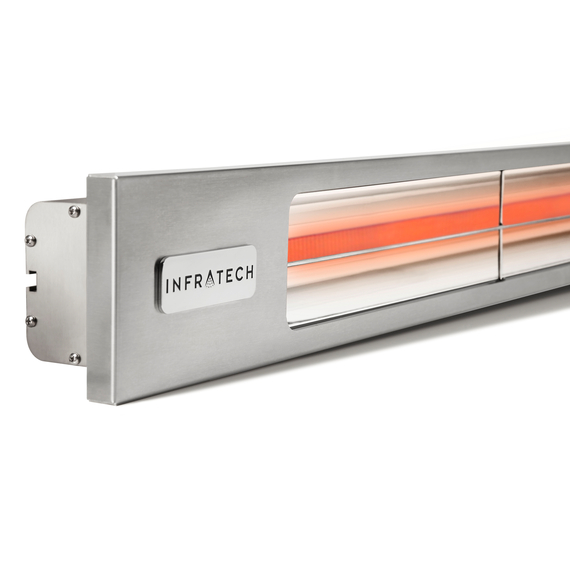

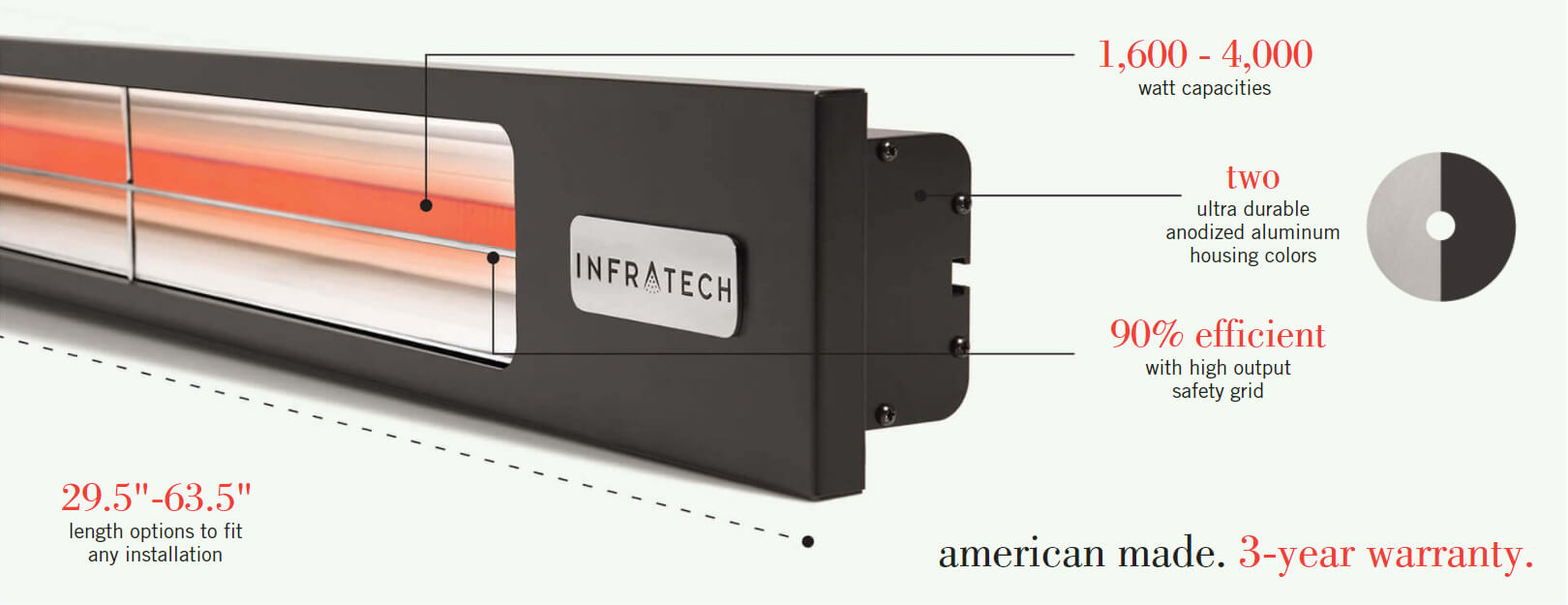

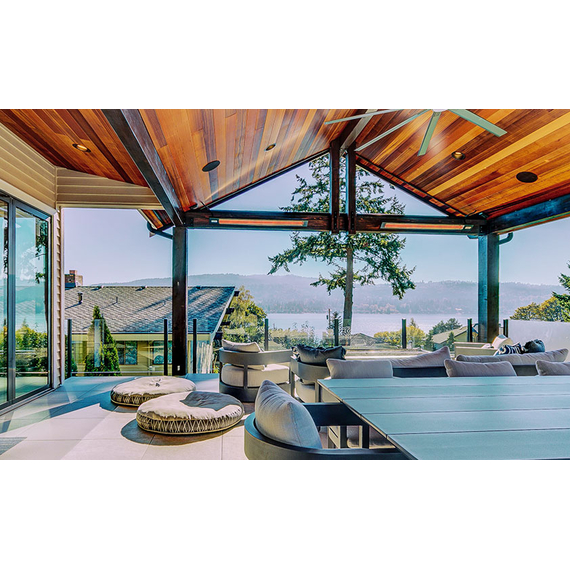

The Infratech 63.50-inch Slimline Series Single Element Heater is the topic of discussion. With its 3000W of heating capacity and 208 volt operation, this heater is a powerhouse. Even in the winter, you may enjoy a warm and inviting outdoor setting with this heater. The sleek and contemporary style of the Slimline Series will look great in any outdoor environment. The heater is easy to install and offers uniform heat distribution for optimal comfort.

This heater is made of high-quality materials that are resistant to corrosion, such as aluminum, making it weatherproof and long-lasting. It also uses very little energy and produces no emissions, making it environmentally beneficial. With its strong heating capabilities and fashionable appearance for your outdoor comfort, the Infratech 63.50-inch Slimline Series Single Element Heater will elevate your outdoor experience.

Controls:

Simple On/Off Single Switch- This switch helps you turn your heater on and off easily. You connect your heater to this switch, and then the switch to your home's electrical system. It's a basic switch that can handle up to 20 Amps of electricity. You can use it with one heater or more, as long as they don't use more than 20 Amps together, but it's usually best to use one switch per heater for the best performance.

Infinite Control (INF) Regulator- This control is like a knob that lets you change how hot your heater gets. You can turn it up or down to make the heat stronger or weaker. Each knob can handle up to 3,000 Watts of power and 15 Amps of electricity. It's made for heaters with just one heating part. You can't use this control to separately control two heating parts in a heater with two parts.

Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.

Specification:

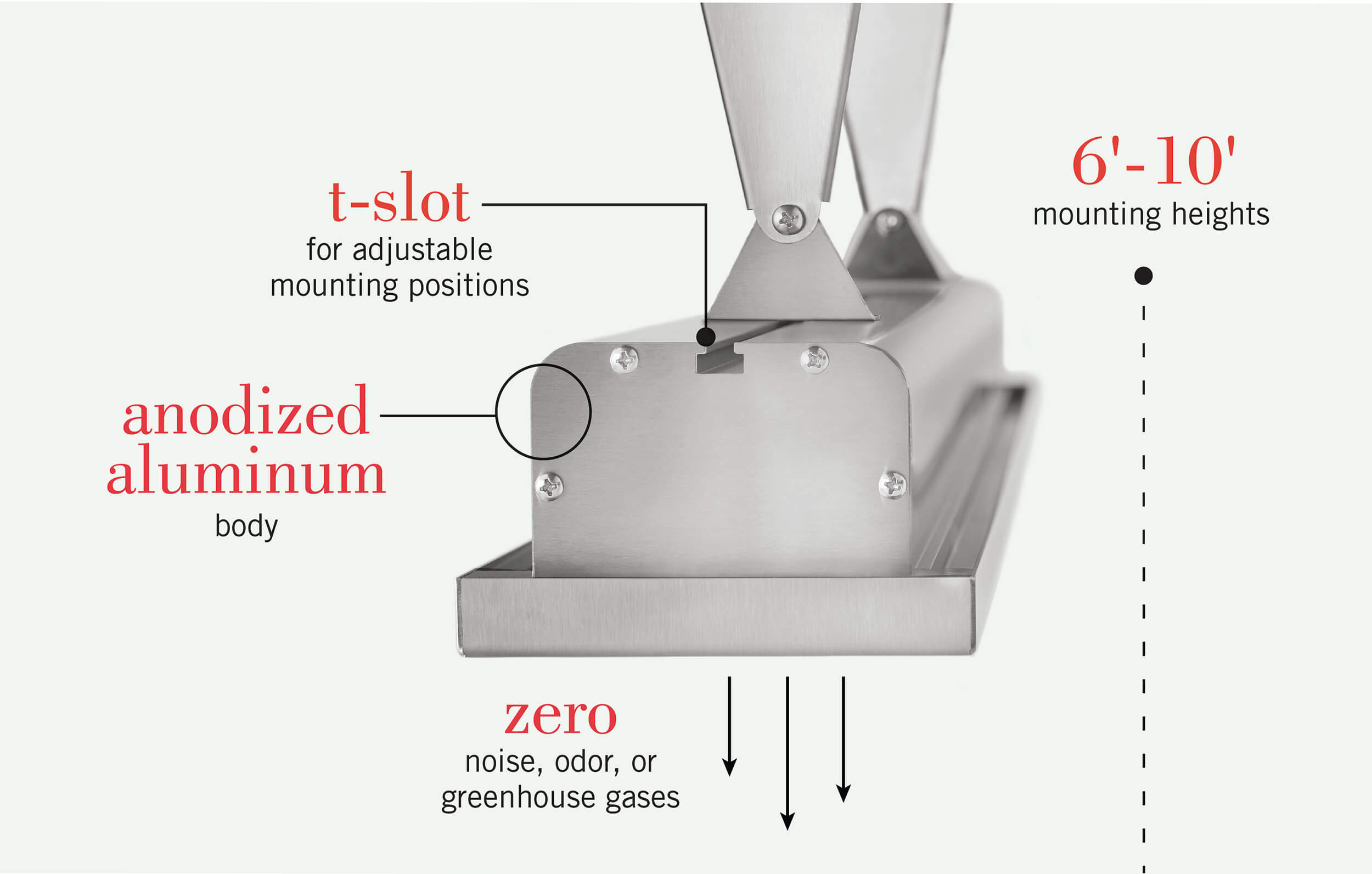

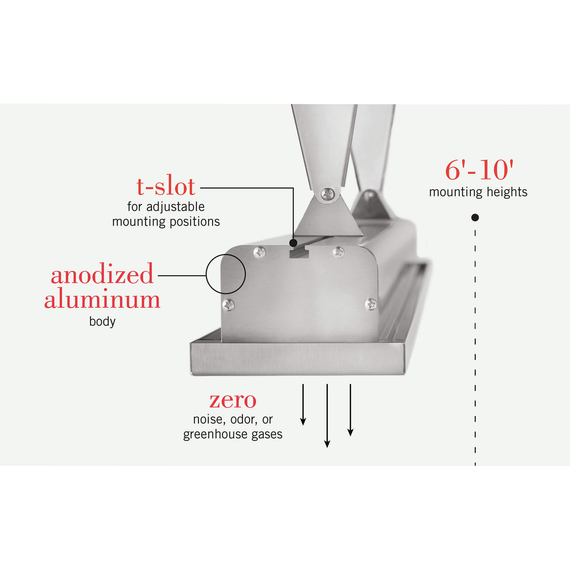

• Mount Type: Surface Mounted Up To 11 Feet
• Fuel Type: Electric
• Grade: Commercial | Residential
• Heat Output: 3000 Watts
• AMPS: 14.4
• Material: Aluminum | Stainless Steel | Single Quartz Element
• Height: 8-11/16 Inches
• Heater Height: 4.75
• Width: 8.68"
• Length: 63.50"
• Finish: Anodized Powdercoat
• Color: Silver | Black
• Side Clearance: 18 Inches
• Rear Clearance: 6 Inches
• Heat Method: Infrared
• Voltage: 208 Volts
• Assembly: Required

Downloads

• Infratech Product Brochure
• Slimeline Series Application/Installment Guide
• Slimline Series Specification
• Infratech Control Brochure
• On/Off Duplex Stack Switch Brochure
• On/Off Duplex Stack Wiring Diagram
• Solid State Relay Brochure
• Solid State Relay Wiring Diagram
• Product Warranty
