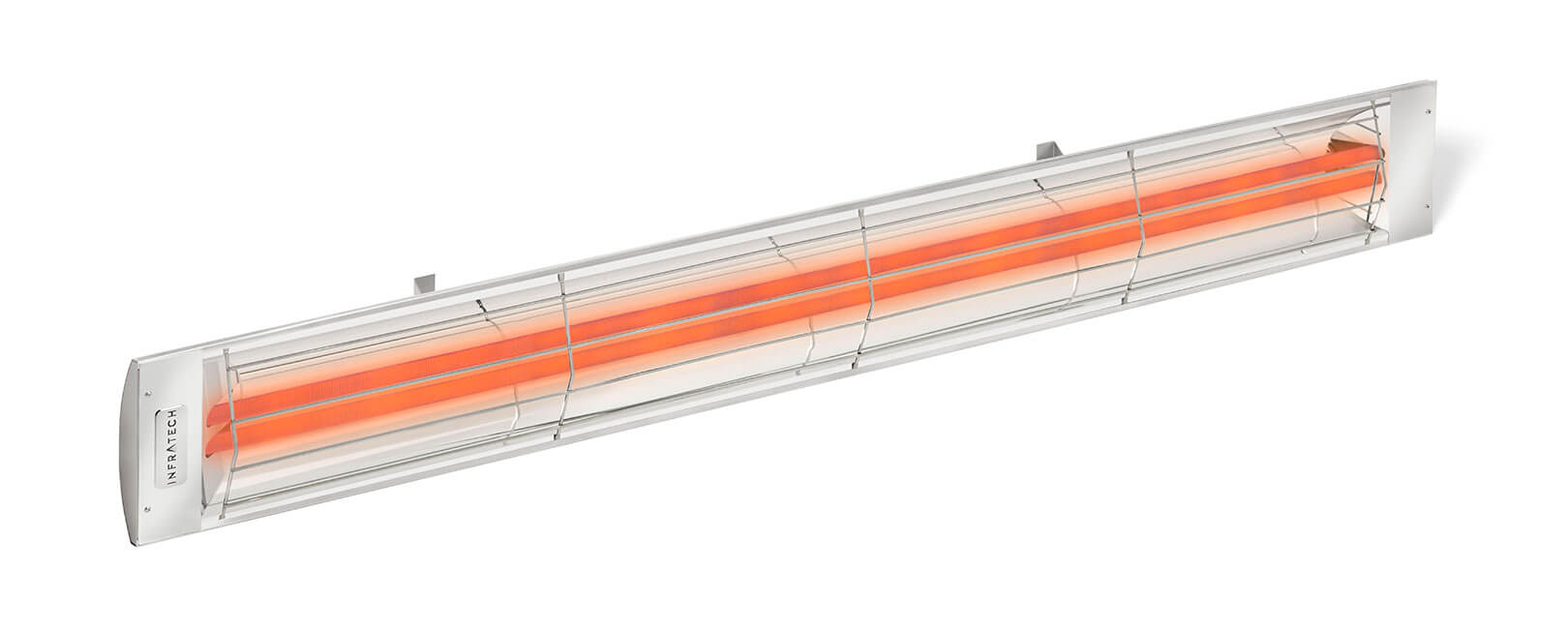

Infratech Dual Element CD-Series 6000 W & 480 V Heater

Let's talk about the Infratech 61.25 Inches CD-Series Dual Element 6000 W and 480 V Heater. This heater is a powerhouse when it comes to outdoor heating, designed to keep your outdoor spaces warm and comfortable. Firstly, its size: at 61.25 inches wide, this heater is perfect for heating larger outdoor areas. The 'CD-Series' designation indicates that it's part of Infratech's dual-element line, known for its enhanced heating capabilities. Now, onto the specifics. This heater features dual heating elements, each capable of producing 3000 watts of heat output, for a total of 6000 watts. This means it can generate a substantial amount of warmth, perfect for keeping you cozy on cool evenings.

One crucial thing to note is the voltage requirement. This heater operates at 480 volts, which is higher than standard household voltage. This higher voltage allows the heater to deliver its 6000 watts of power efficiently, ensuring optimal heating performance. In terms of design, the Infratech 61.25 Inches CD-Series Dual Element Heater has a sleek and modern look that will complement any outdoor setting. Plus, it's designed for easy installation, so you can start enjoying its warmth without any hassle.

Controls:

On/OFF Duplex Stack Switch- This on/off duplex stack switch is designed for use with single-element heaters. It offers a cost-effective solution for dual-element heaters, allowing you to turn on both elements for full power or just one element for half power. Each stack can handle a maximum of 40 Amps, with each switch supporting up to 20 Amps. You can wire your heater to the switch, and then the switch to your electrical service panel. It's possible to run single-element heaters from each switch, as long as they do not exceed 20 Amps per switch, but it's generally not recommended for optimal performance.

Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.

Features:

• The concentrated heat is provided by our strong dual-element CD-Series fixtures for larger applications in prominent visual impact areas and is meant for mounting altitudes between 7 and 12 feet.

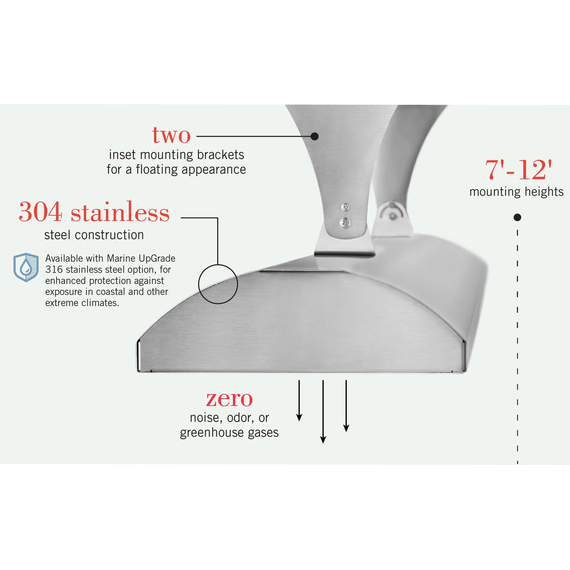

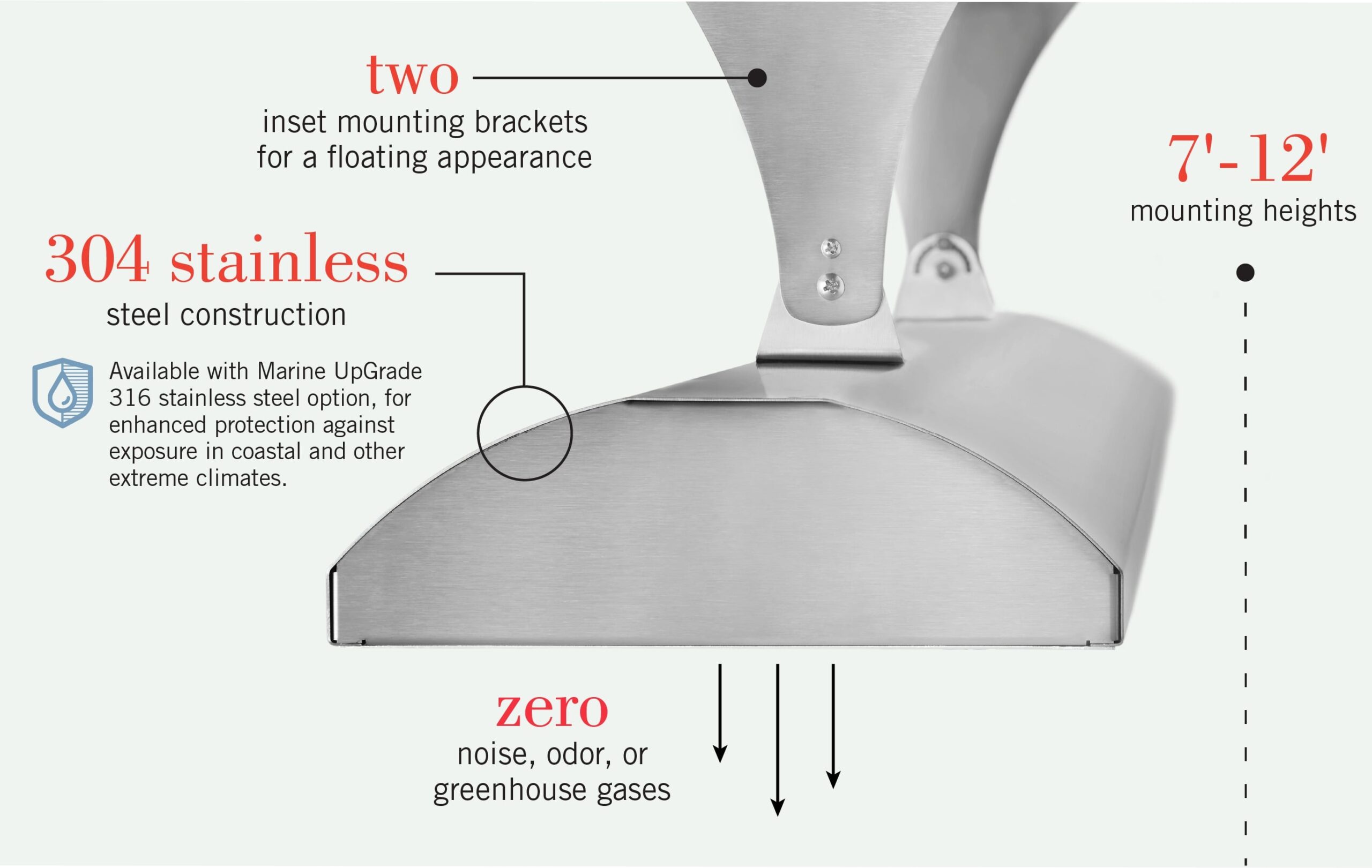

• Features include concealed installations, inset mounting brackets that, when attached, give the appearance of "floating," and sturdy 304 stainless steel construction.

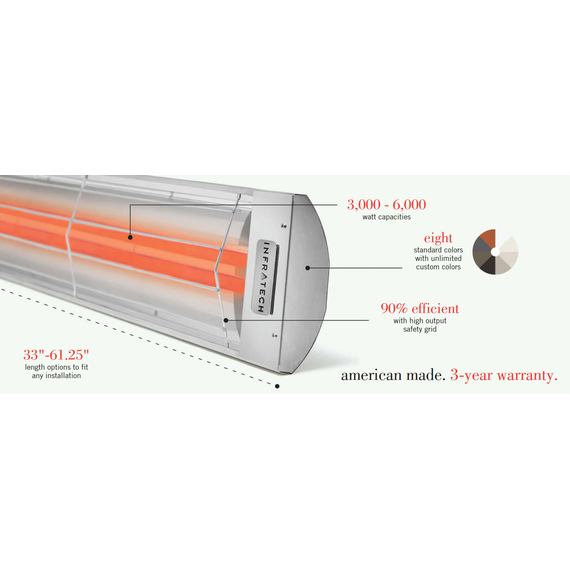

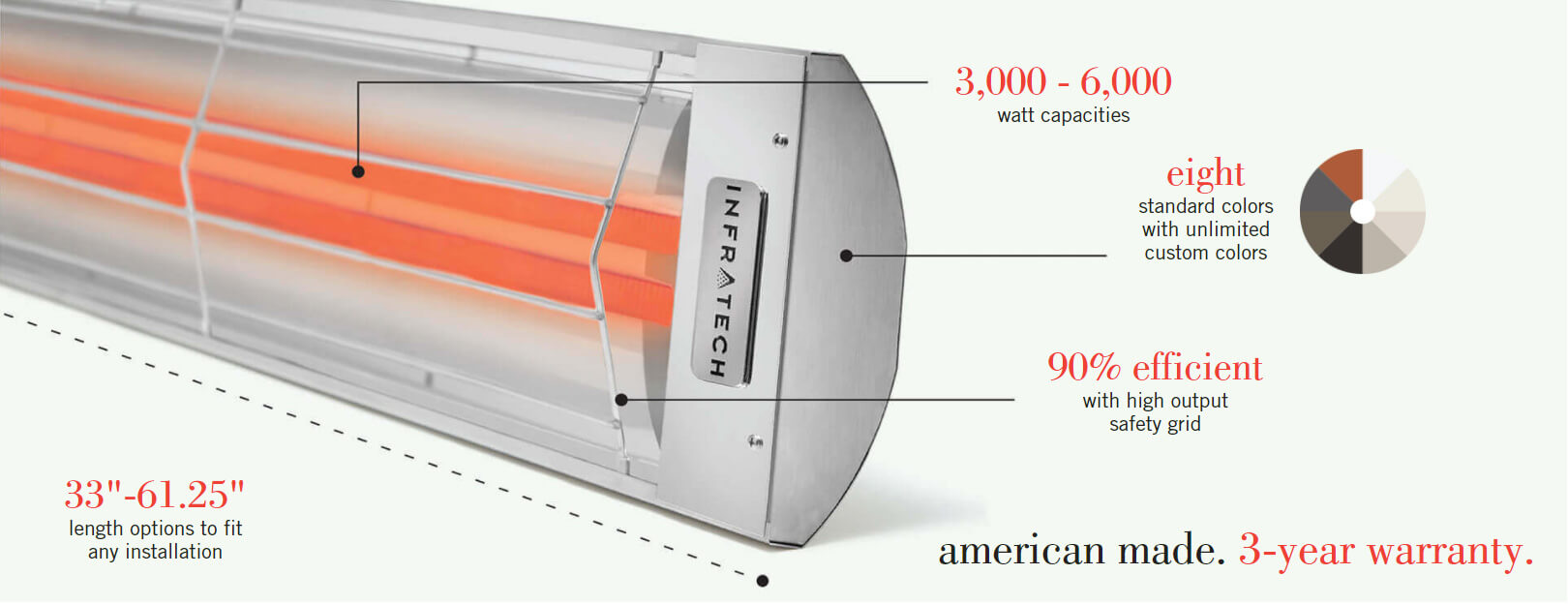

• Select between 208-480 volts and 3,000-6,000 watt capabilities.
• Usually fitted with our unique controls, which allow us to adjust the electric load for comfortable heating under a variety of circumstances.
• May also be installed with Duplex/Stack Switches for effectively a half-power or full-power option

Specifications:

• Weight: 20 lbs
• Dimensions: 61.25 in. x 8.19 in. x 2.5 in.
• Length: 61.25"
• Wattage: 6000
• Voltage: 480
• Amps: 12.5
• Warranty Length: 3 Years
• Color: Stainless Steel
