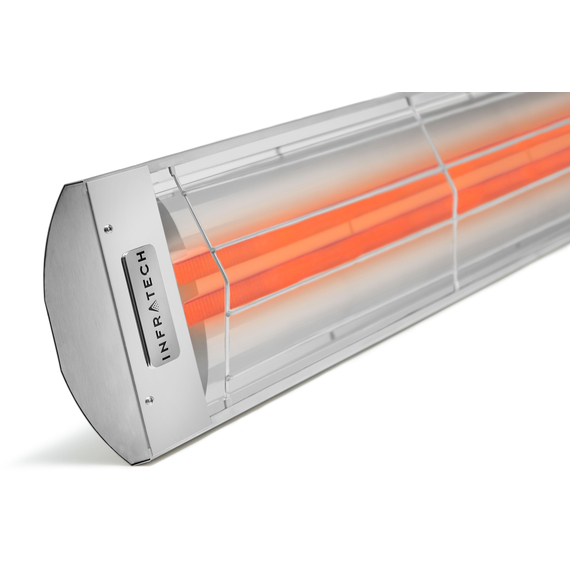

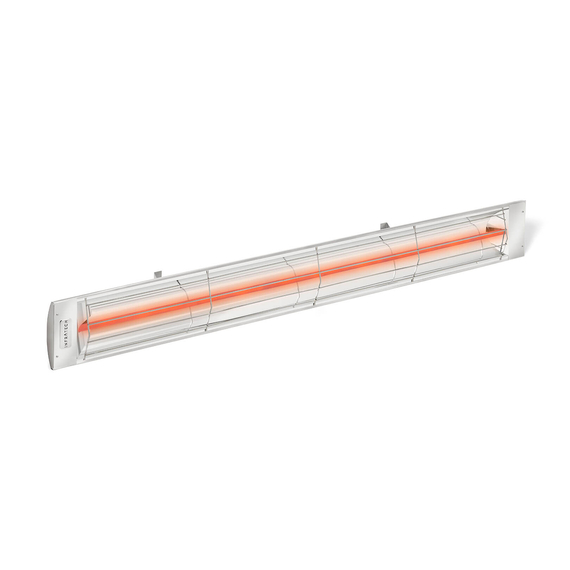

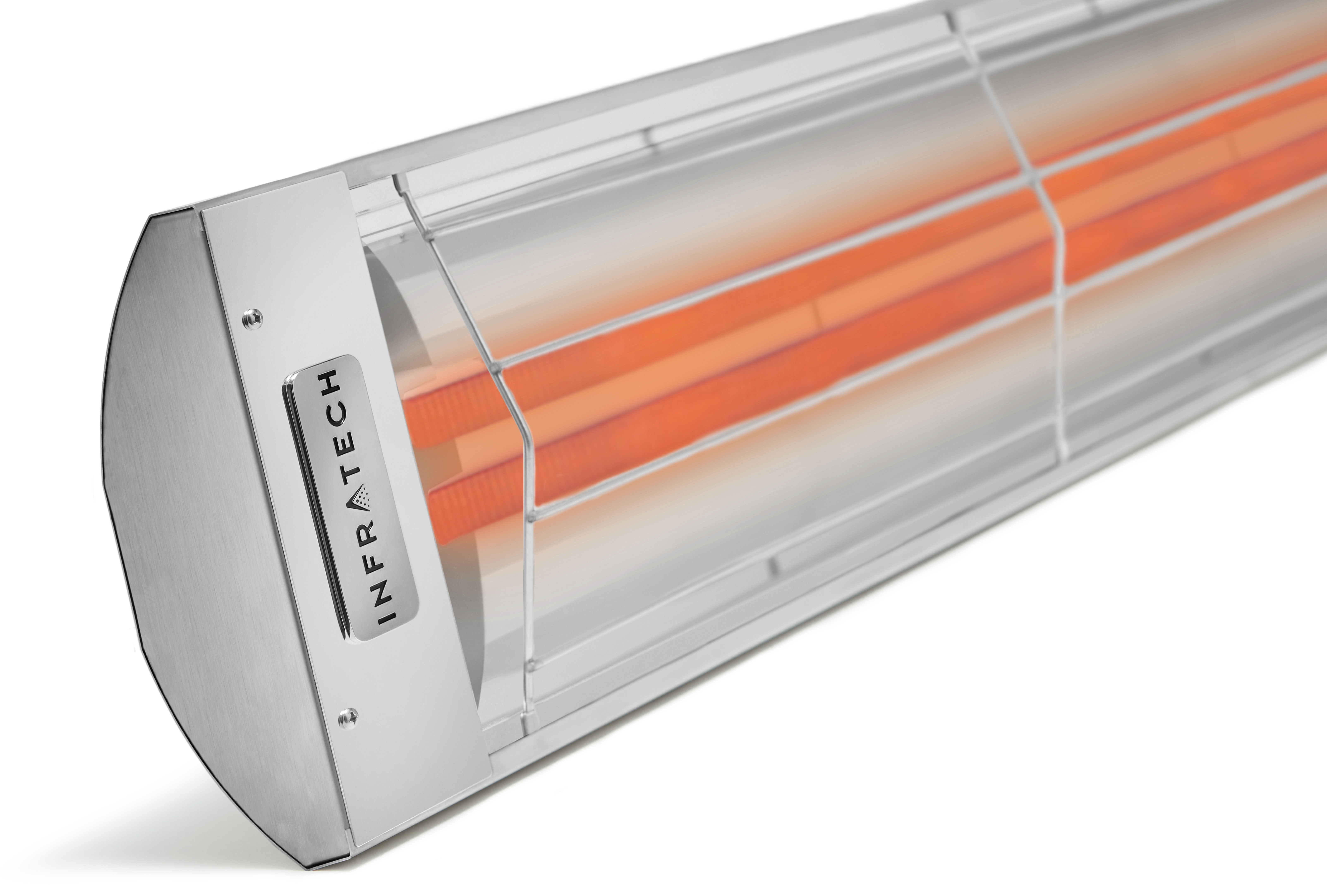

Infratech Single Element C-Series 4000 W & 208 V Heater

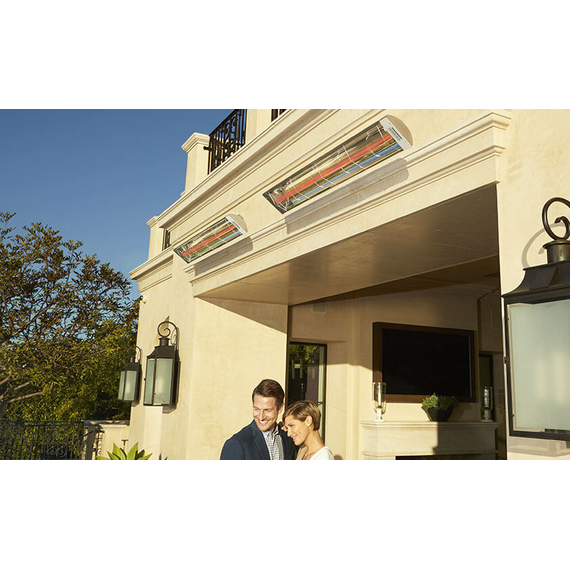

Large outdoor spaces may be made cozy and toasty with the Infratech 61.25-inch C-Series Single Element 4000 W and 208 V Heater, a high-end outdoor heating option. This heater is perfect for heating patios, decks, and other outside areas because of its strong 4000-watt heating output and 208-volt electrical input. The sleek and contemporary appearance of the C-Series Heater elevates any outdoor environment. With its dependable and steady heat, this heater will keep you and your guests comfortable whether you're entertaining or just lounging outside.

The Infratech C-Series Heater not only has strong heating powers but also saves energy, so you can enjoy the warmth without worrying about expensive energy costs. It is a sustainable option for heating outdoor areas because of its environmentally benign operation, which produces no greenhouse gases or smells. The Infratech C-Series Heater is made to resist weather conditions and is constructed with durability in mind. Long-lasting performance is ensured by its weather-resistant design, even in challenging outdoor conditions.

Controls:

Simple On/Off Single Switch-  This switch helps you turn your heater on and off easily. You connect your heater to this switch, and then the switch to your home's electrical system. It's a basic switch that can handle up to 20 Amps of electricity. You can use it with one heater or more, as long as they don't use more than 20 Amps together, but it's usually best to use one switch per heater for the best performance.

Infinite Control (inf) Regulator- This control is like a knob that lets you change how hot your heater gets. You can turn it up or down to make the heat stronger or weaker. Each knob can handle up to 3,000 Watts of power and 15 Amps of electricity. It's made for heaters with just one heating part. You can't use this control to separately control two heating parts in a heater with two parts.

Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.

Features:

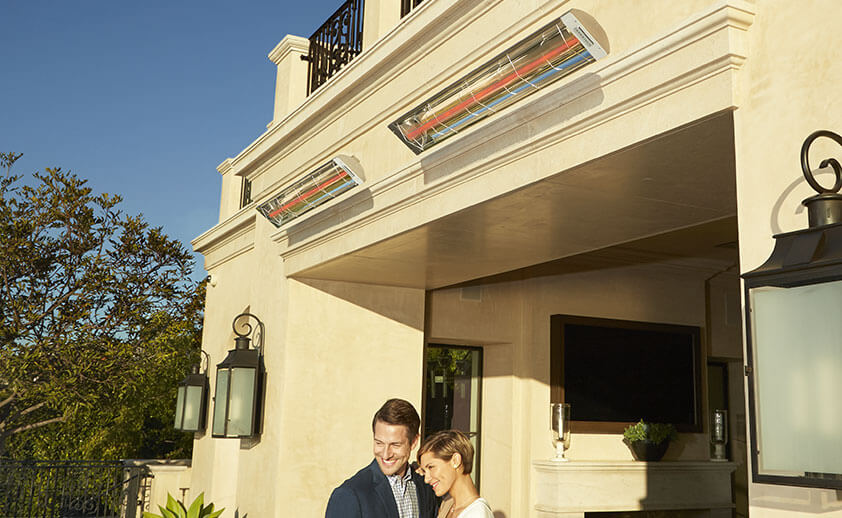

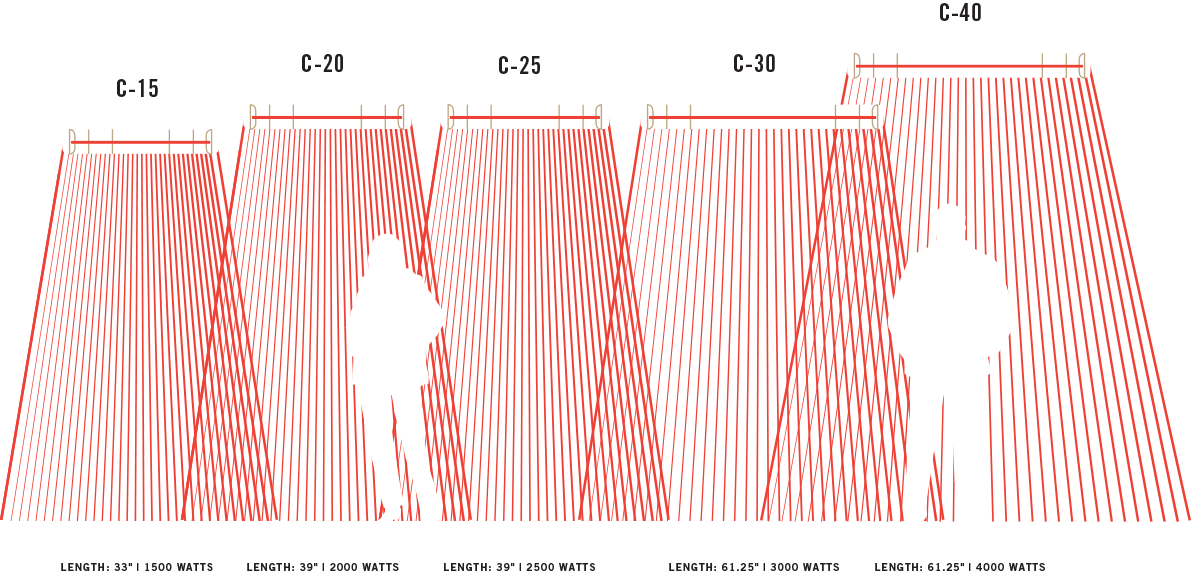

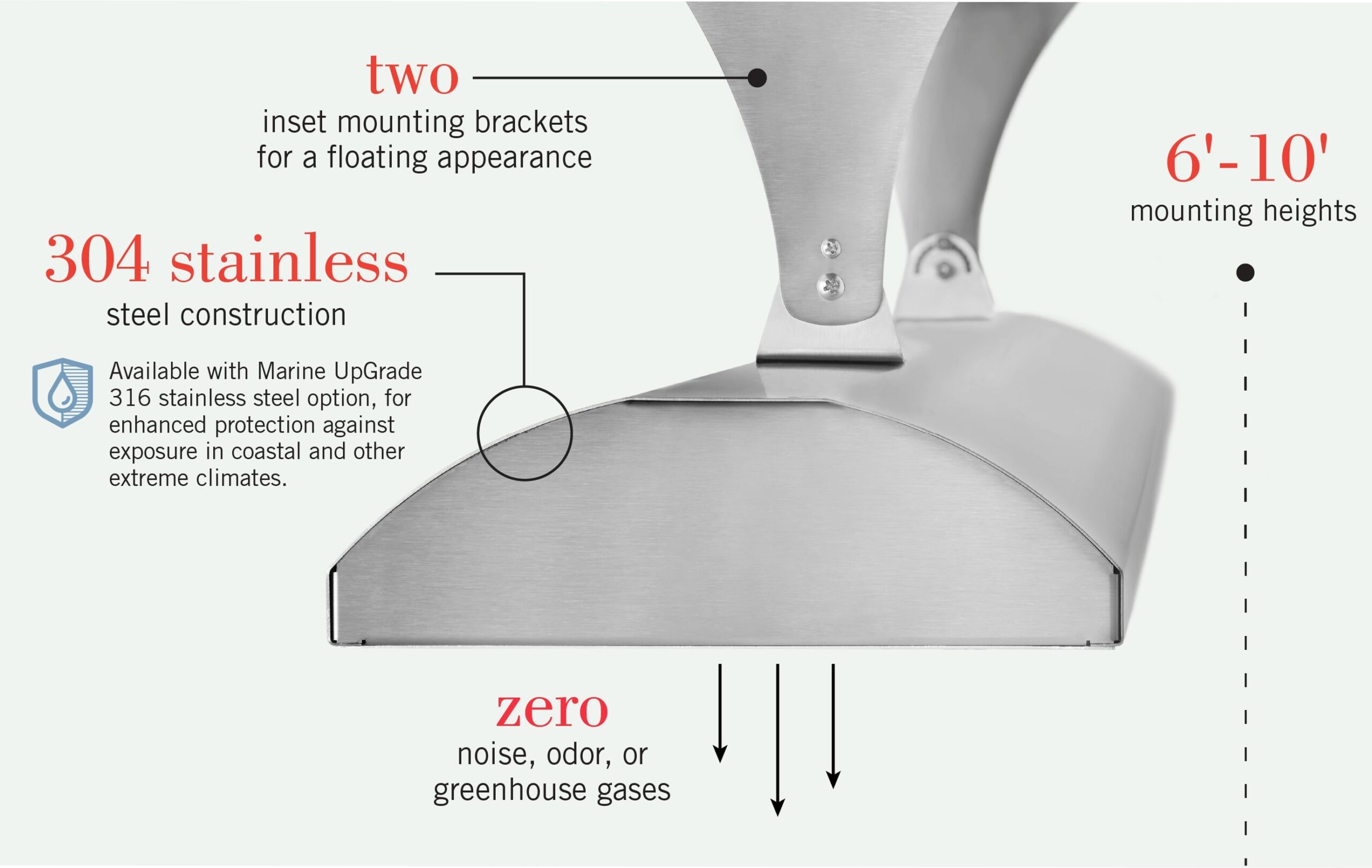

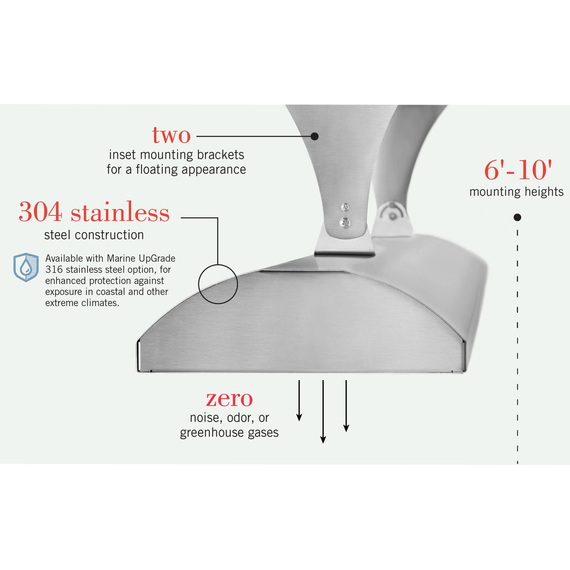

• Our C-Series lighting fixtures are designed to be used in visually striking areas where their streamlined appearance complements the architecture. With mounting heights of 6–10 feet, they provide a considerable amount of heat output.
• Features include concealed installations, inset mounting brackets that, when attached, give the appearance of "floating," and sturdy 304 stainless steel construction.

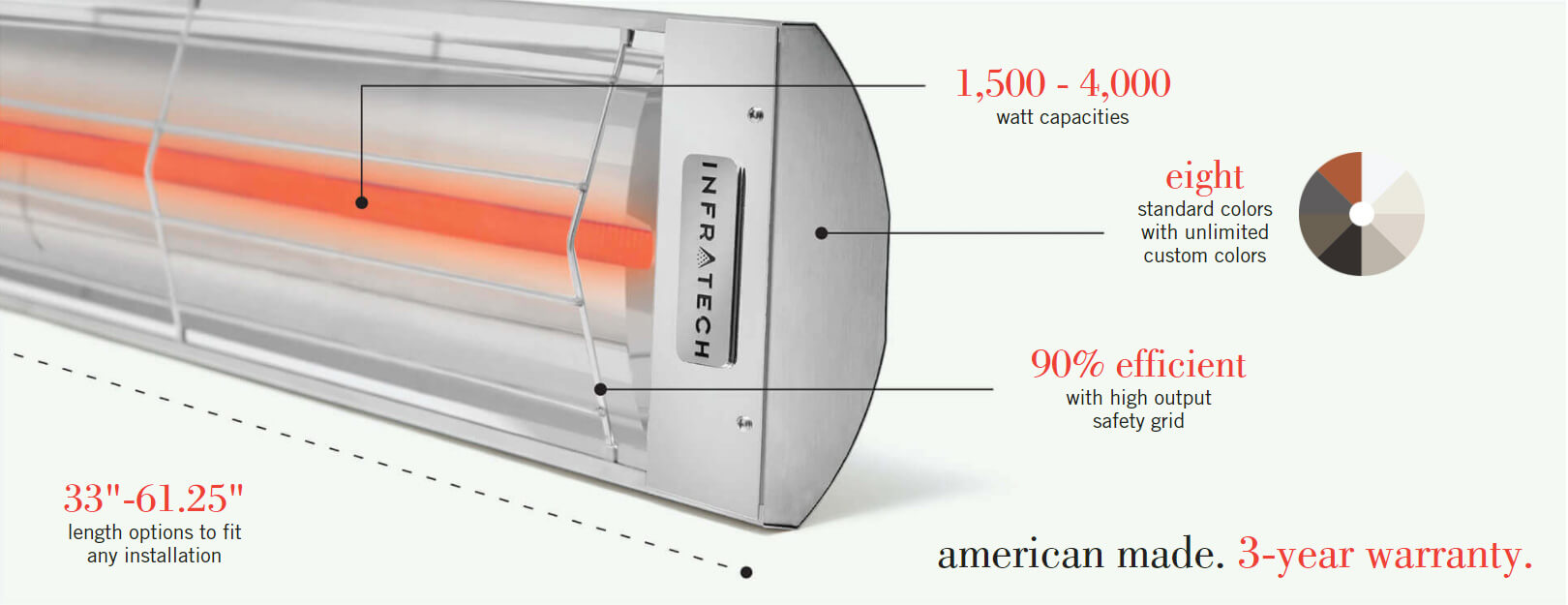

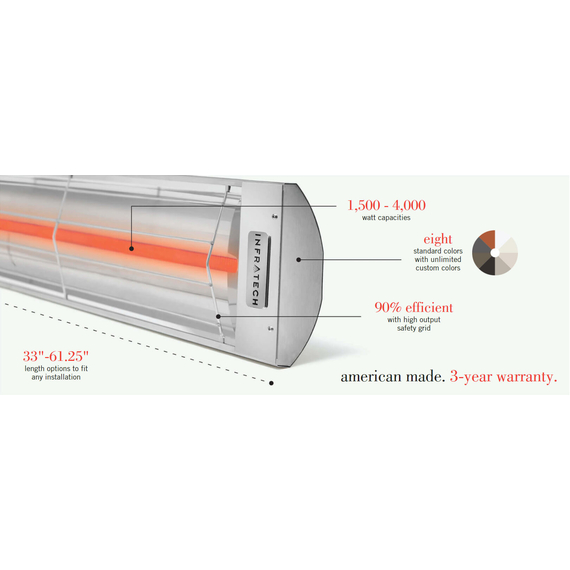

• Select from 120-480 volts and 1,500-4,000 watt capabilities.
• Suitable for larger-scale home or commercial use with our custom controls.
• Select from options for basic hues, custom color finish, or brushed stainless steel.

Specifications:

• Weight: 20 lbs
• Dimensions: 61.25 in. x 8.19 in. x 2.5 in.
• Length: 61.25 in
• Wattage: 4000
• Voltage: 208
• Amps: 19
• BTU's: 10236
• Warranty Length: 3 Years
• Color: Stainless Steel

Downloads:

• Infratech Product Brochure
• C-Series Application/Installment Guide
• C-Series Specification
• Infratech Control Brochure
• Simple On/Off Switch Brochure
• Simple On/Off Wiring Diagram
• Infinite Input Regulator Brochure
• Infinite Input Regulator Wiring Diagram
• Solid State Relay Brochure
• Solid State Relay Wiring Diagram
• Product Warranty
