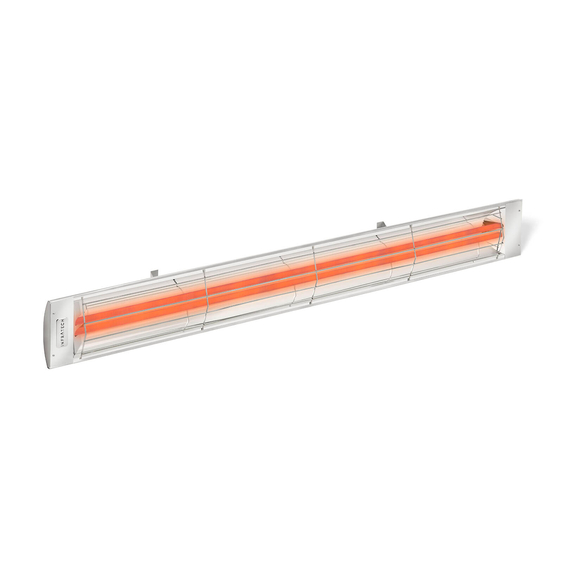

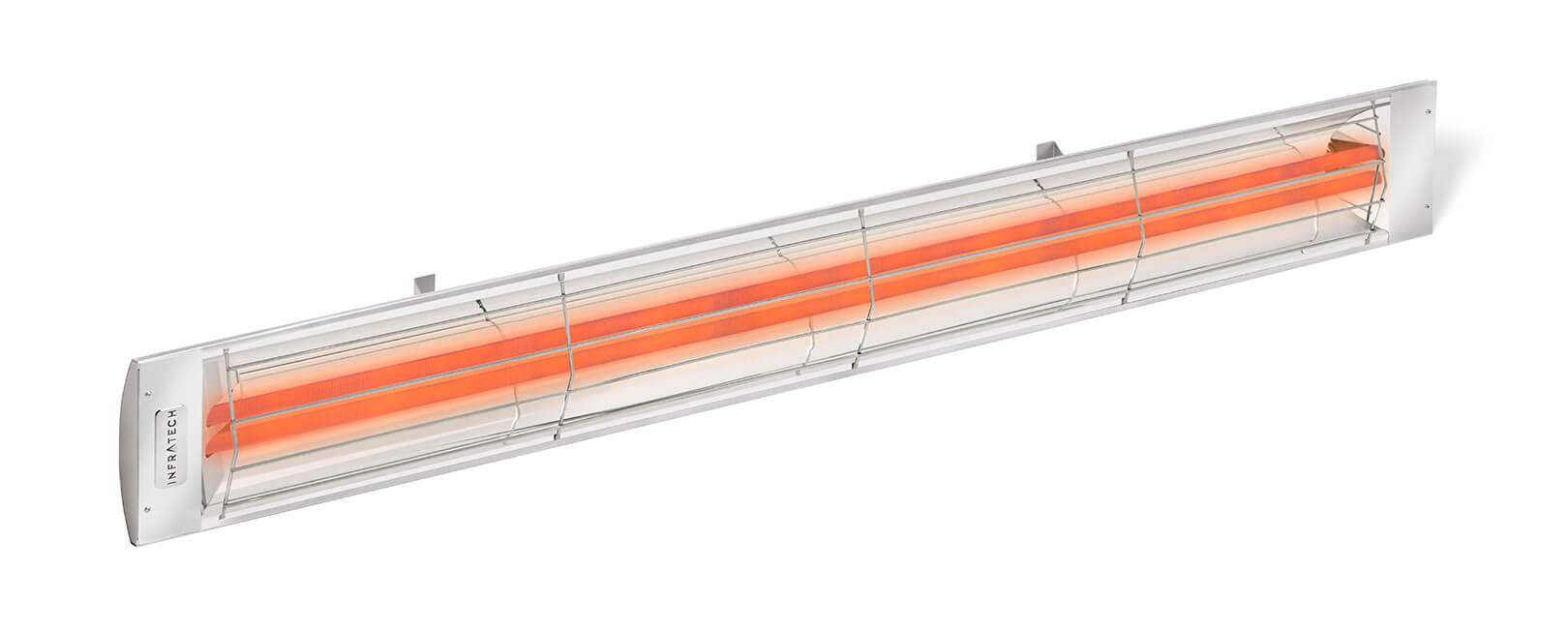

Infratech Dual Element CD-Series 5000 W & 480 V Heater

Allow me to present the 39-inch CD-Series Dual Element Heater, 5000 W, and 480 V, from Infratech. With this heater, you can maintain a cozy and comfortable atmosphere in your outside areas with high-performance heating. Its size is the first thing to note: at 39 inches broad, this heater is perfect for heating larger outdoor spaces. It is part of Infratech's dual-element range, which is renowned for its improved heating capabilities, as indicated by the 'CD-Series' classification. Let's go on to the details. With two heating elements, this heater can produce a total of 5000 watts of heat output—2,500 watts for each element. This indicates that it has a significant heating capacity, which makes it ideal for keeping you warm on chilly nights.

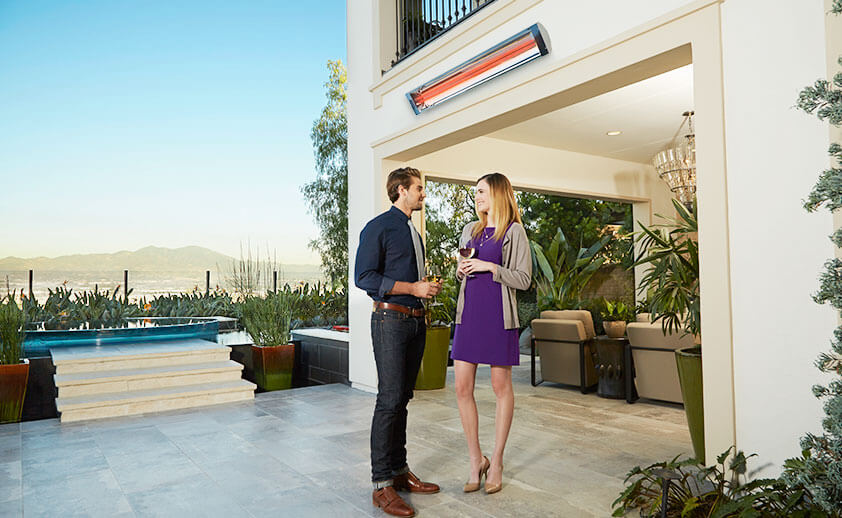

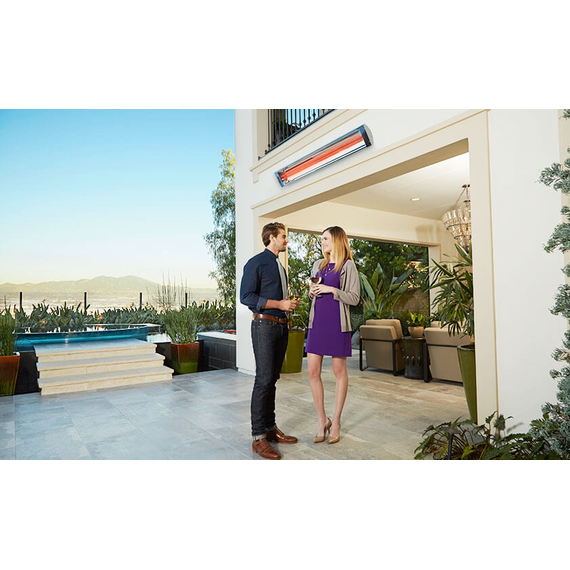

The voltage requirement is one important consideration. The operating voltage of this heater is 480 volts, which is greater than the typical household voltage. The heater's 5000 watts of power can be delivered more effectively thanks to this greater voltage, guaranteeing ideal heating results. The sleek and contemporary style of the Infratech 39-inch CD-Series Dual Element Heater goes well with any outdoor environment. Its simple installation style also means you can start making use of its warmth right away.

Controls:

On/OFF Duplex Stack Switch- This on/off duplex stack switch is designed for use with single-element heaters. It offers a cost-effective solution for dual-element heaters, allowing you to turn on both elements for full power or just one element for half power. Each stack can handle a maximum of 40 Amps, with each switch supporting up to 20 Amps. You can wire your heater to the switch, and then the switch to your electrical service panel. It's possible to run single-element heaters from each switch, as long as they do not exceed 20 Amps per switch, but it's generally not recommended for optimal performance.

Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.

Features:

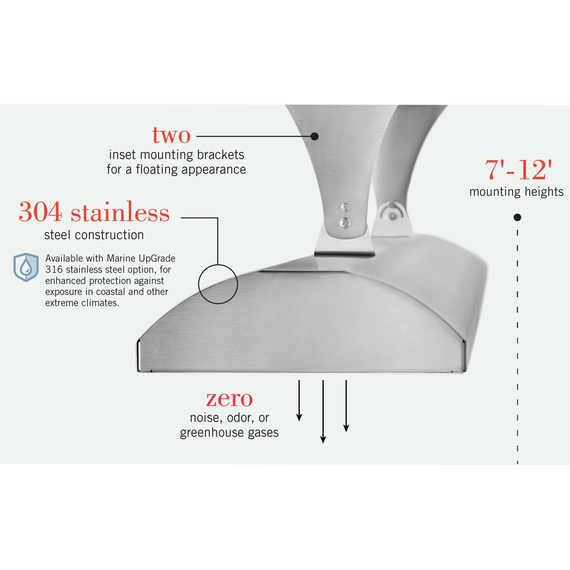

• The concentrated heat is provided by our strong dual-element CD-Series fixtures for larger applications in prominent visual impact areas and is meant for mounting altitudes between 7 and 12 feet.

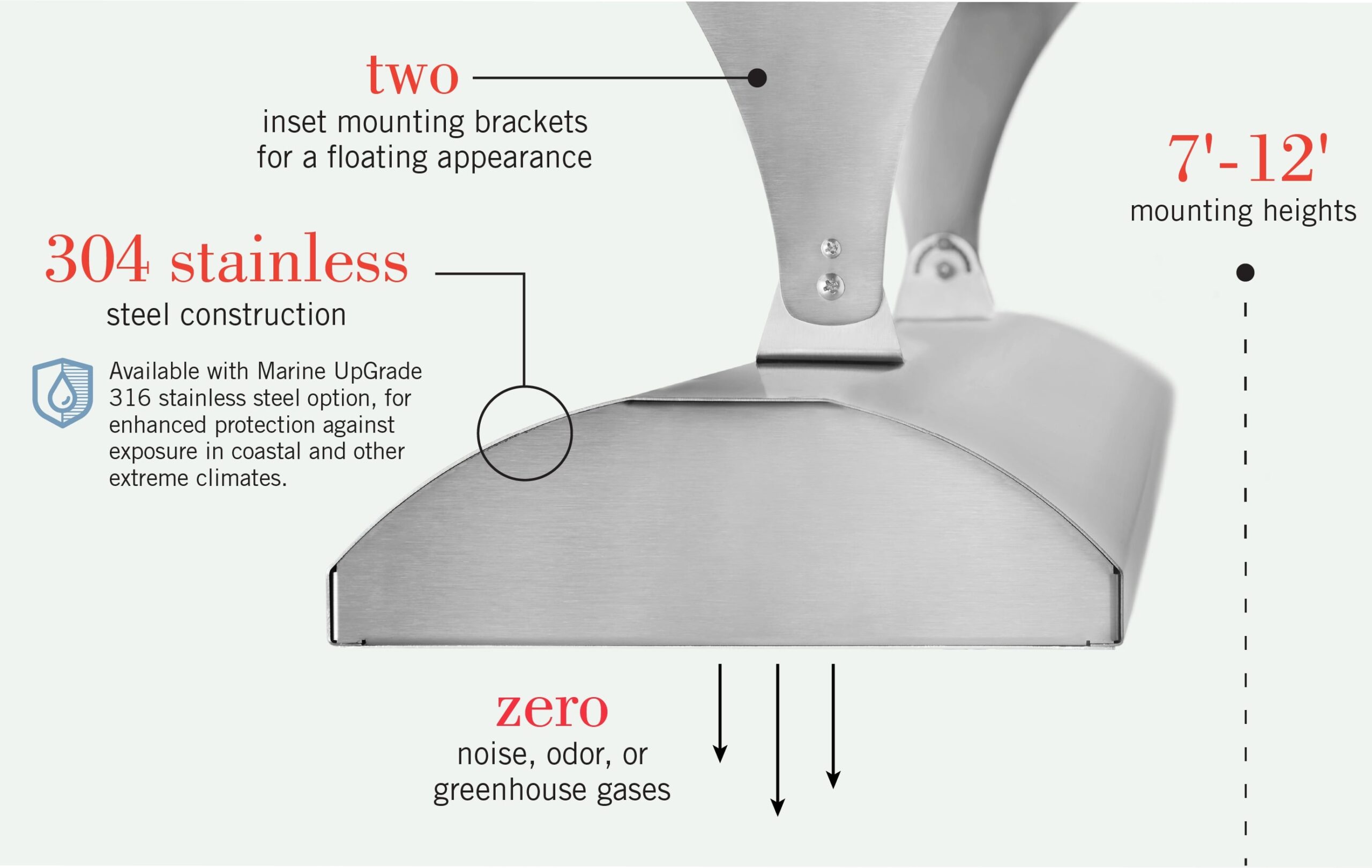

• Features include concealed installations, inset mounting brackets that, when attached, give the appearance of "floating," and sturdy 304 stainless steel construction.

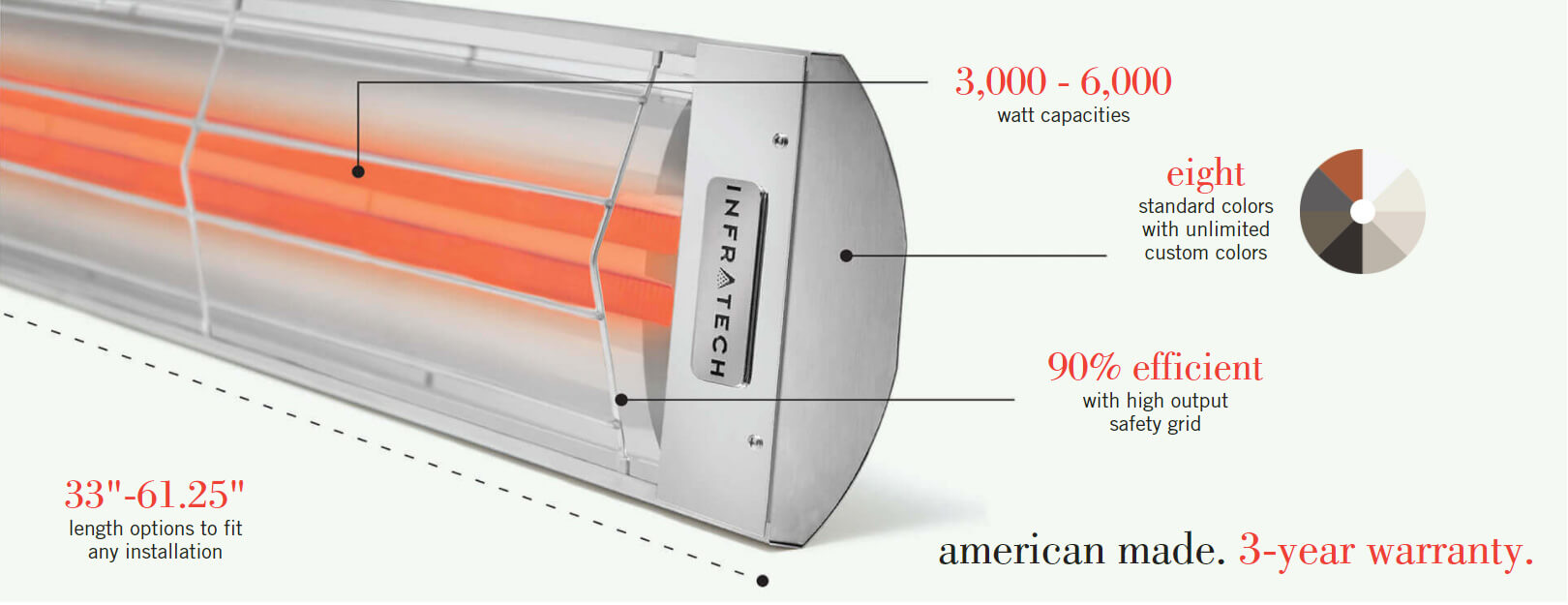

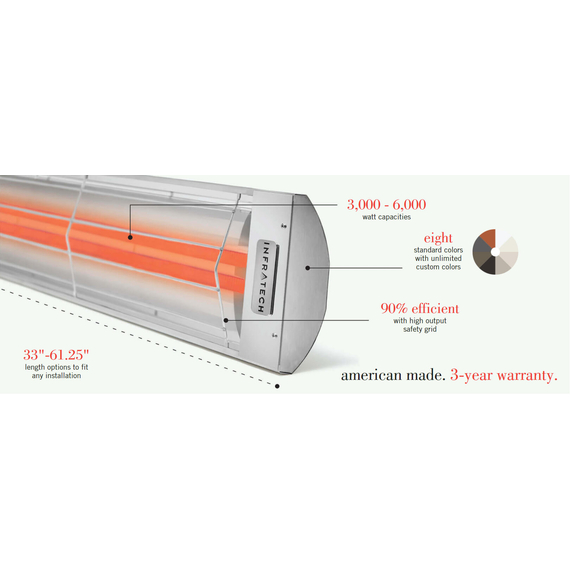

• Select between 208-480 volts and 3,000-6,000 watt capabilities.
• Usually fitted with our unique controls, which allow us to adjust the electric load for comfortable heating under a variety of circumstances.
• May also be installed with Duplex/Stack Switches for effectively a half-power or full-power option

Specifications:

• Weight: 20 lbs
• Dimensions: 39 in. x 8.19 in. x 2.5 in.
• Length: 39"
• Wattage: 5000
• Voltage: 480
• Amps: 10.4
• Warranty Length: 3 Years
• Color: Stainless Steel

Downloads:

• Infratech Product Brochure
• CD-Series Application/Installment Guide
• CD-Series Specification
• Infratech Control Brochure
• On/Off Duplex Stack Switch Brochure
• On/Off Duplex Stack Wiring Diagram
• Solid State Relay Brochure
• Solid State Relay Wiring Diagram
• Product Warranty
