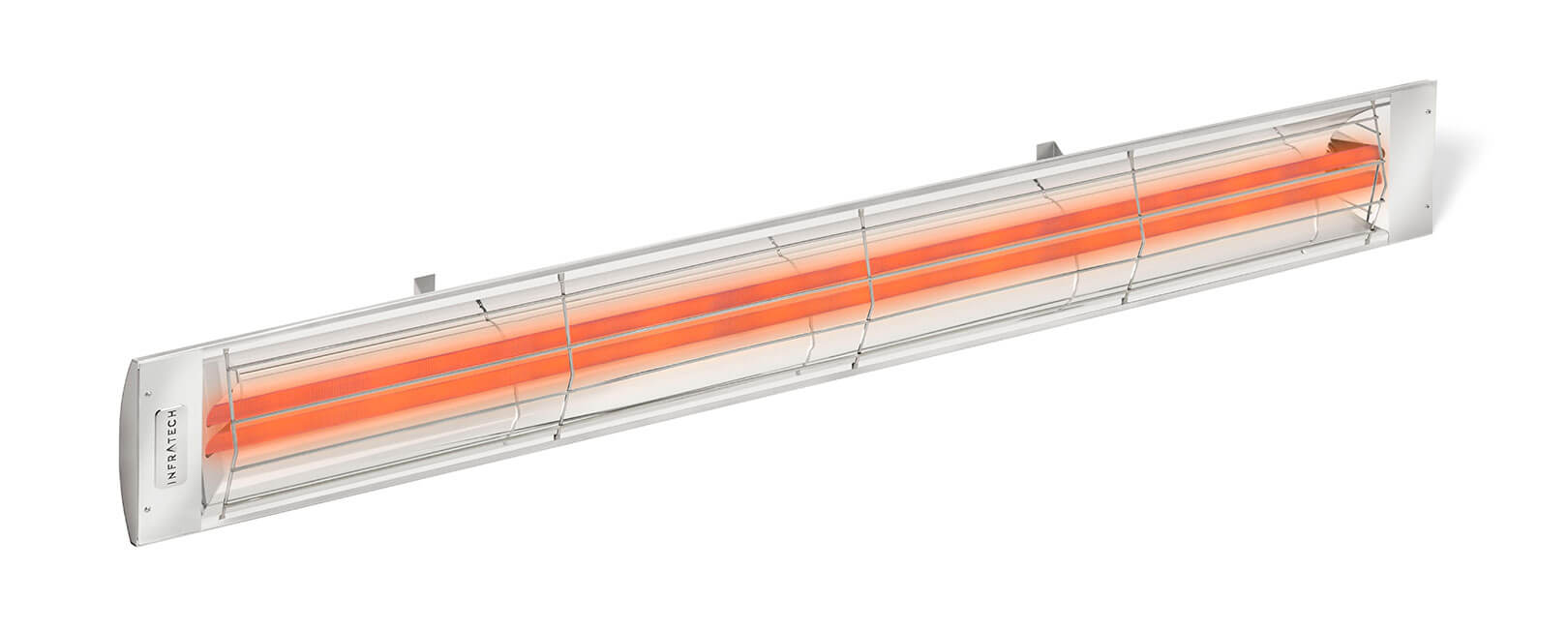

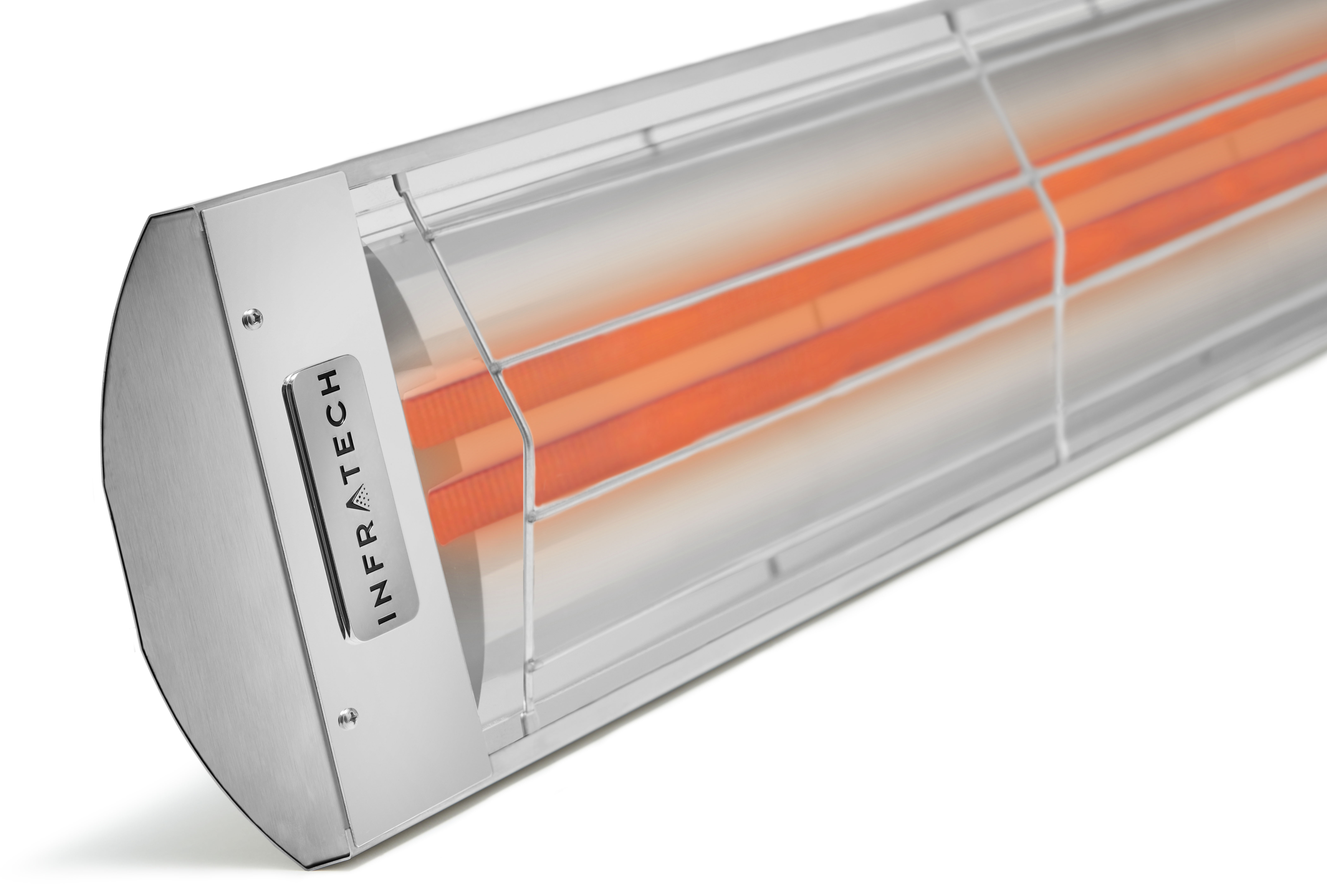

Infratech Dual Element CD-Series 5000 W & 240 V Heater - 316 Marine Grade

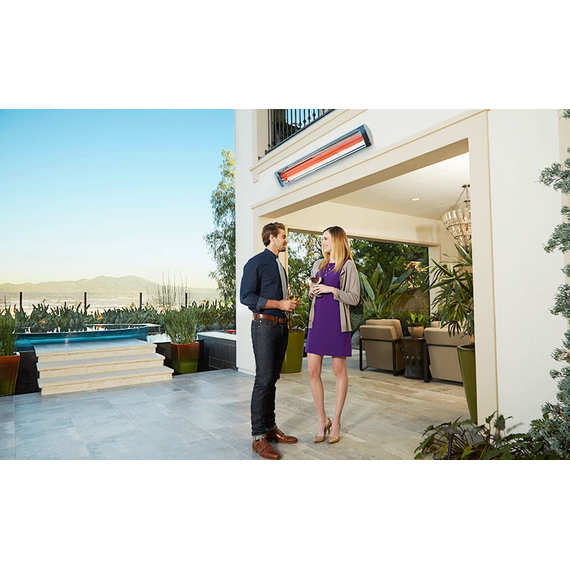

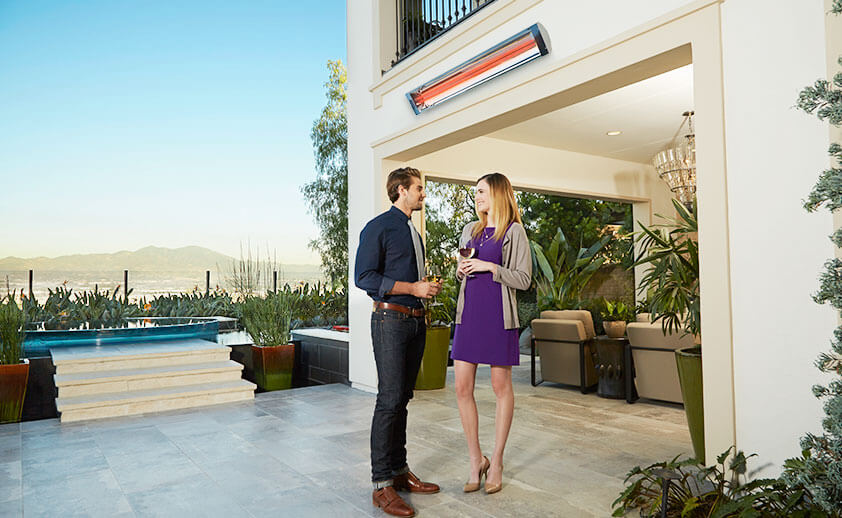

The 39-inch CD-Series Dual Element Heater from Infratech may completely change your outdoor living area. This heater is built to endure the rigors of outdoor use and is made of premium 316 marine-grade stainless steel, guaranteeing years of dependable operation. Its 5000 watts of power and 240 volts allow you to enjoy the outdoors in comfort by efficiently heating your patio, deck, or outdoor dining area. The single-element setup provides targeted warmth just where it's needed, and the sleek and contemporary form lends refinement to any outdoor environment. The 39-inch CD-Series Heater from Infratech will keep you toasty and warm outside.
Controls:
On/OFF Duplex Stack Switch- This on/off duplex stack switch is designed for use with single-element heaters. It offers a cost-effective solution for dual-element heaters, allowing you to turn on both elements for full power or just one element for half power. Each stack can handle a maximum of 40 Amps, with each switch supporting up to 20 Amps. You can wire your heater to the switch, and then the switch to your electrical service panel. It's possible to run single-element heaters from each switch, as long as they do not exceed 20 Amps per switch, but it's generally not recommended for optimal performance.
Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.
Features:
- The concentrated heat is provided by our strong dual-element CD-Series fixtures for larger applications in prominent visual impact areas and is meant for mounting altitudes between 7 and 12 feet.

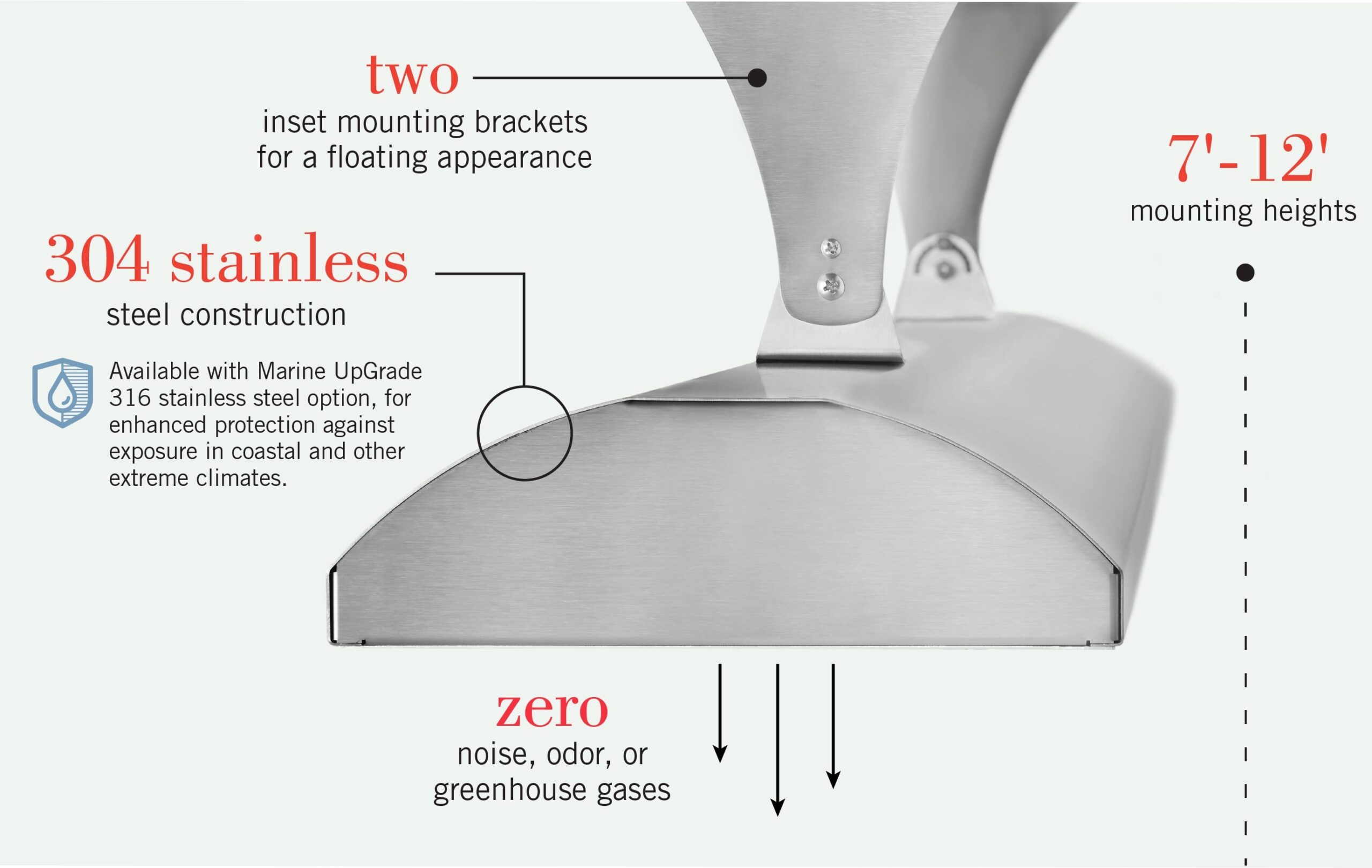

- Features include concealed installations, inset mounting brackets that, when attached, give the appearance of "floating," and sturdy 304 stainless steel construction.

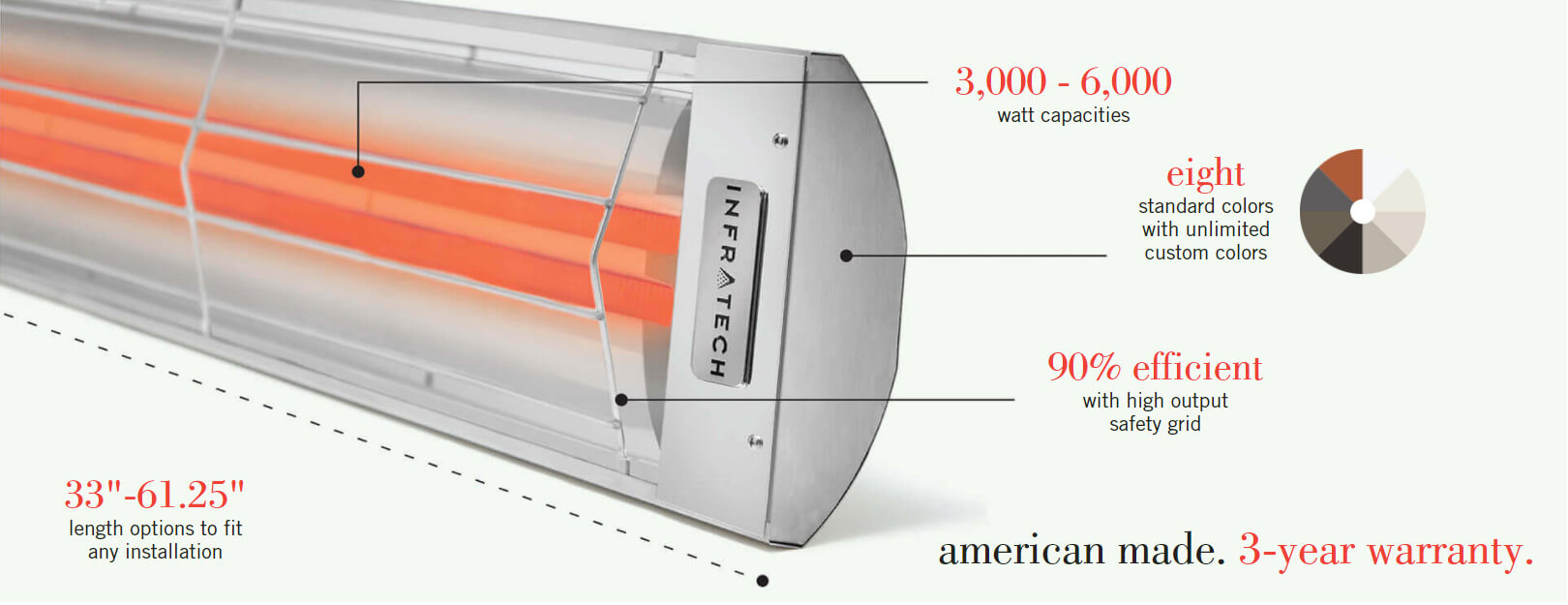

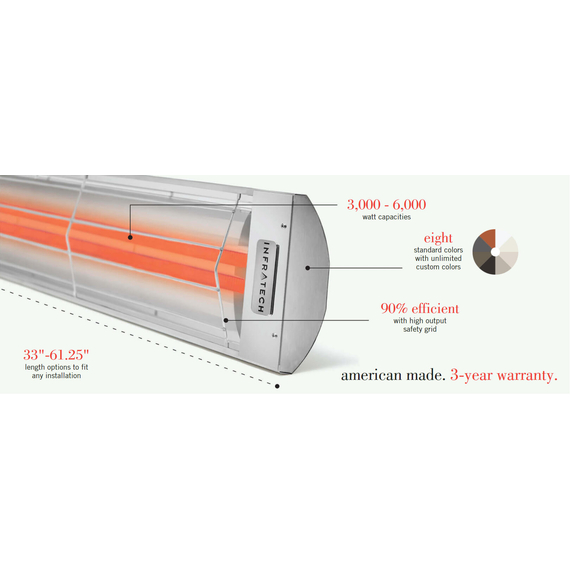

- Select between 208-480 volts and 3,000-6,000 watt capabilities.
- Usually fitted with our unique controls, which allow us to adjust the electric load for comfortable heating under a variety of circumstances.
- May also be installed with Duplex/Stack Switches for effectively a half-power or full-power option
Specifications:
- Mount Type: Wall / Ceiling 7'-11
- Installation: Recessed Installations and inset Mounting Brackets
- Fuel Type: Electric
- Grade: Commercial | Residential
- Heat Output: 5000 Watts
- Amps: 20.8
- BTU's: 10236
- Material: 304 Stainless Steel | Dual Quartz Element

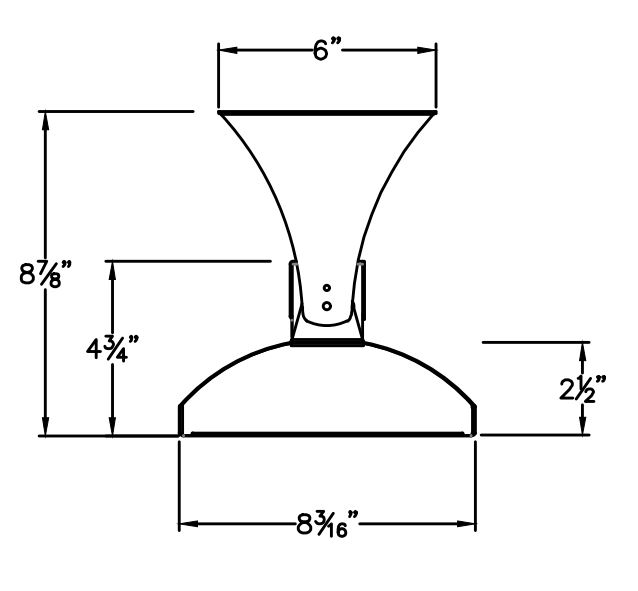

- Height: 8-12 Inches
- Heater Height: 2.5 Inches
- Length: 39 Inches
- Width: 8-3/16 Inches
- Finish: Stainless Steel

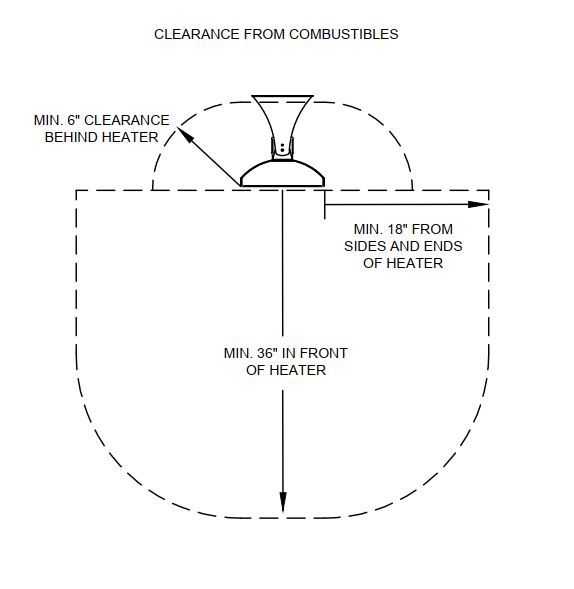

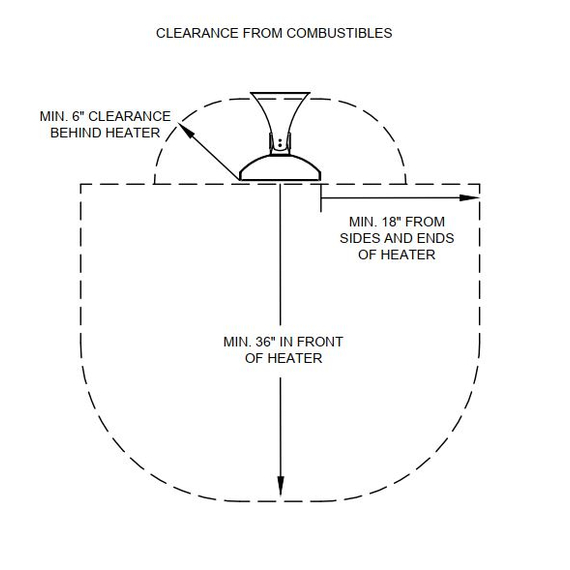

- Clearance Behind Heater: Minimum 6 Inches
- Clearance from Sides and Ends of Heater: Minimum 18 Inches
- Clearance in Front of Heater: Minimum 36 Inches
- Heat Method: Infrared
- Voltage: 240 Volts
Downloads:
- Type: Wall/ Ceiling / Pole Mounted
- Fuel Type: Electric
- Grade: Commercial | Residential
- Heat Output: 2500 Watts
- Material: Aluminum | Stainless Steel | Quartz Element
- Height: 9-3/8 Inches
- Depth: 8-3/16 Inches
- Width: 39 Inches
- Finish: Anodized Powdercoat
- Color: Almond | Beige | Biscuit | Black | Bronze | Copper | Gray | Stainless Steel | White
- Coverage Area: 100 Square Feet
- Clearance Behind Heater: Minimum 6 Inches
- Clearance from Sides and Ends of Heater: Minimum 18 Inches
- Clearance in Front of Heater: Minimum 36 Inches
- Heat Method: Infrared
- Voltage: 240 Volts
- Manual: W Series Heater Owner's Manual
