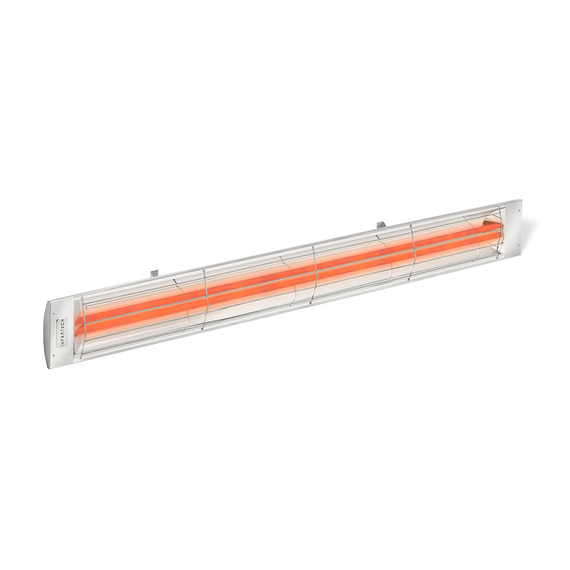

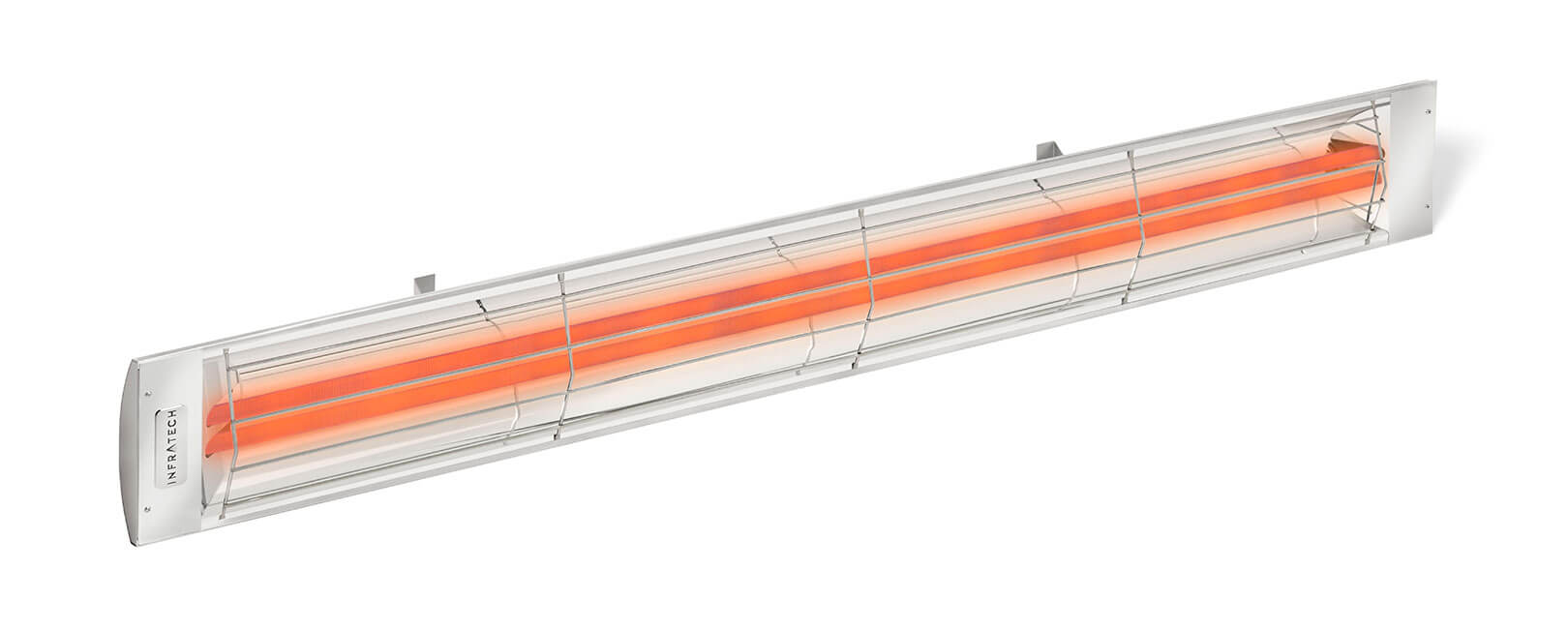

Infratech Dual Element CD-Series 5000 W & 208 V Heater

Infratech 39-inch CD-Series Dual Element Heater. This outdoor heater is designed to keep you warm and comfortable in any outdoor setting. With its dual-element design, this heater provides a powerful 5000 watts of heating power, ensuring that you stay cozy even on the chilliest nights. The 208-volt operation further enhances its performance, providing reliable heating for your outdoor space.

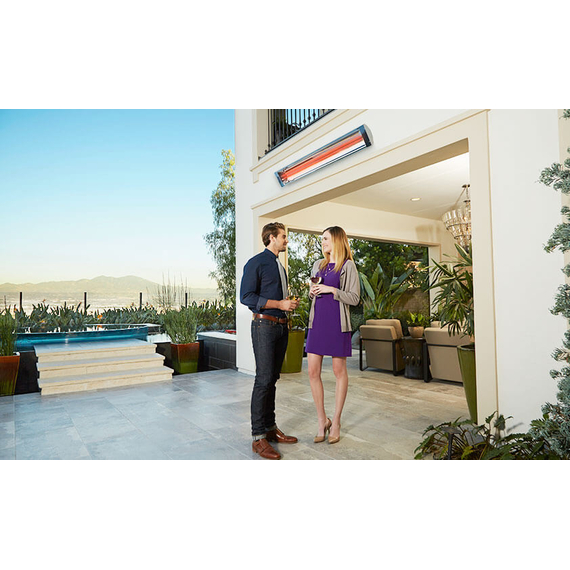

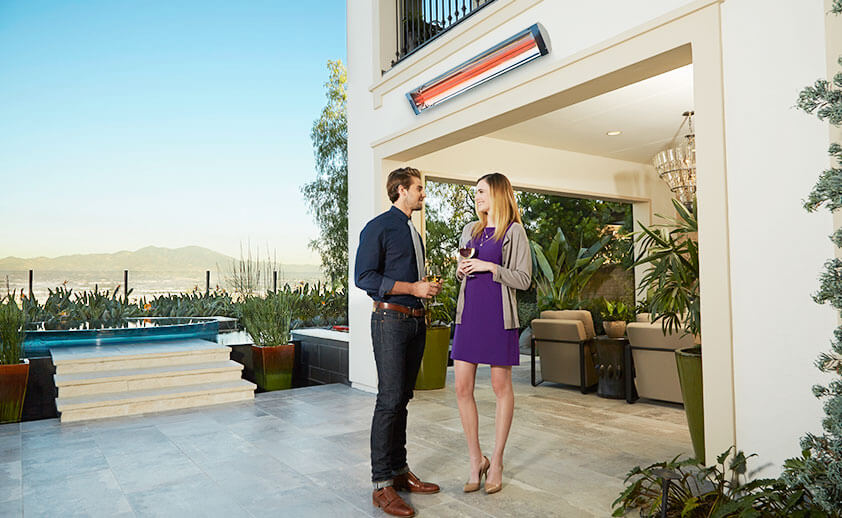

Installing the Infratech CD-Series Heater is easy. Simply mount it on a wall or ceiling, plug it into a 208-volt outlet, and turn it on. The heater emits a steady, comfortable heat that won't be affected by the wind, so you can enjoy your outdoor space without any interruptions. The sleek and modern design of the heater blends seamlessly into any outdoor decor, making it perfect for residential and commercial use alike. Whether you're looking to extend your outdoor entertaining season or create a cozy ambiance, this heater is the perfect choice.

Controls:

On/OFF Duplex Stack Switch- This on/off duplex stack switch is designed for use with single-element heaters. It offers a cost-effective solution for dual-element heaters, allowing you to turn on both elements for full power or just one element for half power. Each stack can handle a maximum of 40 Amps, with each switch supporting up to 20 Amps. You can wire your heater to the switch, and then the switch to your electrical service panel. It's possible to run single-element heaters from each switch, as long as they do not exceed 20 Amps per switch, but it's generally not recommended for optimal performance.

Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.

Features:

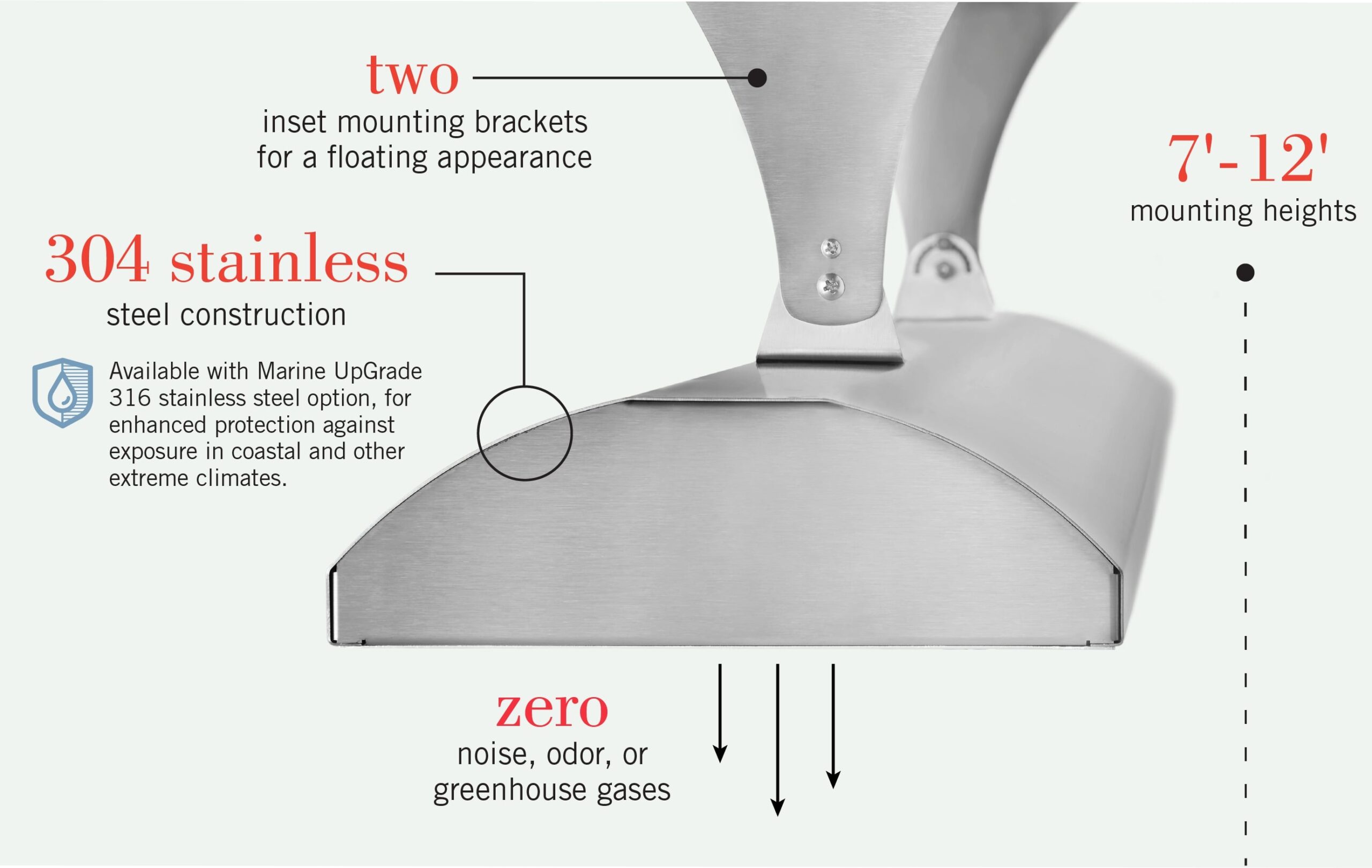

• The concentrated heat is provided by our strong dual-element CD-Series fixtures for larger applications in prominent visual impact areas and is meant for mounting altitudes between 7 and 12 feet.

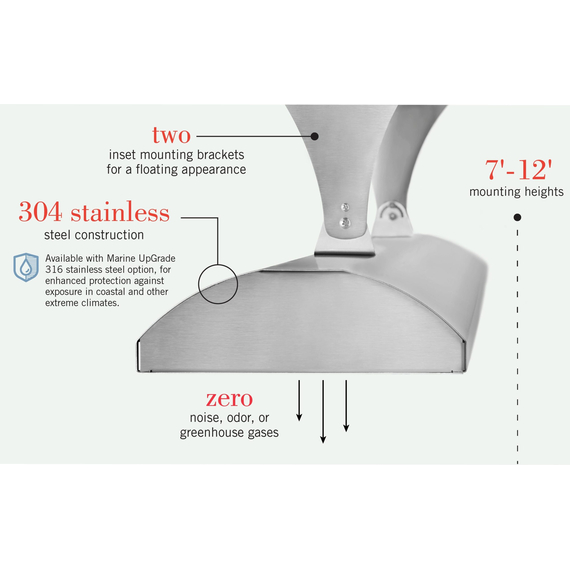

• Features include concealed installations, inset mounting brackets that, when attached, give the appearance of "floating," and sturdy 304 stainless steel construction.

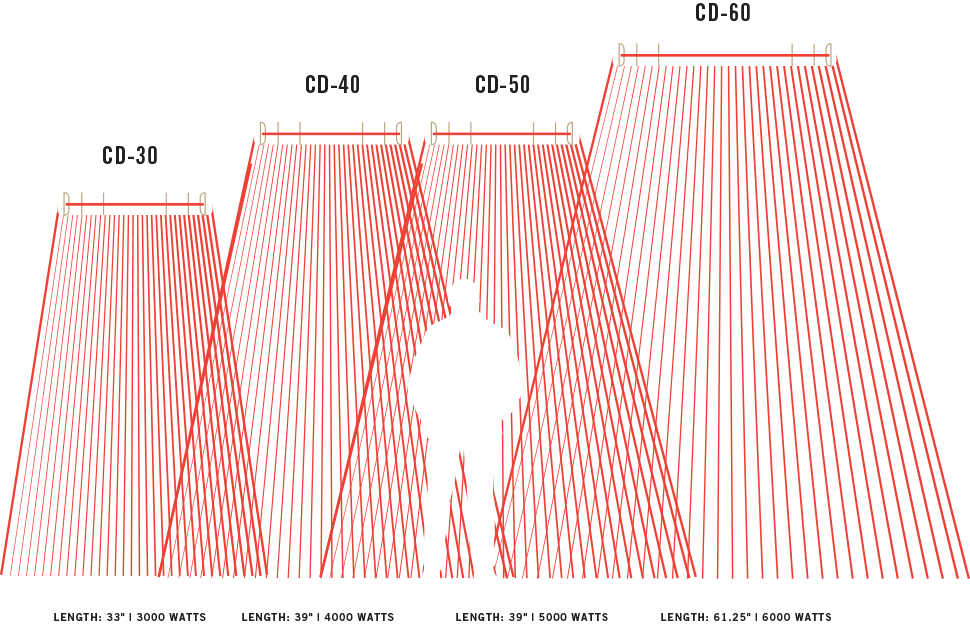

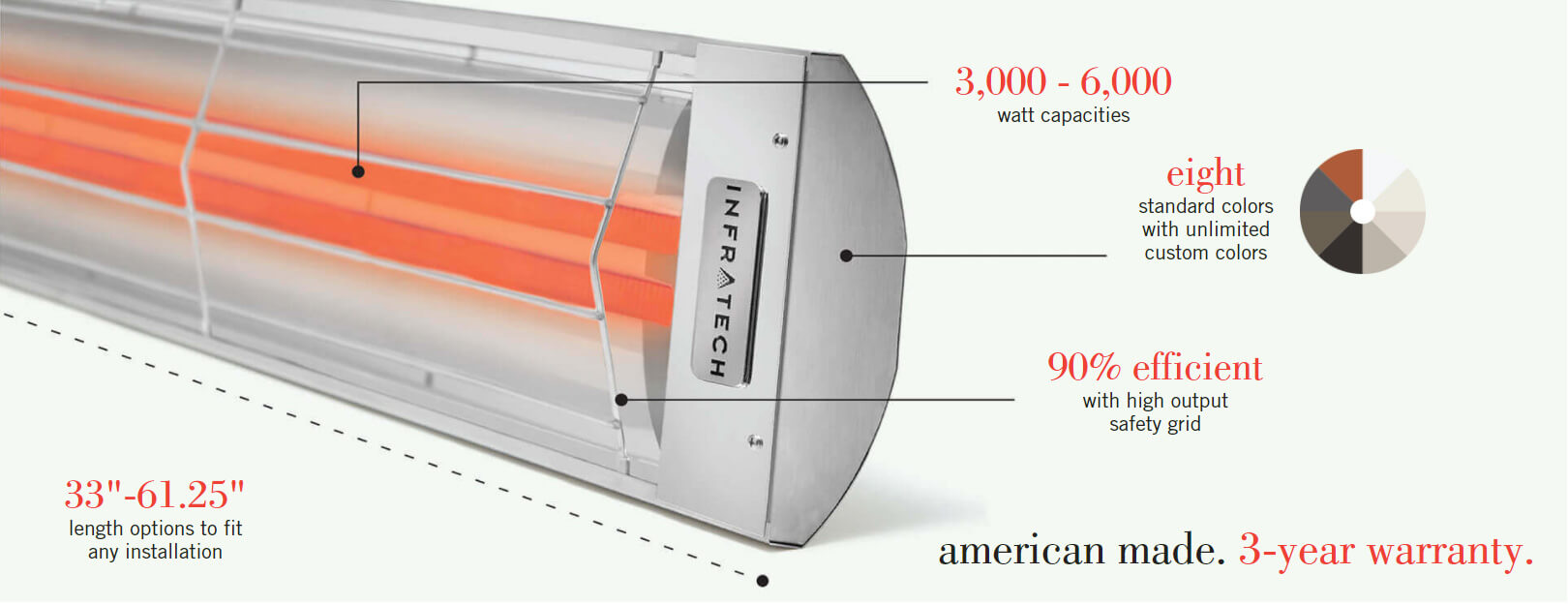

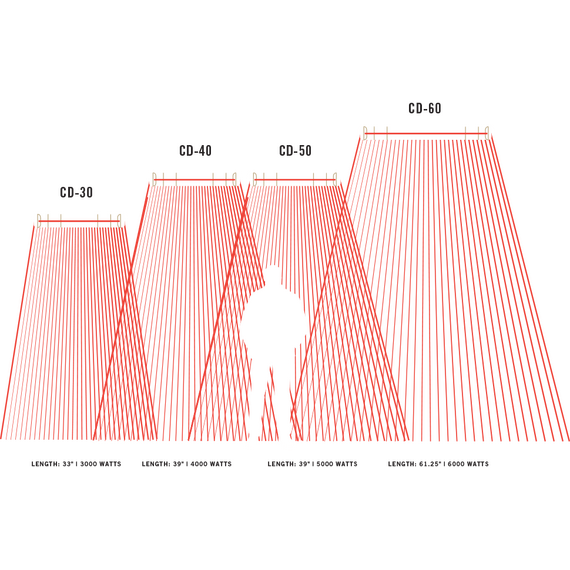

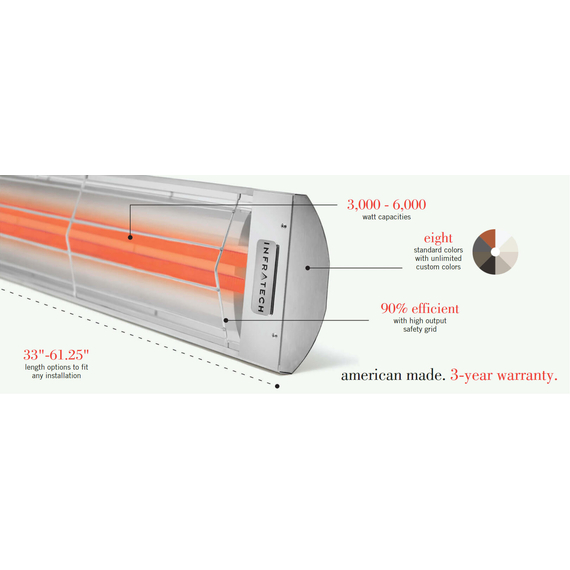

• Select between 208-480 volts and 3,000-6,000 watt capabilities.
• Usually fitted with our unique controls, which allow us to adjust the electric load for comfortable heating under a variety of circumstances.
• May also be installed with Duplex/Stack Switches for effectively a half-power or full-power option

Specifications:

• Weight: 20 lbs
• Dimensions: 39 in. x 8.19 in. x 2.5 in.
• Length: 39
• Wattage: 5000
• Voltage: 208
• Amps: 24
• Warranty Length: 3 Years
• Color: Stainless Steel

Downloads:

• Infratech Product Brochure
• CD-Series Application/Installment Guide
• CD-Series Specification
• Infratech Control Brochure
• On/Off Duplex Stack Switch Brochure
• On/Off Duplex Stack Wiring Diagram
• Solid State Relay Brochure
• Solid State Relay Wiring Diagram
• Product Warranty
