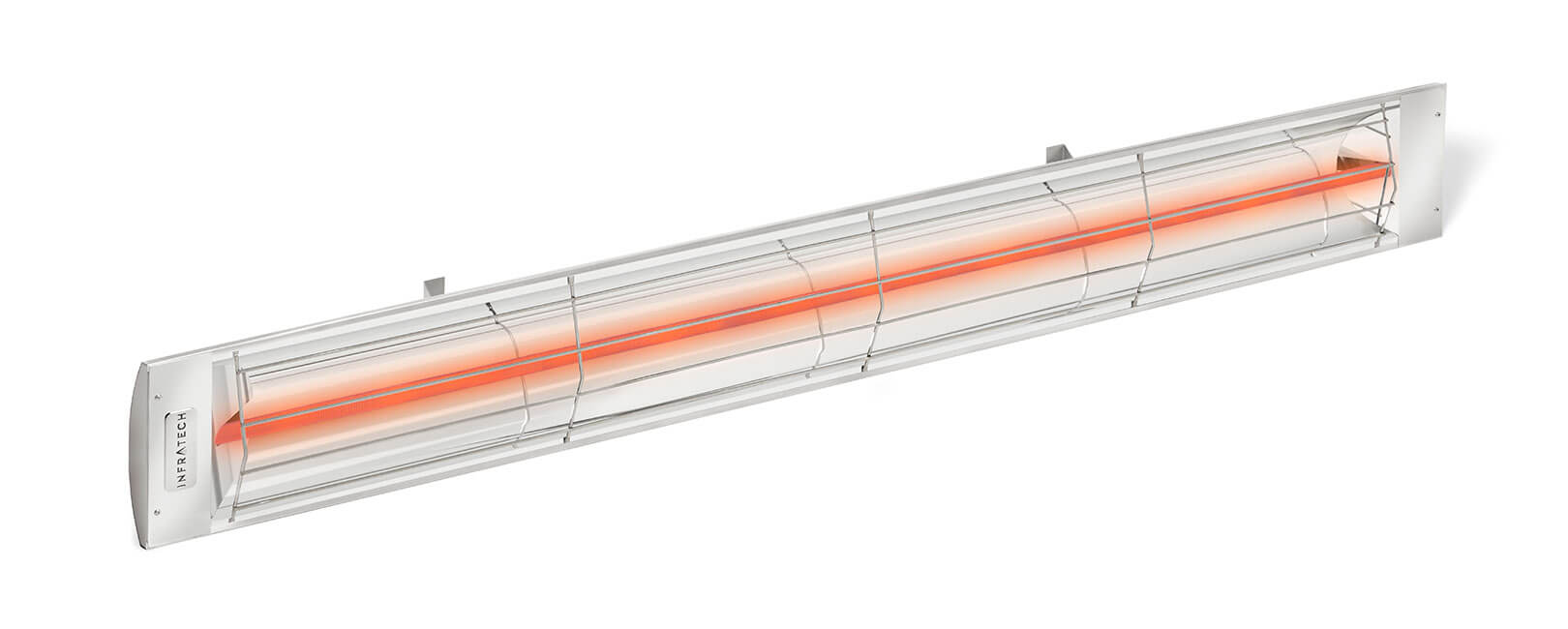

Infratech Single Element C-Series 3000 W & 277 V Heater

The Infratech 61.25-inch C-Series Single Element 3000 W and 277 V Heater will add outstanding warmth and flair to your outdoor space. You can enjoy your patio or deck all year long with this high-performance heater, which is made to heat big outdoor surfaces reliably. This heater's powerful 3000 W single element produces an astounding amount of heat, so even on the coldest evenings, you and your visitors will remain warm and comfortable. This heater is powerful and energy-efficient because of the 277 V power supply, which guarantees effective performance.

With just a button press, the Infratech 61.25-inch C-Series Heater provides instantaneous heat. It is also simple to install and use. You may enjoy your outdoor environment with peace of mind because of its long-lasting performance, which is ensured by its weather-resistant design and sturdy construction. With the Infratech 61.25-inch C-Series Single Element 3000 W and 277 V Heater, you can completely change your outdoor living experience and make all of your outdoor gatherings feel cozy and welcoming.

Controls:

Simple On/Off Single Switch-  This switch helps you turn your heater on and off easily. You connect your heater to this switch, and then the switch to your home's electrical system. It's a basic switch that can handle up to 20 Amps of electricity. You can use it with one heater or more, as long as they don't use more than 20 Amps together, but it's usually best to use one switch per heater for the best performance.

Infinite Control (inf) Regulator- This control is like a knob that lets you change how hot your heater gets. You can turn it up or down to make the heat stronger or weaker. Each knob can handle up to 3,000 Watts of power and 15 Amps of electricity. It's made for heaters with just one heating part. You can't use this control to separately control two heating parts in a heater with two parts.

Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.

Features:

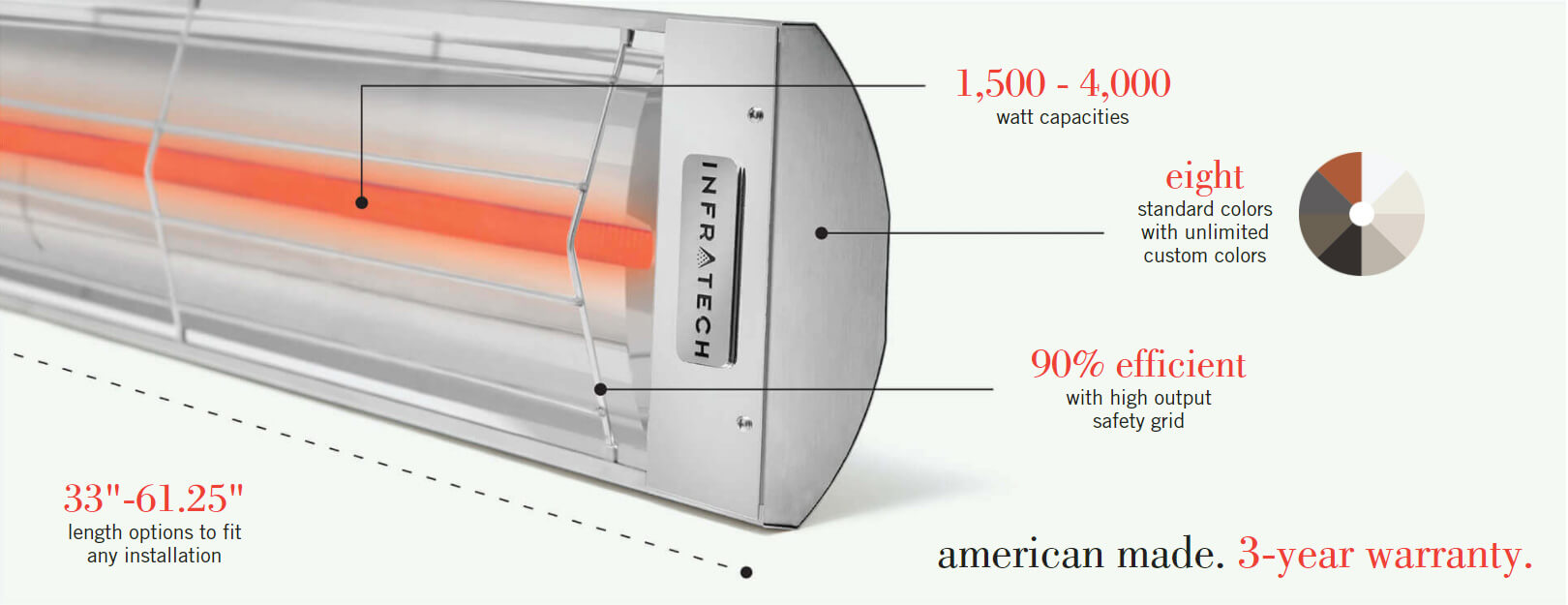

• Our C-Series lighting fixtures are designed to be used in visually striking areas where their streamlined appearance complements the architecture. With mounting heights of 6–10 feet, they provide a considerable amount of heat output.
• Features include concealed installations, inset mounting brackets that, when attached, give the appearance of "floating," and sturdy 304 stainless steel construction.
• Select from 120-480 volts and 1,500-4,000 watt capabilities.
• Suitable for larger-scale home or commercial use with our custom controls.
• Select from options for basic hues, custom color finish, or brushed stainless steel.

Specifications:

• Weight: 20 lbs
• Dimensions: 61.25 in. x 8.19 in. x 2.5 in.
• Length: 61.25"
• Wattage: 3000
• Voltage: 277
• Amps: 11
• Warranty Length: 3 Years
• Color: Stainless Steel

Downloads:

• Infratech Product Brochure
• C-Series Application/Installment Guide
• C-Series Specification
• Infratech Control Brochure
• Simple On/Off Switch Brochure
• Simple On/Off Wiring Diagram
• Infinite Input Regulator Brochure
• Infinite Input Regulator Wiring Diagram
• Solid State Relay Brochure
• Solid State Relay Wiring Diagram
• Product Warranty
