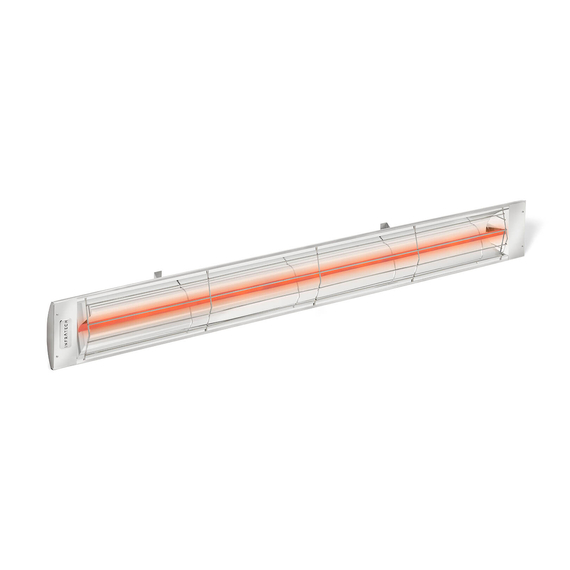

Infratech Single Element C-Series 2500 W & 208 V Heater

Enhance your outdoor pleasure with the high-performance Infratech 39-inch C-Series Single Element 2500 W and 208 V Heater. With its powerful 2500 watts, this heater can warm up outdoor areas to a comfortable degree. It is the perfect option for both home and business settings because of its 208-volt electrical input, which guarantees effective performance. With its sleek and contemporary design, the C-Series Heater looks great in any outdoor setting. This heater will keep you warm whether you're lounging in your backyard or having a dinner party on your patio. It provides steady, dependable heat.

Apart from its powerful heating powers, the Infratech C-Series Heater is also non-toxic to the environment as it produces no greenhouse gasses or smells. It is therefore an environmentally friendly option for heating outdoor areas. The Infratech C-Series Heater is designed to withstand weather conditions thanks to its sturdy construction and weather-resistant design. It's simple to use and install, so you can take advantage of its advantages with little difficulty.

Controls:

Simple On/Off Single Switch-  This switch helps you turn your heater on and off easily. You connect your heater to this switch, and then the switch to your home's electrical system. It's a basic switch that can handle up to 20 Amps of electricity. You can use it with one heater or more, as long as they don't use more than 20 Amps together, but it's usually best to use one switch per heater for the best performance.

Infinite Control (inf) Regulator- This control is like a knob that lets you change how hot your heater gets. You can turn it up or down to make the heat stronger or weaker. Each knob can handle up to 3,000 Watts of power and 15 Amps of electricity. It's made for heaters with just one heating part. You can't use this control to separately control two heating parts in a heater with two parts.

Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.

Features:

• Our C-Series lighting fixtures are designed to be used in visually striking areas where their streamlined appearance complements the architecture. With mounting heights of 6–10 feet, they provide a considerable amount of heat output.

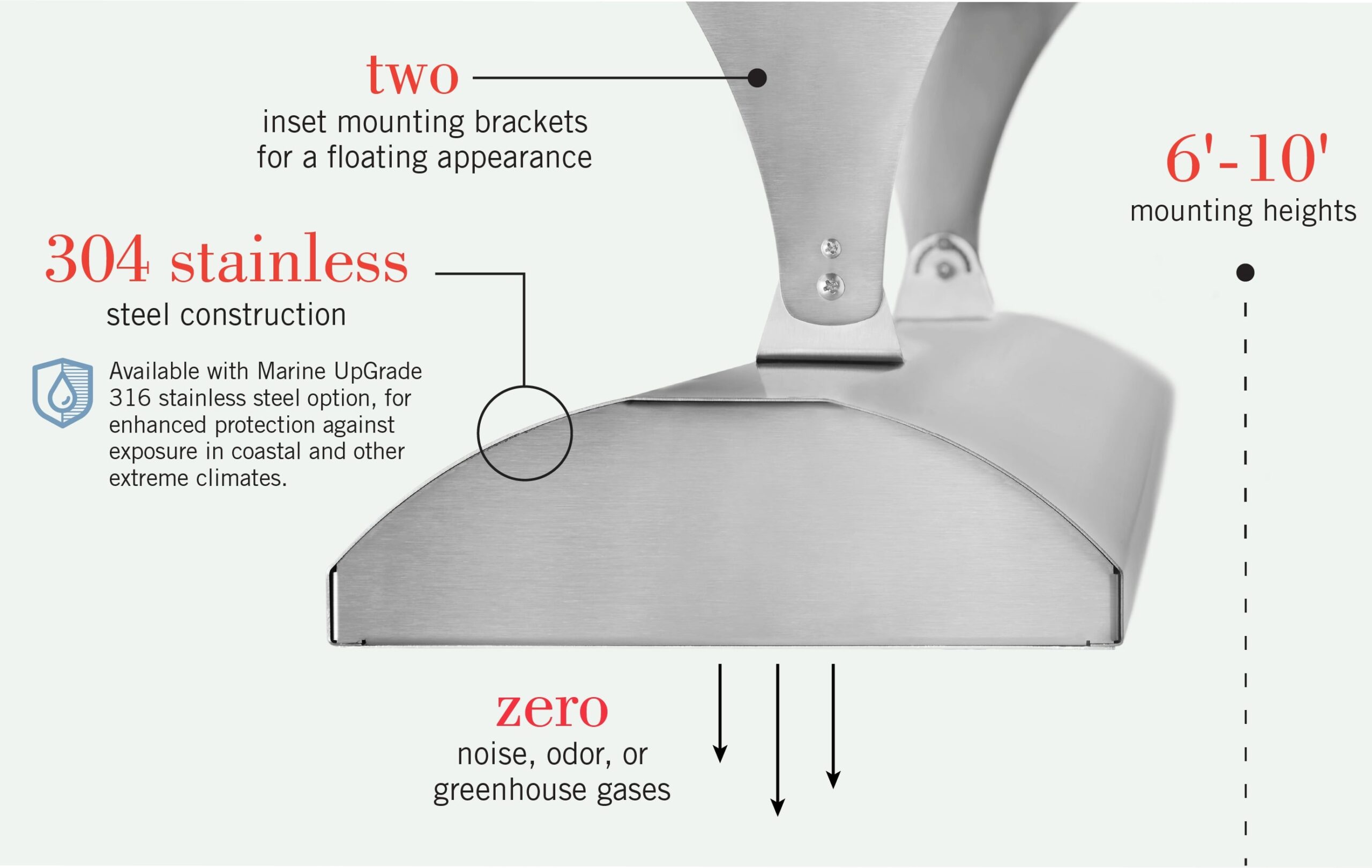

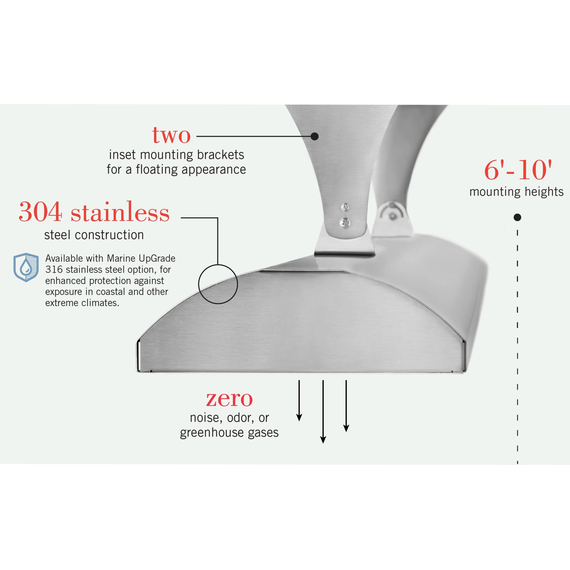

• Features include concealed installations, inset mounting brackets that, when attached, give the appearance of "floating," and sturdy 304 stainless steel construction.

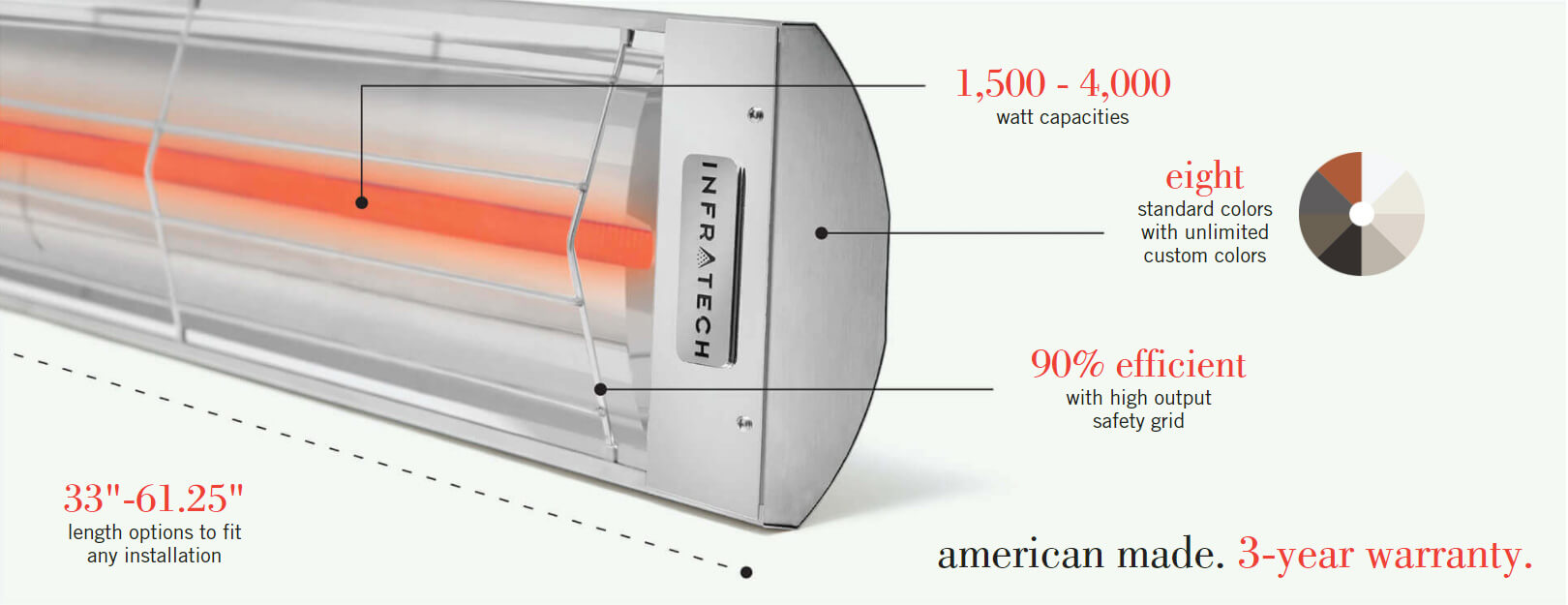

• Select from 120-480 volts and 1,500-4,000 watt capabilities.
• Suitable for larger-scale home or commercial use with our custom controls.
• Select from options for basic hues, custom color finish, or brushed stainless steel.

Specifications:

• Weight: 20 lbs
• Dimensions: 39 in. x 8.19 in. x 2.5 in.
• Length: 39
• Wattage: 2500
• Voltage: 208
• Amps: 14
• BTU's: 10236
• Warranty Length: 3 Years
• Color: Stainless Steel

Downloads:

• Infratech Product Brochure
• C-Series Application/Installment Guide
• C-Series Specification
• Infratech Control Brochure
• Simple On/Off Switch Brochure
• Simple On/Off Wiring Diagram
• Infinite Input Regulator Brochure
• Infinite Input Regulator Wiring Diagram
• Solid State Relay Brochure
• Solid State Relay Wiring Diagram
• Product Warranty
