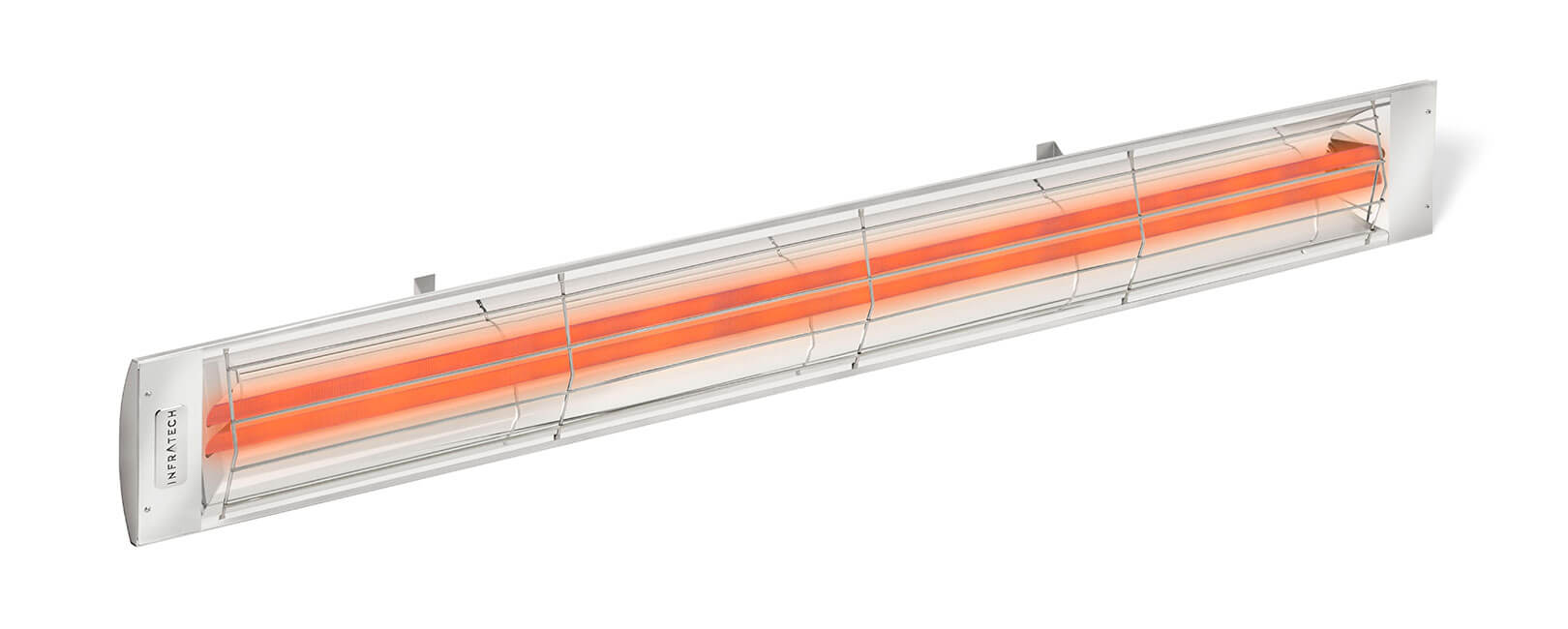

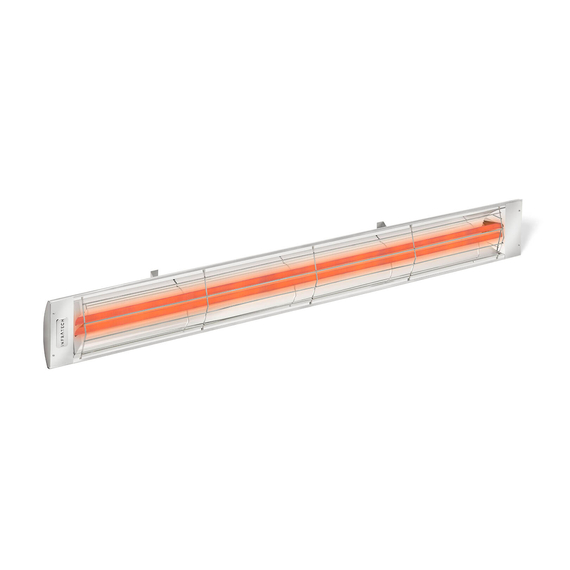

Infratech Dual Element CD-Series 3000 W & 480 V Heater
The Infratech 33 Inches CD-Series Dual Element 3000 W and 480 V Heater. This heater is a fantastic choice for heating up your outdoor space efficiently and effectively. First off, let's talk about its size. At 33 inches wide, this heater is a great option for smaller to medium-sized outdoor areas. The 'CD-Series' designation indicates that it's part of Infratech's dual-element line, known for its enhanced heating capabilities.
Now, onto the specifics. This heater features dual heating elements, each capable of producing 1500 watts of heat output, for a total of 3000 watts. This means it can provide a significant amount of warmth, perfect for keeping you cozy on cool evenings. One important thing to note is the voltage requirement. This heater operates at 480 volts, which is higher than standard household voltage. This higher voltage allows the heater to deliver its 3000 watts of power efficiently, ensuring optimal heating performance.
Controls:
On/OFF Duplex Stack Switch- This on/off duplex stack switch is designed for use with single-element heaters. It offers a cost-effective solution for dual-element heaters, allowing you to turn on both elements for full power or just one element for half power. Each stack can handle a maximum of 40 Amps, with each switch supporting up to 20 Amps. You can wire your heater to the switch, and then the switch to your electrical service panel. It's possible to run single-element heaters from each switch, as long as they do not exceed 20 Amps per switch, but it's generally not recommended for optimal performance.
Solid State Relay Package- This solid-state relay package is designed for both commercial and residential projects of any size. It allows you to control the intensity of heat for one or more heaters in a specific area, giving you flexibility in managing your heating needs. The controls are built to a higher safety standard (UL 508 listing) than required by the National Electric Code (NEC), ensuring safe operation. Heaters are connected directly to the relay panel, simplifying the installation process. Additionally, each package is tested before leaving the factory and comes with wiring diagrams for easy installation.
Features:

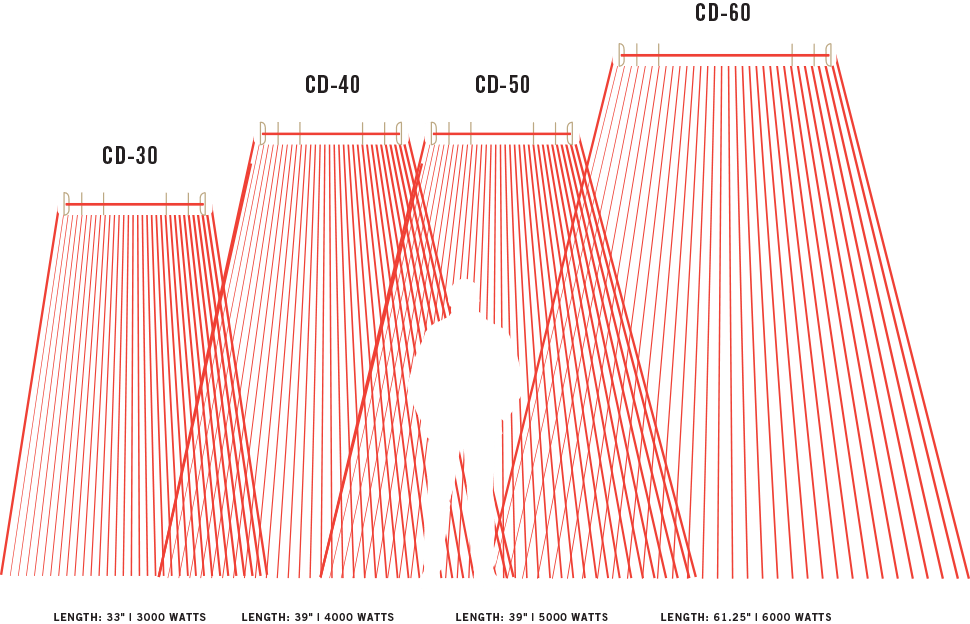

- The concentrated heat is provided by our strong dual-element CD-Series fixtures for larger applications in prominent visual impact areas and is meant for mounting altitudes between 7 and 12 feet.

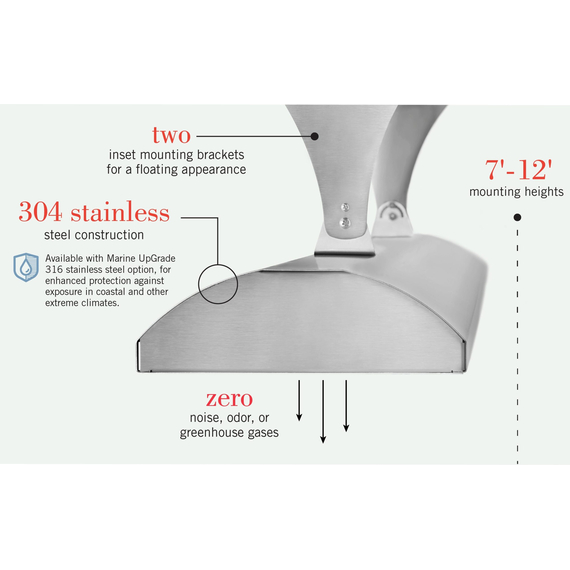

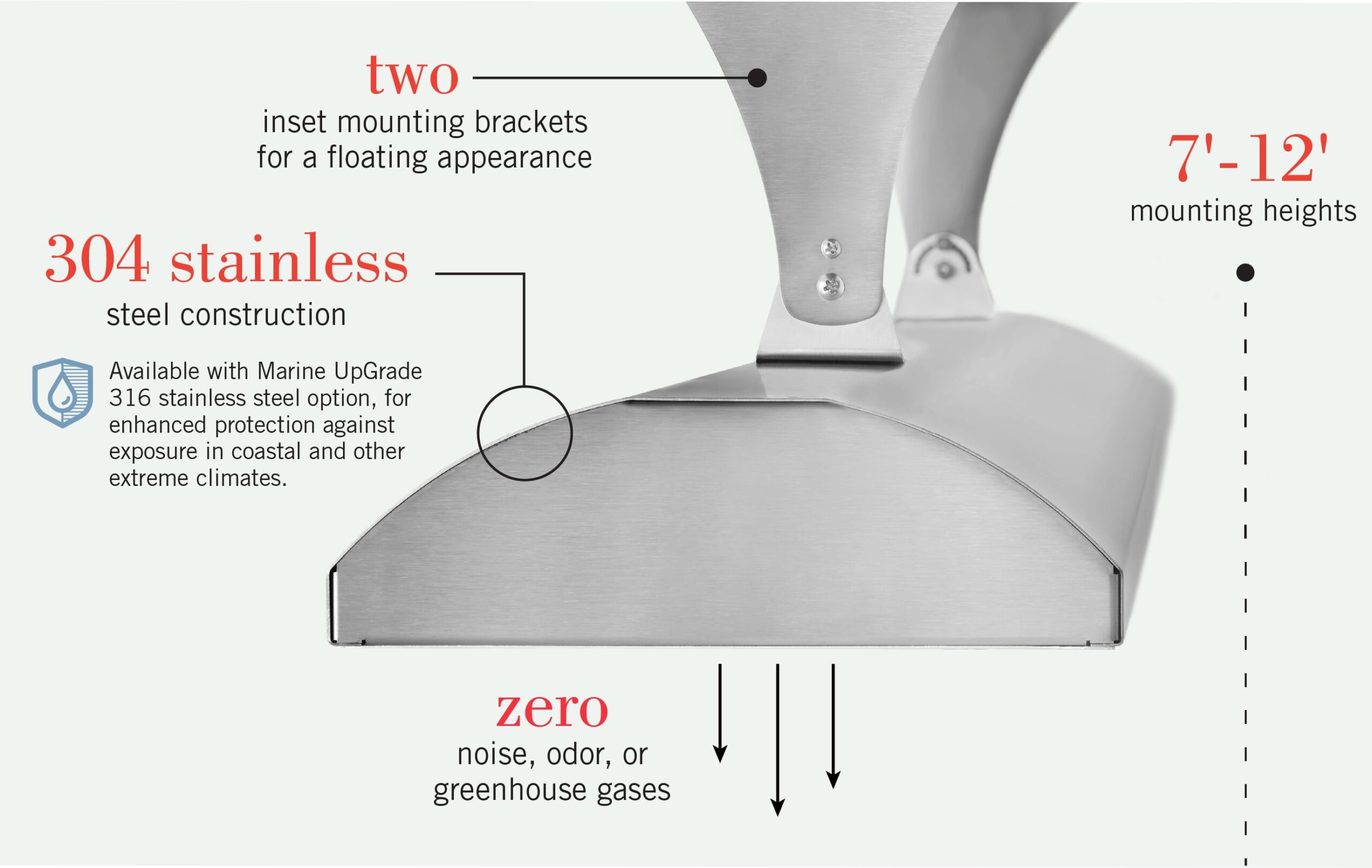

- Features include concealed installations, inset mounting brackets that, when attached, give the appearance of "floating," and sturdy 304 stainless steel construction.

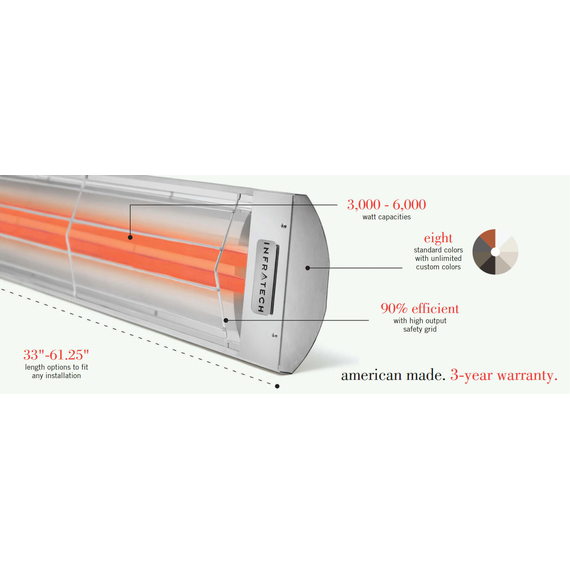

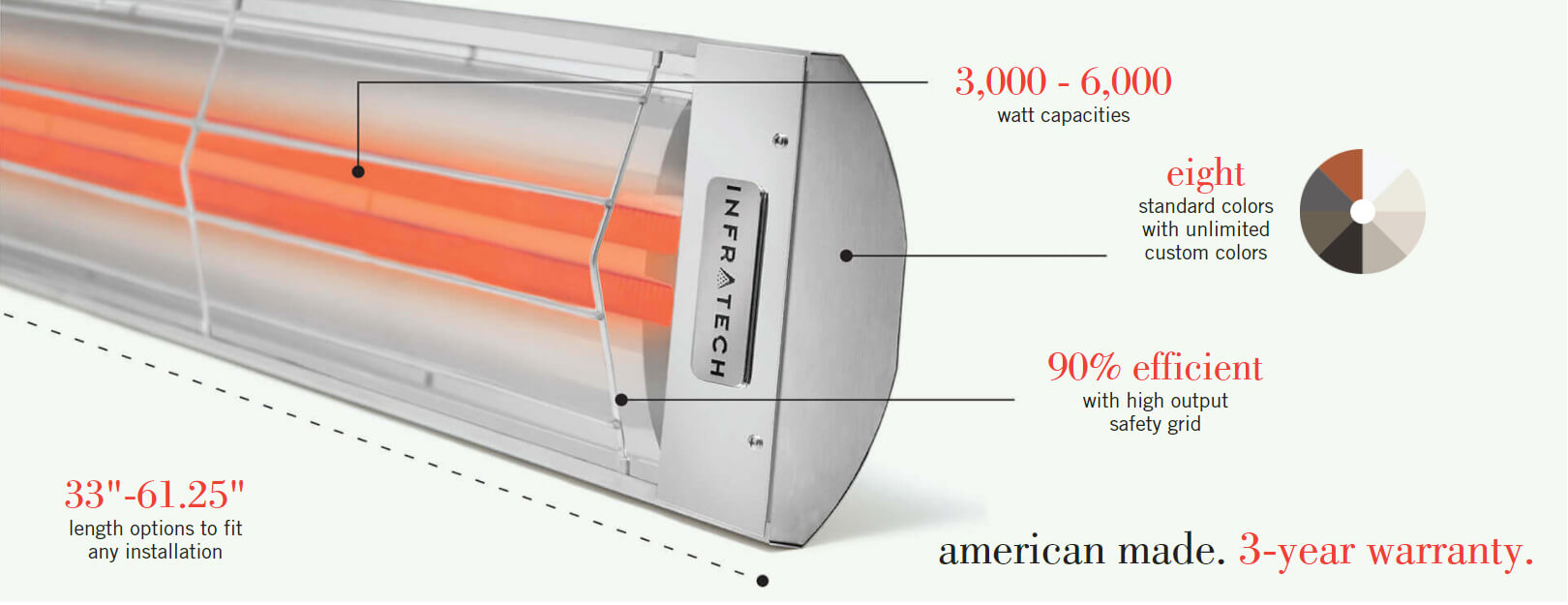

- Select between 208-480 volts and 3,000-6,000 watt capabilities.
- Usually fitted with our unique controls, which allow us to adjust the electric load for comfortable heating under a variety of circumstances.
- May also be installed with Duplex/Stack Switches for effectively a half-power or full-power option
Specifications:
- Weight: 20 lbs
- Dimensions: 33 in. x 8.19 in. x 2.5 in.
- Length: 33"
- Wattage: 3000
- Voltage: 480
- Amps: 6
- Warranty Length: 3 Years
- Color: Stainless Steel
Downloads:
- Type: Wall/ Ceiling / Pole Mounted
- Fuel Type: Electric
- Grade: Commercial | Residential
- Heat Output: 2500 Watts
- Material: Aluminum | Stainless Steel | Quartz Element
- Height: 9-3/8 Inches
- Depth: 8-3/16 Inches
- Width: 39 Inches
- Finish: Anodized Powdercoat
- Color: Almond | Beige | Biscuit | Black | Bronze | Copper | Gray | Stainless Steel | White
- Coverage Area: 100 Square Feet
- Clearance Behind Heater: Minimum 6 Inches
- Clearance from Sides and Ends of Heater: Minimum 18 Inches
- Clearance in Front of Heater: Minimum 36 Inches
- Heat Method: Infrared
- Voltage: 240 Volts
- Manual: W Series Heater Owner's Manual
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
