Replacement HeatilatorStradella Fireplace Door With Window Pane

IMPORTANT!! MUST READ FIRST

Find inside of your fireplace the metal tag with your model number – see images. This fireplace door is made to fit HEATILATOR Model Numbers listed in the drop down menu. This door WILL NOT FIT other fireplaces.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside the fireplace opening. Measure the width and height of the inner steel opening where the fireplace door will fit. This will be the same position that the fireplace manufacturer's door was installed. Make sure your opening dimensions match the ones that we have listed online for this product.



Your fireplace model number MUST match the model numbers listed in the drop-down menu on this page. After confirming your model number matches, please measure your opening to make sure it matches the opening dimensions we have listed for that particular unit. If your opening dimensions and / or model number do not match, the fireplace door will not fit!

Starting at:
$1,015.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4 Weeks Question | Why Buy From Us?

This Door is made to fit Heatilator Model Numbers listed in above drop down menu. Door WILL NOT FIT other fireplaces.
Sliding mesh adds 2 1/2" of depth, Gate mesh adds 1 1/8" of depth. Please verify that you have enough opening depth before ordering (door depth + mesh depth).
FIREBOX WIDTH: Using a tape measure visibly extended from start to finish, measure the width of the inside opening, from metal lip to metal lip. | FIREBOX HEIGHT: Extend the tape measure from the beginning to the end, keeping it in full view, to measure the height of the inside opening from metal lip to metal lip.
Available
+

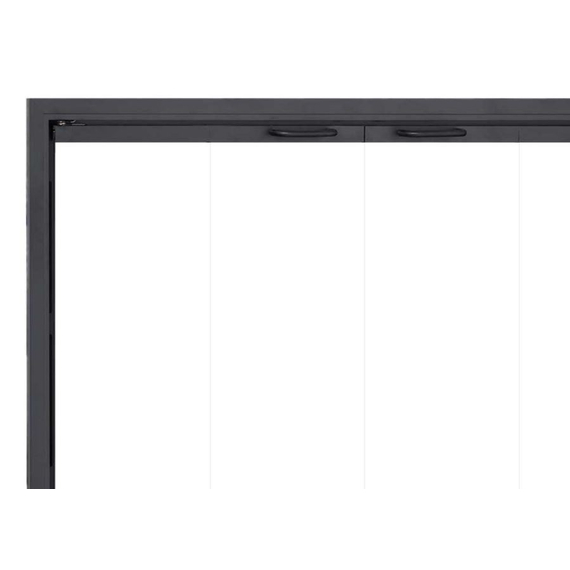

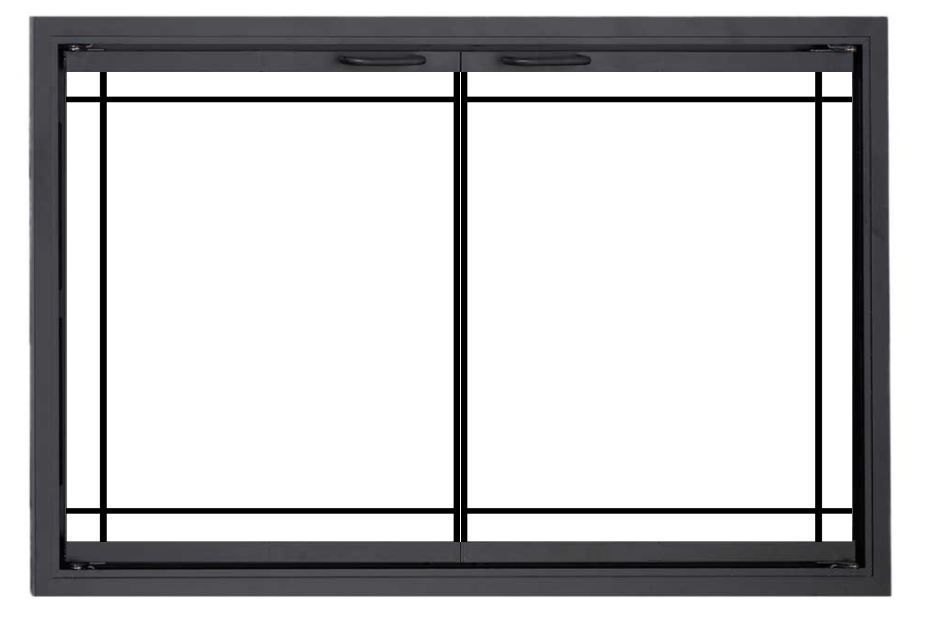

Let the inside fit Heatilator Stradello zero clearance fireplace Door with window pane add a touch of class to your living space. The clean, simple lines of this beautiful fireplace door offer a slim fit that will really emphasize your prefab fireplace. Choose a rich powder coat color or a gorgeous anodized or artisan finish for the main extruded aluminum frame. Make the look even more elegant with clear or tinted glass (bronze, grey, or black) on the trackless bi-fold doors. Enhance the overall appearance of your new fireplace glass doors with your choice of premium handles. Upgrade to stainless steel hardware, hinges, and spark protection and install this enclosure on an exterior prefab fireplace! Free shipping!

Complete your Heatilator Stradello replacement fireplace door by electing the optional sliding or cabinet mesh spark protection. We include the standard hardware you'll need for a super simple installation of your prefab fireplace door. However, if your fireplace requires a little something more for appropriate setup, we have alternative and wedge fit bracket upgrades available

The Heatilator Stradello Zero Clearance Fireplace Glass Door meets the UL127 code for proper ventilation requirements. Proudly made in the USA! Free shipping!

Please note:
Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.


Stardella Fireplace Door Features And Benefits Product Specifications:

  • Fireplace door ships for free; please allow 4-5 weeks for production and transit time
  • 5 year warranty on door frame; 1 year warranty on tempered glass
  • Anodized aluminum frame is 1 inch wide by 1 inch deep
  • Choose from several finish colors, including black, nickel, chrome and 2 shades of brass
  • Comfort grip simplicity handles included
  • Your choice of cabinet style (twin doors) or trackless bi-fold doors that open 180°
  • Choose clear, grey or bronze 3/16 inch thick tempered glass
  • Spark protection available as option
  • Comes fully assembled and ready to install with mounting hardware

Heatilator Fireplace Door Cross Reference Table

If your model is NOT listed in our chart, fill out our snapshot quote form and we will help you find a door for your prefab fireplace


If your screen cuts off the whole table - *Slide table right to left to read more*
HEATILATOR
MODEL #
FIREBOX WIDTH FIREBOX HEIGHT
SC60 36 inches 19 1/8 inches
E36
E36I
EC36
EC36I
EL36
MH36
36 inches 20 15/16 inches
HC36
HR36
ST36D
36 inches 20 7/8 inches
DX36
DX36AI
HB36A
HB36AI
TD36B
36 inches 20 15/16 inches
T588
T3600
36 inches 215/16 inches
HD36B
HD36BI
36 inches 22 1/2 inches
A36C
A36CH
A36R
A36RH
36 inches 24 inches

If your screen cuts off the whole table - *Slide table right to left to read more*
HEATILATOR
MODEL #
FIREBOX WIDTH FIREBOX HEIGHT
E39
E39I
EC39
EC39I
39 inches 20 15/16 inches
E42
E42I
EC42
EC42I
EL42
EL42I
42 inches 20 15/16 inches
HB42A
HB42AI
42 inches 20 15/16 inches
HD42B
HD42BI
42 inches 22 1/2 inches
DX42
DX42AI
TD42B
42 inches 22 15/16 inches
ST42A 42 inches 22-15/16 inches
A42C
A42CH
A42R
A42RH
42 inches 24 inches
T768
T4200
42 inches 24 inches
TD46DBI 46 inches 26 15/16 inches
T4800 48 inches 28 inches

Stiletto ZC Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Prefab Wood Fireplaces or Prefab Wood Fireplaces Converted To Vented Gas Logs
  • Door Fit: Inside
  • Frame Width: 1"
  • Frame Depth: 11/16"
  • Frame Material: Extruded Aluminum
  • Door Type: Trackless Full-Fold Bi-Fold Doors | Cabinet (Twin) Doors
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tints: Clear | Bronze | Grey | Black
  • Ceramic Glass: N/A
  • Spark Protection: Optional
  • Handle Style: Simplicity | Square
  • Damper: N/A
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Standard Hardware Included
  • Safety Listing: UL127

STANDARD MOUNTING BRACKETS

Fireplace Door Installation

____________________________________________________________

ALTERNATIVE MOUNTING BRACKETS

Alternative Mounting Brackets

____________________________________________________________

WEDGE FIT MOUNTING BRACKETS

Wedge Fit Door Installation

Manufacturer's Warranty

Manufacturer warrants the glass enclosures to be free from defects in material and workmanship for a period of one (1) year from the date of installation. Manufacturer warrants the metal work (exclusive of the finish) contained in the glass enclosures to be free from defects in the materials and workmanship for a period of two (2) years from the date of installation. Discoloration of any frame piece is caused by over firing and is considered abuse of the enclosure.

MANUFACTURER MAKES NO WARRANTIES AS TO A MAXIMUM TEMPERATURE AND STRESS WHICH MAY CAUSE GLASS BREAKAGE. LIFETIME WARRANTY ON GLASS.
Manufacturer will, however, replace without cost any glass that breaks in normal use. Manufacturer will cover shipping cost for replacement glass for a period of one (1) year from the date of installation. Warranties also are not transferable to new owners.  The foregoing limited warranty is not transferable by the customer and does not include the eventual defects caused by improper use or operation of the glass enclosure or by normal wear and tear. Manufacturer agrees that if the glass enclosure is determined to be defective in manufacture within the applicable written guarantee period set forth above, and the customer provides a written notice of such defects within fourteen (14) days of the end of such period to the customer’s local dealer, Manufacturer is limited to defects in manufacture, and Manufacturer shall not be responsible if the glass enclosure has not been used at all times with reasonable care and in accordance with the instructions which accompany each glass enclosure, and/or if any attempt has been made by any person other than Manufacturer or its authorized agents to repair, alter or otherwise interfere with the foregoing undertaking of Manufacturer is limited to the replacement of any determined by Manufacturer to be defective.
Finally, the enforceability of this limited Warranty shall be further subject to compliance with the following requirements:
A. That the customer complies with the instruction set forth above and does not misuse, abuse, alter, or modify the glass enclosure.
B. That the customer does not use the glass enclosure for a purpose other than its intended use.

DISCLAIMER
The limited warranty set forth above, is expressly in lieu of any other warranties, express or implied, including without limitation any warranty of merchantability or fitness for particular purpose, whether express or implied, and lieu of any other obligation or liability on the part of Manufacturer. Whether under theories of contract, tort or negligence, Manufacturer, shall have no liability for any consequential, incidental or special damages by reason of any act or omission, whether negligent or not, arising out of or in connection with the glass enclosure or its sale, delivery, installation, maintenance, operation, performance, or use, including without limitation any loss of use, damage to associated property or the facility, or any other similar and dissimilar losses, cost.

PLEASE NOTE:
Fireplace doors are hand crafted to the specifications of each order. Due to the nature of the anodization process on aluminum doors, and the plating/powder coating process on steel doors, slight variations in color may occur and will not be considered a warranty issue.

The doors are in and fabulous. You were right that they closed well once installed. They do have a little "stick" but I think that will work its way out in time. I'm very happy. I wanted to send you pictures of our ultra modern fireplace. We are thrilled. The tile is a porcelain tile that looks like gray travertine, and the black is honed Absolute Black granite (a remnant).

Just wanted you to know how pleased we are with the [Stiletto ZC] fireplace doors we ordered from you. Better than what we expected. More beautiful and functional than the doors which were originally installed 25 years ago.

I installed this on an old fireplace that just had new tile installed. It came out looking great and wasn't particularly hard to install. I spent time checking and re-checking the measurements, I asked a lot of questions and in the end it all paid off. The product is just as advertised and wasn't hard for me to install, although the directions could be improved a bit. I'd encourage you to review the Youtube videos about how to measure and install these doors before you order just so you'll know ...
