Fixed Pane Glass Door for Masonry See Through Fireplaces

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Size Range For Pricing: Up To 36"W and Up To 36"H

=: UPS

$1,464.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.

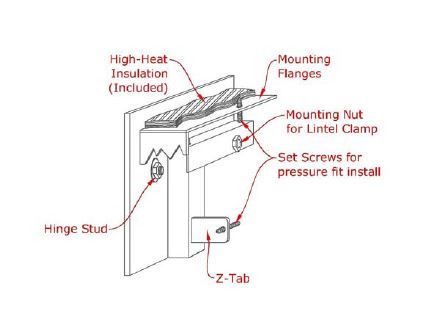

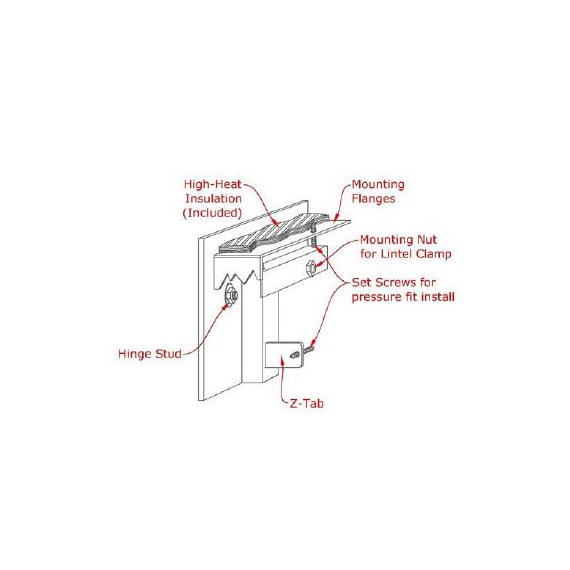

Z-tabs welded on to main frame are an optional method of mounting when lintel clamps are not applicable. Flanges are recommended for rough or irregular fireplaces!
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
Available
+

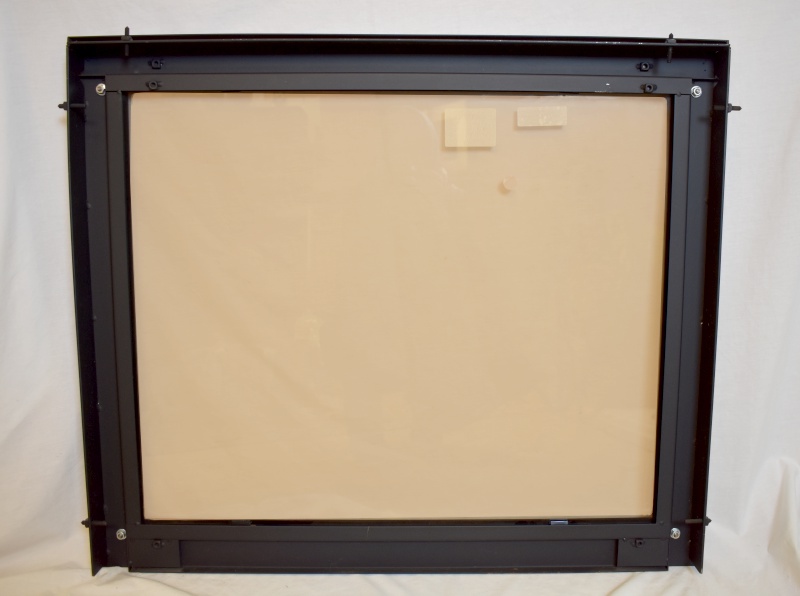

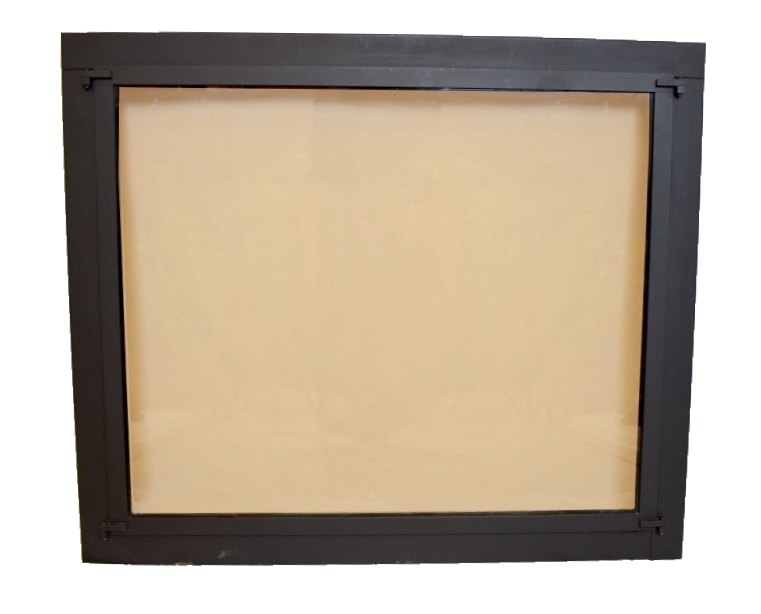

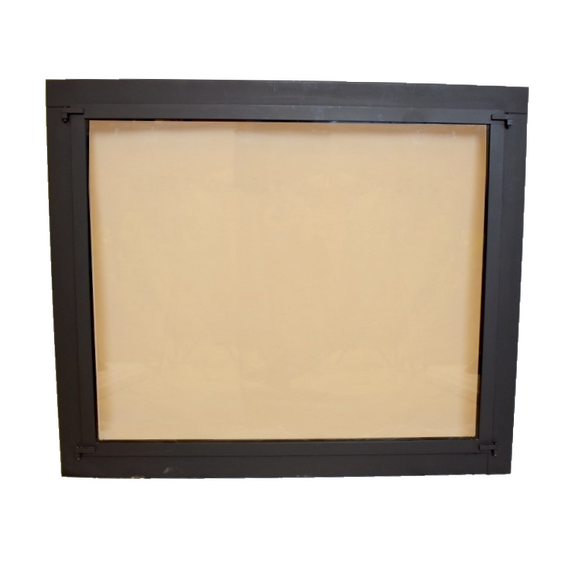

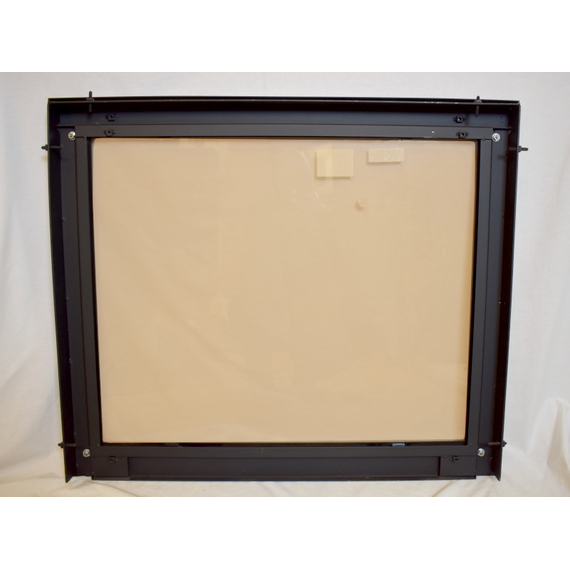

The fixed panel fireplace glass door is designed for masonry type see through fireplaces. The idea behind this product was inspired by some of the Fireplace Doors Online customers who were looking for an enclosure without an operable door for one opening of their double sided wood fireplaces. While sealing an entire side of a see through unit is not safe or recommended, our fixed panel replacement fireplace door offers a 1/4 inch air gap between the frame and the door to allow the appropriate amount of air into the firebox. This configuration takes the place of a damper and maintains that "closed off" look that some homeowner's prefer. What's most important about this solution is that it abides by fire safety codes. For access to your firebox or for regular cleaning of the glass, simply pull out the bolts in the door hinges so that you can open or remove the panel. Remember to let your fireplace cool down before attempting to do this!

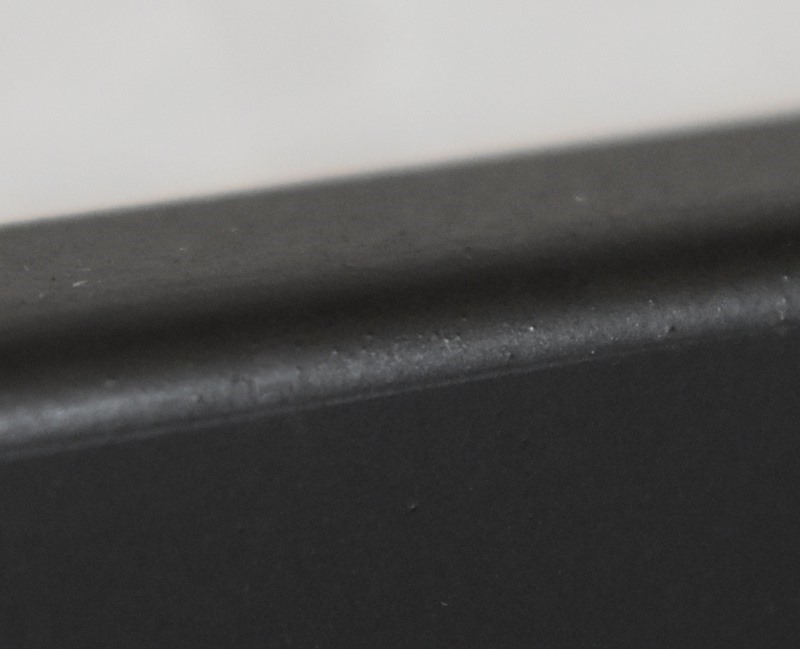

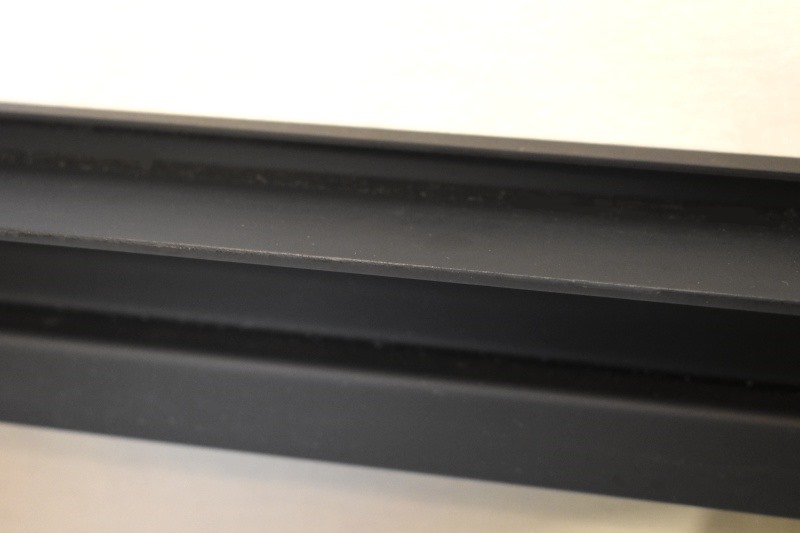

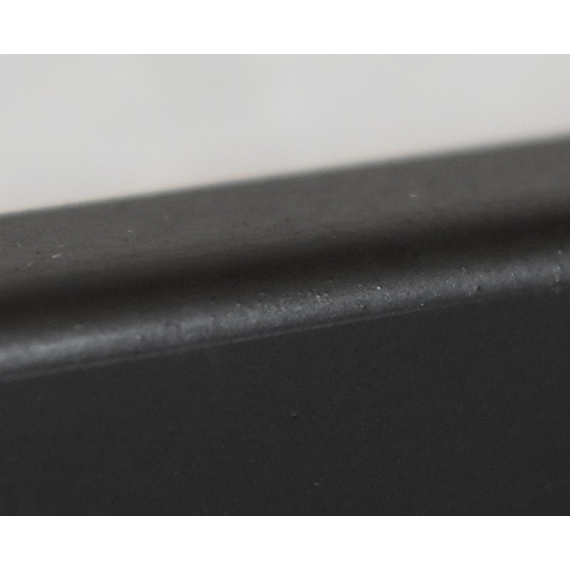

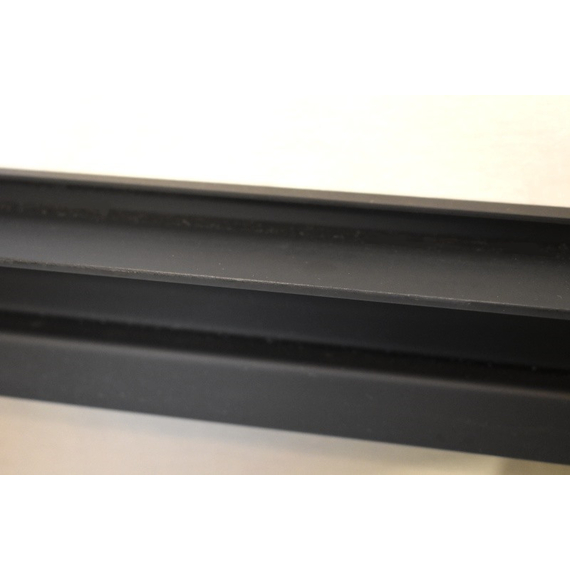

This low profile masonry fireplace door is laser cut from 14 gauge flat steel. The main frame can be customized in your choice of powder coat and overlay finish colors to match the doors on the opposite side of your see through unit. Tell us your fireplace opening dimensions and we'll create this custom fireplace door to your specifications! The fixed panel is equipped with tempered safety glass in your choice of clear, bronze, or grey tints.

Please note: this door is recommended for see through fireplaces in which a log grate is utilized for burning wood AND is situated far enough away from the fixed panel so that the flames do not touch the glass.


Fixed Panel Masonry Door for See Through Fireplaces Features Product Features:

  • The Fixed Panel door is ONLY for masonry see through wood fireplaces and can only be installed on one side
  • This fireplace door ships for free; please allow 4 to 6 weeks for production and transit time
  • 5 year warranty on door frame; 1 year warranty on tempered glass
  • A log grate must be positioned away from the fixed panel so flames do not touch the glass
  • Available as an overlap fit door or inside fit door
  • 1/4 inch air gaps between the frame and door allow appropriate air flow

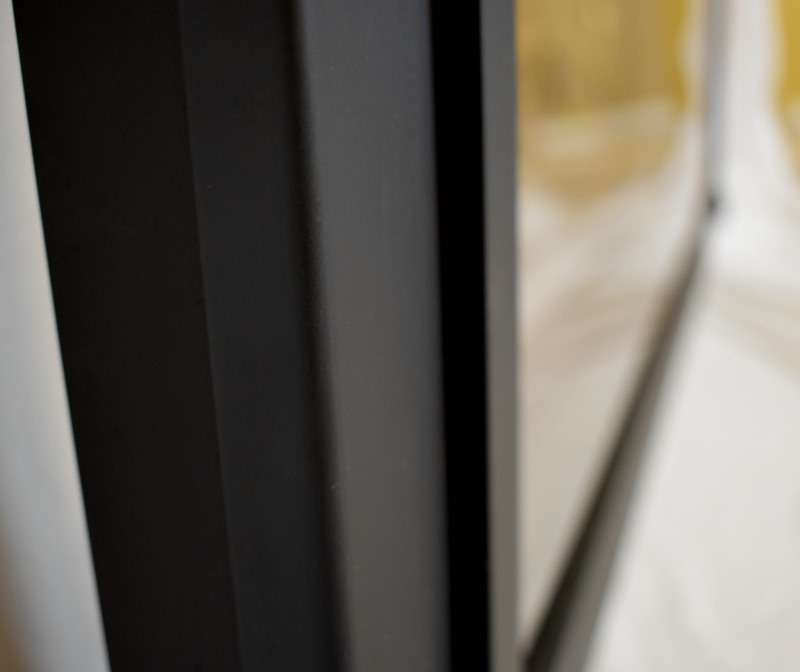

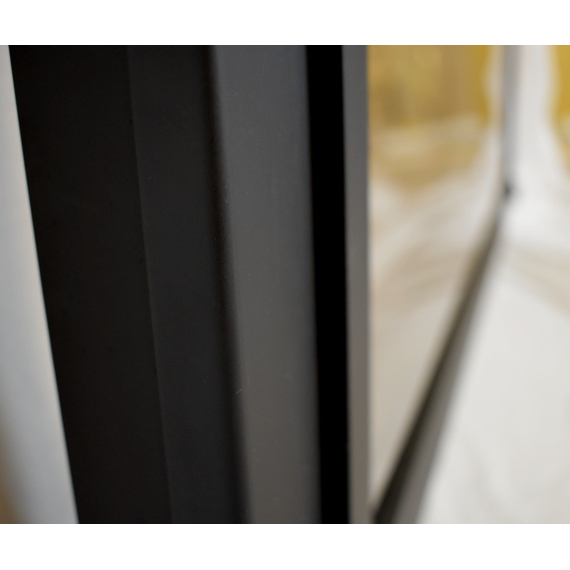

  • 14 gauge steel frame is 2 inches wide and 3/4 inch deep
  • 1/4 inch thick tempered glass is backed by a 1 year warranty
  • Safety glass tints include clear, grey, or bronze
  • Mesh is not available with this fixed panel door

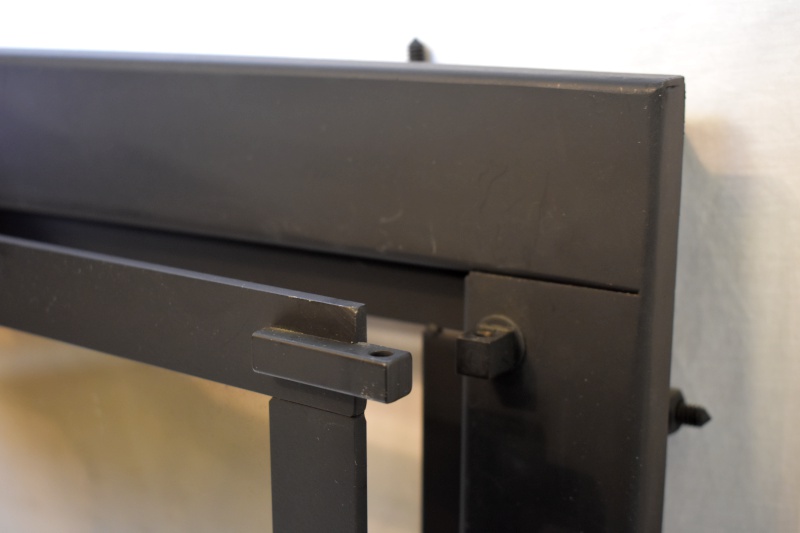

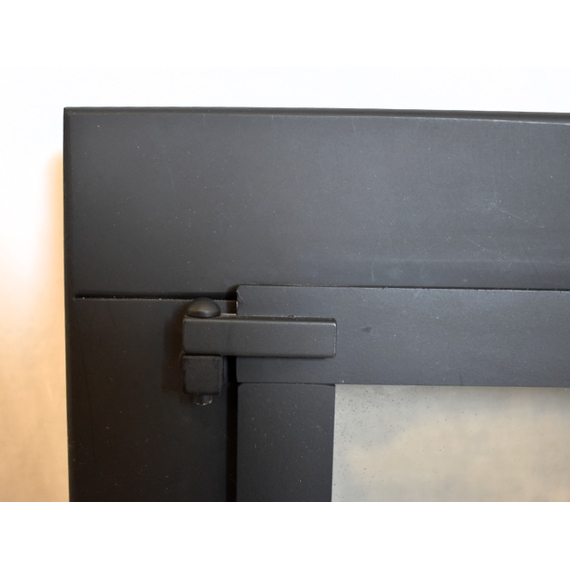

  • By removing bolts from the hinges, door can be removed for firebox access and glass cleaning
  • Door comes fully assembled with mounting hardware included



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Fixed Panel Masonry Door for See Through Fireplaces Specifications Product Specifications:

  • Fireplace Type: Masonry See Through Wood Burning - INSTALL ON ONE SIDE ONLY!
  • Door Fit: Overlap | Inside
  • Door Type: Single Fixed Glass Panel

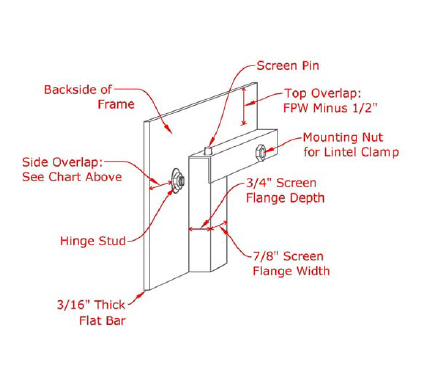

  • Material: 2" Wide x 14 Gauge Steel Frame 3/4" Deep
  • Approximate Overlap: 1"
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: N/A
  • Mesh Screen: N/A
  • Damper: No Damper | 1/4" Air Gaps
  • Airtight Option: N/A
  • Assembly: Fully Assembled
  • Handle Style: N/A
  • Mounting: Hardware Included

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
