The field-serviceable 30VDC all-weather electronic gas fire pit ignition system (AWEIS) is a favorite among customers and contractors alike! This outdoor electronic ignition is compact enough to fit into smaller gas fire features. Use it confidently in breezy or misty conditions. The AWEIS has a smaller electrical box than our commercial-grade devices but performs with the same dependability. After the pilot is lit, the thermocouple senses the heat and transfers the electronic signal to open the main gas valve. Fire by Design's new "Field Serviceable" AWEIS technology has drastically decreased controller/igniter failures and made the process of replacing outdoor gas fire feature parts much easier and more cost-effective. A maximum output of 780,000 BTUs per hour allows you to debut an astonishing performance in your shallow gas fire pit, fire bowl, or other fire display. With a maximum inlet pressure of 2 PSI and the valve features 1/2-inch FPT fittings to connect with other gas components. The AWEIS comes with a heat shield and its use is optional. Available for both Propane and Natural Gas, this fire feature ignition system is powerful and convenient and sure to warm you and your guests during your evenings outdoors.
WHAT'S THE DIFFERENCE BETWEEN 30 VDC and 24 VAC?
The 30 VDC AWEIS was developed specifically for fire features near Swimming Pools and Spas (within 5' according to the code). The 24 Volt AC version of the AWEIS can be used anywhere OUTSIDE of 5' from the pool
Please Note: This unit does not include a power supply.
Material: | 316 Stainless Steel |
Finish: | Stainless Steel |
Fuel Type: | Natural Gas or Liquid Propane |
Max BTUs/Hour: | 780,000 |
Ignition Type: | Hot Surface Ignition (Glow Plug) |
Ignition Sequence: | Intermittent |
Ignition Source: | Pilot |
Flame/Heat Sense: | Thermopile |
Voltage: | 30 Volts DC |
Box Height: | 4.38 Inches |
Width: | 4.38 Inches |
Length: | 4.38 Inches |
Inlet Size: | 1/2 Inch FIP |
Outlet Size: | 1/2 Inch FIP |
PSI Required: | 2 PSI |
Certifications: | ANSI Z21.97-2014 | CSA 2.41-2014 | CSA C22.2 No. 3-M1998 (R2014) |

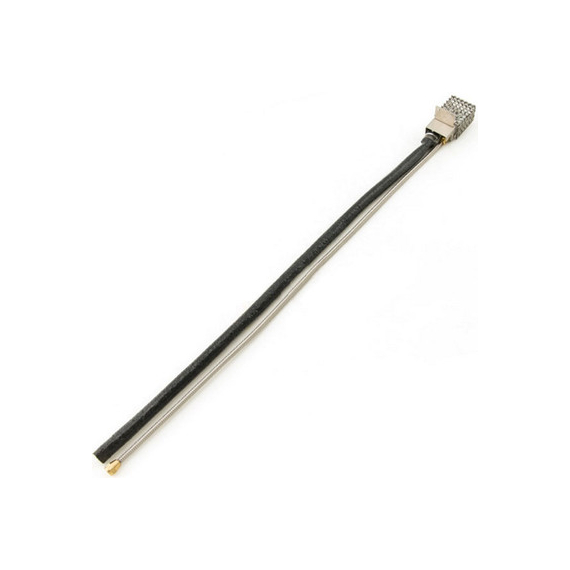

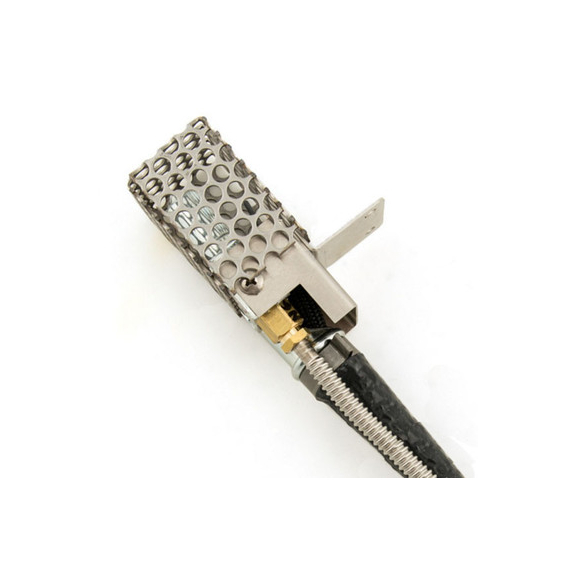

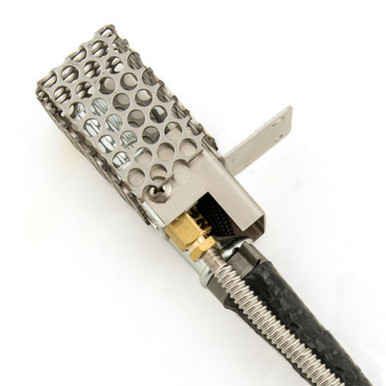

Includes: | Pilot Burner Assembly | Ignition Control Module | Heat Deflector Shield | 24V AC Transformer| Installation Instructions |
