DuraVent 8" DuraPlus Cathedral Ceiling Support Kit

Starting at:
$646.85
Short description:

Free Shipping on All Orders Continental United States!  Free Shipping | Ships Out Within 1-2 Weeks

Available
+

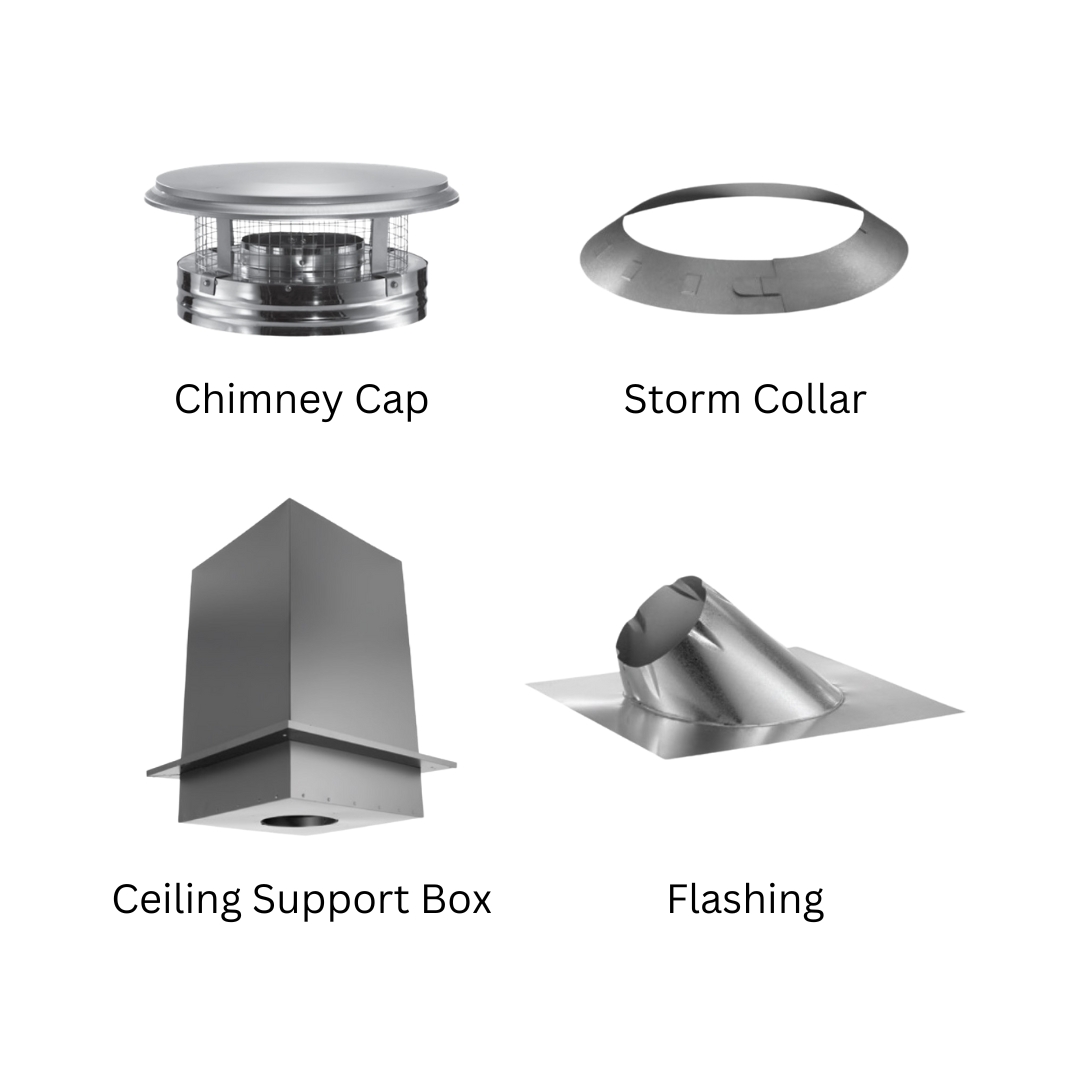

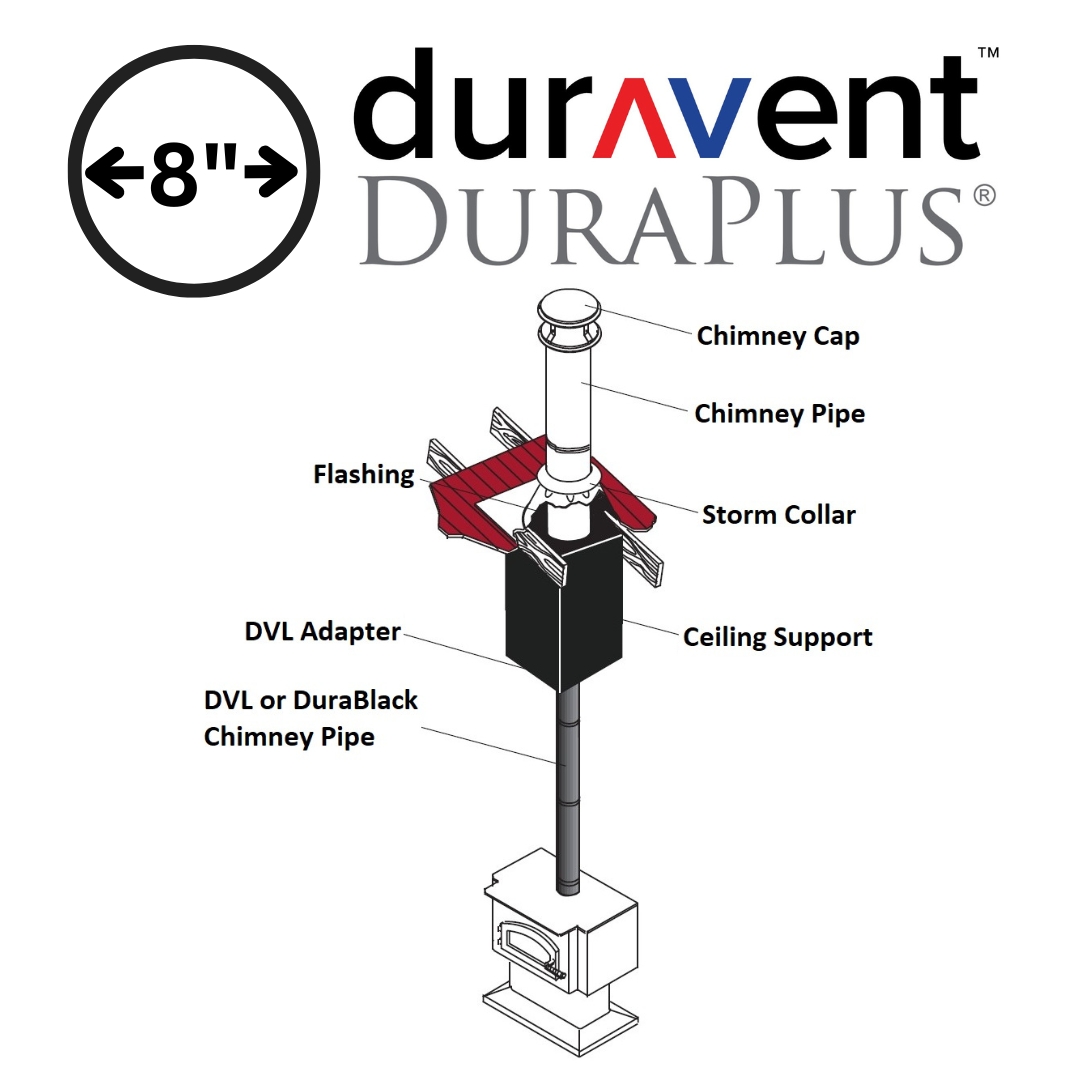

The DuraVent 8" DuraPlus Ceiling Support Box Kit is an innovative kit developed to install a durable, reliable chimney system in buildings boasting cathedral ceilings seamlessly and stylishly. Designed with care, this package contains all the necessary parts that ensure an adequate and appealing fit for your 8" DuraPlus chimney. The set includes:

1. 8" DuraPlus Storm Collar: Offering an additional layer of defense, the storm collar establishes a watertight seal around the chimney, reinforcing its resistance against adverse weather conditions.

2. 8" DuraPlus Chimney Cap: The chimney cap is a barrier that keeps outside garbage, raindrops, and other external elements while permitting sufficient air circulation.

3. 8" DuraPlus Ceiling Support Box: The ceiling support box is an essential element that lets the chimney go through the cathedral ceiling while keeping a solid and safe connection. It is constructed for both sturdy support and artistic integration.

4. 8" DuraPlus Flashing: By preventing water from penetrating the flashing and acting as a weatherproof barrier, it helps to keep the roof waterproof overall and maintains the structural integrity of the chimney system.

A whole and unique solution is the DuraVent 8" DuraPlus Cathedral Ceiling Support Box Kit. It discusses the pragmatic aspects of installing chimneys and emphasizes a sophisticated and cohesive style for cathedral ceiling arrangements. This kit demonstrates DuraVent's dedication to offering a dependable and comprehensive chimney system built specifically for installations in cathedral ceilings.


Features:

  • Triple-wall chimney
  • Clean, smooth exterior finish
  • 2" clearance to combustibles
  • Outer diameter is 4" larger than inner diameter
  • Free-floating inner 430-alloy liner maintains structural integrity in chimney fires
  • For uses with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas

Specifications:

  • Size: 8" Inner Diameter
  • Material: Stainless Steel | Aluminum | Galvanized
  • Fuel Type: Coal, Oil, Wood, Gas
  • UL Listed: UL-103-HT
  • Vent Construction: Triple Wall
  • Type: Kit

Downloads:


How to Install DuraPlus Chimney Pipe Kits using Ceiling Support Box?

A DuraPlus Ceiling Support Pipe Kit is an essential choice for anyone looking to install a chimney system that combines safety, efficiency, and aesthetic appeal. With this kit, you ensure a robust and secure chimney setup, providing a long-lasting, reliable solution for your home heating needs. By following the installation steps outlined below, you’ll maximize your chimney’s performance and protect your home for years to come. The DuraPlus Ceiling Support Kit is available in 6-Inches, 7-Inches and 8-Inches.

Why Invest in a Ceiling Support Pipe Kit?

  • Unmatched Stability: The ceiling support pipe kit offers superior stability, ideal for multi-story homes and applications where safety is paramount. It ensures your chimney remains firmly in place, even in extreme weather conditions.
  • Enhanced Safety Features: This kit incorporates critical safety components like Firestop Radiation Shields and Attic Insulation Shields, safeguarding your home from potential hazards while complying with building codes.
  • Versatile and Customizable: Whether you need square or round support boxes, this kit offers flexibility, making it adaptable for different ceiling types, including cathedral ceilings. With various trim options, you can also enhance your chimney's appearance to complement your home’s aesthetic.

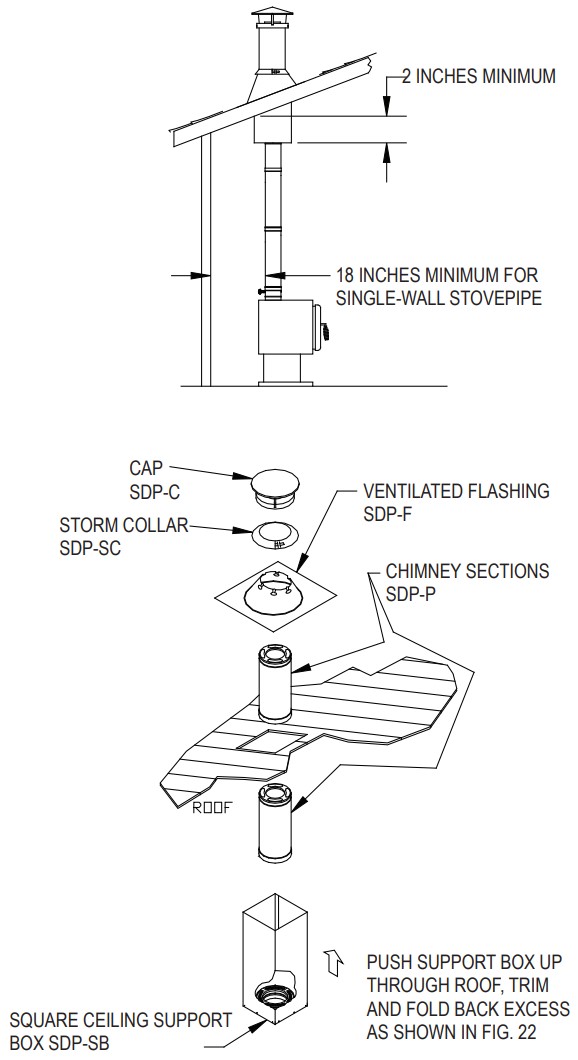

Step-by-Step Installation Guide

  1. Place the Appliance: Begin by positioning your appliance according to the manufacturer’s guidelines, ensuring the flue outlet collar aligns perfectly between the rafters or joists. This alignment is crucial for a secure and efficient chimney installation.
  2. Frame the Support Opening: Use a plumb bob to mark the center of the flue outlet on the ceiling, then cut a hole according to the support box type—square or round. Frame a level, sturdy opening around the hole to provide a stable base for the support.
  3. Install the Support: Slip the Support Box into the framed opening, ensuring it extends at least 2 inches below the finished ceiling. Secure the box with 8-penny nails and attach the trim frames for a polished look. With brass trim options available, you can elevate the appearance of your installation.
  4. Frame Openings for Firestop and Attic Insulation Shields: Frame openings in each ceiling or floor above the Support Box to hold the Firestop Radiation Shield and Attic Insulation Shield. This ensures your chimney maintains necessary clearances and complies with safety regulations.
  5. Cut the Roof Opening: To accommodate the chimney, cut an opening in the roof that’s at least 4 inches larger than the chimney’s diameter. This allows for a 2-inch clearance to combustibles. If the chimney passes between closely spaced rafters, use Close Clearance Shields to avoid structural reframing.
  6. Install Firestop Radiation Shield: Depending on whether your home is a two-story or multi-story building, install the Firestop Radiation Shield accordingly. This shield is vital for maintaining safety where the chimney passes through floors, providing a secure barrier between the chimney and surrounding materials.
  7. Assemble Chimney Sections: Lower the first chimney section into the Support Box, twist-locking it securely. While sheet metal screws can reinforce the connection, they are generally not required. This step ensures the stability of your chimney system.
  8. Install the Attic Insulation Shield: Where the chimney enters the attic, the Attic Insulation Shield prevents debris and insulation from coming into contact with the chimney. For spaces where a standard shield won’t fit, the Square Support Box can double as an Insulation Shield, providing both flexibility and safety.
  9. Attach Flashing: Properly seal the chimney by attaching flashing above the roofline, ensuring a 2-inch clearance from combustibles. Seal all nail heads and apply waterproof sealant for long-lasting protection against the elements.
  10. Finish the Top: Apply high-temperature, non-hardening sealant around the chimney where the Storm Collar meets the Flashing. Install the Chimney Cap to prevent debris and weather from entering, and secure it firmly for stability. In areas with heavy snowfall, consider adding a splitter (fabricated separately) to divert snow around the chimney.
  11. Enclose the Chimney in Occupied Spaces: When the chimney passes through occupied areas, such as closets or living spaces, build enclosures to maintain a 2-inch clearance from combustibles. Use wall straps as needed to secure the chimney and ensure proper airflow.

Investing in a ceiling support pipe kit is a strategic move to guarantee a safe and efficient chimney installation. By following this detailed guide, you’ll not only secure your chimney but also enhance your home’s safety, efficiency, and aesthetics. Whether you’re building a new or upgrading an existing system, choose the ceiling support pipe kit for a reliable and worry-free installation.

Manufacturer's Warranty

DURAVENT LIMITED LIFETIME WARRANTY
DuraVent, Inc. (“DuraVent”) provides this limited lifetime warranty for all of its products with the exception of Ventinox® (lifetime), and PolyPro® (ten years). Subject to the limitations set forth below, DuraVent warrants that its products will be free from defects in material or manufacturing, if properly installed, maintained and used. DuraVent products are fully warranted if installed only by a professional installer. This Warranty is transferable from the original homeowner to the buyer of the home. This warranty does not cover normal wear and tear, smoke damage or damage caused by chimney fires, acts of God, or any product that was: (1) purchased other than from an authorized DuraVent dealer, retailer or distributor; (2) modified or altered; (3) improperly serviced, inspected or cleaned; or (4) subject to negligence or any use not in accordance with the installation instructions included with the product as determined by DuraVent. Installation instructions are available online at www.duravent.com under Support/Literature and through our Customer Service Department 800-835-4429 or customerservice@duravent.com. This limited lifetime warranty applies only to parts manufactured by DuraVent.

DuraVent provides the following warranties for its products: One Hundred Percent (100%) MSRP 15 years from the date of purchase, and Fifty Percent (50%) thereafter, except for the following limitations on: all Termination Caps and DuraBlack® are warranted at One Hundred Percent (100%) for five years. All warranty obligations of DuraVent shall be limited to repair or replacement of the defective product pursuant to the terms and conditions applicable to each product line. These remedies shall constitute DuraVent’s sole obligation and sole remedy under this warranty. This warranty provides no cash surrender value. The terms and conditions of this warranty may not be modified, altered or waived by any action, inaction or representation, whether oral or in writing, except upon the express, written authority of an executive officer of DuraVent.

Corn, bio-fuels, driftwood or other wood containing salt, preservative-treated lumber, plastic and household trash or garbage, or wood pellets containing such materials must not be burned in the appliance or fireplace. In case of a chimney fire, the chimney must be inspected and approved by a certified Chimney Sweep before reuse. After each annual inspection, maintenance, and cleaning, the certified Chimney Sweep must fill out and date the appropriate section of the warranty card provided with the chimney liner.

LIMITATIONS ON INTERNET SALES:
Notwithstanding any other terms or conditions of this Limited Lifetime Warranty, DuraVent provides no warranty for the following specific products if such products are not installed by a qualified professional installer: DuraTech®, DuraPlus HTC®, DuraChimney® II, PelletVent Pro®, DirectVent Pro®, FasNSeal®, FasNSeal® W2, FasNSeal® Flex, and PolyPro®, and DuraVent’s relining products including DuraLiner®, DuraFlex® (SW, Pro, 316, 304), and Ventinox®. For purposes of this warranty, a trained professional installer is defined as one of the following: licensed contractors with prior chimney installation experience, CSIA Certified Chimney Sweeps, NFI Certified Specialists, or WETT Certified Professionals.
