Masonry Corner Fireplace Door With Door Rails And Keystone

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Opening Size: Up To 33"W and Up To 34"H

=:

$5,866.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 5-7 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.

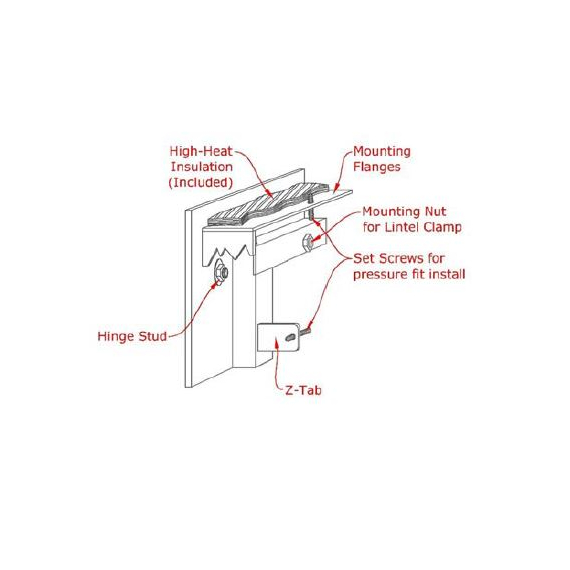

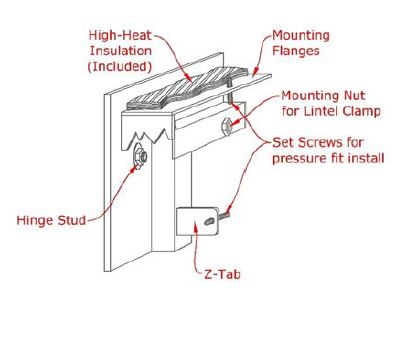

Z-tabs welded on to main frame are an optional method of mounting when lintel clamps are not applicable. Flanges are recommended for rough or irregular fireplaces!
WRITE I AGREE
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
Available
+

The Denali masonry corner fireplace door turns your ordinary, oblique firebox into something unique and eye-catching! The mainframe is rectangular and custom-built from sturdy 7 gauge steel to your size specifications. Cabinet doors mimic a curved opening and give the illusion of an arched masonry fireplace - no remodeling required! Old world style banding with rivets adorns the enclosure, with a decorative keystone centered at the peak of the frame. Rail accents are placed at the bottom of the tempered safety glass panels. Blacksmith handles add charm to this rustic fireplace door; however, there are three more handle styles for you to choose from. The overlap or inside fit frame can be created with or without a damper. Select grey, clear, or bronzed tinted glass to compliment your choice of powder coat finishes. Installation is a breeze with the included hardware. We're even including cabinet mesh to keep sparks and embers inside your firebox where they belong!


Denali Arch Conversion Masonry Fireplace Door Features Product Features and Benefits:

  • The Denali glass fireplace door is for masonry applications ONLY
  • Enclosure ships for free; please allow 4 to 6 weeks for production
  • 5-year warranty on workmanship and material only; 1-year glass warranty
  • Available as an overlap or inside fit frame with or without a draft assembly
  • 7 gauge steel bar stock frame is 4 inches wide and 3/16 inch deep

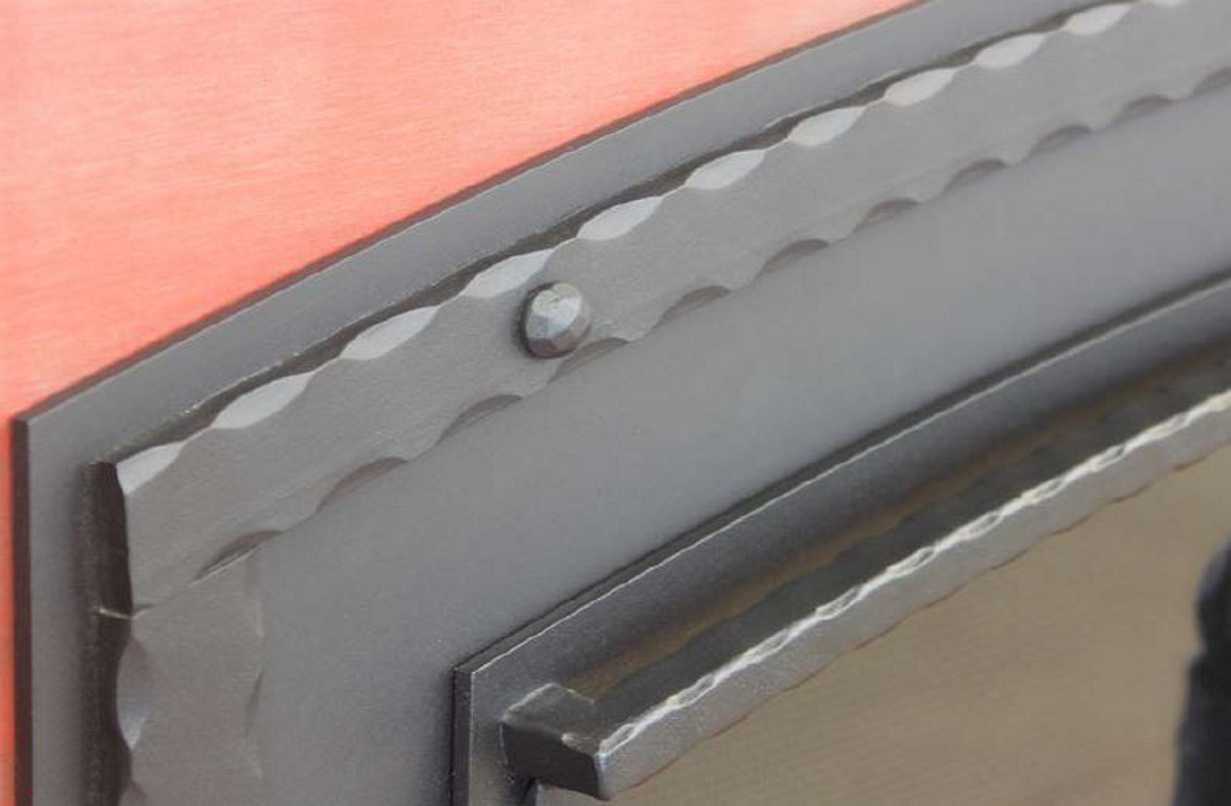

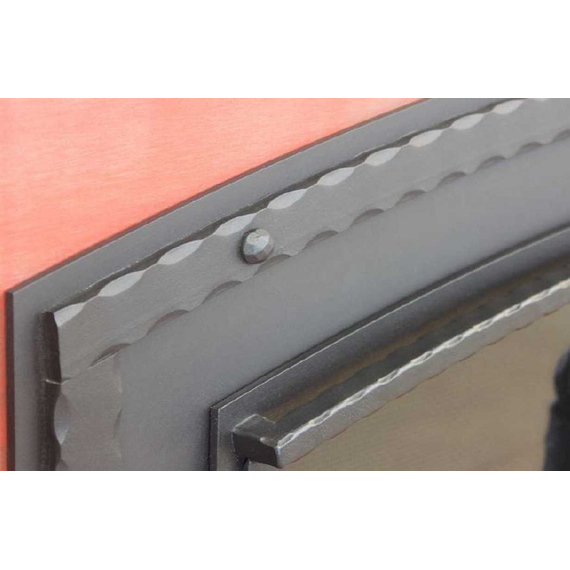

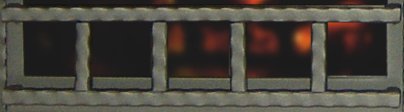

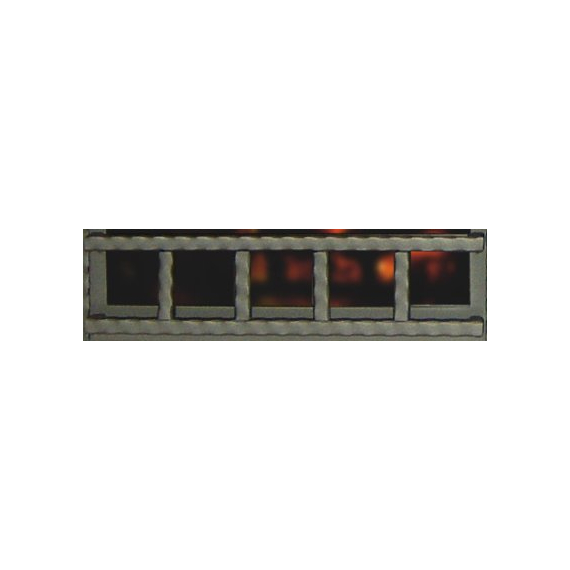

  • Decorative hallmarks of this door include banding, rivets, keystone applique, and door rails
  • 1/4 inch tempered glass comes in grey, bronze, or clear glass
  • Cabinet doors feature a center bar with your choice of 4 decorative handle styles
  • Cabinet mesh is optional; alternative styles available

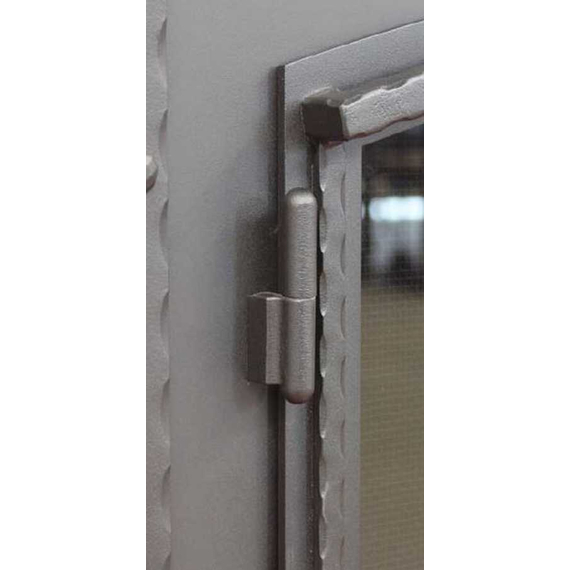

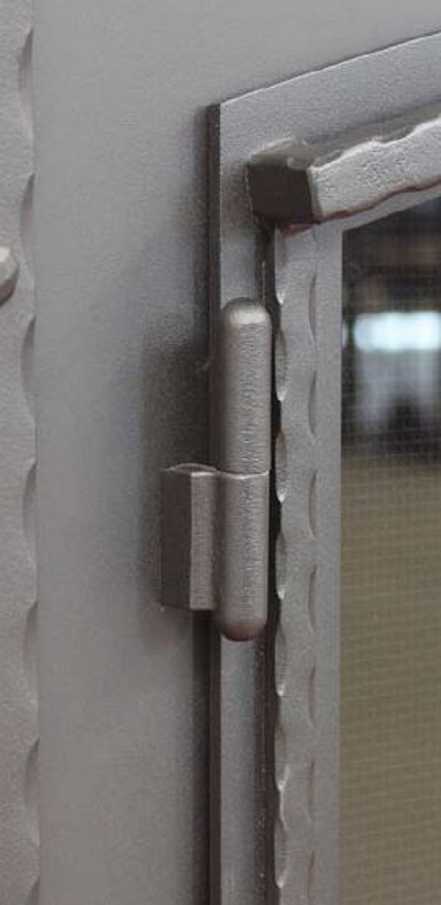

  • Bullet style hinges coordinate with banding and rivet accents
  • Door comes fully assembled with included mounting hardware
  • Spark protection is available as an upgrade as well



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Denali Arch Conversion Masonry Fireplace Door Specifications Product Specifications:

  • Door Fit: Overlap | Inside

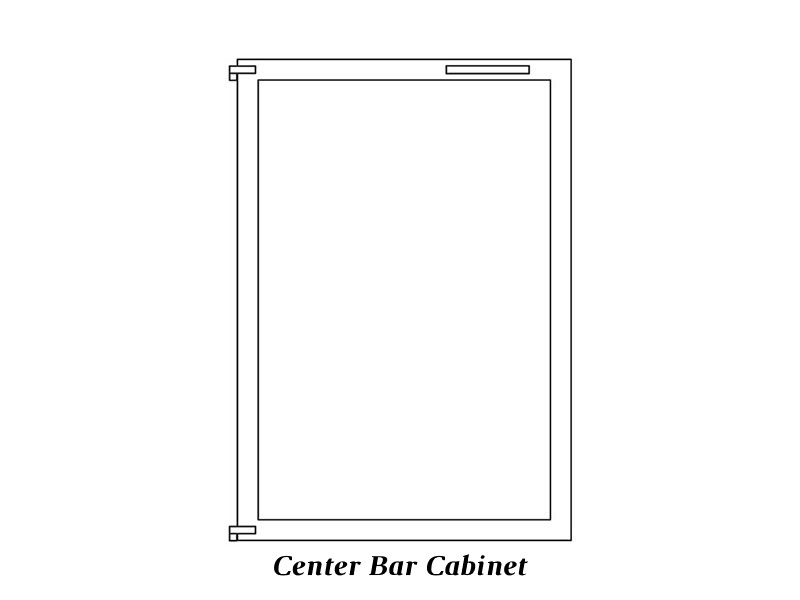

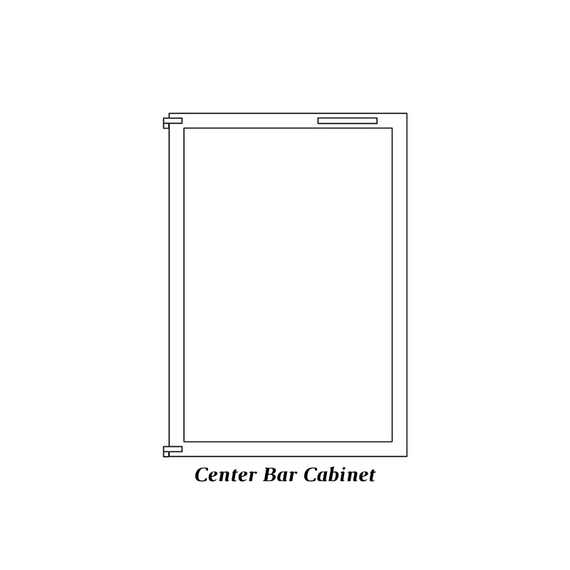

  • Door Type: Cabinet Doors with Center Bar and Rails

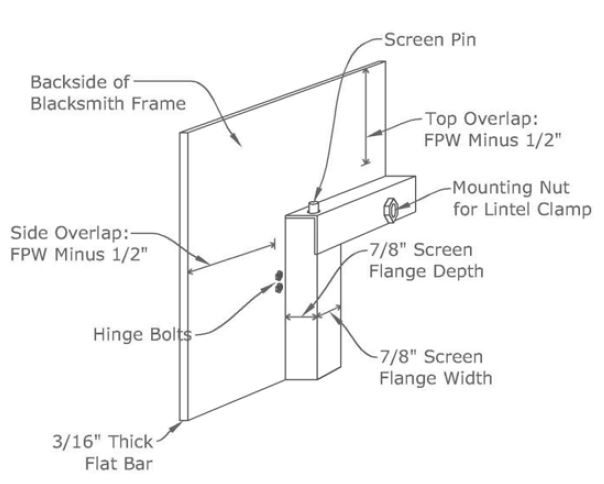

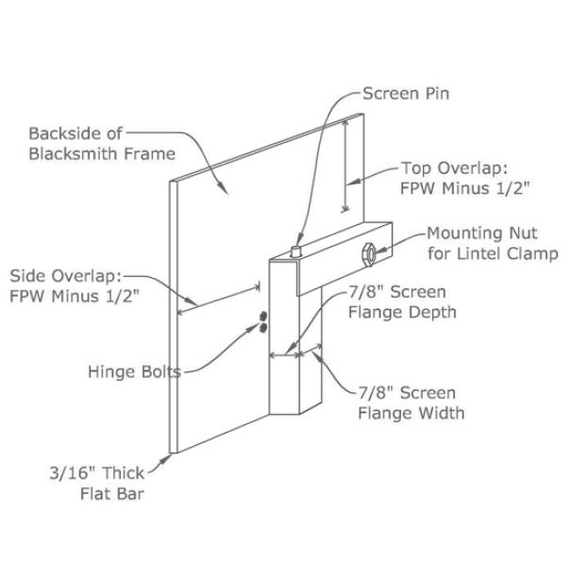

  • Material: 4" Wide x 3/16" Deep 7 Gauge Steel Bar Stock Frame
  • Approximate Overlap: 3 1/2"
  • Recessed Depth: 2 Inch = The Portion Of The Door That Fits Inside The Opening When Installed As Overlap Fit! - Does NOT Apply To Sliding Mesh And Gate Mesh Doors
  • Glass: 1/4" Tempered Safety Glass
  • Tempered Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: Upgrade Available
  • Spark Protection: Optional

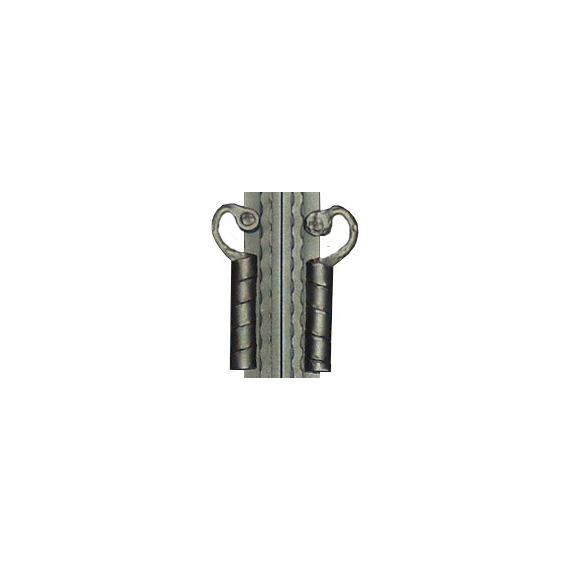

  • Handle Style: Blacksmith | Contemporary | Strap | Craftsmen
  • Hinge Style: Bullet
  • Damper: None | Draft Assembly
  • Airtight Option: NA
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
